780C Multi-Interface Interoperability Tester – User Guide

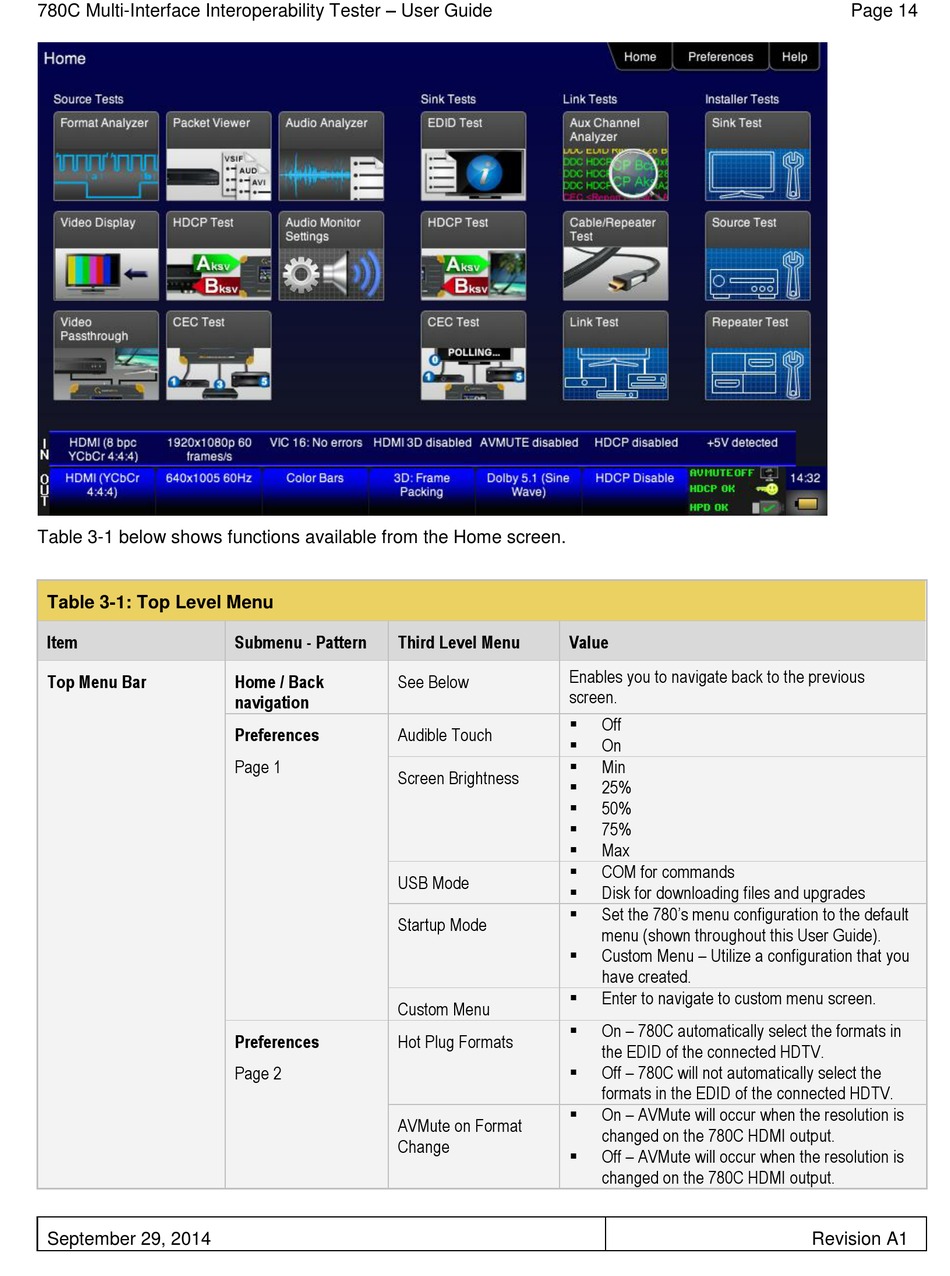

Table 3-1 below shows functions available from the Home screen.
Table 3-1: Top Level Menu
Item
Top Menu Bar
September 29, 2014
Submenu - Pattern Third Level Menu
Home / Back See Below
navigation
Preferences Audible Touch
Page 1
Screen Brightness
USB Mode
Startup Mode
Custom Menu
Preferences Hot Plug Formats
Page 2
AVMute on Format
Change
Value
Enables you to navigate back to the previous
screen.
Off

On

 Min
25%

50%

75%

 Max
COM for commands

Disk for downloading files and upgrades

Set the 780's menu configuration to the default

menu (shown throughout this User Guide).
Custom Menu – Utilize a configuration that you

have created.
Enter to navigate to custom menu screen.

On – 780C automatically select the formats in

the EDID of the connected HDTV.
Off – 780C will not automatically select the

formats in the EDID of the connected HDTV.
On – AVMute will occur when the resolution is

changed on the 780C HDMI output.
Off – AVMute will occur when the resolution is

changed on the 780C HDMI output.
Page 14
