780C Multi-Interface Interoperability Tester – User Guide

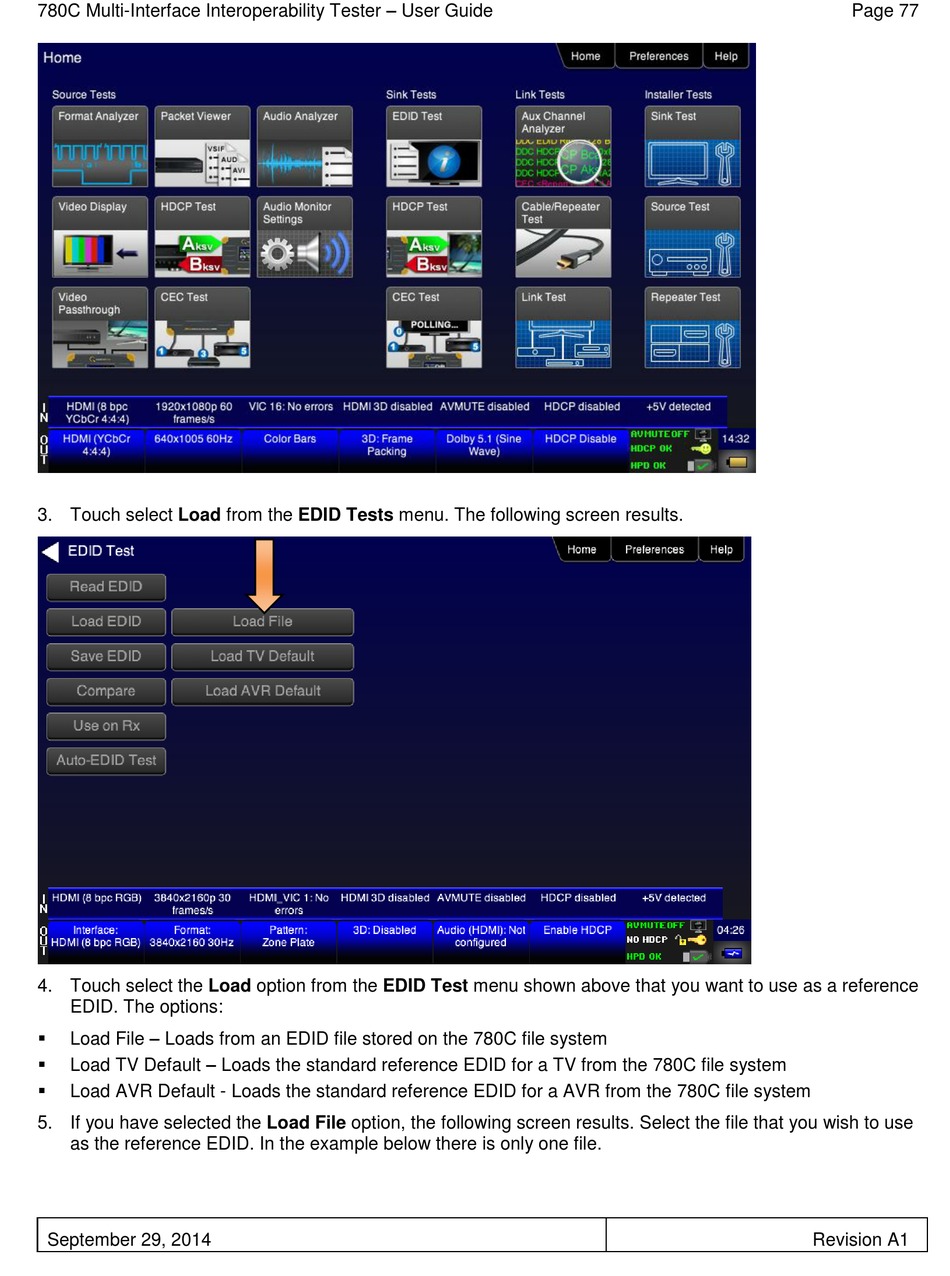

3. Touch select Load from the EDID Tests menu. The following screen results.
4. Touch select the Load option from the EDID Test menu shown above that you want to use as a reference
EDID. The options:
 Load File – Loads from an EDID file stored on the 780C file system
 Load TV Default – Loads the standard reference EDID for a TV from the 780C file system

Load AVR Default - Loads the standard reference EDID for a AVR from the 780C file system
5. If you have selected the Load File option, the following screen results. Select the file that you wish to use
as the reference EDID. In the example below there is only one file.
