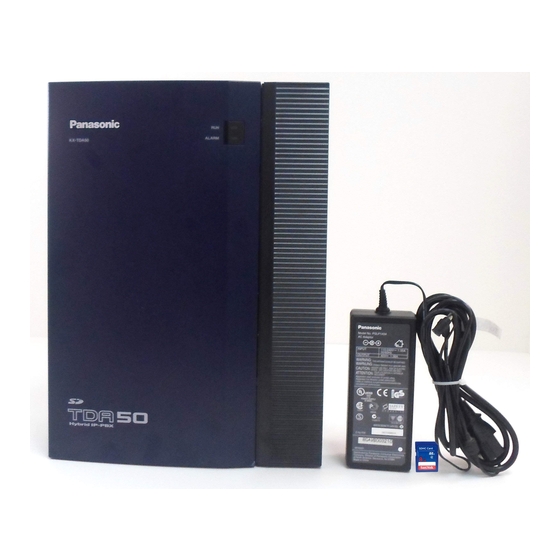

Panasonic KX-TDA50 Programming Manual

Hybrid ip-pbx
Hide thumbs Also See for KX-TDA50:
1
2
3
Table Of Contents
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
Table of Contents

Advertisement

Quick Links

See also: Pc Programming Manual , Programming Manual
Hybrid IP-PBX
PC Programming Manual
KX-TDA50/KX-TDA100
KX-TDA200/KX-TDA600
Model
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 3.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 3.0000 or later
KX-TDA600: PLMPR Software File Version 3.0000 or later
Document Version: 2006-02

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TDA50

Summary of Contents for Panasonic KX-TDA50

  • Page 1 Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-TDA50: PSMPR Software File Version 3.0000 or later KX-TDA100/KX-TDA200: PMPR Software File Version 3.0000 or later KX-TDA600: PLMPR Software File Version 3.0000 or later...
  • Page 2 About this Programming Manual The PC Programming Manual is designed to serve as a system programming reference for the Panasonic Hybrid IP-PBX. It explains how to program this PBX using the KX-TDA Maintenance Console software. The PC Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.
  • Page 3 Some optional service cards, PTs, and features are not available in some areas. Additionally, some optional service cards and features are not available for some PBX models. Please consult your certified Panasonic dealer for more information. • Product specifications are subject to change without notice.

  • Page 4: Table Of Contents

    Tool—Programmer Code Change ..................40 2.4.7 Tool—Screen Customize—User Level/Administrator Level..........41 2.4.8 Tool—System data Convert (KX-TDA50/KX-TDA100/KX-TDA200 only) ......41 2.4.9 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) ....42 2.4.10 Tool—Simplified Voice Message—Check Current Usage (KX-TDA50 only) ....42 2.4.11 Tool—Profile Setup ......................43 2.4.12 Tool—Profile Editor ......................43 Utility ..........................46...
  • Page 5 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) ..199 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) ..201 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only)............203 2.7.29 [1-1] Slot—DPH Port Command (KX-TDA50 only) ............206 2.7.30 [1-2] Portable Station ..................... 207 2.7.31 [1-3] Option ........................211 2.7.32 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) ...........
  • Page 6 2.8.1 [2-1] Date & Time/Daylight Saving ................. 214 2.8.2 [2-1] Date & Time/Daylight Saving—Date & Time Setting ..........215 2.8.3 [2-2] Operator & BGM ....................216 2.8.4 [2-3] Timers & Counters ....................218 2.8.5 [2-4] Week Table ......................240 2.8.6 [2-4] Week Table—Time Setting..................240 2.8.7 [2-5] Holiday Table......................
  • Page 7 2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button Data Copy......514 2.10.15 [4-2-4] Portable Station—NDSS Link Data - Send............514 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only)......515 2.10.17 [4-3] DSS Console—Flexible Button ................517 2.10.18 [4-3] DSS Console—Flexible Button—Flexible button Data Copy ......... 530 2.11...
  • Page 8 2.16 [10] CO & Incoming Call ....................596 2.16.1 [10-1] CO Line Settings....................596 2.16.2 [10-2] DIL Table & Port Settings ..................598 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) ........609 2.16.4 [10-3] DID Table—Automatic Registration (KX-TDA100/KX-TDA200/KX-TDA600 only) ..612 2.16.5 [10-3] DID Table—Name Generate (KX-TDA100/KX-TDA200/KX-TDA600 only) ..

  • Page 9: Overview

    Section 1 Overview This section provides an overview of programming the PBX. PC Programming Manual...

  • Page 10: Introduction

    These programming instructions are designed to serve as an overall system programming reference for the Panasonic Hybrid IP-PBX. Each feature in the PBX has default settings that can be changed to customize the PBX to your requirements. These settings control the functions of the PBX, and changing them is referred to as "system programming".
  • Page 11 1.1 Introduction PC Programming Manual...

  • Page 12: Pc Programming

    Installing and Starting the Maintenance Console System programming, diagnosis and administration can be performed with a PC using the Maintenance Console (KX-TDA50: KX-TDA50 Maintenance Console; KX-TDA100/KX-TDA200: KX- TDA Maintenance Console; KX-TDA600: KX-TDA600 Maintenance Console). This section briefly describes how to install and start the Maintenance Console when the PC and the PBX are connected by USB cable.
  • Page 13 1.2 PC Programming Installing the Maintenance Console Notes • To install or uninstall the software on a PC running Windows 2000 Professional or Windows XP Professional, you must be logged in as a user in either the "Administrators" or "Power Users"...
  • Page 14 1.2 PC Programming 4. Enter the Installer Level Programmer Code (default: INSTALLER). The Programmer Code authorizes different programming levels, and the Quick Setup is only available when you start the KX-TDA Maintenance Console with the Installer Level Programmer Code. Note There are 2 other Programmer Codes with limited authorization: Administrator Level (default: ADMIN), and User Level (default: USER).

  • Page 15: Password Security

    1.2 PC Programming before resetting the PBX or turning off the power, or (2) exit the Maintenance Console so that the PBX automatically saves the system data. When the PBX is initialized, not all data is taken from the SD Memory Card. The data for present status of extension FWD/DND buttons is taken from battery backup memory in the PBX.
  • Page 16 1.2 PC Programming If a system password is forgotten, it can be found by loading a backup of the system data into a PC, and checking the password using the Maintenance Console software. If you do not have a backup of the system data, you must reset the PBX to its factory defaults and reprogram it.

  • Page 17: Kx-Tda Maintenance Console Operating Instructions

    Section 2 KX-TDA Maintenance Console Operating Instructions This section serves as reference operating instructions when using the KX-TDA Maintenance Console software to program the PBX. PC Programming Manual...

  • Page 18: Introduction

    2.1 Introduction Introduction 2.1.1 Starting Maintenance Console and Software Modes Every time Maintenance Console is started, a dialog box will appear. From here, you can enter any of the 3 available software modes. • Initial mode Initial mode describes the state when Maintenance Console is not connected to the PBX, and no data files are open.
  • Page 19 2.1 Introduction Enter the system password for the PBX. Click Setup. Specify the settings as required. For more details, see the tables below. Click OK. Click OK. Maintenance Console will start, and automatically connect to the PBX. If this is the first time that Maintenance Console has connected to the PBX, and the date and time of the PBX have not yet been set, the Quick Setup wizard will run.

  • Page 20: Access Levels

    2.1 Introduction Connection Settings for LAN (KX-TDA100/KX-TDA200/KX-TDA600 only) Setting Values Explanation IP Address 1.0.0.0– Specify the IP address of the PBX on the LAN. 223.255.255.255 Enter the same IP address that was input in IP Address of 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only).
  • Page 21 Initial Batch Interactive SD memory backup NDSS Link Data Clear Simplified Voice Message→Delete All Recordings (KX-TDA50 only) Simplified Voice Message→Check Current Usage (KX-TDA50 only) Extension list View Import→Feature - Speed Dial and Caller ID Import→Incoming Call - DID Table (KX-...
  • Page 22 Export→ARS - Routing Plan Programmer Code Change→User Level Programmer Code Change→Administrator Level Programmer Code Change→Installer Level Screen Customize→User Level Screen Customize→Administrator Level Profile Setup System data Convert (KX-TDA50/KX- TDA100/KX-TDA200 only) Utility Menu Option Initial Batch Interactive Diagnosis File Transfer PC to PBX (SD Card)
  • Page 23 2.1 Introduction Utility Menu Option Initial Batch Interactive Error Log T1 Signaling Bit Monitor (KX-TDA100/KX- TDA200/KX-TDA600 only) T1 Line Trace (KX-TDA100/KX-TDA200/KX- TDA600 only) ISDN/QSIG Protocol Trace Digital Trunk Error Report (KX-TDA100/KX- TDA200/KX-TDA600 only) IP Extension Statistical Information (KX- TDA100/KX-TDA200/KX-TDA600 only) CS Information PS Information Timed Update (KX-TDA100/KX-TDA200/KX-...

  • Page 24: Software Interface

    2.1 Introduction Help Menu Option Initial Batch Interactive Help Additional Information About 2.1.3 Software Interface This section explains the functions of the various elements of the software interface. Main Window The window of the Maintenance Console software is divided into several areas, as shown below: PC Programming Manual...
  • Page 25 2.1 Introduction 1. Menu Bar Provides access to file management and connection options, as well as tools and utilities used in programming the PBX. For details, see Sections 2.2 File to 2.6 Help. 2. Tool Bar Provides easy access to commonly used software functions. Two tool bars are provided, as follows: •...
  • Page 26 2.1 Introduction • Tools Contains icons for backing up PBX data to the SD Memory Card, viewing extension information, and accessing Online Help. For details, see Sections 2.4.1 Tool—SD memory backup and 2.4.3 Tool—Extension List View. These menus can be positioned freely. Click and drag the title bar of a menu to move it to another position.

  • Page 27: Card Status

    2.1 Introduction Area Values Description PBX System Data Versionxxx-xxx Displays the version number of the Version system software installed to the PBX. The first 3 digits are the version number, and the last 3 digits are the revision number. 6. Main Screen Displays the screens selected from 4.

  • Page 28: Display Options

    2.1 Introduction For details about how to change the status of a card, see To change the status (INS/OUS) of a card (Interactive mode only) on screen 2.7.1 [1-1] Slot. 2.1.5 Display Options The View and Window menus provide options to control the display of items within the Maintenance Console.
  • Page 29 2.1 Introduction Value Range Matching extensions Available Column Specifies which fields in the original form to add extension data to. For example, if both extension numbers and names can be entered in the original form, it is possible to specify that extension name data not be transferred, by deselecting that field here.

  • Page 30: File

    For more details regarding file conversion, see 2.4.8 Tool—System data Convert (KX-TDA50/KX- TDA100/KX-TDA200 only). If the file is not supported by the PBX (e.g. a system data file from an incompatible PBX), it will not be opened.

  • Page 31: File-Close

    2.2 File If the file was created with an older version of the Maintenance Console, you will be asked if you want to convert the data. • Click Yes to convert the data for use with the current version of the Maintenance Console. Enter a name for the new converted system file.

  • Page 32: File-Exit

    2.2 File 2.2.6 File—Exit Closes the Maintenance Console. To exit the Maintenance Console • From the File menu, select Exit. If the system data file being modified has not been saved, a warning message will be displayed, giving you the option to save the file. •...

  • Page 33: Connect

    2.3 Connect Connect 2.3.1 Connect—RS-232C Connects to the PBX in Interactive mode through the serial RS-232C interface of the PBX. This option allows direct entry of connection parameters, for cases where the PC is used to connect to one or just a few PBXs, and an individual profile for each PBX is not necessary. If you connect to multiple PBXs and would prefer to choose from among pre-saved profiles instead, see 2.4.11 Tool—...

  • Page 34: Connect-Lan (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.3 Connect To connect to the PBX by USB From the Connect menu, select USB. The Login window will be displayed. Select a connection option. • Select the Use profile check box if you want to use a pre-saved profile. Select the profile to use from the drop-down list.

  • Page 35: Connect-Modem

    2.3 Connect Connection Settings for LAN (KX-TDA100/KX-TDA200/KX-TDA600 only) Setting Values Explanation IP Address 1.0.0.0– Specify the IP address of the PBX on the LAN. 223.255.255.255 Enter the same IP address that was input in IP Address of 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only).

  • Page 36: Connect-Disconnect

    2.3 Connect Connection Settings for Modem Setting Values Description Dial Type Auto(Tone), Specify the outgoing dialing method. Auto(Pulse), Manual If Manual is chosen, dialing must be done with a connected telephone. Comment – Enter a comment to identify the set of values. Port COMx Specify the number of the COM port assigned...

  • Page 37: Tool

    2.4 Tool Tool 2.4.1 Tool—SD memory backup Saves system data from the PBX to the SD memory card. Backup begins as soon as this option is chosen. To back up system data • From the Tool menu, select SD memory backup. 2.4.2 Tool—NDSS Link Data Clear Clears NDSS Link Data stored in the connected PBX.

  • Page 38: Tool-Import

    2.4 Tool Type Detail DPT-I/F CS PT-interface CS SVM Card To view extension information • From the Tool menu, select Extension List View. 2.4.4 Tool—Import Allows several types of system data files or tables to be imported. Except for Speed Dial and Caller ID, this option is only available at Installer level. The files from which data can be imported are files that were previously saved at this or another PBX using the Export tool (see 2.4.5 Tool—Export), or comma-separated value (CSV) files.
  • Page 39 2.4 Tool Incoming Call - DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Data Type Import Destination Reference Location Location 2.16.3 [10-3] DID Table (KX- TDA100/KX-TDA200/KX-TDA600 DID Number Dial In Number only) DID Name Dial In Name DID Destination-Day Destination-Day DID Destination-Lunch Destination-Lunch DID Destination-Break Destination-Break DID Destination-Night Destination-Night...

  • Page 40: Tool-Export

    For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX- TDA50/KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table from which to export the data (KX-TDA50: Basic Memory or Expanded Memory; KX-TDA100/KX-TDA200/KX- TDA600: system or tenant) from the drop-down list.

  • Page 41: Tool-Screen Customize-User Level/Administrator Level

    Select the check box beside the names of items you want to have displayed. Click OK. 2.4.8 Tool—System data Convert (KX-TDA50/KX-TDA100/KX- TDA200 only) Converts system data (DSYS/DSSYS) files created with a previous version of the Maintenance Console for use with the currently loaded version.

  • Page 42: Tool-Simplified Voice Message-Delete All Recordings (Kx-Tda50 Only)

    Click OK. 2.4.9 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) Deletes all voice messages recorded to SVM cards installed in the PBX. To delete voice messages From the Tool menu, point to Simplified Voice Message and select Delete All Recordings.

  • Page 43: Tool-Profile Setup

    2.4 Tool 2.4.11 Tool—Profile Setup Profiles are useful when one PC is used to connect to multiple PBXs. Rather than manually adjusting the connection settings each time a different PBX is accessed, it is possible to store the connection settings for several PBXs. Then, when you wish to connect to a specific PBX, you can simply choose that PBX's profile from the list.
  • Page 44 2.4 Tool The Profile Setup window (2.4.11 Tool—Profile Setup) will be displayed. Click New or Edit. The Profile Editor window will be displayed. Enter a name for this profile. Enter the system password used to connect to the PBX. Select the default connection method. Enter the detailed connection method settings as required.
  • Page 45 2.4 Tool Connection Settings for LAN (KX-TDA100/KX-TDA200/KX-TDA600 only) Setting Values Explanation IP Address 1.0.0.0– Specify the IP address of the PBX on the LAN. 223.255.255.255 Enter the same IP address that was input in IP Address of 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only).

  • Page 46: Utility

    The tests that are performed on each card are as follows: A check mark indicates that the test is available for that card. KX-TDA50 Local loop back diagnosis Card CT Bus diagnosis...
  • Page 47 2.5 Utility KX-TDA100/KX-TDA200/KX-TDA600 Local loop back diagnosis Card CT Bus diagnosis (KX- TDA100/KX-TDA200 only) DTMF Receive test port PT loop back diagnosis Caller ID Card DTMF Sending Out Diagnosis DSP DTMF generator/receiver diagnosis DSP DTMF receiver diagnosis Framer IC alarm signal detection diagnosis Framer IC error detection diagnosis...
  • Page 48 Click on the Status cell of the card to be tested, and set it to "OUS". With the KX-TDA50, to perform the EXT-CID path test, set the status of both the EXT-CID card and the card in slot 1 to "OUS".

  • Page 49: Utility-File Transfer Pc To Pbx (Sd Card)

    Attempting to transfer any other type of file results in an error message. The names of all files that can be stored on the SD memory card are as follows: Main Program KX-TDA50 Name on SD Memory Card Corresponding Card...
  • Page 50 2.5 Utility KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card PMPR PMPR_SUB MPR* *: PMPR-file-format data that is transferred to the PBX from the PC is saved as "PMPR_SUB". KX-TDA600 Name on SD Memory Card Corresponding Card PLMPR EMPR PLMPR_S EMPR* *: PLMPR-file-format data that is transferred to the PBX from the PC is saved as "PLMPR_S".

  • Page 51: System Data

    PCS24G CS for 2.4 GHz Portable Station (KX-TDA100/KX- TDA200/KX-TDA600 only) PDCS24G CS for 2.4 GHz Portable Station System Data KX-TDA50 Name on SD Memory Card Corresponding Card DSSYS DSSYS_S MPR* *: DSSYS-file-format data that is transferred to the PBX is saved as "DSSYS_S".
  • Page 52 2.5 Utility KX-TDA50 Name on SD Memory Card Corresponding Card DSIDHLC DHLC4 DSIHLC HLC4 DSIPLC PLC4/PLC8 DSISLCLC SLC4/SLC8 DSIDLC DLC4/DLC8 DSILCOT LCOT4 DSIEIO DPH4 DSIIPGW IP-GW4 KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card DINI DIDHLC DHLC8 DISLC SLC8 DIDLC...

  • Page 53: Utility-File Transfer Pbx (Sd Card) To Pc

    Copies system data files from the SD memory card installed in the PBX to the connected PC. This option is only available at Installer level. The files that can be downloaded from the SD memory card are as follows: File Name File Type DSSYS (KX-TDA50) System Data DSYS (KX-TDA100/KX-TDA200) DLSYS (KX-TDA600) $SYSERR Error Data $SYSERR1–$SYSERR9...

  • Page 54: Utility-Sd Card File View And Load

    2.5 Utility File Name File Type DSKEYSD (KX-TDA50) Feature Access DKEYSD (KX-TDA100/KX-TDA200) DLKEYSD (KX-TDA600) Downloading the DSYS/DSSYS/DLSYS system data file allows you to make a backup of the configuration of the PBX. The error data files are snapshots of the configuration of the PBX taken automatically when a major error causes a system reset.

  • Page 55: Utility-Sd Card File Delete

    KX-TDA100/KX-TDA200/KX-TDA600, the OPB card that it is mounted on must be set to OUS status. For the KX-TDA50, the MSG card must be set to OUS status. Files are stored on the MSG card in the location specified by the file's header information. Uploaded files are automatically renamed as necessary.

  • Page 56: Utility-Message File Transfer Pbx To Pc

    This option is only available at Installer level, and requires that at least 1 MSG card is installed. For the KX-TDA100/KX-TDA200/KX-TDA600, the OPB card that it is mounted on must be set to OUS status. For the KX-TDA50, the MSG card must be set to OUS status. To transfer OGMs to the PC From the Utility menu, select Message File Transfer PBX to PC.
  • Page 57 4: Expansion Shelf 3 • YY: Slot number KX-TDA50: 00 to 11 (00: MPR slot; 01: Fixed slot, 02 to 04: Free slot type A, 05 to 07: Free slot type B, 08 to 11: Option slot) KX-TDA100: 00 to 06 (00: MPR slot; 01 to 06: Free slot) KX-TDA200: 00 to 11 (00: MPR slot;...

  • Page 58: Utility-T1 Signaling Bit Monitor (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    For a list of common errors and solutions, see "4.1.5 Troubleshooting by Error Log" in the KX- TDA600 Installation Manual", 4.1.5 Troubleshooting by Error Log" in the KX-TDA100/KX-TDA200 Installation Manual, or "4.1.5 Troubleshooting by Error Log" in the KX-TDA50 Installation Manual. To view the error log •...

  • Page 59: Utility-Isdn/Qsig Protocol Trace

    2.5 Utility Information is saved as a text-format file. • Click Clear to erase the information. 2.5.11 Utility—ISDN/QSIG Protocol Trace This utility collects protocol trace data from PRI or IP-GW cards, and displays it on the PC. This option is only available at Installer level, and requires that the target PRI or IP-GW card be set to INS status.

  • Page 60: Utility-Ip Extension Statistical Information (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.5 Utility Item Description Counter of Digital Trunk Out of SYNC (#300) Digital CO line out of sync (Loss of Error Logs logged in Signal) Minor Error Log RAI (#301) Digital CO line RAI signal reception AIS (#302) Digital CO line Alarm Indication Signal reception Frame Failure (#300) Digital CO line frame failure (Loss of...

  • Page 61: Utility-Cs Information

    When an extension number is not registered, the display shows "OFF". PSs can use up to 3 paths (KX-TDA100/KX-TDA200/KX- TDA600) or 2 paths (KX-TDA50). Group Call Number of PSs registered to the attached CS that are members of a PS Ring Group.

  • Page 62: Utility-Ps Information

    2.5 Utility To view CS information From the Utility menu, select CS Information. From the Target CSI/F Slot No drop-down list, select the target slot. • To display information on a single card, select the slot number and name of that card. •...

  • Page 63: Utility-System Reset-Reset By The Command

    2.5 Utility This utility does not apply to CS programs. These must be updated manually using the SD Card File View and Load utility (see 2.5.4 Utility—SD Card File View and Load). When this utility has been set, all commands that would affect the status of cards are prevented from operating.
  • Page 64 2.5 Utility 2 copies of each of the main system files can be stored on the SD memory card. The names of these files are as follows: KX-TDA50 File Name Description DSSYS Main system data file. Contains all of the current configuration data for the PBX.

  • Page 65: Utility-Flash Rom Id Information

    2.5 Utility • Click SD Backup to back up the current system data to the SD memory card before proceeding. Select this if you intend to use the current system data unchanged after reset. • Click Skip to continue without backing up. Select this if you intend to replace the current system data with data that was uploaded from the PC.

  • Page 66: Help

    Is the USB cable firmly connected to both the PC and the PBX? • Is the USB driver on the PC running? To confirm, open the Windows Device Manager, and look for "Panasonic KX-TDA USB Main Unit driver" in the USB Controllers section. If it is not present, re-install the USB driver.
  • Page 67 2.6 Help The Maintenance Console cannot connect to the PBX via modem. • Is the dial number of the modem correct? For more details, see 2.17.1 [11-1] Main. • Has a modem been installed to the PBX? • Are the modem settings of the PBX and Maintenance Console correct? For more details, see 2.17.1 [11-1] Main.
  • Page 68 2.6 Help • Is the card installed in the appropriate slot? • Is the card installed in the correct slot, but not functioning correctly? Check the condition of the card. • Is the card itself in INS status? Set it to INS status. •...
  • Page 69 2.6 Help If I delete the extension number of a Portable Station, and then turn the Portable Station off and back on again, it does not function correctly. • Do not delete the extension number of the Portable Station, as this information is necessary for it to operate.
  • Page 70 2.6 Help • Perform the following steps: Confirm that the Numbering Plan you will change is not currently being used by any extensions (see 2.4.3 Tool—Extension List View). If it is being used by extensions, temporarily change the extension numbers of those extensions to that of another numbering plan, or delete the extension number (see 2.10.1 [4-1-1] Wired Extension—Extension Settings and 2.10.10 [4-2-1] Portable Station—Extension Settings).
  • Page 71 2.6 Help • Perform the following steps: Open the 2.8.8 [2-6-1] Numbering Plan—Main screen. Change the value in the Dial cell of the desired feature. Click Apply. I cannot change a feature number. • It is not possible to use the same number for 2 items. The number you are trying to store cannot be used if it is already being used by: •...
  • Page 72 2.6 Help Modified settings are not saved even when I press the Apply button. • To save the system data files, choose Save from the File menu. If I reset the PBX directly after modifying settings, the modified settings are not updated in the PBX.

  • Page 73: Setting Features

    2.6 Help • The following setting data is not saved to the SD memory card, so will be deleted when the PBX is initialized. This data is stored in the PBX's battery backup memory. • Incoming Call Log • Outgoing Call Log (including Last Number Redial) •...
  • Page 74 2.6 Help • From the 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) screen, set the Port Type of the port you want to use to either "QSIG-Slave" or "QSIG- Master". How do I change the type of an extension port? • Set the port to OUS status.
  • Page 75 2.6 Help • CO line calls made by extensions can be restricted from the 2.8.12 [2-7-2] Class of Service—External Call Block screen. Click in the relevant cells to select the trunk groups that cannot be used by extensions associated with a particular COS in each time mode.
  • Page 76 2.6 Help I cannot set system speed dialing numbers from PC Console. • Set the COS of the extension to which PC Console is connected to Manager class, by setting Manager on the Extension Feature tab of the 2.8.11 [2-7-1] Class of Service— COS Settings screen to "Enable".

  • Page 77: 1] Configuration

    2.7 [1] Configuration [1] Configuration 2.7.1 [1-1] Slot The operating characteristics associated with each service card can be programmed. Move the mouse pointer over an installed card to display the menu of options for that card. To view a summary of status and MPR versions for all cards installed in the PBX, click the Summary button (see 2.7.2 [1-1] Slot—Summary).
  • Page 78 A menu will be shown under the mouse pointer. Select Option Card. The OPB3 Option Card Setup screen will be displayed. See 2.7.26 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only). Slot Type (KX-TDA50 only) Indicates the type of each slot (reference only). Default Not applicable.
  • Page 79 Other slots: Not stored. KX-TDA600 Slot 11: EMPR (Main Processing Card: fixed) Other slots: Not stored. Value Range Card Type for KX-TDA50: DLC4: 4-Port Digital Extension Card DLC8: 8-Port Digital Extension Card HLC4: 4-Port Hybrid Extension Card PLC4: 4-Port Proprietary Extension Card...
  • Page 80 IP-EXT16: 16-Port IP Proprietary Telephone Card EECHO16: 16-Channel Echo Canceller Card Maximum Quantity for KX-TDA50: Extension card: 3 (1 in the Free Slots Type A; 2 in the Free Slots Type B) CO Line card: 4 (3 in the Free Slots Type A; 1 in the Free Slots Type B)

  • Page 81: 1-1] Slot-Summary

    2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.19 [1-1] Slot—IP-GW Card Property 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) Feature Manual References None 2.7.2 [1-1] Slot—Summary Summary information is displayed for all cards installed in the PBX.
  • Page 82 Note that for MPR cards, the PBX model code is displayed in parentheses after the name. Default Slot 00: MPR (Main Processing Card: fixed) Other slots: Not stored. Value Range Card Type for KX-TDA50: DLC4: 4-Port Digital Extension Card DLC8: 8-Port Digital Extension Card HLC4: 4-Port Hybrid Extension Card PLC4: 4-Port Proprietary Extension Card...
  • Page 83 2.7 [1] Configuration CSIF8: 8-Port Cell Station Interface Card CSIF4: 4-Port Cell Station Interface Card LCOT16: 16-Port Analog CO Line Card LCOT8: 8-Port Analog CO Line Card PRI23: PRI Card (23B channels) T1: T-1 CO Line Card IP-GW4 (KX-TDA0480/KX-TDA0484): 4-Channel VoIP Gateway Card OPB3: Optional 3-Slot Base Card CTI-LINK: CTI Link Card IP-GW16: 16-Channel VoIP Gateway Card...
  • Page 84 2.7 [1] Configuration 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) Feature Manual References None Status Indicates the card status (reference only). Note that MPR card status is always displayed as "-". Default Slot 00: - (fixed) Other slots: Current status Value Range INS: The port is in service.

  • Page 85: 1-1] Slot-Mpr Card Property

    MEC/EMEC card properties can be viewed and set. Memory Expansion Card: Indicates whether an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is mounted on the MPR (KX-TDA50/KX-TDA100/KX-TDA200) or EMPR (KX-TDA600) card. To change the EMEC or MEC card installation status, click on this cell, then click OK in the dialog box that appears.

  • Page 86: 1-1] Slot-Extension Card Property

    2.7 [1] Configuration Default Current version Value Range - (not mounted), 1–15 Maintenance Console Location 2.7.3 [1-1] Slot—MPR Card Property Programming Manual References None Feature Manual References 1.18.1 Upgrading the Software 2.7.4 [1-1] Slot—Extension Card Property The property for the extension cards can be specified. SLT Pulse Dial Mode Selects the type of pulse dial transmission appropriate to your area.
  • Page 87 2.7 [1] Configuration Value Range 8 × n (n=3–255) ms Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References None SLT Off Hook Guard Time Specifies the length of guard time used for off-hook signals from SLTs, to prevent the PBX mistaking them for pulse dials.
  • Page 88 2.7 [1] Configuration Feature Manual References None SLT Pulse Minimum Make Width Specifies the minimum length of the make signal in a pulse dial. Default 8 ms Value Range 8 × n (n=1–5) ms Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References...
  • Page 89 2.7 [1] Configuration Default 112 ms Value Range 8 × n (n=3–63) ms Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References None Flash Timing - Range Specifies the maximum length that a signal sent from an SLT can be for the PBX to recognize it as a hookswitch flash signal.
  • Page 90 2.7 [1] Configuration Programming Manual References None Feature Manual References None SLT Power Supply (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the voltage that enables an SLT to activate the Message Waiting lamp. This setting is only available with MSLC/EMSLC cards. Default 85 V Value Range 85 V, 145 V Maintenance Console Location...

  • Page 91: 1-1] Slot-Extension Port

    2.7 [1] Configuration Programming Manual References None Feature Manual References None APT Parallel Connection Enables an SLT connected in parallel to an APT to ring with the APT for calls. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References...
  • Page 92 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port Programming Manual References None Feature Manual References None Port Indicates the port or channel number (reference only). Default Current port or channel number Value Range...
  • Page 93 2.7 [1] Configuration Value Range DPT: DPT port (DLC) APT: APT port (PLC) (KX-TDA50 only) SLT: SLT port (SLC/ESLC/EMSLC) S-Hybrid: Super Hybrid port (DHLC) Hybrid: Hybrid port (HLC) (KX-TDA50 only) S-Hybrid(SLT): XDP port of Super Hybrid port (DHLC) S-Hybrid(S-DPT): Digital XDP port of Super Hybrid port (DHLC)
  • Page 94 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Extension numbers of PSs can be a maximum of 4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 95 2.7 [1] Configuration Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the extension name of the port. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port Programming Manual References None Feature Manual References None...
  • Page 96 KX-TDA200] or 64 [with the KX-TDA600] DSS Consoles can be connected to the PBX.) VM (DPT): For connecting a Panasonic VPS through DPT Integration PC Console: For connecting a PC Console (A maximum of 2 [with the KX-TDA50] or 8 [with the KX- TDA100/KX-TDA200/KX-TDA600] PC Consoles can be connected to the PBX.) Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port...
  • Page 97 Note that, depending on system traffic, there may be a limit to the number of PC Consoles that can be supported by a single DLC/DHLC card. Default Value Range For KX-TDA50: Location number for DSS Console: 1–4 Location number for PC Console: 1, 2 For KX-TDA100/KX-TDA200: 1–8...
  • Page 98 Feature Manual References 1.19.3 Voice Mail (VM) Group DPT Type—VM Port No. (for DPT or S-Hybrid port) Specifies the VM port number for the port. Default Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200/KX-TDA600: 1–12 Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port...

  • Page 99: 1-1] Slot-Extension Port-Port Command

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.8.3 Headset Operation Ringing Tone (for DPT, DPT(S-DPT), S-Hybrid, S-Hybrid (XDP), S- Hybrid(SLT), S-Hybrid(S-DPT) port) Selects the dual-tone switching pattern of the ring tone for incoming calls. This setting is not available for the KX-T7200, the KX-T7451, APTs, or SLTs.

  • Page 100: 1-1] Slot-Extension Port-Port Type View

    2.7 [1] Configuration Programming Manual References 2.7.5 [1-1] Slot—Extension Port Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable. Value Range Not applicable.

  • Page 101: Slot-Csi/F Port (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    Indicates the total number of each type of telephone and CS connected to the PBX (reference only). With the KX-TDA50, CSs are counted on the basis of the number of extension ports to which they are connected; with the KX-TDA100/KX-TDA200/KX-TDA600, CSs are counted on the basis of the number of CSIF ports in service plus the number of extension ports to which CSs are connected.
  • Page 102 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).

  • Page 103: 1-1] Slot-Csi/F Port-Port Command (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Default Current status Value Range INS: The Cell Station (CS) is in service. OUS: The CS is out of service. Fault: The port is not communicating with the CS. Maintenance Console Location 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.9 [1-1] Slot—CSI/F Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...

  • Page 104: 1-1] Slot-Lco Card Property

    2.7 [1] Configuration Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.9 [1-1] Slot—CSI/F Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Takes the CS out of service. This enables a temporary non-use of the CS, for example, for the purpose of repair.
  • Page 105 2.7 [1] Configuration Value Range 3–6 s Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References None Feature Manual References None First Dial Timer (CO) Specifies the minimum time that the PBX waits after seizing a CO line, before sending the dialed digits to the telephone company.
  • Page 106 2.7 [1] Configuration Programming Manual References None Feature Manual References None Bell Detection—Bell Start Detection Timer Specifies the minimum length of a bell signal that can be recognized by the PBX as the bell signal sent from the telephone company, before the PBX detects an arriving call. Default 144 ms Value Range...
  • Page 107 2.7 [1] Configuration Pulse / DTMF Dial—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly. Default 112 ms Value Range 64 + 16 × n (n=0–15) ms Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References...
  • Page 108 2.7 [1] Configuration Value Range Other, 60 %, 67 % Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References None Low Speed Pulse Dial—Break Width Specifies the maximum length of the break signal in a low speed pulse dial. Low Speed Pulse Dial— Pulse % Break on this screen determines the value that can be specified here.
  • Page 109 2.7 [1] Configuration Feature Manual References None High Speed Pulse Dial—Pulse % Break Specifies the % break for a high speed pulse dial. This is the ratio between the break (on-hook) signal and make (off-hook) signal in a pulse dial. Default 60 % Value Range...
  • Page 110 2.7 [1] Configuration Default 20 ms Value Range 4 × n (n=3–15) ms Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References None Pulse Type Selects the type of pulse dial transmission appropriate to your area. Default Normal Value Range...
  • Page 111 2.7 [1] Configuration Programming Manual References 2.7.11 [1-1] Slot—LCO Port—Caller ID Detection Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID Signaling Selects the type of Caller ID signaling provided by the telephone company. Default Value Range FSK (Frequency Shift Keying), FSK (with Visual Caller ID), DTMF Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References...
  • Page 112 2.7 [1] Configuration Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) END Detection Selects the method used to detect the end of Caller ID information. Default Length + Timer Value Range...
  • Page 113 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) Detection Start Timer Specifies the length of time that the PBX waits before attempting to detect Caller ID information, after receiving a call. To enable this setting, Caller ID—Caller ID Signaling on this screen should be set to FSK.

  • Page 114: 1-1] Slot-Lco Port

    2.7 [1] Configuration 2.7.11 [1-1] Slot—LCO Port Various settings can be programmed for each analog CO line port. To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port...

  • Page 115: Dialing Mode

    2.7 [1] Configuration Default Current port number Value Range Port number Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...
  • Page 116 2.7 [1] Configuration Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References 1.4.2 Dial Mode Selection CPC Signal Detection Time—Outgoing, Incoming Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.

  • Page 117: Pulse Speed

    2.7 [1] Configuration Pulse Speed Selects the speed at which pulse dials are sent to the analog CO line. Default Value Range Low, High Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References None Caller ID Detection Enables the PBX to detect a Caller ID signal from the analog CO line.
  • Page 118 2.7 [1] Configuration Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.13.4 Pause Insertion 1.16.2 Special Carrier Access Code Flash Time Specifies the length of a flash signal.

  • Page 119: 1-1] Slot-Lco Port-Port Command

    2.7 [1] Configuration Feature Manual References 1.6.2 Flash/Recall/Terminate 2.7.12 [1-1] Slot—LCO Port—Port Command Commands for the LCO ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.12 [1-1] Slot—LCO Port—Port Command Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References...

  • Page 120: 1-1] Slot-Pri Card Property (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only) The properties of the PRI card can be specified. ISDN CO / QSIG Master / QSIG Slave—T200 Specifies the maximum time that the PBX waits for a reply after sending the L2 command to ISDN. Default 10 ×...
  • Page 121 2.7 [1] Configuration Default 100 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T301 Specifies the maximum time that the PBX waits for a reply after making a call to ISDN.
  • Page 122 2.7 [1] Configuration Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN. Default 40 ×...
  • Page 123 2.7 [1] Configuration ISDN CO / QSIG Master / QSIG Slave—T305 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN. Default 300 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 124 2.7 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T310 Specifies the maximum time that the PBX waits for a continuance message after receiving the Incoming Call Proceeding message.
  • Page 125 2.7 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T316 Specifies the maximum time that the PBX waits for a reply after sending the Restart message. Default 0 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 126 2.7 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T322 Specifies the maximum time that the PBX waits for a reply after sending the Status enquiry message. Default 40 ×...
  • Page 127 2.7 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T3D9 Specifies the length of time that the PBX tries to disconnect L2 in "Call by Call" mode. Default 200 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 128 2.7 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T203 Specifies the length of time to detect no communication status of L2. Default 100 ×...
  • Page 129 2.7 [1] Configuration Feature Manual References None ISDN Extension—T302 Specifies the maximum time allowed between each digit on an incoming call. Applies to overlap receiving. Default 150 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 130 2.7 [1] Configuration Default 200 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T305 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN.
  • Page 131 2.7 [1] Configuration Programming Manual References None Feature Manual References None ISDN Extension—T307 Specifies the maximum time that the PBX maintains a suspended call, before restarting. Default 1800 × 100 ms Value Range 0–6000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 132 2.7 [1] Configuration ISDN Extension—T309 Specifies the length of time that the PBX tries to disconnect the data link, before disconnecting the call. Default 120 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 133 2.7 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T316 Specifies the maximum time that the PBX waits for a reply after sending the Restart message. Default 0 ×...
  • Page 134 2.7 [1] Configuration Feature Manual References None ISDN Extension—T322 Specifies the maximum time that the PBX waits for a reply after sending the Status enquiry message. Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 135: 1-1] Slot-Pri Port (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Various settings can be programmed for each PRI port. Main Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 136 2.7 [1] Configuration Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 137: Status Message

    2.7 [1] Configuration QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES 1.13.17 PRIVATE NETWORK FEATURES—QSIG Connection Indicates the port status (reference only).
  • Page 138 2.7 [1] Configuration When error detection (Option / Mandatory): Send the Status Message when an error (Option or Mandatory) is detected. Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Status Receive Selects what happens to a call when the Status Message from the network does not match the actual status of the call.
  • Page 139 2.7 [1] Configuration Feature Manual References None Frame Sequence Selects the type of frame sequence for the port. Default Extend Multi frame (EFS) Value Range Extend Multi frame (EFS), 4-Frame Multi frame (F4), 12-Frame Multi frame (F12) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 140 2.7 [1] Configuration Default Current slot number Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 141 2.7 [1] Configuration Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 142 2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Ringback Tone to Outside Caller Enables the PBX to send a ringback tone to an outside caller when the network cannot send the tone. Default Enable Value Range...
  • Page 143 2.7 [1] Configuration 2.8.17 [2-9] System Options—Option 2—ISDN en Bloc Dial—[#] as End of Dial for en Bloc mode (KX- TDA100/KX-TDA200/KX-TDA600 only) 2.12.7 [6-7] Dialing Plan Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Networking Data Transfer Enables transmission of extension status data to connected PBXs in a network. This setting is only available when Port Type on this screen has been set to QSIG-Slave or QSIG-Master.
  • Page 144 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 145 2.7 [1] Configuration • ISDN extensions can belong to an incoming call distribution group or idle extension hunting group. In this case, an MSN can be assigned. Default Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location...

  • Page 146: Network Configuration

    2.7 [1] Configuration Default Ring All Extension for MSN Value Range Ring All Extension for MSN: Ring all ISDN extensions that are addressed with MSN. Ring an Extension for MSN: Ring only one of the ISDN extensions that are addressed with MSN. Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 147 2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 148: Network Type

    2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...
  • Page 149 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Network Numbering Plan Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 150 2.7 [1] Configuration Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Notes •...
  • Page 151 2.7 [1] Configuration Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range...
  • Page 152 2.7 [1] Configuration Default Public: Unknown Private: Private Value Range Unknown, ISDN-Telephony, National Standard, Private Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Calling Party number—Type of Number—Public, Private Selects the type of number that applies to outgoing CO line calls routed through public or private networks.
  • Page 153 2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Called Party number—Type of Number—Public, Private Selects the type of number that applies to incoming CO line calls routed through public and private networks.
  • Page 154 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 155 2.7 [1] Configuration • ISDN extensions can belong to an incoming call distribution group or idle extension hunting group. In this case, an MSN can be assigned. Default Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location...
  • Page 156 2.7 [1] Configuration COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 Specifies whether each ISDN or QSIG supplementary service is used. Default Value Range No, Yes Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation)

  • Page 157: 1-1] Slot-Pri Port-Port Command (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration CCBS delete digits Specifies the number of digits to delete from the received number when receiving a call of the specified type initiated by the CCBS feature from the network. CCBS Type on this screen specifies the applicable type of call. Default Value Range 0–15...

  • Page 158: 1-1] Slot-T1 Card Property (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.15 [1-1] Slot—PRI Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...
  • Page 159 2.7 [1] Configuration Default Value Range D4, ESF Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ESF Frame Option Selects the values for C-bit and D-bit. To enable this setting, Frame Sequence on this screen should be set to ESF.
  • Page 160 2.7 [1] Configuration Programming Manual References None Feature Manual References None LIU Receive Option Selects the receiving level (Receive Equalisation) of LIU. Default Automatic Value Range Automatic, 6 dB, 12 dB, 18 dB, 24 dB Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 161 2.7 [1] Configuration First Dial Timer (DID/TIE) Specifies the minimum time that the PBX waits after seizing a DID or TIE line, before sending the dialed digits to the telephone company or to another PBX. This allows the telephone company or the other PBX to have enough time to accept the dialed digits correctly.
  • Page 162 2.7 [1] Configuration Value Range 32 × n (n=4–9) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None DTMF Tone—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.
  • Page 163 2.7 [1] Configuration Feature Manual References None DTMF Tone—DTMF Receive Specifies the volume of the DTMF tone to be received. Default -26–0 dB Value Range n-42–0 (n=0–31) dB Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None...
  • Page 164 2.7 [1] Configuration Value Range Normal, Sweden, New Zealand Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—Pulse Inter-digit Pause Specifies the length of the pulse inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.
  • Page 165 2.7 [1] Configuration Programming Manual References None Feature Manual References None Pulse Dial—Maximum BREAK Width Specifies the maximum length of the break signal in a pulse dial. Default 112 ms Value Range 8 × n (n=9–20) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 166 2.7 [1] Configuration Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Flash—Minimum BREAK Width (OPX) Specifies the minimum length of the break signal in a flash signal from an SLT connected to an OPX. Default 200 ms Value Range...
  • Page 167 2.7 [1] Configuration Programming Manual References None Feature Manual References None Flash—Flash Signal Detection (TIE) Enables the PBX to detect a hookswitch flash signal sent from a TIE line. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 168 2.7 [1] Configuration Default 800 ms Value Range 8 × n (n=3–191) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Caller ID—Caller ID Start Code Selects the DTMF code used to detect the beginning of a Caller ID series. Default Value Range *, #, A–D...

  • Page 169: 1-1] Slot-T1 Port (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID End Code Selects the DTMF code used to detect the end of a Caller ID series. Default Value Range *, #, A–D Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 170 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Indicates the channel number (reference only). Default Current channel number Value Range...
  • Page 171 2.7 [1] Configuration Default Current status Value Range INS: The channel is in service. OUS: The channel is out of service. Fault: The channel is not communicating with the network. Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None...
  • Page 172 2.7 [1] Configuration Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.4.2 Dial Mode Selection Channel Type Selects the channel type. Default Undefined Value Range Undefined: Not assigned GCOT: Ground Start Central Office LCOT: Loop Start Central Office DID: Direct Dialing In/Direct Inward Dialing TIE (E &...
  • Page 173 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES 1.13.12 PRIVATE NETWORK FEATURES CPC Detection (DID)—Outgoing, Incoming (for DID channel) Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.
  • Page 174 2.7 [1] Configuration Feature Manual References 1.3.20 CPC (Calling Party Control) Signal Detection DTMF Width Selects the length of the DTMF tone sent to the T1 channel. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 175 2.7 [1] Configuration Value Range 64 × n (n=1–128) ms Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Start Signal Type Selects the type of the start signal. Default Wink Value Range Immediate: Sends the dialed digits to the CO line when the First Dial Timer expires.
  • Page 176 2.7 [1] Configuration Feature Manual References None Receiving Caller ID from TIE/DID Specifies whether Caller ID information is received when the channel type is TIE or DID. Default Value Range Yes, No Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 177 2.7 [1] Configuration Value Range Disable, Enable Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pause Time Specifies the length of a pause. Default 1.5 s Value Range 1.5 s , 2.5 s , 3.5 s , 4.5 s Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 178: 1-1] Slot-T1 Port-Channel Command (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.5.1 EFA (External Feature Access) Disconnect Time Specifies the length of time after a CO line is disconnected, during which the PBX cannot seize the line. Default 1.5 s Value Range 0.5 s, 1.5 s, 2.0 s, 4.0 s, 12.0 s Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 179: 1-1] Slot-Ip-Gw Card Property

    2.7 [1] Configuration Feature Manual References None Takes the channel out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.18 [1-1] Slot—T1 Port—Channel Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...

  • Page 180: 1-1] Slot-Ip-Gw Port

    2.7 [1] Configuration 2.12.7 [6-7] Dialing Plan Feature Manual References 1.13.22 Private Network Features—VoIP (Voice over Internet Protocol) QSIG-CT Enables a call to be transferred to a destination extension at another PBX in a QSIG network. Default Value Range Yes, No Maintenance Console Location 2.7.19 [1-1] Slot—IP-GW Card Property Programming Manual References...
  • Page 181 2.7 [1] Configuration Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.20 [1-1] Slot—IP-GW Port Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range...

  • Page 182: 1-1] Slot-Ip-Gw Port -Port Command

    2.7 [1] Configuration Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.7.20 [1-1] Slot—IP-GW Port Programming Manual References 2.7.21 [1-1] Slot—IP-GW Port —Port Command Feature Manual References None 2.7.21 [1-1] Slot—IP-GW Port —Port Command...

  • Page 183: 1-1] Slot-Ip-Extension Card Property (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Maintenance Console Location 2.7.21 [1-1] Slot—IP-GW Port —Port Command Programming Manual References 2.7.20 [1-1] Slot—IP-GW Port Feature Manual References None 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX- TDA200/KX-TDA600 only) The properties of the VoIP Extension card can be specified. IP Address Specifies the IP address of the card.
  • Page 184 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Keep Alive Time Out Specifies the length of time that the PBX will continue to consider an IP-PT to be active even if it receives no transmissions from that IP-PT. The PBX constantly confirms the status of IP-PTs. If no communications are received from an IP-PT for the duration specified here, the PBX considers the IP-PT to be unreachable, and sets the port status to Fault.
  • Page 185 2.7 [1] Configuration Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path. Default 0 dB Value Range -14–6 dB Maintenance Console Location 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 186: 1-1] Slot-Ip-Extension Port (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Value Range -14–6 dB Maintenance Console Location 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) NLP Setting Selects whether the NLP (Non-Linear Processor) is used to control echo sound quality. Default Use Non-Linear Processor Value Range...
  • Page 187 2.7 [1] Configuration Open 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only), and confirm that the IP address and subnet mask settings of the IP-EXT16 card are correct. Open 2.8.20 [2-12] IP Extension Settings (KX-TDA100/KX-TDA200/KX-TDA600 only), and set the gateway address. Registration Follow the steps below to register the IP-PT.
  • Page 188 2.7 [1] Configuration Highlight numbers and click the right arrow to select them for forced de-registration. Click Next. A dialog box will appear. Click OK. A dialog box will appear. Click Confirm. • If the de-registration is successful, the dialog box will show "Forced De-registration Succeed".
  • Page 189 2.7 [1] Configuration Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.23 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Extension Number Specifies the extension number of the port.
  • Page 190 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. •...

  • Page 191: Ringing Tone

    2.7 [1] Configuration Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) IP Address Indicates the IP address of the IP-PT (reference only). Default Current IP address Value Range 0.0.0.0–255.255.255.255 Maintenance Console Location 2.7.23 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone)
  • Page 192 2.7 [1] Configuration Value Range A: 64 ms (697 Hz), 64 ms (852 Hz) B: 32 ms (697 Hz), 32 ms (852 Hz) C: 128 ms (697 Hz), 128 ms (852 Hz) D: 32 ms (697 Hz), 96 ms (852 Hz) Maintenance Console Location 2.7.23 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 193: 1-1] Slot-Opb (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) The properties of the Optional Base card can be specified. To change the status of slots on the OPB card, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 194 2.7 [1] Configuration Feature Manual References None Sub-slot Indicates the sub-slot number (reference only). Default Current sub-slot number Value Range Sub-slot number Maintenance Console Location 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Feature Card Type Indicates the type of option card that is installed or pre-installed in each sub-slot (reference only).
  • Page 195 2.7 [1] Configuration Installation Manual References For KX-TDA100/KX-TDA200: 1.3.1 Optional Equipment For KX-TDA600: 1.3.1 Optional Equipment Programming Manual References 2.7.26 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Status Indicates the status of the option card in each slot (reference only). This column offers two ways to open the screen to select the card command: •...
  • Page 196 2.7 [1] Configuration Maintenance Console Location 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Status Indicates the port status of the mounted option card (reference only). Default Current port status Value Range INS: The card is in service. OUS: The card is out of service.

  • Page 197: 1-1] Slot-Opb Card Command (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Feature Manual References 1.5.8 External Relay For Sensor (EIO)—Input Signal Decision Time Specifies the minimum duration of continuous input from the triggered sensor before the PBX recognizes the input and makes a sensor call. Default 1024 ms Value Range 32 ×...
  • Page 198 2.7 [1] Configuration Puts the card in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.25 [1-1] Slot—OPB Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Takes the card out of service. Default Not applicable.

  • Page 199: 1-1] Slot-Opb3 Option Card Setup (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration ECHO16: 16-Channel Echo Canceller Card (KX-TDA100/KX-TDA200 only) EIO4: 4-Port External Input/Output Card Maintenance Console Location 2.7.25 [1-1] Slot—OPB Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Installation Manual References For KX-TDA100/KX-TDA200: 1.3.1 Optional Equipment For KX-TDA600: 1.3.1 Optional Equipment Programming Manual References None Feature Manual References None...
  • Page 200 2.7 [1] Configuration Default MSG4 Value Range MSG4: 4-Channel Message Card DPH4: 4-Port Doorphone Card ECHO16: 16-Channel Echo Canceller Card (KX-TDA100/KX-TDA200 only) EIO4: 4-Port External Input/Output Card Maintenance Console Location 2.7.26 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Installation Manual References For KX-TDA100/KX-TDA200: 1.3.1 Optional Equipment For KX-TDA600:...

  • Page 201: 1-1] Slot-Cti-Link Card Property (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.7 [1] Configuration Default Not stored. Value Range MSG4: 4-Channel Message Card DPH4: 4-Port Doorphone Card ECHO16: 16-Channel Echo Canceller Card (KX-TDA100/KX-TDA200 only) EIO4: 4-Port External Input/Output Card Maintenance Console Location 2.7.26 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None...

  • Page 202: Subnet Mask

    2.7 [1] Configuration Subnet Mask Specifies the subnet mask of the PBX. Default 255.255.255.0 Value Range 0.0.0.0–255.255.255.255 Maintenance Console Location 2.7.27 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) Gateway Specifies the gateway address.

  • Page 203: 1-1] Slot-Dph Card Property (Kx-Tda50 Only)

    2.8.17 [2-9] System Options Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) The status of the DPH ports can be viewed, and set to INS (in service) or OUS (out of service). Slot Indicates the slot position (reference only).
  • Page 204 Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References None Feature Manual References None Port Status Indicates the port status (reference only).
  • Page 205 Selects the type of connected output device (for output ports only). Default Door Opener Value Range Relay, Ringer, Door Opener Maintenance Console Location 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References 2.11.6 [5-4] External Relay Feature Manual References 1.4.10 Door Open 1.5.8 External Relay For Sensor (EIO)—Input Signal Decision Time...

  • Page 206: 1-1] Slot-Dph Port Command (Kx-Tda50 Only)

    2.7 [1] Configuration Value Range 10 × n (n=1–255) s Maintenance Console Location 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References None Feature Manual References 1.5.9 External Sensor 2.7.29 [1-1] Slot—DPH Port Command (KX-TDA50 only) Commands for the DPH ports can be programmed.

  • Page 207: 1-2] Portable Station

    None 2.7.30 [1-2] Portable Station Various portable station (PS) settings can be programmed. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), 256 (with the KX-TDA600) or 512 (with the KX-TDA600 with EMEC card installed) PSs can be registered.

  • Page 208: Personal Identification Number

    Note that the same PIN should be entered at the PS, before the PS is registered to the PBX. Default 1234 Value Range 4 digits (consisting of 0–9) Maintenance Console Location 2.7.30 [1-2] Portable Station Installation Manual References For KX-TDA50: PC Programming Manual...
  • Page 209 Programming Manual References None Feature Manual References 1.13.23 PS Connection Index Indicates the PS number (reference only). Default Not applicable. Value Range For KX-TDA50: 1–28 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–512 Maintenance Console Location 2.7.30 [1-2] Portable Station Programming Manual References...
  • Page 210 2.7 [1] Configuration Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.7.30 [1-2] Portable Station Programming Manual References None Feature Manual References 1.13.23 PS Connection 1.20.4 Wireless XDP Parallel Mode Extension Name Specifies the name of the PS. Default Not stored.

  • Page 211: 1-3] Option

    2.7 [1] Configuration Feature Manual References 1.13.23 PS Connection 2.7.31 [1-3] Option System options can be programmed. It is possible to clear the master CS information (Master CS Port and Radio System ID) by following the procedure below in batch mode: Click Clear Master CS.
  • Page 212 2.7 [1] Configuration Programming Manual References None Feature Manual References None New Card Installation—Automatic Extension Number Set for Extension Card Selects whether extension numbers are assigned to extension ports automatically or manually. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.31 [1-3] Option Programming Manual References None...

  • Page 213: 1-4] Clock Priority (Kx-Tda100/Kx-Tda200/Kx-Tda600)

    2.7 [1] Configuration 1.4.6 DIL (Direct In Line) 1.4.5 DID (Direct Inward Dialing) 1.13.19 Private Network Features—QSIG—CF (Call Forwarding) 1.13.21 Private Network Features—QSIG—CT (Call Transfer) 1.13.18 Private Network Features—QSIG—CCBS (Completion of Calls to Busy Subscriber) 2.7.32 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) Slot Number (KX-TDA100/KX-TDA200), Shelf-Slot Number (KX-TDA600) Selects and prioritizes slot numbers for the PRI and T1 cards that are used to forward a clock pulse from an external source to the PBX.

  • Page 214: 2] System

    2.8 [2] System [2] System 2.8.1 [2-1] Date & Time/Daylight Saving The date and time of the PBX, and Summer time (daylight saving time) can be programmed. Summer time sets the clock one hour forward at 2:00 AM on the start date, and one hour back at 2:00 AM on the end date.

  • Page 215: 2-1] Date & Time/Daylight Saving-Date & Time Setting

    2.8 [2] System Programming Manual References None Feature Manual References 1.1.7 Automatic Time Adjustment End Date—Year, Month, Day Specifies the end date of daylight savings time. Default Year: 2005 (For Daylight Saving Time number 1. The year advances by one for the subsequent Daylight Saving Times.) Month: 10 Day: Day of the last Sunday of the month...

  • Page 216: 2-2] Operator & Bgm

    Specifies the extension number or floating extension number of incoming call distribution group to be designated as the PBX operator in each time mode (day/lunch/break/night). To select an extension number, click Destination Setting. Default For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1001 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max.
  • Page 217 2.8.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) Selects the audio source of BGM. Default Internal BGM 1 Value Range External BGM, Internal BGM 1, Internal BGM 2 Maintenance Console Location 2.8.3 [2-2] Operator &...

  • Page 218: 2-3] Timers & Counters

    2.8 [2] System Value Range For KX-TDA50: Tone, BGM For KX-TDA100/KX-TDA200/KX-TDA600: Tone, BGM 1 (External BGM Port 1), BGM 2 (Internal 1/2 or External 2) Maintenance Console Location 2.8.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.11.4 Music on Hold...
  • Page 219 2.8 [2] System Default Value Range 0–10 Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/KX- TDA600 only) Specifies the length of time that the PBX waits for the called party to answer an Automatic Redial attempt.
  • Page 220 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Dial—Hot Line (Pickup Dial) Start Specifies the length of time between going off-hook and the start of automatic dialing when the Hot Line feature is set.
  • Page 221 2.8 [2] System Dial—Extension Inter-digit Specifies the length of time within which subsequent digits must be dialed before the PBX sends a reorder tone. Default 10 s Value Range 0–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release...
  • Page 222 2.8 [2] System Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Dial—Analog CO Call Duration Start Specifies the length of time between the end of dialing and the start of the SMDR timer for outgoing analog CO line calls.
  • Page 223 2.8 [2] System Feature Manual References 1.9.11 Intercept Routing Recall—Hold Recall Specifies the length of time until the holding extension receives a Hold Recall ring or alarm tone when a held call remains unretrieved. Default 60 s Value Range 0 (disable the Hold Recall)–240 s Maintenance Console Location 2.8.4 [2-3] Timers &...
  • Page 224 2.8 [2] System Default 60 s Value Range 1–240 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.3.5 Call Park Recall—Disconnect after Recall Specifies the length of time after an extension with a CO line call on hold receives a Hold Recall tone that the held call is disconnected.
  • Page 225 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.4.9 DND (Do Not Disturb) Tone Length—Reorder Tone for PT Handset Specifies the length of time that a reorder tone is heard when using a PT handset. The PT will return to idle status when this timer expires.
  • Page 226 2.8 [2] System Feature Manual References 1.1.5 Automatic Extension Release 1.8.2 Hands-free Operation DISA / Door / Reminder / U. Conf DISA—Delayed Answer Timer Specifies the length of time that the caller hears a ringback tone before hearing an OGM. Default Value Range 0–30 s...
  • Page 227 2.8 [2] System Default 10 s Value Range 0–120 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.8.3 [2-2] Operator & BGM 2.11.4 [5-3-2] Voice Message—DISA Message 2.12.6 [6-6] Tenant—Operator (Extension Number) Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA—2nd Dial Timer for AA Specifies the length of time in which the caller must dial the second digit before the DISA AA Service activates.
  • Page 228 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings—Intercept—Intercept Destination—Day, Lunch, Break, Night 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Intercept Destination—Day, Lunch, Break, Night 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Intercept Destination—Day, Lunch, Break, Night 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References...
  • Page 229 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA—CO-to-CO Call Prolong Time Specifies the length of time that a CO-to-CO line call on a DISA line is prolonged each time that the caller prolongs the call.
  • Page 230 2.8 [2] System DISA—Reorder Tone Duration Specifies the length of time that a reorder tone is sent to the caller before the call is disconnected. Default 10 s Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References...
  • Page 231 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.11.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Doorphone—Open Duration Specifies the length of time that a door stays unlocked after being opened from an extension. Default Value Range 2–7 s...
  • Page 232 2.8 [2] System Timed Reminder—Interval Time Specifies the length of time between the repeated alarms. Default 30 s Value Range 10 × n (n=1–120) s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.17.4 Timed Reminder Timed Reminder—Alarm Ringing Duration Specifies the length of time that an alarm rings.
  • Page 233 2.8 [2] System Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.3.16 Conference Unattended Conference—Warning Tone Start Timer Specifies the length of time until the parties involved in an Unattended Conference receive a warning tone after the conference originator receives the Unattended Conference Recall tone but does not return to the conference.
  • Page 234 2.8 [2] System Feature Manual References 1.3.16 Conference Miscellaneous Caller ID—Waiting to receive Specifies the length of time that the PBX waits to receive Caller ID from an analog CO line. If the Caller ID is received through an analog CO line card on which no Caller ID card is mounted or through a port to which Caller ID Detection is disabled, this timer is not applicable.
  • Page 235 2.8 [2] System 1.3.10 Call Waiting Tone Extension PIN—Lock Counter Specifies the number of successive incorrect PIN entries allowed before the extension PIN is locked. A locked extension PIN can not be used until reset from the extension assigned as manager. (Specifying "0"...
  • Page 236 2.8 [2] System Receiving Dial Inter-digit Timer—DID (KX-TDA100/KX-TDA200/KX-TDA600) Specifies the length of time between digits when receiving a DID number from a public network. The call will be redirected to a PBX operator when this timer expires. Default 10 s Value Range 0–30 s Maintenance Console Location...
  • Page 237 2.8 [2] System Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Voice Mail (Caller from VM to CO)—On-hook Wait Time Specifies the length of time from when the VPS seizes a CO line (for example, to transfer a call) until the VPS goes on hook.
  • Page 238 2.8 [2] System Programming Manual References None Feature Manual References None During Conversation—DTMF Inter-digit Pause Specifies the length of time between DTMF signals when numbers are dialed in succession from a PT or PS during a conversation. Default 112 ms Value Range 64 + 16 ×...
  • Page 239 1–240 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM—Dial Tone Continuous Time (KX-TDA50 only) Specifies the length of time that dial tone 3 is heard after all messages stored by the SVM feature for an extension are finished playing.

  • Page 240: 2-4] Week Table

    Value Range 1–60 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) 2.8.5...
  • Page 241 2.8 [2] System Programming Manual References None Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Hour, Minute Specifies the start time for each time block. Times can only be set when 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Setting is set to Enable.
  • Page 242 2.8 [2] System Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 2. Break—Break 1–3 Start—Hour, Minute Specifies the start time for each break period. Times can only be set when 2. Break—Break 1–3 Start—Setting is set to Enable. Default 00:00 Value Range 00:00–23:59...

  • Page 243: 2-5] Holiday Table

    2.8 [2] System 2.8.7 [2-5] Holiday Table A specific time mode (day, night, lunch, or break) can be selected for operation during holidays. Select the desired time mode from the Holiday Mode list. The start and end dates of a maximum of 24 different holidays can be programmed. Holiday Table—Setting Enables the setting of the holiday.
  • Page 244 2.8 [2] System Default Value Range 1–31 Maintenance Console Location 2.8.7 [2-5] Holiday Table Programming Manual References None Feature Manual References 1.17.5 Time Service Holiday Table—End Date—Month Specifies the month of the holiday end date. Default Value Range 1–12 Maintenance Console Location 2.8.7 [2-5] Holiday Table Programming Manual References None...

  • Page 245: 2-6-1] Numbering Plan-Main

    64 different extension numbering schemes can be programmed. Leading Number Specifies the leading number of extension numbers and floating extension numbers. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension Numbering Scheme 01: 1 Extension Numbering Scheme 02: 2 Extension Numbering Scheme 03: 3 Extension Numbering Scheme 04: 4...
  • Page 246 Extension Numbering Scheme 20: 29 Extension Numbering Scheme 21: 5 Extension Numbering Scheme 22: 6 Extension Numbering Scheme 23–64: Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 2 digits (consisting of 0–9) For KX-TDA600: Max. 3 digits (consisting of 0–9) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main...

  • Page 247: Operator Call

    2.8 [2] System Features Feature numbers to access various PBX features can be programmed. The following features are available while hearing a dial tone. Operator Call Specifies the feature number used to call the operator. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 248: Tie Line Access

    2.8 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.16.1 [10-1] CO Line Settings Feature Manual References 1.3.14 CO Line Access TIE Line Access Specifies the feature number used to make a TIE line call.
  • Page 249 2.8 [2] System Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number System Speed Dialing / Personal Speed Dialing Specifies the feature number used to make a call using a System/Personal Speed Dialing number. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 250: Doorphone Call

    2.8 [2] System Doorphone Call Specifies the feature number used to make a call to a doorphone. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Group Paging...
  • Page 251 2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.3 [2-2] Operator & BGM 2.8.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.2.1 BGM (Background Music) OGM Record / Clear / Playback Specifies the feature number, available for manager extensions, used to record, clear, or play back a certain OGM.

  • Page 252: Group Call Pickup

    2.8 [2] System Feature Manual References 1.3.14 CO Line Access Parallel Telephone (Ring) Mode Set / Cancel Specifies the feature number used to set or cancel an SLT connected in parallel with a DPT to ring when receiving an incoming call. Default Value Range Max.
  • Page 253 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 3—Call Pickup Deny 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Call Pickup Deny Feature Manual References 1.3.6 Call Pickup TAFAS Answer...

  • Page 254: Automatic Callback Busy Cancel

    2.8 [2] System Feature Manual References 1.13.1 Paging Automatic Callback Busy Cancel Specifies the feature number used to cancel Automatic Callback Busy. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References...

  • Page 255: Account Code Entry

    2.8 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—Optional Device & Other Extension—Accept Wireless XDP Parallel Set by Other PS Feature Manual References 1.20.4 Wireless XDP Parallel Mode Account Code Entry...
  • Page 256 2.8 [2] System Programming Manual References None Feature Manual References 1.3.2 Call Hold Call Hold Retrieve : Specified with a Holding Extension Number Specifies the feature number used to retrieve a held call from a different extension by specifying a holding extension number.

  • Page 257: Door Open

    2.8 [2] System Hold Retrieve : Specified with a Held CO Line Number Specifies the feature number used to retrieve a held CO line call from a different extension by specifying the held CO line number. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 258: External Feature Access

    2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.6 [5-4] External Relay Feature Manual References 1.5.8 External Relay External Feature Access Specifies the feature number used to access the features of a host PBX or the telephone company. Default Value Range Max.
  • Page 259 2.8 [2] System 1.13.20 Private Network Features—QSIG—CLIP/COLP (Calling/Connected Line Identification Presentation) and CNIP/CONP (Calling/Connected Name Identification Presentation) CLIR Set / Cancel Specifies the feature number used to set or cancel CLIR, which suppresses the presentation of the caller's number to the called party. Default *7*1 Value Range...
  • Page 260 2.8 [2] System Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Message Waiting Set / Cancel / Call Back Specifies the feature number used to set or cancel Message Waiting, or call back the caller. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 261 2.8 [2] System Default *711 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD/DND Set / Cancel: Call from Extension Specifies the feature number used to set or cancel FWD/DND for incoming intercom calls.
  • Page 262 2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) Group FWD Set / Cancel: Call from CO & Extension Specifies the feature number used to set or cancel FWD for incoming CO line and intercom calls to an incoming call distribution group.
  • Page 263 2.8 [2] System Feature Manual References 1.6.6 FWD (Call Forwarding) Group FWD Set / Cancel: Call from Extension Specifies the feature number used to set or cancel FWD for incoming intercom calls to an incoming call distribution group. Default *716 Value Range Max.

  • Page 264: Walking Extension

    2.8 [2] System Default *721 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.13.1 Paging Walking Extension Specifies the feature number used to use the same extension settings at a new extension. Default *727 Value Range...
  • Page 265 2.8 [2] System Programming Manual References None Feature Manual References 1.4.1 Data Line Security Call Waiting Mode: Call from Extension Specifies the feature number used to set or change the method of receiving a Call Waiting notification from an extension. Default *731 Value Range...
  • Page 266 2.8 [2] System Executive Override Deny Set / Cancel Specifies the feature number used to set or cancel Executive Busy Override (i.e., preventing other extensions from joining your conversation). Default *733 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 267 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Incoming Call Queue Monitor Specifies the feature number, available only for extensions assigned as a supervisor, used to monitor the status of an incoming call distribution group with the extension display.
  • Page 268 2.8 [2] System Programming Manual References 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Hot Line (Pickup Dial) Start Feature Manual References 1.8.6 Hot Line Absent Message Set / Cancel Specifies the feature number used to set or cancel the display of an Absent Message. Default *750 Value Range...

  • Page 269: Printing Message

    2.8 [2] System Default *76* Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.17.4 Timed Reminder Timed Reminder Set / Cancel Specifies the feature number used to set or cancel a Timed Reminder. Default *760 Value Range...
  • Page 270 2.8 [2] System Programming Manual References 2.12.9 [6-8] Hotel—Main—SMDR for External Hotel Application 2—Printing Message 1–8 Feature Manual References 1.13.10 Printing Message Extension Dial Lock Set / Cancel Specifies the feature number used to lock or unlock an extension to make certain CO line calls and change the forwarding destination, using the Extension Dial Lock feature.

  • Page 271: Extension Feature Clear

    2.8 [2] System Remote Extension Dial Lock Off Specifies the feature number, available for manager extensions, used to unlock other extensions using the Extension Dial Lock feature. Default *782 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 272 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear Extension PIN Set / Cancel Specifies the feature number used to set a PIN for an extension. Default *799 Value Range...
  • Page 273 Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message)

  • Page 274: 2-6-2] Numbering Plan-Quick Dial

    2.8 [2] System Other PBX Extension Other PBX extension numbers can be used to easily call extensions connected to PBXs at different locations in a TIE line network. The leading numbers of all PBXs in the network that will be called should be entered in this table.

  • Page 275: 2-6-3] Numbering Plan-B/Na Dnd Call Feature

    2.8 [2] System Maintenance Console Location 2.8.9 [2-6-2] Numbering Plan—Quick Dial Programming Manual References None Feature Manual References 1.14.1 Quick Dialing 1.13.22 Private Network Features—VoIP (Voice over Internet Protocol) Phone Number Specifies the number to be dialed when the corresponding Quick Dialing number is used. Default Not stored.
  • Page 276 2.8 [2] System Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 2—C. Waiting for Call from Extension 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 2—C. Waiting for Call from Extension Feature Manual References 1.3.9 CALL WAITING FEATURES 1.3.10 Call Waiting Tone...
  • Page 277 2.8 [2] System Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References None Feature Manual References 1.9.13 Intercom Call Message Waiting On Specifies the feature number used to leave a Message Waiting notification. Default Value Range 1 digit (0–9, *, or #)
  • Page 278 2.8 [2] System 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Executive Override Deny Feature Manual References 1.3.4 Call Monitor Automatic Callback Busy Specifies the feature number used to reserve a busy line and receive callback ringing when the line becomes idle. Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location...

  • Page 279: 2-7-1] Class Of Service-Cos Settings

    2.8 [2] System 1.3.10 Call Waiting Tone 1.4.9 DND (Do Not Disturb) 1.12.3 OHCA (Off-hook Call Announcement) 1.20.3 Whisper OHCA 2.8.11 [2-7-1] Class of Service—COS Settings Each extension, doorphone port, incoming call distribution group, and trunk group is assigned a Class of Service (COS).

  • Page 280: Trs Level For System Speed Dialing

    2.8 [2] System Programming Manual References 2.8.5 [2-4] Week Table 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.1 [5-1] Doorphone—COS 2.13.1 [7-1] Denied Code 2.13.2 [7-2] Exception Code Feature Manual References 1.17.6 TRS (Toll Restriction) TRS Level on Extension Lock...
  • Page 281 2.8 [2] System Value Range 1: Allows all CO line calls 2–6: Restricts CO line calls according to the combination of the Denied and Exception Code Tables 7: Restricts all CO line calls Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS...
  • Page 282 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.8.17 [2-9] System Options—Option 2—Extension - CO Call Limitation—For Incoming Call 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.15 CO Line Call Limitation...

  • Page 283: Account Code Mode

    2.8 [2] System Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) Account Code Mode Specifies whether the entry of an account code is optional or mandatory when making a CO line call. Default Option Value Range...
  • Page 284 2.8 [2] System Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Extension Feature The use of features related to extension operations can be programmed for each COS. COS Name Specifies the name of the COS. Default Not stored. Value Range Max.

  • Page 285: Dnd Override

    2.8 [2] System DND Override Enables making a call to an extension in DND mode by entering the feature number. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.12 [4-2-2] Portable Station—FWD / DND...
  • Page 286 2.8 [2] System Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.4 Call Monitor Call Pickup by DSS Enables using a DSS button to pick up a call to a specified extension.

  • Page 287: Executive Busy Override Deny

    2.8 [2] System Value Range Max. 20 characters Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 1.3.19 COS (Class of Service) Executive Busy Override Deny Enables preventing other extensions from interrupting calls. Default Disable Value Range...
  • Page 288 2.8 [2] System Programming Manual References 2.9.12 [3-5-4] Incoming Call Distribution Group—Member 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.6.6 FWD (Call Forwarding) Programming Mode Level Specifies the level of authorization for performing PT programming. Default PROG Only Value Range...
  • Page 289 2.8 [2] System Feature Manual References 1.11.1 Manager Features Time Service Switch Enables manual switching of time modes. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.8.5 [2-4] Week Table 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References...

  • Page 290: Door Unlock

    2.8 [2] System Door Unlock Enables using the door opener feature. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.4.10 Door Open External Relay Access Enables access to external relays.
  • Page 291 2.8 [2] System Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References 1.4.7 DISA (Direct Inward System Access) Remote Operation by Other Extension Allows the Walking COS feature to be used from a remote location (inside the PBX, or outside the PBX using DISA).

  • Page 292: 2-7-2] Class Of Service-External Call Block

    Each COS can have different trunk groups available for making CO line calls, depending on the time mode (day/lunch/break/night). Select the desired time mode from the list. Outgoing Trunk Group 1–64 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies the available trunk groups.

  • Page 293: 2-8-1] Ring Tone Patterns-Call From Co

    2.8 [2] System Value Range Block (blue), Non Block Maintenance Console Location 2.8.13 [2-7-3] Class of Service—Internal Call Block Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.1 [5-1] Doorphone—COS Feature Manual References 1.9.14 Internal Call Block 2.8.14 [2-8-1] Ring Tone Patterns—Call from CO...

  • Page 294: 2-8-2] Ring Tone Patterns-Call From Doorphone

    2.8 [2] System 2.8.15 [2-8-2] Ring Tone Patterns—Call from Doorphone Different ring tone patterns can be selected for incoming doorphone calls depending on the doorphone port that the calls originate from. A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.
  • Page 295 2.8 [2] System Maintenance Console Location 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—Ring Pattern Table 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Ring Pattern Table Feature Manual References None Timed Reminder—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for Timed Reminder alarms.

  • Page 296: 2-9] System Options

    2.8 [2] System Feature Manual References 1.1.4 Automatic Callback Busy (Camp-on) Live Call Screening—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for LCS warning tones. Default Triple Value Range Single, Double, Triple Maintenance Console Location 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—Ring Pattern Table 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Ring Pattern Table...
  • Page 297 2.8 [2] System Option 1 PT LCD—Date Display Selects the order that the month and date are shown on the displays of extensions. Default Month-Date Value Range Date-Month, Month-Date Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None PT LCD—Time Display...
  • Page 298 2.8 [2] System Value Range Hide, Display Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.5.6 Extension PIN (Personal Identification Number) PT Fwd / DND—Fwd LED Selects the light pattern of the FWD/DND button while the FWD feature is activated. Default Flash Value Range...
  • Page 299 2.8 [2] System Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.7 FWD/DND Button, Group FWD Button 1.10.1 LED Indication PT Fwd / DND—Fwd/DND key mode when Idle Selects the function of the FWD/DND button (fixed button) when it is pressed in idle status. (A FWD/ DND button customized on a flexible button is always in FWD/DND Cycle Switch mode, and the mode cannot be changed.) Default...
  • Page 300 2.8 [2] System 2.10.12 [4-2-2] Portable Station—FWD / DND 2.9.6 [3-4] Paging Group Feature Manual References 1.13.1 Paging PT Operation—Off Hook Monitor for KX-T74xx/T76xx Enables the use of Off-Hook Monitor with KX-T7400 or KX-T7600 series telephones and IP-PTs. Default Enable Value Range Disable: The PT user's voice is sent through the handsfree microphone.
  • Page 301 2.8 [2] System PT Operation—JOG Dial Speed Selects the speed at which items scroll on the display when the Jog Dial is used. Default Normal Value Range Normal, High Speed Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None...
  • Page 302 2.8 [2] System Value Range No rings, 1 ring, 2 rings, 3 rings Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.8.1 Hands-free Answerback PT Operation—Automatic Hold by ICM / CO / ICD Group key Selects whether calls are disconnected or held when the INTERCOM, CO, or ICD Group button is pressed while having a conversation.
  • Page 303 2.8 [2] System Programming Manual References None Feature Manual References 1.3.2 Call Hold Option 2 Extension Clear—Call Waiting Specifies whether the Call Waiting setting is cleared when Extension Feature Clear is performed. Default Clear Value Range Clear, Do not clear Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References...
  • Page 304 2.8 [2] System Extension Clear—Hot Line (Pickup Dial) Specifies whether the Hot Line setting is cleared when Extension Feature Clear is performed. Default Clear Value Range Clear, Do not clear Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear...
  • Page 305 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None ISDN en Bloc Dial—[#] as End of Dial for en Bloc mode (KX-TDA100/KX- TDA200/KX-TDA600 only) Specifies whether to automatically send "#" as an end code when dialing to an ISDN line; if used as the end code, "#"...
  • Page 306 2.8 [2] System Programming Manual References 2.8.4 [2-3] Timers & Counters—Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX- TDA200/KX-TDA600 only) Feature Manual References 1.15.1 Redial, Last Number Redial—Save Dial After Connection to Redial Memory Specifies whether any digits dialed after the called party answers (for example, to access a specific extension within another company) are also saved as part of the redial number.
  • Page 307 Enables the PBX to adjust its clock every day according to the time information that the network provides with the first call after 3:05 AM. With the KX-TDA50, this parameter is shown as Automatic Time Adjustment—by Caller ID (FSK). Default...
  • Page 308 2.8 [2] System Option 3 Confirmation Tone—Tone 1 : Doorphone / Called by Voice Enables the PBX to send Confirmation Tone 1. Confirmation Tone 1 is heard from a doorphone when the doorphone button is pressed, or from a PT when it receives a call in voice-calling mode. Default Enable Value Range...
  • Page 309 2.8 [2] System Confirmation Tone—Tone 3-1 : Start Talking after making call Enables the PBX to send Confirmation Tone 3-1. Confirmation Tone 3-1 is heard from an extension when, for example, it pages another extension. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References...
  • Page 310 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.16 Conference 1.3.17 Confirmation Tone Confirmation Tone—Tone 4-2 : Finish Conference Enables the PBX to send Confirmation Tone 4-2. Confirmation Tone 4-2 is heard from an extension when a party leaves a conference call.
  • Page 311 2.8 [2] System Programming Manual References None Feature Manual References 1.3.17 Confirmation Tone Dial Tone—Distinctive Dial Tone Enables the PBX to send dial tones at different frequencies depending on the setting of the extension. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References...
  • Page 312 2.8 [2] System Default Type B Value Range Type A, Type B Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.14.1 [8-1] System Settings Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.4.3 Dial Tone Echo Cancel—Conference Enables the use of the ECHO/EECHO card for conference calls.
  • Page 313 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None Echo Cancel—Extension to Analog Line Enables the use of the ECHO/EECHO card for extension-to-analog CO line calls. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References...
  • Page 314 2.8 [2] System Option 4 DSS Key—DSS Key mode for Incoming Call Enables the use of a DSS button to pick up an incoming call to another extension or an ICD group. Default Value Range ON or Flash, OFF Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None...
  • Page 315 2.8 [2] System To enable this setting, DSS Key—DSS Key mode for Incoming Call on this screen must be set to ON or Flash. Default Disable Value Range Disable: The DSS button will light up when a call arrives, but pressing it will not pick up the call. Enable: The DSS button will flash when a call arrives, and pressing it will pick up the call.
  • Page 316 2.8 [2] System Value Range Disable: The call is not transferred. (If the transfer destination has enabled the call waiting notification feature, it is possible to inform the destination about the call transfer.) Enable: The transferred call is queued for the time period specified in Recall—Transfer Recall in 2.8.4 [2-3] Timers &...
  • Page 317 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Send CLIP of CO Caller to ISDN—when ICD Group with Cellular Phone (KX- TDA100/KX-TDA200/KX-TDA600 only) Selects whether the CLIP number of the calling party or of the virtual PS is sent to the virtual PS's forwarding destination to identify the origin of a CO line call received at an ICD Group containing a virtual PS.
  • Page 318 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.1 Caller ID Private Network—Common Extension Numbering for 2 PBXs (Optional SD Card Required) Enables extensions at two PBXs connected in a network (not including a VoIP network) to have the same leading number.
  • Page 319 2.8 [2] System Feature Manual References 1.13.16 Private Network Features—PS Roaming by Network ICD Group Option 5 SLT—SLT Hold Mode Selects how to hold a line and transfer a call with an SLT. For details of each mode, see "1.3.2 Call Hold"...
  • Page 320 2.8 [2] System PT Feature Access—No. 1–8 Specifies the System Feature Access Menu (1–8) shown on the display of an extension. Default System Feature Access Menu 1: Call Back Cancel System Feature Access Menu 2: Call Pickup Direct System Feature Access Menu 3: Call Pickup Group System Feature Access Menu 4: Doorphone Call System Feature Access Menu 5: Door Open System Feature Access Menu 6: External BGM...
  • Page 321 2.8 [2] System 1st Party CTI—System status retry counter Specifies the number of times that the alive check is repeated for First Party Call Control CTI. When the alive check has been attempted the programmed number times without success, the PBX assumes that the logical connection with the CTI application software has been lost.
  • Page 322 2.8 [2] System Value Range 0–10 Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for Third Party Call Control CTI.
  • Page 323 2.8 [2] System Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—CDR retry interval timer Specifies the length of time until the alive check of CDR is retried when no response is received, for Third Party Call Control CTI.
  • Page 324 2.8 [2] System CTI Multi PBX Control—PBX Name Specifies the name of the PBX, for network programming reference. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None CTI Multi PBX Control—USB Serial Number Specifies the serial number assigned to this PBX's USB data transfers, used when multiple PBXs are...

  • Page 325: 2-10] Extension Cid Settings

    2.8.18 [2-10] Extension CID Settings Various settings for extension Caller ID can be programmed. Extension Caller ID Resource-1, 2 (KX-TDA50 only) Specifies a group of 4 SLT ports that can transfer Caller ID information to connected SLTs. When the port to which an extension is connected has this feature activated, there will be a short delay before the extension rings for incoming calls.
  • Page 326 2.8 [2] System Maintenance Console Location 2.8.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID Channel Seizure Signal bits Specifies the number of seizure bits to send when sending Caller ID information to an SLT. Default 300 bits Value Range...
  • Page 327 2.8 [2] System Channel Seizure Wait Time Specifies the length of time that the PBX waits before starting to send the seizure signal following the first ring when sending Caller ID information to an SLT. Default 512 ms Value Range 64 ×...
  • Page 328 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID Send Caller ID Date & Time to Extension Enables the PBX to send the date and time of an incoming call when sending Caller ID information to an SLT.

  • Page 329: 2-11-1] Audio Gain-Paging/Moh

    2.8 [2] System Feature Manual References 1.3.1 Caller ID Send Caller ID Long Distance to Extension Enables the PBX to send a call qualifier (Long Distance) (if received from the CO line) when sending Caller ID information to an SLT. Default Enable Value Range...
  • Page 330 Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.13.1 Paging Paging—EPG (External Pager) (KX-TDA50 only) Specifies the paging volume for the External Pager. Default 3 dB Value Range -15–15 dB Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH...
  • Page 331 2.8 [2] System Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.13.1 Paging MOH—MOH (Music On Hold 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the music volume for External BGM port 1. Default 0 dB Value Range -11–11 dB Maintenance Console Location...

  • Page 332: 2-12] Ip Extension Settings (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.8 [2] System 1.11.4 Music on Hold MOH—MOH (Music On Hold) (KX-TDA50 only) Specifies the music volume for the External BGM. Default 0 dB Value Range -11–11 dB Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.8.3 [2-2] Operator & BGM Feature Manual References 1.2.1 BGM (Background Music)
  • Page 333 2.8 [2] System Voice (RTP) UDP Port No. (Server) Specifies the UDP port used by the IP-EXT card to transmit and receive RTP (Realtime Transfer Protocol) data. This must be changed if another network application is using the same port. For voice communications, an IP-EXT card uses 64 contiguous UDP ports, starting from the port number specified here.

  • Page 334: 3] Group

    CO lines can be organized into trunk groups. The settings of each trunk group determine the settings of the CO lines within that group. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups can be programmed.
  • Page 335 2.9 [3] Group Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings 2.16.1 [10-1] CO Line Settings Feature Manual References 1.13.12 PRIVATE NETWORK FEATURES Line Hunting Order Specifies the CO line hunting sequence for the trunk group. The hunting sequence can be programmed to start from the lowest or highest numbered CO lines, or to rotate uniformly among all CO lines.
  • Page 336 2.9 [3] Group Extension-CO Duration Time Specifies the length of time that an extension-to-CO line call can be maintained before being disconnected. Default 10 min Value Range None, 1–60 min Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings 2.8.17 [2-9] System Options 2.16.1 [10-1] CO Line Settings...

  • Page 337: Tone Detection

    2.9 [3] Group Value Range 1–4 Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.12.7 [6-7] Dialing Plan Feature Manual References None Tone Detection Group Name Specifies the name of the trunk group for programming reference. Default Not stored.
  • Page 338 2.9 [3] Group Programming Manual References 2.11.3 [5-3-1] Voice Message—DISA System 2.16.1 [10-1] CO Line Settings Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA Tone Detection—Continuous Enables the disconnection of a DISA-originated CO-to-CO line call line call by continuous signal detection.
  • Page 339 2.9 [3] Group Simplified Voice Message Tone Detection—Silence (KX-TDA50 only) Enables the disconnection of an SVM-originated CO-to-CO line call by silence detection. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message)
  • Page 340 2.9 [3] Group Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Intercept Group Name Specifies the name of the trunk group for programming reference. Default Not stored. Value Range Max.

  • Page 341: Host Pbx Access Code

    2.9 [3] Group 2.16.1 [10-1] CO Line Settings Feature Manual References 1.9.11 Intercept Routing Host PBX Access Code Group Name Specifies the name of the trunk group for programming reference. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.16.1 [10-1] CO Line Settings...

  • Page 342: 3-1-2] Trunk Group-Local Access Priority

    Specifies the trunk group assigned to the corresponding priority level. Select the blank option to not assign a trunk group to the priority. Default Priority 1–64 = Trunk Group No. 1–64 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Trunk Group No. 1–64 For KX-TDA600: Trunk Group No. 1–96 Maintenance Console Location 2.9.2 [3-1-2] Trunk Group—Local Access Priority...

  • Page 343: 3-3] Call Pickup Group

    Extensions can be assigned to a call pickup group according to their extension user groups. One extension user group can belong to up to 8 call pickup groups. A maximum of 64 (with the KX-TDA50/ KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) call pickup groups can be programmed.

  • Page 344: 3-3] Call Pickup Group-All Setting

    2.9 [3] Group Value Range Max. 20 characters Maintenance Console Location 2.9.4 [3-3] Call Pickup Group Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.3.6 Call Pickup 1.7.1 GROUP FEATURES Pickup Group—1st–8th Selects the call pickup groups that the extension user group belongs to.

  • Page 345: 3-4] Paging Group

    Extensions can be assigned to a paging group according to their extension user groups. External pagers can also be assigned to a paging group. One extension user group or external pager can belong to multiple paging groups. A maximum of 32 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) paging groups can be programmed.

  • Page 346: 3-4] Paging Group-All Setting

    2.9 [3] Group Extension User Group Name Indicates the name of the extension user group (reference only). Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.6 [3-4] Paging Group Programming Manual References 2.9.3 [3-2] Extension User Group—Extension User Group Name Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging...

  • Page 347: 3-4] Paging Group-External

    Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging Extension User Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies whether the extension user group belongs to the corresponding paging group. Default ON for same numbered paging group...
  • Page 348 2.9 [3] Group Paging Group Name Indicates the name of the paging group (reference only). Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.8 [3-4] Paging Group—External Pager Programming Manual References 2.9.7 [3-4] Paging Group—All Setting—Paging Group Name Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging...

  • Page 349: 3-5-1] Incoming Call Distribution Group-Group Settings

    Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–632 Groups 065-128: Not stored Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings...
  • Page 350 2.9 [3] Group Programming Manual References None Feature Manual References None Group Name Specifies the name of the incoming call distribution group. Default ICD Group 001–ICD Group 128 Value Range Max. 20 characters Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...
  • Page 351 2.9 [3] Group Default Distribution Value Range All, Distribution Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution FWD Mode Specifies whether extensions in FWD mode ring when a call is received at the incoming call distribution group.
  • Page 352 2.9 [3] Group Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.4.9 DND (Do Not Disturb) 1.9.2 ICD Group Features—Group Call Distribution Tenant Number Specifies the tenant to which the incoming call distribution group belongs, to determine the Time Table and the audio source for the group.
  • Page 353 Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–632 Groups 065-128: Not stored Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) PC Programming Manual...
  • Page 354 2.9 [3] Group For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Group Name Specifies the name of the incoming call distribution group. Default ICD Group 001–ICD Group 128 Value Range...
  • Page 355 Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–632 Groups 065-128: Not stored Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings...
  • Page 356 2.9 [3] Group Feature Manual References None Group Name Specifies the name of the incoming call distribution group. Default ICD Group 001–ICD Group 128 Value Range Max. 20 characters Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None...

  • Page 357: Queuing Time Table

    2.9 [3] Group Default None Value Range None, 10 × n (n=1–125) s Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.5 ICD Group Features—Overflow 1.9.6 ICD Group Features—Queuing Hurry-up Level Specifies the number of calls to hold in the queue before prompting Manual Queue Redirection by flashing the Hurry-up button.
  • Page 358 2.9 [3] Group Default Groups 001-064: 601–632 Groups 065-128: Not stored Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...
  • Page 359 2.9 [3] Group Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, Table 1–Table 64 For KX-TDA600: None, Table 1–Table 128 Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.9.6 ICD Group Features—Queuing...
  • Page 360 2.9 [3] Group Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Group Name Specifies the name of the incoming call distribution group.
  • Page 361 2.9 [3] Group Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution 1.9.6 ICD Group Features—Queuing No. of Unanswered Calls for Automatic Log-out Specifies the number of consecutive unanswered calls before a member extension is automatically logged out from the incoming call distribution group.
  • Page 362 2.9 [3] Group Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution Last Extension Log-out Specifies whether the last extension logged-in to the incoming call distribution group is allowed to log out. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None...
  • Page 363 2.9 [3] Group Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.7 ICD Group Features—Supervisory...
  • Page 364 2.9 [3] Group Default Groups 001-064: 601–632 Groups 065-128: Not stored Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...
  • Page 365 2.9 [3] Group Value Range 0–100 Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.3.3 Call Log, Incoming Group FWD Call from CO—Setting Sets or cancels the FWD feature for incoming CO line calls directed to the incoming call distribution group.
  • Page 366 2.9 [3] Group Feature Manual References 1.6.6 FWD (Call Forwarding) Group FWD Call from Extension—Setting Sets or cancels the FWD feature for incoming intercom calls directed to the incoming call distribution group. Default Value Range Off, On Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None...

  • Page 367: Incoming Call Distribution Group-Queuing Time Table

    Table A Queuing Time Table can contain up to 16 sequences which control how calls waiting in a queue are handled. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX- TDA600) Queuing Time Tables can be programmed.
  • Page 368 2.9 [3] Group Group—Member is not displayed. If ICD Group Member is selected, Wrap-up Time on 2.10.1 [4- 1-1] Wired Extension—Extension Settings and 2.10.10 [4-2-1] Portable Station—Extension Settings are not displayed. Default Extension Value Range Extension: The timer is activated after all calls to or from the extension, including a retrieved call on hold.

  • Page 369: 3-5-4] Incoming Call Distribution Group-Member

    1.9.1 ICD GROUP FEATURES 2.9.12 [3-5-4] Incoming Call Distribution Group—Member Each incoming call distribution group can have a maximum of 32 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 128 (with the KX-TDA600) members (extensions) assigned to it, and each member can have its own Delayed Ringing and Wrap-up time settings. An extension can be a member of multiple incoming call distribution groups.

  • Page 370: Delayed Ring

    2.9 [3] Group Programming Manual References 2.9.21 [3-9] PS Ring Group—Floating Extension Number Feature Manual References 1.9.1 ICD GROUP FEATURES Extension Name Indicates the name of the extension (reference only). Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.12 [3-5-4] Incoming Call Distribution Group—Member Programming Manual References 2.9.21 [3-9] PS Ring Group—Group Name...

  • Page 371: 3-6] Extension Hunting Group

    If there is no idle extension in the group, the call can then be redirected to the overflow destination, which can be different depending on the time mode (day/lunch/break/night). A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX-TDA600) hunting groups can be programmed, each containing up to 16 extensions.

  • Page 372: Hunting Type

    2.9 [3] Group Programming Manual References None Feature Manual References 1.9.9 Idle Extension Hunting Hunting Type Specifies the hunting type for the hunting group. Default Circular Value Range Circular: Circulates until the call is answered or overflowed Terminated: Terminates at the last extension Maintenance Console Location 2.9.13 [3-6] Extension Hunting Group Programming Manual References...

  • Page 373: 3-6] Extension Hunting Group-Member List

    Extension Number Specifies the extension number of the hunting group member. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.14 [3-6] Extension Hunting Group—Member List Programming Manual References 2.9.13 [3-6] Extension Hunting Group...

  • Page 374: 3-7-1] Vm(Dpt) Group-System Settings

    PBX. The DPT ports that are connected to the VPS are called a VM (DPT) Group. With the KX-TDA50, a maximum of 1 VM (DPT) Group can be programmed; with the KX-TDA100/ KX-TDA200, 2 VM (DPT) Groups can be programmed; and with the KX-TDA600, 8 VM (DPT) groups can be programmed.

  • Page 375: 3-7-2] Vm(Dpt) Group-Unit Settings

    2.9 [3] Group Programming Manual References 2.7.5 [1-1] Slot—Extension Port 2.9.1 [3-1-1] Trunk Group—TRG Settings—Intercept—Intercept Destination—Day, Lunch, Break, Night 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Intercept Destination—Day, Lunch, Break, Night 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Intercept Destination—Day, Lunch, Break, Night Feature Manual References 1.19.3 Voice Mail (VM) Group 1.19.4 Voice Mail DPT (Digital) Integration Transfer Recall to Mailbox...
  • Page 376 Floating Extension No. Specifies the floating extension number of the VM (DPT) group. Default VM Unit No. 1: 500 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings...

  • Page 377: 3-7-2] Vm(Dpt) Group-Unit Settings-Member List

    2.9 [3] Group 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Displays information on the settings of all relevant ports. Only ports set to VM(DPT) in DPT Type— Type (for DPT or S-Hybrid port) of 2.7.5 [1-1] Slot—Extension Port will be displayed. In addition, the other information displayed here can also be set in 2.7.5 [1-1] Slot—Extension Port.
  • Page 378 2.9 [3] Group VM Unit No. Indicates the unit number of the connected VPS (reference only). Default Current unit number Value Range For KX-TDA50: For KX-TDA100/KX-TDA200: 1, 2 For KX-TDA600: 1–8 Maintenance Console Location 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References 2.7.5 [1-1] Slot—Extension Port—DPT Type—VM Unit No.
  • Page 379 Extension No. Indicates the extension number assigned to the VM port (reference only). Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References 2.7.5 [1-1] Slot—Extension Port—Extension Number...

  • Page 380: 3-8-1] Vm(Dtmf) Group-System Settings

    2.9.18 [3-8-1] VM(DTMF) Group—System Settings A Panasonic Voice Processing System (VPS) with DTMF Integration can be connected to SLT ports of the PBX. The SLT ports that are connected to the VPS are called a VM (DTMF) Group. A maximum of 2 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 8 (with the KX-TDA600) VM (DTMF) Groups can be programmed.
  • Page 381 2.9 [3] Group Feature Manual References None VM DTMF Status Signal—Reorder Tone Specifies the DTMF status signal the PBX sends to the VPS when the dialed number is invalid. Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References...
  • Page 382 2.9 [3] Group Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None VM DTMF Status Signal—Confirm Specifies the DTMF status signal the PBX sends to the VPS when a certain feature (e.g., Message Waiting) has been successfully set or canceled on an extension.
  • Page 383 2.9 [3] Group Programming Manual References None Feature Manual References None VM DTMF Status Signal—FWD to VM Ringback Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to the VPS and the PBX is calling another port of the VPS. Default Value Range Max.
  • Page 384 2.9 [3] Group VM DTMF Status Signal—FWD to Extension Ringback Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to another extension and the PBX is calling the destination extension. Default Value Range Max.
  • Page 385 2.9 [3] Group Value Range Max. 4 digits (consisting of 0–9, *, #, H [mailbox number], and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 1.11.3 Message Waiting VM DTMF Command—Switching to AA Specifies the DTMF command the PBX sends to the VPS to switch from VM Service Mode to AA Service Mode.
  • Page 386 2.9 [3] Group Feature Manual References None Timing—DTMF Length for VM Specifies the length of DTMF signals the PBX sends to the VPS. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References...
  • Page 387 2.9 [3] Group Value Range 0.5 s, 1.0 s, 1.5 s, 2.0 s Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None Timing—Waiting Time before Sending VM DTMF Status Signal Specifies the length of time that the PBX waits before sending the DTMF status signal to the VPS after the VPS has finished dialing.
  • Page 388 2.9 [3] Group Feature Manual References 1.9.6 ICD Group Features—Queuing Others—FWD to the VPS Sequence Specifies which DTMF commands the VPS receives from the PBX when a call is forwarded to the VPS, so that the VPS can answer the call either with a mailbox or in the AA service mode. It is also possible to send no DTMF signal to the VPS.
  • Page 389 2.9 [3] Group Others—Mailbox for Extension Specifies whether the mailboxes use the same numbers as the extensions and incoming call distribution groups, or use different numbers as programmed for each extension or incoming call distribution group. Default Extension Number Value Range Extension Number, Programmed Mailbox Number Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings...

  • Page 390: 3-8-2] Vm(Dtmf) Group-Group Settings

    Floating Ext No. Specifies the floating extension number of the VM (DTMF) group. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.19 [3-8-2] VM(DTMF) Group—Group Settings...

  • Page 391: 3-8-2] Vm(Dtmf) Group-Group Settings-Member List

    Extension Number of the SLT Port Connected to VM Specifies the extension number assigned to the SLT port that is connected to the VPS. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.20 [3-8-2] VM(DTMF) Group—Group Settings—Member List...

  • Page 392: 3-9] Ps Ring Group

    One PS can belong to multiple PS ring groups. A maximum of 32 PS ring groups can be programmed, each containing up to 28 (with the KX-TDA50), 128 (with the KX- TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions.
  • Page 393 2.9 [3] Group Maintenance Console Location 2.9.21 [3-9] PS Ring Group Programming Manual References None Feature Manual References 1.13.26 PS Ring Group Group Name Specifies the name of the PS ring group, which will be shown on the display of extensions that call the PS ring group when Incoming Trunk Call Information Display on this screen is set to Called Number.

  • Page 394: 3-9] Ps Ring Group-Member List

    1.13.26 PS Ring Group 2.9.22 [3-9] PS Ring Group—Member List Each PS Ring Group can have up to 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions assigned. Select the group to program from the PS Ring Group Number list.
  • Page 395 2.9 [3] Group 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name Feature Manual References 1.13.26 PS Ring Group PC Programming Manual...

  • Page 396: 4] Extension

    2.10 [4] Extension 2.10 [4] Extension 2.10.1 [4-1-1] Wired Extension—Extension Settings For each slot in which an extension card is installed, a certain number of extension ports are displayed. For each extension port, various extension settings can be assigned. To assign a set of CLIP numbers automatically, click CLIP Generate. To assign names and tenants to extension user groups, click Extension User Group Table.
  • Page 397 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 398 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 399 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.5.7 Extension Port Configuration Telephone Type Indicates the type of telephone connected to the extension port (reference only). Default Current connected telephone type Value Range DPT (15V)/DPT (40V): DPT is connected.
  • Page 400 Extension User Group Specifies the extension user group to which the extension belongs. Extension user groups are used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 401 2.10 [4] Extension Feature Manual References 1.7.1 GROUP FEATURES 1.17.3 Tenant Service Specifies the COS of the extension. Default Value Range 1–64 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings Feature Manual References 1.3.19 COS (Class of Service) Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the extension.
  • Page 402 2.10 [4] Extension Option 1 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range...
  • Page 403 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 404 2.10 [4] Extension Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Intercept Destination—Day, Lunch, Break, Night Specifies the Intercept Routing destination of CO line calls in each time mode for Intercept Routing–...
  • Page 405 Specifies the transfer recall destination when an extension user transfers a call with the Call Transfer without Announcement feature and the transferred call is not answered within a certain time period. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 406 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Option 2 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 407 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 408 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 409 2.10 [4] Extension WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.
  • Page 410 2.10 [4] Extension Programming Manual References None Feature Manual References 1.3.9 CALL WAITING FEATURES C. Waiting for Call from CO Specifies whether to receive call waiting notifications for calls from a CO line, doorphone calls, and calls via an incoming call distribution group. Default Value Range Off, On...
  • Page 411 2.10 [4] Extension Pickup Dial Number Specifies the number to be dialed automatically after going off-hook when the Hot Line feature is active. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...
  • Page 412 2.10 [4] Extension Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 413 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 414 2.10 [4] Extension Programming Manual References None Feature Manual References None Call Pickup Deny Specifies whether calls can be picked up by other extensions. Default Disable Value Range Disable: Allows other extension users to pick up calls to your extension Enable: Prevents other extension users from picking up calls to your extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 415 2.10 [4] Extension CLIP on Extension/CO (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the CLIP number to show on the called party's telephone. Default Extension Value Range Extension: Show the CLIP number specified in CLIP ID on the Option 1 tab. CO: Show the CLIP number specified in Subscriber Number in 2.7.14 [1-1] Slot—PRI Port (KX- TDA100/KX-TDA200/KX-TDA600 only).
  • Page 416 2.10 [4] Extension Default Disable Value Range Disable, Enable Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be customized for each extension.
  • Page 417 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 418 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 419 2.10 [4] Extension Programming Manual References None Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default Value Range No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups. ICM: An extension line is seized.
  • Page 420 2.10 [4] Extension Feature Manual References 1.10.2 Line Preference—Incoming Intercom Call by Voice Selects the method of receiving intercom calls. When Deny Voice Call is selected, the extension will always ring when receiving calls, regardless of how the caller wants to make the call. Default Tone Call Value Range...
  • Page 421 2.10 [4] Extension Default Stop Record Value Range Stop Record, Keep Record Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration LCS Answer Mode Specifies whether the extension's mailbox is monitored in Hands-free or Private mode. Default Hands free Value Range...
  • Page 422 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.4.8 Display Information Option 5 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...
  • Page 423 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 424 Selects which caller information is shown on the first line of the extension's display. Default Caller ID Name Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 425: Key Pad Tone

    2.10 [4] Extension Feature Manual References 1.4.8 Display Information Automatic LCD Switch when Start Talking Enables the first line of the display to show the call duration automatically after answering a CO line call. Default Enable Value Range Disable, Enable Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...
  • Page 426 2.10 [4] Extension Default Disable Value Range Disable, Enable Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.8.1 Hands-free Answerback Forced Automatic Answer Specifies whether the extension automatically answers all incoming calls (both intercom and CO line calls) without going off-hook, regardless of the Hands-free Answerback setting.
  • Page 427 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None ICM Tone Selects the ring tone for incoming calls arriving at the INTERCOM button. Default Value Range KX-T7600 series (except KX-T7665)/IP-PTs: 1–30 KX-T7665: 1–8 (Even if ring tone 9–30 is selected, ring tone 1 is heard.) Other telephones: 1–8 (Even if ring tone 9–30 is selected, ring tone 2 is heard.) Maintenance Console Location...
  • Page 428 2.10 [4] Extension Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 429 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 430: Paging Deny

    Value Range Unlock, Lock Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.3.3 Call Log, Incoming 1.16.5 SVM (Simplified Voice Message) Paging Deny Specifies whether paging of the extension from other extensions is enabled.
  • Page 431 2.10 [4] Extension Value Range Disable, Enable Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.13.1 Paging Character Input Mode Selects the character table to be used for entering characters. Default Table 1 Value Range Table 1: Standard mode Table 2: Option mode...
  • Page 432 2.10 [4] Extension Feature Manual References 1.5.1 EFA (External Feature Access) 1.6.2 Flash/Recall/Terminate Incoming Call Log Memory Specifies the number of incoming CO line calls that are retained in the extension's Incoming Call Log memory. Default Value Range 0–100 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 433 2.10 [4] Extension PT: Speech SLT: Audio Default Automatic Value Range Automatic, Speech, Audio Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Group CW w/o Tone (Ring after Call) Enables an incoming call to an incoming call distribution group to arrive at a previously busy extension at the moment that the extension goes on-hook for the previous call.
  • Page 434 2.10 [4] Extension Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 435 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 436 SLTs require a pause, after the first call stops ringing, to receive the second call's Caller ID information. Note that for the KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 2.8.18 [2-10] Extension CID Settings.
  • Page 437 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.18 [2-10] Extension CID Settings—Extension Caller ID Resource-1, 2 (KX-TDA50 only) Feature Manual References 1.3.1 Caller ID Wrap-up Time Specifies the length of time that must pass after completing a call before an extension will accept another call when logged in as a member of an Incoming Call Distribution Group.
  • Page 438 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 439 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 440 2.10 [4] Extension Programming Manual References None Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only). Default Value Range Off, On Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References...
  • Page 441 2.10 [4] Extension Default None Value Range None, FWD All, FWD Busy, FWD N/A, FWD Busy N/A Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from CO Indicates the forwarding destination of incoming CO line calls (reference only).
  • Page 442 2.10 [4] Extension Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension Indicates the current DND status for incoming intercom calls (reference only). Default Value Range Off, On Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND...
  • Page 443 2.10 [4] Extension Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD No Answer Time Indicates the length of time that an incoming call rings at the extension before the call is forwarded...

  • Page 444: 4-1-1] Wired Extension-Extension Settings-Clip Generate

    2.10 [4] Extension Default Extension number of port 01 of the first extension card that is installed. Value Range Wired extension number Maintenance Console Location 2.10.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Number to Generate Specifies the number of locations to be programmed.
  • Page 445 2.10 [4] Extension Maintenance Console Location 2.10.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Head of ID Specifies a prefix number to be applied to all generated CLIP numbers. Default Not stored Value Range...

  • Page 446: 4-1-2] Wired Extension-Fwd/Dnd

    2.10 [4] Extension 2.10.3 [4-1-2] Wired Extension—FWD/DND For each extension, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls. Select the desired extension from the Extension Number / Name list. Call from CO—Present Button Status Specifies the status of the FWD/DND—External button.
  • Page 447 2.10 [4] Extension Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button. ON: Prevents extensions from switching to DND mode by pressing the FWD/DND button. Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...
  • Page 448 2.10 [4] Extension Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—Present Button Status Specifies the status of the FWD/DND—Internal button. Default Current status Value Range OFF, FWD, DND Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...
  • Page 449 2.10 [4] Extension Call from Extension—DND Status Availability Enables or disables the DND feature for incoming intercom calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button. ON: Prevents extensions from switching to DND mode by pressing the FWD/DND button. Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...

  • Page 450: 4-1-3] Wired Extension-Speed Dial

    Personal Speed Dialing allows extension users to dial frequently dialed numbers using two-digit speed dialing numbers (00–99). A maximum of 10 Personal Speed Dialing numbers can be programmed for each extension, or 100 when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Select the desired extension from the Extension Number / Name list.

  • Page 451: 4-1-4] Wired Extension-Flexible Button

    For more information on flexible buttons, see "1.6.3 Flexible Buttons" in the Feature Manual. Type Specifies the feature to be assigned to the flexible CO button. Default KX-TDA50 Key Location 1–16: Single CO Key Location 17–36: Not Stored KX-TDA100/KX-TDA200/KX-TDA600 Single CO...
  • Page 452 2.10.6 [4-1-4] Wired Extension—Flexible Button—Flexible Button Data Copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button...
  • Page 453 2.10 [4] Extension Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Call Park) Specifies whether a call is parked in an idle parking zone automatically or in a specific parking zone.
  • Page 454 2.10 [4] Extension Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Parameter Selection (for Time Service) Selects which time modes are switched manually. Default Value Range All (Day/Night/Lunch/Break), Day/Night/Break, Day/Night/Lunch, Day/Night Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References...
  • Page 455 Ext No. / Floating Ext. No. (for DSS) Specifies the number of an extension to be accessed. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button...
  • Page 456 2.10 [4] Extension Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.1 ICD GROUP FEATURES...
  • Page 457 2.10 [4] Extension Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding)
  • Page 458 2.10 [4] Extension Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding)
  • Page 459 2.10 [4] Extension Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out...
  • Page 460 2.10 [4] Extension Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration...
  • Page 461 1.19.4 Voice Mail DPT (Digital) Integration 1.19.5 Voice Mail DTMF Integration Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.
  • Page 462 2.10 [4] Extension Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.15.4 [9-4] NDSS Key Table Feature Manual References 1.13.14 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...
  • Page 463 If the cell is left empty, the extension user must specify the number of an extension each time. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button...

  • Page 464: 4-1-4] Wired Extension-Flexible Button-Flexible Button Data Copy

    2.10 [4] Extension 2.10.6 [4-1-4] Wired Extension—Flexible Button—Flexible Button Data Copy The flexible CO button settings of an extension can be copied to different extensions. Destination Extension Line Select the number and name of the extension that will receive the copied settings. Multiple extensions can be selected.

  • Page 465: 4-1-6] Wired Extension-Ndss Link Data - Send

    2.10 [4] Extension Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.10.7 [4-1-5] Wired Extension—PF Button Programming Manual References None Feature Manual References 1.6.3 Flexible Buttons 2.10.8 [4-1-6] Wired Extension—NDSS Link Data - Send It is possible to cancel the transmission of an extension's status data over the network.

  • Page 466: 4-1-7] Wired Extension-Simplified Voice Message (Kx-Tda50 Only)

    Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 467 Indicates the extension number (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—Extension Number Feature Manual References None Extension Name Indicates the name of the extension (reference only).

  • Page 468: 4-2-1] Portable Station-Extension Settings

    2.10.10 [4-2-1] Portable Station—Extension Settings For each Portable Station (PS), various extension settings can be assigned. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), or 512 (with the KX-TDA600) PSs can be programmed. To assign names and tenants to extension user groups, click Extension User Group Table. See 2.9.3 [3-2] Extension User Group for more details.
  • Page 469 2.10 [4] Extension Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.30 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored.
  • Page 470 Extension User Group Specifies the extension user group to which the PS belongs. The extension user group is used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings...
  • Page 471 2.10 [4] Extension Feature Manual References 1.3.19 COS (Class of Service) Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the PS. Default Value Range 1–8 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.14 [2-8-1] Ring Tone Patterns—Call from CO 2.8.15 [2-8-2] Ring Tone Patterns—Call from Doorphone 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others...
  • Page 472 2.10 [4] Extension Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References None Intercept Destination—Day, Lunch, Break, Night Specifies the Intercept Routing destination of CO line calls in each time mode for Intercept Routing–...
  • Page 473 Specifies the transfer recall destination when an extension user transfers a call with the Call Transfer without Announcement feature and the transferred call is not answered within a certain time period. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings...
  • Page 474 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Option 2 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max.
  • Page 475 2.10 [4] Extension Feature Manual References None Extension PIN Specifies the PIN of the PS. Default Not stored. Value Range Max. 10 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.5.6 Extension PIN (Personal Identification Number) WARNING There is a risk that fraudulent telephone calls will be made if a third party...
  • Page 476 2.10 [4] Extension Programming Manual References 2.14.6 [8-5] Carrier Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.19.1 Verification Code Entry C. Waiting for Call from Extension Selects the method of receiving call waiting notification from other extensions. Default Value Range Off: No notification BSS: Tone from the handset or built-in speaker Maintenance Console Location...
  • Page 477 2.10 [4] Extension Pickup Dial Set Sets or cancels the Hot Line feature. The number specified in Pickup Dial Number on this screen is dialed automatically after going off-hook when the Hot Line feature is active. Default Value Range Off, On Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...
  • Page 478 2.10 [4] Extension Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.30 [1-2] Portable Station Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max.
  • Page 479 2.10 [4] Extension Feature Manual References 1.3.6 Call Pickup Executive Override Deny Specifies whether calls can be interrupted by other extensions. Default Disable Value Range Disable: Allows other extension users to interrupt an existing call Enable: Prevents other extension users from interrupting an existing call Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...
  • Page 480 2.10 [4] Extension CLIR Specifies whether to restrict the display of the CLIP number on the called party's telephone when making a public network CO line call. Default Disable Value Range Disable, Enable Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...
  • Page 481 2.10 [4] Extension Value Range Max. 16 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.1.1 Absent Message Option 4 Extension Number Indicates the extension number of the PS (reference only). Default Not stored.
  • Page 482 2.10 [4] Extension Programming Manual References None Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default Value Range No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups. ICM: An extension line is seized.
  • Page 483 2.10 [4] Extension Feature Manual References 1.10.2 Line Preference—Incoming Call Waiting Tone Type Selects the type of Call Waiting tone sent to the busy extension. Default CW Tone 1 Value Range CW Tone1, CW Tone2 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...
  • Page 484 2.10 [4] Extension Value Range Language1–Language5 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.4.8 Display Information Option 5 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max.
  • Page 485 Selects which caller information is shown on the first line of the PS's display. Default Caller ID Name Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings...
  • Page 486 2.10 [4] Extension Flexible Key Programming Mode Specifies whether the PS user can modify all flexible CO buttons without limitation, or only the One- touch Dialing buttons. When the mode is set to One-touch Dial, there is no need to enter "2" before the number when customizing a One-touch Dialing button.
  • Page 487 Lock, Unlock Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) Character Input Mode Selects the character table to be used for entering characters.
  • Page 488 2.10 [4] Extension Feature Manual References None Flash Mode during CO Conversation Selects the function of the FLASH/RECALL button during a CO line conversation. Default Flash Recall Value Range EFA, Terminate, Flash Recall Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...
  • Page 489 2.10 [4] Extension Default Value Range 1–100 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number ISDN Bearer Selects the ISDN bearer mode. When Automatic is selected, the bearer mode is set automatically depending on the type of the PS.
  • Page 490 2.10 [4] Extension Programming Manual References None Feature Manual References None Option 7 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.30 [1-2] Portable Station Feature Manual References...
  • Page 491 2.10 [4] Extension Wrap-up Time Specifies the length of time that must pass after completing a call before a PS will accept another call when logged in as a member of an Incoming Call Distribution Group. This timer is used when "Options—Wrap-up Timer based on" is set to "Extension" in 2.9.11 [3-5- 3] Incoming Call Distribution Group—Miscellaneous.
  • Page 492 2.10 [4] Extension Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only).
  • Page 493 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.4.9 DND (Do Not Disturb) FWD Mode for Call from CO Indicates the forwarding type of incoming CO line calls (reference only). Default None Value Range...
  • Page 494 2.10 [4] Extension FWD Set for Call from Extension Indicates the current FWD status for incoming intercom calls (reference only). Default Value Range Off, On Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension...
  • Page 495 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from Extension Indicates the forwarding destination of incoming intercom calls (reference only). Default Not stored.

  • Page 496: 4-2-1] Portable Station-Extension Settings-Clip Generate

    2.10 [4] Extension 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Beginning Entry Location (Ext.
  • Page 497 2.10 [4] Extension No. of Digits to Delete Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–4 Maintenance Console Location 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References...

  • Page 498: 4-2-2] Portable Station-Fwd / Dnd

    2.10 [4] Extension Maintenance Console Location 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) 2.10.12 [4-2-2] Portable Station—FWD / DND For each PS, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls.
  • Page 499 2.10 [4] Extension Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.
  • Page 500 2.10 [4] Extension Call from CO—FWD Destination Specifies the forwarding destination of incoming CO line calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References...
  • Page 501 2.10 [4] Extension Value Range OFF: Enables extensions to switch to FWD mode by pressing the FWD/DND button, if forward settings have been programmed. ON: Prevents extensions from switching to FWD mode by pressing the FWD/DND button. Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None...
  • Page 502 2.10 [4] Extension Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References...

  • Page 503: 4-2-3] Portable Station-Flexible Button

    2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button Data Copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 PC Programming Manual...
  • Page 504 None Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings...
  • Page 505 2.10 [4] Extension Feature Manual References 1.3.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the PS belongs to are logged in to or logged out from. Default None Value Range None: The incoming call distribution group is selected manually. All: All incoming call distribution groups that the PS belongs to.
  • Page 506 2.8.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Ext No. / Floating Ext. No. (for DSS) Specifies the number of an extension to be accessed. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) PC Programming Manual...
  • Page 507 Ext No. / Floating Ext. No. (for ICD Group) Specifies the floating extension number of an incoming call distribution group to be accessed. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button...
  • Page 508 Specifies the floating extension number of an incoming call distribution group for which both intercom and CO line calls are forwarded. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button...
  • Page 509 Specifies the floating extension number of an incoming call distribution group for which intercom calls are forwarded. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button...
  • Page 510 Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection). Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button...
  • Page 511 Ext No. / Floating Ext. No. (for Two-way Transfer) Specifies the floating extension number of the VM (DPT) group containing the desired mailbox. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button...
  • Page 512 1.19.4 Voice Mail DPT (Digital) Integration 1.19.5 Voice Mail DTMF Integration Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 500 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 1000 (with the KX-TDA600) One-touch Dialing buttons for PSs. Default Not stored.
  • Page 513 2.10 [4] Extension Feature Manual References 1.13.14 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (or Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...

  • Page 514: 4-2-3] Portable Station-Flexible Button-Flexible Button Data Copy

    2.10 [4] Extension Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration 2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button...

  • Page 515: 4-2-5] Portable Station-Simplified Voice Message (Kx-Tda50 Only)

    Extension Number Indicates the extension number (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Programming Manual References 2.7.30 [1-2] Portable Station—Extension No. PC Programming Manual...
  • Page 516 Indicates the name of the extension (reference only). Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings2.7.30 [1-2] Portable Station—Extension Name Feature Manual References None Simplified Voice Message Selects which SVM card to use to store and play back greetings and messages for the extension.

  • Page 517: 4-3] Dss Console-Flexible Button

    1.16.5 SVM (Simplified Voice Message) 2.10.17 [4-3] DSS Console—Flexible Button A DSS Console can be used in conjunction with a PT. A maximum of 4 (with the KX-TDA50), 8 (with the KX-TDA100/KX-TDA200), or 64 (with the KX-TDA600) DSS Consoles can be programmed. The DPT Type—Type (for DPT or S-Hybrid port) of the extension port that DSS Console is connected...
  • Page 518 2.10.18 [4-3] DSS Console—Flexible Button—Flexible button Data Copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 519 2.10 [4] Extension Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings...
  • Page 520 2.10 [4] Extension Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the paired extension belongs to are logged in to or logged out from. Default None Value Range None: The incoming call distribution group is selected manually. All: All incoming call distribution groups that the paired extension belongs to.
  • Page 521 Ext. No. / Floating Ext No. (for DSS) Specifies the number of an extension to be accessed. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) PC Programming Manual...
  • Page 522 Ext. No. / Floating Ext No. (for ICD Group) Specifies the floating extension number of an incoming call distribution group to be accessed. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 523 Specifies the floating extension number of an incoming call distribution group for which both intercom and CO line calls are forwarded. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 524 Specifies the floating extension number of an incoming call distribution group for which intercom calls are forwarded. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 525 Specifies the floating extension number of an incoming call distribution group to log-in to or log-out from. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 526 Specifies the floating extension number of the VM (DPT) group containing the paired extension's mailbox. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings...
  • Page 527 1.19.4 Voice Mail DPT (Digital) Integration 1.19.5 Voice Mail DTMF Integration Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.
  • Page 528 2.10 [4] Extension Feature Manual References 1.12.4 One-touch Dialing Dial (for NDSS) Specifies the network extension number of the extension to be accessed using Network Direct Station Selection. Note that only extension numbers that have been previously registered in 2.15.4 [9-4] NDSS Key Table can be specified here.
  • Page 529 Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) PC Programming Manual...

  • Page 530: 4-3] Dss Console-Flexible Button-Flexible Button Data Copy

    2.10 [4] Extension For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration 2.10.18 [4-3] DSS Console—Flexible Button—Flexible button Data Copy The flexible DSS button settings of a DSS Console can be copied to different DSS Consoles.

  • Page 531: 5] Optional Device

    1.4.11 Doorphone Call Physical—Slot Indicates the slot to which the doorphone is connected (reference only). Default Current slot number Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References...
  • Page 532 2.11 [5] Optional Device Feature Manual References 1.4.11 Doorphone Call Physical—Port Indicates the port number to which the doorphone is connected (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References None Feature Manual References 1.4.11 Doorphone Call...
  • Page 533 2.11 [5] Optional Device Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.4.11 Doorphone Call Tenant Number Specifies the tenant number for the doorphone port in order to apply the Time Table (day/lunch/break/ night).

  • Page 534: 5-2] External

    Click Extension List View to view a list of all programmed extension numbers and types (see 2.4.3 Tool—Extension List View). Page Number 1, Page Number 2—Floating Extension Number Specifies the floating extension number of the external pager. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) PC Programming Manual...

  • Page 535: 5-3-1] Voice Message-Disa System

    2.11 [5] Optional Device For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.2 [5-2] External Pager Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) 1.13.1 Paging 1.17.2 TAFAS (Trunk Answer From Any Station) Page Number 1, Page Number 2—Name Specifies the name of the external pager.
  • Page 536 2.11 [5] Optional Device Option 1 DISA Security—DISA Security Mode Selects the DISA security mode to prevent unauthorized access to the PBX. In CO Line or All Security mode, the caller is required to override security by Walking COS or Verification Code Entry in order to enable the restricted feature temporarily.
  • Page 537 2.11 [5] Optional Device DISA Intercept—Intercept when Destination through DISA is Busy Selects how DISA calls are handled if the destination is busy, and disables Call Waiting, FWD, or Idle Extension Hunting. Default Busy Tone Value Range Busy Tone, Enable, Busy Message Maintenance Console Location 2.11.3 [5-3-1] Voice Message—DISA System Programming Manual References...
  • Page 538 2.11 [5] Optional Device Value Range Disable (Release DISA): The DISA port of the message card is released when a CO-to-CO line call using DISA is established. Enable: DISA stays connected for the duration of the call, to allow detection of the end of the call. Maintenance Console Location 2.11.3 [5-3-1] Voice Message—DISA System Programming Manual References...
  • Page 539 2.11 [5] Optional Device Value Range Disable: CO-to-CO line calls are established without using DISA. Enable (Get DISA): CO-to-CO line calls are established using DISA, and DISA can be used to detect the end of the call. Maintenance Console Location 2.11.3 [5-3-1] Voice Message—DISA System Programming Manual References 2.11.3 [5-3-1] Voice Message—DISA System—Option 1—CO-CO with DISA—DISA to Public CO...
  • Page 540 DISA CO--to-CO line conversation established through an analog CO line. To change DISA Cyclic Tone Detection, follow the steps below: Change DISA Cyclic Tone Detection. Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) to "OUS", then "INS". Default...
  • Page 541 PBX recognizes it as a tone- To change DISA Cyclic Tone Option, follow the steps below: Change DISA Cyclic Tone Option. Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) card to "OUS", then "INS". Default...
  • Page 542 2.11 [5] Optional Device Change DISA Cyclic Tone Option. Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) card to "OUS", then "INS". Default 600 ms Value Range 100 + 10 × n (n=1–390) ms Maintenance Console Location 2.11.3 [5-3-1] Voice Message—DISA System...

  • Page 543: 5-3-2] Voice Message-Disa Message

    1.17.4 Timed Reminder 2.11.4 [5-3-2] Voice Message—DISA Message Outgoing messages (OGM) for DISA calls can be specified. A maximum of 32 (with the KX-TDA50) or 64 (with the KX-TDA100/KX-TDA200/KX-TDA600) OGMs can be programmed. To view a list of all programmed extension numbers and types, click Extension List View (see 2.4.3 Tool—Extension List View).
  • Page 544 2.11 [5] Optional Device Name Specifies the name of the OGM. Default OGM 01–xx: DISA 01–DISA xx Value Range Max. 20 characters Maintenance Console Location 2.11.4 [5-3-2] Voice Message—DISA Message Programming Manual References None Feature Manual References 1.4.7 DISA (Direct Inward System Access) 1.12.2 OGM (Outgoing Message) 1 Digit AA Destination (Extension Number)—Dial 0–9 Specifies the destination for each DISA Automated Attendant (AA) number.

  • Page 545: 5-3-3] Voice Message-Svm (Kx-Tda50 Only)

    Feature Manual References 1.1.6 Automatic Fax Transfer 1.4.7 DISA (Direct Inward System Access) 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Settings related to the SVM cards can be specified, for use with the Simplified Voice Message feature. SVM Card No. 1, 2—Slot No.
  • Page 546 2.11 [5] Optional Device Value Range Slot number Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Card No. 1, 2—Floating Extension Number Specifies the floating extension number used to access the SVM card.

  • Page 547: Recording Mode

    High: About 40 minutes of messages can be recorded per card. Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message)
  • Page 548 90 ms Option: The tone pattern that the PBX receives is optional as specified in SVM Cyclic Tone Option on this screen. Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Cyclic Tone Option—Tone On Maximum Time...
  • Page 549 2.11 [5] Optional Device Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Cyclic Tone Option—Tone Off Maximum Time Specifies the maximum time that the PBX waits for a cyclic tone to be sent from the telephone company before recognising it as a tone-off.

  • Page 550: 5-4] External Relay

    2.11 [5] Optional Device Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) 2.11.6 [5-4] External Relay Settings related to external relays can be programmed. External Relay No.
  • Page 551 1.5.8 External Relay Physical Location—Slot No. Indicates the slot position (reference only). Default Current slot and sub-slot number. Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.6 [5-4] External Relay Programming Manual References...
  • Page 552 2.11 [5] Optional Device Feature Manual References 1.5.8 External Relay Name Specifies the relay name. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.6 [5-4] External Relay Programming Manual References None Feature Manual References 1.5.8 External Relay Relay Activate Time Specifies the length of time that the relay stays on when activated.

  • Page 553: 5-5] External Sensor

    To assign destinations for sensor calls easily, click Extension Number of Destination Setting (see 2.1.6 Extension Number Setting). External Sensor No. Indicates the number of the external sensor (reference only). Default Current external sensor number. Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200: 1–16 KX-TDA600: 1–64 Maintenance Console Location 2.11.7 [5-5] External Sensor...
  • Page 554 1.5.9 External Sensor Physical Location—Slot No. Indicates the slot position (reference only). Default Current slot and sub-slot number. Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.7 [5-5] External Sensor Programming Manual References...
  • Page 555 2.11 [5] Optional Device Value Range Port number Maintenance Console Location 2.11.7 [5-5] External Sensor Programming Manual References None Feature Manual References 1.5.9 External Sensor Sensor Name Specifies the sensor name. Default Sensor Value Range Max. 20 characters Maintenance Console Location 2.11.7 [5-5] External Sensor Programming Manual References None...
  • Page 556 2.11 [5] Optional Device Feature Manual References 1.5.9 External Sensor Tenant No. Specifies the tenant to which the sensor belongs, to determine the Time Table for the sensor. (The tenant number corresponds to the Time Table number.) Default Value Range 1–8 Maintenance Console Location 2.11.7 [5-5] External Sensor...

  • Page 557: 6] Feature

    Selects the System Speed Dialing Table to be programmed. Whether a tenant uses the basic System Speed Dialing Table or the additional table (with MEC [KX-TDA50/KX-TDA100/KX-TDA200] or EMEC [KX-TDA600] card) depends on the setting of System Speed Dial in 2.12.6 [6-6] Tenant.
  • Page 558 (CO Line Access Number + Telephone Number) in order for the call to be routed correctly. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) PC Programming Manual...

  • Page 559: 6-2] Caller Id Modification

    2.12 [6] Feature Maintenance Console Location 2.12.1 [6-1] System Speed Dial Programming Manual References 2.16.2 [10-2] DIL Table & Port Settings—CLI for DIL—CLI Ring for DIL—Day, Lunch, Break, Night 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID—Day, Lunch, Break, Night Feature Manual References 1.3.1 Caller ID 1.3.12 CLI (Calling Line Identification) Distribution...
  • Page 560 2.12 [6] Feature Removed Number of Digits Specifies the number of digits to be removed from the beginning of the incoming caller's number. Default Local / International Call Data 1–10: 3 Long Distance Code: 0 Value Range 0–9 Maintenance Console Location 2.12.2 [6-2] Caller ID Modification Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings—Caller-ID Modification Table...
  • Page 561 2.12 [6] Feature Removed Number of Digits (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the number of leading digits to be removed from the incoming caller's number for each type of network numbering plan. Default Local / International Call Data 1–10: 3 Long Distance Code: 0 Value Range 0–9 Maintenance Console Location...

  • Page 562: 6-3] Verification Code

    2.12 [6] Feature 2.12.3 [6-3] Verification Code A verification code is used to override the Toll Restriction (TRS) of the extension in use to make a certain CO line call, or to identify the call for accounting and billing purposes. A maximum of 1000 verification codes can be programmed with other related parameters.
  • Page 563 2.12 [6] Feature Default Not stored. Value Range Max. 10 digits (consisting of 0–9) Maintenance Console Location 2.12.3 [6-3] Verification Code Programming Manual References None Feature Manual References 1.19.1 Verification Code Entry WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX.

  • Page 564: 6-4] Second Dial Tone

    2.12 [6] Feature Itemized Billing Code for ARS Specifies the itemized billing code used by the ARS feature for identifying calls made with a verification code for accounting and billing purposes. Default Not stored. Value Range Max. 10 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.12.3 [6-3] Verification Code Programming Manual References...

  • Page 565: 6-5] Absent Message

    2.12 [6] Feature Pause Repeating Counter Specifies the number of pauses to be inserted when waiting for the second dial tone. Default Value Range 0–20 Maintenance Console Location 2.12.4 [6-4] Second Dial Tone Programming Manual References None Feature Manual References 1.13.4 Pause Insertion 2.12.5 [6-5] Absent Message When a display PT user calls an extension, a message is shown on the caller's telephone display...

  • Page 566: 6-6] Tenant

    Specifies the audio source to be used for Music on Hold. Default Same as System Setting Value Range For KX-TDA50: Same as System Setting, BGM, Tone For KX-TDA100/KX-TDA200/KX-TDA600: Same as System Setting, BGM 1, BGM 2, Tone Maintenance Console Location 2.12.6 [6-6] Tenant...

  • Page 567: Ars Mode

    1.17.3 Tenant Service System Speed Dial Specifies which system speed dialing table is used by the tenant. This setting is only available when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Default Same as System Setting PC Programming Manual...

  • Page 568: 6-7] Dialing Plan

    2.12 [6] Feature Value Range For KX-TDA50: Basic Memory: PBX basic system speed dialing numbers are used. Expanded Memory: Expansion system speed dialing numbers are used. For KX-TDA100/KX-TDA200/KX-TDA600: Same as System Setting: PBX common system speed dialing numbers are used.

  • Page 569: 6-7] Dialing Plan-Auto Assign

    2.12 [6] Feature Programming Manual References 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Analog CO First Digit 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Analog CO Inter-digit 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—Dialing Plan Table Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES 2.12.8 [6-7] Dialing Plan—Auto Assign...
  • Page 570 2.12 [6] Feature Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension 1–4: 101 For KX-TDA600: Extension 1–4: 1001 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.12.9 [6-8] Hotel Programming Manual References...
  • Page 571 2.12 [6] Feature Default No Print Value Range No Print, Print Maintenance Console Location 2.12.9 [6-8] Hotel Programming Manual References 2.17.1 [11-1] Main Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) 1.17.4 Timed Reminder SMDR for External Hotel Application 2—Printing Message 1–8 Specifies the text of the message output on SMDR when this Printing Message is selected from an extension.

  • Page 572: 7] Trs

    2.13 [7] TRS 2.13 [7] TRS 2.13.1 [7-1] Denied Code Toll Restriction (TRS) prohibits an extension from making certain CO line calls. Each time mode of every COS is assigned one of the seven TRS levels. TRS level 7 provides the maximum restriction (all CO line calls are prohibited) and level 1 provides the minimum (all CO line calls are allowed).

  • Page 573: 7-3] Special Carrier Code

    If a Special Carrier Access Code is found in the dialed number, TRS will look only at the following digits. A maximum of 20 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 100 (with the KX-TDA600) Special Carrier Access Codes can be programmed. With the KX-TDA600, 20 codes are displayed at a time.

  • Page 574: 7-4] Emergency Dial

    2.13 [7] TRS Feature Manual References 1.16.2 Special Carrier Access Code 1.17.6 TRS (Toll Restriction) 2.13.4 [7-4] Emergency Dial Any extension user can dial the programmed emergency numbers at any time after seizing a CO line. The restrictions imposed on the extension, such as Toll Restriction (TRS), Account Code—Forced mode, and Extension Dial Lock are disregarded.
  • Page 575 2.13 [7] TRS Maintenance Console Location 2.13.5 [7-5] Miscellaneous Programming Manual References 2.12.1 [6-1] System Speed Dial Feature Manual References 1.17.6 TRS (Toll Restriction) TRS Check for dial "* #" Enables a TRS check for the user-dialed " " and "#". This is useful in preventing unauthorized calls which could possibly be made through certain telephone company exchanges.
  • Page 576 2.13 [7] TRS Feature Manual References 1.17.6 TRS (Toll Restriction) Dial Digits Limitation After Answering—Dial Digits Specifies a limit to be placed on the number of digits which can be dialed after an extension user receives a CO line call. If the number of dialed digits exceeds the programmed limit, the line will be disconnected.

  • Page 577: 8] Ars

    2.14 [8] ARS 2.14 [8] ARS 2.14.1 [8-1] System Settings Automatic Route Selection (ARS) automatically selects the appropriate carrier at the time a CO line call is made, according to the programmed settings. The user-dialed number will be checked and modified in order to connect it to the appropriate carrier.

  • Page 578: 8-2] Leading Number

    2.14 [8] ARS Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) 2.14.2 [8-2] Leading Number Specifies the area codes and/or telephone numbers as leading numbers that will be routed by the ARS feature. A maximum of 1000 different leading numbers can be programmed, and each leading number can select a Routing Plan Table number, which determines the ARS procedure.

  • Page 579: 8-3] Routing Plan Time

    The start and end times of a maximum of 4 different time blocks are shown for each day of the week. There are 16 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 48 (with the KX-TDA600) Routing Plan Tables, and each Routing Plan Table can have its own time blocks. Select the desired Routing Plan Table number from the Routing Plan list.

  • Page 580: 8-4] Routing Plan Priority

    2.14 [8] ARS Time-A–D—Setting Enables the setting of the start time for each time block. Default Time-A–Time-C: Enable Time-D: Disable Value Range Disable, Enable Maintenance Console Location 2.14.4 [8-3] Routing Plan Time—Time Setting Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) Time-A–D—Hour, Minute Specifies the start time for each time block.

  • Page 581: 8-5] Carrier

    It is possible to specify how user-dialed numbers are modified for connecting to the appropriate carrier. A maximum of 10 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 48 (with the KX-TDA600) different carriers can be programmed to be used with the ARS feature.
  • Page 582 2.14 [8] ARS Removed Number of Digits Specifies the number of leading digits to remove from the user-dialed number. Default Value Range 0–15 Maintenance Console Location 2.14.6 [8-5] Carrier Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) Modify Command Specifies the commands to modify the user-dialed number to access the carrier.
  • Page 583 2.14.6 [8-5] Carrier Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) TRG 01–TRG 64 (KX-TDA50/KX-TDA100/KX-TDA200), or TRG 01–TRG 96 (KX-TDA600) Selects the trunk groups that connect to the carrier. TRG 01–TRG 64 (KX-TDA50/KX-TDA100/KX-TDA200), or TRG 01–TRG 96 (KX-TDA600) Enables each trunk group for each carrier.

  • Page 584: 8-6] Leading Number Exception

    2.14 [8] ARS Default Not stored. Value Range Max. 10 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.14.6 [8-5] Carrier Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.17.3 Tenant Service 2.14.7 [8-6] Leading Number Exception Specifies telephone numbers that will not be connected using the ARS feature.

  • Page 585: 8-7] Authorization Code For Trg

    Carrier tab of screen 2.14.6 [8-5] Carrier. 8 trunk groups are displayed on the screen at a time. To display other groups, click the applicable tab. Authorization Code for Trunk Group—TRG 01–TRG 64 (KX-TDA50/KX- TDA100/KX-TDA200), or TRG 01–TRG 96 (KX-TDA600) Specifies the Authorization code of each carrier for each trunk group.

  • Page 586: 9] Private Network

    2.15 [9] Private Network 2.15 [9] Private Network 2.15.1 [9-1] TIE Table A TIE line is a privately leased communication line between two or more PBXs, which provides cost effective communications between company members at different locations. A maximum of 32 TIE Line Routing and Modification Tables can be programmed. It is necessary to make unified tables with all PBXs at different locations in a TIE line network in order to identify the CO line route to be used when an extension makes or receives a TIE line call.
  • Page 587 2.15 [9] Private Network Value Range Max. 3 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.15.1 [9-1] TIE Table Programming Manual References None Feature Manual References 1.13.12 PRIVATE NETWORK FEATURES Removed Number of Digits Specifies the number of leading digits of the dialed number to be removed for each priority. Default Value Range 0–15...
  • Page 588 1.13.12 PRIVATE NETWORK FEATURES Trunk Group Specifies the trunk group to be used for TIE line calls for each priority. Default None Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, 1–64 For KX-TDA600: None, 1–96 Maintenance Console Location 2.15.1 [9-1] TIE Table Programming Manual References...

  • Page 589: 9-2] Network Data Transmission

    2.15 [9] Private Network Enhanced QSIG Call Information (Optional SD Card Required) Enables Network Message Waiting information to be sent from the PBX to which the VPS is attached to extensions connected to other PBXs in the network. Default Enable Value Range Disable, Enable Maintenance Console Location...
  • Page 590 2.15 [9] Private Network Programming Manual References None Feature Manual References 1.13.14 Private Network Features—NDSS (Network Direct Station Selection) Network BLF Data Transmission for Centralised Operator Feature—Data Transmission VoIP->ISDN Selects whether to re-send BLF data received from a VoIP port through any ISDN ports that are set to transmit BLF data.
  • Page 591 2.15 [9] Private Network Network BLF Data Transmission for Centralised Operator Feature—Data Transmission Counter Specifies the maximum number of "hops", or transmissions between two PBXs, before a packet of BLF data is discarded. Default Value Range 0–63 Maintenance Console Location 2.15.2 [9-2] Network Data Transmission Programming Manual References None...

  • Page 592: 9-3] Network Operator (Voip)

    2.15 [9] Private Network Default Value Range 0–10 Maintenance Console Location 2.15.2 [9-2] Network Data Transmission Programming Manual References 2.15.1 [9-1] TIE Table—Enhanced QSIG Call Information (Optional SD Card Required) Feature Manual References 1.13.13 Private Network Features—Centralized Voice Mail Network MSW Data Transmission for Centralized VM Feature—Data Re- transmission : Repeat Timer Specifies the length of time between repeated re-transmission of network message waiting notifications.
  • Page 593 Specifies the slot number (with the KX-TDA600, shelf and slot number) of the card used to send extension status data. This setting is only required when using VoIP to transmit data. Default Undefined Value Range For KX-TDA50: Undefined, 5–7 For KX-TDA100/KX-TDA200: Undefined, 1–11 For KX-TDA600: Undefined, 1-1–4-11...

  • Page 594: 9-4] Ndss Key Table

    2.15 [9] Private Network 2.15.4 [9-4] NDSS Key Table Extensions at up to 7 other PBXs that will be monitored using Network Direct Station Selection (NDSS) can be registered. A maximum of 250 extensions can be registered. To create an NDSS button to monitor an extension, the extension must be registered here first.
  • Page 595 2.15 [9] Private Network Feature Manual References 1.13.14 Private Network Features—NDSS (Network Direct Station Selection) Network PBX ID of Network Extension to be monitored Indicates the Network BLF Data Transmission for Centralised Operator Feature—Network PBX ID of the PBX that the extension is connected to (reference only). Default Not stored.

  • Page 596: 10] Co & Incoming Call

    2.16 [10] CO & Incoming Call 2.16.1 [10-1] CO Line Settings CO lines can be assigned a name, and grouped into a maximum of 64 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups. For KX-TDA600, all supported cards are displayed in the Select Shelf & Slot list. Select the shelf and slot and card type to program, or select "All"...
  • Page 597 2.16 [10] CO & Incoming Call Physical—Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.16.1 [10-1] CO Line Settings Programming Manual References None Feature Manual References None Card Type Indicates the type of card to which the CO line is connected (reference only). Default Card type Value Range...

  • Page 598: 10-2] Dil Table & Port Settings

    None Feature Manual References 1.4.8 Display Information Trunk Group Number Specifies the trunk group number to which the CO line belongs. Default Value Range KX-TDA50/KX-TDA100/KX-TDA200: 1–64 KX-TDA600: 1–96 Maintenance Console Location 2.16.1 [10-1] CO Line Settings Programming Manual References None Feature Manual References 1.7.1 GROUP FEATURES...
  • Page 599 2.16 [10] CO & Incoming Call To assign DIL destination numbers, enter directly or click Extension Number of DIL Destination Setting (see 2.1.6 Extension Number Setting). Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.16.2 [10-2] DIL Table &...
  • Page 600 2.16 [10] CO & Incoming Call Value Range Port number Maintenance Console Location 2.16.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References None Card Type Indicates the CO line card type (reference only). Default Current card type Value Range Card type Maintenance Console Location...
  • Page 601 Specifies the DIL destination in each time mode. Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9): For an extension number at the local PBX Max. 5 digits (consisting of 0–9): For an extension number at a remote PBX For KX-TDA600: Max.
  • Page 602 2.16 [10] CO & Incoming Call 1.13.12 PRIVATE NETWORK FEATURES Tenant Number Specifies the tenant number, to determine the Time Table by which calls are distributed depending on the time of day. Default Value Range 1–8 Maintenance Console Location 2.16.2 [10-2] DIL Table & Port Settings Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References...
  • Page 603 2.16 [10] CO & Incoming Call CLI for DIL When CLI distribution is enabled for a CO line to which DIL distribution is set, incoming CO line calls will be distributed to the CLI destinations (instead of the DIL destinations) if the caller's identification number is found in the System Speed Dialing Table.
  • Page 604 2.16 [10] CO & Incoming Call Default Current port number Value Range Port number Maintenance Console Location 2.16.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References None Card Type Indicates the CO line card type (reference only). Default Current card type Value Range...
  • Page 605 2.16 [10] CO & Incoming Call Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES 1.13.12 PRIVATE NETWORK FEATURES Distribution Method (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the distribution method for incoming CO line calls. The value range of this setting depends on the card type and Trunk Property assigned for each CO line.

  • Page 606: Port Setting

    2.16 [10] CO & Incoming Call Port Setting For each CO line to which DID distribution is set, or for each CO line whose Trunk Property on this screen is Private (TIE), modification parameters for DID number and TIE line call numbers can be programmed.
  • Page 607 2.16 [10] CO & Incoming Call Default Current port number Value Range Port number Maintenance Console Location 2.16.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References None Card Type Indicates the CO line card type (reference only). Default Current card type Value Range...
  • Page 608 1.9.10 INCOMING CALL FEATURES DID/TIE—Remove Digit Specifies the number of leading digits to be removed from the incoming called number for DID distribution (KX-TDA100/KX-TDA200/KX-TDA600) or for TIE line service. With the KX-TDA50, this parameter is shown as TIE—Remove Digit. Default Value Range 0–15 Maintenance Console Location 2.16.2 [10-2] DIL Table &...

  • Page 609: 10-3] Did Table (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    DID/TIE—Additional Dial Specifies the number to be added to the incoming called number in the place of the removed digits for DID distribution or for TIE line service. With the KX-TDA50, this parameter is shown as TIE—Remove Digit. Default Not stored.

  • Page 610: Did Name

    2.16 [10] CO & Incoming Call Value Range Max. 32 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.16.4 [10-3] DID Table—Automatic Registration (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) DID Name Specifies the name for the DID number which is shown on the extension's display when receiving a call with the DID number.
  • Page 611 2.16 [10] CO & Incoming Call Maintenance Console Location 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.8.8 [2-6-1] Numbering Plan—Main 2.16.4 [10-3] DID Table—Automatic Registration (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) 1.13.12 PRIVATE NETWORK FEATURES Tenant Number Specifies the tenant number, to determine the Time Table by which calls are distributed depending on the time of day.

  • Page 612: 10-3] Did Table-Automatic Registration (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.16 [10] CO & Incoming Call Programming Manual References None Feature Manual References 1.4.5 DID (Direct Inward Dialing) 1.19.4 Voice Mail DPT (Digital) Integration CLI Ring for DID—Day, Lunch, Break, Night Enables CLI distribution in each time mode. Default Disable Value Range Disable, Enable Maintenance Console Location...
  • Page 613 2.16 [10] CO & Incoming Call Programming Manual References 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) Generate DID Number (From) Specifies the DID number of the first location to be programmed. DID numbers for subsequent locations will be generated automatically, by adding one to the value of the previous location.

  • Page 614: 10-3] Did Table-Name Generate (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.16 [10] CO & Incoming Call Destination—Day, Lunch, Break, Night Specifies the number of the DID destination in each time mode for the first location to be programmed. If the same destination is to be used for all locations for a certain time mode, click the appropriate Same all check box.
  • Page 615 2.16 [10] CO & Incoming Call Feature Manual References 1.4.5 DID (Direct Inward Dialing) Number to Generate Specifies the number of locations to be programmed. Default Not stored. Value Range 1–1000 Maintenance Console Location 2.16.5 [10-3] DID Table—Name Generate (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...

  • Page 616: 10-5] Miscellaneous

    2.16 [10] CO & Incoming Call Value Range Max. 20 characters Maintenance Console Location 2.16.5 [10-3] DID Table—Name Generate (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) Name Suffix Specifies the text to be included at the end of each DID name.
  • Page 617 2.16 [10] CO & Incoming Call Maintenance Console Location 2.16.6 [10-5] Miscellaneous Programming Manual References None Feature Manual References 1.9.11 Intercept Routing Intercept—Intercept Routing - DND (Destination sets DND) Enables the Intercept Routing—DND feature to activate when the original destination is in DND mode.
  • Page 618 2.16 [10] CO & Incoming Call Programming Manual References None Feature Manual References 1.9.12 Intercept Routing—No Destination PC Programming Manual...

  • Page 619: 11] Maintenance

    2.17 [11] Maintenance 2.17 [11] Maintenance 2.17.1 [11-1] Main SMDR Station Message Detail Recording (SMDR) automatically records detailed information about incoming and outgoing calls. SMDR Format—Type Selects the format of SMDR output. Default Type A Value Range Type A: 80 digits without call charge information Type B: 80 digits with call charge information Type C: 120 digits Maintenance Console Location...
  • Page 620 2.17 [11] Maintenance Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Format—Page Length (Number of Lines) Specifies the number of lines on a page of output paper. Match the SMDR output to the paper size being used in the printer. Default Value Range 4–99...
  • Page 621 2.17 [11] Maintenance Default MM-DD-YY Value Range MM-DD-YY, DD-MM-YY, YY-MM-DD, YY-DD-MM Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Format—Time Format (12H / 24H) Selects whether times are displayed using the 12- or 24-hour format. Default Value Range 12H, 24H...
  • Page 622 2.17 [11] Maintenance Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Outgoing CO Call Printout (SMDR) Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Print Information—Incoming Call Specifies whether the information relating to incoming CO line calls, such as caller's identification name and number, is printed.
  • Page 623 2.17 [11] Maintenance Default No Print Value Range No Print, Print Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out 1.16.1 SMDR (Station Message Detail Recording) Print Information—Hotel Room Status Selects whether check-in and check-out data is output on SMDR. Default No Print Value Range...

  • Page 624: Smdr Options

    2.17 [11] Maintenance Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References 2.12.9 [6-8] Hotel Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) 1.17.4 Timed Reminder Print Information—Error Log Specifies whether PBX error log information is output to SMDR. Default Print Value Range...
  • Page 625 2.17 [11] Maintenance Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.16.1 SMDR (Station Message Detail Recording) Option—Caller ID Number & Name Selects the printing format of caller identifications for incoming CO line calls.
  • Page 626 2.17 [11] Maintenance Option—Secret Dial Selects the printing format of calls with a secret dial. The secret dial conceals all or part of the dialed number. Note that selecting Dial before ARS Modification in Option—ARS Dial on this screen indicates the dialed numbers as dots regardless of this setting.
  • Page 627 2.17 [11] Maintenance Value Range No Print, Print Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Option—Caller ID Modification Specifies whether Caller ID numbers are recorded on SMDR as received (before being modified by the PBX) or after being modified.
  • Page 628 2.17 [11] Maintenance Programming Manual References 2.17.1 [11-1] Main—RS-232C—Communication—Flow Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Communication—NL Code Specifies the NL (New Line) code for the printer or personal computer. If the printer or personal computer automatically feeds lines with a carriage return, select CR (Carriage Return).
  • Page 629 2.17 [11] Maintenance Communication—Word Length Specifies the number of bits in each byte of a character. When connecting the KX-TDA Maintenance Console to the PBX using an RS-232C cable, assign the following values to the Serial Interface (RS-232C) port of the PBX: Word Length: 8 bit, Parity Bit: None, Stop Bit: 1 bit CAUTION Do not use the following combinations:...
  • Page 630 2.17 [11] Maintenance Communication—Stop Bit Selects a stop bit code that indicates the end of a bit string which composes a character. Select an appropriate value depending on the requirements of the printer or personal computer. Default 1 bit Value Range 1 bit, 2 bit Maintenance Console Location 2.17.1 [11-1] Main...
  • Page 631 Default Not stored. Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.17.1 [11-1] Main...
  • Page 632 2.17 [11] Maintenance Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.10.4 Local Alarm Information Daily Test Start Time—Hour Specifies the hour of the PBX daily self check start time. Default Value Range 0–23 Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None...
  • Page 633 2.17 [11] Maintenance Error Log for Centralized VM—Network MSW Transmission (Counter) Enables error information to be logged in the PBX if network message waiting information is deleted after re-transmission is repeated for the number of times specified in Network MSW Data Transmission for Centralized VM Feature—Data Re-transmission : Repeat Counter in 2.15.2 [9- 2] Network Data Transmission.
  • Page 634 Specifies the floating extension number for analog remote maintenance. To enable this setting, an RMT card must be installed, and Remote—Remote Programming on this screen must be enabled. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Max. 4 digits (consisting of 0–9) For KX-TDA600: Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.17.1 [11-1] Main...
  • Page 635 2.17 [11] Maintenance Remote—Password Lock Counter for Remote Programming Specifies the number of successive incorrect password entries allowed before remote access is locked. Default None Value Range None, 1–15 Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.13.6 PC Programming Remote—Remote Maintenance Dial Number (Own Telephone number for reference)
  • Page 636 2.17 [11] Maintenance System Password - PT Programming—Prog ** : User Level Specifies the user level system password to authorize the PT user to access only the permitted system programming. Default 1234 Value Range 4–10 digits (consisting of 0–9) Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None...
  • Page 637 2.17 [11] Maintenance Value Range 4–10 digits (consisting of 0–9) Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None Feature Manual References 1.11.1 Manager Features System Password - PC Programming—User Level Specifies the system password used to access KX-TDA Maintenance Console at User Level. Default 1234 Value Range...

  • Page 638: 11-2] Pt Programming Access

    2.17 [11] Maintenance Feature Manual References 1.13.6 PC Programming System Password - PC Programming—Installer Level Specifies the system password used to access KX-TDA Maintenance Console at Installer Level. Default 1234 Value Range 4–10 digits (consisting of 0–9) Maintenance Console Location 2.17.1 [11-1] Main Programming Manual References None...

  • Page 639: 11-3] Power Failure Transfer (Kx-Tda100/Kx-Tda200/Kx-Tda600 Only)

    2.17 [11] Maintenance PROG** Selects whether User Level PT users can access each system programming item. Default 000–009, 020–099: Enable 010–019, 100–999: Disable Value Range Disable, Enable Maintenance Console Location 2.17.2 [11-2] PT Programming Access Programming Manual References None Feature Manual References 1.13.27 PT Programming 2.17.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX- TDA600 only)
  • Page 640 2.17 [11] Maintenance Feature Manual References 1.13.8 Power Failure Transfer Extension Card Slot No. Specifies the position of the extension card to be used. Default Current slot number Value Range None, 1–11 Maintenance Console Location 2.17.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 641: Appendix

    Section 3 Appendix PC Programming Manual...

  • Page 642: Feature Programming References

    3.1 Feature Programming References Feature Programming References Absent Message • 2.8.8 [2-6-1] Numbering Plan—Main—Features—Absent Message Set / Cancel • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 3—Absent Message • 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Absent Message • 2.12.5 [6-5] Absent Message Feature Manual Reference 1.1.1 Absent Message Account Code Entry •...
  • Page 643 2.8.3 [2-2] Operator & BGM – BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX- TDA600 only) – BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) • 2.8.8 [2-6-1] Numbering Plan—Main—Features – External BGM On / Off –...
  • Page 644 3.1 Feature Programming References – Extension Caller ID Sending – Incoming Call Wait Timer for Extension Caller ID • 2.12.1 [6-1] System Speed Dial • 2.12.2 [6-2] Caller ID Modification Feature Manual Reference 1.3.1 Caller ID Call Hold • 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone –...
  • Page 645 3.1 Feature Programming References 1.3.4 Call Monitor Call Park • 2.8.4 [2-3] Timers & Counters – Recall—Call Park Recall – Recall—Disconnect after Recall • 2.8.8 [2-6-1] Numbering Plan—Main—Features—Call Park / Call Park Retrieve • 2.10.5 [4-1-4] Wired Extension—Flexible Button – Type –...
  • Page 646 3.1 Feature Programming References • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Transfer Recall Destination • 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Transfer Recall Destination Feature Manual Reference 1.3.8 Call Transfer Call Waiting Features • 2.7.10 [1-1] Slot—LCO Card Property—Caller ID—Caller ID Signaling •...
  • Page 647 3.1 Feature Programming References – CLI Destination • 2.16.2 [10-2] DIL Table & Port Settings—DIL—CLI Ring for DIL—Day, Lunch, Break, Night • 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID— Day, Lunch, Break, Night Feature Manual Reference 1.3.12 CLI (Calling Line Identification) Distribution CLIP (Calling Line Identification Presentation) •...
  • Page 648 3.1 Feature Programming References • 2.7.23 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Connection • 2.8.8 [2-6-1] Numbering Plan—Main—Features – Idle Line Access (Local Access) – Trunk Group Access – Single CO Line Access • 2.8.12 [2-7-2] Class of Service—External Call Block •...
  • Page 649 3.1 Feature Programming References – Confirmation Tone—Tone 4-2 : Finish Conference – Echo Cancel—Conference • 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type • 2.10.13 [4-2-3] Portable Station—Flexible Button—Type • 2.10.17 [4-3] DSS Console—Flexible Button—Type Feature Manual Reference 1.3.16 Conference Confirmation Tone • 2.8.17 [2-9] System Options—Option 3 –...
  • Page 650 3.1 Feature Programming References Data Line Security • 2.8.8 [2-6-1] Numbering Plan—Main—Features—Data Line Security Set / Cancel • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 2—Data Mode Feature Manual Reference 1.4.2 Dial Mode Selection Dial Mode Selection • 2.7.11 [1-1] Slot—LCO Port –...
  • Page 651 3.1 Feature Programming References – Distribution Method (KX-TDA100/KX-TDA200/KX-TDA600 only) – DID/TIE—Remove Digit – DID/TIE—Additional Dial • 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual Reference 1.4.5 DID (Direct Inward Dialing) DIL (Direct In Line) • 2.16.2 [10-2] DIL Table & Port Settings—DIL –...
  • Page 652 3.1 Feature Programming References • 2.16.2 [10-2] DIL Table & Port Settings – DIL—DIL Destination—Day, Lunch, Break, Night – CLI for DIL—CLI Ring for DIL—Day, Lunch, Break, Night Feature Manual Reference 1.4.7 DISA (Direct Inward System Access) Display Information • 2.8.17 [2-9] System Options—Option 5—PT Feature Access—No.
  • Page 653 3.1 Feature Programming References Doorphone Call • 2.8.4 [2-3] Timers & Counters—DISA / Door / Reminder / U. Conf – Doorphone—Call Ring Duration – Doorphone—Call Duration • 2.8.8 [2-6-1] Numbering Plan—Main—Features—Doorphone Call • 2.8.11 [2-7-1] Class of Service—COS Settings—TRS—TRS Level—Day, Lunch, Break, Night •...
  • Page 654 External Relay • 2.7.24 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only)—For Output (EIO)— Device Type • 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only)—For Output (EIO)—Device Type • 2.8.8 [2-6-1] Numbering Plan—Main—Features—External Relay Access • 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—External Relay Access •...
  • Page 655 3.1 Feature Programming References – For Sensor (EIO)—Input Signal Decision Time – For Sensor (EIO)—Input Signal Detection Reopening Time • 2.7.28 [1-1] Slot—DPH Card Property (KX-TDA50 only) – For Sensor (EIO)—Input Signal Decision Time – For Sensor (EIO)—Input Signal Detection Reopening Time •...
  • Page 656 3.1 Feature Programming References 1.6.4 Flexible Numbering/Fixed Numbering Floating Extension • 2.8.8 [2-6-1] Numbering Plan—Main—Extension • 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main – Floating Extension Number – Group Name • 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings—Floating Extension No. • 2.9.19 [3-8-2] VM(DTMF) Group—Group Settings—Floating Ext No. •...
  • Page 657 3.1 Feature Programming References • 2.10.5 [4-1-4] Wired Extension—Flexible Button – Type – Ext No. / Floating Ext. No. (for Group FWD (Both)) – Ext No. / Floating Ext. No. (for Group FWD (External)) – Ext No. / Floating Ext. No. (for Group FWD (Internal)) •...
  • Page 658 3.1 Feature Programming References Feature Manual Reference 1.8.2 Hands-free Operation Headset Operation • 2.7.5 [1-1] Slot—Extension Port—Headset OFF/ON (for DPT, DPT(S-DPT), S-Hybrid, or S- Hybrid(S-DPT) port) • 2.7.23 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—IP-PT Registration and De-registration—Headset OFF/ON • 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type •...
  • Page 659 3.1 Feature Programming References • 2.9.12 [3-5-4] Incoming Call Distribution Group—Member Feature Manual Reference 1.9.1 ICD GROUP FEATURES ICD Group Features—Group Call Distribution • 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—Line Hunting Order • 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings – Main—Distribution Method –...
  • Page 660 3.1 Feature Programming References Feature Manual Reference 1.9.3 ICD Group Features—Log-in/Log-out ICD Group Features—Outside Destinations • 2.7.30 [1-2] Portable Station—PS Registration and De-registration • 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Call Forward to CO • 2.8.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when ICD Group with Cellular Phone (KX-TDA100/KX-TDA200/KX-TDA600 only) •...
  • Page 661 3.1 Feature Programming References – Ext No. / Floating Ext. No. (for Hurry-up) • 2.10.13 [4-2-3] Portable Station—Flexible Button – Type – Ext No. / Floating Ext. No. (for Hurry-up) • 2.10.17 [4-3] DSS Console—Flexible Button – Type – Ext. No. / Floating Ext No. (for Hurry-up) Feature Manual Reference 1.9.6 ICD Group Features—Queuing ICD Group Features—Supervisory...
  • Page 662 3.1 Feature Programming References • 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Intercept Destination—Day, Lunch, Break, Night • 2.16.6 [10-5] Miscellaneous – Intercept—Intercept Routing - Busy (Destination is busy) – Intercept—Intercept Routing - DND (Destination sets DND) Feature Manual Reference 1.9.11 Intercept Routing Intercept Routing—No Destination •...
  • Page 663 3.1 Feature Programming References – Main—Extension Number – Option 6—ISDN Bearer (KX-TDA100/KX-TDA200/KX-TDA600 only) • 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—ISDN Bearer • 2.12.8 [6-7] Dialing Plan—Auto Assign Feature Manual Reference 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES IP-PT (IP Proprietary Telephone) •...
  • Page 664 2.8.3 [2-2] Operator & BGM – BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX- TDA600 only) – BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) – BGM and Music on Hold—Music on Hold • 2.8.19 [2-11-1] Audio Gain—Paging/MOH –...
  • Page 665 3.1 Feature Programming References Off-hook Monitor • 2.8.17 [2-9] System Options—Option 1—PT Operation—Off Hook Monitor for KX-T74xx/ T76xx Feature Manual Reference 1.12.1 Off-hook Monitor OGM (Outgoing Message) • 2.5.6 Utility—Message File Transfer PC to PBX • 2.5.7 Utility—Message File Transfer PBX to PC •...
  • Page 666 2.8.19 [2-11-1] Audio Gain—Paging/MOH – Paging—EPG (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) – Paging—EPG (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) – Paging—EPG (External Pager) (KX-TDA50 only) – Paging—Paging Level from PT Speaker • 2.9.6 [3-4] Paging Group • 2.9.7 [3-4] Paging Group—All Setting •...
  • Page 667 3.1 Feature Programming References Pause Insertion • 2.7.11 [1-1] Slot—LCO Port—Pause Time • 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Pause Time • 2.8.4 [2-3] Timers & Counters—Miscellaneous—During Conversation—Pause Signal Time • 2.12.4 [6-4] Second Dial Tone Feature Manual Reference 1.13.4 Pause Insertion PC Console/PC Phone •...
  • Page 668 3.1 Feature Programming References • 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Trunk Property (for TIE channel) • 2.8.4 [2-3] Timers & Counters—Miscellaneous—Receiving Dial Inter-digit Timer—TIE • 2.8.8 [2-6-1] Numbering Plan—Main—Features – Idle Line Access (Local Access) – Trunk Group Access – TIE Line Access •...
  • Page 669 3.1 Feature Programming References • 2.10.13 [4-2-3] Portable Station—Flexible Button – Type – Dial (for NDSS) • 2.10.15 [4-2-4] Portable Station—NDSS Link Data - Send • 2.10.17 [4-3] DSS Console—Flexible Button – Type – Dial (for NDSS) • 2.15.2 [9-2] Network Data Transmission •...
  • Page 670 3.1 Feature Programming References – CCBS delete digits • 2.7.31 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX- TDA100/KX-TDA200/KX-TDA600 only) Feature Manual Reference 1.13.18 Private Network Features—QSIG—CCBS (Completion of Calls to Busy Subscriber) Private Network Features—QSIG—CF (Call Forwarding) •...
  • Page 671 3.1 Feature Programming References 1.13.23 PS Connection PS Directory • 2.12.1 [6-1] System Speed Dial – Name – CO Line Access Number + Telephone Number • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—Extension Name • 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name Feature Manual Reference 1.13.24 PS Directory PS Ring Group •...
  • Page 672 3.1 Feature Programming References • 2.8.17 [2-9] System Options—Option 2 – Redial—Automatic Redial when No Answer (ISDN) (KX-TDA100/KX-TDA200/KX- TDA600 only) – Redial—Save Dial After Connection to Redial Memory – Redial—Call Log by Redial key • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—Outgoing Call Log Memory •...
  • Page 673 2.12.6 [6-6] Tenant—System Speed Dial Feature Manual Reference 1.16.4 Speed Dialing, System SVM (Simplified Voice Message) • 2.4.9 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) • 2.4.10 Tool—Simplified Voice Message—Check Current Usage (KX-TDA50 only) • 2.8.4 [2-3] Timers & Counters—Miscellaneous –...
  • Page 674 3.1 Feature Programming References – Remote Access • 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Feature Manual Reference 1.16.5 SVM (Simplified Voice Message) T1 Line Service • 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) • 2.7.18 [1-1] Slot—T1 Port—Channel Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual Reference 1.17.1 T1 Line Service...
  • Page 675 3.1 Feature Programming References Timed Reminder • 2.8.4 [2-3] Timers & Counters—DISA / Door / Reminder / U. Conf – Timed Reminder—Repeat Counter – Timed Reminder—Interval Time – Timed Reminder—Alarm Ringing Duration • 2.8.8 [2-6-1] Numbering Plan—Main—Features – Remote Timed Reminder (Remote Wakeup Call) –...
  • Page 676 3.1 Feature Programming References – TRS Level for System Speed Dialing • 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS • 2.10.5 [4-1-4] Wired Extension—Flexible Button – Type – Parameter Selection (for TRS Level Change) • 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS • 2.10.13 [4-2-3] Portable Station—Flexible Button –...
  • Page 677 3.1 Feature Programming References Voice Mail (VM) Group • 2.7.5 [1-1] Slot—Extension Port—DPT Type—Type (for DPT or S-Hybrid port) • 2.7.5 [1-1] Slot—Extension Port—DPT Type—VM Unit No. (for DPT or S-Hybrid port) • 2.7.5 [1-1] Slot—Extension Port—DPT Type—VM Port No. (for DPT or S-Hybrid port) •...
  • Page 678 3.1 Feature Programming References Feature Manual Reference 1.19.4 Voice Mail DPT (Digital) Integration Voice Mail DTMF Integration • 2.8.4 [2-3] Timers & Counters—Miscellaneous—Voice Mail (Caller from VM to CO)—On- hook Wait Time • 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous— Programmed Mailbox No.
  • Page 679 3.1 Feature Programming References – BSS / OHCA / Whisper OHCA / DND Override-2 • 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—OHCA / Whisper OHCA Feature Manual Reference 1.20.3 Whisper OHCA Wireless XDP Parallel Mode • 2.7.5 [1-1] Slot—Extension Port—DPT Type—Type (for DPT or S-Hybrid port) •...
  • Page 680 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
