Panasonic Telephone Systems

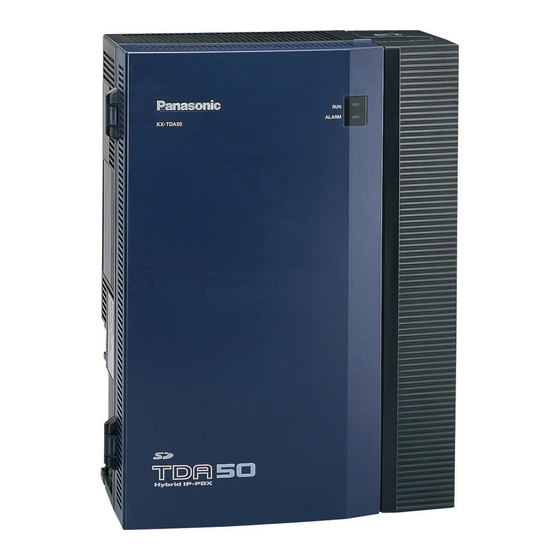

Panasonic KX-TDA50
KX-TDA100
KX-TDA200
KX-TDA600
Panasonic KX-TDA50, KXTDA50, TDA50, KX-TDA100, KXTDA100, TDA100, KX-TDA200, KXTDA200, TDA200, KX-TDA600, KXTDA600, TDA600
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 4.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 5.0000 or later
KX-TDA600: PLMPR Software File Version 5.0000 or later
www.voicesonic.com
Phone: 877-289-2829
Hybrid IP-PBX
Document Version: 2008-03

Advertisement

   Related Manuals for Panasonic KX-TDA50

   Summary of Contents for Panasonic KX-TDA50

  • Page 1

    Hybrid IP-PBX PC Programming Manual Panasonic KX-TDA50, KXTDA50, TDA50, KX-TDA100, KXTDA100, TDA100, KX-TDA200, KXTDA200, TDA200, KX-TDA600, KXTDA600, TDA600 Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use.

  • Page 2

    About this Programming Manual The PC Programming Manual is designed to serve as a system programming reference for the Panasonic Hybrid IP-PBX. It explains how to program this PBX using the Maintenance Console software. The PC Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.

  • Page 3

    Some optional service cards, PTs, and features are not available in some areas. Additionally, some optional service cards and features are not available for some PBX models. Please consult your certified Panasonic dealer for more information. • Product specifications are subject to change without notice.

  • Page 4: Table Of Contents

    Table of Contents Overview....................9 Introduction ........................10 1.1.1 Introduction ........................10 1.1.2 Entering Characters ......................10 PC Programming ......................12 1.2.1 Installing and Starting the Maintenance Console.............12 1.2.2 Password Security......................15 Maintenance Console Operating Instructions ........17 Introduction ........................18 2.1.1 Starting Maintenance Console and Software Modes ............18 2.1.2 Access Levels ........................20 2.1.3...

  • Page 5: Table Of Contents

    [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) ..204 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) ..206 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only)..........208 2.8.30 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) ..211 PC Programming Manual...

  • Page 6: Table Of Contents

    2.8.31 [1-2] Portable Station ..................... 212 2.8.32 [1-3] Option ........................215 2.8.33 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) ........... 218 [2] System ........................219 2.9.1 [2-1] Date & Time/Daylight Saving ................. 219 2.9.2 [2-1] Date & Time/Daylight Saving—Date & Time Setting ..........220 2.9.3 [2-2] Operator &...

  • Page 7: Table Of Contents

    2.11 [4] Extension ........................ 408 2.11.1 [4-1-1] Wired Extension—Extension Settings ..............408 2.11.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate ........467 2.11.3 [4-1-2] Wired Extension—FWD/DND................469 2.11.4 [4-1-3] Wired Extension—Speed Dial ................474 2.11.5 [4-1-4] Wired Extension—Flexible Button ..............475 2.11.6 [4-1-4] Wired Extension—Flexible Button—Flexible button data copy ......

  • Page 8: Table Of Contents

    [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) ....676 Appendix ..................... 679 Revision History......................680 3.1.1 KX-TDA600 PLMPR Software File Version 5.0xxx ............680 3.1.2 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx ........681 3.1.3 KX-TDA50 PSMPR Software File Version 4.0xxx ............682 Feature Programming References ................684 PC Programming Manual...

  • Page 9: Overview

    Section 1 Overview This section provides an overview of programming the PBX. PC Programming Manual...

  • Page 10: Introduction

    1.1 Introduction Introduction 1.1.1 Introduction These programming instructions are designed to serve as an overall system programming reference for the PBX. Each feature in the PBX has default settings that can be changed to customize the PBX to your requirements. These settings control the functions of the PBX, and changing them is referred to as "system programming".

  • Page 11

    1.1 Introduction PC Programming Manual...

  • Page 12: Pc Programming

    1.2 PC Programming PC Programming 1.2.1 Installing and Starting the Maintenance Console System programming, diagnosis and administration can be performed with a PC using the Maintenance Console. This section briefly describes how to install and start the Maintenance Console when the PC and the PBX are connected by USB cable.

  • Page 13

    1.2 PC Programming Installing the Maintenance Console Notes • To install or uninstall the software on a PC running Windows XP Professional, you must be logged in as a user in either the "Administrators" or "Power Users" group. • To install or uninstall the software on a PC running Windows Vista Business, you must be logged in as a user in the "Administrators"...

  • Page 14

    1.2 PC Programming Enter the Installer Level Programmer Code (default: INSTALLER). The Programmer Code authorizes different programming levels, and the Quick Setup is only available when you start the Maintenance Console with the Installer Level Programmer Code. Note There are 2 other Programmer Codes with limited authorization: Administrator Level (default: ADMIN), and User Level (default: USER).

  • Page 15: Password Security

    1.2 PC Programming To save the system data to the SD Memory Card, (1) click the "SD Memory Backup" icon before resetting the PBX or turning off the power, or (2) exit the Maintenance Console so that the PBX automatically saves the system data. The PC will not perform any shutdown operation, or enter the power-saving system standby mode while the Maintenance Console is connected to the PBX.

  • Page 16

    1.2 PC Programming For more information on how to back up the system data, refer to the on-line help of the Maintenance Console. However, as system passwords can be extracted from backup copies of the system data file, do not allow unauthorized access to these files. PC Programming Manual...

  • Page 17: Maintenance Console Operating Instructions

    Section 2 Maintenance Console Operating Instructions This section serves as reference operating instructions when using the Maintenance Console software to program the PBX. PC Programming Manual...

  • Page 18

    2.1 Introduction Introduction 2.1.1 Starting Maintenance Console and Software Modes Every time Maintenance Console is started, a dialog box will appear. From here, you can enter any of the 2 available software modes. • Batch mode Batch mode allows you to create new system data files, and make modifications to system data files stored on your PC, without being connected to the PBX.

  • Page 19

    Specify the port number used to access the PBX via LAN. Enter the same port number that was input in Maintenance Port Number of 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) or 2.8.19 [1-1] Slot—Card Property - IP Gateway (KX-TDA50 only). PC Programming Manual...

  • Page 20: Access Levels

    2.1 Introduction 2.1.2 Access Levels There are three main levels of access to the Maintenance Console: User, Administrator and Installer. Each level has its own Programmer Code, which must be entered to run the Maintenance Console. The allowed format for each programmer code is as follows: Item Length User Level Programmer Code...

  • Page 21

    2.1 Introduction File Menu Option Batch Interactive Close Save Save As Exit Disconnect Menu Option Batch Interactive Disconnect Tool Menu Option Batch Interactive SD memory backup NDSS Link Data Clear DXDP All OUS Simplified Voice Message→Delete All Recording Simplified Voice Message→Check Current Usage Extension List View Import→Feature - Speed Dial and Caller ID...

  • Page 22

    2.1 Introduction Tool Menu Option Batch Interactive Import→Quick Dial (MEC) Export→Feature - Speed Dial and Caller ID Export→Incoming Call - DID Table (KX- TDA100/KX-TDA200/KX-TDA600 only) Export→ARS - Leading Digit Export→ARS - Except Code Export→ARS - Routing Plan Export→Wired Extension Export→PS Extension Export→Quick Dial (Basic) Export→Quick Dial (MEC) Screen Customize→User Level...

  • Page 23

    2.1 Introduction Utility Menu Option Batch Interactive ISDN/QSIG Protocol Trace Digital Trunk Error Report (KX-TDA100/KX- TDA200/KX-TDA600 only) IP Extension Statistical Information CS Information PS Information Timed Update (KX-TDA100/KX-TDA200/KX- TDA600 only) System Reset→Reset by the Command Flash ROM ID Information View Menu Option Batch Interactive...

  • Page 24: Software Interface

    2.1 Introduction Help Menu Option Batch Interactive About 2.1.3 Software Interface This section explains the functions of the various elements of the software interface. Main Window The window of the Maintenance Console software is divided into several areas, as shown below: PC Programming Manual...

  • Page 25

    2.1 Introduction 1. Menu Bar Provides access to file management and connection options, as well as tools and utilities used in programming the PBX. For details, see Sections 2.3 File to 2.7 Help. 2. Tool Bar Provides easy access to commonly used software functions. Two tool bars are provided, as follows: •...

  • Page 26

    2.1 Introduction information, and accessing Online Help. For details, see Sections 2.5.1 Tool—SD memory backup and 2.5.6 Tool—Extension List View. These menus can be positioned freely. Click and drag the title bar of a menu to move it to another position.

  • Page 27: Card Status

    2.1 Introduction Area Values Description PBX System Data Versionxxx-xxx Displays the version number of the Version system software installed to the PBX. The first 3 digits are the version number, and the last 3 digits are the revision number. PBX Region Code Regionxxx-xxx Displays the region code assigned to the PBX and Maintenance Console.

  • Page 28: Display Options

    2.1 Introduction • "Out of service" means that the card is installed correctly in the PBX, but has been temporarily removed from use. This allows settings to be modified or software to be upgraded. • "Fault" means that the card is not installed in the PBX correctly, or is not functioning correctly. For more information, see the Installation Manual.

  • Page 29

    2.1 Introduction Extension Numbers & Names List Displays all available extensions of the types selected in Extension Type, and names. Click entries to select them, and click the Add button when finished, to add the selected extensions. To deselect an entry, click it again. Default Available extensions.

  • Page 30: Start Menu

    Use only when necessary. To create a new system data file From the start menu, select New. Click the appropriate model number. Select whether an EMEC (KX-TDA600) or MEC (KX-TDA50/KX-TDA100/KX-TDA200) card is installed or not. Click OK. 2.2.2 Start Menu—Open...

  • Page 31: Start Menu—connect—rs-232c

    2.2 Start Menu Enter a name for the new converted system file. • Click No to open the file as it is. 2.2.3 Start Menu—Connect—RS-232C Connects to the PBX in Interactive mode through the serial RS-232C interface of the PBX. This option allows direct entry of connection parameters, for cases where the PC is used to connect to one or just a few PBXs, and an individual profile for each PBX is not necessary.

  • Page 32: Start Menu—connect—lan

    Connects to the PBX in Interactive mode through the Local Area Network interface of the PBX. A CTI-LINK card (KX-TDA100/KX-TDA200/KX-TDA600) or IP-GW4 card (KX-TDA50) must be installed and the IP address of the PBX set to use this feature. For more details, see 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) and 2.8.19 [1-1]...

  • Page 33: Start Menu—connect—modem

    Maintenance Port Number of 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) or 2.8.19 [1-1] Slot—Card Property - IP Gateway (KX-TDA50 only). 2.2.6 Start Menu—Connect—Modem Connects to the PBX in Interactive mode through the modem. To access the PBX remotely using this feature, an RMT card must be installed and the Remote—...

  • Page 34: Start Menu—connect—profile Setup

    2.2 Start Menu Connection Settings for Modem Setting Values Description Comment Max. 40 characters Enter a comment to identify the set of values. Port COMx Specify the number of the COM port assigned to the PC's modem interface. Only available COM ports will be displayed. Baud Rate (bps) 1200, 2400, 4800, 9600, Specify the speed of data transmission.

  • Page 35: File

    2.3 File File 2.3.1 File—Close Closes the system data file that is currently being modified, and returns to the start menu. To close a system data file • From the File menu, select Close. If the system data file has not been saved, a warning message will be displayed, giving you the option to save the file.

  • Page 36

    2.3 File To exit the Maintenance Console • From the File menu, select Exit. If the system data file being modified has not been saved, a warning message will be displayed, giving you the option to save the file. • Click Yes to save the file.

  • Page 37: Disconnect

    2.4 Disconnect Disconnect 2.4.1 Disconnect—Disconnect Closes the connection between the Maintenance Console and the PBX. When this option is chosen, system data is automatically backed up from the PBX to the SD memory card (see 2.5.1 Tool—SD memory backup). To disconnect From the Disconnect menu, select Disconnect.

  • Page 38: Tool

    2.5 Tool Tool 2.5.1 Tool—SD memory backup Saves system data from the PBX to the SD memory card. Backup begins as soon as this option is chosen. To back up system data • From the Tool menu, select SD memory backup. 2.5.2 Tool—NDSS Link Data Clear Clears NDSS Link Data stored in the connected PBX.

  • Page 39: Tool—simplified Voice Message—check Current Usage

    2.5 Tool 2.5.5 Tool—Simplified Voice Message—Check Current Usage Displays information on the voice messages stored in SVM/ESVM cards installed in the PBX. For each message, the type of message and the associated extension are displayed. To view SVM message status •...

  • Page 40

    2.5 Tool The types of data that can be imported using this tool, and the matching destination fields, are as follows: Feature - Speed Dial and Caller ID Data Type Import Destination System Speed Dialing Location Number Name Name CO Line Access Number + Dial Telephone Number CLI Destination...

  • Page 41

    2.5 Tool Related programming: 2.15.2 [8-2] Leading Number ARS - Except Code Data Type Import Destination Location Leading Number Exception Exception Code Related programming: 2.15.7 [8-6] Leading Number Exception ARS - Routing Plan Data Type Import Destination (no fields to select) (no fields to select) Related programming: 2.15.3 [8-3] Routing Plan Time Wired Extension...

  • Page 42

    For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX- TDA50/KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table to which to import the data (KX-TDA50: Basic Memory or Expanded Memory; KX-TDA100/KX-TDA200/KX- TDA600: system or tenant) from the drop-down list.

  • Page 43: Tool—export

    For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX- TDA50/KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table from which to export the data (KX-TDA50: Basic Memory or Expanded Memory; KX-TDA100/KX-TDA200/KX- TDA600: system or tenant) from the drop-down list.

  • Page 44: Utility

    The tests that are performed on each card are as follows: A check mark indicates that the test is available for that card. KX-TDA50 Local loop back diagnosis Card CT Bus diagnosis...

  • Page 45

    2.6 Utility KX-TDA100/KX-TDA200/KX-TDA600 Local loop back diagnosis Card CT Bus diagnosis (KX- TDA100/KX-TDA200 only) DTMF Receive test port PT loop back diagnosis Caller ID Card DTMF Sending Out Diagnosis DSP DTMF generator/receiver diagnosis DSP DTMF receiver diagnosis Framer IC alarm signal detection diagnosis Framer IC error detection diagnosis...

  • Page 46

    Click on the Status cell of the card to be tested, and set it to "OUS". With the KX-TDA50, to perform the EXT-CID path test, set the status of both the EXT-CID card and the card in slot 1 to "OUS".

  • Page 47

    2.6 Utility The pair port test can be carried out using one LCOT or ELCOT card and one DHLC, SLC8, SLC16, MSLC16, ESLC16, EMSLC16, CSLC16, or ECSLC24 card. Note With the KX-TDA600, the pair of cards to be used for the pair port tests must be installed within the same shelf.

  • Page 48: Utility—file Transfer Pc To Pbx (sd Card)

    Attempting to transfer any other type of file results in an error message. The names of all files that can be stored on the SD memory card are as follows: Main Program KX-TDA50 Name on SD Memory Card Corresponding Card...

  • Page 49

    PLMPR EMPR PLMPR_S EMPR* *: PLMPR-file-format data that is transferred to the PBX from the PC is saved as "PLMPR_S". LPR Program KX-TDA50 Name on SD Memory Card Corresponding Card PSVOIPEX IP-EXT4 KX-TDA100/KX-TDA200/KX-TDA600 Name on SD Memory Card Corresponding Card...

  • Page 50: System Data

    CS using a CSIF card for 2.4 GHz Portable Station (KX-TDA100/KX-TDA200/KX-TDA600 only) PDCS24G CS using a DHLC/DLC card for 2.4 GHz Portable Station System Data KX-TDA50 Name on SD Memory Card Corresponding Card DSSYS DSSYS_S MPR* *: DSSYS-file-format data that is transferred to the PBX is saved as "DSSYS_S".

  • Page 51

    *: DLSYS-file-format data that is transferred to the PBX is saved as "DLSYS_S". Language Data Name on SD Memory Card Corresponding Unit DLNG0–DLNG1 DVMLNG1–DVMLNG5 VPS (Display Guidance data) Default Value Data KX-TDA50 Name on SD Memory Card Corresponding Card DSINI DSIDHLC DHLC4 DSIHLC HLC4...

  • Page 52: Utility—file Transfer Pbx (sd Card) To Pc

    2.6 Utility KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card DIIPGW3 IP-GW16 DIPRI23 PRI23 DISLCLC SLC16 DIIPEXT IP-EXT16 KX-TDA600 Name on SD Memory Card Corresponding Card DLINI EMPR DLIDHLC DHLC8 DLISLC SLC8, EMSLC16, ESLC16, ECSLC24 DLIDLC DLC8/DLC16 DLICSINF CSIF DLILCOT ELCOT16 DLIT1 DLIOPB3...

  • Page 53: Utility—sd Card File View And Load

    2.6 Utility This option is only available at Installer level. The files that can be downloaded from the SD memory card are as follows: File Name File Type DSSYS (KX-TDA50) System Data DSYS (KX-TDA100/KX-TDA200) DLSYS (KX-TDA600) $SYSERR Error Data $SYSERR1–$SYSERR9...

  • Page 54: Utility—sd Card File Delete

    Allows you to delete files from the SD memory card. This option is only available at Installer level. The following essential system files cannot be deleted by this utility: KX-TDA50: PSMPR, DSSYS, DSKEYSD KX-TDA100/KX-TDA200: PMPR, DSYS, DKEYSD KX-TDA600: PLMPR, DLSYS, DLKEYSD To delete files from the SD memory card From the Utility menu, select SD Card File Delete.

  • Page 55: Utility—message File Transfer Pbx To Pc

    For the KX-TDA100/KX-TDA200/KX-TDA600, the OPB card that it is mounted on must be set to OUS status. For the KX-TDA50, the MSG card must be set to OUS status. Files are stored on the MSG/ESVM card in the location specified by the file's header information.

  • Page 56

    2.6 Utility The functions of the buttons on this screen are as follows: Button Function Cancel Closes the Error Log screen without saving. Capture Saves the currently displayed Error Log information as a text file. Minor Displays minor errors, which affect only a certain part of system operation.

  • Page 57: Utility—t1 Signaling Bit Monitor (kx-tda100/kx-tda200/kx-tda600 Only)

    4: Expansion Shelf 3 • YY: Slot number KX-TDA50: 00 to 11 (00: MPR slot; 01: Fixed slot, 02 to 04: Free slot type A, 05 to 07: Free slot type B, 08 to 11: Option slot) KX-TDA100: 00 to 06 (00: MPR slot; 01 to 06: Free slot) KX-TDA200: 00 to 11 (00: MPR slot;...

  • Page 58: Utility—t1 Line Trace (kx-tda100/kx-tda200/kx-tda600 Only)

    2.6 Utility Click Start. Monitoring will be performed and the screen will refresh according to the interval specified. Click Stop to end monitoring. To refresh the screen at any time while monitoring is stopped, click Refresh. 2.6.10 Utility—T1 Line Trace (KX-TDA100/KX-TDA200/KX-TDA600 only) Traces the sent and received signaling bits and dial numbers on the specified channel of the T1 line.

  • Page 59: Utility—digital Trunk Error Report (kx-tda100/kx-tda200/kx-tda600 Only)

    2.6 Utility Trace information will be displayed. Select an option: • Click Capture to save the displayed trace information. • Click Clear to clear the screen display. Click Cancel to return to the main screen. 2.6.12 Utility—Digital Trunk Error Report (KX-TDA100/KX- TDA200/KX-TDA600 only) Displays accumulated information on various types of errors occurring on digital CO lines.

  • Page 60: Utility—ip Extension Statistical Information

    2.6 Utility 2.6.13 Utility—IP Extension Statistical Information Displays accumulated statistical information on both IP extensions and IP-EXT cards. The displayed items are as follows: Item Description Collection Started Time Date and time the port was last reset. Port No. Number of the port. RTP Receive Packet Counter Total number of packets received.

  • Page 61: Utility—ps Information

    "OFF". 2.4 GHz PSs can use up to 3 paths (KX-TDA100/KX- TDA200/KX-TDA600) or 2 paths (KX-TDA50). DECT PSs can use up to 4 paths (KX-TDA100/KX-TDA200/KX-TDA600) or 2 paths (KX-TDA50). When using high-density CSs, DECT PSs can use up to 8 paths. Group Call Number of PSs registered to the attached CS that are members of a PS Ring Group.

  • Page 62: Utility—timed Update (kx-tda100/kx-tda200/kx-tda600 Only)

    2.6 Utility Item Description PS No. PS location number. Only registered PSs will be displayed. Extension Number Extension number of the PS. Location—Slot Slot number of the CS that the PS is registered with. Location—Port Port number of the CS that the PS is registered with. To view PS information From the Utility menu, select PS Information.

  • Page 63: Utility—system Reset—reset By The Command

    PBX. This option is only available at Installer level. 2 copies of each of the main system files can be stored on the SD memory card. The names of these files are as follows: KX-TDA50 File Name Description DSSYS Main system data file.

  • Page 64

    2.6 Utility KX-TDA100/KX-TDA200 File Name Description PMPR_SUB Backup PBX program file KX-TDA600 File Name Description DLSYS Main system data file. Contains all of the current configuration data for the PBX. DLSYS_S Backup main system data file PLMPR PBX program file. Contains the software to run the EMPR board of the PBX.

  • Page 65: Utility—flash Rom Id Information

    2.6 Utility If the reset command was not carried out correctly, an error message will be displayed, and you will be returned to the main screen. After resetting the PBX with this command, it is necessary to reconnect to the PBX to continue programming.

  • Page 66: Help

    Is the USB cable firmly connected to both the PC and the PBX? • Is the USB driver on the PC running? To confirm, open the Windows Device Manager, and look for "Panasonic KX-TDA USB Main Unit driver" in the USB Controllers section. If it is not present, re-install the USB driver.

  • Page 67

    2.7 Help The Maintenance Console cannot connect to the PBX via modem. • Is the dial number of the modem correct? For more details, see 2.18.1 [11-1] Main. • Has a modem been installed to the PBX? • Are the modem settings of the PBX and Maintenance Console correct? For more details, see 2.18.1 [11-1] Main.

  • Page 68

    2.7 Help • Is the card installed in the appropriate slot? • Is the card installed in the correct slot, but not functioning correctly? Check the condition of the card. • Is the card itself in INS status? Set it to INS status. •...

  • Page 69

    2.7 Help If I delete the extension number of a Portable Station, and then turn the Portable Station off and back on again, it does not function correctly. • Do not delete the extension number of the Portable Station, as this information is necessary for it to operate.

  • Page 70

    2.7 Help • Perform the following steps: Confirm that the Numbering Plan you will change is not currently being used by any extensions (see 2.5.6 Tool—Extension List View). If it is being used by extensions, temporarily change the extension numbers of those extensions to that of another numbering plan, or delete the extension number (see 2.11.1 [4-1-1] Wired Extension—Extension Settings and 2.11.10 [4-2-1] Portable Station—Extension Settings).

  • Page 71

    2.7 Help • Perform the following steps: Open the 2.9.8 [2-6-1] Numbering Plan—Main screen. Change the value in the Dial cell of the desired feature. Click Apply. I cannot change a feature number. • It is not possible to use the same number for 2 items. The number you are trying to store cannot be used if it is already being used by: •...

  • Page 72

    2.7 Help If I reset the PBX directly after modifying settings, the modified settings are not updated in the PBX. • When you click Apply, the settings are updated in the PBX, but are not yet saved to the SD memory card. If system data is not saved to the SD memory card, the PBX will restore the data that was last saved to the card in the event that the PBX is reset, or power is turned off and back on again.

  • Page 73: Setting Features

    2.7 Help • The following setting data is not saved to the SD memory card, so will be deleted when the PBX is initialized. This data is stored in the PBX's battery backup memory. • Incoming Call Log • Outgoing Call Log (including Last Number Redial) •...

  • Page 74

    Help • From the 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX- TDA600 only) screen, set the Port Type of the port you want to use to either "QSIG- Slave" or "QSIG-Master". How do I change the type of an extension port? •...

  • Page 75

    2.7 Help How do I modify the hold operation for SLTs? • It is possible to choose how to hold a line and transfer a call with an SLT using the SLT— SLT Hold Mode option on the 2.9.17 [2-9] System Options screen. For more details, see "1.3.2 Call Hold"...

  • Page 76

    2.7 Help • Set the COS of the extension to which PC Console is connected to Manager class, by setting Manager on the Extension Feature tab of the 2.9.11 [2-7-1] Class of Service— COS Settings screen to "Enable". • System speed dialing numbers can only be edited by one PC Console at a time. I have set FWD through system programming, but calls are still not being forwarded.

  • Page 77: Configuration

    2.8 [1] Configuration [1] Configuration 2.8.1 [1-1] Slot The operating characteristics associated with each service card can be programmed. Move the mouse pointer over an installed card to display the menu of options for that card. To view a summary of status and MPR versions for all cards installed in the PBX, click the Summary button (see 2.8.2 [1-1] Slot—Summary).

  • Page 78

    A menu will be shown under the mouse pointer. Select Option Card. The OPB3 Option Card Setup screen will be displayed. See 2.8.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only). Supported Card Types KX-TDA50 Card Maximum Supported Slot Card Programming...

  • Page 79

    08–11 (Option None Slots) EXT-CID: Extension Caller ID Card SVM2: 2-Channel Simplified Voice Message Card For more information on cards and card installation, see "1.3.1 Optional Equipment" in the KX-TDA50 Installation Manual. KX-TDA100/KX-TDA200 Card Maximum Quantity Card Programming MPR: Main Processing Card 1 (fixed in Slot 00) 2.8.3 [1-1] Slot—Card Property - MPR...

  • Page 80

    2.8 [1] Configuration KX-TDA100/KX-TDA200 Card Maximum Quantity Card Programming PRI23: PRI Card (23B channels) 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX- TDA600 only) KX-TDA100: 4 KX-TDA200: 4 T1: T-1 CO Line Card 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX- TDA600 only) IP-GW4 (KX-TDA0480/KX-TDA0484): 4- KX-TDA100: 4...

  • Page 81: Slot—summary

    2.8 [1] Configuration KX-TDA600 Card Maximum Quantity Card Programming ELCOT16: 16-Port Analog CO Line Card 2.8.10 [1-1] Slot—Card Property - LCO type PRI23: PRI Card (23B channels) 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX- TDA600 only) T1: T-1 CO Line Card 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX- TDA600 only)

  • Page 82

    Note that for MPR cards, the PBX model code is displayed in parentheses after the name. Default Slot 00: MPR (Main Processing Card: fixed) Other slots: Not stored. Value Range Card Type for KX-TDA50: DLC4: 4-Port Digital Extension Card DLC8: 8-Port Digital Extension Card HLC4: 4-Port Hybrid Extension Card PLC4: 4-Port Proprietary Extension Card...

  • Page 83

    2.8.19 [1-1] Slot—Card Property - IP Gateway 2.8.22 [1-1] Slot—Card Property - IP Extension 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) PC Programming Manual...

  • Page 84

    2.8 [1] Configuration Feature Manual References None Status Indicates the card status (reference only). Note that MPR card status is always displayed as "-". Default Slot 00: - (fixed) Other slots: Current status Value Range INS: The port is in service. OUS: The port is out of service.

  • Page 85: Slot—card Property - Mpr

    MEC/EMEC card properties can be viewed and set. Memory Expansion Card: Indicates whether an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is mounted on the MPR (KX-TDA50/KX-TDA100/KX-TDA200) or EMPR (KX-TDA600) card. To change the EMEC or MEC card installation status, click on this cell, then click OK in the dialog box that appears.

  • Page 86: Slot—card Property - Extension Type

    2.8 [1] Configuration Default Current version Value Range - (not mounted), 1–15 Maintenance Console Location 2.8.3 [1-1] Slot—Card Property - MPR Programming Manual References None Feature Manual References 1.18.1 Upgrading the Software 2.8.4 [1-1] Slot—Card Property - Extension Type The property for the extension cards can be specified. SLT Pulse Dial Mode Selects the type of pulse dial transmission appropriate to your area.

  • Page 87

    2.8 [1] Configuration Value Range 8 × n (n=3–255) ms Maintenance Console Location 2.8.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References None SLT Off Hook Guard Time Specifies the length of guard time used for off-hook signals from SLTs, to prevent the PBX mistaking them for pulse dials.

  • Page 88

    2.8 [1] Configuration Feature Manual References None SLT Pulse Minimum Make Width Specifies the minimum length of the make signal in a pulse dial. Default 8 ms Value Range 8 × n (n=1–5) ms Maintenance Console Location 2.8.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References...

  • Page 89

    2.8 [1] Configuration Default 112 ms Value Range 8 × n (n=3–63) ms Maintenance Console Location 2.8.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References None Flash Timing - Range Specifies the maximum length that a signal sent from an SLT can be for the PBX to recognize it as a hookswitch flash signal.

  • Page 90

    2.8 [1] Configuration Programming Manual References None Feature Manual References None SLT Power Supply (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the voltage that enables an SLT to activate the Message Waiting lamp. This setting is only available with MSLC/EMSLC cards. Default 85 V Value Range 85 V, 145 V Maintenance Console Location...

  • Page 91: Slot—port Property - Extension Port

    2.8 [1] Configuration Programming Manual References None Feature Manual References None APT/SLT Parallel Ring Enables an SLT connected in parallel to an APT to ring with the APT for calls. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References...

  • Page 92

    2.8 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.5 [1-1] Slot—Port Property - Extension Port Programming Manual References None Feature Manual References None Port Indicates the port or channel number (reference only).

  • Page 93

    2.8 [1] Configuration Value Range DPT: DPT port (DLC) APT: APT port (PLC) (KX-TDA50 only) SLT: SLT port (SLC/ESLC/EMSLC/CSLC/ECSLC) S-Hybrid: Super Hybrid port (DHLC) Hybrid: Hybrid port (HLC) (KX-TDA50 only) S-Hybrid(SLT): XDP port of Super Hybrid port (DHLC) S-Hybrid(S-DPT): Digital XDP port of Super Hybrid port (DHLC)

  • Page 94

    Extension numbers of PSs can be a maximum of 4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 95

    2.8 [1] Configuration Feature Manual References None Extension Name Specifies the extension name of the port. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.8.5 [1-1] Slot—Port Property - Extension Port Programming Manual References None Feature Manual References None XDP Mode Turns XDP mode on or off for the port.

  • Page 96

    KX-TDA200] or 64 [with the KX-TDA600] DSS Consoles can be connected to the PBX.) VM (DPT): For connecting a Panasonic VPS through DPT Integration PC Console: For connecting a PC Console (A maximum of 2 [with the KX-TDA50] or 8 [with the KX- TDA100/KX-TDA200/KX-TDA600] PC Consoles can be connected to the PBX.) Maintenance Console Location 2.8.5 [1-1] Slot—Port Property - Extension Port...

  • Page 97

    SDN buttons will be deleted. If you do not wish to delete SDN buttons for this port, click Cancel. Default Value Range For KX-TDA50: Location number for DSS Console: 1–4 Location number for PC Console: 1, 2 For KX-TDA100/KX-TDA200: 1–8...

  • Page 98

    2.8 [1] Configuration Default Value Range For KX-TDA50: For KX-TDA100/KX-TDA200: 1, 2 For KX-TDA600: 1–8 Maintenance Console Location 2.8.5 [1-1] Slot—Port Property - Extension Port Programming Manual References None Feature Manual References 1.19.3 Voice Mail (VM) Group DPT Type—VM Port No.

  • Page 99

    2.8 [1] Configuration Headset OFF/ON Turns on or off the use of a headset with a DPT. This setting is only available when Port Type on this screen is set to DPT, DPT(S-DPT), S-Hybrid, or S-Hybrid(S-DPT). Default Headset OFF Value Range Headset OFF, Headset ON Maintenance Console Location 2.8.5 [1-1] Slot—Port Property - Extension Port...

  • Page 100: Slot—port Property - Extension Port—connection Command

    2.8 [1] Configuration 2.8.6 [1-1] Slot—Port Property - Extension Port—Connection Command Commands for the extension ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.8.6 [1-1] Slot—Port Property - Extension Port—Connection Command Programming Manual References 2.8.5 [1-1] Slot—Port Property - Extension Port Feature Manual References...

  • Page 101: Slot—port Property - Extension Port—port Type View

    Indicates the total number of each type of telephone and CS connected to the PBX (reference only). With the KX-TDA50, CSs are counted on the basis of the number of extension ports to which they are connected; with the KX-TDA100/KX-TDA200/KX-TDA600, CSs are counted on the basis of the number of CSIF ports in service plus the number of extension ports to which CSs are connected.

  • Page 102: Slot—port Property - Csi/f Port (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration 2.8.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX- TDA200/KX-TDA600 only) The status of the CSIF ports can be referred to, or set to INS (in-service) or OUS (out-of-service). To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 103

    2.8 [1] Configuration Default Current port number Value Range Port number Maintenance Console Location 2.8.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Status Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 104: Slot—port Property - Csi/f Port—connection Command (kx-tda100/kx-tda200 Kx-tda600 Only)

    2.8 [1] Configuration Value Range Max. 20 characters Maintenance Console Location 2.8.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None 2.8.9 [1-1] Slot—Port Property - CSI/F Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Commands for the CSIF ports can be programmed. Puts the Cell Station (CS) in service.

  • Page 105: Slot—card Property - Lco Type

    2.8 [1] Configuration Maintenance Console Location 2.8.9 [1-1] Slot—Port Property - CSI/F Port—Connection Command (KX-TDA100/KX-TDA200/KX- TDA600 only) Programming Manual References 2.8.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None 2.8.10 [1-1] Slot—Card Property - LCO type The properties of the analog CO line cards can be specified.

  • Page 106

    2.8 [1] Configuration Maintenance Console Location 2.8.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None CO Feed Back Tone Specifies whether the pulse feedback tone is turned on or not. For outgoing CO line calls, audible tones can be heard as the dialed number is sent out, which informs the extension user that the number has been dialed.

  • Page 107

    2.8 [1] Configuration Feature Manual References None Bell Detection—Bell Off Detection Timer Specifies the duration of the bell off detection timer. If the PBX receives no bell signal from the telephone company for the length of time specified here, the PBX treats the call as lost. Default 6.0 s Value Range...

  • Page 108

    2.8 [1] Configuration Default 830 ms Value Range 630 ms, 830 ms, 1030 ms Maintenance Console Location 2.8.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None Low Speed Pulse Dial—Pulse % Break Specifies the % break for a low speed pulse dial. This is the ratio between the break (on-hook) signal and make (off-hook) signal in a pulse dial.

  • Page 109

    2.8 [1] Configuration Programming Manual References 2.8.11 [1-1] Slot—Port Property - LCO Port Feature Manual References None Low Speed Pulse Dial—Make Width Specifies the minimum length of the make signal in a low speed pulse dial. Low Speed Pulse Dial— Pulse % Break on this screen determines the value that can be specified here.

  • Page 110

    2.8 [1] Configuration High Speed Pulse Dial—Break Width Specifies the maximum length of the break signal in a high speed pulse dial. High Speed Pulse Dial—Pulse % Break on this screen determines the value that can be specified here. Default 32 ms Value Range 4 ×...

  • Page 111

    2.8 [1] Configuration Value Range Normal, Sweden, New Zealand Maintenance Console Location 2.8.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None Option Card Equipment—Option 1 and Option 2 Indicates the type of the card that is installed on the LCOT/ELCOT card (reference only). Default Current option card type Value Range...

  • Page 112

    2.8 [1] Configuration Feature Manual References 1.3.1 Caller ID Caller ID—Max Receive Time Specifies the maximum number of Caller ID series that are sent from the network. Default Value Range 0 (no limit), 1, 2, 3 Maintenance Console Location 2.8.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References...

  • Page 113

    2.8 [1] Configuration Value Range Length + Timer, Timer Maintenance Console Location 2.8.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) Header Examination Enables the PBX to check the header of received Caller ID information. To enable this setting, Caller ID—Caller ID Signaling on this screen should be set to FSK.

  • Page 114: Slot—port Property - Lco Port

    2.8 [1] Configuration Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) Detection Timer Specifies the total time required by the PBX to detect Caller ID information. To enable this setting, Caller ID—Caller ID Signaling on this screen should be set to FSK. Default 2000 ms Value Range...

  • Page 115

    2.8 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).

  • Page 116: Dialing Mode

    2.8 [1] Configuration Default Current status Value Range INS: The port is in service. OUS: The port is out of service. Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port Programming Manual References 2.8.12 [1-1] Slot—Port Property - LCO Port—Connection Command Feature Manual References None Dialing Mode...

  • Page 117: Pulse Speed

    2.8 [1] Configuration Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References 1.3.20 CPC (Calling Party Control) Signal Detection DTMF Width Selects the length of the DTMF tone sent to the analog CO line. Default 80 ms Value Range...

  • Page 118: Caller Id Detection

    2.8 [1] Configuration Reverse Detection (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the type of CO line call for which the reverse signal from the telephone company is detected. Default Disable Value Range Disable: For no CO line call Outgoing: For outgoing CO line calls only Both Call: For both outgoing and incoming CO line calls Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port...

  • Page 119

    2.8 [1] Configuration Value Range Disable, Enable Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References None Pause Time Specifies the length of a pause. Default 1.5 s Value Range 1.5 s, 2.5 s, 3.5 s, 4.5 s Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port Programming Manual References...

  • Page 120: Slot—port Property - Lco Port—connection Command

    2.8 [1] Configuration Programming Manual References None Feature Manual References 1.5.1 EFA (External Feature Access) Disconnect Time Specifies the length of time after a CO line is disconnected, during which the PBX cannot seize the line. Default 1.5 s Value Range 0.5 s, 1.5 s, 2.0 s, 4.0 s, 12.0 s Maintenance Console Location 2.8.11 [1-1] Slot—Port Property - LCO Port...

  • Page 121: Slot—card Property - Pri Type (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.8.12 [1-1] Slot—Port Property - LCO Port—Connection Command Programming Manual References 2.8.11 [1-1] Slot—Port Property - LCO Port Feature Manual References...

  • Page 122

    2.8 [1] Configuration ISDN CO / QSIG Master / QSIG Slave—T202 Specifies the maximum time that the PBX waits for a reply after resending the request to use an ISDN line as a TIE line. Default 20 × 100 ms Value Range 0–600 ×...

  • Page 123

    2.8 [1] Configuration Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T302 Specifies the maximum time allowed between each digit on an incoming call. Applies to overlap receiving.

  • Page 124

    2.8 [1] Configuration ISDN CO / QSIG Master / QSIG Slave—T304 Specifies the maximum time allowed between each digit on an outgoing call. Applies to overlap sending. Default 300 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 125

    2.8 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T309 Specifies the length of time that the PBX tries to disconnect the data link, before disconnecting the call.

  • Page 126

    2.8 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T313 Specifies the maximum time that the PBX waits for a reply after sending the Connect message. Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 127

    2.8 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T319 Specifies the maximum time that the PBX waits for a reply after sending the Suspend message. Default 0 ×...

  • Page 128

    2.8 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T3D3 Specifies the length of time that the PBX tries to establish L2 in "Permanent" mode. Default 100 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 129

    2.8 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T201 Specifies the maximum time that the PBX waits for a reply after resending the TEI check request to ISDN.

  • Page 130

    2.8 [1] Configuration Feature Manual References None ISDN Extension—T301 Specifies the maximum time that the PBX waits for a reply after making a call to ISDN. Default 0 × 100 ms Value Range 0–18000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 131

    2.8 [1] Configuration Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T304 Specifies the maximum time allowed between each digit on an outgoing call. Applies to overlap sending.

  • Page 132

    2.8 [1] Configuration Programming Manual References None Feature Manual References None ISDN Extension—T306 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN. This setting is used when inband tones are supplied. Default 300 ×...

  • Page 133

    2.8 [1] Configuration ISDN Extension—T308 Specifies the maximum time that the PBX waits for a reply after receiving the Release message from ISDN. Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 134

    2.8 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T312 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN.

  • Page 135

    2.8 [1] Configuration Feature Manual References None ISDN Extension—T320 Specifies the maximum time that the PBX waits for packet protocol. Default 0 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 136: Slot—port Property - Pri Port (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.8.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T3D9 Specifies the length of time that the PBX tries to disconnect L2 in "Call by Call" mode. Default 200 ×...

  • Page 137

    2.8 [1] Configuration Value Range Shelf number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 138

    2.8 [1] Configuration Feature Manual References None Port Type Selects the port type. Notes • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX. • ISDN extensions can belong to an incoming call distribution group or idle extension hunting group.

  • Page 139: Status Message

    2.8 [1] Configuration Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.8.15 [1-1] Slot—Port Property - PRI Port—Connection Command (KX-TDA100/KX-TDA200/KX- TDA600 only) Feature Manual References None Status Message Specifies whether the Status Message is sent to the network. Default No Transmission Value Range...

  • Page 140

    2.8 [1] Configuration Programming Manual References None Feature Manual References None Line Coding Selects the line coding type of the PRI PCM (Pulse Code Modulation) for the port. Default B8ZS Value Range B8ZS, AMI Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 141

    2.8 [1] Configuration Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only).

  • Page 142

    2.8 [1] Configuration Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Notes • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX.

  • Page 143

    2.8 [1] Configuration Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.8.15 [1-1] Slot—Port Property - PRI Port—Connection Command (KX-TDA100/KX-TDA200/KX- TDA600 only) Feature Manual References...

  • Page 144

    2.8 [1] Configuration Programming Manual References None Feature Manual References None ISDN In/Out Call Type Selects the method used to send dialed digits to the network. Default CO port: En-bloc QSIG (slave/master) port: Overlap Value Range En-bloc: The PBX sends all of the dialed digits at once after the extension user completes dialing. The PBX recognizes the end of dialing when (1) # is dialed, if programmed, (2) a preprogrammed telephone number is dialed, or (3) the inter-digit timer expires.

  • Page 145

    2.8 [1] Configuration Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Loopback Test started by Network Enables a loopback test started from the network side, to be performed on the PRI23 card. Note The version of the PRI23 card must be 2.000 or later. Default Disable Value Range...

  • Page 146

    2.8 [1] Configuration Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range...

  • Page 147

    2.8 [1] Configuration Default Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 148: Network Configuration

    2.8 [1] Configuration Default Ring All Extension for MSN Value Range Ring All Extension for MSN: Ring all ISDN extensions that are addressed with MSN. Ring an Extension for MSN: Ring only one of the ISDN extensions that are addressed with MSN. Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 149

    2.8 [1] Configuration Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 150: Network Type

    2.8 [1] Configuration Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 151

    2.8 [1] Configuration Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Network Numbering Plan Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 152

    2.8 [1] Configuration Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type.

  • Page 153

    2.8 [1] Configuration Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range...

  • Page 154

    2.8 [1] Configuration Default Public: Unknown Private: Private Value Range Unknown, ISDN-Telephony, National Standard, Private Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Calling Party number—Type of Number—Public, Private Selects the type of number that applies to outgoing CO line calls routed through public or private networks.

  • Page 155

    2.8 [1] Configuration Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Called Party number—Type of Number—Public, Private Selects the type of number that applies to incoming CO line calls routed through public and private networks.

  • Page 156

    2.8 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).

  • Page 157

    2.8 [1] Configuration • ISDN extensions can belong to an incoming call distribution group or idle extension hunting group. In this case, an MSN can be assigned. Default Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location...

  • Page 158

    2.8 [1] Configuration COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 Specifies whether each ISDN or QSIG supplementary service is used. The available services depend on the setting of Port Type on this screen. When using the Centralized VM feature, set CF (Rerouting) to "No". Default CLIR, E911: Yes Other services: No...

  • Page 159

    2.8 [1] Configuration Programming Manual References 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable.

  • Page 160

    2.8 [1] Configuration Feature Manual References None Frame Sequence Selects the type of frame sequence used for communications. Default Value Range D4, ESF Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ESF Frame Sequence Selects the values for C-bit and D-bit.

  • Page 161

    2.8 [1] Configuration Value Range Mode-1–Mode-8 Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None LIU Receive Option Selects the receiving level (Receive Equalization) of LIU. Default Automatic Value Range Automatic, 6 dB, 12 dB, 18 dB, 24 dB Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 162

    2.8 [1] Configuration Feature Manual References None First Dial Timer (DID/TIE) Specifies the minimum time that the PBX waits after seizing a DID or TIE line, before sending the dialed digits to the telephone company or to another PBX. This allows the telephone company or the other PBX to have enough time to accept the dialed digits correctly.

  • Page 163

    2.8 [1] Configuration Default 224 ms Value Range 32 × n (n=4–9) ms Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None DTMF Tone—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.

  • Page 164

    2.8 [1] Configuration Programming Manual References None Feature Manual References None DTMF Tone—DTMF Receive Specifies the volume of the DTMF tone to be received. Default -26–0 dB Value Range n-42–0 (n=0–31) dB Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 165

    2.8 [1] Configuration Default Normal Value Range Normal, Sweden, New Zealand Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—Pulse Inter-digit Pause Specifies the length of the pulse inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.

  • Page 166

    2.8 [1] Configuration Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—Maximum BREAK Width Specifies the maximum length of the break signal in a pulse dial. Default 112 ms Value Range 8 ×...

  • Page 167

    2.8 [1] Configuration Flash—Flash Signal Detection (OPX) Enables the PBX to detect hookswitch flash signals from an SLT connected to an OPX. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 168

    2.8 [1] Configuration Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Flash—Flash Signal Detection (TIE) Enables the PBX to detect a hookswitch flash signal sent from a TIE line. Default Enable Value Range...

  • Page 169

    2.8 [1] Configuration Flash—Flash Width (TIE) Specifies the maximum length of a flash signal received from a TIE line that the PBX can recognize as a hookswitch flash signal. Default 800 ms Value Range 8 × n (n=3–191) ms Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 170: Slot—port Property - T1 Port (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Maintenance Console Location 2.8.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID End Code Selects the DTMF code used to detect the end of a Caller ID series. Default Value Range *, #, A–D...

  • Page 171

    2.8 [1] Configuration Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None...

  • Page 172

    2.8 [1] Configuration • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range INS: The channel is in service. OUS: The channel is out of service. Fault: The channel is not communicating with the network.

  • Page 173

    2.8 [1] Configuration Value Range DTMF, Pulse Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.4.2 Dial Mode Selection Channel Type Selects the channel type. Default Undefined Value Range Undefined: Not assigned GCOT: Ground Start Central Office LCOT: Loop Start Central Office...

  • Page 174

    2.8 [1] Configuration Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES 1.13.13 PRIVATE NETWORK FEATURES CPC Signal Detection (DID)—Outgoing, Incoming Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.

  • Page 175

    2.8 [1] Configuration Programming Manual References None Feature Manual References 1.3.20 CPC (Calling Party Control) Signal Detection DTMF Width Selects the length of the DTMF tone sent to the T1 channel. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 176

    2.8 [1] Configuration Default 1024 ms Value Range 64 × n (n=1–128) ms Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Start Signal Type Selects the type of the start signal. Default Wink Value Range...

  • Page 177

    2.8 [1] Configuration Programming Manual References None Feature Manual References None Receiving Caller ID from TIE Specifies whether Caller ID information is received when the channel type is TIE. Default Value Range Yes, No Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 178

    2.8 [1] Configuration Dial Tone to Extension Enables the PBX to send a dial tone to an extension making a call when the network cannot send the tone. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 179: Slot—port Property - T1 Port—connection Command (kx-tda100/kx-tda200/kx Tda600 Only)

    2.8 [1] Configuration Value Range None, 16 × n (n=1–255) ms Maintenance Console Location 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.5.1 EFA (External Feature Access) Disconnect Time Specifies the length of time after a CO line is disconnected, during which the PBX cannot seize the line.

  • Page 180: Slot—card Property - Ip Gateway

    2.8 [1] Configuration Maintenance Console Location 2.8.18 [1-1] Slot—Port Property - T1 Port—Connection Command (KX-TDA100/KX-TDA200/KX- TDA600 only) Programming Manual References 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Takes the channel out of service. This enables a temporary non-use of the port, for example, for the purpose of repair.

  • Page 181

    2.8 [1] Configuration Maintenance Console Location 2.8.19 [1-1] Slot—Card Property - IP Gateway Programming Manual References 2.9.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Extension Inter-digit 2.9.17 [2-9] System Options—Option 2—End of Dial Plan—[#] as End of Dial for en Bloc mode (KX- TDA100/KX-TDA200/KX-TDA600 only) 2.10.4 [3-1-4] Dialing Plan Feature Manual References...

  • Page 182: Slot—port Property - Ip-gw Port

    2.8 [1] Configuration Feature Manual References 1.13.20 Private Network Features—QSIG—CF (Call Forwarding) Maintenance Port Number (KX-TDA50 only) Specifies the default maintenance port number of the IP network. Default 35300 Value Range 10000–65535 Maintenance Console Location 2.8.19 [1-1] Slot—Card Property - IP Gateway...

  • Page 183

    2.8 [1] Configuration Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.8.20 [1-1] Slot—Port Property - IP-GW Port Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range...

  • Page 184: Slot—port Property - Ip-gw Port—connection Command

    2.8 [1] Configuration Maintenance Console Location 2.8.20 [1-1] Slot—Port Property - IP-GW Port Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 185: Slot—card Property - Ip Extension

    2.8 [1] Configuration Value Range Not applicable. Maintenance Console Location 2.8.21 [1-1] Slot—Port Property - IP-GW Port—Connection Command Programming Manual References 2.8.20 [1-1] Slot—Port Property - IP-GW Port Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair.

  • Page 186: Subnet Mask

    2.8 [1] Configuration Maintenance Console Location 2.8.22 [1-1] Slot—Card Property - IP Extension Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Subnet Mask Specifies the subnet mask of the card. Default 0.0.0.0 Value Range 0–255.0–255.0–255.0–255 (except 0.0.0.0 and 255.255.255.255) Maintenance Console Location 2.8.22 [1-1] Slot—Card Property - IP Extension Programming Manual References...

  • Page 187

    2.8 [1] Configuration Keep Alive Time Out Specifies the length of time that the PBX will continue to consider an IP-PT to be active even if it receives no transmissions from that IP-PT. The PBX constantly confirms the status of IP-PTs. If no communications are received from an IP-PT for the duration specified here, the PBX considers the IP-PT to be unreachable, and sets the port status to Fault.

  • Page 188

    2.8 [1] Configuration Default -6 dB Value Range -14–6 dB Maintenance Console Location 2.8.22 [1-1] Slot—Card Property - IP Extension Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) DSP Digital Gain (Up) Specifies the DSP Digital Gain for the up voice path. Default -6 dB Value Range...

  • Page 189: Slot—card Property - Ip Extension—common Settings

    2.8 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) NLP Setting Selects whether the NLP (Non-Linear Processor) is used to control echo sound quality. Default Use Non-Linear Processor Value Range Use Non-Linear Processor, Use Fixed TX Gain Maintenance Console Location 2.8.22 [1-1] Slot—Card Property - IP Extension Programming Manual References...

  • Page 190

    2.8 [1] Configuration Feature Manual References 1.3.21 CTI (Computer Telephony Integration) Voice (RTP) UDP Port No. (Server) Specifies the UDP port used by the IP-EXT card to transmit and receive RTP (Realtime Transfer Protocol) data. This must be changed if another network application is using the same port. For voice communications, an IP-EXT16 card uses 64 and an IP-EXT4 card uses 16 contiguous UDP ports, starting from the port number specified here.

  • Page 191: Slot—port Property - Ip-extension Port

    2.8 [1] Configuration 2.8.24 [1-1] Slot—Port Property - IP-Extension Port Various settings can be programmed for each IP extension port. To change the status of extension ports, click Command. IP-PT Registration and De-registration An IP-PT must be registered to the PBX by programming both the PBX and IP-PT before it can be used.

  • Page 192

    2.8 [1] Configuration • If the de-registration is unsuccessful, the dialog box will show "De-registration Error". De-registration will be terminated. Click Close. If the IP-PT is successfully de-registered, the status of the IP-PT will update to show "None". Forced De-registration Follow the steps below to forcibly de-register the IP-PT when normal de-registration has been unsuccessful or IP address settings have been changed or deleted only on the IP-PT.

  • Page 193

    2.8 [1] Configuration Value Range Slot number Maintenance Console Location 2.8.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location...

  • Page 194

    2.8 [1] Configuration Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.8.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 195

    2.8 [1] Configuration Maintenance Console Location 2.8.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) IP Address Indicates the IP address of the IP-PT (reference only). Default Current IP address Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location...

  • Page 196

    2.8 [1] Configuration Ringing Tone Selects the dual-tone switching pattern of the ring tone for incoming calls. Default Value Range A: 64 ms (697 Hz), 64 ms (852 Hz) B: 32 ms (697 Hz), 32 ms (852 Hz) C: 128 ms (697 Hz), 128 ms (852 Hz) D: 32 ms (697 Hz), 96 ms (852 Hz) Maintenance Console Location 2.8.24 [1-1] Slot—Port Property - IP-Extension Port...

  • Page 197: Slot—opb3 Card Property (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Value Range 20 ms, 30 ms, 40 ms, 60 ms Maintenance Console Location 2.8.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/ KX-TDA600 only) The properties of the Optional Base card can be specified.

  • Page 198

    2.8 [1] Configuration Maintenance Console Location 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Sub-slot Indicates the sub-slot number (reference only). Default Current sub-slot number Value Range Sub-slot number Maintenance Console Location 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 199

    2.8 [1] Configuration Installation Manual References For KX-TDA100/KX-TDA200: 1.3.1 Optional Equipment For KX-TDA600: 1.3.1 Optional Equipment Programming Manual References 2.8.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Status Indicates the status of the option card in each slot (reference only). This column offers two ways to open the screen to select the card command: •...

  • Page 200

    2.8 [1] Configuration Value Range Port number Maintenance Console Location 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Status Indicates the port status of the mounted option card (reference only). Default Current port status Value Range INS: The card is in service.

  • Page 201

    2.8 [1] Configuration Programming Manual References 2.12.7 [5-5] External Sensor Feature Manual References 1.5.9 External Sensor Input Signal Detection Reopening Time Specifies the length of time after the sensor has been triggered during which any further input from the sensor will be ignored. Default 10 s Value Range...

  • Page 202: Slot—opb3 Card Property—card Command (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration MSG Feature Specifies whether or not to use the ESVM card as a MSG card. It is possible to use the ESVM card as an SVM card, MSG card, or both. Default Enable Value Range Enable, Disable Maintenance Console Location 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 203

    2.8 [1] Configuration Takes the card out of service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.8.26 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pre-INS Assigns the card type to a certain sub-slot (Pre-installation). Default Not applicable.

  • Page 204: Slot—opb3 Option Card Setup (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Feature Manual References None Delete Assigns the card type to be deleted from the sub-slot. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.8.26 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None 2.8.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-...

  • Page 205

    2.8 [1] Configuration Installation Manual References For KX-TDA100/KX-TDA200: 1.3.1 Optional Equipment For KX-TDA600: 1.3.1 Optional Equipment Programming Manual References 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Slot 1–Slot 3 Selects the slot on the OPB3 card to install or remove the option card for. Default Slot 1 Value Range...

  • Page 206: Slot—card Property - Ctilink (kx-tda100/kx-tda200/kx-tda600 Only)

    2.8 [1] Configuration Programming Manual References 2.8.25 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX- TDA200/KX-TDA600 only) The properties of the CTI-LINK card can be specified. Note that the IP address information must be specified in accordance with the settings of the network that it will be used on.

  • Page 207

    2.8 [1] Configuration Feature Manual References 1.3.21 CTI (Computer Telephony Integration) Gateway Specifies the gateway address. Default 192.168.0.1 Value Range 0.0.0.0–223.255.255.255 Maintenance Console Location 2.8.28 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) Maintenance Port Number Specifies a port number used to operate Maintenance Console via LAN.

  • Page 208: Slot—card Property - Dph Type (kx-tda50 Only)

    2.9.17 [2-9] System Options Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) The status of the DPH ports can be viewed, and set to INS (in service) or OUS (out of service). Slot Indicates the slot position (reference only).

  • Page 209

    Fault: The port is not communicating with the network. Maintenance Console Location 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) Programming Manual References 2.8.30 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) Feature Manual References None For Output (EIO)—Device Type Selects the type of connected output device (for output ports only).

  • Page 210

    Default 1024 ms Value Range 32 × n (n=2–255) ms Maintenance Console Location 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) Programming Manual References None Feature Manual References 1.5.9 External Sensor For Sensor (EIO)—Input Signal Detection Reopening Time Specifies the length of time after the sensor has been triggered during which any further input from the sensor will be ignored.

  • Page 211: Slot—card Property - Dph Type—connection Command (kx-tda50 Only)

    Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.8.30 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) Programming Manual References 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair.

  • Page 212: Portable Station

    2.8 [1] Configuration 2.8.31 [1-2] Portable Station Various portable station (PS) settings can be programmed. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), 256 (with the KX-TDA600) or 512 (with the KX-TDA600 with EMEC card installed) PSs can be registered.

  • Page 213: Personal Identification Number

    Value Range 4 digits (consisting of 0–9) Maintenance Console Location 2.8.31 [1-2] Portable Station Installation Manual References For KX-TDA50: 2.7.7 Connecting a Cell Station to the Hybrid IP-PBX For KX-TDA100/KX-TDA200: 2.8.7 Connecting a Cell Station to the Hybrid IP-PBX For KX-TDA600: 2.10.7 Connecting a Cell Station to the PBX...

  • Page 214

    2.8 [1] Configuration Index Indicates the PS number (reference only). Default Not applicable. Value Range For KX-TDA50: 1–28 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–512 Maintenance Console Location 2.8.31 [1-2] Portable Station Programming Manual References None Feature Manual References 1.13.24 PS Connection Extension No.

  • Page 215: Option

    2.8 [1] Configuration Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.8.31 [1-2] Portable Station Programming Manual References 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name Feature Manual References 1.13.24 PS Connection Status Indicates whether a certain PS is registered (reference only).

  • Page 216

    2.8 [1] Configuration automatically when a CS is connected to the PBX. Without the Radio System ID, PSs cannot be registered. System Wireless—System ID Indicates the radio system ID used to register a PS (reference only). Default Not stored. Value Range Not applicable.

  • Page 217

    2.8 [1] Configuration Value Range Disable, Enable Maintenance Console Location 2.8.32 [1-3] Option Programming Manual References None Feature Manual References None New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) Specifies whether a PRI23 card is automatically set to ISDN Standard mode or T1-LCOT mode when it is installed for the first time.

  • Page 218: Clock Priority (kx-tda100/kx-tda200/kx-tda600)

    2.8 [1] Configuration 2.8.33 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) Slot Number (KX-TDA100/KX-TDA200), Shelf-Slot Number (KX-TDA600) Selects and prioritizes slot numbers for the PRI and T1 cards that are used to forward a clock pulse from an external source to the PBX. Obtain the master clock time from the outside line that the telephone company provides.

  • Page 219: System

    2.9 [2] System [2] System 2.9.1 [2-1] Date & Time/Daylight Saving The date and time of the PBX, and Summer time (daylight saving time) can be programmed. Summer time sets the clock one hour forward at 2:00 AM on the start date, and one hour back at 2:00 AM on the end date.

  • Page 220: Date & Time/daylight Saving—date & Time Setting

    2.9 [2] System Programming Manual References None Feature Manual References 1.1.7 Automatic Time Adjustment End Date—Year, Month, Day Specifies the end date of daylight savings time. Default Year: 2005 (For Daylight Saving Time number 1. The year advances by one for the subsequent Daylight Saving Times.) Month: 10 Day: Day of the last Sunday of the month...

  • Page 221: Operator & Bgm

    Specifies the extension number or floating extension number of incoming call distribution group to be designated as the PBX operator in each time mode (day/lunch/break/night). To select an extension number, click Destination Setting (see 2.1.6 Extension Number Setting). Default For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1001 Value Range Max.

  • Page 222

    2.9.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) Selects the audio source of BGM. Default Internal BGM 1 Value Range External BGM, Internal BGM 1, Internal BGM 2 Maintenance Console Location 2.9.3 [2-2] Operator &...

  • Page 223: Timers & Counters

    2.9 [2] System For KX-TDA100/KX-TDA200/KX-TDA600: Tone, BGM 1 (External BGM Port 1), BGM 2 (Internal 1/2 or External 2) Maintenance Console Location 2.9.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.11.4 Music on Hold BGM and Music on Hold—Sound on Transfer Selects the audio source for Music for Transfer (either the same music source chosen for the Music on Hold, or ringback tone).

  • Page 224

    2.9 [2] System Value Range 0–15 Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/KX- TDA600 only) Specifies the length of time that the PBX waits for the called party to answer an Automatic Redial attempt.

  • Page 225

    2.9 [2] System Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Dial—Hot Line (Pickup Dial) Start Specifies the length of time between going off-hook and the start of automatic dialing when the Hot Line feature is set. Default Value Range 0–15 s...

  • Page 226

    2.9 [2] System Dial—Extension Inter-digit Specifies the length of time within which subsequent digits must be dialed before the PBX sends a reorder tone. Default 10 s Value Range 1–15 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release...

  • Page 227

    2.9 [2] System Value Range 1–15 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Dial—Analog CO Call Duration Start Specifies the length of time between the end of dialing and the start of the SMDR timer for outgoing analog CO line calls.

  • Page 228

    2.9 [2] System Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Intercept No Answer Time—Intercept No Answer Time—Day, Lunch, Break, Night Feature Manual References 1.9.11 Intercept Routing Recall—Hold Recall Specifies the length of time until the holding extension receives a Hold Recall ring or alarm tone when a held call remains unretrieved.

  • Page 229

    2.9 [2] System Recall—Call Park Recall Specifies the length of time that a parked call waits to be retrieved, before the Transfer Recall destination assigned to the extension that parked the call hears a Call Park Recall ring. Default 60 s Value Range 1–240 s Maintenance Console Location...

  • Page 230

    2.9 [2] System Value Range 0 (continuous)–15 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.4.9 DND (Do Not Disturb) Tone Length—Reorder Tone for PT Handset Specifies the length of time that a reorder tone is heard when using a PT handset. The PT will return to idle status when this timer expires.

  • Page 231

    2.9 [2] System Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release 1.8.2 Hands-free Operation DISA / Door / Reminder / U. Conf DISA—Delayed Answer Timer Specifies the length of time that the caller hears a ringback tone before hearing an OGM. Default Value Range 0–30 s...

  • Page 232

    2.9 [2] System DISA—No Dial Intercept Timer Specifies the length of time after the OGM finishes playing in which the caller must begin dialing before the call is redirected to the operator. Default 10 s Value Range 0–120 s Maintenance Console Location 2.9.4 [2-3] Timers &...

  • Page 233

    2.9 [2] System Default 40 s Value Range 0–60 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Intercept Destination—Intercept Destination— When called party does not answer—Day, Lunch, Break, Night 2.11.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination—Intercept Destination—When called party does not answer—Day, Lunch, Break, Night 2.12.4 [5-3-2] Voice Message—DISA Message Feature Manual References...

  • Page 234

    2.9 [2] System Value Range 0–15 Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References 2.12.4 [5-3-2] Voice Message—DISA Message Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA—CO-to-CO Call Prolong Time Specifies the length of time that a CO-to-CO line call on a DISA line is prolonged each time that the caller prolongs the call.

  • Page 235

    2.9 [2] System Feature Manual References 1.12.2 OGM (Outgoing Message) DISA—Reorder Tone Duration Specifies the length of time that a reorder tone is sent to the caller before the call is disconnected. Default 10 s Value Range 1–15 s Maintenance Console Location 2.9.4 [2-3] Timers &...

  • Page 236

    2.9 [2] System Value Range 10 × n (n=0–30) s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References 2.12.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Doorphone—Open Duration Specifies the length of time that a door stays unlocked after being opened from an extension. Default Value Range 2–7 s...

  • Page 237

    2.9 [2] System Feature Manual References 1.17.4 Timed Reminder Timed Reminder—Interval Time Specifies the length of time between the repeated alarms. Default 30 s Value Range 10 × n (n=1–120) s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.17.4 Timed Reminder...

  • Page 238

    2.9 [2] System Value Range 0–60 min Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.3.16 Conference Unattended Conference—Warning Tone Start Timer Specifies the length of time until the parties involved in an Unattended Conference receive a warning tone after the conference originator receives the Unattended Conference Recall tone but does not return to the conference.

  • Page 239

    2.9 [2] System Programming Manual References None Feature Manual References 1.3.16 Conference Miscellaneous Caller ID—Waiting to receive Specifies the length of time that the PBX waits to receive Caller ID from an analog CO line. If the Caller ID is received through an analog CO line card on which no Caller ID card is mounted or through a port to which Caller ID Detection is disabled, this timer is not applicable.

  • Page 240

    2.9 [2] System Feature Manual References 1.3.1 Caller ID 1.3.9 CALL WAITING FEATURES 1.3.10 Call Waiting Tone Extension PIN—Lock Counter Specifies the number of successive incorrect PIN entries allowed before the extension PIN is locked. A locked extension PIN can not be used until reset from the extension assigned as manager. (Specifying "None"...

  • Page 241

    2.9 [2] System Incoming Call Inter-digit Timer—DID (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the length of time between digits when receiving a DID number from a public network. The call will be redirected to a PBX operator when this timer expires. Default 10 s Value Range 0–30 s Maintenance Console Location...

  • Page 242

    2.9 [2] System Value Range 1–15 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Voice Mail (Caller from VM to CO)—On-hook Wait Time Specifies the length of time from when the VPS seizes a CO line (for example, to transfer a call) until the VPS goes on hook.

  • Page 243

    2.9 [2] System Programming Manual References None Feature Manual References None During Conversation—DTMF Inter-digit Pause Specifies the length of time between DTMF signals when numbers are dialed in succession from a PT or PS during a conversation. Default 112 ms Value Range 64 + 16 ×...

  • Page 244

    2.9 [2] System System Wireless—PS Out of Range Timer When the destination of an incoming call is a PS, specifies the length of time the PBX searches for the PS before setting its status to Out of Range. If "0" is assigned, the timer is controlled by the cell station. Default Value Range 0 s, 4 s, 8 s...

  • Page 245: Week Table

    2.9 [2] System Value Range 1–60 s Maintenance Console Location 2.9.4 [2-3] Timers & Counters Programming Manual References 2.11.9 [4-1-7] Wired Extension—Simplified Voice Message 2.11.16 [4-2-5] Portable Station—Simplified Voice Message Feature Manual References 1.16.5 SVM (Simplified Voice Message) 2.9.5 [2-4] Week Table A specific time mode (day, night, lunch, or break) can be selected for operation depending on the time of day.

  • Page 246

    2.9 [2] System Programming Manual References None Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Hour, Minute Specifies the start time for each time block. Times can only be set when 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Setting is set to Enable.

  • Page 247

    2.9 [2] System Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 2. Break—Break 1–3 Start—Hour, Minute Specifies the start time for each break period. Times can only be set when 2. Break—Break 1–3 Start—Setting is set to Enable. Default 00:00 Value Range 00:00–23:59...

  • Page 248: Holiday Table

    2.9 [2] System 2.9.7 [2-5] Holiday Table A specific time mode (day, night, lunch, or break) can be selected for operation during holidays. Select the desired time mode from the Holiday Mode list. The start and end dates of a maximum of 24 different holidays can be programmed. Holiday Table—Setting Enables the setting of the holiday.

  • Page 249

    2.9 [2] System Default Value Range 1–31 Maintenance Console Location 2.9.7 [2-5] Holiday Table Programming Manual References None Feature Manual References 1.17.5 Time Service Holiday Table—End Date—Month Specifies the month of the holiday end date. Default Value Range 1–12 Maintenance Console Location 2.9.7 [2-5] Holiday Table Programming Manual References None...

  • Page 250: Numbering Plan—main

    64 different extension numbering schemes can be programmed. Leading Number Specifies the leading number of extension numbers and floating extension numbers. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension Numbering Scheme 01: 1 Extension Numbering Scheme 02: 2 Extension Numbering Scheme 03: 3 Extension Numbering Scheme 04: 4...

  • Page 251

    2.9 [2] System Extension Numbering Scheme 20: 29 Extension Numbering Scheme 21: 5 Extension Numbering Scheme 22: 6 Extension Numbering Scheme 23–64: Not stored. Value Range Max. 3 digits (consisting of 0–9) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings 2.10.22 [3-8-2] VM(DTMF) Group—Group Settings...

  • Page 252: Operator Call

    2.9 [2] System Operator Call Specifies the feature number used to call the operator. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.3 [2-2] Operator & BGM 2.13.6 [6-6] Tenant Feature Manual References 1.12.5 Operator Features...

  • Page 253: Tie Line Access

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.17.1 [10-1] CO Line Settings Feature Manual References 1.3.14 CO Line Access TIE Line Access Specifies the feature number used to make a TIE line call. Default Value Range Max.

  • Page 254: Doorphone Call

    2.9 [2] System Feature Manual References 1.15.1 Redial, Last Number System Speed Dialing / Personal Speed Dialing Specifies the feature number used to make a call using a System/Personal Speed Dialing number. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 255: Group Paging

    2.9 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.12.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Group Paging Specifies the feature number used to page a certain paging group. Default Value Range Max.

  • Page 256

    2.9 [2] System Programming Manual References 2.9.3 [2-2] Operator & BGM 2.9.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.2.1 BGM (Background Music) OGM Record / Clear / Playback Specifies the feature number, available for manager extensions, used to record, clear, or play back a certain OGM.

  • Page 257: Group Call Pickup, Directed Call Pickup

    2.9 [2] System Parallel Telephone (Ring) Mode Set / Cancel Specifies the feature number used to set or cancel an SLT connected in parallel with a DPT to ring when receiving an incoming call. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 258

    2.9 [2] System Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 3—Call Pickup Deny 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 3—Call Pickup Deny Feature Manual References 1.3.6 Call Pickup TAFAS Answer Specifies the feature number used to answer a CO line call notified through an external pager. Default Value Range Max.

  • Page 259: Automatic Callback Busy Cancel

    2.9 [2] System Automatic Callback Busy Cancel Specifies the feature number used to cancel Automatic Callback Busy. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.1.4 Automatic Callback Busy (Camp-on) User Remote Operation / Walking COS / Verification Code...

  • Page 260: Account Code Entry

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—Optional Device & Other Extensions—Accept Wireless XDP Parallel Mode Set by PS Feature Manual References 1.20.4 Wireless XDP Parallel Mode Account Code Entry...

  • Page 261

    2.9 [2] System Feature Manual References 1.3.2 Call Hold Call Hold Retrieve : Specified with a Holding Extension Number Specifies the feature number used to retrieve a held call from a different extension by specifying a holding extension number. Default Value Range Max.

  • Page 262: Door Open

    2.9 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.2 Call Hold Door Open Specifies the feature number used to open a door. Default Value Range Max.

  • Page 263: External Feature Access

    2.9 [2] System Programming Manual References 2.12.6 [5-4] External Relay Feature Manual References 1.5.8 External Relay External Feature Access Specifies the feature number used to access the features of a host PBX or the telephone company. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 264

    2.9 [2] System CLIR Set / Cancel Specifies the feature number used to set or cancel CLIR, which suppresses the presentation of the caller's number to the called party. Default *7*1 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 265

    2.9 [2] System MCID Specifies the feature number used to ask the telephone company to trace a malicious call. This feature can be used during a call or while hearing a reorder tone after the caller hangs up. Default Not stored. Value Range Max.

  • Page 266

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD/DND Set / Cancel: Call from CO Specifies the feature number used to set or cancel FWD/DND for incoming CO line calls.

  • Page 267

    2.9 [2] System Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD No Answer Timer Set Specifies the feature number used to set the length of time before a call is forwarded. Default *713 Value Range...

  • Page 268

    2.9 [2] System Group FWD Set / Cancel: Call from CO Specifies the feature number used to set or cancel FWD for incoming CO line calls to an incoming call distribution group. Default *715 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 269: Walking Extension

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.6 Call Pickup Paging Deny Set / Cancel Specifies the feature number used to set or cancel Paging Deny (i.e., preventing other extensions from paging your extension).

  • Page 270

    2.9 [2] System Feature Manual References 1.20.2 Walking Extension Data Line Security Set / Cancel Specifies the feature number used to set or cancel Data Line Security (i.e., preventing signals from other extensions during data transmission). Default *730 Value Range Max.

  • Page 271

    2.9 [2] System Default *732 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.9 CALL WAITING FEATURES Executive Override Deny Set / Cancel Specifies the feature number used to set or cancel Executive Busy Override (i.e., preventing other extensions from joining your conversation).

  • Page 272

    2.9 [2] System Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Log-in / Log-out Specifies the feature number used to join or leave an incoming call distribution group. Default *736 Value Range...

  • Page 273

    2.9 [2] System Hot Line (Pickup Dial) Program Set / Cancel Specifies the feature number used to set/cancel the Hot Line feature, or program the number to be automatically dialed. Default *740 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 274

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.3 [2-2] Operator & BGM Feature Manual References 1.2.1 BGM (Background Music) Remote Timed Reminder (Remote Wakeup Call) Specifies the feature number used to set or cancel a Timed Reminder remotely (Wake-up Call).

  • Page 275: Printing Message

    2.9 [2] System Feature Manual References 1.17.4 Timed Reminder Printing Message Specifies the feature number used to select a Printing Message to be output on SMDR. Default *761 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.13.2 [6-2] Hotel—Main—SMDR for External Hotel Application 2—Printing Message 1–8...

  • Page 276

    2.9 [2] System Default *780 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Time Service Switch 2.9.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.17.5 Time Service Remote Extension Dial Lock Off...

  • Page 277: Extension Feature Clear

    2.9 [2] System Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.5.4 Extension Dial Lock Extension Feature Clear Specifies the feature number used to reset certain features of an extension to the default values. Default *790 Value Range...

  • Page 278

    2.9 [2] System Dial Information (CTI) Specifies the feature number used to send dial information to the CTI feature instead of the PBX. Default Not stored. Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References None...

  • Page 279: Numbering Plan—quick Dial

    2.9 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.9.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.9 [4-1-7] Wired Extension—Simplified Voice Message 2.11.16 [4-2-5] Portable Station—Simplified Voice Message Feature Manual References 1.16.5 SVM (Simplified Voice Message) Other PBX Extension Other PBX extension numbers can be used to easily call extensions connected to PBXs at different locations in a TIE line network.

  • Page 280

    2.9 [2] System For more information on flexible numbering, see "1.6.4 Flexible Numbering/Fixed Numbering" in the Feature Manual. Use quick dial for rerouting to public CO when TIE line does not work Specifies whether to check if the quick dial numbering plan is compatible (does not overlap) with the main numbering plan.

  • Page 281: Numbering Plan—b/na Dnd Call Feature

    2.9 [2] System Phone Number Specifies the number to be dialed when the corresponding Quick Dialing number is used. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.9.9 [2-6-2] Numbering Plan—Quick Dial Programming Manual References...

  • Page 282

    2.9 [2] System Feature Manual References 1.3.9 CALL WAITING FEATURES 1.3.10 Call Waiting Tone 1.4.9 DND (Do Not Disturb) 1.12.3 OHCA (Off-hook Call Announcement) 1.20.3 Whisper OHCA Executive Busy Override Specifies the feature number used to interrupt an existing call to establish a three-party conference call.

  • Page 283

    2.9 [2] System Feature Manual References 1.9.13 Intercom Call Message Waiting Set Specifies the feature number used to leave a Message Waiting notification. Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.9.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References None Feature Manual References...

  • Page 284

    2.9 [2] System Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.9.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References None Feature Manual References 1.1.4 Automatic Callback Busy (Camp-on) BSS / OHCA / Whisper OHCA / DND Override-2 Specifies the feature number used to notify a busy extension of a second call by Call Waiting, or call an extension in DND mode.

  • Page 285: Class Of Service—cos Settings

    2.9 [2] System 2.9.11 [2-7-1] Class of Service—COS Settings Each extension, doorphone port, incoming call distribution group, and trunk group is assigned a Class of Service (COS). Certain features can be programmed to behave differently depending on the COS. A maximum of 64 COS levels can be programmed. Restrictions to features related to making CO line calls can be programmed for each COS.

  • Page 286: Trs Level For System Speed Dialing

    2.9 [2] System Programming Manual References 2.9.5 [2-4] Week Table 2.10.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—COS 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.12.1 [5-1] Doorphone—COS 2.14.1 [7-1] Denied Code 2.14.2 [7-2] Exception Code Feature Manual References 1.17.6 TRS (Toll Restriction) TRS Level on Extension Lock...

  • Page 287

    2.9 [2] System Value Range 1: Allows all CO line calls 2–6: Restricts CO line calls according to the combination of the Denied and Exception Code Tables 7: Restricts all CO line calls Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS...

  • Page 288

    2.9 [2] System Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.9.17 [2-9] System Options—Option 2—Extension - CO Call Limitation—For Incoming Call 2.10.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.15 CO Line Call Limitation...

  • Page 289: Account Code Mode

    2.9 [2] System Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.3 [4-1-2] Wired Extension—FWD/DND 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) Account Code Mode Specifies whether the entry of an account code is optional or mandatory when making a CO line call. Default Option Value Range...

  • Page 290

    2.9 [2] System Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Extension Feature The use of features related to extension operations can be programmed for each COS. COS Name Specifies the name of the COS. Default Not stored. Value Range Max.

  • Page 291: Dnd Override

    2.9 [2] System DND Override Enables making a call to an extension in DND mode by entering the feature number. Default Disable Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.3 [4-1-2] Wired Extension—FWD/DND 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.12 [4-2-2] Portable Station—FWD / DND...

  • Page 292

    2.9 [2] System Default Disable Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.4 Call Monitor Call Pickup by DSS Enables using a DSS button to pick up a call to a specified extension.

  • Page 293: Executive Busy Override Deny

    2.9 [2] System Value Range Max. 20 characters Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 1.3.19 COS (Class of Service) Executive Busy Override Deny Enables preventing other extensions from interrupting calls. Default Disable Value Range...

  • Page 294

    2.9 [2] System Programming Manual References 2.10.13 [3-5-1] Incoming Call Distribution Group—Member List 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.6.6 FWD (Call Forwarding) Programming Mode Level Specifies the level of authorization for performing PT programming. Default PROG Only Value Range...

  • Page 295

    2.9 [2] System Feature Manual References 1.11.1 Manager Features Time Service Switch Enables manual switching of time modes. Default Disable Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.9.5 [2-4] Week Table 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References...

  • Page 296

    2.9 [2] System SDN Key Mode Selects what happens when an extension user presses an SDN button while on hook. Default Enhanced DSS Value Range Enhanced DSS: The registered (owner) extension is called. Standard SDN: A dial tone is heard. Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References...

  • Page 297: Door Unlock

    2.9 [2] System Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Optional Device & Other Extensions COS Name Specifies the name of the COS. Default Not stored.

  • Page 298

    2.9 [2] System Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.4.10 Door Open External Relay Access Enables access to external relays. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.12.6 [5-4] External Relay Feature Manual References...

  • Page 299: Class Of Service—external Call Block

    2.9 [2] System Remote Operation by Other Extension Allows the Walking COS feature to be used from a remote location (inside the PBX, or outside the PBX using DISA). Default Allow Value Range Allow, Deny Maintenance Console Location 2.9.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—COS...

  • Page 300: Class Of Service—internal Call Block

    2.9 [2] System Outgoing Trunk Group 1–64 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies the available trunk groups. Default All Trunk groups: Non Block Value Range Block (blue), Non Block Maintenance Console Location 2.9.12 [2-7-2] Class of Service—External Call Block Programming Manual References 2.9.5 [2-4] Week Table...

  • Page 301: Ring Tone Patterns—call From Co

    2.9 [2] System 2.12.1 [5-1] Doorphone—COS Feature Manual References 1.9.14 Internal Call Block 2.9.14 [2-8-1] Ring Tone Patterns—Call from CO Different ring tone patterns can be selected for incoming CO line calls depending on the trunk group that the calls are received on. A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.

  • Page 302: Ring Tone Patterns—call From Others

    2.9 [2] System Value Range Single, Double, Triple, S-Double Maintenance Console Location 2.9.15 [2-8-2] Ring Tone Patterns—Call from Doorphone Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table 2.12.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call 1.15.2 Ring Tone Pattern Selection...

  • Page 303

    2.9 [2] System Default Triple Value Range Single, Double, Triple Maintenance Console Location 2.9.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table Feature Manual References 1.17.4 Timed Reminder Call Back—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for callback ringing by Automatic Callback Busy.

  • Page 304: System Options

    2.9 [2] System Maintenance Console Location 2.9.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration External Sensor—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for calls from an external sensor.

  • Page 305

    2.9 [2] System Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References None PT LCD—Time Display Selects the time format shown on the displays of extensions. The time display format assigned here applies when setting the Timed Reminder feature. Default Value Range 12H, 24H...

  • Page 306

    2.9 [2] System PT Fwd / DND—Fwd LED Selects the light pattern of the FWD/DND button while the FWD feature is activated. Default Flash Value Range On (Solid): Red on Flash: Slow red flashing Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND 2.11.12 [4-2-2] Portable Station—FWD / DND...

  • Page 307

    2.9 [2] System Default FWD/DND Setting Mode Value Range FWD/DND Setting Mode: Enter programming mode for the FWD/DND setting. FWD/DND Cycle Switch Mode: Switch the FWD on/DND on/Off mode instead of entering the programming mode for the FWD/DND setting. (When there are separate FWD/DND settings for calls from CO lines and calls from extensions, mode switching cannot be performed.) Maintenance Console Location 2.9.17 [2-9] System Options...

  • Page 308

    2.9 [2] System Value Range Disable: The PT user's voice is sent through the handsfree microphone. The other party's voice is heard through the hands-free speaker. Enable: The PT user's voice is sent through the handset microphone. The other party's voice is heard through both the hands-free speaker and the handset.

  • Page 309

    2.9 [2] System Programming Manual References None Feature Manual References None PT Operation—PT Ring Off Setting Specifies whether incoming call ringing can be turned off at individual extensions. If disabled, users cannot prevent incoming calls from ringing. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options...

  • Page 310

    2.9 [2] System PT Operation—Automatic Hold by ICM / CO / ICD Group key Selects whether calls are disconnected or held when an INTERCOM, PDN, CO, or ICD Group button is pressed while having a conversation. Default Disconnect Value Range Disable (Disconnect), Enable Maintenance Console Location 2.9.17 [2-9] System Options...

  • Page 311

    2.9 [2] System Default Clear Value Range Clear, Do not clear Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear Extension Clear—Fwd/DND Specifies whether the FWD/DND setting is cleared when Extension Feature Clear is performed. Default Clear Value Range...

  • Page 312

    2.9 [2] System Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear CODEC—System CODEC Selects the CODEC type for DPTs and PSs. Default µ-Law Value Range A-Law, µ-Law Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References None...

  • Page 313

    2.9 [2] System End of Dial Plan—[#] as End of Dial for en Bloc mode (KX-TDA100/KX- TDA200/KX-TDA600 only) Specifies whether to automatically send "#" as an end code when dialing to an ISDN line; if used as the end code, "#" will not be dialed out as part of a number even when the "#" key is pressed. Default Enable Value Range...

  • Page 314

    2.9 [2] System Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Redial—Call Log by Redial key Enables display of the Outgoing Call Log on a DPT by pressing the REDIAL button while on hook. Default Disable Value Range...

  • Page 315

    Enables the PBX to adjust its clock every day according to the time information that the network provides with the first call after 3:05 AM. With the KX-TDA50, this parameter is shown as Automatic Time Adjustment—by Caller ID (FSK). Default...

  • Page 316

    2.9 [2] System Feature Manual References 1.3.17 Confirmation Tone 1.4.11 Doorphone Call Confirmation Tone—Tone 2 : Paged / Automatic Answer Enables the PBX to send Confirmation Tone 2. Confirmation Tone 2 is heard from a PT when it receives a call in Hands-free Answerback mode, or paging. Default Enable Value Range...

  • Page 317

    2.9 [2] System Confirmation Tone—Tone 3-2 : Start Talking after answering call Enables the PBX to send Confirmation Tone 3-2. Confirmation Tone 3-2 is heard from an extension when answering a call by, for example, the Call Pickup feature. Default Enable Value Range Disable, Enable...

  • Page 318

    2.9 [2] System Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.16 Conference 1.3.17 Confirmation Tone Confirmation Tone—Tone 5 : Hold Enables the PBX to send Confirmation Tone 5. Confirmation Tone 5 is heard from an extension when it holds a call.

  • Page 319

    2.9 [2] System Programming Manual References None Feature Manual References 1.4.3 Dial Tone Dial Tone—Dial Tone for Extension Selects the dial tone the PBX sends to extensions to inform about the features activated on them. Default Type A Value Range Type A, Type B Maintenance Console Location 2.9.17 [2-9] System Options...

  • Page 320

    2.9 [2] System Echo Cancel—Conference Enables the use of the ECHO/EECHO card for conference calls. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.16 Conference Echo Cancel—CO-to-CO Enables the use of the ECHO/EECHO card for CO-to-CO line calls. Default Enable Value Range...

  • Page 321

    2.9 [2] System Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References None Echo Cancel—Extension to Digital Line Enables the use of the ECHO/EECHO card for extension-to-ISDN/T1 line calls. If set to "Enable", the echo canceller card is used for extension-to-ISDN/T1 line calls. If set to "Disable", the echo canceller card is not used for extension-to-ISDN/T1 line calls.

  • Page 322

    2.9 [2] System Feature Manual References 1.3.6 Call Pickup 1.10.1 LED Indication DSS Key—Call Pick-up by DSS key for Direct Incoming Call Specifies whether a DSS button will light up or flash when a call rings at the specified extension. To enable this setting, DSS Key—DSS Key mode for Incoming Call on this screen must be set to ON or Flash.

  • Page 323

    2.9 [2] System DSS Key—Automatic Transfer for Extension Call Specifies whether pressing a DSS or SDN button during an extension-to-extension call disconnects the current call or places the call on consultation hold. Default Disable Value Range Disable: The PBX disconnects the current call, and calls the extension assigned to the DSS or SDN button.

  • Page 324

    2.9 [2] System Default Disable Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.8.1 Hands-free Answerback Send CLIP of CO Caller to ISDN—when Transfer (CLIP of Held Party) Enables the transfer of related CLIP information when a party on hold is transferred. When set to "Enable", the transfer destination will receive the original caller's CLIP information, not the information of the extension that performed the transfer.

  • Page 325

    2.9 [2] System Value Range Disable: The CLIP number assigned to the virtual PS is sent. Enable: The CLIP number of the calling party is sent. Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.13.16 Private Network Features—Network ICD Group 1.9.4 ICD Group Features—Outside Destinations Private Network—Public Call through Private Network—Minimum Public...

  • Page 326

    2.9 [2] System Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References 2.16.1 [9-1] TIE Table—Leading Number Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES System Wireless—Out of Range Registration Selects whether the PBX can set the status of a PS to Out of Range if no signal is received from the PS for a preset length of time.

  • Page 327

    2.9 [2] System Programming Manual References 2.11.13 [4-2-3] Portable Station—Flexible Button—Parameter Selection (for SDN) (KX-TDA100/KX- TDA200/KX-TDA600 only) Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Option 5 SLT—SLT Hold Mode Selects how to hold a line and transfer a call with an SLT. For details of each mode, see "1.3.2 Call Hold"...

  • Page 328

    2.9 [2] System Feature Manual References 1.11.3 Message Waiting Whisper OHCA—for SLT / APT / KX-T72xx Enables the use of Whisper OHCA to SLTs and IP-PTs, and DPTs other than KX-T7400 series, or KX-T7600 series. Default Disable Value Range Disable, Enable Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References...

  • Page 329

    2.9 [2] System Default System Feature Access Menu 1: Call Back Cancel System Feature Access Menu 2: Call Pickup Direct System Feature Access Menu 3: Call Pickup Group System Feature Access Menu 4: Doorphone Call System Feature Access Menu 5: Door Open System Feature Access Menu 6: External BGM System Feature Access Menu 7: Paging System Feature Access Menu 8: Relay ON...

  • Page 330

    2.9 [2] System Option 6 (CTI) 1st Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for First Party Call Control CTI. Default 60 s Value Range 0–60 s Maintenance Console Location 2.9.17 [2-9] System Options...

  • Page 331

    2.9 [2] System Default 20 s Value Range 0–60 s Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for Third Party Call Control CTI.

  • Page 332

    2.9 [2] System Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—CDR retry interval timer Specifies the length of time until the alive check of CDR is retried when no response is received, for Third Party Call Control CTI.

  • Page 333

    2.9 [2] System Feature Manual References 1.3.21 CTI (Computer Telephony Integration) CTI Multi PBX Control—PBX Name Specifies the name of the PBX, for network programming reference. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.17 [2-9] System Options Programming Manual References None Feature Manual References...

  • Page 334: Extension Cid Settings

    2.9.18 [2-10] Extension CID Settings Various settings for extension Caller ID can be programmed. Extension Caller ID Resource-1, 2 (KX-TDA50 only) Specifies a group of 4 SLT ports that can transfer Caller ID information to connected SLTs. When the port to which an extension is connected has this feature activated, there will be a short delay before the extension rings for incoming calls.

  • Page 335

    2.9 [2] System Value Range V.23(ETSI), Bell202(Bellcore) Maintenance Console Location 2.9.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID Channel Seizure Signal bits Specifies the number of seizure bits to send when sending Caller ID information to an SLT. Default 300 bits Value Range...

  • Page 336

    2.9 [2] System Feature Manual References 1.3.1 Caller ID Channel Seizure Wait Time Specifies the length of time that the PBX waits before starting to send the seizure signal following the first ring when sending Caller ID information to an SLT. Default 512 ms Value Range...

  • Page 337

    2.9 [2] System Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID Send Caller ID Date & Time to Extension Enables the PBX to send the date and time of an incoming call when sending Caller ID information to an SLT.

  • Page 338

    2.9 [2] System Programming Manual References None Feature Manual References 1.3.1 Caller ID Send Caller ID Long Distance to Extension Enables the PBX to send a call qualifier (Long Distance) (if received from the CO line) when sending Caller ID information to an SLT. Default Enable Value Range...

  • Page 339: Audio Gain—paging/moh

    3 dB Value Range -15–15 dB Maintenance Console Location 2.9.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.10.9 [3-4] Paging Group Feature Manual References 1.13.1 Paging Paging—EPG (External Pager) (KX-TDA50 only) Specifies the paging volume for the External Pager. PC Programming Manual...

  • Page 340

    2.9 [2] System Default -2 dB Value Range -15–15 dB Maintenance Console Location 2.9.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.10.9 [3-4] Paging Group Feature Manual References 1.13.1 Paging Paging—Paging Level from PT Speaker Specifies the volume when paging is broadcast through the speaker of a PT. Default 0 dB Value Range...

  • Page 341

    Programming Manual References 2.9.3 [2-2] Operator & BGM Feature Manual References 1.2.1 BGM (Background Music) 1.11.4 Music on Hold MOH—MOH (Music On Hold) (KX-TDA50 only) Specifies the music volume for the External BGM. Default 9 dB Value Range -11–11 dB Maintenance Console Location 2.9.19 [2-11-1] Audio Gain—Paging/MOH...

  • Page 342: Audio Gain—card

    2.9 [2] System 2.9.20 [2-11-2] Audio Gain—Card Gain levels can be programmed for each type of card. Up Gain (To PBX) Specifies the volume for audio signals from the selected type of card to the PBX. Default Depends on card type. Value Range -15–15 dB Maintenance Console Location...

  • Page 343: Group

    CO lines can be organized into trunk groups. The settings of each trunk group determine the settings of the CO lines within that group. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups can be programmed.

  • Page 344

    2.10 [3] Group Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings 2.17.1 [10-1] CO Line Settings Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES Line Hunting Order Specifies the CO line hunting sequence for the trunk group. The hunting sequence can be programmed to start from the lowest or highest numbered CO lines, or to rotate uniformly among all CO lines.

  • Page 345

    2.10 [3] Group Extension-CO Duration Time Specifies the length of time that an extension-to-CO line call can be maintained before being disconnected. Default 10 min Value Range None, 1–60 min Maintenance Console Location 2.10.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings 2.9.17 [2-9] System Options 2.17.1 [10-1] CO Line Settings...

  • Page 346: Tone Detection

    2.10 [3] Group Value Range 1–4 Maintenance Console Location 2.10.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.10.4 [3-1-4] Dialing Plan Feature Manual References None Tone Detection Group Name Specifies the name of the trunk group for programming reference. Default Not stored.

  • Page 347

    2.10 [3] Group Programming Manual References 2.12.3 [5-3-1] Voice Message—DISA System 2.17.1 [10-1] CO Line Settings Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA Tone Detection—Continuous Enables the disconnection of a DISA-originated CO-to-CO line call by continuous signal detection. Default Enable Value Range...

  • Page 348

    2.10 [3] Group Simplified Voice Message Tone Detection—Silence Enables the disconnection of an SVM-originated CO-to-CO line call by silence detection. Default Enable Value Range Disable, Enable Maintenance Console Location 2.10.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Simplified Voice Message Tone Detection—Continuous Enables the disconnection of an SVM-originated CO-to-CO line call by continuous signal detection.

  • Page 349: Host Pbx Access Code

    2.10 [3] Group Maintenance Console Location 2.10.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Host PBX Access Code Group Name Specifies the name of the trunk group for programming reference. Default Not stored.

  • Page 350: Trunk Group—local Access Priority

    Specifies the trunk group assigned to the corresponding priority level. Select the blank option to not assign a trunk group to the priority. Default Priority 1–64 = Trunk Group No. 1–64 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Trunk Group No. 1–64 For KX-TDA600: Trunk Group No. 1–96 Maintenance Console Location 2.10.2 [3-1-2] Trunk Group—Local Access Priority...

  • Page 351

    2.10 [3] Group If the telephone number does not contain an area code programmed here, it is modified based on the Long Distance Code settings. Area Code (for Local / International Call Data 1–10) Specifies the leading number (area code) to look for in the incoming caller's number. Default Not stored.

  • Page 352

    2.10 [3] Group Default Local / International Call Data 1–10: Not stored. Long Distance Code: 1 (fixed) Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.10.3 [3-1-3] Caller ID Modification Programming Manual References 2.10.1 [3-1-1] Trunk Group—TRG Settings—Caller-ID Modification Table 2.13.1 [6-1] System Speed Dial Feature Manual References 1.3.1 Caller ID...

  • Page 353: Dialing Plan

    2.10 [3] Group Feature Manual References 1.3.1 Caller ID Added Number Specifies the number to be added to the incoming caller's number in the place of the removed digits for each type of network numbering plan. Default International: 011 National: 1 Subscriber: Not stored.

  • Page 354

    2.10 [3] Group No. 3 in Dialing Plan Table 1: 1NXX NXX XXXX Others: Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, N [2,3,4,5,6,7,8,9], P [0, 1], and X [0-9, *, and #]) Maintenance Console Location 2.10.4 [3-1-4] Dialing Plan Programming Manual References 2.9.4 [2-3] Timers &...

  • Page 355: Dialing Plan—auto Assign

    Extensions can be assigned to a tenant according to their extension user groups. An extension user group can belong to only one tenant. However, one extension user group can belong to several call pickup groups and several paging groups. A maximum of 8 (with KX-TDA50/KX-TDA100/KX- TDA200) or 32 (with KX-TDA600) tenants can be programmed.

  • Page 356

    2.10 [3] Group Extension Group Name Specifies the name of the extension user group. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension User Group 1-32: Extension Group 01-32 For KX-TDA600: Extension User Group 1-96: Extension Group 01-96 Value Range Max. 20 characters Maintenance Console Location 2.10.6 [3-2] Extension Group...

  • Page 357: Call Pickup Group

    Extensions can be assigned to a call pickup group according to their extension user groups. One extension user group can belong to up to 8 call pickup groups. A maximum of 64 (with the KX-TDA50/ KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) call pickup groups can be programmed.

  • Page 358: Call Pickup Group—all Setting

    2.10.7 [3-3] Call Pickup Group Feature Manual References 1.3.6 Call Pickup 1.7.1 GROUP FEATURES Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX- TDA600) Specifies whether the extension user group belongs to the corresponding pickup group. Default ON for the same-numbered call pickup group...

  • Page 359: Paging Group

    Extensions can be assigned to a paging group according to their extension user groups. External pagers can also be assigned to a paging group. One extension user group or external pager can belong to multiple paging groups. A maximum of 32 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) paging groups can be programmed.

  • Page 360: Paging Group—all Setting

    8 paging groups on this screen. To assign an extension user group to more than 8 paging groups, click All Setting. Default Same as extension user group number Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, 01–32 For KX-TDA600: None, 01–96 Maintenance Console Location 2.10.9 [3-4] Paging Group...

  • Page 361: Paging Group—external Pager

    2.10 [3] Group Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX- TDA600) Specifies whether the extension user group belongs to the corresponding paging group. Default ON for same numbered paging group Value Range...

  • Page 362

    2.10 [3] Group Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging External Pager 1 Specifies whether the external pager belongs to the corresponding paging group. Default Value Range ON (blue), OFF Maintenance Console Location 2.10.11 [3-4] Paging Group—External Pager Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings 2.11.10 [4-2-1] Portable Station—Extension Settings Feature Manual References...

  • Page 363: Incoming Call Distribution Group—group Settings

    2.10 [3] Group 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Extensions can be assigned as members of an incoming call distribution group. Calls to an incoming call distribution group are distributed to its member extensions as programmed. A maximum of 128 incoming call distribution groups can be programmed.

  • Page 364

    2.10 [3] Group Feature Manual References None Distribution Method Selects the method for distributing calls to idle extensions of the incoming call distribution group. Default Ring Value Range Ring, UCD, Priority Hunting Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...

  • Page 365

    Specifies the tenant to which the incoming call distribution group belongs, to determine the Time Table and the audio source for the group. (The tenant number corresponds to the Time Table number.) Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: PC Programming Manual...

  • Page 366

    2.10 [3] Group For KX-TDA600: 1-32 Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.9.3 [2-2] Operator & BGM 2.9.5 [2-4] Week Table 2.13.6 [6-6] Tenant—Music On Hold Feature Manual References 1.11.4 Music on Hold 1.17.3 Tenant Service Specifies the COS of the incoming call distribution group.

  • Page 367

    2.10 [3] Group Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Overflow Queuing Busy Floating Extension Number Specifies the floating extension number of the incoming call distribution group.

  • Page 368

    2.10 [3] Group Programming Manual References None Feature Manual References None Queuing Busy—Destination-Day, Lunch, Break, Night Specifies the overflow destination of calls that cannot be queued in each time mode. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...

  • Page 369

    2.10 [3] Group Overflow No Answer Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...

  • Page 370

    2.10 [3] Group Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.9.5 ICD Group Features—Overflow 1.9.6 ICD Group Features—Queuing Time out &...

  • Page 371: Queuing Time Table

    2.10 [3] Group Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.11.5 [4-1-4] Wired Extension—Flexible Button 2.11.13 [4-2-3] Portable Station—Flexible Button Feature Manual References 1.9.6 ICD Group Features—Queuing Queuing Time Table Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Default Groups 001-064: 601–664 Groups 065-128: Not stored...

  • Page 372

    Queuing Time Table—Day, Lunch, Break, Night Specifies the Queuing Time Table to be used in each time mode. Default None Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, Table 1–Table 64 For KX-TDA600: None, Table 1–Table 128 Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.9.5 [2-4] Week Table...

  • Page 373

    2.10 [3] Group Miscellaneous Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...

  • Page 374

    2.10 [3] Group Default None Value Range None, 10 × n (n=1–15) s Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution 1.9.6 ICD Group Features—Queuing No.

  • Page 375

    2.10 [3] Group Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution Last Extension Log-out Specifies whether the last extension logged-in to the incoming call distribution group is allowed to log out.

  • Page 376

    2.10 [3] Group Supervisor Extension Number Specifies the extension number of the incoming call distribution group's supervisor. The supervisor can monitor and control the status of each member of the group using a 6-line display PT. The supervisor extension need not belong to the group. Default Not stored.

  • Page 377

    2.10 [3] Group Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Group Name Specifies the name of the incoming call distribution group. Default ICD Group 001–ICD Group 128 Value Range...

  • Page 378

    2.10 [3] Group Programming Manual References None Feature Manual References 1.3.3 Call Log, Incoming Group FWD Call from CO—Setting Indicates the current FWD status for incoming CO line calls (reference only). Default Value Range Off, On Maintenance Console Location 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...

  • Page 379: Incoming Call Distribution Group—member List

    1.6.6 FWD (Call Forwarding) 2.10.13 [3-5-1] Incoming Call Distribution Group—Member List Each incoming call distribution group can have a maximum of 32 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 128 (with the KX-TDA600) members (extensions) assigned to it, and each member can have its own delayed ringing and Wrap-up time settings. An extension can be a member of multiple incoming call distribution groups.

  • Page 380: Delayed Ring

    2.10 [3] Group Extension Number Specifies the extension number of each member. In addition to the extension numbers of PT, SLT, PS, and T1-OPX extensions, floating extension numbers of PS Ring groups can also be specified. Default Not stored. Value Range Max.

  • Page 381: Incoming Call Distribution Group—queuing Time Table

    Table A Queuing Time Table can contain up to 16 sequences which control how calls waiting in a queue are handled. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX- TDA600) Queuing Time Tables can be programmed.

  • Page 382: Incoming Call Distribution Group—miscellaneous

    Wait 5 × n (n=1–16) s: If preceded by an OGM, plays the Music on Hold for the specified period of time; if not preceded by an OGM, sends a ringback tone for the specified period of time. KX-TDA50: OGM 01–32: Sends a certain OGM KX-TDA100/KX-TDA200/KX-TDA600: OGM 01–64: Sends a certain OGM...

  • Page 383

    2.10 [3] Group Programming Manual References None Feature Manual References 1.9.1 ICD GROUP FEATURES Options—ICD Group Key Mode Selects whether ICD Group buttons at extensions operate as normal or in Enhanced Phantom button mode. When set to Enhanced Phantom mode, creating an ICD Group button at an extension using PT personal programming automatically registers the extension as a member of the relevant ICD Group.

  • Page 384: Extension Hunting Group

    If there is no idle extension in the group, the call can then be redirected to the overflow destination, which can be different depending on the time mode (day/lunch/break/night). A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX-TDA600) hunting groups can be programmed, each containing up to 16 extensions.

  • Page 385: Hunting Type

    2.10 [3] Group Maintenance Console Location 2.10.16 [3-6] Extension Hunting Group Programming Manual References None Feature Manual References 1.9.9 Idle Extension Hunting Hunting Type Specifies the hunting type for the hunting group. Default Circular Value Range Circular: Circulates until the call is answered or overflowed Terminated: Terminates at the last extension Maintenance Console Location 2.10.16 [3-6] Extension Hunting Group...

  • Page 386: Extension Hunting Group—member List

    2.10 [3] Group Feature Manual References 1.9.9 Idle Extension Hunting 2.10.17 [3-6] Extension Hunting Group—Member List Each hunting group can contain up to 16 extensions. Select the hunting group to program from the Hunting Group No. list. To assign members to the group, enter the extension numbers in Extension Number or click Extension Number Setting (see 2.1.6 Extension Number Setting).

  • Page 387: Vm(dpt) Group—system Settings

    PBX. The DPT ports that are connected to the VPS are called a VM (DPT) Group. With the KX-TDA50, a maximum of 1 VM (DPT) Group can be programmed; with the KX-TDA100/ KX-TDA200, 2 VM (DPT) Groups can be programmed; and with the KX-TDA600, 8 VM (DPT) groups can be programmed.

  • Page 388: Vm(dpt) Group—unit Settings

    2.10 [3] Group Programming Manual References 2.8.5 [1-1] Slot—Port Property - Extension Port 2.11.1 [4-1-1] Wired Extension—Extension Settings—Intercept Destination—Intercept Destination— When called party does not answer—Day, Lunch, Break, Night 2.11.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination—Intercept Destination—When called party does not answer—Day, Lunch, Break, Night Feature Manual References 1.19.3 Voice Mail (VM) Group 1.19.4 Voice Mail DPT (Digital) Integration...

  • Page 389: Vm(dpt) Group—unit Settings—member List

    2.10 [3] Group Default VM Unit No. 1: 500 Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings Programming Manual References 2.8.5 [1-1] Slot—Port Property - Extension Port Feature Manual References 1.19.3 Voice Mail (VM) Group 1.19.4 Voice Mail DPT (Digital) Integration Group Name Specifies the name of the VM (DPT) group, which will be shown on the display of extensions that call...

  • Page 390

    DPT Type—Type 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 1.5.7 Extension Port Configuration VM Unit No. Indicates the unit number of the connected VPS (reference only). Default Current unit number Value Range For KX-TDA50: For KX-TDA100/KX-TDA200: PC Programming Manual...

  • Page 391

    Feature Manual References 1.19.3 Voice Mail (VM) Group VM Port No. Indicates the VM port number for the port (reference only). Default Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200/KX-TDA600: 1–12 Maintenance Console Location 2.10.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References 2.8.5 [1-1] Slot—Port Property - Extension Port—DPT Type—VM Port No.

  • Page 392: Vm(dtmf) Group—system Settings

    2.10.21 [3-8-1] VM(DTMF) Group—System Settings A Panasonic Voice Processing System (VPS) with DTMF Integration can be connected to SLT ports of the PBX. The SLT ports that are connected to the VPS are called a VM (DTMF) Group. A maximum of 2 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 8 (with the KX-TDA600) VM (DTMF) Groups can be programmed.

  • Page 393

    2.10 [3] Group Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None VM DTMF Status Signal—Busy Tone Specifies the DTMF status signal the PBX sends to the VPS when the called extension is busy. Default Value Range Max.

  • Page 394

    2.10 [3] Group Programming Manual References None Feature Manual References None VM DTMF Status Signal—DND tone Specifies the DTMF status signal the PBX sends to the VPS when the called extension is in DND mode. Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References...

  • Page 395

    2.10 [3] Group VM DTMF Status Signal—Confirm Specifies the DTMF status signal the PBX sends to the VPS when a certain feature (e.g., Message Waiting) has been successfully set or canceled on an extension. Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References...

  • Page 396

    2.10 [3] Group Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) VM DTMF Status Signal—FWD to VM Busy Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to the VPS and all ports of the VPS are busy.

  • Page 397

    2.10 [3] Group Feature Manual References 1.6.6 FWD (Call Forwarding) VM DTMF Command—Recording Message Specifies the DTMF command the PBX sends to the VPS when a call is forwarded, intercepted, or transferred to the VPS, so that the caller can leave a message in a certain mailbox. Default Value Range Max.

  • Page 398

    2.10 [3] Group Default Value Range Max. 16 digits (consisting of 0–9, *, #, H [mailbox number], and P [pause]) Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None VM DTMF Command—Switching to VM Specifies the DTMF command the PBX sends to the VPS to switch from AA Service Mode to VM Service Mode.

  • Page 399

    2.10 [3] Group Programming Manual References None Feature Manual References None Timing—Inter-digit Time Specifies the length of pause time between DTMF signals the PBX sends to the VPS. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None...

  • Page 400

    2.10 [3] Group Timing—Waiting Time before Sending VM DTMF Status Signal Specifies the length of time that the PBX waits before sending the DTMF status signal to the VPS after the VPS has finished dialing. Default 1.5 s Value Range 0.5 s, 1.0 s, 1.5 s, 2.0 s Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings...

  • Page 401

    2.10 [3] Group Value Range None, Answer by Mailbox, AA Maintenance Console Location 2.10.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Others—Intercept Routing to the VPS Sequence Specifies which DTMF commands the VPS receives from the PBX when a call is intercepted to the VPS, so that the VPS can answer the call either with a mailbox or in the AA service mode.

  • Page 402: Vm(dtmf) Group—group Settings

    2.10 [3] Group Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous—Programmed Mailbox No. 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Programmed Mailbox No. 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 1—Programmed Mailbox No. Feature Manual References None Others—Message Waiting Lamp Control Specifies whether the PBX or VPS cancels the Message Waiting feature (e.g., turning off the MESSAGE button light) when an extension user answers the message waiting notification from the VPS.

  • Page 403

    2.10 [3] Group Maintenance Console Location 2.10.22 [3-8-2] VM(DTMF) Group—Group Settings Programming Manual References None Feature Manual References 1.19.3 Voice Mail (VM) Group Group Name Specifies the name of the VM (DTMF) group, which will be shown on the display of extensions that call the VM (DTMF) group.

  • Page 404: Vm(dtmf) Group—group Settings—member List

    2.10 [3] Group 2.10.23 [3-8-2] VM(DTMF) Group—Group Settings—Member List Select the group to program from the VM(DTMF) Group Number list. To assign members to the group, enter directly or click Extension Number Setting (see 2.1.6 Extension Number Setting). To copy members to another group, click Member List Copy, select the group, and click OK.

  • Page 405: Ps Ring Group

    One PS can belong to multiple PS ring groups. A maximum of 32 PS ring groups can be programmed, each containing up to 28 (with the KX-TDA50), 128 (with the KX- TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions.

  • Page 406: Ps Ring Group—member List

    1.13.27 PS Ring Group 2.10.25 [3-9] PS Ring Group—Member List Each PS Ring Group can have up to 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions assigned. Select the group to program from the PS Ring Group Number list.

  • Page 407

    2.10 [3] Group Feature Manual References 1.13.27 PS Ring Group Extension Name Indicates the name of the PS (reference only). Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.25 [3-9] PS Ring Group—Member List Programming Manual References 2.10.24 [3-9] PS Ring Group 2.11.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name Feature Manual References...

  • Page 408: Extension

    2.11 [4] Extension 2.11 [4] Extension 2.11.1 [4-1-1] Wired Extension—Extension Settings For each slot in which an extension card is installed, a certain number of extension ports are displayed. For each extension port, various extension settings can be assigned. To assign a set of CLIP numbers automatically, click CLIP Generate. To assign names and tenants to extension user groups, click Extension User Group Table.

  • Page 409

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 410

    2.11 [4] Extension Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Port Type Indicates the extension port type (reference only).

  • Page 411

    Extension Group Specifies the extension user group to which the extension belongs. Extension user groups are used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 412

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.7.1 GROUP FEATURES 1.17.3 Tenant Service Specifies the COS of the extension. Default Value Range 1–64 Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings Feature Manual References 1.3.19 COS (Class of Service) Extension PIN...

  • Page 413

    2.11 [4] Extension WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.

  • Page 414

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 415

    2.11 [4] Extension Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Intercept Destination—When called party does not answer—Day, Lunch, Break, Night Specifies the Intercept Routing destination of calls in each time mode for Intercept Routing–No Answer and Intercept Routing–DND.

  • Page 416

    2.11 [4] Extension Intercept Destination—When Called Party is Busy Specifies the Intercept Routing destination of calls when the extension is busy. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 417

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 418

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored.

  • Page 419

    2.11 [4] Extension Programming Manual References 2.9.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Intercept Routing No Answer (IRNA)— Day, Lunch, Break, Night Feature Manual References 1.9.11 Intercept Routing ISDN CLIP Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...

  • Page 420

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 421

    2.11 [4] Extension Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None CLIP ID Specifies the CLIP number sent to the public network to show on the called party's telephone display when making a CO line call.

  • Page 422

    2.11 [4] Extension Value Range Extension: Show the CLIP number specified in CLIP ID on the ISDN CLIP tab. CO: Show the CLIP number specified in Subscriber Number in 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only). Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO...

  • Page 423

    2.11 [4] Extension Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Option 1 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 424

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 425

    2.11 [4] Extension Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Wireless XDP Specifies the extension number of the PS with which Wireless XDP Parallel Mode is established.

  • Page 426

    2.11 [4] Extension Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the extension. Default Value Range 1–8 Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.9.14 [2-8-1] Ring Tone Patterns—Call from CO 2.9.15 [2-8-2] Ring Tone Patterns—Call from Doorphone 2.9.16 [2-8-3] Ring Tone Patterns—Call from Others Feature Manual References...

  • Page 427

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.8 Call Transfer ARS Itemized Code Specifies the itemized billing code used by the ARS feature for identifying calls made from the extension for accounting and billing purposes.

  • Page 428

    2.11 [4] Extension Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...

  • Page 429

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 430

    2.11 [4] Extension Default Value Range Off: No notification BSS: Tone from the handset or built-in speaker OHCA: Voice from the built-in speaker W-OHCA: Voice from the handset Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.9 CALL WAITING FEATURES Automatic C.

  • Page 431

    2.11 [4] Extension Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.9.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Hot Line (Pickup Dial) Start Feature Manual References 1.8.6 Hot Line Pickup Dial Number Specifies the number to be dialed automatically after going off-hook when the Hot Line feature is active.

  • Page 432

    2.11 [4] Extension Option 3 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range...

  • Page 433

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 434

    2.11 [4] Extension Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Call Pickup Deny Specifies whether calls can be picked up by other extensions. Default Disable Value Range Disable: Allows other extension users to pick up calls to your extension Enable: Prevents other extension users from picking up calls to your extension Maintenance Console Location...

  • Page 435

    2.11 [4] Extension Feature Manual References 1.5.3 Executive Busy Override Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be customized for each extension. Default Not stored. Value Range Max. 16 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...

  • Page 436

    2.11 [4] Extension Default Current shelf number Value Range Shelf number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location...

  • Page 437

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 438

    None Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups.

  • Page 439

    2.11 [4] Extension Value Range No Line: No line is selected. Select a line by pressing the desired Line Access button to answer a call. Ringing Line: The longest ringing call is selected. PDN (KX-TDA100/KX-TDA200/KX-TDA600 only): The call arriving at any PDN button is selected. F-1–F-36: The call arriving at a flexible button (F-1–F-36) is selected.

  • Page 440

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration LCS Answer Mode Specifies whether the extension's mailbox is monitored in Hands-free or Private mode. Default Hands free Value Range Hands free: Monitor through the built-in speaker Private: Monitor through the handset or the built-in speaker after hearing a warning tone Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 441

    2.11 [4] Extension Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range...

  • Page 442

    2.11 [4] Extension Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max.

  • Page 443

    Selects which caller information is shown on the first line of the extension's display. Default Caller ID Name Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 444

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.4.8 Display Information Key Pad Tone Specifies whether key pad tones are heard when dialing. Default Value Range Off, On Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...

  • Page 445

    2.11 [4] Extension Option 6 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range...

  • Page 446

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 447

    2.11 [4] Extension Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Forced Automatic Answer Specifies whether the extension automatically answers all incoming calls (both intercom and CO line calls) without going off-hook, regardless of the Hands-free Answerback setting.

  • Page 448

    2.11 [4] Extension Programming Manual References None Feature Manual References None ICM Tone Selects the ring tone for incoming calls arriving at the INTERCOM button or PDN buttons. Note that the ring tone specified here is applied to all PDN buttons on an extension. Default Value Range KX-T7600 series/IP-PT (except KX-NT265/KX-NT321): 1–30...

  • Page 449: Paging Deny

    2.11 [4] Extension 1.16.5 SVM (Simplified Voice Message) Paging Deny Specifies whether paging of the extension from other extensions is enabled. Default Disable Value Range Disable, Enable Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.13.1 Paging Option 7 Shelf (KX-TDA600 only)

  • Page 450

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 451

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored.

  • Page 452

    2.11 [4] Extension Feature Manual References None Flash Mode during CO Conversation Selects the function of the FLASH/RECALL button during a CO line conversation. Default Flash Recall Value Range EFA, Terminate, Flash Recall Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References...

  • Page 453

    2.11 [4] Extension Default Value Range 1–100 Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number ISDN Bearer (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the ISDN bearer mode. When Automatic is selected, the bearer mode is set automatically depending on the extension's telephone type as follows: PT: Speech SLT: Audio...

  • Page 454

    2.11 [4] Extension Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...

  • Page 455

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 456

    Enables the extension to send Caller ID information to an SLT. Note that for KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 2.9.18 [2-10] Extension CID Settings.

  • Page 457

    2.11 [4] Extension Note that for the KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 2.9.18 [2-10] Extension CID Settings.

  • Page 458

    2.11 [4] Extension Value Range 0–3000 s Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.13 [3-5-1] Incoming Call Distribution Group—Member List—Wrap-up Timer 2.10.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous—Options—Wrap-up Timer based Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Option 9 Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 459

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 460

    2.11 [4] Extension Programming Manual References 2.8.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References...

  • Page 461

    2.11 [4] Extension FWD / DND Reference Call Forwarding (FWD) and Do Not Disturb (DND) settings for each extension can be referred. FWD and DND settings can be programmed separately for each extension in 2.11.3 [4-1-2] Wired Extension—FWD/DND. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 462

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 463

    2.11 [4] Extension Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only). Default Value Range Off, On...

  • Page 464

    2.11 [4] Extension Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.4.9 DND (Do Not Disturb) FWD Mode for Call from CO Indicates the forwarding type of incoming CO line calls (reference only). Default None Value Range None, FWD All, FWD Busy, FWD N/A, FWD Busy N/A Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 465

    2.11 [4] Extension Default Value Range Off, On Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension Indicates the current DND status for incoming intercom calls (reference only). Default Value Range Off, On...

  • Page 466

    2.11 [4] Extension Programming Manual References 2.11.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from Extension Indicates the forwarding destination of incoming intercom calls (reference only). Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 467: Wired Extension—extension Settings—clip Generate

    2.11 [4] Extension 2.11.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.

  • Page 468

    2.11 [4] Extension Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–5 Maintenance Console Location 2.11.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References...

  • Page 469: Wired Extension—fwd/dnd

    2.11 [4] Extension Maintenance Console Location 2.11.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) 2.11.3 [4-1-2] Wired Extension—FWD/DND For each extension, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls.

  • Page 470

    2.11 [4] Extension Maintenance Console Location 2.11.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.

  • Page 471

    2.11 [4] Extension Call from CO—FWD Destination Specifies the forwarding destination of incoming CO line calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References...

  • Page 472

    2.11 [4] Extension Value Range OFF: Enables extensions to switch to FWD mode by pressing the FWD/DND button, if forward settings have been programmed. ON: Prevents extensions from switching to FWD mode by pressing the FWD/DND button. Maintenance Console Location 2.11.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None...

  • Page 473

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...

  • Page 474: Wired Extension—speed Dial

    Personal Speed Dialing allows extension users to dial frequently dialed numbers using two-digit speed dialing numbers (00–99). A maximum of 10 Personal Speed Dialing numbers can be programmed for each extension, or 100 when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Select the desired extension from the Extension Number / Name list.

  • Page 475: Wired Extension—flexible Button

    For more information on flexible buttons, see "1.6.3 Flexible Buttons" in the Feature Manual. Display Option—Key Setting Type Specifies the feature to be assigned to the flexible button. Default KX-TDA50 Key Location 1–16: Single CO Key Location 17–36: Not Stored KX-TDA100/KX-TDA200/KX-TDA600 Single CO...

  • Page 476

    2.11 [4] Extension Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed.

  • Page 477

    2.11 [4] Extension Default Automatic Value Range Automatic, Specific Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 1.3.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the extension belongs to are logged in to or logged out from.

  • Page 478

    2.11 [4] Extension Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain extension. Default Value Range 1–7...

  • Page 479

    2.11 [4] Extension Feature Manual References 1.17.5 Time Service Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls arriving at an SDN button. Default Immediate Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References...

  • Page 480

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.1 ICD GROUP FEATURES Ext. No. / Floating Ext. No. (for Message Waiting) Specifies the number of an extension or floating extension number of an incoming call distribution group for which messages are checked.

  • Page 481

    2.11 [4] Extension Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Group FWD (External)) Specifies the floating extension number of an incoming call distribution group for which CO line calls are forwarded.

  • Page 482

    2.11 [4] Extension Ext. No. / Floating Ext. No. (for Call Log) Specifies the extension's own number or the floating extension number of an incoming call distribution group for which call log information is displayed. If the cell is left empty, the extension will display its own call log information.

  • Page 483

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Overflow No Answer Feature Manual References 1.9.6 ICD Group Features—Queuing Ext. No. / Floating Ext. No. (for Two-way Record) Specifies the floating extension number of the VM (DPT) group containing the extension's mailbox.

  • Page 484

    2.11 [4] Extension Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Specifies the floating extension number of the VM (DTMF/DPT) group containing the desired mailbox. Default Not stored. Value Range Max.

  • Page 485

    2.11 [4] Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles. Default Not stored.

  • Page 486

    2.11 [4] Extension Value Range 1–8 Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Optional Parameter (Ringing Tone Type Number) (for Loop CO, Single CO, Group CO, ICD Group, SDN) Specifies the ring tone type.

  • Page 487

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.3.5 Call Park Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One- touch Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time.

  • Page 488

    2.11 [4] Extension Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for DSS) 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for ICD Group) 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext.

  • Page 489

    2.11 [4] Extension Parameter 1 This parameter is equivalent to Parameter Selection on the Key Setting screen. Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter Selection (for Single CO) 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter Selection (for Group CO) 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter Selection (for Call Park)

  • Page 490

    2.11 [4] Extension Mailbox Number This parameter is equivalent to Ext No. of Mailbox on the Key Setting screen. Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.11.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext No. of Mailbox (for Two-way Transfer) Feature Manual References None...

  • Page 491

    2.11 [4] Extension Feature Manual References None Color of Background Specifies the color used for the label background for the corresponding button. Click Choose to select a color. Default White Value Range Any color Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References...

  • Page 492: Wired Extension—flexible Button—flexible Button Data Copy

    2.11 [4] Extension Default T7633/T7636 Value Range T7633/T7636, T7625/T7630/NT136, NT265, T7667, Other Maintenance Console Location 2.11.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References None 2.11.6 [4-1-4] Wired Extension—Flexible Button—Flexible button data copy The flexible button settings (including key label settings) of an extension can be copied to different extensions.

  • Page 493: Wired Extension—ndss Link Data - Send

    2.11 [4] Extension Default Not stored. Value Range Not Stored, One Touch Maintenance Console Location 2.11.7 [4-1-5] Wired Extension—PF Button Programming Manual References None Feature Manual References 1.6.3 Flexible Buttons Dial Specifies the number to be dialed. Default Not stored. Value Range Max.

  • Page 494: Wired Extension—simplified Voice Message

    2.11 [4] Extension Default Value Range OFF, ON Maintenance Console Location 2.11.8 [4-1-6] Wired Extension—NDSS Link Data - Send Programming Manual References 2.16.1 [9-1] TIE Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) 2.11.9 [4-1-7] Wired Extension—Simplified Voice Message When an SVM/ESVM card is installed in the PBX, Simplified Voice Message features can be provided for each extension.

  • Page 495

    2.11 [4] Extension Default Current port number Value Range Port number Maintenance Console Location 2.11.9 [4-1-7] Wired Extension—Simplified Voice Message Programming Manual References None Feature Manual References None Extension Number Indicates the extension number (reference only). Default Not stored. Value Range Max.

  • Page 496

    2.11 [4] Extension Programming Manual References 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main—Extension Name Feature Manual References None Simplified Voice Message Selects which SVM/ESVM card to use to store and play back greetings and messages for the extension. Each extension must be assigned to a specific SVM/ESVM card and block within the card, and can only use the assigned card.

  • Page 497: Portable Station—extension Settings

    2.11.10 [4-2-1] Portable Station—Extension Settings For each Portable Station (PS), various extension settings can be assigned. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), or 512 (with the KX-TDA600) PSs can be programmed. To assign names and tenants to extension user groups, click Extension User Group Table. See 2.10.6 [3-2] Extension Group for more details.

  • Page 498

    Extension Group Specifies the extension user group to which the PS belongs. The extension user group is used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings...

  • Page 499

    2.11 [4] Extension Specifies the COS of the PS. Default Value Range 1–64 Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings Feature Manual References 1.3.19 COS (Class of Service) Extension PIN Specifies the PIN of the PS.

  • Page 500

    2.11 [4] Extension Intercept Destination Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name...

  • Page 501

    2.11 [4] Extension Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.11.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination—Intercept Destination—When Called Party is Busy Feature Manual References 1.9.11 Intercept Routing Intercept Destination—When Called Party is Busy...

  • Page 502

    2.11 [4] Extension Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name...

  • Page 503

    2.11 [4] Extension Feature Manual References 1.9.11 Intercept Routing ISDN CLIP Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension No.

  • Page 504

    2.11 [4] Extension Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) CLIP on Extension/CO (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the CLIP number to show on the called party's telephone.

  • Page 505

    2.11 [4] Extension Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) COLR Specifies whether to restrict the display of the CLIP number of the PS on the caller's telephone display when answering a call.

  • Page 506

    2.11 [4] Extension Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the PS.

  • Page 507

    2.11 [4] Extension Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.19.5 Voice Mail DTMF Integration Transfer Recall Destination Specifies the transfer recall destination when an extension user transfers a call with the Call Transfer without Announcement feature and the transferred call is not answered within a certain time period.

  • Page 508

    2.11 [4] Extension Programming Manual References 2.15.6 [8-5] Carrier Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.19.1 Verification Code Entry Option 2 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 509

    2.11 [4] Extension Manual C. Waiting for Extension Call Selects the method of receiving call waiting notification from other extensions. Default Value Range Off: No notification BSS: Tone from the handset or built-in speaker Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...

  • Page 510

    2.11 [4] Extension Value Range Off, On Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.9.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Hot Line (Pickup Dial) Start Feature Manual References 1.8.6 Hot Line Pickup Dial No. Specifies the number to be dialed automatically after going off-hook when the Hot Line feature is active.

  • Page 511

    2.11 [4] Extension Programming Manual References 2.8.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None...

  • Page 512

    2.11 [4] Extension Default Disable Value Range Disable: Allows other extension users to interrupt an existing call Enable: Prevents other extension users from interrupting an existing call Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.5.3 Executive Busy Override Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be...

  • Page 513

    2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized.

  • Page 514

    2.11 [4] Extension Idle: An idle CO line is seized automatically from the programmed trunk groups. ICM/PDN: An extension line is seized, or, for a PDN extension, an idle PDN button is selected. F-1–F-12: A CO line programmed for a flexible button (F-1–F-12) is seized. A flexible button customized as a Single-CO, Group-CO, Loop-CO, or ICD Group button must be selected.

  • Page 515

    2.11 [4] Extension Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.10 Call Waiting Tone LCS Recording Mode Specifies whether to continue or stop recording the message in the PS's mailbox when the PS user answers a call that was being monitored.

  • Page 516

    2.11 [4] Extension Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None Display Language Selects the display language of the PS.

  • Page 517

    2.11 [4] Extension Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.4.8 Display Information...

  • Page 518

    2.11 [4] Extension Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name...

  • Page 519

    2.11 [4] Extension Flexible Button Programming Mode Specifies whether the PS user can modify all flexible buttons without limitation, or only the One-touch Dialing buttons. When the mode is set to One-touch Dial, there is no need to enter "2" before the number when customizing a One-touch Dialing button.

  • Page 520

    2.11 [4] Extension Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None Character Input Mode Selects the character table to be used for entering characters. Default Table 1 Value Range...

  • Page 521

    2.11 [4] Extension Feature Manual References 1.5.1 EFA (External Feature Access) 1.6.2 Flash/Recall/Terminate Incoming Call Log Memory Specifies the number of incoming CO line calls that are retained in the PS's Incoming Call Log memory. Default Value Range 0–100 Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None...

  • Page 522

    2.11 [4] Extension Default Automatic Value Range Automatic, Speech, Audio Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Option 8 Extension Number Indicates the extension number of the PS (reference only). Default Not stored.

  • Page 523

    2.11 [4] Extension Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None Group CW w/o Tone (Ring after Call) Enables an incoming call to an incoming call distribution group to arrive at a previously busy extension at the moment that the extension goes on-hook for the previous call.

  • Page 524

    2.11 [4] Extension 2.10.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous—Options—Wrap-up Timer based Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Option 9 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 525

    2.11 [4] Extension PDN Delayed Ringing (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls to a PDN extension (an extension with one or more PDN buttons). Default Immediate Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 526

    2.11 [4] Extension Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.31 [1-2] Portable Station—Extension Name Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only). Default Value Range Off, On...

  • Page 527

    2.11 [4] Extension Programming Manual References 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.4.9 DND (Do Not Disturb) FWD Mode for Call from CO Indicates the forwarding type of incoming CO line calls (reference only). Default None Value Range None, FWD All, FWD Busy, FWD N/A, FWD Busy N/A Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings...

  • Page 528

    2.11 [4] Extension Default Value Range Off, On Maintenance Console Location 2.11.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension Indicates the current DND status for incoming intercom calls (reference only). Default Value Range Off, On...

  • Page 529

    2.11 [4] Extension Programming Manual References 2.11.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from Extension Indicates the forwarding destination of incoming intercom calls (reference only). Default Not stored. Value Range Max.

  • Page 530: Portable Station—extension Settings—clip Generate

    2.11 [4] Extension 2.11.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.

  • Page 531

    2.11 [4] Extension Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–4 Maintenance Console Location 2.11.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.11.10 [4-2-1] Portable Station—Extension Settings Feature Manual References...

  • Page 532: Portable Station—fwd / Dnd

    2.11 [4] Extension Maintenance Console Location 2.11.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.11.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) 2.11.12 [4-2-2] Portable Station—FWD / DND For each PS, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls.

  • Page 533

    2.11 [4] Extension Maintenance Console Location 2.11.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.

  • Page 534

    2.11 [4] Extension Call from CO—FWD Destination Specifies the forwarding destination of incoming CO line calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References...

  • Page 535

    2.11 [4] Extension Value Range OFF: Enables extensions to switch to FWD mode by pressing the FWD/DND button, if forward settings have been programmed. ON: Prevents extensions from switching to FWD mode by pressing the FWD/DND button. Maintenance Console Location 2.11.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None...

  • Page 536

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.12 [4-2-2] Portable Station—FWD / DND Programming Manual References...

  • Page 537: Portable Station—flexible Button

    Programming Manual References 2.11.14 [4-2-3] Portable Station—Flexible Button—Flexible button data copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 PC Programming Manual...

  • Page 538

    None Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.11.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.10.1 [3-1-1] Trunk Group—TRG Settings...

  • Page 539

    2.11 [4] Extension Programming Manual References None Feature Manual References 1.3.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the PS belongs to are logged in to or logged out from. Default None Value Range None: The incoming call distribution group is selected manually.

  • Page 540

    2.11 [4] Extension Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain PS. Default Value Range 1–7 Maintenance Console Location 2.11.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—TRS 2.14 [7] TRS Feature Manual References 1.4.4 Dial Tone Transfer...

  • Page 541

    2.11 [4] Extension Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 2.11.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.17 [2-9] System Options—Option 4—System Wireless—SDN Delayed Ringing with LCD (KX- TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension...

  • Page 542

    2.11 [4] Extension Feature Manual References 1.9.1 ICD GROUP FEATURES Ext. No. / Floating Ext. No. (for Message Waiting) Specifies the number of an extension or floating extension number of an incoming call distribution group for which messages are checked. If this cell is left empty, the PS will check its own messages only.

  • Page 543

    2.11 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding) Ext.

  • Page 544

    2.11 [4] Extension Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection).

  • Page 545

    2.11 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Specifies the floating extension number of the VM (DTMF/DPT) group containing the desired mailbox.

  • Page 546

    1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 500 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 1000 (with the KX-TDA600) One-touch Dialing buttons for PSs.

  • Page 547

    2.11 [4] Extension Programming Manual References 2.16.4 [9-4] NDSS Key Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (or Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...

  • Page 548

    2.11 [4] Extension Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One- touch Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time.

  • Page 549

    2.11 [4] Extension 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for Message Waiting) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for Group Fwd (Both)) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext.

  • Page 550

    2.11 [4] Extension 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Group CO) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Call Park) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Log-in/Log-out) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Time Service) 2.11.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for TRS Level Change)

  • Page 551: Portable Station—flexible Button—flexible Button Data Copy

    2.11 [4] Extension 2.11.14 [4-2-3] Portable Station—Flexible Button—Flexible button data copy The flexible button settings of a PS can be copied to different PSs. Destination Extension Line Select the number and name of the PS that will receive the copied settings. Multiple PSs can be selected.

  • Page 552: Portable Station—simplified Voice Message

    2.11 [4] Extension 2.11.16 [4-2-5] Portable Station—Simplified Voice Message When an SVM/ESVM card is installed in the PBX, Simplified Voice Message features can be provided for each PS. This screen allows you to specify which card each extension belongs to, and the maximum number of messages that can be stored for each extension.

  • Page 553: Dss Console

    1.16.5 SVM (Simplified Voice Message) 2.11.17 [4-3] DSS Console A DSS Console can be used in conjunction with a PT. A maximum of 4 (with the KX-TDA50), 8 (with the KX-TDA100/KX-TDA200), or 64 (with the KX-TDA600) DSS Consoles can be programmed. The...

  • Page 554

    2.11 [4] Extension DPT Type—Type of the extension port that the DSS Console is connected to must be set to DSS in 2.8.5 [1-1] Slot—Port Property - Extension Port. Each flexible DSS button can be customized to access a certain feature. A maximum of 66 flexible DSS buttons can be customized for each DSS Console.

  • Page 555

    2.11.18 [4-3] DSS Console—DSS key data copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.11.17 [4-3] DSS Console...

  • Page 556

    2.11 [4] Extension Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.10.1 [3-1-1] Trunk Group—TRG Settings Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Call Park) Specifies whether a call is parked in an idle parking zone automatically or in a specific parking zone. Default Automatic Value Range...

  • Page 557

    2.11 [4] Extension Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Parameter Selection (for Time Service) Selects which time modes are switched manually. Default Value Range All (Day/Night/Lunch/Break), Day/Night/Break, Day/Night/Lunch, Day/Night Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service...

  • Page 558

    2.11 [4] Extension Default Value Range 1–8 Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls arriving at an SDN button. Default Immediate Value Range...

  • Page 559

    2.11 [4] Extension Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for ICD Group) Specifies the floating extension number of an incoming call distribution group to be accessed. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References...

  • Page 560

    2.11 [4] Extension Ext. No. / Floating Ext. No. (for Group Fwd (Both)) Specifies the floating extension number of an incoming call distribution group for which both intercom and CO line calls are forwarded. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References...

  • Page 561

    2.11 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Call Log) Specifies the paired extension's number or the floating extension number of an incoming call distribution group for which call log information is displayed.

  • Page 562

    2.11 [4] Extension Programming Manual References 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection).

  • Page 563

    2.11 [4] Extension Ext. No. / Floating Ext. No. (for Two-way Transfer) Specifies the floating extension number of the VM (DPT) group containing the desired mailbox. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings...

  • Page 564

    Feature Manual References 1.4.6 DIL (Direct In Line) Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.

  • Page 565

    2.11 [4] Extension Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.16.4 [9-4] NDSS Key Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...

  • Page 566

    2.11 [4] Extension Feature Manual References 1.15.2 Ring Tone Pattern Selection Optional Parameter (Ringing Tone Type Number) (for Call Park) Specifies the number of the parking zone a call is to be parked in when a Call Park button with Parameter Selection (for Call Park) on this screen set to Specific is pressed.

  • Page 567

    2.11 [4] Extension Type This parameter is equivalent to Type on the Key Setting screen. Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.11.17 [4-3] DSS Console—Display Option—Key Setting—Type Feature Manual References None Extension Number This parameter is equivalent to Ext. No. / Floating Ext. No. on the Key Setting screen. Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References...

  • Page 568

    2.11 [4] Extension Dial This parameter is equivalent to Dial on the Key Setting screen. Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References 2.11.17 [4-3] DSS Console—Display Option—Key Setting—Dial (for One-touch) 2.11.17 [4-3] DSS Console—Display Option—Key Setting—Dial (for NDSS) Feature Manual References None Parameter 1...

  • Page 569

    2.11 [4] Extension 2.11.17 [4-3] DSS Console—Display Option—Key Setting—Optional Parameter (Ringing Tone Type Number) (for Loop CO, Single CO, Group CO, ICD Group, SDN) 2.11.17 [4-3] DSS Console—Display Option—Key Setting—Optional Parameter (Ringing Tone Type Number) (for Call Park) Feature Manual References None Mailbox Number This parameter is equivalent to Ext No.

  • Page 570

    2.11 [4] Extension Value Range Any color Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References None Feature Manual References None Color of Background Specifies the color used for the label background for the corresponding button. Click Choose to select a color.

  • Page 571: Dss Console—dss Key Data Copy

    2.11 [4] Extension Feature Manual References None DSS Type DSS Type Selects the type of DSS Console for which you want to print a key label template. Default Other Value Range T7640, Other Maintenance Console Location 2.11.17 [4-3] DSS Console Programming Manual References None Feature Manual References...

  • Page 572: Optional Device

    1.4.11 Doorphone Call Physical Location—Slot Indicates the slot to which the doorphone is connected (reference only). Default Current slot number Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.12.1 [5-1] Doorphone Programming Manual References...

  • Page 573

    2.12 [5] Optional Device Feature Manual References 1.4.11 Doorphone Call Physical Location—Port Indicates the port number to which the doorphone is connected (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.12.1 [5-1] Doorphone Programming Manual References None Feature Manual References 1.4.11 Doorphone Call...

  • Page 574

    1.4.11 Doorphone Call Tenant Number Specifies the tenant number for the doorphone port in order to apply the Time Table (day/lunch/break/ night). Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1-32 Maintenance Console Location 2.12.1 [5-1] Doorphone Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.4.11 Doorphone Call...

  • Page 575: External Pager

    2.12 [5] Optional Device Maintenance Console Location 2.12.1 [5-1] Doorphone Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—TRS—TRS Level—Day, Lunch, Break, Night 2.9.13 [2-7-3] Class of Service—Internal Call Block Feature Manual References 1.4.11 Doorphone Call 1.9.14 Internal Call Block VM Trunk Group Number Specifies the number of the VM trunk group sent to the VPS when the doorphone call destination is the floating extension number of a VM (DPT) group.

  • Page 576: Voice Message—disa System

    2.12 [5] Optional Device Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.12.2 [5-2] External Pager Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) 1.13.1 Paging 1.17.2 TAFAS (Trunk Answer From Any Station) Page Number 1, Page Number 2—Name Specifies the name of the external pager.

  • Page 577

    2.12 [5] Optional Device Option 1 DISA Security—DISA Security Mode Selects the DISA security mode to prevent unauthorized access to the PBX. In CO Line or All Security mode, the caller is required to override security by Walking COS or Verification Code Entry in order to enable the restricted feature temporarily.

  • Page 578

    2.12 [5] Optional Device DISA Intercept—Intercept when Destination through DISA sets DND Selects how DISA calls are handled if the destination sets DND, and disables Idle Extension Hunting. Default Busy Tone Value Range Busy Tone, Enable, Busy Message Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References None...

  • Page 579

    2.12 [5] Optional Device Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References None Feature Manual References None CO-CO with DISA—DISA to Public CO Specifies whether the DISA port of the message card is released when a CO-to-CO line call using DISA is established.

  • Page 580

    2.12 [5] Optional Device Value Range Disable (Release DISA): The DISA port of the message card is released when a CO-to-TIE line call using DISA is established. Enable: DISA stays connected for the duration of the call, to allow detection of the end of the call. Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References...

  • Page 581

    2.12 [5] Optional Device Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References 2.12.3 [5-3-1] Voice Message—DISA System—Option 1—CO-CO with DISA—DISA to Private Network Feature Manual References None CO-CO with DISA—Transfer by DTMF "#" (Optional SD Card Required) Specifies whether an outside party such as a cellular phone can transfer a CO line call to an extension within the PBX by dialing "#"...

  • Page 582

    DISA CO--to-CO line conversation established through an analog CO line. To apply changes to this setting, follow the steps below: Change this setting. Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) to "OUS", then "INS". Default...

  • Page 583

    2.12 [5] Optional Device Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) card to "OUS", then "INS". Default 600 ms Value Range 10 × n (n=11–400) ms Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References 2.8.1 [1-1] Slot...

  • Page 584

    Timed Reminder Message - Day, Lunch, Break, Night Specifies the prerecorded message to play when a Timed Reminder call is answered in each time mode. Default None Value Range For KX-TDA50: None, 1–32 For KX-TDA100/KX-TDA200/KX-TDA600: None, 1–64 Maintenance Console Location 2.12.3 [5-3-1] Voice Message—DISA System Programming Manual References 2.12.4 [5-3-2] Voice Message—DISA Message...

  • Page 585: Voice Message—disa Message

    1.16.5 SVM (Simplified Voice Message) 2.12.4 [5-3-2] Voice Message—DISA Message Outgoing messages (OGM) for DISA calls can be specified. A maximum of 32 (with the KX-TDA50) or 64 (with the KX-TDA100/KX-TDA200/KX-TDA600) OGMs can be programmed. To view a list of all programmed extension numbers and types, click Extension List View (see 2.5.6 Tool—Extension List View).

  • Page 586

    2.12 [5] Optional Device Maintenance Console Location 2.12.4 [5-3-2] Voice Message—DISA Message Programming Manual References None Feature Manual References 1.4.7 DISA (Direct Inward System Access) 1.12.2 OGM (Outgoing Message) Name Specifies the name of the OGM. Default OGM 01–xx: DISA 01–DISA xx Value Range Max.

  • Page 587

    Programming Manual References 2.12.3 [5-3-1] Voice Message—DISA System Feature Manual References 1.4.7 DISA (Direct Inward System Access) Fax Extension (KX-TDA50 only) Specifies the extension number to which to transfer a call when the MSG card detects a fax signal. Default Not stored.

  • Page 588: Voice Message—svm

    2.12 [5] Optional Device 2.12.5 [5-3-3] Voice Message—SVM Settings related to the SVM/ESVM cards can be specified, for use with the Simplified Voice Message feature. SVM Card No. 1, 2—Slot No. Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location...

  • Page 589: Recording Mode, Remote Access

    2.12 [5] Optional Device Default Card No. 1: Voice Msg 1 Card No. 2: Voice Msg 2 Value Range Max. 20 characters Maintenance Console Location 2.12.5 [5-3-3] Voice Message—SVM Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Recording Mode Specifies the sound quality of messages recorded on the SVM/ESVM card.

  • Page 590

    To apply changes to this setting, follow the steps below: Change this setting. Set the status of the SVM card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) to "OUS", then "INS". Default Fixed...

  • Page 591

    Note that this option can only be set when SVM Cyclic Tone Detection on this screen is set to "Option". To apply changes to this setting, follow the steps below: Change this setting. Set the status of the SVM card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) to "OUS", then "INS". Default 600 ms Value Range 20 ×...

  • Page 592: External Relay

    2.12.6 [5-4] External Relay Settings related to external relays can be programmed. External Relay No. Indicates the number of the external relay (reference only). Default Current external relay number. Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200: 1–16 KX-TDA600: 1–64 PC Programming Manual...

  • Page 593

    Feature Manual References 1.5.8 External Relay Physical Location—Slot Indicates the slot position (reference only). Default Current slot and sub-slot number. Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.12.6 [5-4] External Relay Programming Manual References...

  • Page 594

    2.12 [5] Optional Device Feature Manual References 1.5.8 External Relay Physical Location—Port Indicates the port number (reference only). Default Current port number. Value Range Port number Maintenance Console Location 2.12.6 [5-4] External Relay Programming Manual References None Feature Manual References 1.5.8 External Relay Name Specifies the relay name.

  • Page 595: External Sensor

    2.12 [5] Optional Device Value Range 1–7 s Maintenance Console Location 2.12.6 [5-4] External Relay Programming Manual References None Feature Manual References 1.5.8 External Relay COS Number Specifies the Class of Service (COS) number. COS programming determines the extensions that are able to activate relays.

  • Page 596

    2.12 [5] Optional Device Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200: 1–16 KX-TDA600: 1–64 Maintenance Console Location 2.12.7 [5-5] External Sensor Programming Manual References None Feature Manual References 1.5.9 External Sensor Physical Location—Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 597

    2.12 [5] Optional Device For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.12.7 [5-5] External Sensor Programming Manual References None Feature Manual References 1.5.9 External Sensor Physical Location—Port Indicates the port number (reference only). Default Current port number. Value Range Port number Maintenance Console Location 2.12.7 [5-5] External Sensor...

  • Page 598

    Specifies the tenant to which the sensor belongs, to determine the Time Table for the sensor. (The tenant number corresponds to the Time Table number.) Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1-32 Maintenance Console Location 2.12.7 [5-5] External Sensor Programming Manual References 2.9.5 [2-4] Week Table...

  • Page 599: Feature

    Selects the System Speed Dialing Table to be programmed. Whether a tenant uses the basic System Speed Dialing Table or the additional table (with MEC [KX-TDA50/KX-TDA100/KX-TDA200] or EMEC [KX-TDA600] card) depends on the setting of System Speed Dial in 2.13.6 [6-6] Tenant.

  • Page 600

    2.13 [6] Feature Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.13.1 [6-1] System Speed Dial Programming Manual References None Feature Manual References 1.16.4 Speed Dialing, System CO Line Access Number + Telephone Number Specifies the telephone number (including the CO Line Access number) or feature number assigned to the System Speed Dialing number.

  • Page 601: Hotel

    Various settings related to the hospitality features of the PBX can be set. Main Hotel Operator—Extension 1–4 Specifies the numbers of the extensions designated as hotel operators. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension 1: 101 For KX-TDA600: Extension 1: 1001 Value Range Max.

  • Page 602

    2.13 [6] Feature Default No Print Value Range No Print, Print Maintenance Console Location 2.13.2 [6-2] Hotel Programming Manual References 2.18.1 [11-1] Main Feature Manual References 1.15.3 Room Status Control 1.16.1 SMDR (Station Message Detail Recording) SMDR for External Hotel Application 1—Timed Reminder (Wake-up Call) Selects whether Timed Reminder data is output on SMDR.

  • Page 603: Verification Code

    2.13 [6] Feature Value Range Max. 16 characters Maintenance Console Location 2.13.2 [6-2] Hotel Programming Manual References 2.18.1 [11-1] Main Feature Manual References 1.13.11 Printing Message 1.16.1 SMDR (Station Message Detail Recording) 2.13.3 [6-3] Verification Code A verification code is used to override the Toll Restriction (TRS) of the extension in use to make a certain CO line call, or to identify the call for accounting and billing purposes.

  • Page 604

    2.13 [6] Feature Value Range Max. 20 characters Maintenance Console Location 2.13.3 [6-3] Verification Code Programming Manual References None Feature Manual References 1.19.1 Verification Code Entry Verification Code PIN Specifies the PIN to be entered when making a CO line call with the verification code. Default Not stored.

  • Page 605: Second Dial Tone

    2.13 [6] Feature Default Value Range 1–64 Maintenance Console Location 2.13.3 [6-3] Verification Code Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings Feature Manual References 1.3.19 COS (Class of Service) 1.19.1 Verification Code Entry Itemized Billing Code for ARS Specifies the itemized billing code used by the ARS feature for identifying calls made with a verification code for accounting and billing purposes.

  • Page 606: Absent Message

    2.13 [6] Feature Default Not stored. Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.13.4 [6-4] Second Dial Tone Programming Manual References None Feature Manual References 1.13.4 Pause Insertion Pause Repeating Counter Specifies the number of pauses to be inserted when waiting for the second dial tone. Default Value Range 0–20...

  • Page 607: Tenant

    Feature Manual References 1.1.1 Absent Message 2.13.6 [6-6] Tenant A maximum of 8 (KX-TDA50/KX-TDA100/KX-TDA200)/32 (KX-TDA600) tenants can share the PBX. Each tenant is composed of specified extension user groups. The PBX offers each tenant its own Time Table and system resources.

  • Page 608: Ars Mode

    2.13 [6] Feature Feature Manual References 1.11.4 Music on Hold 1.17.3 Tenant Service Operator (Extension Number) Specifies the extension number or the floating extension number of an incoming call distribution group to be designated as the tenant operator. When this parameter is left unspecified, the PBX operator serves as the tenant operator.

  • Page 609: System Speed Dial

    1.1.3 ARS (Automatic Route Selection) 1.17.3 Tenant Service System Speed Dial Specifies which system speed dialing table is used by the tenant. This setting is only available when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Default For KX-TDA50: Basic Memory...

  • Page 610: Denied Code

    2.14 [7] TRS 2.14 [7] TRS 2.14.1 [7-1] Denied Code Toll Restriction (TRS) prohibits an extension from making certain CO line calls. Each time mode of every COS is assigned one of the seven TRS levels. TRS level 7 provides the maximum restriction (all CO line calls are prohibited) and level 1 provides the minimum (all CO line calls are allowed).

  • Page 611: Special Carrier

    If a Special Carrier Access Code is found in the dialed number, TRS will look only at the following digits. A maximum of 20 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 100 (with the KX-TDA600) Special Carrier Access Codes can be programmed. With the KX-TDA600, 20 codes are displayed at a time.

  • Page 612: Emergency Dial

    2.14 [7] TRS Feature Manual References 1.16.2 Special Carrier Access Code 1.17.6 TRS (Toll Restriction) 2.14.4 [7-4] Emergency Dial Any extension user can dial the programmed emergency numbers at any time after seizing a CO line. The restrictions imposed on the extension, such as Toll Restriction (TRS), Account Code—Forced mode, and Extension Dial Lock are disregarded.

  • Page 613

    2.14 [7] TRS Maintenance Console Location 2.14.5 [7-5] Miscellaneous Programming Manual References 2.13.1 [6-1] System Speed Dial Feature Manual References 1.17.6 TRS (Toll Restriction) TRS Check for dial "* #" Enables a TRS check for the user-dialed " " and "#". This is useful in preventing unauthorized calls which could possibly be made through certain telephone company exchanges.

  • Page 614

    2.14 [7] TRS Feature Manual References 1.17.6 TRS (Toll Restriction) Dial Digits Limitation After Answering—Dial Digits Specifies a limit to be placed on the number of digits which can be dialed after an extension user receives a CO line call. If the number of dialed digits exceeds the programmed limit, the line will be disconnected.

  • Page 615

    2.14 [7] TRS TRS Table Mode for Level N (N=2_6) Selects the method of TRS to be used for restricting calls. The level of TRS is determined by the telephone codes set in the Denied Code Tables and Exception Code Tables. Default Deny Table 2_N + Except Table N_6 Value Range...

  • Page 616: System Setting

    2.15 [8] ARS 2.15 [8] ARS 2.15.1 [8-1] System Setting Automatic Route Selection (ARS) automatically selects the appropriate carrier at the time a CO line call is made, according to the programmed settings. The user-dialed number will be checked and modified in order to connect it to the appropriate carrier.

  • Page 617: Leading Number

    2.15 [8] ARS Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) 2.15.2 [8-2] Leading Number Specifies the area codes and/or telephone numbers as leading numbers that will be routed by the ARS feature. A maximum of 1000 different leading numbers can be programmed, and each leading number can select a Routing Plan Table number, which determines the ARS procedure.

  • Page 618: Routing Plan Time

    The start and end times of a maximum of 4 different time blocks are shown for each day of the week. There are 16 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 48 (with the KX-TDA600) Routing Plan Tables, and each Routing Plan Table can have its own time blocks. Select the desired Routing Plan Table number from the Routing Plan list.

  • Page 619: Routing Plan Priority

    2.15 [8] ARS Time-A–D—Setting Enables the setting of the start time for each time block. Default Time-A–Time-C: Enable Time-D: Disable Value Range Disable, Enable Maintenance Console Location 2.15.4 [8-3] Routing Plan Time—Time Setting Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) Time-A–D—Hour, Minute Specifies the start time for each time block.

  • Page 620: Carrier

    It is possible to specify how user-dialed numbers are modified for connecting to the appropriate carrier. A maximum of 10 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 48 (with the KX-TDA600) different carriers can be programmed to be used with the ARS feature.

  • Page 621

    2.15 [8] ARS Removed Number of Digits Specifies the number of leading digits to remove from the user-dialed number. Default Value Range 0–15 Maintenance Console Location 2.15.6 [8-5] Carrier Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) Modify Command Specifies the commands to modify the user-dialed number to access the carrier.

  • Page 622

    "A" command in Modify Command on the Carrier tab. Authorization Code for Tenant—Tenant 1–Tenant 32 Specifies the Authorization code of each carrier for each tenant. Note For the KX-TDA50/KX-TDA100/KX-TDA200, only up to 8 tenants are available. PC Programming Manual...

  • Page 623: Leading Number Exception

    2.15 [8] ARS Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.15.6 [8-5] Carrier Programming Manual References None Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.17.3 Tenant Service 2.15.7 [8-6] Leading Number Exception Specifies telephone numbers that will not be connected using the ARS feature.

  • Page 624: Authorization Code For Trg

    Carrier tab of screen 2.15.6 [8-5] Carrier. 8 trunk groups are displayed on the screen at a time. To display other groups, click the applicable tab. Authorization Code for Trunk Group—TRG 01–TRG 64 (KX-TDA50/KX- TDA100/KX-TDA200), or TRG 01–TRG 96 (KX-TDA600) Specifies the Authorization code of each carrier for each trunk group.

  • Page 625: Private Network

    2.16 [9] Private Network 2.16 [9] Private Network 2.16.1 [9-1] TIE Table A TIE line is a privately leased communication line between two or more PBXs, which provides cost effective communications between company members at different locations. A maximum of 32 TIE Line Routing and Modification Tables can be programmed. It is necessary to make unified tables with all PBXs at different locations in a TIE line network in order to identify the CO line route to be used when an extension makes or receives a TIE line call.

  • Page 626

    2.16 [9] Private Network Value Range Max. 3 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.16.1 [9-1] TIE Table Programming Manual References None Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES Removed Number of Digits Specifies the number of leading digits of the dialed number to be removed for each priority. Default Value Range 0–15...

  • Page 627: Trunk Group

    1.13.13 PRIVATE NETWORK FEATURES Trunk Group Specifies the trunk group to be used for TIE line calls for each priority. Default None Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, 1–64 For KX-TDA600: None, 1–96 Maintenance Console Location 2.16.1 [9-1] TIE Table Programming Manual References...

  • Page 628: Network Data Transmission

    2.16 [9] Private Network Enhanced QSIG Call Information (Optional SD Card Required) Enables Network Message Waiting information to be sent from the PBX to which the VPS is attached to extensions connected to other PBXs in the network. Default Enable Value Range Disable, Enable Maintenance Console Location...

  • Page 629

    2.16 [9] Private Network Programming Manual References None Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Network Data Transmission for Centralized Operator Feature—Data Transmission VoIP->ISDN Selects whether to re-send BLF data received from a VoIP port through any ISDN ports that are set to transmit BLF data.

  • Page 630

    2.16 [9] Private Network Network Data Transmission for Centralized Operator Feature—Data Transmission Counter Specifies the maximum number of "hops", or transmissions between two PBXs, before a packet of BLF data is discarded. Default Value Range 1–63 Maintenance Console Location 2.16.2 [9-2] Network Data Transmission Programming Manual References None Feature Manual References...

  • Page 631: Network Operator (voip)

    2.16 [9] Private Network Default Value Range 0–10 Maintenance Console Location 2.16.2 [9-2] Network Data Transmission Programming Manual References 2.16.1 [9-1] TIE Table—Enhanced QSIG Call Information (Optional SD Card Required) Feature Manual References 1.13.14 Private Network Features—Centralized Voice Mail Network MSW Data Transmission for Centralized VM Feature—Data Re- transmission : Repeat Timer Specifies the length of time between repeated re-transmission of network message waiting notifications.

  • Page 632

    Specifies the slot number (with the KX-TDA600, shelf and slot number) of the card used to send extension status data. This setting is only required when using VoIP to transmit data. Default Undefined Value Range For KX-TDA50: Undefined, 5–7 For KX-TDA100/KX-TDA200: Undefined, 1–11 For KX-TDA600: Undefined, 1-1–4-11...

  • Page 633: Ndss Key Table

    2.16 [9] Private Network 2.16.4 [9-4] NDSS Key Table Extensions at up to 7 other PBXs that will be monitored using Network Direct Station Selection (NDSS) can be registered. A maximum of 250 extensions can be registered. To create an NDSS button to monitor an extension, the extension must be registered here first.

  • Page 634

    2.16 [9] Private Network Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Network PBX ID of Network Extension to be monitored Indicates the Network Data Transmission for Centralized Operator Feature—Network PBX ID of the PBX that the extension is connected to (reference only). Default Not stored.

  • Page 635: Co & Incoming Call

    2.17 [10] CO & Incoming Call 2.17.1 [10-1] CO Line Settings CO lines can be assigned a name, and grouped into a maximum of 64 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups. For KX-TDA600, all supported cards are displayed in the Select Shelf & Slot list. Select the shelf and slot and card type to program, or select "All"...

  • Page 636: Trunk Group Number

    2.17 [10] CO & Incoming Call Physical—Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.17.1 [10-1] CO Line Settings Programming Manual References None Feature Manual References None CO Name Specifies the CO line name which is shown on the extension's display when receiving a call from the CO line.

  • Page 637: Dil Table & Port Settings

    2.17 [10] CO & Incoming Call Value Range KX-TDA50/KX-TDA100/KX-TDA200: 1–64 KX-TDA600: 1–96 Maintenance Console Location 2.17.1 [10-1] CO Line Settings Programming Manual References None Feature Manual References 1.7.1 GROUP FEATURES 2.17.2 [10-2] DIL Table & Port Settings Direct In Line (DIL) or Direct Inward Dialing (DID) can be selected for each CO line as the method of distributing incoming CO line calls to certain destinations.

  • Page 638

    2.17 [10] CO & Incoming Call Programming Manual References None Feature Manual References None Slot Indicates the slot position of each CO line card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References...

  • Page 639

    2.17 [10] CO & Incoming Call Default Current card type Value Range Card type Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES Trunk Property Indicates the networking type of each CO line (reference only). Default Current networking type Value Range...

  • Page 640

    Tenant Number Specifies the tenant number, to determine the Time Table by which calls are distributed depending on the time of day. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1-32 Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings...

  • Page 641

    2.17 [10] CO & Incoming Call Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.4.6 DIL (Direct In Line) 1.17.3 Tenant Service 1.17.5 Time Service VM Trunk Group No. Specifies the number of the VM trunk group sent to the VPS when the DIL destination is the floating extension number of a VM (DPT) Group.

  • Page 642

    2.17 [10] CO & Incoming Call Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each CO line card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location...

  • Page 643

    2.17 [10] CO & Incoming Call Card Type Indicates the CO line card type (reference only). Default Current card type Value Range Card type Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES Trunk Property Indicates the networking type of each CO line (reference only).

  • Page 644

    2.17 [10] CO & Incoming Call Value Range DIL: Distribution depends on the CO line through which the calls arrive DID: Distribution depends on the DID number of the calls Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References...

  • Page 645

    2.17 [10] CO & Incoming Call Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each CO line card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location...

  • Page 646

    2.17 [10] CO & Incoming Call Card Type Indicates the CO line card type (reference only). Default Current card type Value Range Card type Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References 1.9.10 INCOMING CALL FEATURES Trunk Property Indicates the networking type of each CO line (reference only).

  • Page 647

    1.9.10 INCOMING CALL FEATURES DID/TIE—Remove Digit Specifies the number of leading digits to be removed from the incoming called number for DID distribution (KX-TDA100/KX-TDA200/KX-TDA600) or for TIE line service. With the KX-TDA50, this parameter is shown as TIE—Remove Digit. Default Value Range 0–15 Maintenance Console Location 2.17.2 [10-2] DIL Table &...

  • Page 648: Did Table (kx-tda100/kx-tda200/kx-tda600 Only)

    2.17 [10] CO & Incoming Call Maintenance Console Location 2.17.2 [10-2] DIL Table & Port Settings Programming Manual References None Feature Manual References 1.4.5 DID (Direct Inward Dialing) 1.13.13 PRIVATE NETWORK FEATURES 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Incoming CO line calls with DID numbers can be distributed to specific destinations. Each DID number has a destination programmed for each time mode (day/lunch/break/night).

  • Page 649: Did Name

    2.17 [10] CO & Incoming Call DID Name Specifies the name for the DID number which is shown on the extension's display when receiving a call with the DID number. The name of the DID number can be printed out on SMDR. Default Not stored.

  • Page 650

    2.17 [10] CO & Incoming Call Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1-32 Maintenance Console Location 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.9.5 [2-4] Week Table Feature Manual References 1.4.5 DID (Direct Inward Dialing) VM Trunk Group No.

  • Page 651: Did Table—automatic Registration (kx-tda100/kx-tda200/kx-tda600 Only)

    2.17 [10] CO & Incoming Call Value Range Disable, Enable Maintenance Console Location 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.13.1 [6-1] System Speed Dial Feature Manual References 1.3.12 CLI (Calling Line Identification) Distribution 1.4.5 DID (Direct Inward Dialing) 2.17.4 [10-3] DID Table—Automatic Registration (KX-TDA100/KX- TDA200/KX-TDA600 only) Automatic Registration allows DID numbers and DID destinations in each time mode (day/lunch/...

  • Page 652

    2.17 [10] CO & Incoming Call Value Range Max. 32 digits (consisting of 0–9) Maintenance Console Location 2.17.4 [10-3] DID Table—Automatic Registration (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) Number of Registration Specifies the number of locations to be programmed.

  • Page 653: Did Table—name Generate (kx-tda100/kx-tda200/kx-tda600 Only)

    2.17 [10] CO & Incoming Call Programming Manual References 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) 2.17.5 [10-3] DID Table—Name Generate (KX-TDA100/KX- TDA200/KX-TDA600 only) Name Generate allows DID names to be programmed at once for a set of locations in series. If a name generated here is longer than 20 characters, the additional characters will be discarded.

  • Page 654

    2.17 [10] CO & Incoming Call Feature Manual References 1.4.5 DID (Direct Inward Dialing) No. of Digits to Delete Specifies the number of digits to be deleted from the start of a DID number when using it as part of the DID name.

  • Page 655: Miscellaneous

    2.17 [10] CO & Incoming Call Value Range Max. 20 characters Maintenance Console Location 2.17.5 [10-3] DID Table—Name Generate (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) 2.17.6 [10-4] Miscellaneous The Intercept Routing feature can activate when the destination of an incoming call is unavailable, or when there is no destination for the call, to reroute the call to an alternate destination.

  • Page 656

    2.17 [10] CO & Incoming Call Default Enable Value Range Disable (Reorder Tone): Sends a reorder tone to the caller Enable: Redirects the call to an operator Maintenance Console Location 2.17.6 [10-4] Miscellaneous Programming Manual References None Feature Manual References 1.9.12 Intercept Routing—No Destination Intercept—Intercept Routing for Extension Call Enables the Intercept Routing feature to operate for extension calls.

  • Page 657: Maintenance

    2.18 [11] Maintenance 2.18 [11] Maintenance 2.18.1 [11-1] Main SMDR Station Message Detail Recording (SMDR) automatically records detailed information about incoming and outgoing calls. SMDR Format—Type Selects the format of SMDR output. Default Type A Value Range Type A: 80 digits without call charge information Type B: 80 digits with call charge information Type C: 120 digits Maintenance Console Location...

  • Page 658

    2.18 [11] Maintenance Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Format—Page Length (Number of Lines) Specifies the number of lines on a page of output paper. Match the SMDR output to the paper size being used in the printer. Default Value Range 4–99...

  • Page 659

    2.18 [11] Maintenance Default MM-DD-YY Value Range MM-DD-YY, DD-MM-YY, YY-MM-DD, YY-DD-MM Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Format—Time Format (12H / 24H) Selects whether times are displayed using the 12- or 24-hour format. Default Value Range 12H, 24H...

  • Page 660

    2.18 [11] Maintenance Programming Manual References 2.9.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Outgoing CO Call Printout (SMDR) Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Print Information—Incoming Call Specifies whether the information relating to incoming CO line calls, such as caller's identification name and number, is printed.

  • Page 661

    2.18 [11] Maintenance Default No Print Value Range No Print, Print Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out 1.16.1 SMDR (Station Message Detail Recording) Print Information—Hotel Room Status Selects whether check-in and check-out data is output on SMDR. Default No Print Value Range...

  • Page 662: Smdr Options

    2.18 [11] Maintenance Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.10.4 Local Alarm Information 1.16.1 SMDR (Station Message Detail Recording) SMDR Options SMDR Options—ARS Dial Selects the type of the dialed number to be printed for a call with the ARS feature. Default Dial after ARS Modification Value Range...

  • Page 663

    2.18 [11] Maintenance Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Options—DID Number & Name (KX-TDA100/KX-TDA200/KX-TDA600) Selects the printing format of incoming CO line calls with a DID number. Default None Value Range None, Number, Name, Name + Number Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References...

  • Page 664

    2.18 [11] Maintenance SMDR Options—Condition Code "RC/VR" Specifies whether the time of receiving an incoming CO line call is printed. Default No Print Value Range No Print, Print Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) SMDR Options—Condition Code "AN/VA"...

  • Page 665

    2.18 [11] Maintenance Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References 2.10.3 [3-1-3] Caller ID Modification Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) RS-232C Communication—Baud Rate Specifies the data transmission speed from the PBX to the printer or personal computer. To ensure stable transmission, when changing this setting to 57600 or 115200 bps, set Communication—Flow on this screen to Hardware.

  • Page 666

    2.18 [11] Maintenance Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Communication—Parity Bit Selects a parity bit code that indicates what type of parity is used to detect an error in the string of bits composing a character. Make an appropriate selection depending on the requirements of the printer or personal computer.

  • Page 667

    2.18 [11] Maintenance Programming Manual References None Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Communication—Flow Enables the hardware flow control. Default None Value Range None, Hardware Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References None Communication—Stop Bit Selects a stop bit code that indicates the end of a bit string which composes a character.

  • Page 668

    2.18 [11] Maintenance External Modem Command—Automatic Initialization Specifies the command to automatically initialize an external modem when it is plugged into the Serial Interface (RS-232C) port of the PBX. Default AT&F0Q0E0V1S0=1X0&D0 Value Range Max. 30 characters Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References...

  • Page 669

    2.18 [11] Maintenance Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.10.4 Local Alarm Information Daily Test Start Time—Set Enables the daily self check of the PBX for local alarm and error log. Default Disable Value Range...

  • Page 670

    2.18 [11] Maintenance Programming Manual References None Feature Manual References 1.10.4 Local Alarm Information Daily Test Start Time—Minute Specifies the minute of the PBX daily self check start time. Default Value Range 0–59 Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.10.4 Local Alarm Information...

  • Page 671

    2.18 [11] Maintenance Error Log for Centralized VM—Network MSW Transmission (Buffer) Enables error information to be logged in the PBX if the quantity of network message waiting information being re-transmitted is larger than the transmission buffer. Default Disable Value Range Disable, Enable Maintenance Console Location 2.18.1 [11-1] Main...

  • Page 672

    2.18 [11] Maintenance Value Range Disable, Enable Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.13.6 PC Programming Remote—Password Lock Counter for Remote Programming Specifies the number of successive incorrect password entries allowed before remote access is locked.

  • Page 673

    2.18 [11] Maintenance Programming Manual References None Feature Manual References 1.14.2 Quick Setup Password Passwords authorize the user to program the extension and the PBX by a PT or a personal computer. System Password - PT Programming—Prog ** : User Level Specifies the user level system password to authorize the PT user to access only the permitted system programming.

  • Page 674

    2.18 [11] Maintenance Feature Manual References 1.13.28 PT Programming Manager Password - PT Programming—Prog *1 Specifies the manager password to authorize the PT user to access manager programming. Default 1234 Value Range 4–10 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References...

  • Page 675: Pt Programming Access

    2.18 [11] Maintenance Value Range 4–10 characters Maintenance Console Location 2.18.1 [11-1] Main Programming Manual References None Feature Manual References 1.13.6 PC Programming System Password - PC Programming—Installer Level Specifies the system password used to access the Maintenance Console at Installer Level. Default 1234 Value Range...

  • Page 676: Power Failure Transfer (kx-tda100/kx-tda200/kx-tda600 Only)

    2.18 [11] Maintenance Maintenance Console Location 2.18.2 [11-2] PT Programming Access Programming Manual References None Feature Manual References 1.13.28 PT Programming PROG** Selects whether User Level PT users can access each system programming item. Default 000–009, 020–099: Enable 010–019, 100–999: Disable Value Range Disable, Enable Maintenance Console Location...

  • Page 677

    2.18 [11] Maintenance Value Range None, 1–11 Maintenance Console Location 2.18.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.13.9 Power Failure Transfer Extension Card Slot No. Specifies the position of the extension card to be used. Default Current slot number Value Range...

  • Page 678

    2.18 [11] Maintenance PC Programming Manual...

  • Page 679: Appendix

    Section 3 Appendix PC Programming Manual...

  • Page 680: Revision History

    3.1 Revision History Revision History 3.1.1 KX-TDA600 PLMPR Software File Version 5.0xxx New Contents • 2.2 Start Menu Changed Contents • 1.2.1 Installing and Starting the Maintenance Console • 2.1 Introduction • 2.3 File • 2.4 Disconnect • 2.5 Tool •...

  • Page 681: Kx-tda100/kx-tda200 Pmpr Software File Version 3.2xxx

    3.1 Revision History 3.1.2 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx New Contents • 2.6.1 Utility—Diagnosis—Network Loopback Test (KX-TDA100/KX-TDA200/KX-TDA600 only) • 2.8.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO Setting—Loopback Test started by Network • 2.9.9 [2-6-2] Numbering Plan—Quick Dial—Use quick dial for rerouting to public CO when TIE line does not work •...

  • Page 682: Kx-tda50 Psmpr Software File Version 4.0xxx

    3.1 Revision History 3.1.3 KX-TDA50 PSMPR Software File Version 4.0xxx New Contents • 2.2.5 Start Menu—Connect—LAN • 2.6.13 Utility—IP Extension Statistical Information • 2.8.22 [1-1] Slot—Card Property - IP Extension • 2.8.23 [1-1] Slot—Card Property - IP Extension—Common Settings •...

  • Page 683

    3.1 Revision History • 2.11.17 [4-3] DSS Console • 2.12.5 [5-3-3] Voice Message—SVM—SVM Cyclic Tone Option—Tone On Maximum Time • 2.12.5 [5-3-3] Voice Message—SVM—SVM Cyclic Tone Option—Tone Off Maximum Time • 2.10.4 [3-1-4] Dialing Plan PC Programming Manual...

  • Page 684: Feature Programming References

    3.2 Feature Programming References Feature Programming References Absent Message • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Absent Message Set / Cancel • 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 3—Absent Message • 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 3—Absent Message • 2.13.5 [6-5] Absent Message Feature Manual Reference 1.1.1 Absent Message Account Code Entry •...

  • Page 685

    2.9.3 [2-2] Operator & BGM – BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX- TDA600 only) – BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) • 2.9.8 [2-6-1] Numbering Plan—Main—Features – External BGM On / Off –...

  • Page 686

    3.2 Feature Programming References – Extension Caller ID Sending – Incoming Call Wait Timer for Extension Caller ID • 2.13.1 [6-1] System Speed Dial • 2.10.3 [3-1-3] Caller ID Modification Feature Manual Reference 1.3.1 Caller ID Call Hold • 2.9.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone –...

  • Page 687

    3.2 Feature Programming References 1.3.4 Call Monitor Call Park • 2.9.4 [2-3] Timers & Counters – Recall—Call Park Recall – Recall—Disconnect after Recall • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Call Park / Call Park Retrieve • 2.11.5 [4-1-4] Wired Extension—Flexible Button – Type –...

  • Page 688

    3.2 Feature Programming References • 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Transfer Recall Destination • 2.11.10 [4-2-1] Portable Station—Extension Settings—Option 1—Transfer Recall Destination Feature Manual Reference 1.3.8 Call Transfer Call Waiting Features • 2.8.10 [1-1] Slot—Card Property - LCO type—Caller ID—Caller ID Signaling •...

  • Page 689

    3.2 Feature Programming References – Name – CO Line Access Number + Telephone Number – CLI Destination • 2.17.2 [10-2] DIL Table & Port Settings—DIL—CLI Ring for DIL—Day, Lunch, Break, Night • 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID— Day, Lunch, Break, Night Feature Manual Reference 1.3.12 CLI (Calling Line Identification) Distribution...

  • Page 690

    3.2 Feature Programming References • 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Connection • 2.8.20 [1-1] Slot—Port Property - IP-GW Port—Connection • 2.8.24 [1-1] Slot—Port Property - IP-Extension Port—Connection • 2.9.8 [2-6-1] Numbering Plan—Main—Features – Idle Line Access (Local Access) –...

  • Page 691

    3.2 Feature Programming References • 2.9.17 [2-9] System Options—Option 3 – Confirmation Tone—Tone 4-1 : Start Conference – Confirmation Tone—Tone 4-2 : Finish Conference – Echo Cancel—Conference • 2.11.5 [4-1-4] Wired Extension—Flexible Button—Type • 2.11.13 [4-2-3] Portable Station—Flexible Button—Type • 2.11.17 [4-3] DSS Console—Type Feature Manual Reference 1.3.16 Conference...

  • Page 692

    3.2 Feature Programming References Data Line Security • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Data Line Security Set / Cancel • 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 2—Data Mode Feature Manual Reference 1.4.2 Dial Mode Selection Dial Mode Selection • 2.8.11 [1-1] Slot—Port Property - LCO Port –...

  • Page 693

    3.2 Feature Programming References – Distribution Method (KX-TDA100/KX-TDA200/KX-TDA600 only) – DID/TIE—Remove Digit – DID/TIE—Additional Dial • 2.17.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual Reference 1.4.5 DID (Direct Inward Dialing) DIL (Direct In Line) • 2.17.2 [10-2] DIL Table & Port Settings—DIL –...

  • Page 694

    3.2 Feature Programming References – CLI for DIL—CLI Ring for DIL—Day, Lunch, Break, Night Feature Manual Reference 1.4.7 DISA (Direct Inward System Access) Display Information • 2.9.17 [2-9] System Options—Option 5—PT Feature Access—No. 1–8 • 2.11.1 [4-1-1] Wired Extension—Extension Settings—Option 5 –...

  • Page 695

    3.2 Feature Programming References • 2.9.15 [2-8-2] Ring Tone Patterns—Call from Doorphone • 2.9.17 [2-9] System Options—Option 3—Confirmation Tone—Tone 1 : Called by Voice • 2.12.1 [5-1] Doorphone Feature Manual Reference 1.4.11 Doorphone Call EFA (External Feature Access) • 2.8.11 [1-1] Slot—Port Property - LCO Port—Flash Time •...

  • Page 696

    2.11.17 [4-3] DSS Console—Pair Extension Feature Manual Reference 1.5.7 Extension Port Configuration External Relay • 2.8.29 [1-1] Slot—Card Property - DPH type (KX-TDA50 only)—For Output (EIO)—Device Type • 2.9.8 [2-6-1] Numbering Plan—Main—Features—External Relay Access • 2.9.11 [2-7-1] Class of Service—COS Settings—Extension Feature—External Relay Access •...

  • Page 697

    3.2 Feature Programming References • 2.9.16 [2-8-3] Ring Tone Patterns—Call from Others—External Sensor—Ring Tone Pattern Plan 1–8 • 2.12.7 [5-5] External Sensor Feature Manual Reference 1.5.9 External Sensor Flash/Recall/Terminate • 2.8.11 [1-1] Slot—Port Property - LCO Port—Disconnect Time • 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Disconnect Time •...

  • Page 698

    3.2 Feature Programming References – Floating Extension Number – Group Name • 2.10.19 [3-7-2] VM(DPT) Group—Unit Settings—Floating Extension No. • 2.10.22 [3-8-2] VM(DTMF) Group—Group Settings—Floating Ext. No. • 2.10.24 [3-9] PS Ring Group—Floating Extension Number • 2.12.2 [5-2] External Pager—Page Number 1, Page Number 2—Floating Extension Number •...

  • Page 699

    3.2 Feature Programming References – Ext. No. / Floating Ext. No. (for Group FWD (Internal)) • 2.11.10 [4-2-1] Portable Station—Extension Settings—FWD / DND Reference • 2.11.13 [4-2-3] Portable Station—Flexible Button – Type – Ext. No. / Floating Ext. No. (for Group Fwd (Both)) –...

  • Page 700

    3.2 Feature Programming References Headset Operation • 2.8.5 [1-1] Slot—Port Property - Extension Port—Headset OFF/ON • 2.8.24 [1-1] Slot—Port Property - IP-Extension Port—IP-PT Registration and De- registration—Headset OFF/ON • 2.11.5 [4-1-4] Wired Extension—Flexible Button—Type • 2.11.17 [4-3] DSS Console—Type Feature Manual Reference 1.8.3 Headset Operation Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) •...

  • Page 701

    3.2 Feature Programming References ICD Group Features—Group Call Distribution • 2.10.1 [3-1-1] Trunk Group—TRG Settings—Main—Line Hunting Order • 2.10.12 [3-5-1] Incoming Call Distribution Group—Group Settings – Main—Distribution Method – Main—Call Waiting Distribution – Miscellaneous—Extension No Answer Redirection Time – Miscellaneous—Maximum No. of Busy Extensions •...

  • Page 702

    3.2 Feature Programming References ICD Group Features—Outside Destinations • 2.8.31 [1-2] Portable Station—PS Registration and De-registration • 2.9.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Call Forward to CO • 2.9.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when ICD Group with Cellular Phone (KX-TDA100/KX-TDA200/KX-TDA600 only) •...

  • Page 703

    3.2 Feature Programming References – Ext. No. / Floating Ext. No. (for Hurry-up) • 2.11.17 [4-3] DSS Console – Type – Ext. No. / Floating Ext. No. (for Hurry-up) Feature Manual Reference 1.9.6 ICD Group Features—Queuing ICD Group Features—Supervisory • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Incoming Call Queue Monitor •...

  • Page 704

    3.2 Feature Programming References • 2.17.6 [10-4] Miscellaneous Feature Manual Reference 1.9.11 Intercept Routing Intercept Routing—No Destination • 2.9.3 [2-2] Operator & BGM—PBX Operator—Day, Lunch, Break, Night • 2.17.6 [10-4] Miscellaneous—Intercept—Routing to Operator - No Destination (Destination is not programmed) Feature Manual Reference 1.9.12 Intercept Routing—No Destination Intercom Call...

  • Page 705

    3.2 Feature Programming References • 2.10.5 [3-1-4] Dialing Plan—Auto Assign Feature Manual Reference 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES IP-PT (IP Proprietary Telephone) • 2.8.22 [1-1] Slot—Card Property - IP Extension • 2.8.23 [1-1] Slot—Card Property - IP Extension—Common Settings •...

  • Page 706

    2.9.3 [2-2] Operator & BGM – BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX- TDA600 only) – BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) – BGM and Music on Hold—Music on Hold • 2.9.19 [2-11-1] Audio Gain—Paging/MOH –...

  • Page 707

    3.2 Feature Programming References Off-hook Monitor • 2.9.17 [2-9] System Options—Option 1—PT Operation—Off Hook Monitor for KX-T74xx/ T76xx Feature Manual Reference 1.12.1 Off-hook Monitor OGM (Outgoing Message) • 2.6.6 Utility—Message File Transfer PC to PBX • 2.6.7 Utility—Message File Transfer PBX to PC •...

  • Page 708

    2.9.19 [2-11-1] Audio Gain—Paging/MOH – Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) – Paging—EPG 2 (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) – Paging—EPG (External Pager) (KX-TDA50 only) – Paging—Paging Level from PT Speaker • 2.10.9 [3-4] Paging Group • 2.10.10 [3-4] Paging Group—All Setting •...

  • Page 709

    3.2 Feature Programming References Pause Insertion • 2.8.11 [1-1] Slot—Port Property - LCO Port—Pause Time • 2.8.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Pause Time • 2.9.4 [2-3] Timers & Counters—Miscellaneous—During Conversation—Pause Signal Time • 2.13.4 [6-4] Second Dial Tone Feature Manual Reference 1.13.4 Pause Insertion PC Console/PC Phone...

  • Page 710

    3.2 Feature Programming References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Power Failure Transfer • 2.18.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual Reference 1.13.9 Power Failure Transfer Printing Message • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Printing Message • 2.13.2 [6-2] Hotel—Main—SMDR for External Hotel Application 2—Printing Message 1–8 Feature Manual Reference 1.13.11 Printing Message...

  • Page 711

    3.2 Feature Programming References Feature Manual Reference 1.13.13 PRIVATE NETWORK FEATURES Private Network Features—Centralized Voice Mail • 2.8.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX- TDA100/KX-TDA200/KX-TDA600 only) • 2.16.1 [9-1] TIE Table—Centralized VM • 2.16.2 [9-2] Network Data Transmission –...

  • Page 712

    3.2 Feature Programming References Private Network Features—PS Roaming by Network ICD Group • 2.9.4 [2-3] Timers & Counters—Miscellaneous—System Wireless—PS Out of Range Timer • 2.9.17 [2-9] System Options—Option 4—System Wireless—Out of Range Registration Feature Manual Reference 1.13.17 Private Network Features—PS Roaming by Network ICD Group Private Network Features—QSIG •...

  • Page 713

    3.2 Feature Programming References • 2.11.1 [4-1-1] Wired Extension—Extension Settings—Main – Extension Number – Extension Name • 2.11.10 [4-2-1] Portable Station—Extension Settings—Main – Extension Number – Extension Name Feature Manual Reference 1.13.19 Private Network Features—QSIG—CCBS (Completion of Calls to Busy Subscriber) Private Network Features—QSIG—CT (Call Transfer) •...

  • Page 714

    3.2 Feature Programming References PT Programming • 2.9.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Programming Mode Level • 2.18.1 [11-1] Main—Password – System Password - PT Programming—Prog ** : User Level – System Password - PT Programming—Prog *# : Administrator Level –...

  • Page 715

    3.2 Feature Programming References Feature Manual Reference 1.15.2 Ring Tone Pattern Selection Room Status Control • 2.11.5 [4-1-4] Wired Extension—Flexible Button—Type • 2.11.17 [4-3] DSS Console—Type • 2.13.2 [6-2] Hotel—Main—Hotel Operator—Extension 1–4 Feature Manual Reference 1.15.3 Room Status Control SMDR (Station Message Detail Recording) •...

  • Page 716

    3.2 Feature Programming References Speed Dialing, System • 2.9.8 [2-6-1] Numbering Plan—Main—Features—System Speed Dialing / Personal Speed Dialing • 2.9.11 [2-7-1] Class of Service—COS Settings—TRS—TRS Level for System Speed Dialing • 2.13.1 [6-1] System Speed Dial • 2.13.6 [6-6] Tenant—System Speed Dial Feature Manual Reference 1.16.4 Speed Dialing, System SVM (Simplified Voice Message)

  • Page 717

    3.2 Feature Programming References – Paging—EPG (External Pager) (KX-TDA50 only) • 2.12.2 [5-2] External Pager Feature Manual Reference 1.17.2 TAFAS (Trunk Answer From Any Station) Tenant Service • 2.9.3 [2-2] Operator & BGM – PBX Operator—Day, Lunch, Break, Night –...

  • Page 718

    3.2 Feature Programming References Time Service • 2.9.5 [2-4] Week Table • 2.9.7 [2-5] Holiday Table • 2.9.8 [2-6-1] Numbering Plan—Main—Features—Time Service (Day / Lunch / Break / Night) Switch • 2.9.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Time Service Switch •...

  • Page 719

    3.2 Feature Programming References Upgrading the Software • 2.8.3 [1-1] Slot—Card Property - MPR—Memory Version: Feature Manual Reference 1.18.1 Upgrading the Software Verification Code Entry • 2.9.4 [2-3] Timers & Counters—Miscellaneous—Extension PIN—Lock Counter • 2.9.8 [2-6-1] Numbering Plan—Main—Features—User Remote Operation / Walking COS / Verification Code •...

  • Page 720

    3.2 Feature Programming References – Type – Ext. No. / Floating Ext. No. (for Two-way Record) – Ext. No. / Floating Ext. No. (for Two-way Transfer) – Ext. No. / Floating Ext. No. (for Voice Mail Transfer) – Ext No. of Mailbox (for Two-way Transfer) •...

  • Page 721

    3.2 Feature Programming References – Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Feature Manual Reference 1.19.5 Voice Mail DTMF Integration Walking COS • 2.9.8 [2-6-1] Numbering Plan—Main—Features—User Remote Operation / Walking COS / Verification Code • 2.9.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Remote Operation by Other Extension •...

  • Page 722

    Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
