Hybrid IP-PBX
PC Programming Manual
KX-TDA50/KX-TDA100
KX-TDA200/KX-TDA600
Model

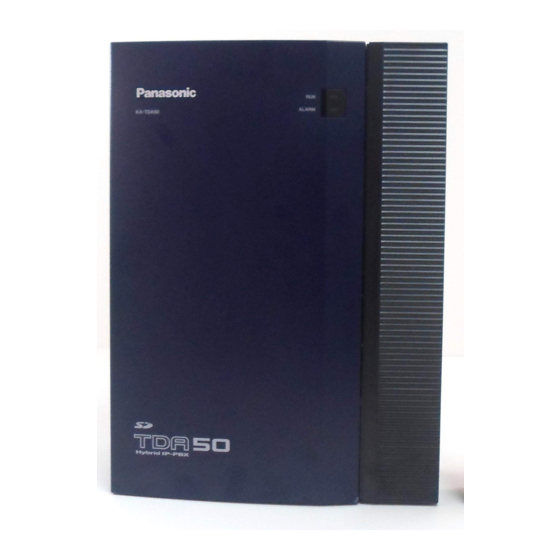

Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 4.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 3.2000 or later
KX-TDA600: PLMPR Software File Version 3.1000 or later
Document Version: 2007-04

Advertisement

Table of Contents

   Summary of Contents for Panasonic KX-TDA50

  • Page 1 Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-TDA50: PSMPR Software File Version 4.0000 or later KX-TDA100/KX-TDA200: PMPR Software File Version 3.2000 or later KX-TDA600: PLMPR Software File Version 3.1000 or later...
  • Page 2 About this Programming Manual The PC Programming Manual is designed to serve as a system programming reference for the Panasonic Hybrid IP-PBX. It explains how to program this PBX using the KX-TDA Maintenance Console software. The PC Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.
  • Page 3 Some optional service cards, PTs, and features are not available in some areas. Additionally, some optional service cards and features are not available for some PBX models. Please consult your certified Panasonic dealer for more information. • Product specifications are subject to change without notice.
  • Page 4: Table Of Contents

    Tool—SD memory backup ....................40 2.4.2 Tool—NDSS Link Data Clear ...................40 2.4.3 Tool—DXDP All OUS .......................40 2.4.4 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) ....40 2.4.5 Tool—Simplified Voice Message—Check Current Usage (KX-TDA50 only) ....41 2.4.6 Tool—Extension List View ....................41 2.4.7 Tool—Import........................41 2.4.8...
  • Page 5 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) ..207 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only)............209 2.7.30 [1-1] Slot—DPH Port Command (KX-TDA50 only) ............212 2.7.31 [1-2] Portable Station ..................... 213 2.7.32 [1-3] Option ........................217 PC Programming Manual...
  • Page 6 2.7.33 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) ........... 219 [2] System ........................221 2.8.1 [2-1] Date & Time/Daylight Saving ................. 221 2.8.2 [2-1] Date & Time/Daylight Saving—Date & Time Setting ..........222 2.8.3 [2-2] Operator & BGM ....................223 2.8.4 [2-3] Timers & Counters ....................225 2.8.5 [2-4] Week Table ......................
  • Page 7 2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button Data Copy......549 2.10.15 [4-2-4] Portable Station—NDSS Link Data - Send............549 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only)......550 2.10.17 [4-3] DSS Console—Flexible Button ................552 2.10.18 [4-3] DSS Console—Flexible Button—Flexible button Data Copy ......... 569 2.11...
  • Page 8 2.17.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) ....680 Appendix ..................... 683 Revision History......................684 3.1.1 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx ........684 3.1.2 KX-TDA50 PSMPR Software File Version 4.0xxx ............685 Feature Programming References ................687 PC Programming Manual...
  • Page 9: Overview

    Section 1 Overview This section provides an overview of programming the PBX. PC Programming Manual...
  • Page 10: Introduction

    These programming instructions are designed to serve as an overall system programming reference for the Panasonic Hybrid IP-PBX. Each feature in the PBX has default settings that can be changed to customize the PBX to your requirements. These settings control the functions of the PBX, and changing them is referred to as "system programming".
  • Page 11: Entering Characters

    1.1 Introduction 1.1.2 Entering Characters The characters on a white background below can be used when storing a name, message, password or other text entry data using a PC. The available characters vary according to the model of PBX. PC Programming Manual...
  • Page 12: Pc Programming

    Installing and Starting the Maintenance Console System programming, diagnosis and administration can be performed with a PC using the Maintenance Console (KX-TDA50: KX-TDA50 Maintenance Console; KX-TDA100/KX-TDA200: KX- TDA Maintenance Console; KX-TDA600: KX-TDA600 Maintenance Console). This section briefly describes how to install and start the Maintenance Console when the PC and the PBX are connected by USB cable.
  • Page 13: Installing The Maintenance Console

    1.2 PC Programming Installing the Maintenance Console Notes • To install or uninstall the software on a PC running Windows 2000 Professional or Windows XP Professional, you must be logged in as a user in either the "Administrators" or "Power Users"...
  • Page 14 1.2 PC Programming 4. Enter the Installer Level Programmer Code (default: INSTALLER). The Programmer Code authorizes different programming levels, and the Quick Setup is only available when you start the KX-TDA Maintenance Console with the Installer Level Programmer Code. Note There are 2 other Programmer Codes with limited authorization: Administrator Level (default: ADMIN), and User Level (default: USER).
  • Page 15: Password Security

    1.2 PC Programming before resetting the PBX or turning off the power, or (2) exit the Maintenance Console so that the PBX automatically saves the system data. The PC will not perform any shutdown operation, or enter the power-saving system standby mode while the Maintenance Console is connected to the PBX.
  • Page 16 1.2 PC Programming For more information on how to back up the system data, refer to the on-line help of the Maintenance Console. However, as system passwords can be extracted from backup copies of the system data file, do not allow unauthorized access to these files. PC Programming Manual...
  • Page 17: Kx-tda Maintenance Console Operating Instructions

    Section 2 KX-TDA Maintenance Console Operating Instructions This section serves as reference operating instructions when using the KX-TDA Maintenance Console software to program the PBX. PC Programming Manual...
  • Page 18: Introduction

    2.1 Introduction Introduction 2.1.1 Starting Maintenance Console and Software Modes Every time Maintenance Console is started, a dialog box will appear. From here, you can enter any of the 3 available software modes. • Initial mode Initial mode describes the state when Maintenance Console is not connected to the PBX, and no data files are open.
  • Page 19 2.1 Introduction Enter the system password for the PBX. Click Setup. Specify the settings as required. For more details, see the tables below. Click OK. Click OK. Maintenance Console will start, and automatically connect to the PBX. If this is the first time that Maintenance Console has connected to the PBX, and the date and time of the PBX have not yet been set, the Quick Setup wizard will run.
  • Page 20: Access Levels

    Maintenance Port Number of 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) or 2.7.19 [1-1] Slot—IP-GW Card Property (KX-TDA50 only). 2.1.2 Access Levels There are three main levels of access to the Maintenance Console: User, Administrator and Installer.
  • Page 21 Initial Batch Interactive SD memory backup NDSS Link Data Clear DXDP All OUS Simplified Voice Message→Delete All Recordings (KX-TDA50 only) Simplified Voice Message→Check Current Usage (KX-TDA50 only) Extension List View Import→Feature - Speed Dial and Caller ID PC Programming Manual...
  • Page 22 2.1 Introduction Tool Menu Option Initial Batch Interactive Import→Incoming Call - DID Table (KX- TDA100/KX-TDA200/KX-TDA600 only) Import→ARS - Leading Digit Import→ARS - Except Code Import→ARS - Routing Plan Import→Wired Extension Import→PS Extension Import→Quick Dial (Basic) Import→Quick Dial (MEC) Import→PS Registration (KX-TDA600 only) Export→Feature - Speed Dial and Caller ID Export→Incoming Call - DID Table (KX- TDA100/KX-TDA200/KX-TDA600 only)
  • Page 23 2.1 Introduction Tool Menu Option Initial Batch Interactive System Data Convert (KX-TDA50/KX- TDA100/KX-TDA200 only) Utility Menu Option Initial Batch Interactive Diagnosis File Transfer PC to PBX (SD Card) File Transfer PBX (SD Card) to PC SD Card File View and Load...
  • Page 24: Software Interface

    2.1 Introduction View Menu Option Initial Batch Interactive Toolbar Status Bar System Menu Window Menu Option Initial Batch Interactive Cascade Tile(Horz) Tile(Vert) Help Menu Option Initial Batch Interactive Help Additional Information About 2.1.3 Software Interface This section explains the functions of the various elements of the software interface. Main Window The window of the Maintenance Console software is divided into several areas, as shown below: PC Programming Manual...
  • Page 25 2.1 Introduction 1. Menu Bar Provides access to file management and connection options, as well as tools and utilities used in programming the PBX. For details, see Sections 2.2 File to 2.6 Help. 2. Tool Bar Provides easy access to commonly used software functions. Two tool bars are provided, as follows: •...
  • Page 26 2.1 Introduction • Tools Contains icons for backing up PBX data to the SD Memory Card, viewing extension information, and accessing Online Help. For details, see Sections 2.4.1 Tool—SD memory backup and 2.4.6 Tool—Extension List View. These menus can be positioned freely. Click and drag the title bar of a menu to move it to another position.
  • Page 27: Card Status

    2.1 Introduction Area Values Description PBX System Data Versionxxx-xxx Displays the version number of the Version system software installed to the PBX. The first 3 digits are the version number, and the last 3 digits are the revision number. PBX Region Code Regionxxx-xxx Displays the region code assigned to the PBX and Maintenance Console.
  • Page 28: Display Options

    2.1 Introduction • "Out of service" means that the card is installed correctly in the PBX, but has been temporarily removed from use. This allows settings to be modified or software to be upgraded. • "Fault" means that the card is not installed in the PBX correctly, or is not functioning correctly. For more information, see the Installation Manual.
  • Page 29 2.1 Introduction Extension Numbers & Names List Displays all available extensions of the types selected in Extension Type, and names. Click entries to select them, and click the Add button when finished, to add the selected extensions. To deselect an entry, click it again. Default Available extensions.
  • Page 30: File

    For more details regarding file conversion, see 2.4.11 Tool—System Data Convert (KX-TDA50/KX- TDA100/KX-TDA200 only). If the file is not supported by the PBX (e.g. a system data file from an incompatible PBX), it will not be opened.
  • Page 31: File-close

    2.2 File If the file was created with an older version of the Maintenance Console, you will be asked if you want to convert the data. • Click Yes to convert the data for use with the current version of the Maintenance Console. Enter a name for the new converted system file.
  • Page 32: File-exit

    2.2 File 2.2.6 File—Exit Closes the Maintenance Console. To exit the Maintenance Console • From the File menu, select Exit. If the system data file being modified has not been saved, a warning message will be displayed, giving you the option to save the file. •...
  • Page 33: Connect

    2.3 Connect Connect 2.3.1 Connect—RS-232C Connects to the PBX in Interactive mode through the serial RS-232C interface of the PBX. This option allows direct entry of connection parameters, for cases where the PC is used to connect to one or just a few PBXs, and an individual profile for each PBX is not necessary. If you connect to multiple PBXs and would prefer to choose from among pre-saved profiles instead, see 2.3.5 Connect—Profile Setup for more details about creating profiles.
  • Page 34: Connect-lan

    Connects to the PBX in Interactive mode through the Local Area Network interface of the PBX. A CTI-LINK card (KX-TDA100/KX-TDA200/KX-TDA600) or IP-GW4 card (KX-TDA50) must be installed and the IP address of the PBX set to use this feature. For more details, see 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) and 2.7.19 [1-1]...
  • Page 35: Connect-modem

    Maintenance Port Number of 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) or 2.7.19 [1-1] Slot—IP-GW Card Property (KX-TDA50 only). 2.3.4 Connect—Modem Connects to the PBX in Interactive mode through the modem. To access the PBX remotely using this feature, an RMT card must be installed and the Remote—...
  • Page 36: Connect-profile Setup

    2.3 Connect Connection Settings for Modem Setting Values Description Dial Number 1-9, 0, *, #, "," [comma], Enter the telephone number to be dialed to access the PBX. T, P, W* T: Converts the Dial Type from Pulse to Tone. ","...
  • Page 37: Connect-profile Editor

    2.3 Connect To create or edit a profile • From the Connect menu, select Profile Setup. 2.3.6 Connect—Profile Editor Allows the creation and editing of profiles of settings required to connect the PC to the PBX by RS- 232C, LAN, modem, or USB. Note that the order of items in this section corresponds to MPR Software File Version 3.2000 or later of the Maintenance Console.
  • Page 38 2.3 Connect Connection Settings for RS-232C Setting Values Explanation Port COMx Specify the number of the COM port assigned to the PC's RS-232C interface. Only available COM ports are displayed. Baud Rate (bps) 2400bps, 4800bps, Specify the speed of data transmission. 9600bps, 19200bps, 38400bps, 57600bps, 115200bps...
  • Page 39: Connect-disconnect

    Maintenance Port Number of 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) or 2.7.19 [1-1] Slot—IP-GW Card Property (KX-TDA50 only). 2.3.7 Connect—Disconnect Closes the connection between the Maintenance Console and the PBX. When this option is chosen, system data is automatically backed up from the PBX to the SD memory card (see 2.4.1 Tool—SD memory backup).
  • Page 40: Tool

    Click OK. 2.4.4 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) Deletes all voice messages recorded to SVM cards installed in the PBX. To delete voice messages From the Tool menu, point to Simplified Voice Message and select Delete All Recordings.
  • Page 41: Tool-simplified Voice Message-check Current Usage (kx-tda50 Only)

    2.4 Tool 2.4.5 Tool—Simplified Voice Message—Check Current Usage (KX-TDA50 only) Displays information on the voice messages stored in SVM cards installed in the PBX. For each message, the type of message and the associated extension are displayed. To view SVM message status •...
  • Page 42 2.4 Tool For all tables except ARS - Routing Plan and PS Registration (KX-TDA600 only), it is possible to edit the CSV file directly using an appropriate editor, before importing. The types of data that can be imported using this tool, and the matching destination fields, are as follows: Feature - Speed Dial and Caller ID Data Type...
  • Page 43 2.4 Tool ARS - Leading Digit Data Type Import Destination Additional Number of Digits Additional Dial Digits Routing Plan Number Route Plan Number Related programming: 2.14.2 [8-2] Leading Number ARS - Except Code Data Type Import Destination Location Leading Number Exception Exception Code Related programming: 2.14.7 [8-6] Leading Number Exception ARS - Routing Plan Data Type...
  • Page 44 For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX- TDA50/KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table to which to import the data (KX-TDA50: Basic Memory or Expanded Memory; KX-TDA100/KX-TDA200/KX- TDA600: system or tenant) from the drop-down list.
  • Page 45: Tool-export

    For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX- TDA50/KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table from which to export the data (KX-TDA50: Basic Memory or Expanded Memory; KX-TDA100/KX-TDA200/KX- TDA600: system or tenant) from the drop-down list.
  • Page 46: Tool-screen Customize-user Level/administrator Level

    • Select the check box beside the names of items you want to have displayed. Click OK. 2.4.11 Tool—System Data Convert (KX-TDA50/KX-TDA100/KX- TDA200 only) Converts system data (DSYS/DSSYS) files created with a previous version of the Maintenance Console for use with the currently loaded version.
  • Page 47 2.4 Tool • Enter the path and name of the file in the text field. • Click the "…" button to navigate to and select the target file. In Destination File Name, enter the desired name for the converted file. The destination file name or location must be different from the source file name.
  • Page 48: Utility

    The tests that are performed on each card are as follows: A check mark indicates that the test is available for that card. KX-TDA50 Local loop back diagnosis Card CT Bus diagnosis...
  • Page 49 2.5 Utility KX-TDA100/KX-TDA200/KX-TDA600 Local loop back diagnosis Card CT Bus diagnosis (KX- TDA100/KX-TDA200 only) DTMF Receive test port PT loop back diagnosis Caller ID Card DTMF Sending Out Diagnosis DSP DTMF generator/receiver diagnosis DSP DTMF receiver diagnosis Framer IC alarm signal detection diagnosis Framer IC error detection diagnosis...
  • Page 50 Click on the Status cell of the card to be tested, and set it to "OUS". With the KX-TDA50, to perform the EXT-CID path test, set the status of both the EXT-CID card and the card in slot 1 to "OUS".
  • Page 51: Utility-file Transfer Pc To Pbx (sd Card)

    2.5 Utility A new window will be displayed. Select the Pair Port Test option. A new window will be displayed. The card you selected in Step 3 will be shown in the Extension Line Slot No. drop-down list. From the CO Line Slot No. drop-down list, select the slot number of the CO line card you want to test.
  • Page 52 Attempting to transfer any other type of file results in an error message. The names of all files that can be stored on the SD memory card are as follows: Main Program KX-TDA50 Name on SD Memory Card Corresponding Card...
  • Page 53 2.5 Utility LPR Program KX-TDA50 Name on SD Memory Card Corresponding Card PSVOIPEX IP-EXT4 KX-TDA100/KX-TDA200/KX-TDA600 Name on SD Memory Card Corresponding Card PCSINF CSIF PDHLC DHLC8/DLC8/DLC16 PSLC SLC8 PCSLC CSLC16 PIPGW IP-GW4 (KX-TDA0480) PIPGWH IP-GW4 (KX-TDA0484) PIPGW16 IP-GW16 PPRI23 PRI23...
  • Page 54 *: DLSYS-file-format data that is transferred to the PBX is saved as "DLSYS_S". Language Data Name on SD Memory Card Corresponding Unit DLNG0–DLNG1 DVMLNG1–DVMLNG5 VPS (Display Guidance data) Default Value Data KX-TDA50 Name on SD Memory Card Corresponding Card DSINI DSIDHLC DHLC4 DSIHLC HLC4...
  • Page 55 2.5 Utility KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card DINI DIDHLC DHLC8 DISLC SLC8/CSLC16 DIDLC DLC8/DLC16 DIPRI DICSINF CSIF DILCOT LCOT8/LCOT16 DIT1 DIOPB3 OPB3 DICTILIN CTI-LINK DIEIO DIIPGW1 IP-GW4 (KX-TDA0480) DIIPGW2 IP-GW4 (KX-TDA0484) DIIPGW3 IP-GW16 DIPRI23 PRI23 DISLCLC SLC16 DIIPEXT IP-EXT16 KX-TDA600...
  • Page 56: Utility-file Transfer Pbx (sd Card) To Pc

    Copies system data files from the SD memory card installed in the PBX to the connected PC. This option is only available at Installer level. The files that can be downloaded from the SD memory card are as follows: File Name File Type DSSYS (KX-TDA50) System Data DSYS (KX-TDA100/KX-TDA200) DLSYS (KX-TDA600) $SYSERR Error Data $SYSERR1–$SYSERR9...
  • Page 57: Utility-sd Card File View And Load

    2.5 Utility Click Transfer. The Save dialog box will be displayed. Navigate to the folder in which you want to save the file. Enter a file name. Click Save. A window showing the download progress will be displayed. A message will be displayed when the transfer is complete. Click OK.
  • Page 58: Utility-sd Card File Delete

    KX-TDA100/KX-TDA200/KX-TDA600, the OPB card that it is mounted on must be set to OUS status. For the KX-TDA50, the MSG card must be set to OUS status. Files are stored on the MSG card in the location specified by the file's header information. Uploaded files are automatically renamed as necessary.
  • Page 59: Utility-error Log

    2.5 Utility To transfer OGMs to the PC From the Utility menu, select Message File Transfer PBX to PC. From the upper drop-down list, select the target MSG card. From the lower drop-down list, select the messages to transfer. • To transfer a certain message, select the number of that message.
  • Page 60: Utility-t1 Signaling Bit Monitor (kx-tda100/kx-tda200/kx-tda600 Only)

    4: Expansion Shelf 3 • YY: Slot number KX-TDA50: 00 to 11 (00: MPR slot; 01: Fixed slot, 02 to 04: Free slot type A, 05 to 07: Free slot type B, 08 to 11: Option slot) KX-TDA100: 00 to 06 (00: MPR slot; 01 to 06: Free slot) KX-TDA200: 00 to 11 (00: MPR slot;...
  • Page 61: Utility-t1 Line Trace (kx-tda100/kx-tda200/kx-tda600 Only)

    2.5 Utility Click Start. Monitoring will be performed and the screen will refresh according to the interval specified. Click Stop to end monitoring. To refresh the screen at any time while monitoring is stopped, click Refresh. 2.5.10 Utility—T1 Line Trace (KX-TDA100/KX-TDA200/KX-TDA600 only) Traces the sent and received signaling bits and dial numbers on the specified channel of the T1 line.
  • Page 62: Utility-digital Trunk Error Report (kx-tda100/kx-tda200/kx-tda600 Only)

    2.5 Utility Trace information will be displayed. Select an option: • Click Capture to save the displayed trace information. • Click Clear to clear the screen display. Click Cancel to return to the main screen. 2.5.12 Utility—Digital Trunk Error Report (KX-TDA100/KX- TDA200/KX-TDA600 only) Displays accumulated information on various types of errors occurring on digital CO lines.
  • Page 63: Utility-ip Extension Statistical Information

    2.5 Utility 2.5.13 Utility—IP Extension Statistical Information Displays accumulated statistical information on both IP extensions and IP-EXT cards. The displayed items are as follows: Item Description Collection Started Time Date and time the port was last reset. Port Number of the port. RTP Receive Packet Counter Total number of packets received.
  • Page 64: Utility-ps Information

    When an extension number is not registered, the display shows "OFF". PSs can use up to 3 paths (KX-TDA100/KX-TDA200/KX- TDA600) or 2 paths (KX-TDA50). Group Call Number of PSs registered to the attached CS that are members of a PS Ring Group.
  • Page 65: Utility-timed Update (kx-tda100/kx-tda200/kx-tda600 Only)

    2.5 Utility To view PS information From the Utility menu, select PS Information. Click Refresh. 2.5.16 Utility—Timed Update (KX-TDA100/KX-TDA200/KX- TDA600 only) Updates programs in the LPR cards (optional service cards with local processors) by comparing them with files found on the SD memory card on a preset schedule, and downloading newer files to the cards.
  • Page 66: Utility-system Reset-reset By The Command

    PBX. This option is only available at Installer level. 2 copies of each of the main system files can be stored on the SD memory card. The names of these files are as follows: KX-TDA50 File Name Description DSSYS Main system data file.
  • Page 67 2.5 Utility KX-TDA600 File Name Description PLMPR PBX program file. Contains the software to run the EMPR board of the PBX. PLMPR_S Backup PBX program file When new DSYS/DSSYS/DLSYS and PMPR/PSMPR/PLMPR files are transferred from a connected PC to the SD memory card using the File Transfer PC to PBX (SD Card) utility (see 2.5.2 Utility— File Transfer PC to PBX (SD Card)), they are stored as the backup files.
  • Page 68: Utility-flash Rom Id Information

    2.5 Utility 2.5.18 Utility—Flash ROM ID Information Displays the Flash ROM ID number pre-assigned to the PBX, used for PBX installation management. To view the Flash ROM ID • From the Utility menu, click Flash ROM ID Information. PC Programming Manual...
  • Page 69: Help

    Is the USB cable firmly connected to both the PC and the PBX? • Is the USB driver on the PC running? To confirm, open the Windows Device Manager, and look for "Panasonic KX-TDA USB Main Unit driver" in the USB Controllers section. If it is not present, re-install the USB driver.
  • Page 70 2.6 Help The Maintenance Console cannot connect to the PBX via modem. • Is the dial number of the modem correct? For more details, see 2.17.1 [11-1] Main. • Has a modem been installed to the PBX? • Are the modem settings of the PBX and Maintenance Console correct? For more details, see 2.17.1 [11-1] Main.
  • Page 71 2.6 Help • Is the card installed in the appropriate slot? • Is the card installed in the correct slot, but not functioning correctly? Check the condition of the card. • Is the card itself in INS status? Set it to INS status. •...
  • Page 72 2.6 Help If I delete the extension number of a Portable Station, and then turn the Portable Station off and back on again, it does not function correctly. • Do not delete the extension number of the Portable Station, as this information is necessary for it to operate.
  • Page 73 2.6 Help • Perform the following steps: Confirm that the Numbering Plan you will change is not currently being used by any extensions (see 2.4.6 Tool—Extension List View). If it is being used by extensions, temporarily change the extension numbers of those extensions to that of another numbering plan, or delete the extension number (see 2.10.1 [4-1-1] Wired Extension—Extension Settings and 2.10.10 [4-2-1] Portable Station—Extension Settings).
  • Page 74 2.6 Help • Perform the following steps: Open the 2.8.8 [2-6-1] Numbering Plan—Main screen. Change the value in the Dial cell of the desired feature. Click Apply. I cannot change a feature number. • It is not possible to use the same number for 2 items. The number you are trying to store cannot be used if it is already being used by: •...
  • Page 75 2.6 Help If I reset the PBX directly after modifying settings, the modified settings are not updated in the PBX. • When you click Apply, the settings are updated in the PBX, but are not yet saved to the SD memory card. If system data is not saved to the SD memory card, the PBX will restore the data that was last saved to the card in the event that the PBX is reset, or power is turned off and back on again.
  • Page 76 In addition, the following data cannot be restored: • SVM Log and messages (both greeting messages and voice messages left by callers) recorded in an SVM card (KX-TDA50 only) Setting Features How do I change the dialing mode of an analog CO line? •...
  • Page 77 Help How do I connect to another PBX using QSIG? • From the 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) screen, set the Port Type of the port you want to use to either "QSIG-Slave" or "QSIG- Master". How do I change the type of an extension port? •...
  • Page 78 2.6 Help • CO line calls made by extensions can be restricted from the 2.8.12 [2-7-2] Class of Service—External Call Block screen. Click in the relevant cells to select the trunk groups that cannot be used by extensions associated with a particular COS in each time mode.
  • Page 79 2.6 Help • Perform the following steps: On the 2.9.12 [3-5-4] Incoming Call Distribution Group—Member screen, from the Incoming Call Distribution drop-down list, select the group you want to modify. The ICD group must have an extension number set. Enter the extension number of the extension you want to add in a blank cell of the Extension Number column.
  • Page 80: 1] Configuration

    2.7 [1] Configuration [1] Configuration 2.7.1 [1-1] Slot The operating characteristics associated with each service card can be programmed. Move the mouse pointer over an installed card to display the menu of options for that card. To view a summary of status and MPR versions for all cards installed in the PBX, click the Summary button (see 2.7.2 [1-1] Slot—Summary).
  • Page 81 A menu will be shown under the mouse pointer. Select Option Card. The OPB3 Option Card Setup screen will be displayed. See 2.7.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only). Supported Card Types KX-TDA50 Card Maximum Supported Slot Card Programming...
  • Page 82 08–11 (Option None Slots) EXT-CID: Extension Caller ID Card SVM2: 2-Channel Simplified Voice Message Card For more information on cards and card installation, see "1.3.1 Optional Equipment" in the KX-TDA50 Installation Manual. KX-TDA100/KX-TDA200 Card Maximum Quantity Card Programming MPR: Main Processing Card 1 (fixed in Slot 00) 2.7.3 [1-1] Slot—MPR Card Property...
  • Page 83 2.7 [1] Configuration KX-TDA100/KX-TDA200 Card Maximum Quantity Card Programming PRI23: PRI Card (23B channels) 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) KX-TDA100: 4 KX-TDA200: 4 T1: T-1 CO Line Card 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) IP-GW4 (KX-TDA0480/KX-TDA0484): 4- KX-TDA100: 4 2.7.19 [1-1] Slot—IP-GW Card Channel VoIP Gateway Card...
  • Page 84: 1-1] Slot-summary

    2.7 [1] Configuration KX-TDA600 Card Maximum Quantity Card Programming PRI23: PRI Card (23B channels) 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) T1: T-1 CO Line Card 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) IP-GW4 (KX-TDA0480): 4-Channel VoIP Gateway Card 2.7.19 [1-1] Slot—IP-GW Card IP-GW4 (KX-TDA0484): 4-Channel VoIP Property Gateway Card...
  • Page 85 Note that for MPR cards, the PBX model code is displayed in parentheses after the name. Default Slot 00: MPR (Main Processing Card: fixed) Other slots: Not stored. Value Range Card Type for KX-TDA50: DLC4: 4-Port Digital Extension Card DLC8: 8-Port Digital Extension Card HLC4: 4-Port Hybrid Extension Card PLC4: 4-Port Proprietary Extension Card...
  • Page 86 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.19 [1-1] Slot—IP-GW Card Property 2.7.22 [1-1] Slot—IP-Extension Card Property 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) Feature Manual References None PC Programming Manual...
  • Page 87 2.7 [1] Configuration Status Indicates the card status (reference only). Note that MPR card status is always displayed as "-". Default Slot 00: - (fixed) Other slots: Current status Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network.
  • Page 88: 1-1] Slot-mpr Card Property

    MEC/EMEC card properties can be viewed and set. Memory Expansion Card: Indicates whether an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is mounted on the MPR (KX-TDA50/KX-TDA100/KX-TDA200) or EMPR (KX-TDA600) card. To change the EMEC or MEC card installation status, click on this cell, then click OK in the dialog box that appears.
  • Page 89: 1-1] Slot-extension Card Property

    2.7 [1] Configuration Maintenance Console Location 2.7.3 [1-1] Slot—MPR Card Property Programming Manual References None Feature Manual References 1.18.1 Upgrading the Software 2.7.4 [1-1] Slot—Extension Card Property The property for the extension cards can be specified. SLT Pulse Dial Mode Selects the type of pulse dial transmission appropriate to your area.
  • Page 90 2.7 [1] Configuration Programming Manual References None Feature Manual References None SLT Off Hook Guard Time Specifies the length of guard time used for off-hook signals from SLTs, to prevent the PBX mistaking them for pulse dials. Default 504 ms Value Range 8 ×...
  • Page 91 2.7 [1] Configuration Default 8 ms Value Range 8 × n (n=1–5) ms Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References None SLT Flash Detection Enables the PBX to detect the flash signal sent when an SLT user presses the hookswitch or the Flash/Recall button.
  • Page 92 2.7 [1] Configuration Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References None Flash Timing - Range Specifies the maximum length that a signal sent from an SLT can be for the PBX to recognize it as a hookswitch flash signal.
  • Page 93 2.7 [1] Configuration SLT Power Supply (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the voltage that enables an SLT to activate the Message Waiting lamp. This setting is only available with MSLC/EMSLC cards. Default 85 V Value Range 85 V, 145 V Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None...
  • Page 94: 1-1] Slot-extension Port

    2.7 [1] Configuration APT/SLT Parallel Ring Enables an SLT connected in parallel to an APT to ring with the APT for calls. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.4 [1-1] Slot—Extension Card Property Programming Manual References None Feature Manual References 1.13.2 Paralleled Telephone 2.7.5...
  • Page 95 Indicates the port type (reference only). Default Current port type Value Range DPT: DPT port (DLC) APT: APT port (PLC) (KX-TDA50 only) SLT: SLT port (SLC/ESLC/EMSLC/CSLC) S-Hybrid: Super Hybrid port (DHLC) Hybrid: Hybrid port (HLC) (KX-TDA50 only) S-Hybrid(SLT): XDP port of Super Hybrid port (DHLC)
  • Page 96 2.7 [1] Configuration S-Hybrid(S-DPT): Digital XDP port of Super Hybrid port (DHLC) DPT(S-DPT): Digital XDP port of DPT port (DLC) Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port Programming Manual References None Feature Manual References 1.5.7 Extension Port Configuration Telephone Type Indicates the connected telephone type (reference only).
  • Page 97: Extension Number

    Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Extension numbers of PSs can be a maximum of 4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 98: Extension Name

    2.7 [1] Configuration Extension Name Specifies the extension name of the port. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port Programming Manual References None Feature Manual References None XDP Mode (for S-Hybrid port) Turns XDP mode on or off for the port.
  • Page 99 KX-TDA200] or 64 [with the KX-TDA600] DSS Consoles can be connected to the PBX.) VM (DPT): For connecting a Panasonic VPS through DPT Integration PC Console: For connecting a PC Console (A maximum of 2 [with the KX-TDA50] or 8 [with the KX- TDA100/KX-TDA200/KX-TDA600] PC Consoles can be connected to the PBX.) Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port...
  • Page 100 SDN buttons will be deleted. If you do not wish to delete SDN buttons for this port, click Cancel. Default Value Range For KX-TDA50: Location number for DSS Console: 1–4 Location number for PC Console: 1, 2 For KX-TDA100/KX-TDA200: 1–8...
  • Page 101 Feature Manual References 1.19.3 Voice Mail (VM) Group DPT Type—VM Port No. (for DPT or S-Hybrid port) Specifies the VM port number for the port. Default Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200/KX-TDA600: 1–12 Maintenance Console Location 2.7.5 [1-1] Slot—Extension Port...
  • Page 102: 1-1] Slot-extension Port-port Command

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.8.3 Headset Operation Ringing Tone (for DPT, DPT(S-DPT), S-Hybrid, S-Hybrid (XDP), S- Hybrid(SLT), S-Hybrid(S-DPT) port) Selects the dual-tone switching pattern of the ring tone for incoming calls. This setting is not available for the KX-T7200, the KX-T7451, APTs, or SLTs.
  • Page 103: 1-1] Slot-extension Port-port Type View

    2.7 [1] Configuration Programming Manual References 2.7.5 [1-1] Slot—Extension Port Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair. Default Not applicable. Value Range Not applicable.
  • Page 104: Slot-csi/f Port (kx-tda100/kx-tda200/kx-tda600 Only)

    Indicates the total number of each type of telephone and CS connected to the PBX (reference only). With the KX-TDA50, CSs are counted on the basis of the number of extension ports to which they are connected; with the KX-TDA100/KX-TDA200/KX-TDA600, CSs are counted on the basis of the number of CSIF ports in service plus the number of extension ports to which CSs are connected.
  • Page 105 2.7 [1] Configuration Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 106: 1-1] Slot-csi/f Port-port Command (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Default Current status Value Range INS: The Cell Station (CS) is in service. OUS: The CS is out of service. Fault: The port is not communicating with the CS. Maintenance Console Location 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.9 [1-1] Slot—CSI/F Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...
  • Page 107: 1-1] Slot-lco Card Property

    2.7 [1] Configuration Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.9 [1-1] Slot—CSI/F Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.8 [1-1] Slot—CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Takes the CS out of service. This enables a temporary non-use of the CS, for example, for the purpose of repair.
  • Page 108 2.7 [1] Configuration Value Range 3–6 s Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References None Feature Manual References None First Dial Timer (CO) Specifies the minimum time that the PBX waits after seizing a CO line, before sending the dialed digits to the telephone company.
  • Page 109 2.7 [1] Configuration Programming Manual References None Feature Manual References None Bell Detection—Bell Start Detection Timer Specifies the minimum length of a bell signal that can be recognized by the PBX as the bell signal sent from the telephone company, before the PBX detects an arriving call. Default 144 ms Value Range...
  • Page 110 2.7 [1] Configuration Pulse / DTMF Dial—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly. Default 112 ms Value Range 64 + 16 × n (n=0–11) ms Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References...
  • Page 111 2.7 [1] Configuration Value Range Other, 60 %, 67 % Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References None Low Speed Pulse Dial—Break Width Specifies the maximum length of the break signal in a low speed pulse dial. Low Speed Pulse Dial— Pulse % Break on this screen determines the value that can be specified here.
  • Page 112 2.7 [1] Configuration Feature Manual References None High Speed Pulse Dial—Pulse % Break Specifies the % break for a high speed pulse dial. This is the ratio between the break (on-hook) signal and make (off-hook) signal in a pulse dial. Default 60 % Value Range...
  • Page 113 2.7 [1] Configuration Default 20 ms Value Range 4 × n (n=3–15) ms Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References None Pulse Type Selects the type of pulse dial transmission appropriate to your area. Default Normal Value Range...
  • Page 114 2.7 [1] Configuration Programming Manual References 2.7.11 [1-1] Slot—LCO Port—Caller ID Detection Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID Signaling Selects the type of Caller ID signaling provided by the telephone company. Default Value Range FSK (Frequency Shift Keying), FSK (with Visual Caller ID), DTMF Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References...
  • Page 115 2.7 [1] Configuration Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.10 [1-1] Slot—LCO Card Property Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) END Detection Selects the method used to detect the end of Caller ID information. Default Length + Timer Value Range...
  • Page 116 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID (FSK) Detection Start Timer Specifies the length of time that the PBX waits before attempting to detect Caller ID information, after receiving a call. To enable this setting, Caller ID—Caller ID Signaling on this screen should be set to FSK.
  • Page 117: 1-1] Slot-lco Port

    2.7 [1] Configuration 2.7.11 [1-1] Slot—LCO Port Various settings can be programmed for each analog CO line port. To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port...
  • Page 118 2.7 [1] Configuration Default Current port number Value Range Port number Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...
  • Page 119 2.7 [1] Configuration Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References 1.4.2 Dial Mode Selection CPC Signal Detection Time—Outgoing, Incoming Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.
  • Page 120 2.7 [1] Configuration Pulse Speed Selects the speed at which pulse dials are sent to the analog CO line. Default Value Range Low, High Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References None Feature Manual References None Reverse Detection (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the type of CO line call for which the reverse signal from the telephone company is detected.
  • Page 121 2.7 [1] Configuration Value Range Disable, Enable Maintenance Console Location 2.7.11 [1-1] Slot—LCO Port Programming Manual References 2.7.10 [1-1] Slot—LCO Card Property Feature Manual References 1.3.1 Caller ID Paytone Detection (KX-TDA100/KX-TDA200/KX-TDA600 only) Enables the PBX to receive a pay tone signal from the telephone company. Default Disable Value Range...
  • Page 122: 1-1] Slot-lco Port-port Command

    2.7 [1] Configuration Feature Manual References 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.13.4 Pause Insertion 1.16.2 Special Carrier Access Code Flash Time Specifies the length of a flash signal. Default 608 ms Value Range None, 16 ×...
  • Page 123: 1-1] Slot-pri Card Property (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.12 [1-1] Slot—LCO Port—Port Command Programming Manual References 2.7.11 [1-1] Slot—LCO Port Feature Manual References None Takes the port out of service. This enables a temporary non-use of the port, for example, for the purpose of repair.
  • Page 124 2.7 [1] Configuration Default 10 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T202 Specifies the maximum time that the PBX waits for a reply after resending the request to use an ISDN line as a TIE line.
  • Page 125 2.7 [1] Configuration Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T301 Specifies the maximum time that the PBX waits for a reply after making a call to ISDN. Default 0 × 100 ms Value Range 0–18000 ×...
  • Page 126 2.7 [1] Configuration ISDN CO / QSIG Master / QSIG Slave—T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN. Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 127 2.7 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T308 Specifies the maximum time that the PBX waits for a reply after receiving the Release message from ISDN.
  • Page 128 2.7 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T310 Specifies the maximum time that the PBX waits for a continuance message after receiving the Incoming Call Proceeding message. Default 1100 × 100 ms Value Range 0–3000 ×...
  • Page 129 2.7 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T318 Specifies the maximum time that the PBX waits for a reply after sending the Resume message. Default 0 ×...
  • Page 130 2.7 [1] Configuration Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T322 Specifies the maximum time that the PBX waits for a reply after sending the Status enquiry message. Default 40 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 131 2.7 [1] Configuration Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T200 Specifies the maximum time that the PBX waits for a reply after sending the L2 command to ISDN. Default 10 ×...
  • Page 132 2.7 [1] Configuration Feature Manual References None ISDN Extension—T203 Specifies the length of time to detect no communication status of L2. Default 100 × 100 ms Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 133 2.7 [1] Configuration Value Range 0–600 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN.
  • Page 134 2.7 [1] Configuration Feature Manual References None ISDN Extension—T305 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN. Default 300 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 135 2.7 [1] Configuration Default 1800 × 100 ms Value Range 0–6000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T308 Specifies the maximum time that the PBX waits for a reply after receiving the Release message from ISDN.
  • Page 136 2.7 [1] Configuration Programming Manual References None Feature Manual References None ISDN Extension—T310 Specifies the maximum time that the PBX waits for a reply after receiving the Incoming Call Proceeding message. Default 400 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 137 2.7 [1] Configuration ISDN Extension—T316 Specifies the maximum time that the PBX waits for a reply after sending the Restart message. Default 0 × 100 ms Value Range 0–3000 × 100 ms Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 138 2.7 [1] Configuration Maintenance Console Location 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T3D3 Specifies the length of time that the PBX tries to establish L2 in "Permanent" mode. Default 300 × 100 ms Value Range 0–3000 ×...
  • Page 139: 1-1] Slot-pri Port (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Various settings can be programmed for each PRI port. Main Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 140 2.7 [1] Configuration Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Notes •...
  • Page 141 2.7 [1] Configuration Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range...
  • Page 142 2.7 [1] Configuration Status Receive Selects what happens to a call when the Status Message from the network does not match the actual status of the call. Default Ignore Value Range Ignore: Ignore the Status Message from the network. Disconnect: Disconnect the call. Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 143 2.7 [1] Configuration Value Range Extend Multi frame (ESF), 4-Frame Multi frame (F4), 12-Frame Multi frame (F12) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None CO Setting CO Setting parameters are not applicable to ports assigned as Extension in Port Type. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 144 2.7 [1] Configuration Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type.
  • Page 145 2.7 [1] Configuration Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. •...
  • Page 146 2.7 [1] Configuration Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Ring Back Tone to Outside Caller Enables the PBX to send a ringback tone to an outside caller when the network cannot send the tone. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 147 2.7 [1] Configuration Networking Data Transfer Enables transmission of extension status data to connected PBXs in a network. This setting is only available when Port Type on this screen has been set to QSIG-Slave or QSIG-Master. Default Value Range No, Yes Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 148 2.7 [1] Configuration Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range...
  • Page 149 2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the type of the port. Notes • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX.
  • Page 150: Network Configuration

    2.7 [1] Configuration Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.15 [1-1] Slot—PRI Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Ring Mode (ISDN MSN Last No.
  • Page 151 2.7 [1] Configuration Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 152 2.7 [1] Configuration Port Type Selects the port type. Notes • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX. • ISDN extensions can belong to an incoming call distribution group or idle extension hunting group.
  • Page 153 2.7 [1] Configuration Feature Manual References None Network Type Selects the network type of the port. Default 51 US National ISDN 2 Value Range 0–56 (2 UK (Domestic), 5 Netherlands, 6 SwissNET2, 7 SwissNET3, 8 Euro ISDN (Standard), 14 France (Domestic), 19 Finland, 20 Norway, 27 Australia, 51 US National ISDN 2) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 154 2.7 [1] Configuration Default Current slot number Value Range Slot number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 155 2.7 [1] Configuration Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 156 2.7 [1] Configuration Value Range Public: Public network VPN: Virtual Private Network Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES Calling Party number—Numbering Plan ID—Public, Private Selects the numbering plan ID that applies to outgoing CO line calls routed through public and private networks.
  • Page 157 2.7 [1] Configuration Programming Manual References None Feature Manual References None Called Party number—Numbering Plan ID—Public, Private Selects the numbering plan ID that applies to incoming CO line calls routed through public and private networks. Default Public: Unknown Private: Private Value Range Unknown, ISDN-Telephony, National Standard, Private Maintenance Console Location...
  • Page 158 2.7 [1] Configuration Supplementary Service Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only).
  • Page 159 2.7 [1] Configuration Value Range Port number Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Notes • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX.
  • Page 160 2.7 [1] Configuration Default Current status Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None...
  • Page 161: 1-1] Slot-pri Port-port Command (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration 2.7.15 [1-1] Slot—PRI Port—Port Command (KX-TDA100/KX- TDA200/KX-TDA600 only) Commands for the PRI ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.15 [1-1] Slot—PRI Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References...
  • Page 162: 1-1] Slot-t1 Card Property (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX- TDA600 only) The properties of the T1 card can be specified. Line Coding Selects the line coding type of T1 PCM (Pulse Code Modulation) used. Default B8ZS Value Range B8ZS, AMI Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 163 2.7 [1] Configuration Default C=A, D=B Value Range C=A, D=B; C=0, D=0; C=0, D=1; C=1, D=0; C=1, D=1 Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None LIU Send Option Selects the transmitting level (Transmit Pulse Amplitude) of LIU. Default Mode-1 Value Range...
  • Page 164 2.7 [1] Configuration Programming Manual References None Feature Manual References None First Dial Timer (CO) Specifies the minimum time that the PBX waits after seizing a CO line, before sending the dialed digits to the telephone company. This allows the telephone company to have enough time to accept the dialed digits correctly.
  • Page 165 2.7 [1] Configuration Answer Detection Timer Specifies the length of time required by the PBX to recognize the answer signal. This allows the telephone company to have enough time to accept the dialed digits correctly. Default 32 ms Value Range 32 ×...
  • Page 166 2.7 [1] Configuration Value Range 64 + 16 × n (n=0–11) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None DTMF Tone—DTMF Transmit Specifies the volume of the DTMF tone to be transmitted. Default -3 dB Value Range...
  • Page 167 2.7 [1] Configuration Feature Manual References None Pulse Dial—Pulse % Break Specifies the % break for pulse digits. This is the ratio between the break (on-hook) signal and make (off-hook) signal in a pulse dial. Default 60 % Value Range 60 %, 67 % Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 168 2.7 [1] Configuration Default 830 ms Value Range 630 ms, 830 ms, 1030 ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—CO Feed Back Tone Specifies whether the pulse feedback tone is turned on or not. For outgoing CO line calls, audible tones can be heard as the dialed number is sent out, which informs the extension user that the number has been dialed.
  • Page 169 2.7 [1] Configuration Programming Manual References None Feature Manual References None Pulse Dial—Minimum MAKE Width Specifies the minimum length of the make signal in a pulse dial. Default 8 ms Value Range 8 × n (n=1–5) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...
  • Page 170 2.7 [1] Configuration Default 200 ms Value Range 8 × n (n=3–63) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Flash—Flash Width (OPX) Specifies the maximum length of a flash signal sent from an SLT connected to an OPX that the PBX can recognize as a hookswitch flash signal.
  • Page 171 2.7 [1] Configuration Programming Manual References None Feature Manual References None Flash—Minimum BREAK Width (TIE) Specifies the minimum length of the break signal in a flash signal sent from a TIE line. Default 200 ms Value Range 8 × n (n=3–63) ms Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 172 2.7 [1] Configuration Default Value Range *, #, A–D Maintenance Console Location 2.7.16 [1-1] Slot—T1 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.1 Caller ID Caller ID—Caller ID Information End Code Selects the delimiter used to separate multiple parameters in a Caller ID series. Default Value Range *, #, A–D...
  • Page 173: 1-1] Slot-t1 Port (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.3.1 Caller ID 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Various settings can be programmed for each T1 channel. To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...
  • Page 174 2.7 [1] Configuration Feature Manual References None Indicates the channel number (reference only). Default Current channel number Value Range Channel number Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Connection Indicates the channel status (reference only). This column offers two ways to open the screen to select the channel command: •...
  • Page 175 2.7 [1] Configuration Subscriber Number Specifies the number used as the CLIP number. Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) CO Dial Mode...
  • Page 176 2.7 [1] Configuration LCOT: Loop Start Central Office DID: Direct Inward Dialing TIE (E & M): TIE Line OPX: Off Premise Extension Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.17.1 T1 Line Service Trunk Property (for TIE channel) Selects the CO line property of the TIE channel.
  • Page 177 2.7 [1] Configuration Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.20 CPC (Calling Party Control) Signal Detection CPC Signal Detection (LCO/GCO)—Outgoing, Incoming (for GCOT or LCOT channel) Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.
  • Page 178 2.7 [1] Configuration Feature Manual References None CO Pulse Speed Selects the speed at which pulse dials are sent to the T1 channel. Default 10 pulse/s Value Range 10 pulse/s, 20 pulse/s Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 179 2.7 [1] Configuration Value Range Immediate: Sends the dialed digits to the CO line when the First Dial Timer expires. Wink: Sends the dialed digits to the CO line when the wink signal is received. Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 180 2.7 [1] Configuration Feature Manual References None Ring Back Tone to Outside Caller (for DID or TIE channel) Enables the PBX to send a ringback tone to an outside caller when the network cannot send the tone. Default Enable Value Range Disable, Enable Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 181 2.7 [1] Configuration Value Range 1.5 s , 2.5 s , 3.5 s , 4.5 s Maintenance Console Location 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.13.4 Pause Insertion 1.16.2 Special Carrier Access Code Flash Time...
  • Page 182: 1-1] Slot-t1 Port-channel Command (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Programming Manual References None Feature Manual References 1.6.2 Flash/Recall/Terminate 2.7.18 [1-1] Slot—T1 Port—Channel Command (KX-TDA100/KX- TDA200/KX-TDA600 only) Commands for the T1 channels can be programmed. Puts the channel in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.18 [1-1] Slot—T1 Port—Channel Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...
  • Page 183: 1-1] Slot-ip-gw Card Property

    2.7 [1] Configuration Feature Manual References None 2.7.19 [1-1] Slot—IP-GW Card Property The properties of the VoIP Gateway card can be specified. En-bloc Dialing Setting Selects the call dialing mode. Default Overlap Value Range En-bloc: The PBX sends all of the dialed digits at once after the extension user completes dialing. The PBX recognizes the end of dialing when (1) # is dialed, if programmed, (2) a preprogrammed telephone number is dialed, or (3) the inter-digit timer expires.
  • Page 184 Maintenance Console Location 2.7.19 [1-1] Slot—IP-GW Card Property Programming Manual References None Feature Manual References 1.13.20 Private Network Features—QSIG—CF (Call Forwarding) Maintenance Port Number (KX-TDA50 only) Specifies the default maintenance port number of the IP network. Default 35300 Value Range 10000–65535 Maintenance Console Location 2.7.19 [1-1] Slot—IP-GW Card Property...
  • Page 185: 1-1] Slot-ip-gw Port

    2.7 [1] Configuration Value Range 10000–65535 Maintenance Console Location 2.7.19 [1-1] Slot—IP-GW Card Property Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 2.7.20 [1-1] Slot—IP-GW Port Status of the IP-GW ports can be referred to, or set to INS (in service) or OUS (out of service). To change the status of ports, click Command.
  • Page 186 2.7 [1] Configuration Maintenance Console Location 2.7.20 [1-1] Slot—IP-GW Port Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.7.20 [1-1] Slot—IP-GW Port Programming Manual References None Feature Manual References...
  • Page 187: 1-1] Slot-ip-gw Port-port Command

    2.7 [1] Configuration Programming Manual References 2.7.21 [1-1] Slot—IP-GW Port—Port Command Feature Manual References None 2.7.21 [1-1] Slot—IP-GW Port—Port Command Commands for the IP-GW ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 2.7.21 [1-1] Slot—IP-GW Port—Port Command Programming Manual References...
  • Page 188: 1-1] Slot-ip-extension Card Property

    2.7 [1] Configuration Feature Manual References None 2.7.22 [1-1] Slot—IP-Extension Card Property The properties of the VoIP Extension card can be specified. To adjust settings related to IP-PT network data transmission, click Common Settings. IP Address Specifies the IP address of the card. Default 0.0.0.0 Value Range...
  • Page 189 2.7 [1] Configuration Gateway Address [Common Settings] Displays the default gateway address of the network for IP-PTs (reference only). To change the value displayed here, click Common Settings, and set the desired value for Gateway Address. Default 0.0.0.0 Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 2.7.22 [1-1] Slot—IP-Extension Card Property...
  • Page 190 2.7 [1] Configuration Default 48 ms Value Range OFF, 48 ms, 128 ms Maintenance Console Location 2.7.22 [1-1] Slot—IP-Extension Card Property Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path. Default -6 dB Value Range...
  • Page 191 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) EC Gain Specifies the Echo Canceller Gain. Default 2 dB Value Range -14–6 dB Maintenance Console Location 2.7.22 [1-1] Slot—IP-Extension Card Property Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone)
  • Page 192: 1-1] Slot-ip-extension Card Property-common Settings

    2.7 [1] Configuration 2.7.23 [1-1] Slot—IP-Extension Card Property—Common Settings IP network data transmission settings can be programmed. To activate any changes made to settings on this screen, it is necessary to set all installed IP-EXT cards to OUS, then back to INS. Gateway Address Specifies the default gateway address of the IP network.
  • Page 193: 1-1] Slot-ip-extension Port

    2.7 [1] Configuration Voice (RTP) UDP Port No. (IP-PT) Specifies the UDP port used to transmit and receive RTP (Realtime Transfer Protocol) data on the IP- PT side. This must be changed if another network application is using the same port. For voice communications, an IP-PT uses 64 (with the IP-EXT16 card) or 16 (with the IP-EXT4 card) contiguous UDP ports, starting from the port number specified here.
  • Page 194 2.7 [1] Configuration Highlight numbers and click the right arrow to select them for registration. Click Next. A screen will appear with information on the current IP-PT extension number and index number for programming. Program the relevant IP-PT. Click Next. •...
  • Page 195 2.7 [1] Configuration Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.24 [1-1] Slot—IP-Extension Port Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.24 [1-1] Slot—IP-Extension Port Programming Manual References...
  • Page 196 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Extension Number Specifies the extension number of the port. To change the extension number of an extension, follow the steps below: Type the new extension number, then click Apply. Set the status of the extension port to "OUS", then "INS".
  • Page 197 2.7 [1] Configuration Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.7.24 [1-1] Slot—IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Status Indicates whether a certain IP-PT is registered (reference only).
  • Page 198 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Headset OFF/ON Turns on or off the use of a headset with the IP-PT. Default Headset OFF Value Range Headset OFF, Headset ON Maintenance Console Location 2.7.24 [1-1] Slot—IP-Extension Port Programming Manual References None...
  • Page 199: 1-1] Slot-opb (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration IP Codec Specifies the codec used for compression and decompression of transmitted data. Default G.711 Value Range G.711, G.729 Maintenance Console Location 2.7.24 [1-1] Slot—IP-Extension Port Programming Manual References None Feature Manual References 1.9.15 IP-PT (IP Proprietary Telephone) Packet Sampling Time Specifies the time interval between measurements (samples) of sound data during a conversation.
  • Page 200 2.7 [1] Configuration Default Current shelf number Value Range Shelf number Maintenance Console Location 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 201 2.7 [1] Configuration Programming Manual References None Feature Manual References None Feature Card Type Indicates the type of option card that is installed or pre-installed in each sub-slot (reference only). Note that for KX-TDA100/KX-TDA200, only one ECHO16 card can be installed per OPB3 card. Default Current card type Value Range...
  • Page 202: Port Status

    2.7 [1] Configuration • Select the desired cell in the column, and then click Command. Default Current status Value Range INS: The card is in service. OUS: The card is out of service. Fault: The card has been removed from the sub-slot, or is not communicating with the PBX. Pre-Install: There is no card in the sub-slot, but the card type is programmed for the sub-slot.
  • Page 203 2.7 [1] Configuration Value Range INS: The card is in service. OUS: The card is out of service. Fault: The card is pulled out from the sub-slot, or is not communicating with the PBX. Maintenance Console Location 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...
  • Page 204: 1-1] Slot-opb Card Command (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Programming Manual References 2.11.7 [5-5] External Sensor Feature Manual References 1.5.9 External Sensor 2.7.26 [1-1] Slot—OPB Card Command (KX-TDA100/KX-TDA200/ KX-TDA600 only) Commands for the service cards installed on the OPB card can be programmed. Puts the card in service. Default Not applicable.
  • Page 205 2.7 [1] Configuration Feature Manual References None Pre-install Assigns the card type to a certain sub-slot (Pre-installation). Default Not applicable. Value Range MSG4: 4-Channel Message Card DPH4: 4-Port Doorphone Card ECHO16: 16-Channel Echo Canceller Card (KX-TDA100/KX-TDA200 only) EIO4: 4-Port External Input/Output Card Maintenance Console Location 2.7.26 [1-1] Slot—OPB Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Installation Manual References...
  • Page 206: 1-1] Slot-opb3 Option Card Setup (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Feature Manual References None 2.7.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX- TDA200/KX-TDA600 only) Option cards can be installed to and removed from the OPB3 cards installed in the PBX. Click the right and left arrow buttons (">", "<") to add or remove option cards. Option Card Type Selects the type of option card to install to the OPB3 card.
  • Page 207: 1-1] Slot-cti-link Card Property (kx-tda100/kx-tda200/kx-tda600 Only)

    2.7 [1] Configuration Maintenance Console Location 2.7.27 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Card Inserted Displays the type of option card currently installed to each slot of the OPB3 card. Default Not stored.
  • Page 208: Subnet Mask

    2.7 [1] Configuration Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) Subnet Mask Specifies the subnet mask of the PBX. Default 255.255.255.0 Value Range 0.0.0.0–255.255.255.255 Maintenance Console Location 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 209: 1-1] Slot-dph Card Property (kx-tda50 Only)

    2.8.17 [2-9] System Options Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) The status of the DPH ports can be viewed, and set to INS (in service) or OUS (out of service). PC Programming Manual...
  • Page 210 Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References None Feature Manual References None Port Number Indicates the port number (reference only).
  • Page 211 INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References 2.7.30 [1-1] Slot—DPH Port Command (KX-TDA50 only) Feature Manual References None For Output (EIO)—Device Type...
  • Page 212: 1-1] Slot-dph Port Command (kx-tda50 Only)

    Default 10 s Value Range 10 × n (n=1–255) s Maintenance Console Location 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) Programming Manual References None Feature Manual References 1.5.9 External Sensor 2.7.30 [1-1] Slot—DPH Port Command (KX-TDA50 only) Commands for the DPH ports can be programmed.
  • Page 213: 1-2] Portable Station

    None 2.7.31 [1-2] Portable Station Various portable station (PS) settings can be programmed. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), 256 (with the KX-TDA600) or 512 (with the KX-TDA600 with EMEC card installed) PSs can be registered.
  • Page 214 2.7 [1] Configuration KX-TDA50: → 2.7.7 Connecting a Cell Station to the Hybrid IP-PBX KX-TDA100/KX-TDA200: → 2.8.7 Connecting a Cell Station to the Hybrid IP-PBX KX-TDA600: → 2.10.7 Connecting a Cell Station to the Hybrid IP-PBX Click Next. • If the PS registration is still in progress, the dialog box will show "Waiting for portable station to register...".
  • Page 215 Value Range 4 digits (consisting of 0–9) Maintenance Console Location 2.7.31 [1-2] Portable Station Installation Manual References For KX-TDA50: 2.7.7 Connecting a Cell Station to the Hybrid IP-PBX For KX-TDA100/KX-TDA200: 2.8.7 Connecting a Cell Station to the Hybrid IP-PBX For KX-TDA600: 2.10.7 Connecting a Cell Station to the Hybrid IP-PBX...
  • Page 216 2.7 [1] Configuration Programming Manual References None Feature Manual References 1.13.24 PS Connection Extension No. Specifies the extension number of the PS. In Wireless XDP Parallel Mode, the PS can be used as a sub telephone with a wired main telephone (PT/SLT), and two of them will share one extension number of the main telephone.
  • Page 217: 1-3] Option

    2.7 [1] Configuration Status Indicates whether a certain PS is registered (reference only). Default None Value Range None, Registered Maintenance Console Location 2.7.31 [1-2] Portable Station Programming Manual References None Feature Manual References 1.13.24 PS Connection 2.7.32 [1-3] Option System options can be programmed. It is possible to clear the master CS information (Master CS Port and Radio System ID) by following the procedure below in batch mode: Click Clear Master CS.
  • Page 218 2.7 [1] Configuration Feature Manual References None New Card Installation—Card Status for any Card Selects the initial status of cards after installation. Default In Service Value Range In Service, Out of Service Maintenance Console Location 2.7.32 [1-3] Option Programming Manual References None Feature Manual References None...
  • Page 219: 1-4] Clock Priority (kx-tda100/kx-tda200/kx-tda600)

    2.7 [1] Configuration Default ISDN Standard mode Value Range ISDN Standard mode: The CCBS, CF, CT, and Centralized VM features are supported. DIL and DID call distribution are available for the D channel. T1-LCOT mode: DIL and DID call distribution are available for all 23B channels. The CCBS, CF, CT, and Centralized VM features are not available in this mode.
  • Page 220 2.7 [1] Configuration Maintenance Console Location 2.7.33 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) Programming Manual References 2.15 [9] Private Network Feature Manual References None PC Programming Manual...
  • Page 221: 2] System

    2.8 [2] System [2] System 2.8.1 [2-1] Date & Time/Daylight Saving The date and time of the PBX, and Summer time (daylight saving time) can be programmed. Summer time sets the clock one hour forward at 2:00 AM on the start date, and one hour back at 2:00 AM on the end date.
  • Page 222: 2-1] Date & Time/daylight Saving-date & Time Setting

    2.8 [2] System Programming Manual References None Feature Manual References 1.1.7 Automatic Time Adjustment End Date—Year, Month, Day Specifies the end date of daylight savings time. Default Year: 2005 (For Daylight Saving Time number 1. The year advances by one for the subsequent Daylight Saving Times.) Month: 10 Day: Day of the last Sunday of the month...
  • Page 223: 2-2] Operator & Bgm

    Specifies the extension number or floating extension number of incoming call distribution group to be designated as the PBX operator in each time mode (day/lunch/break/night). To select an extension number, click Destination Setting (see 2.1.6 Extension Number Setting). Default For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1001 Value Range Max.
  • Page 224 2.8.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) Selects the audio source of BGM. Default Internal BGM 1 Value Range External BGM, Internal BGM 1, Internal BGM 2 Maintenance Console Location 2.8.3 [2-2] Operator &...
  • Page 225: 2-3] Timers & Counters

    2.8 [2] System For KX-TDA100/KX-TDA200/KX-TDA600: Tone, BGM 1 (External BGM Port 1), BGM 2 (Internal 1/2 or External 2) Maintenance Console Location 2.8.3 [2-2] Operator & BGM Programming Manual References None Feature Manual References 1.11.4 Music on Hold BGM and Music on Hold—Sound on Transfer Selects the audio source for Music for Transfer (either the same music source chosen for the Music on Hold, or ringback tone).
  • Page 226 2.8 [2] System Value Range 0–15 Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/KX- TDA600 only) Specifies the length of time that the PBX waits for the called party to answer an Automatic Redial attempt.
  • Page 227 2.8 [2] System Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Dial—Hot Line (Pickup Dial) Start Specifies the length of time between going off-hook and the start of automatic dialing when the Hot Line feature is set. Default Value Range 0–15 s...
  • Page 228 2.8 [2] System Dial—Extension Inter-digit Specifies the length of time within which subsequent digits must be dialed before the PBX sends a reorder tone. Default 10 s Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release...
  • Page 229 2.8 [2] System Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Dial—Analog CO Call Duration Start Specifies the length of time between the end of dialing and the start of the SMDR timer for outgoing analog CO line calls.
  • Page 230 2.8 [2] System Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Intercept No Answer Time—Intercept No Answer Time—Day, Lunch, Break, Night Feature Manual References 1.9.11 Intercept Routing Recall—Hold Recall Specifies the length of time until the holding extension receives a Hold Recall ring or alarm tone when a held call remains unretrieved.
  • Page 231 2.8 [2] System Recall—Call Park Recall Specifies the length of time that a parked call waits to be retrieved, before the Transfer Recall destination assigned to the extension that parked the call hears a Call Park Recall ring. Default 60 s Value Range 1–240 s Maintenance Console Location...
  • Page 232 2.8 [2] System Value Range 0 (continuous)–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.4.9 DND (Do Not Disturb) Tone Length—Reorder Tone for PT Handset Specifies the length of time that a reorder tone is heard when using a PT handset. The PT will return to idle status when this timer expires.
  • Page 233 2.8 [2] System Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release 1.8.2 Hands-free Operation DISA / Door / Reminder / U. Conf DISA—Delayed Answer Timer Specifies the length of time that the caller hears a ringback tone before hearing an OGM. Default Value Range 0–30 s...
  • Page 234 2.8 [2] System DISA—No Dial Intercept Timer Specifies the length of time after the OGM finishes playing in which the caller must begin dialing before the call is redirected to the operator. Default 10 s Value Range 0–120 s Maintenance Console Location 2.8.4 [2-3] Timers &...
  • Page 235 2.8 [2] System Default 40 s Value Range 0–60 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Intercept Destination—Intercept Destination— When called party does not answer—Day, Lunch, Break, Night 2.10.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination—Intercept Destination—When called party does not answer—Day, Lunch, Break, Night 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References...
  • Page 236 2.8 [2] System Value Range 0–15 Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.11.4 [5-3-2] Voice Message—DISA Message Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA—CO-to-CO Call Prolong Time Specifies the length of time that a CO-to-CO line call on a DISA line is prolonged each time that the caller prolongs the call.
  • Page 237 2.8 [2] System Feature Manual References 1.12.2 OGM (Outgoing Message) DISA—Reorder Tone Duration Specifies the length of time that a reorder tone is sent to the caller before the call is disconnected. Default 10 s Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers &...
  • Page 238 2.8 [2] System Value Range 10 × n (n=0–30) s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.11.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Doorphone—Open Duration Specifies the length of time that a door stays unlocked after being opened from an extension. Default Value Range 2–7 s...
  • Page 239 2.8 [2] System Feature Manual References 1.17.4 Timed Reminder Timed Reminder—Interval Time Specifies the length of time between the repeated alarms. Default 30 s Value Range 10 × n (n=1–120) s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.17.4 Timed Reminder...
  • Page 240 2.8 [2] System Value Range 0–60 min Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.3.16 Conference Unattended Conference—Warning Tone Start Timer Specifies the length of time until the parties involved in an Unattended Conference receive a warning tone after the conference originator receives the Unattended Conference Recall tone but does not return to the conference.
  • Page 241 2.8 [2] System Programming Manual References None Feature Manual References 1.3.16 Conference Miscellaneous Caller ID—Waiting to receive Specifies the length of time that the PBX waits to receive Caller ID from an analog CO line. If the Caller ID is received through an analog CO line card on which no Caller ID card is mounted or through a port to which Caller ID Detection is disabled, this timer is not applicable.
  • Page 242 2.8 [2] System Feature Manual References 1.3.1 Caller ID 1.3.9 CALL WAITING FEATURES 1.3.10 Call Waiting Tone Extension PIN—Lock Counter Specifies the number of successive incorrect PIN entries allowed before the extension PIN is locked. A locked extension PIN can not be used until reset from the extension assigned as manager. (Specifying "None"...
  • Page 243 2.8 [2] System Receiving Dial Inter-digit Timer—DID (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the length of time between digits when receiving a DID number from a public network. The call will be redirected to a PBX operator when this timer expires. Default 10 s Value Range 0–30 s Maintenance Console Location...
  • Page 244 2.8 [2] System Value Range 1–15 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References None Voice Mail (Caller from VM to CO)—On-hook Wait Time Specifies the length of time from when the VPS seizes a CO line (for example, to transfer a call) until the VPS goes on hook.
  • Page 245 2.8 [2] System Programming Manual References None Feature Manual References None During Conversation—DTMF Inter-digit Pause Specifies the length of time between DTMF signals when numbers are dialed in succession from a PT or PS during a conversation. Default 112 ms Value Range 64 + 16 ×...
  • Page 246 1–600 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM—Dial Tone Continuous Time (KX-TDA50 only) Specifies the length of time that dial tone 3 is heard after all messages stored by the SVM feature for an extension are finished playing.
  • Page 247: 2-4] Week Table

    Value Range 1–60 s Maintenance Console Location 2.8.4 [2-3] Timers & Counters Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) 2.8.5...
  • Page 248 2.8 [2] System Programming Manual References None Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Hour, Minute Specifies the start time for each time block. Times can only be set when 1. Day/Lunch/Night—Day1 Start, Lunch Start, Day2 Start, Night Start—Setting is set to Enable.
  • Page 249 2.8 [2] System Feature Manual References 1.17.3 Tenant Service 1.17.5 Time Service 2. Break—Break 1–3 Start—Hour, Minute Specifies the start time for each break period. Times can only be set when 2. Break—Break 1–3 Start—Setting is set to Enable. Default 00:00 Value Range 00:00–23:59...
  • Page 250: 2-5] Holiday Table

    2.8 [2] System 2.8.7 [2-5] Holiday Table A specific time mode (day, night, lunch, or break) can be selected for operation during holidays. Select the desired time mode from the Holiday Mode list. The start and end dates of a maximum of 24 different holidays can be programmed. Holiday Table—Setting Enables the setting of the holiday.
  • Page 251 2.8 [2] System Default Value Range 1–31 Maintenance Console Location 2.8.7 [2-5] Holiday Table Programming Manual References None Feature Manual References 1.17.5 Time Service Holiday Table—End Date—Month Specifies the month of the holiday end date. Default Value Range 1–12 Maintenance Console Location 2.8.7 [2-5] Holiday Table Programming Manual References None...
  • Page 252: 2-6-1] Numbering Plan-main

    64 different extension numbering schemes can be programmed. Leading Number Specifies the leading number of extension numbers and floating extension numbers. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension Numbering Scheme 01: 1 Extension Numbering Scheme 02: 2 Extension Numbering Scheme 03: 3 Extension Numbering Scheme 04: 4...
  • Page 253 2.8 [2] System Extension Numbering Scheme 20: 29 Extension Numbering Scheme 21: 5 Extension Numbering Scheme 22: 6 Extension Numbering Scheme 23–64: Not stored. Value Range Max. 3 digits (consisting of 0–9) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings 2.9.19 [3-8-2] VM(DTMF) Group—Group Settings...
  • Page 254: Trunk Group Access

    2.8 [2] System Operator Call Specifies the feature number used to call the operator. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.3 [2-2] Operator & BGM 2.12.6 [6-6] Tenant Feature Manual References 1.12.5 Operator Features...
  • Page 255 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.16.1 [10-1] CO Line Settings Feature Manual References 1.3.14 CO Line Access TIE Line Access Specifies the feature number used to make a TIE line call. Default Value Range Max.
  • Page 256: Doorphone Call

    2.8 [2] System Feature Manual References 1.15.1 Redial, Last Number System Speed Dialing / Personal Speed Dialing Specifies the feature number used to make a call using a System/Personal Speed Dialing number. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 257: Group Paging

    2.8 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.11.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call Group Paging Specifies the feature number used to page a certain paging group. Default Value Range Max.
  • Page 258: Single Co Line Access

    2.8 [2] System Programming Manual References 2.8.3 [2-2] Operator & BGM 2.8.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.2.1 BGM (Background Music) OGM Record / Clear / Playback Specifies the feature number, available for manager extensions, used to record, clear, or play back a certain OGM.
  • Page 259: Directed Call Pickup

    2.8 [2] System Parallel Telephone (Ring) Mode Set / Cancel Specifies the feature number used to set or cancel an SLT connected in parallel with a DPT to ring when receiving an incoming call. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 260: Group Paging Answer

    2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 3—Call Pickup Deny 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Call Pickup Deny Feature Manual References 1.3.6 Call Pickup TAFAS Answer Specifies the feature number used to answer a CO line call notified through an external pager. Default Value Range Max.
  • Page 261: Automatic Callback Busy Cancel

    2.8 [2] System Automatic Callback Busy Cancel Specifies the feature number used to cancel Automatic Callback Busy. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.1.4 Automatic Callback Busy (Camp-on) User Remote Operation / Walking COS / Verification Code...
  • Page 262: Account Code Entry

    2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—Optional Device & Other Extension—Accept Wireless XDP Parallel Mode Set by PS Feature Manual References 1.20.4 Wireless XDP Parallel Mode Account Code Entry...
  • Page 263 2.8 [2] System Feature Manual References 1.3.2 Call Hold Call Hold Retrieve : Specified with a Holding Extension Number Specifies the feature number used to retrieve a held call from a different extension by specifying a holding extension number. Default Value Range Max.
  • Page 264: Door Open

    2.8 [2] System Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.2 Call Hold Door Open Specifies the feature number used to open a door. Default Value Range Max.
  • Page 265 2.8 [2] System Programming Manual References 2.11.6 [5-4] External Relay Feature Manual References 1.5.8 External Relay External Feature Access Specifies the feature number used to access the features of a host PBX or the telephone company. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 266 2.8 [2] System CLIR Set / Cancel Specifies the feature number used to set or cancel CLIR, which suppresses the presentation of the caller's number to the called party. Default *7*1 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 267 2.8 [2] System MCID Specifies the feature number used to ask the telephone company to trace a malicious call. This feature can be used during a call or while hearing a reorder tone after the caller hangs up. Default Not stored. Value Range Max.
  • Page 268 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD/DND Set / Cancel: Call from CO Specifies the feature number used to set or cancel FWD/DND for incoming CO line calls.
  • Page 269 2.8 [2] System Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD No Answer Timer Set Specifies the feature number used to set the length of time before a call is forwarded. Default *713 Value Range...
  • Page 270 2.8 [2] System Group FWD Set / Cancel: Call from CO Specifies the feature number used to set or cancel FWD for incoming CO line calls to an incoming call distribution group. Default *715 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 271: Walking Extension

    2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.6 Call Pickup Paging Deny Set / Cancel Specifies the feature number used to set or cancel Paging Deny (i.e., preventing other extensions from paging your extension).
  • Page 272 2.8 [2] System Feature Manual References 1.20.2 Walking Extension Data Line Security Set / Cancel Specifies the feature number used to set or cancel Data Line Security (i.e., preventing signals from other extensions during data transmission). Default *730 Value Range Max.
  • Page 273 2.8 [2] System Default *732 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.3.9 CALL WAITING FEATURES Executive Override Deny Set / Cancel Specifies the feature number used to set or cancel Executive Busy Override (i.e., preventing other extensions from joining your conversation).
  • Page 274: Incoming Call Queue Monitor

    2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Log-in / Log-out Specifies the feature number used to join or leave an incoming call distribution group. Default *736 Value Range...
  • Page 275 2.8 [2] System Hot Line (Pickup Dial) Program Set / Cancel Specifies the feature number used to set/cancel the Hot Line feature, or program the number to be automatically dialed. Default *740 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References...
  • Page 276 2.8 [2] System Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.3 [2-2] Operator & BGM Feature Manual References 1.2.1 BGM (Background Music) Remote Timed Reminder (Remote Wakeup Call) Specifies the feature number used to set or cancel a Timed Reminder remotely (Wake-up Call).
  • Page 277 2.8 [2] System Feature Manual References 1.17.4 Timed Reminder Printing Message Specifies the feature number used to select a Printing Message to be output on SMDR. Default *761 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.12.9 [6-8] Hotel—Main—SMDR for External Hotel Application 2—Printing Message 1–8...
  • Page 278 2.8 [2] System Default *780 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Time Service Switch 2.8.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.17.5 Time Service Remote Extension Dial Lock Off...
  • Page 279: Extension Feature Clear

    2.8 [2] System Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—Programming & Manager—Manager Feature Manual References 1.5.4 Extension Dial Lock Extension Feature Clear Specifies the feature number used to reset certain features of an extension to the default values. Default *790 Value Range...
  • Page 280 2.15.1 [9-1] TIE Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) 1.6.4 Flexible Numbering/Fixed Numbering Simplified Voice Message Access (KX-TDA50 only) Specifies the feature number used to access the SVM feature to record, listen to and delete messages. Default...
  • Page 281: 2-6-2] Numbering Plan-quick Dial

    Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.8.8 [2-6-1] Numbering Plan—Main Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message)
  • Page 282 2.8 [2] System For more information on flexible numbering, see "1.6.4 Flexible Numbering/Fixed Numbering" in the Feature Manual. Use quick dial for rerouting to public CO when TIE line does not work (MPR Software File Version 3.2000 or later) Specifies whether to check if the quick dial numbering plan is compatible (does not overlap) with the main numbering plan.
  • Page 283: 2-6-3] Numbering Plan-b/na Dnd Call Feature

    2.8 [2] System Phone Number Specifies the number to be dialed when the corresponding Quick Dialing number is used. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.8.9 [2-6-2] Numbering Plan—Quick Dial Programming Manual References...
  • Page 284: Executive Busy Override

    2.8 [2] System Feature Manual References 1.3.9 CALL WAITING FEATURES 1.3.10 Call Waiting Tone 1.4.9 DND (Do Not Disturb) 1.12.3 OHCA (Off-hook Call Announcement) 1.20.3 Whisper OHCA Executive Busy Override Specifies the feature number used to interrupt an existing call to establish a three-party conference call.
  • Page 285: Call Monitor

    2.8 [2] System Feature Manual References 1.9.13 Intercom Call Message Waiting Set Specifies the feature number used to leave a Message Waiting notification. Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References None Feature Manual References...
  • Page 286 2.8 [2] System Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References None Feature Manual References 1.1.4 Automatic Callback Busy (Camp-on) BSS / OHCA / Whisper OHCA / DND Override-2 Specifies the feature number used to notify a busy extension of a second call by Call Waiting, or call an extension in DND mode.
  • Page 287: 2-7-1] Class Of Service-cos Settings

    2.8 [2] System 2.8.11 [2-7-1] Class of Service—COS Settings Each extension, doorphone port, incoming call distribution group, and trunk group is assigned a Class of Service (COS). Certain features can be programmed to behave differently depending on the COS. A maximum of 64 COS levels can be programmed. Restrictions to features related to making CO line calls can be programmed for each COS.
  • Page 288: Trs Level For System Speed Dialing

    2.8 [2] System Programming Manual References 2.8.5 [2-4] Week Table 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.1 [5-1] Doorphone—COS 2.13.1 [7-1] Denied Code 2.13.2 [7-2] Exception Code Feature Manual References 1.17.6 TRS (Toll Restriction) TRS Level on Extension Lock...
  • Page 289 2.8 [2] System Value Range 1: Allows all CO line calls 2–6: Restricts CO line calls according to the combination of the Denied and Exception Code Tables 7: Restricts all CO line calls Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS...
  • Page 290 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.8.17 [2-9] System Options—Option 2—Extension - CO Call Limitation—For Incoming Call 2.9.1 [3-1-1] Trunk Group—TRG Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.15 CO Line Call Limitation...
  • Page 291: Account Code Mode

    2.8 [2] System Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) Account Code Mode Specifies whether the entry of an account code is optional or mandatory when making a CO line call. Default Option Value Range...
  • Page 292 2.8 [2] System Feature Manual References 1.16.1 SMDR (Station Message Detail Recording) Extension Feature The use of features related to extension operations can be programmed for each COS. COS Name Specifies the name of the COS. Default Not stored. Value Range Max.
  • Page 293: Dnd Override

    2.8 [2] System DND Override Enables making a call to an extension in DND mode by entering the feature number. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.12 [4-2-2] Portable Station—FWD / DND...
  • Page 294 2.8 [2] System Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.3.4 Call Monitor Call Pickup by DSS Enables using a DSS button to pick up a call to a specified extension.
  • Page 295: Executive Busy Override Deny

    2.8 [2] System Value Range Max. 20 characters Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 1.3.19 COS (Class of Service) Executive Busy Override Deny Enables preventing other extensions from interrupting calls. Default Disable Value Range...
  • Page 296: Programming Mode Level

    2.8 [2] System Programming Manual References 2.9.12 [3-5-4] Incoming Call Distribution Group—Member 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.6.6 FWD (Call Forwarding) Programming Mode Level Specifies the level of authorization for performing PT programming. Default PROG Only Value Range...
  • Page 297 2.8 [2] System Feature Manual References 1.11.1 Manager Features Time Service Switch Enables manual switching of time modes. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.8.5 [2-4] Week Table 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References...
  • Page 298 2.8 [2] System SDN Key Mode Selects what happens when an extension user presses an SDN button while on hook. Default Enhanced DSS Value Range Enhanced DSS: The registered (owner) extension is called. Standard SDN: A dial tone is heard. Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References...
  • Page 299: Door Unlock

    2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Optional Device & Other Extension COS Name Specifies the name of the COS. Default Not stored.
  • Page 300 2.8 [2] System Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS Feature Manual References 1.4.10 Door Open External Relay Access Enables access to external relays. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.11.6 [5-4] External Relay Feature Manual References...
  • Page 301: 2-7-2] Class Of Service-external Call Block

    2.8 [2] System Remote Operation by Other Extension Allows the Walking COS feature to be used from a remote location (inside the PBX, or outside the PBX using DISA). Default Allow Value Range Allow, Deny Maintenance Console Location 2.8.11 [2-7-1] Class of Service—COS Settings Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS...
  • Page 302: 2-7-3] Class Of Service-internal Call Block

    2.8 [2] System Outgoing Trunk Group 1–64 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies the available trunk groups. Default All Trunk groups: Non Block Value Range Block (blue), Non Block Maintenance Console Location 2.8.12 [2-7-2] Class of Service—External Call Block Programming Manual References 2.8.5 [2-4] Week Table...
  • Page 303: 2-8-1] Ring Tone Patterns-call From Co

    2.8 [2] System 2.11.1 [5-1] Doorphone—COS Feature Manual References 1.9.14 Internal Call Block 2.8.14 [2-8-1] Ring Tone Patterns—Call from CO Different ring tone patterns can be selected for incoming CO line calls depending on the trunk group that the calls are received on. A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.
  • Page 304: 2-8-3] Ring Tone Patterns-call From Others

    2.8 [2] System Value Range Single, Double, Triple, S-Double Maintenance Console Location 2.8.15 [2-8-2] Ring Tone Patterns—Call from Doorphone Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table 2.11.1 [5-1] Doorphone Feature Manual References 1.4.11 Doorphone Call 1.15.2 Ring Tone Pattern Selection...
  • Page 305 2.8 [2] System Default Triple Value Range Single, Double, Triple Maintenance Console Location 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table Feature Manual References 1.17.4 Timed Reminder Call Back—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for callback ringing by Automatic Callback Busy.
  • Page 306: 2-9] System Options

    2.8 [2] System Maintenance Console Location 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Ring Pattern Table 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Ring Pattern Table Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration External Sensor—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for calls from an external sensor.
  • Page 307 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None PT LCD—Time Display Selects the time format shown on the displays of extensions. The time display format assigned here applies when setting the Timed Reminder feature. Default Value Range 12H, 24H...
  • Page 308 2.8 [2] System PT Fwd / DND—Fwd LED Selects the light pattern of the FWD/DND button while the FWD feature is activated. Default Flash Value Range On (Solid): Red on Flash: Slow red flashing Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND...
  • Page 309 2.8 [2] System Default FWD/DND Setting Mode Value Range FWD/DND Setting Mode: Enter programming mode for the FWD/DND setting. FWD/DND Cycle Switch Mode: Switch the FWD on/DND on/Off mode instead of entering the programming mode for the FWD/DND setting. (When there are separate FWD/DND settings for calls from CO lines and calls from extensions, mode switching cannot be performed.) Maintenance Console Location 2.8.17 [2-9] System Options...
  • Page 310 2.8 [2] System Value Range Disable: The PT user's voice is sent through the handsfree microphone. The other party's voice is heard through the hands-free speaker. Enable: The PT user's voice is sent through the handset microphone. The other party's voice is heard through both the hands-free speaker and the handset.
  • Page 311 2.8 [2] System Programming Manual References None Feature Manual References None PT Operation—PT Ring Off Setting Specifies whether incoming call ringing can be turned off at individual extensions. If disabled, users cannot prevent incoming calls from ringing. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options...
  • Page 312 2.8 [2] System PT Operation—Automatic Hold by ICM / CO / ICD Group key Selects whether calls are disconnected or held when an INTERCOM, PDN, CO, or ICD Group button is pressed while having a conversation. Default Disconnect Value Range Disable (Disconnect), Enable Maintenance Console Location 2.8.17 [2-9] System Options...
  • Page 313 2.8 [2] System Default Clear Value Range Clear, Do not clear Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear Extension Clear—Fwd/DND Specifies whether the FWD/DND setting is cleared when Extension Feature Clear is performed. Default Clear Value Range...
  • Page 314 2.8 [2] System Programming Manual References None Feature Manual References 1.5.5 Extension Feature Clear CODEC—System CODEC Selects the CODEC type for DPTs and PSs. Default µ-Law Value Range A-Law, µ-Law Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None...
  • Page 315 2.8 [2] System End of Dial Plan—[#] as End of Dial for en Bloc mode (KX-TDA100/KX- TDA200/KX-TDA600 only) Specifies whether to automatically send "#" as an end code when dialing to an ISDN line; if used as the end code, "#" will not be dialed out as part of a number even when the "#" key is pressed. Default Enable Value Range...
  • Page 316 2.8 [2] System Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number Redial—Call Log by Redial key Enables display of the Outgoing Call Log on a DPT by pressing the REDIAL button while on hook. Default Disable Value Range...
  • Page 317 Enables the PBX to adjust its clock every day according to the time information that the network provides with the first call after 3:05 AM. With the KX-TDA50, this parameter is shown as Automatic Time Adjustment—by Caller ID (FSK). Default...
  • Page 318 2.8 [2] System Feature Manual References 1.3.17 Confirmation Tone 1.4.11 Doorphone Call Confirmation Tone—Tone 2 : Paged / Automatic Answer Enables the PBX to send Confirmation Tone 2. Confirmation Tone 2 is heard from a PT when it receives a call in Hands-free Answerback mode, or paging. Default Enable Value Range...
  • Page 319 2.8 [2] System Confirmation Tone—Tone 3-2 : Start Talking after answering call Enables the PBX to send Confirmation Tone 3-2. Confirmation Tone 3-2 is heard from an extension when answering a call by, for example, the Call Pickup feature. Default Enable Value Range Disable, Enable...
  • Page 320 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.16 Conference 1.3.17 Confirmation Tone Confirmation Tone—Tone 5 : Hold Enables the PBX to send Confirmation Tone 5. Confirmation Tone 5 is heard from an extension when it holds a call.
  • Page 321 2.8 [2] System Programming Manual References None Feature Manual References 1.4.3 Dial Tone Dial Tone—Dial Tone for Extension Selects the dial tone the PBX sends to extensions to inform about the features activated on them. Default Type A Value Range Type A, Type B Maintenance Console Location 2.8.17 [2-9] System Options...
  • Page 322 2.8 [2] System Echo Cancel—Conference Enables the use of the ECHO/EECHO card for conference calls. Default Enable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.16 Conference Echo Cancel—CO-to-CO Enables the use of the ECHO/EECHO card for CO-to-CO line calls. Default Enable Value Range...
  • Page 323 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References None Echo Cancel—Extension to Digital Line Enables the use of the ECHO/EECHO card for extension-to-ISDN/T1 line calls. If set to "Enable", the echo canceller card is used for extension-to-ISDN/T1 line calls. If set to "Disable", the echo canceller card is not used for extension-to-ISDN/T1 line calls.
  • Page 324 2.8 [2] System Feature Manual References 1.3.6 Call Pickup 1.10.1 LED Indication DSS Key—Call Pick-up by DSS key for Direct Incoming Call Specifies whether a DSS button will light up or flash when a call rings at the specified extension. To enable this setting, DSS Key—DSS Key mode for Incoming Call on this screen must be set to ON or Flash.
  • Page 325 2.8 [2] System DSS Key—Automatic Transfer for Extension Call Specifies whether pressing a DSS or SDN button during an extension-to-extension call disconnects the current call or places the call on consultation hold. Default Disable Value Range Disable: The PBX disconnects the current call, and calls the extension assigned to the DSS or SDN button.
  • Page 326 2.8 [2] System Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.8.1 Hands-free Answerback Send CLIP of CO Caller to ISDN—when Transfer (CLIP of Held Party) Enables the transfer of related CLIP information when a party on hold is transferred. When set to "Enable", the transfer destination will receive the original caller's CLIP information, not the information of the extension that performed the transfer.
  • Page 327 2.8 [2] System Value Range Disable: The CLIP number assigned to the virtual PS is sent. Enable: The CLIP number of the calling party is sent. Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.13.16 Private Network Features—Network ICD Group 1.9.4 ICD Group Features—Outside Destinations Private Network—Public Call through Private Network—Minimum Public...
  • Page 328 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References 2.15.1 [9-1] TIE Table—Leading Number Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES System Wireless—Out of Range Registration Selects whether the PBX can set the status of a PS to Out of Range if no signal is received from the PS for a preset length of time.
  • Page 329 2.8 [2] System Programming Manual References 2.10.13 [4-2-3] Portable Station—Flexible Button—Parameter Selection (for SDN) (KX-TDA100/KX- TDA200/KX-TDA600 only) Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Option 5 SLT—SLT Hold Mode Selects how to hold a line and transfer a call with an SLT. For details of each mode, see "1.3.2 Call Hold"...
  • Page 330 2.8 [2] System Feature Manual References 1.11.3 Message Waiting Whisper OHCA—for SLT / APT / KX-T72xx Enables the use of Whisper OHCA to SLTs and IP-PTs, and DPTs other than KX-T7400 series, or KX-T7600 series. Default Disable Value Range Disable, Enable Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References...
  • Page 331 2.8 [2] System Default System Feature Access Menu 1: Call Back Cancel System Feature Access Menu 2: Call Pickup Direct System Feature Access Menu 3: Call Pickup Group System Feature Access Menu 4: Doorphone Call System Feature Access Menu 5: Door Open System Feature Access Menu 6: External BGM System Feature Access Menu 7: Paging System Feature Access Menu 8: Relay ON...
  • Page 332 2.8 [2] System Option 6 (CTI) 1st Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for First Party Call Control CTI. Default 60 s Value Range 0–60 s Maintenance Console Location 2.8.17 [2-9] System Options...
  • Page 333 2.8 [2] System Default 20 s Value Range 0–60 s Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 1st Party CTI—CDR retry counter Specifies the number of times the alive check of CDR is repeated for First Party Call Control CTI. When the alive check has been attempted the programmed number times without success, the association is released automatically.
  • Page 334 2.8 [2] System Maintenance Console Location 2.8.17 [2-9] System Options Programming Manual References None Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—System status retry counter Specifies the number of times that the alive check is repeated for Third Party Call Control CTI. When the alive check has been attempted the programmed number of times without success, the PBX assumes that the logical connection with the CTI application software has been lost.
  • Page 335 2.8 [2] System Feature Manual References 1.3.21 CTI (Computer Telephony Integration) 3rd Party CTI—CDR retry counter Specifies the number of times that the alive check of CDR is repeated for Third Party Call Control CTI. When the alive check has been attempted the programmed number times, the association is released automatically.
  • Page 336: 2-10] Extension Cid Settings

    2.8.18 [2-10] Extension CID Settings Various settings for extension Caller ID can be programmed. Extension Caller ID Resource-1, 2 (KX-TDA50 only) Specifies a group of 4 SLT ports that can transfer Caller ID information to connected SLTs. When the port to which an extension is connected has this feature activated, there will be a short delay before the extension rings for incoming calls.
  • Page 337 2.8 [2] System Value Range Disable: No port Slot 01:DHLC4: Initially installed 4 Super Hybrid ports Slot nn:SLC4: Ports 1 to 4 of the SLC4 card (nn=slot number) Slot nn:SLC8 1-4: Ports 1 to 4 of the SLC8 card (nn=slot number) Slot nn:SLC8 5-8: Ports 5 to 8 of the SLC8 card (nn=slot number) Maintenance Console Location 2.8.18 [2-10] Extension CID Settings...
  • Page 338 2.8 [2] System Programming Manual References None Feature Manual References 1.3.1 Caller ID Mark Signal bits Specifies the number of mark bits to send when sending Caller ID information to an SLT. Default 180 bits Value Range 10 × n (n=3–40) bits Maintenance Console Location 2.8.18 [2-10] Extension CID Settings Programming Manual References...
  • Page 339 2.8 [2] System Caller ID Signal Type (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the type of signal modulation to be used when sending Caller ID information to an SLT (reference only). Default Value Range Maintenance Console Location 2.8.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID...
  • Page 340 2.8 [2] System Value Range Disable, Enable Maintenance Console Location 2.8.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 1.3.1 Caller ID Send Caller ID Name to Extension Enables the PBX to send the caller's name when sending Caller ID information to an SLT. Default Enable Value Range...
  • Page 341: 2-11-1] Audio Gain-paging/moh

    2.8 [2] System Feature Manual References 1.3.1 Caller ID 2.8.19 [2-11-1] Audio Gain—Paging/MOH Gain levels for the External Pager/External BGM ports can be programmed. Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the paging volume for External Pager port 1. Default 3 dB Value Range...
  • Page 342 2.8 [2] System Paging—EPG (External Pager) (KX-TDA50 only) Specifies the paging volume for the External Pager. Default -2 dB Value Range -15–15 dB Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.13.1 Paging...
  • Page 343 Programming Manual References 2.8.3 [2-2] Operator & BGM Feature Manual References 1.2.1 BGM (Background Music) 1.11.4 Music on Hold MOH—MOH (Music On Hold) (KX-TDA50 only) Specifies the music volume for the External BGM. Default 9 dB Value Range -11–11 dB Maintenance Console Location 2.8.19 [2-11-1] Audio Gain—Paging/MOH...
  • Page 344: 2-11-2] Audio Gain-card

    2.8 [2] System Feature Manual References 1.2.1 BGM (Background Music) 1.11.4 Music on Hold 2.8.20 [2-11-2] Audio Gain—Card Gain levels can be programmed for each type of card. Up Gain (To PBX) Specifies the volume for audio signals from the selected type of card to the PBX. Default Depends on card type.
  • Page 345: 3] Group

    CO lines can be organized into trunk groups. The settings of each trunk group determine the settings of the CO lines within that group. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups can be programmed.
  • Page 346: Line Hunting Order

    2.9 [3] Group Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings 2.16.1 [10-1] CO Line Settings Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES Line Hunting Order Specifies the CO line hunting sequence for the trunk group. The hunting sequence can be programmed to start from the lowest or highest numbered CO lines, or to rotate uniformly among all CO lines.
  • Page 347 2.9 [3] Group Extension-CO Duration Time Specifies the length of time that an extension-to-CO line call can be maintained before being disconnected. Default 10 min Value Range None, 1–60 min Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings 2.8.17 [2-9] System Options 2.16.1 [10-1] CO Line Settings...
  • Page 348 2.9 [3] Group Value Range 1–4 Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 2.12.7 [6-7] Dialing Plan Feature Manual References None Tone Detection Group Name Specifies the name of the trunk group for programming reference. Default Not stored.
  • Page 349 2.9 [3] Group Programming Manual References 2.11.3 [5-3-1] Voice Message—DISA System 2.16.1 [10-1] CO Line Settings Feature Manual References 1.4.7 DISA (Direct Inward System Access) DISA Tone Detection—Continuous Enables the disconnection of a DISA-originated CO-to-CO line call by continuous signal detection. Default Enable Value Range...
  • Page 350 2.9 [3] Group Simplified Voice Message Tone Detection—Silence (KX-TDA50 only) Enables the disconnection of an SVM-originated CO-to-CO line call by silence detection. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message)
  • Page 351: Host Pbx Access Code

    2.9 [3] Group Maintenance Console Location 2.9.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Host PBX Access Code Group Name Specifies the name of the trunk group for programming reference. Default Not stored.
  • Page 352: 3-1-2] Trunk Group-local Access Priority

    Specifies the trunk group assigned to the corresponding priority level. Select the blank option to not assign a trunk group to the priority. Default Priority 1–64 = Trunk Group No. 1–64 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Trunk Group No. 1–64 For KX-TDA600: Trunk Group No. 1–96 Maintenance Console Location 2.9.2 [3-1-2] Trunk Group—Local Access Priority...
  • Page 353: 3-3] Call Pickup Group

    Extensions can be assigned to a call pickup group according to their extension user groups. One extension user group can belong to up to 8 call pickup groups. A maximum of 64 (with the KX-TDA50/ KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) call pickup groups can be programmed.
  • Page 354 2.9 [3] Group Extension Group Name Indicates the name of the extension user group (reference only). Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension User Group 1-32: Extension Group 01-32 For KX-TDA600: Extension User Group 1-96: Extension Group 01-96 Value Range Max. 20 characters Maintenance Console Location 2.9.4 [3-3] Call Pickup Group...
  • Page 355: 3-3] Call Pickup Group-all Setting

    2.9.4 [3-3] Call Pickup Group Feature Manual References 1.3.6 Call Pickup 1.7.1 GROUP FEATURES Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX- TDA600) Specifies whether the extension user group belongs to the corresponding pickup group. Default ON for the same-numbered call pickup group...
  • Page 356: 3-4] Paging Group

    Extensions can be assigned to a paging group according to their extension user groups. External pagers can also be assigned to a paging group. One extension user group or external pager can belong to multiple paging groups. A maximum of 32 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) paging groups can be programmed.
  • Page 357: 3-4] Paging Group-all Setting

    2.9.7 [3-4] Paging Group—All Setting Programming Manual References 2.9.6 [3-4] Paging Group Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX- TDA600) Specifies whether the extension user group belongs to the corresponding paging group. PC Programming Manual...
  • Page 358: 3-4] Paging Group-external

    2.9 [3] Group Default ON for same numbered paging group Value Range ON, OFF Maintenance Console Location 2.9.7 [3-4] Paging Group—All Setting Programming Manual References 2.9.3 [3-2] Extension Group 2.9.6 [3-4] Paging Group Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging 2.9.8 [3-4] Paging Group—External Pager External pagers can be assigned to a paging group.
  • Page 359: 3-5-1] Incoming Call Distribution Group-group Settings

    2.9 [3] Group Default Value Range ON (blue), OFF Maintenance Console Location 2.9.8 [3-4] Paging Group—External Pager Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.7.1 GROUP FEATURES 1.13.1 Paging External Pager 2 (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies whether the external pager belongs to the corresponding paging group.
  • Page 360 2.9 [3] Group Main Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range...
  • Page 361 2.9 [3] Group Default Ring Value Range Ring, UCD, Priority Hunting Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution Call Waiting Distribution Selects the call waiting distribution method for busy extensions of the incoming call distribution group. Default Distribution Value Range...
  • Page 362 2.9 [3] Group Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) 1.9.2 ICD Group Features—Group Call Distribution DND Mode Specifies whether extensions in DND mode ring when a call is received at the incoming call distribution group.
  • Page 363 2.9 [3] Group 2.8.5 [2-4] Week Table 2.12.6 [6-6] Tenant—Music On Hold Feature Manual References 1.11.4 Music on Hold 1.17.3 Tenant Service Specifies the COS of the incoming call distribution group. Depending on the COS, calls from certain extensions are restricted as determined by the Internal Call Block feature. Also, when calls are forwarded or overflowed to a CO line, the TRS assigned for the COS of the incoming call distribution group applies.
  • Page 364: Overflow Queuing Busy

    2.9 [3] Group Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Overflow Queuing Busy Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits.
  • Page 365: Overflow No Answer

    2.9 [3] Group Queuing Busy—Destination-Day, Lunch, Break, Night Specifies the overflow destination of calls that cannot be queued in each time mode. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...
  • Page 366 2.9 [3] Group Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Group Name Specifies the name of the incoming call distribution group. Default ICD Group 001–ICD Group 128 Value Range...
  • Page 367 2.9 [3] Group Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.9.5 ICD Group Features—Overflow 1.9.6 ICD Group Features—Queuing Time out & Manual Queue Redirection—Overflow Time Specifies the length of time calls wait in a queue before they are redirected to the overflow destination. Default None Value Range...
  • Page 368: Queuing Time Table

    2.9 [3] Group Feature Manual References 1.9.6 ICD Group Features—Queuing Queuing Time Table Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits.
  • Page 369 Queuing Time Table—Day, Lunch, Break, Night Specifies the Queuing Time Table to be used in each time mode. Default None Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, Table 1–Table 64 For KX-TDA600: None, Table 1–Table 128 Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 2.8.5 [2-4] Week Table...
  • Page 370: Extension No Answer Redirection Time

    2.9 [3] Group Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...
  • Page 371 2.9 [3] Group Value Range None, 10 × n (n=1–15) s Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution 1.9.6 ICD Group Features—Queuing No. of Unanswered Calls for Automatic Log-out Specifies the number of consecutive unanswered calls before a member extension is automatically logged out from the incoming call distribution group.
  • Page 372 2.9 [3] Group Programming Manual References None Feature Manual References 1.9.2 ICD Group Features—Group Call Distribution Last Extension Log-out Specifies whether the last extension logged-in to the incoming call distribution group is allowed to log out. Default Enable Value Range Disable, Enable Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings...
  • Page 373 2.9 [3] Group Supervisor Extension Number Specifies the extension number of the incoming call distribution group's supervisor. The supervisor can monitor and control the status of each member of the group using a 6-line display PT. The supervisor extension need not belong to the group. Default Not stored.
  • Page 374 2.9 [3] Group Note that groups that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default Groups 001-064: 601–664 Groups 065-128: Not stored Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...
  • Page 375 2.9 [3] Group Maintenance Console Location 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 1.3.3 Call Log, Incoming Group FWD Call from CO—Setting Indicates the current FWD status for incoming CO line calls directed to the incoming call distribution group (reference only).
  • Page 376: 3-5-2] Incoming Call Distribution Group-queuing Time Table

    Table A Queuing Time Table can contain up to 16 sequences which control how calls waiting in a queue are handled. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX- TDA600) Queuing Time Tables can be programmed.
  • Page 377: 3-5-3] Incoming Call Distribution Group-miscellaneous

    Wait 5 × n (n=1–16) s: If preceded by an OGM, plays the Music on Hold for the specified period of time; if not preceded by an OGM, sends a ringback tone for the specified period of time. KX-TDA50: OGM 01–32: Sends a certain OGM KX-TDA100/KX-TDA200/KX-TDA600: OGM 01–64: Sends a certain OGM...
  • Page 378 2.9 [3] Group Maintenance Console Location 2.9.11 [3-5-3] Incoming Call Distribution Group—Miscellaneous Programming Manual References None Feature Manual References 1.9.1 ICD GROUP FEATURES Options—ICD Group Key Mode Selects whether ICD Group buttons at extensions operate as normal or in Enhanced Phantom button mode.
  • Page 379: 3-5-4] Incoming Call Distribution Group-member

    1.9.3 ICD Group Features—Log-in/Log-out 2.9.12 [3-5-4] Incoming Call Distribution Group—Member Each incoming call distribution group can have a maximum of 32 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 128 (with the KX-TDA600) members (extensions) assigned to it, and each member can have its own delayed ringing and Wrap-up time settings. An extension can be a member of multiple incoming call distribution groups.
  • Page 380: Delayed Ring

    2.9 [3] Group Extension Number Specifies the extension number of each member. In addition to the extension numbers of PT, SLT, PS, and T1-OPX extensions, floating extension numbers of PS Ring groups can also be specified. Default Not stored. Value Range Max.
  • Page 381: 3-6] Extension Hunting Group

    If there is no idle extension in the group, the call can then be redirected to the overflow destination, which can be different depending on the time mode (day/lunch/break/night). A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX-TDA600) hunting groups can be programmed, each containing up to 16 extensions.
  • Page 382 2.9 [3] Group Hunting Group Name Specifies the name of the hunting group. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.9.13 [3-6] Extension Hunting Group Programming Manual References None Feature Manual References 1.9.9 Idle Extension Hunting Hunting Type Specifies the hunting type for the hunting group.
  • Page 383: 3-6] Extension Hunting Group-member List

    2.9 [3] Group Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.9.13 [3-6] Extension Hunting Group Programming Manual References None Feature Manual References 1.9.9 Idle Extension Hunting 2.9.14 [3-6] Extension Hunting Group—Member List Each hunting group can contain up to 16 extensions.
  • Page 384: 3-7-1] Vm(dpt) Group-system Settings

    PBX. The DPT ports that are connected to the VPS are called a VM (DPT) Group. With the KX-TDA50, a maximum of 1 VM (DPT) Group can be programmed; with the KX-TDA100/ KX-TDA200, 2 VM (DPT) Groups can be programmed; and with the KX-TDA600, 8 VM (DPT) groups can be programmed.
  • Page 385 2.9 [3] Group Intercept to Mailbox Enables the PBX to send the mailbox number of the called extension to the VPS when a call is redirected to the VM (DPT) group by Intercept Routing. When the VPS receives the mailbox number, the VPS answers the call with the appropriate mailbox.
  • Page 386: 3-7-2] Vm(dpt) Group-unit Settings

    2.9 [3] Group 1.19.4 Voice Mail DPT (Digital) Integration 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings A VM (DPT) group has a floating extension number, which can be assigned as the destination for redirected calls and incoming calls. To assign extension numbers to the group, click Member List. To view a list of all programmed extension numbers and types, click Extension List View.
  • Page 387: 3-7-2] Vm(dpt) Group-unit Settings-member List

    2.9 [3] Group Feature Manual References 1.19.3 Voice Mail (VM) Group 1.19.4 Voice Mail DPT (Digital) Integration 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Displays information on the settings of all relevant ports. Only ports set to VM(DPT) in DPT Type— Type (for DPT or S-Hybrid port) of 2.7.5 [1-1] Slot—Extension Port will be displayed.
  • Page 388 1.5.7 Extension Port Configuration VM Unit No. Indicates the unit number of the connected VPS (reference only). Default Current unit number Value Range For KX-TDA50: For KX-TDA100/KX-TDA200: 1, 2 For KX-TDA600: 1–8 Maintenance Console Location 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References 2.7.5 [1-1] Slot—Extension Port—DPT Type—VM Unit No.
  • Page 389 2.9 [3] Group 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 1.19.3 Voice Mail (VM) Group Extension No. Indicates the extension number assigned to the VM port (reference only). Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.17 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References...
  • Page 390: 3-8-1] Vm(dtmf) Group-system Settings

    2.9.18 [3-8-1] VM(DTMF) Group—System Settings A Panasonic Voice Processing System (VPS) with DTMF Integration can be connected to SLT ports of the PBX. The SLT ports that are connected to the VPS are called a VM (DTMF) Group. A maximum of 2 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 8 (with the KX-TDA600) VM (DTMF) Groups can be programmed.
  • Page 391 2.9 [3] Group VM DTMF Status Signal—Reorder Tone Specifies the DTMF status signal the PBX sends to the VPS when the dialed number is invalid. Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None...
  • Page 392 2.9 [3] Group Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None VM DTMF Status Signal—Confirm Specifies the DTMF status signal the PBX sends to the VPS when a certain feature (e.g., Message Waiting) has been successfully set or canceled on an extension.
  • Page 393 2.9 [3] Group Feature Manual References None VM DTMF Status Signal—FWD to VM Ringback Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to the VPS and the PBX is calling another port of the VPS. Default Value Range Max.
  • Page 394 2.9 [3] Group Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) VM DTMF Command—Recording Message Specifies the DTMF command the PBX sends to the VPS when a call is forwarded, intercepted, or transferred to the VPS, so that the caller can leave a message in a certain mailbox.
  • Page 395 2.9 [3] Group Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 1.11.3 Message Waiting VM DTMF Command—Switching to AA Specifies the DTMF command the PBX sends to the VPS to switch from VM Service Mode to AA Service Mode.
  • Page 396 2.9 [3] Group Timing—DTMF Length for VM Specifies the length of DTMF signals the PBX sends to the VPS. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None Timing—Inter-digit Time...
  • Page 397 2.9 [3] Group Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None Timing—Waiting Time before Sending VM DTMF Status Signal Specifies the length of time that the PBX waits before sending the DTMF status signal to the VPS after the VPS has finished dialing.
  • Page 398 2.9 [3] Group Others—FWD to the VPS Sequence Specifies which DTMF commands the VPS receives from the PBX when a call is forwarded to the VPS, so that the VPS can answer the call either with a mailbox or in the AA service mode. It is also possible to send no DTMF signal to the VPS.
  • Page 399: 3-8-2] Vm(dtmf) Group-group Settings

    2.9 [3] Group Default Extension Number Value Range Extension Number, Programmed Mailbox Number Maintenance Console Location 2.9.18 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous—Programmed Mailbox No. 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 1—Programmed Mailbox No. 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 1—Programmed Mailbox No.
  • Page 400 2.9 [3] Group Floating Ext. No. Specifies the floating extension number of the VM (DTMF) group. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.9.19 [3-8-2] VM(DTMF) Group—Group Settings Programming Manual References None Feature Manual References 1.19.3 Voice Mail (VM) Group Group Name Specifies the name of the VM (DTMF) group, which will be shown on the display of extensions that...
  • Page 401: 3-8-2] Vm(dtmf) Group-group Settings-member List

    2.9 [3] Group Maintenance Console Location 2.9.19 [3-8-2] VM(DTMF) Group—Group Settings Programming Manual References None Feature Manual References 1.19.5 Voice Mail DTMF Integration 2.9.20 [3-8-2] VM(DTMF) Group—Group Settings—Member List Select the group to program from the VM(DTMF) Group Number list. To assign members to the group, enter directly or click Extension Number Setting (see 2.1.6 Extension Number Setting).
  • Page 402: 3-9] Ps Ring Group

    One PS can belong to multiple PS ring groups. A maximum of 32 PS ring groups can be programmed, each containing up to 28 (with the KX-TDA50), 128 (with the KX- TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions.
  • Page 403: 3-9] Ps Ring Group-member List

    1.13.27 PS Ring Group 2.9.22 [3-9] PS Ring Group—Member List Each PS Ring Group can have up to 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions assigned. Select the group to program from the PS Ring Group Number list.
  • Page 404 2.9 [3] Group Value Range Max. 4 digits Maintenance Console Location 2.9.22 [3-9] PS Ring Group—Member List Programming Manual References 2.9.21 [3-9] PS Ring Group 2.7.31 [1-2] Portable Station—Extension No. Feature Manual References 1.13.27 PS Ring Group Extension Name Indicates the name of the PS (reference only). Default Not stored.
  • Page 405: 4] Extension

    2.10 [4] Extension 2.10 [4] Extension 2.10.1 [4-1-1] Wired Extension—Extension Settings For each slot in which an extension card is installed, a certain number of extension ports are displayed. For each extension port, various extension settings can be assigned. To assign a set of CLIP numbers automatically, click CLIP Generate. To assign names and tenants to extension user groups, click Extension User Group Table.
  • Page 406 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 407 2.10 [4] Extension Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...
  • Page 408 Feature Manual References None Extension Group Specifies the extension user group to which the extension belongs. Extension user groups are used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 PC Programming Manual...
  • Page 409 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.7.1 GROUP FEATURES 1.17.3 Tenant Service Specifies the COS of the extension. Default Value Range 1–64 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings Feature Manual References...
  • Page 410 2.10 [4] Extension WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.
  • Page 411 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 412 2.10 [4] Extension Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...
  • Page 413 2.10 [4] Extension Intercept Destination—When Called Party is Busy Specifies the Intercept Routing destination of calls when the extension is busy. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...
  • Page 414 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001...
  • Page 415 2.10 [4] Extension (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command...
  • Page 416 2.10 [4] Extension Programming Manual References 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Intercept Routing No Answer (IRNA)— Day, Lunch, Break, Night Feature Manual References 1.9.11 Intercept Routing ISDN CLIP Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...
  • Page 417 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 418 2.10 [4] Extension Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None CLIP ID Specifies the CLIP number sent to the public network to show on the called party's telephone display when making a CO line call.
  • Page 419 2.10 [4] Extension Value Range Extension: Show the CLIP number specified in CLIP ID on the ISDN CLIP tab. CO: Show the CLIP number specified in Subscriber Number in 2.7.14 [1-1] Slot—PRI Port (KX- TDA100/KX-TDA200/KX-TDA600 only). Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO Setting—Subscriber Number...
  • Page 420 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) Option 1 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 421 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 422 2.10 [4] Extension Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...
  • Page 423 2.10 [4] Extension Feature Manual References 1.20.4 Wireless XDP Parallel Mode Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the extension. Default Value Range 1–8 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.8.14 [2-8-1] Ring Tone Patterns—Call from CO 2.8.15 [2-8-2] Ring Tone Patterns—Call from Doorphone 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others...
  • Page 424 2.10 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.8 Call Transfer ARS Itemized Code Specifies the itemized billing code used by the ARS feature for identifying calls made from the extension for accounting and billing purposes.
  • Page 425 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 426 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 427 2.10 [4] Extension Feature Manual References None Manual C. Waiting for Extension Call Selects the method of receiving call waiting notification from other extensions. Default Value Range Off: No notification BSS: Tone from the handset or built-in speaker OHCA: Voice from the built-in speaker W-OHCA: Voice from the handset Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 428 2.10 [4] Extension Pickup Dial Set Sets or cancels the Hot Line feature. The number specified in Pickup Dial Number on this screen is dialed automatically after going off-hook when the Hot Line feature is active. Default Value Range Off, On Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...
  • Page 429 2.10 [4] Extension Value Range Off, On Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.4.1 Data Line Security Option 3 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location...
  • Page 430 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 431 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 432 2.10 [4] Extension Executive Override Deny Specifies whether calls can be interrupted by other extensions. Default Disable Value Range Disable: Allows other extension users to interrupt an existing call Enable: Prevents other extension users from interrupting an existing call Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 433 2.10 [4] Extension Value Range Tone Call, Voice Call, Deny Voice Call Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.9.13 Intercom Call Option 4 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...
  • Page 434 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 435 None Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups.
  • Page 436 2.10 [4] Extension Idle: An idle CO line is seized automatically from the programmed trunk groups. ICM/PDN: An extension line is seized, or, for a PDN extension, an idle PDN button is selected. F-1–F-36: A CO line programmed for a flexible CO button (F-1–F-36) is seized. A flexible CO button customized as a Single-CO, Group-CO, Loop-CO, or ICD Group button must be selected.
  • Page 437 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.3.10 Call Waiting Tone LCS Recording Mode Specifies whether to continue or stop recording the message in the extension's mailbox when the extension user answers a call that was being monitored.
  • Page 438 2.10 [4] Extension 1.19.4 Voice Mail DPT (Digital) Integration Option 5 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot...
  • Page 439 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 440 Selects which caller information is shown on the first line of the extension's display. Default Caller ID Name Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name PC Programming Manual...
  • Page 441 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.4.8 Display Information Automatic LCD Switch when Start Talking Enables the first line of the display to show the call duration automatically after answering a CO line call.
  • Page 442 2.10 [4] Extension Automatic Answer for CO Call Enables the extension to answer an incoming CO line call automatically after a certain number of rings without going off-hook, when Hands-free Answerback has been set on the extension. This setting is only effective when Forced Automatic Answer on this screen has been set to Off. Default Disable Value Range...
  • Page 443 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001...
  • Page 444 2.10 [4] Extension (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command...
  • Page 445 2.10 [4] Extension Programming Manual References None Feature Manual References None Flexible Button Programming Mode Specifies whether the extension user can modify all flexible CO buttons without limitation, or only the One-touch Dialing buttons. When the mode is set to One-touch Dial, there is no need to enter "2" before the number when customizing a One-touch Dialing button.
  • Page 446: Paging Deny

    Value Range Unlock, Lock Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.3.3 Call Log, Incoming 1.16.5 SVM (Simplified Voice Message) Paging Deny Specifies whether paging of the extension from other extensions is enabled.
  • Page 447 2.10 [4] Extension Value Range Disable, Enable Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.13.1 Paging Option 7 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 448 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 449 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 450 2.10 [4] Extension Flash Mode during CO Conversation Selects the function of the FLASH/RECALL button during a CO line conversation. Default Flash Recall Value Range EFA, Terminate, Flash Recall Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.5.1 EFA (External Feature Access)
  • Page 451 2.10 [4] Extension Value Range 1–100 Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 1.15.1 Redial, Last Number ISDN Bearer (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the ISDN bearer mode. When Automatic is selected, the bearer mode is set automatically depending on the extension's telephone type as follows: PT: Speech SLT: Audio...
  • Page 452 2.10 [4] Extension Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...
  • Page 453 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 454 Enables the extension to send Caller ID information to an SLT. Note that for KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 2.8.18 [2-10] Extension CID Settings.
  • Page 455 2.10 [4] Extension Note that for the KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 2.8.18 [2-10] Extension CID Settings.
  • Page 456 2.10 [4] Extension Value Range 0–3000 s Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.9.12 [3-5-4] Incoming Call Distribution Group—Member—Wrap-up Timer 2.9.11 [3-5-3] Incoming Call Distribution Group—Miscellaneous—Options—Wrap-up Timer based on Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Option 9 Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 457 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 458 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.7.6 [1-1] Slot—Extension Port—Port Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...
  • Page 459 2.10 [4] Extension FWD / DND Reference Call Forwarding (FWD) and Do Not Disturb (DND) settings for each extension can be referred. FWD and DND settings can be programmed separately for each extension in 2.10.3 [4-1-2] Wired Extension—FWD/DND. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 460 Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2–4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.
  • Page 461 2.10 [4] Extension Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only).
  • Page 462 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.4.9 DND (Do Not Disturb) FWD Mode for Call from CO Indicates the forwarding type of incoming CO line calls (reference only). Default None Value Range...
  • Page 463 2.10 [4] Extension FWD Set for Call from Extension Indicates the current FWD status for incoming intercom calls (reference only). Default Value Range Off, On Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension...
  • Page 464 2.10 [4] Extension Maintenance Console Location 2.10.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 2.10.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from Extension Indicates the forwarding destination of incoming intercom calls (reference only). Default Not stored.
  • Page 465: 4-1-1] Wired Extension-extension Settings-clip Generate

    2.10 [4] Extension 2.10.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.
  • Page 466 2.10 [4] Extension Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–5 Maintenance Console Location 2.10.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References...
  • Page 467: 4-1-2] Wired Extension-fwd/dnd

    2.10 [4] Extension Maintenance Console Location 2.10.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 2.10.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) 2.10.3 [4-1-2] Wired Extension—FWD/DND For each extension, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls.
  • Page 468 2.10 [4] Extension Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.
  • Page 469 2.10 [4] Extension Call from CO—FWD Destination Specifies the forwarding destination of incoming CO line calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References...
  • Page 470 2.10 [4] Extension Value Range OFF: Enables extensions to switch to FWD mode by pressing the FWD/DND button, if forward settings have been programmed. ON: Prevents extensions from switching to FWD mode by pressing the FWD/DND button. Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None...
  • Page 471 2.10 [4] Extension Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...
  • Page 472: 4-1-3] Wired Extension-speed Dial

    Personal Speed Dialing allows extension users to dial frequently dialed numbers using two-digit speed dialing numbers (00–99). A maximum of 10 Personal Speed Dialing numbers can be programmed for each extension, or 100 when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Select the desired extension from the Extension Number / Name list.
  • Page 473: 4-1-4] Wired Extension-flexible Button

    For more information on flexible buttons, see "1.6.3 Flexible Buttons" in the Feature Manual. Display Option—Key Setting Type Specifies the feature to be assigned to the flexible CO button. Default KX-TDA50 Key Location 1–16: Single CO Key Location 17–36: Not Stored KX-TDA100/KX-TDA200/KX-TDA600 Single CO...
  • Page 474 2.10 [4] Extension Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed.
  • Page 475 2.10 [4] Extension Default Automatic Value Range Automatic, Specific Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 1.3.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the extension belongs to are logged in to or logged out from.
  • Page 476 2.10 [4] Extension Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain extension. Default Value Range 1–7...
  • Page 477 2.10 [4] Extension Feature Manual References 1.17.5 Time Service Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls arriving at an SDN button. Default Immediate Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References...
  • Page 478 2.10 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.1 ICD GROUP FEATURES Ext. No. / Floating Ext. No. (for Message Waiting) Specifies the number of an extension or floating extension number of an incoming call distribution group for which messages are checked.
  • Page 479 2.10 [4] Extension Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Group FWD (External)) Specifies the floating extension number of an incoming call distribution group for which CO line calls are forwarded.
  • Page 480 2.10 [4] Extension Ext. No. / Floating Ext. No. (for Call Log) Specifies the extension's own number or the floating extension number of an incoming call distribution group for which call log information is displayed. If the cell is left empty, the extension will display its own call log information.
  • Page 481 2.10 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Overflow No Answer Feature Manual References 1.9.6 ICD Group Features—Queuing Ext. No. / Floating Ext. No. (for Two-way Record) Specifies the floating extension number of the VM (DPT) group containing the extension's mailbox.
  • Page 482 2.10 [4] Extension Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Specifies the floating extension number of the VM (DTMF/DPT) group containing the desired mailbox. Default Not stored. Value Range Max.
  • Page 483 2.10 [4] Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles. Default Not stored.
  • Page 484 2.10 [4] Extension Value Range 1–8 Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.17.5 Time Service Optional Parameter (Ringing Tone Type Number) (for Loop CO, Single CO, Group CO, ICD Group, SDN) Specifies the ring tone type.
  • Page 485 2.10 [4] Extension Programming Manual References None Feature Manual References 1.3.5 Call Park Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One- touch Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time.
  • Page 486 2.10 [4] Extension Extension Number This parameter is equivalent to Ext. No. / Floating Ext. No. on the Key Setting screen. Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.10.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext.
  • Page 487 2.10 [4] Extension Feature Manual References None Parameter 1 This parameter is equivalent to Parameter Selection on the Key Setting screen. Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.10.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter Selection (for Single CO) 2.10.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter Selection (for Group CO) 2.10.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Parameter...
  • Page 488 2.10 [4] Extension Mailbox Number This parameter is equivalent to Ext No. of Mailbox on the Key Setting screen. Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References 2.10.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting—Ext No. of Mailbox (for Two-way Transfer) Feature Manual References None...
  • Page 489 2.10 [4] Extension Feature Manual References None Color of Background Specifies the color used for the label background for the corresponding button. Click Choose to select a color. Default White Value Range Any color Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References...
  • Page 490: 4-1-4] Wired Extension-flexible Button-flexible Button Data Copy

    2.10 [4] Extension Default T7633/T7636 Value Range T7633/T7636, T7625/T7630/NT136, NT265, T7667, Other Maintenance Console Location 2.10.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References None 2.10.6 [4-1-4] Wired Extension—Flexible Button—Flexible Button Data Copy The flexible CO button settings (including key label settings) of an extension can be copied to different extensions.
  • Page 491: 4-1-6] Wired Extension-ndss Link Data - Send

    2.10 [4] Extension Default Not stored. Value Range Not Stored, One Touch Maintenance Console Location 2.10.7 [4-1-5] Wired Extension—PF Button Programming Manual References None Feature Manual References 1.6.3 Flexible Buttons Dial Specifies the number to be dialed. Default Not stored. Value Range Max.
  • Page 492: 4-1-7] Wired Extension-simplified Voice Message (kx-tda50 Only)

    Indicates the slot position (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only).
  • Page 493 2.10 [4] Extension Default Current port number Value Range Port number Maintenance Console Location 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Programming Manual References None Feature Manual References None Extension Number Indicates the extension number (reference only). Default Not stored.
  • Page 494 Default Card1 Value Range None, Card1, Card2 Maintenance Console Location 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) Programming Manual References None Feature Manual References None Maximum SVM Log Specifies the maximum number of voice messages (not including greeting messages) that can be stored for the extension.
  • Page 495: 4-2-1] Portable Station-extension Settings

    2.10.10 [4-2-1] Portable Station—Extension Settings For each Portable Station (PS), various extension settings can be assigned. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), or 512 (with the KX-TDA600) PSs can be programmed. To assign names and tenants to extension user groups, click Extension User Group Table. See 2.9.3 [3-2] Extension Group for more details.
  • Page 496 Extension Group Specifies the extension user group to which the PS belongs. The extension user group is used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings...
  • Page 497 2.10 [4] Extension Default Value Range 1–64 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings Feature Manual References 1.3.19 COS (Class of Service) Extension PIN Specifies the PIN of the PS. Default Not stored.
  • Page 498 2.10 [4] Extension Intercept Destination Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name...
  • Page 499 2.10 [4] Extension Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination—Intercept Destination—When Called Party is Busy Feature Manual References 1.9.11 Intercept Routing Intercept Destination—When Called Party is Busy...
  • Page 500 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name...
  • Page 501 2.10 [4] Extension Feature Manual References 1.9.11 Intercept Routing ISDN CLIP Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension No.
  • Page 502 2.10 [4] Extension Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) CLIP on Extension/CO (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the CLIP number to show on the called party's telephone.
  • Page 503 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) COLR Specifies whether to restrict the display of the CLIP number of the PS on the caller's telephone display when answering a call.
  • Page 504 2.10 [4] Extension Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None Ring Pattern Table Specifies the Ring Tone Pattern Table to be used by the PS.
  • Page 505 2.10 [4] Extension Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.19.5 Voice Mail DTMF Integration Transfer Recall Destination Specifies the transfer recall destination when an extension user transfers a call with the Call Transfer without Announcement feature and the transferred call is not answered within a certain time period.
  • Page 506 2.10 [4] Extension Programming Manual References 2.14.6 [8-5] Carrier Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.19.1 Verification Code Entry Option 2 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...
  • Page 507 2.10 [4] Extension Manual C. Waiting for Extension Call Selects the method of receiving call waiting notification from other extensions. Default Value Range Off: No notification BSS: Tone from the handset or built-in speaker Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...
  • Page 508 2.10 [4] Extension Value Range Off, On Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone—Dial—Hot Line (Pickup Dial) Start Feature Manual References 1.8.6 Hot Line Pickup Dial No. Specifies the number to be dialed automatically after going off-hook when the Hot Line feature is active.
  • Page 509 2.10 [4] Extension Programming Manual References 2.7.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None...
  • Page 510 2.10 [4] Extension Default Disable Value Range Disable: Allows other extension users to interrupt an existing call Enable: Prevents other extension users from interrupting an existing call Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.5.3 Executive Busy Override Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be...
  • Page 511 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized.
  • Page 512 2.10 [4] Extension Idle: An idle CO line is seized automatically from the programmed trunk groups. ICM/PDN: An extension line is seized, or, for a PDN extension, an idle PDN button is selected. F-1–F-12: A CO line programmed for a flexible CO button (F-1–F-12) is seized. A flexible CO button customized as a Single-CO, Group-CO, Loop-CO, or ICD Group button must be selected.
  • Page 513 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.3.10 Call Waiting Tone LCS Recording Mode Specifies whether to continue or stop recording the message in the PS's mailbox when the PS user answers a call that was being monitored.
  • Page 514 2.10 [4] Extension Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None Display Language Selects the display language of the PS.
  • Page 515 2.10 [4] Extension Value Range For KX-TDA50: Caller ID Name, CO Line Name For KX-TDA100/KX-TDA200/KX-TDA600: Caller ID Name, CO Line Name, DID Name Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.4.8 Display Information...
  • Page 516 Selects whether Simplified Voice Message Log information can be displayed at the extension or other extensions. Default Unlock Value Range Lock, Unlock Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) PC Programming Manual...
  • Page 517 2.10 [4] Extension Flexible Button Programming Mode Specifies whether the PS user can modify all flexible CO buttons without limitation, or only the One- touch Dialing buttons. When the mode is set to One-touch Dial, there is no need to enter "2" before the number when customizing a One-touch Dialing button.
  • Page 518 2.10 [4] Extension Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None Character Input Mode Selects the character table to be used for entering characters. Default Table 1 Value Range...
  • Page 519 2.10 [4] Extension Feature Manual References 1.5.1 EFA (External Feature Access) 1.6.2 Flash/Recall/Terminate Incoming Call Log Memory Specifies the number of incoming CO line calls that are retained in the PS's Incoming Call Log memory. Default Value Range 0–100 Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None...
  • Page 520 2.10 [4] Extension Default Automatic Value Range Automatic, Speech, Audio Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.9.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Option 8 Extension Number Indicates the extension number of the PS (reference only). Default Not stored.
  • Page 521 2.10 [4] Extension Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None Group CW w/o Tone (Ring after Call) Enables an incoming call to an incoming call distribution group to arrive at a previously busy extension at the moment that the extension goes on-hook for the previous call.
  • Page 522 2.10 [4] Extension Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Option 9 Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension No.
  • Page 523 2.10 [4] Extension Default Immediate Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension FWD / DND Reference Call Forwarding (FWD) and Do Not Disturb (DND) settings for each PS can be referred.
  • Page 524 2.10 [4] Extension Value Range Max. 20 characters Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.7.31 [1-2] Portable Station—Extension Name Feature Manual References None FWD Set for Call from CO Indicates the current FWD status for incoming CO line calls (reference only). Default Value Range Off, On...
  • Page 525 2.10 [4] Extension Feature Manual References 1.4.9 DND (Do Not Disturb) FWD Mode for Call from CO Indicates the forwarding type of incoming CO line calls (reference only). Default None Value Range None, FWD All, FWD Busy, FWD N/A, FWD Busy N/A Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...
  • Page 526 2.10 [4] Extension Value Range Off, On Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 2.10.12 [4-2-2] Portable Station—FWD / DND Feature Manual References 1.6.6 FWD (Call Forwarding) DND Set for Call from Extension Indicates the current DND status for incoming intercom calls (reference only). Default Value Range Off, On...
  • Page 527 2.10 [4] Extension Feature Manual References 1.6.6 FWD (Call Forwarding) FWD Destination for Call from Extension Indicates the forwarding destination of incoming intercom calls (reference only). Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...
  • Page 528: 4-2-1] Portable Station-extension Settings-clip Generate

    2.10 [4] Extension 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.
  • Page 529 2.10 [4] Extension Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–4 Maintenance Console Location 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References...
  • Page 530: 4-2-2] Portable Station-fwd / Dnd

    2.10 [4] Extension Maintenance Console Location 2.10.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 2.10.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 1.3.13 CLIP (Calling Line Identification Presentation) 2.10.12 [4-2-2] Portable Station—FWD / DND For each PS, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls.
  • Page 531 2.10 [4] Extension Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.
  • Page 532 2.10 [4] Extension Call from CO—FWD Destination Specifies the forwarding destination of incoming CO line calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None Feature Manual References...
  • Page 533 2.10 [4] Extension Value Range OFF: Enables extensions to switch to FWD mode by pressing the FWD/DND button, if forward settings have been programmed. ON: Prevents extensions from switching to FWD mode by pressing the FWD/DND button. Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References None...
  • Page 534 2.10 [4] Extension Programming Manual References None Feature Manual References 1.6.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.10.12 [4-2-2] Portable Station—FWD / DND Programming Manual References...
  • Page 535: 4-2-3] Portable Station-flexible Button

    Programming Manual References 2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button Data Copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 PC Programming Manual...
  • Page 536 None Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings...
  • Page 537 2.10 [4] Extension Programming Manual References None Feature Manual References 1.3.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the PS belongs to are logged in to or logged out from. Default None Value Range None: The incoming call distribution group is selected manually.
  • Page 538 2.10 [4] Extension Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain PS. Default Value Range 1–7 Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—TRS 2.13 [7] TRS Feature Manual References 1.4.4 Dial Tone Transfer...
  • Page 539 2.10 [4] Extension Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.8.17 [2-9] System Options—Option 4—System Wireless—SDN Delayed Ringing with LCD (KX- TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension...
  • Page 540 2.10 [4] Extension Feature Manual References 1.9.1 ICD GROUP FEATURES Ext. No. / Floating Ext. No. (for Message Waiting) Specifies the number of an extension or floating extension number of an incoming call distribution group for which messages are checked. If this cell is left empty, the PS will check its own messages only.
  • Page 541 2.10 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Group Log / Group FWD Feature Manual References 1.6.6 FWD (Call Forwarding) Ext.
  • Page 542 2.10 [4] Extension Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection).
  • Page 543 2.10 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 2.9.16 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Specifies the floating extension number of the VM (DTMF/DPT) group containing the desired mailbox.
  • Page 544 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 500 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 1000 (with the KX-TDA600) One-touch Dialing buttons for PSs.
  • Page 545 2.10 [4] Extension Programming Manual References 2.15.4 [9-4] NDSS Key Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (or Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...
  • Page 546 2.10 [4] Extension Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One- touch Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time.
  • Page 547 2.10 [4] Extension 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for ICD Group) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for Message Waiting) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext.
  • Page 548 2.10 [4] Extension Programming Manual References 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Single CO) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Group CO) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Call Park) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Log-in/Log-out) 2.10.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—Parameter Selection (for Time Service)
  • Page 549: 4-2-3] Portable Station-flexible Button-flexible Button Data Copy

    2.10 [4] Extension Feature Manual References None 2.10.14 [4-2-3] Portable Station—Flexible Button—Flexible Button Data Copy The flexible CO button settings of a PS can be copied to different PSs. Destination Extension Line Select the number and name of the PS that will receive the copied settings. Multiple PSs can be selected.
  • Page 550: 4-2-5] Portable Station-simplified Voice Message (kx-tda50 Only)

    Indicates the extension number (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Programming Manual References 2.7.31 [1-2] Portable Station—Extension No. Feature Manual References None Extension Name Indicates the name of the extension (reference only).
  • Page 551 Default Card1 Value Range None, Card1, Card2 Maintenance Console Location 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) Maximum of SVM Log Specifies the maximum number of voice messages (not including greeting messages) that can be stored for the extension.
  • Page 552: 4-3] Dss Console-flexible Button

    1.16.5 SVM (Simplified Voice Message) 2.10.17 [4-3] DSS Console—Flexible Button A DSS Console can be used in conjunction with a PT. A maximum of 4 (with the KX-TDA50), 8 (with the KX-TDA100/KX-TDA200), or 64 (with the KX-TDA600) DSS Consoles can be programmed. The DPT Type—Type (for DPT or S-Hybrid port) of the extension port that the DSS Console is...
  • Page 553 2.10.18 [4-3] DSS Console—Flexible Button—Flexible button Data Copy Feature Manual References 1.6.3 Flexible Buttons Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button...
  • Page 554 2.10 [4] Extension Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings Feature Manual References 1.3.14 CO Line Access Parameter Selection (for Call Park) Specifies whether a call is parked in an idle parking zone automatically or in a specific parking zone.
  • Page 555 2.10 [4] Extension Value Range None: The incoming call distribution group is selected manually. All: All incoming call distribution groups that the paired extension belongs to. Incoming Group: A pre-specified incoming call distribution group Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References...
  • Page 556 2.10 [4] Extension 2.13 [7] TRS Feature Manual References 1.4.4 Dial Tone Transfer 1.17.6 TRS (Toll Restriction) Parameter Selection (for Time Service - Automatic/Manual) Specifies the Time Table to be used when the Time Service Switching Mode is set to automatic. Default Value Range 1–8...
  • Page 557 2.10 [4] Extension Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for ICD Group) Specifies the floating extension number of an incoming call distribution group to be accessed. Default Not stored.
  • Page 558 2.10 [4] Extension Programming Manual References None Feature Manual References 1.11.3 Message Waiting Ext. No. / Floating Ext. No. (for Group Fwd (Both)) Specifies the floating extension number of an incoming call distribution group for which both intercom and CO line calls are forwarded. Default Not stored.
  • Page 559 2.10 [4] Extension Ext. No. / Floating Ext. No. (for Group Fwd (Internal)) Specifies the floating extension number of an incoming call distribution group for which intercom calls are forwarded. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References...
  • Page 560 2.10 [4] Extension Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 1.9.3 ICD Group Features—Log-in/Log-out Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection).
  • Page 561 2.10 [4] Extension Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Two-way Transfer) Specifies the floating extension number of the VM (DPT) group containing the desired mailbox. Default Not stored. Value Range Max.
  • Page 562 Feature Manual References 1.4.6 DIL (Direct In Line) Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX- TDA100/KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.
  • Page 563 2.10 [4] Extension Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.15.4 [9-4] NDSS Key Table Feature Manual References 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (Ringing Tone Type Number) (for Time Service)
  • Page 564 2.10 [4] Extension Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References 1.15.2 Ring Tone Pattern Selection Optional Parameter (Ringing Tone Type Number) (for Call Park) Specifies the number of the parking zone a call is to be parked in when a Call Park button with Parameter Selection (for Call Park) on this screen set to Specific is pressed.
  • Page 565 2.10 [4] Extension Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration Display Option—Key Setting & Key Label Name (MPR Software File Version 4.0000 or later) The Key Label Name function allows you to print out a key label template for flexible DSS buttons, according to the DSS Console you are using.
  • Page 566 2.10 [4] Extension 2.10.17 [4-3] DSS Console—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for Two-way Record) 2.10.17 [4-3] DSS Console—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No. (for Two-way Transfer) 2.10.17 [4-3] DSS Console—Flexible Button—Display Option—Key Setting—Ext. No. / Floating Ext. No.
  • Page 567 2.10 [4] Extension 2.10.17 [4-3] DSS Console—Flexible Button—Display Option—Key Setting—Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Parameter 2 This parameter is equivalent to Optional Parameter (Ringing Tone Type Number) on the Key Setting screen. Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References 2.10.17 [4-3] DSS Console—Flexible Button—Display Option—Key Setting—Optional Parameter...
  • Page 568 2.10 [4] Extension Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References None Color of Font Specifies the color used for the label text for the corresponding button. Click Choose to select a color. Default Black Value Range...
  • Page 569: 4-3] Dss Console-flexible Button-flexible Button Data Copy

    2.10 [4] Extension Font Size Specifies the size of the font on the label for the corresponding button. Default Value Range 4–15 Maintenance Console Location 2.10.17 [4-3] DSS Console—Flexible Button Programming Manual References None Feature Manual References None DSS Type (MPR Software File Version 4.0000 or later) DSS Type Selects the type of DSS Console for which you want to print a key label template.
  • Page 570 2.10 [4] Extension Destination DSS Console Select the number of the DSS Console and paired extension. Multiple DSS Consoles can be selected. To select all DSS Consoles at once, click Select All. When selecting multiple extensions, note that if the source extension has an SDN button, the copy operation cannot be performed.
  • Page 571: 5] Optional Device

    1.4.11 Doorphone Call Physical—Slot Indicates the slot to which the doorphone is connected (reference only). Default Current slot number Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References...
  • Page 572 2.11 [5] Optional Device Feature Manual References 1.4.11 Doorphone Call Physical—Port Indicates the port number to which the doorphone is connected (reference only). Default Current port number Value Range Port number Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References None Feature Manual References 1.4.11 Doorphone Call...
  • Page 573 2.11 [5] Optional Device Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 2.11.1 [5-1] Doorphone Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.4.11 Doorphone Call Tenant Number Specifies the tenant number for the doorphone port in order to apply the Time Table (day/lunch/break/ night).
  • Page 574: 5-2] External

    2.11 [5] Optional Device Programming Manual References 2.8.11 [2-7-1] Class of Service—COS Settings—TRS—TRS Level—Day, Lunch, Break, Night 2.8.13 [2-7-3] Class of Service—Internal Call Block Feature Manual References 1.4.11 Doorphone Call 1.9.14 Internal Call Block VM Trunk Group Number Specifies the number of the VPS trunk group sent to the VPS when the doorphone call destination is the floating extension number of a VM (DPT) group.
  • Page 575: 5-3-1] Voice Message-disa System

    2.11 [5] Optional Device Maintenance Console Location 2.11.2 [5-2] External Pager Programming Manual References None Feature Manual References 1.2.1 BGM (Background Music) 1.13.1 Paging 1.17.2 TAFAS (Trunk Answer From Any Station) Page Number 1, Page Number 2—Name Specifies the name of the external pager. Default Not stored.
  • Page 576 2.11 [5] Optional Device Default Trunk Value Range None: Intercom calls, TIE line calls, and CO line calls can be made. Trunk: Intercom calls and TIE line calls without PBX code can be made. TIE line calls with PBX code and CO line calls are restricted.
  • Page 577 2.11 [5] Optional Device Value Range Busy Tone, Enable, Busy Message Maintenance Console Location 2.11.3 [5-3-1] Voice Message—DISA System Programming Manual References None Feature Manual References None DISA Intercept—Intercept when all DISA ports are busy Selects how DISA calls are handled if all DISA ports are currently in use. Default to Operator Value Range...
  • Page 578 2.11 [5] Optional Device Feature Manual References None CO-CO with DISA—DISA to Public CO Specifies whether the DISA port of the message card is released when a CO-to-CO line call using DISA is established. To enable this setting, "CO-CO with DISA—Fwd/Transfer to Public CO" on this screen should be set to "Enable".
  • Page 579 2.11 [5] Optional Device Programming Manual References 2.11.3 [5-3-1] Voice Message—DISA System—Option 1—CO-CO with DISA—Fwd/Transfer to Private Network Feature Manual References None CO-CO with DISA—Fwd/Transfer to Public CO Enables CO-to-CO line calls to be established using DISA. Default Disable Value Range Disable: CO-to-CO line calls are established without using DISA.
  • Page 580 2.11 [5] Optional Device Feature Manual References None CO-CO with DISA—Transfer by DTMF "#" (Optional SD Card Required) Specifies whether an outside party such as a cellular phone can transfer a CO line call to an extension within the PBX by dialing "#" + extension number. Default Disable Value Range...
  • Page 581 DISA CO--to-CO line conversation established through an analog CO line. To apply changes to this setting, follow the steps below: Change this setting. Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) to "OUS", then "INS". Default...
  • Page 582 Note that this option can only be set when DISA Cyclic Tone Detection on this screen is set to "Option". To apply changes to this setting, follow the steps below: Change this setting Set the status of the MSG card (KX-TDA50) or OPB3 card (KX-TDA100/KX-TDA200/KX- TDA600) card to "OUS", then "INS". Default 600 ms Value Range 100 + 10 ×...
  • Page 583: 5-3-2] Voice Message-disa Message

    1.17.4 Timed Reminder 2.11.4 [5-3-2] Voice Message—DISA Message Outgoing messages (OGM) for DISA calls can be specified. A maximum of 32 (with the KX-TDA50) or 64 (with the KX-TDA100/KX-TDA200/KX-TDA600) OGMs can be programmed. To view a list of all programmed extension numbers and types, click Extension List View (see 2.4.6...
  • Page 584 Tool—Extension List View). To assign AA destinations easily, click Extension Number Setting (see 2.1.6 Extension Number Setting). Floating Extension Number Specifies the floating extension number of the OGM. Default For KX-TDA50: OGM 01–32: 501–532 For KX-TDA100/KX-TDA200/KX-TDA600: OGM 01–64: 501–564 Value Range Max.
  • Page 585 Programming Manual References 2.11.3 [5-3-1] Voice Message—DISA System Feature Manual References 1.4.7 DISA (Direct Inward System Access) Fax Extension (KX-TDA50 only) Specifies the extension number to which to transfer a call when the MSG card detects a fax signal. PC Programming Manual...
  • Page 586: 5-3-3] Voice Message-svm (kx-tda50 Only)

    Feature Manual References 1.1.6 Automatic Fax Transfer 1.4.7 DISA (Direct Inward System Access) 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Settings related to the SVM cards can be specified, for use with the Simplified Voice Message feature. SVM Card No. 1, 2—Slot No.
  • Page 587 2.11 [5] Optional Device Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Card No. 1, 2—Card Name Specifies the name of the SVM card, for programming reference.
  • Page 588: Remote Access

    2.11 [5] Optional Device Programming Manual References 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only) Feature Manual References 1.16.5 SVM (Simplified Voice Message) Remote Access Selects whether the Walking COS feature can be used while listening to a greeting message from the SVM feature.
  • Page 589 90 ms Option: The tone pattern that the PBX receives is optional as specified in SVM Cyclic Tone Option on this screen. Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References None Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Cyclic Tone Option—Tone On Maximum Time...
  • Page 590: 5-4] External Relay

    Default 600 ms Value Range 20 × n (n=6–200) ms Maintenance Console Location 2.11.5 [5-3-3] Voice Message—SVM (KX-TDA50 only) Programming Manual References 2.7.1 [1-1] Slot Feature Manual References 1.16.5 SVM (Simplified Voice Message) SVM Cyclic Tone Option—Repeating Times of On/Off for Detection Specifies the number of times the tone pattern (a set of tone-on and tone-off) must be received to establish reception of the cyclic tone.
  • Page 591 2.11 [5] Optional Device Default Current external relay number. Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200: 1–16 KX-TDA600: 1–64 Maintenance Console Location 2.11.6 [5-4] External Relay Programming Manual References None Feature Manual References 1.5.8 External Relay Physical Location—Shelf (KX-TDA600 only) Indicates the shelf position (reference only).
  • Page 592 2.11 [5] Optional Device Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.6 [5-4] External Relay Programming Manual References None Feature Manual References 1.5.8 External Relay Physical Location—Port Indicates the port number (reference only).
  • Page 593 2.11 [5] Optional Device Programming Manual References None Feature Manual References 1.5.8 External Relay Relay Activate Time Specifies the length of time that the relay stays on when activated. Default Value Range 1–7 s Maintenance Console Location 2.11.6 [5-4] External Relay Programming Manual References None Feature Manual References...
  • Page 594: 5-5] External Sensor

    To assign destinations for sensor calls easily, click Extension Number of Destination Setting (see 2.1.6 Extension Number Setting). External Sensor No. Indicates the number of the external sensor (reference only). Default Current external sensor number. Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200: 1–16 KX-TDA600: 1–64 Maintenance Console Location 2.11.7 [5-5] External Sensor...
  • Page 595 Feature Manual References 1.5.9 External Sensor Physical Location—Slot Indicates the slot position (reference only). Default Current slot and sub-slot number. Value Range For KX-TDA50: Slot number For KX-TDA100/KX-TDA200/KX-TDA600: Slot and sub-slot number Maintenance Console Location 2.11.7 [5-5] External Sensor Programming Manual References...
  • Page 596 2.11 [5] Optional Device Default Sensor Value Range Max. 20 characters Maintenance Console Location 2.11.7 [5-5] External Sensor Programming Manual References None Feature Manual References 1.5.9 External Sensor Destination—Day, Lunch, Break, Night Specifies the destination number of sensor calls for each port in each time mode. Default Not stored.
  • Page 597 2.11 [5] Optional Device Programming Manual References 2.8.5 [2-4] Week Table Feature Manual References 1.5.9 External Sensor 1.17.3 Tenant Service PC Programming Manual...
  • Page 598: 6] Feature

    Selects the System Speed Dialing Table to be programmed. Whether a tenant uses the basic System Speed Dialing Table or the additional table (with MEC [KX-TDA50/KX-TDA100/KX-TDA200] or EMEC [KX-TDA600] card) depends on the setting of System Speed Dial in 2.12.6 [6-6] Tenant.
  • Page 599 2.12 [6] Feature Value Range Max. 20 characters Maintenance Console Location 2.12.1 [6-1] System Speed Dial Programming Manual References None Feature Manual References 1.16.4 Speed Dialing, System CO Line Access Number + Telephone Number Specifies the telephone number (including the CO Line Access number) or feature number assigned to the System Speed Dialing number.
  • Page 600: 6-2] Caller Id Modification

    2.12 [6] Feature Programming Manual References 2.16.2 [10-2] DIL Table & Port Settings—CLI for DIL—CLI Ring for DIL—Day, Lunch, Break, Night 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID—Day, Lunch, Break, Night Feature Manual References 1.3.1 Caller ID 1.3.12 CLI (Calling Line Identification) Distribution 2.12.2 [6-2] Caller ID Modification The telephone numbers of incoming callers can be modified automatically by a Caller ID Modification Table, and then recorded for calling back.
  • Page 601 2.12 [6] Feature Default Local / International Call Data 1–10: 3 Long Distance Code: 0 Value Range 0–9 Maintenance Console Location 2.12.2 [6-2] Caller ID Modification Programming Manual References 2.9.1 [3-1-1] Trunk Group—TRG Settings—Caller-ID Modification Table 2.12.1 [6-1] System Speed Dial Feature Manual References 1.3.1 Caller ID Added Number...
  • Page 602 2.12 [6] Feature Removed Number of Digits (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the number of leading digits to be removed from the incoming caller's number for each type of network numbering plan. Default International: 0 National: 0 Subscriber: 0 Value Range 0–9 Maintenance Console Location 2.12.2 [6-2] Caller ID Modification Programming Manual References...
  • Page 603: 6-3] Verification Code

    2.12 [6] Feature 2.12.3 [6-3] Verification Code A verification code is used to override the Toll Restriction (TRS) of the extension in use to make a certain CO line call, or to identify the call for accounting and billing purposes. A maximum of 1000 verification codes can be programmed with other related parameters.
  • Page 604 2.12 [6] Feature Default Not stored. Value Range Max. 10 digits (consisting of 0–9) Maintenance Console Location 2.12.3 [6-3] Verification Code Programming Manual References None Feature Manual References 1.19.1 Verification Code Entry WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX.
  • Page 605: 6-4] Second Dial Tone
