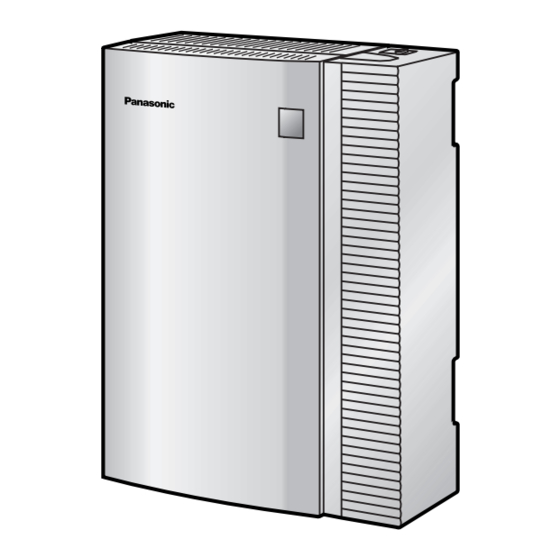

Hybrid IP-PBX
KX-TDA50/KX-TDA100
Model No.
KX-TDA200/KX-TDA600
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 6.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 5.0000 or later
KX-TDA600: PLMPR Software File Version 5.0000 or later

Advertisement

   Related Manuals for Panasonic KX-TDA50

   Summary of Contents for Panasonic KX-TDA50

  • Page 1

    Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-TDA50: PSMPR Software File Version 6.0000 or later KX-TDA100/KX-TDA200: PMPR Software File Version 5.0000 or later KX-TDA600: PLMPR Software File Version 5.0000 or later...

  • Page 2: Safety Notices

    Introduction About this Programming Manual The PC Programming Manual is designed to serve as a system programming reference for the Panasonic Hybrid IP-PBX. It explains how to program this PBX using the Maintenance Console software. The PC Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.

  • Page 3

    Questions (FAQ). • Some optional hardware, software, and features are not available in some areas, or for some PBX models. Please consult your certified Panasonic dealer for more information. • Product specifications are subject to change without notice. In some cases, additional information, including updates to this and other manuals, is included in the Maintenance Console’s Information before programming.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1 Overview ....................9 Introduction ........................10 1.1.1 Introduction ........................10 1.1.2 Entering Characters .......................11 PC Programming ......................12 1.2.1 Installing and Starting the Maintenance Console ............12 1.2.2 Password Security ......................14 2 Introduction of Maintenance Console ..........15 Introduction ........................16 2.1.1 Starting Maintenance Console and Software Modes .............16 2.1.2...

  • Page 5: Table Of Contents

    [1-1] Slot—Card Property - IP Extension—Common Settings ........195 3.24 [1-1] Slot—Port Property - IP-Extension Port .............197 3.25 [1-1] Slot—Card Property - SIP Gateway (KX-TDA50 only) ........204 3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) ...........205 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) ..208 3.28...

  • Page 6: Table Of Contents

    Table of Contents 3.32 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) ..........................225 3.33 [1-1] Slot—Card Property - ESVM Type (KX-TDA50 only) .........226 3.34 [1-2] Portable Station ....................228 3.35 [1-3] Option ........................232 3.36 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) ........235 4 [2] System .....................237 [2-1] Date &...

  • Page 7: Table Of Contents

    6.15 [4-2-4] Portable Station—NDSS Link Data - Send ............626 6.16 [4-2-5] Portable Station—Simplified Voice Message ..........627 6.17 [4-2-6] Portable Station—Single CO Appearance (KX-TDA50 only) ......630 6.18 [4-3] DSS Console ......................631 6.19 [4-3] DSS Console—DSS key data copy ..............650 7 [5] Optional Device ................651 [5-1] Doorphone ......................652...

  • Page 8: Table Of Contents

    14.1.2 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx ........786 14.1.3 KX-TDA100/KX-TDA200 PMPR Software File Version 5.0xxx ........787 14.1.4 KX-TDA50 PSMPR Software File Version 4.0xxx ............788 14.1.5 KX-TDA50 PSMPR Software File Version 5.0xxx ............789 14.1.6 KX-TDA50 PSMPR Software File Version 6.0xxx ............790 14.2...

  • Page 9: Overview

    Section 1 Overview This section provides an overview of programming the PBX. Document Version 2010-11 PC Programming Manual...

  • Page 10: Introduction

    1.1.1 Introduction 1.1 Introduction 1.1.1 Introduction These programming instructions are designed to serve as an overall system programming reference for the PBX. Each feature in the PBX has default settings that can be changed to customize the PBX to your requirements.

  • Page 11: Entering Characters

    1.1.2 Entering Characters 1.1.2 Entering Characters The characters on a white background below can be used when storing a name, message, password or other text entry data using a PC. The available characters vary according to the model of PBX. Document Version 2010-11 PC Programming Manual...

  • Page 12: Pc Programming

    1.2.1 Installing and Starting the Maintenance Console 1.2 PC Programming 1.2.1 Installing and Starting the Maintenance Console System programming, diagnosis and administration can be performed with a PC using the Maintenance Console. This section briefly describes how to install and start the Maintenance Console when the PC and the PBX are connected by USB cable.

  • Page 13

    1.2.1 Installing and Starting the Maintenance Console Carefully read this important additional information, which includes updates to this and other manuals. Click OK to close this window. Enter the Installer Level Programmer Code (default: INSTALLER). Note There are 2 other Programmer Codes with limited authorization: Administrator Level (default: ADMIN), and User Level (default: USER).

  • Page 14: Password Security

    1.2.2 Password Security 1.2.2 Password Security To maintain system security, system passwords are required to access certain programming functions of the PBX. By giving different users access to different passwords, it is possible to control the amount of programming that each user is able to perform. The following types of system passwords are available: Password Description...

  • Page 15: Introduction Of Maintenance Console

    Section 2 Introduction of Maintenance Console This section serves as reference operating instructions when using the Maintenance Console software to program the PBX. Document Version 2010-11 PC Programming Manual...

  • Page 16

    2.1.1 Starting Maintenance Console and Software Modes 2.1 Introduction 2.1.1 Starting Maintenance Console and Software Modes Every time Maintenance Console is started, a dialog box will appear. From here, you can enter any of the 2 available software modes. • Batch mode Batch mode allows you to create new system data files, and make modifications to system data files stored on your PC, without being connected to the PBX.

  • Page 17

    2.1.1 Starting Maintenance Console and Software Modes Connection Settings for RS-232C Setting Values Explanation Port COMx Specify the number of the COM port assigned to the PC’s RS-232C interface. Only available COM ports are displayed. Baud Rate (bps) 2400, 4800, 9600, 19200, Specify the speed of data transmission.

  • Page 18: Access Levels

    Property - CTILINK (KX-TDA100/ KX-TDA200/KX-TDA600 only) or 3.19 [1-1] Slot—Card Property - IP Gateway (KX-TDA50 only). 2.1.2 Access Levels There are three main levels of access to the Maintenance Console: User, Administrator and Installer. Each level has its own Programmer Code, which must be entered to run the Maintenance Console. The allowed...

  • Page 19

    2.1.2 Access Levels Menu Option Batch Interactive Open ü ü ü ü ü ü Connect—RS-232C ü ü ü ü ü ü Connect—USB ü ü ü ü ü ü Connect—LAN ü ü ü ü ü ü Connect—Modem ü ü ü ü ü...

  • Page 20

    2.1.2 Access Levels Menu Option Batch Interactive Import®ARS - Leading Digit ü ü ü ü Import®ARS - Except Code Import®ARS - Routing Plan ü ü ü ü Import®Wired Extension Import®PS Extension ü ü ü ü Import®Quick Dial (Basic) Import®Quick Dial (MEC) ü...

  • Page 21

    2.1.2 Access Levels Menu Option Batch Interactive T1 Line Trace (KX-TDA100/KX-TDA200/KX-TDA600 ü only) ISDN/QSIG Protocol Trace ü Digital Trunk Error Report (KX-TDA100/KX-TDA200/ ü KX-TDA600 only) IP Extension Statistical Information ü CS Information ü PS Information ü Timed Update (KX-TDA100KX-TDA200KX-TDA600 ü only) System Reset®Reset by the Command ü...

  • Page 22: Software Interface

    2.1.3 Software Interface 2.1.3 Software Interface This section explains the functions of the various elements of the software interface. Main Window The window of the Maintenance Console software is divided into several areas, as shown below: Menu Bar Provides access to file management and connection options, as well as tools and utilities used in programming the PBX.

  • Page 23

    2.1.3 Software Interface • Tools Contains icons for backing up PBX data to the SD Memory Card, viewing extension information, and accessing Online Help. For details, see Sections 2.5.1 Tool—SD memory backup and 2.5.7 Tool —Extension List View. These menus can be positioned freely. Click and drag the title bar of a menu to move it to another position. It will automatically snap in to position above, below, to the left, or to the right of the main window if released there.

  • Page 24: Card Status

    2.1.5 Display Options Main Screen Displays the screens selected from 4. System Menu above. For details, see Section 3 [1] Configuration to Section 13 [11] Maintenance. Standard Buttons and Elements There are several standard buttons that are displayed on many screens within the Maintenance Console. The standard buttons are as follows: Button Function...

  • Page 25: Extension Number Setting

    2.1.6 Extension Number Setting – Cascade: When multiple data screens are open, displays all open screens overlapped, with the title bars visible. – Tile(Horz): When multiple data screens are open, displays all open screens side by side. – Tile(Vert): When multiple data screens are open, displays all open screens vertically. 2.1.6 Extension Number Setting Many screens within the Maintenance Console software allow you to select extensions as part of programming various features (for example, as members of a group).

  • Page 26

    2.1.6 Extension Number Setting Selected Extension List Displays the extensions that have been selected to be added to member data. To remove an extension from this list, click it to select it and click Delete. Default Not stored. Value Range Selected extensions PC Programming Manual Document Version 2010-11...

  • Page 27: Program Launcher

    Use only when necessary. To create a new system data file From the program launcher, select New. Click the appropriate model number. Select whether an EMEC (KX-TDA600) or MEC (KX-TDA50/KX-TDA100/KX-TDA200) card is installed or not. Click OK. 2.2.2 Program launcher—Open Opens a system data file previously saved on the PC, and enters Batch mode.

  • Page 28: Program Launcher—connect—usb

    2.2.4 Program launcher—Connect—USB This option allows direct entry of connection parameters, for cases where the PC is used to connect to one or just a few PBXs, and an individual profile for each PBX is not necessary. If you connect to multiple PBXs and would prefer to choose from among pre-saved profiles instead, see 2.2.7 Program launcher—Connect—...

  • Page 29: Program Launcher—connect—lan

    Connects to the PBX in Interactive mode through the Local Area Network interface of the PBX. A CTI-LINK card (KX-TDA100/KX-TDA200/KX-TDA600) or IP-GW4 card (KX-TDA50) must be installed and the IP address of the PBX set to use this feature. For more details, see 3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) and 3.19 [1-1] Slot—Card Property - IP Gateway...

  • Page 30: Program Launcher—connect—profile Setup

    2.2.7 Program launcher—Connect—Profile Setup would prefer to choose from among pre-saved profiles instead, see 2.2.7 Program launcher—Connect— Profile Setup for more details about creating profiles. To connect to the PBX by Modem From the program launcher, select Connect. The Login window will be displayed. Select a connection option.

  • Page 31

    2.2.7 Program launcher—Connect—Profile Setup Note When reinstalling or upgrading the Maintenance Console, it is possible to create a backup of all profiles. This allows you to use the original connection settings with the new Maintenance Console. The functions of the buttons on this screen are as follows: Button Function Profile File...

  • Page 32: File

    2.3.4 File—Exit 2.3 File 2.3.1 File—Close Closes the system data file that is currently being modified, and returns to the program launcher. To close a system data file • From the File menu, select Close. If the system data file has not been saved, a warning message will be displayed, giving you the option to save the file.

  • Page 33: Disconnect

    2.4.1 Disconnect—Disconnect 2.4 Disconnect 2.4.1 Disconnect—Disconnect Closes the connection between the Maintenance Console and the PBX. When this option is chosen, system data is automatically backed up from the PBX to the SD memory card (see 2.5.1 Tool—SD memory backup). To disconnect From the Disconnect menu, select Disconnect.

  • Page 34: Tool

    2.5.5 Tool—Simplified Voice Message—Check Current Usage 2.5 Tool 2.5.1 Tool—SD memory backup Saves system data from the PBX to the SD memory card. Backup begins as soon as this option is chosen. To back up system data • From the Tool menu, select SD memory backup. 2.5.2 Tool—NDSS Link Data Clear Clears NDSS Link Data stored in the connected PBX.

  • Page 35: Tool—call Pickup For My Group

    2.5.7 Tool—Extension List View 2.5.6 Tool—Call Pickup for My Group Allows you to automatically configure settings in 4.9 [2-6-2] Numbering Plan—Quick Dial and 6.4 [4-1-3] Wired Extension—Speed Dial so that users can answer calls to their Call Pickup Group by pressing " 0". To activate this tool •...

  • Page 36: Tool—import

    2.5.8 Tool—Import 2.5.8 Tool—Import Allows several types of system data files or tables to be imported. Except for Speed Dial and Caller ID, this option is only available at Installer level. The files from which data can be imported are files that were previously saved at this or another PBX using the Export tool (see 2.5.9 Tool—Export), or comma-separated value (CSV) files.

  • Page 37

    2.5.8 Tool—Import ARS - Leading Digit Data Type Import Destination Location Leading Number Leading Digit Additional Number of Digits Additional Dial Digits Routing Plan Number Route Plan Number Related programming: 10.2 [8-2] Leading Number ARS - Except Code Data Type Import Destination Location Leading Number Exception...

  • Page 38: Tool—export

    If applicable, a list of field names found in the imported file will be displayed. For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX-TDA50/ KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table to which to import the data (KX-TDA50: Basic Memory or Expanded Memory;...

  • Page 39: Tool—screen Customize—user Level/administrator Level

    When export fields can be selected, the selection screen will be displayed automatically. For the Feature - Speed Dial and Caller ID table, when an EMEC (KX-TDA600) or MEC (KX-TDA50/ KX-TDA100/KX-TDA200) card is installed, select the Speed Dial table from which to export the data (KX-TDA50: Basic Memory or Expanded Memory;...

  • Page 40: Utility

    Tests the relevant functions of a card to ensure that it is operating correctly. The tests carried out vary according to the type of card being tested. The tests that are performed on each card are as follows: KX-TDA50 Test Type Available Cards...

  • Page 41

    Click on the Status cell of the card to be tested, and set it to "OUS". With the KX-TDA50, to perform the EXT-CID path test, set the status of both the EXT-CID card and the card in slot 1 to "OUS".

  • Page 42

    2.6.1 Utility—Diagnosis DTMF detection (CO->Ext) DTMF generation/detection from CO line to extension DP detection (CO->Ext) DP generation/detection from CO line to extension BELL detection (Ext->CO) BELL generation/detection from extension to CO line Speech path (Ext->CO) Speech path from extension to CO line Speech path (CO->Ext) Speech path from CO line to extension To perform a pair port test...

  • Page 43: Utility—file Transfer Pc To Pbx (sd Card)

    Attempting to transfer any other type of file results in an error message. The names of all files that can be stored on the SD memory card are as follows: Main Program KX-TDA50 Name on SD Memory Card Corresponding Card...

  • Page 44

    2.6.2 Utility—File Transfer PC to PBX (SD Card) LPR Program KX-TDA50 Name on SD Memory Card Corresponding Card PSVOIPEX IP-EXT4 KX-TDA100/KX-TDA200/KX-TDA600 Name on SD Memory Card Corresponding Card PCSINF CSIF PDHLC DHLC8/DLC8/DLC16 PSLC SLC8 PCSLC CSLC16 PIPGW IP-GW4 (KX-TDA0480) PIPGWH...

  • Page 45: System Data

    2.6.2 Utility—File Transfer PC to PBX (SD Card) System Data KX-TDA50 Name on SD Memory Card Corresponding Card DSSYS DSSYS_S DSSYS-file-format data that is transferred to the PBX is saved as "DSSYS_S". KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card...

  • Page 46

    2.6.2 Utility—File Transfer PC to PBX (SD Card) Name on SD Memory Card Corresponding Card DSIIPEXT IP-EXT4 KX-TDA100/KX-TDA200 Name on SD Memory Card Corresponding Card DINI DIDHLC DHLC8 DISLC SLC8/CSLC16 DIDLC DLC8/DLC16 DICSINF CSIF DILCOT LCOT8/LCOT16 DIT1 DIOPB3 OPB3 DICTILIN CTI-LINK DIEIO DIIPGW1...

  • Page 47: Utility—file Transfer Pbx (sd Card) To Pc

    Copies system data files from the SD memory card installed in the PBX to the connected PC. This option is only available at Installer level. The files that can be downloaded from the SD memory card are as follows: File Name File Type DSSYS (KX-TDA50) System Data DSYS (KX-TDA100/KX-TDA200) DLSYS (KX-TDA600) $SYSERR Error Data $SYSERR1–$SYSERR9...

  • Page 48: Utility—sd Card File View And Load

    Allows you to delete files from the SD memory card. This option is only available at Installer level. The following essential system files cannot be deleted by this utility: KX-TDA50: PSMPR, DSSYS, DSKEYSD KX-TDA100/KX-TDA200: PMPR, DSYS, DKEYSD KX-TDA600: PLMPR, DLSYS, DLKEYSD To delete files from the SD memory card From the Utility menu, select SD Card File Delete.

  • Page 49: Utility—message File Transfer Pc To Pbx

    KX-TDA100/KX-TDA200/KX-TDA600, the OPB card that it is mounted on must be set to OUS status. For the KX-TDA50, the MSG/ESVM card must be set to OUS status. Files are stored on the MSG/ESVM card in the location specified by the file’s header information. Uploaded files are automatically renamed as necessary.

  • Page 50

    2.6.8 Utility—Error Log Whenever there is a system failure, the PBX stores the error code generated. The connected PC collects all of these codes, along with other information, and displays an explanatory error message. The functions of the buttons on this screen are as follows: Button Function Cancel...

  • Page 51: Utility—t1 Signaling Bit Monitor (kx-tda100/kx-tda200/kx-tda600 Only)

    • YY: Slot number KX-TDA50: 00 to 11 (00: MPR slot; 01: Fixed slot, 02 to 04: Free slot type A, 05 to 07: Free slot type B, 08 to 11: Option slot) KX-TDA100: 00 to 06 (00: MPR slot; 01 to 06: Free slot) KX-TDA200: 00 to 11 (00: MPR slot;...

  • Page 52: Utility—t1 Line Trace (kx-tda100/kx-tda200/kx-tda600 Only)

    2.6.12 Utility—Digital Trunk Error Report (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.6.10 Utility—T1 Line Trace (KX-TDA100/KX-TDA200/ KX-TDA600 only) Traces the sent and received signaling bits and dial numbers on the specified channel of the T1 line. This utility is intended for use by dealers. This option is only available at Installer level, and requires that the target T1 card be set to INS status.

  • Page 53: Utility—ip Extension Statistical Information

    2.6.13 Utility—IP Extension Statistical Information This option is only available at Installer level. The value displayed for each error item is the number of times that each error occurred during the time period selected. Average values for these items vary depending upon many factors, such as the equipment being used, and the distance from the telephone company.

  • Page 54: Utility—cs Information

    2.6.14 Utility—CS Information Item Description RTP Receive Abandoned Packet Counter Total number of packets abandoned. RTP Arrive Packet Interval (MAX.) [ms] Maximum time taken for a packet to arrive. RTP Arrive Packet Interval (MIN.) [ms] Minimum time taken for a packet to arrive.

  • Page 55: Utility—ps Information

    2.6.15 Utility—PS Information Item Description Group Call Number of PSs registered to the attached CS that are members of a PS Ring Group. To view CS information From the Utility menu, select CS Information. From the Target CSI/F Slot No. drop-down list, select the target slot. •...

  • Page 56: Utility—timed Update (kx-tda100/kx-tda200/kx-tda600 Only)

    2.6.16 Utility—Timed Update (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.6.16 Utility—Timed Update (KX-TDA100/KX-TDA200/ KX-TDA600 only) Updates programs in the LPR cards (optional service cards with local processors) by comparing them with files found on the SD memory card on a preset schedule, and downloading newer files to the cards. This option is only available at Installer level.

  • Page 57: Utility—system Reset—reset By The Command

    PBX. This option is only available at Installer level. 2 copies of each of the main system files can be stored on the SD memory card. The names of these files are as follows: KX-TDA50 File Name Description DSSYS Main system data file.

  • Page 58: Utility—flash Rom Id Information

    2.6.18 Utility—Flash ROM ID Information To update system files and reset the PBX From the Utility menu, point to System Reset and then click Reset by the Command. Choose whether to back up current system data or not. • Click SD Backup to back up the current system data to the SD memory card before proceeding. Select this if you intend to use the current system data unchanged after reset.

  • Page 59: Help

    Is the USB cable firmly connected to both the PC and the PBX? • Is the USB driver on the PC running? To confirm, open the Windows Device Manager, and look for "Panasonic KX-TDA USB Main Unit driver" in the USB Controllers section. If it is not present, re-install the USB driver.

  • Page 60

    2.7.1 Frequently Asked Questions (FAQ) The Maintenance Console cannot connect to the PBX via modem. • Is the dial number of the modem correct? For more details, see 13.1 [11-1] Main. • Has a modem been installed to the PBX? •...

  • Page 61

    2.7.1 Frequently Asked Questions (FAQ) • Is the card installed in the appropriate slot? • Is the card installed in the correct slot, but not functioning correctly? Check the condition of the card. • Is the card itself in INS status? Set it to INS status.

  • Page 62

    2.7.1 Frequently Asked Questions (FAQ) If I delete the extension number of a Portable Station, and then turn the Portable Station off and back on again, it does not function correctly. • Do not delete the extension number of the Portable Station, as this information is necessary for it to operate.

  • Page 63

    2.7.1 Frequently Asked Questions (FAQ) • Perform the following steps: Confirm that the Numbering Plan you will change is not currently being used by any extensions (see 2.5.7 Tool—Extension List View). If it is being used by extensions, temporarily change the extension numbers of those extensions to that of another numbering plan, or delete the extension number (see 6.1 [4-1-1] Wired Extension—Extension Settings and 6.10 [4-2-1] Portable Station—Extension Settings).

  • Page 64

    2.7.1 Frequently Asked Questions (FAQ) I cannot change a feature number. • It is not possible to use the same number for 2 items. The number you are trying to store cannot be used if it is already being used by: •...

  • Page 65

    2.7.1 Frequently Asked Questions (FAQ) • When you click Apply, the settings are updated in the PBX, but are not yet saved to the SD memory card. If system data is not saved to the SD memory card, the PBX will restore the data that was last saved to the card in the event that the PBX is reset, or power is turned off and back on again.

  • Page 66: Setting Features

    2.7.1 Frequently Asked Questions (FAQ) Setting Features How do I change the dialing mode of an analog CO line? • From the 3.11 [1-1] Slot—Port Property - LCO Port screen, change the Dialing Mode setting of the target port to "DTMF" or "Pulse", as required. How do I set disconnect detection (CPC Detection) for an analog CO line? •...

  • Page 67

    2.7.1 Frequently Asked Questions (FAQ) How do I edit a Class of Service, or create a new Class of Service? • Class of Service feature restrictions can be set from the 4.11 [2-7-1] Class of Service —COS Settings screen. How do I restrict calls between 2 extensions? •...

  • Page 68

    2.7.1 Frequently Asked Questions (FAQ) How do I add an extension as a member of an Incoming Call Distribution (ICD) group? • Perform the following steps: On the 5.13 [3-5-1] Incoming Call Distribution Group—Group Settings— Member List screen, from the Incoming Call Distribution drop-down list, select the group you want to modify.

  • Page 69: Configuration

    Section 3 [1] Configuration Document Version 2010-11 PC Programming Manual...

  • Page 70: Slot

    3.1 [1-1] Slot 3.1 [1-1] Slot The operating characteristics associated with each service card can be programmed. Move the mouse pointer over an installed card to display the menu of options for that card. To view a summary of status and MPR versions for all cards installed in the PBX, click the Summary button (see 3.2 [1-1] Slot —Summary).

  • Page 71

    3.19 [1-1] Slot—Card Property - IP Gateway Card Gateway IP-EXT4: 4-Channel VoIP 3.22 [1-1] Slot—Card Property - IP Extension Card Extension SIP-GW4: 4-Channel SIP CO line 3.25 [1-1] Slot—Card Property - SIP Card Gateway (KX-TDA50 only) Document Version 2010-11 PC Programming Manual...

  • Page 72

    Slots) None EXT-CID: Extension Caller ID Card SVM2: 2-Channel Simplified Voice Message Card For more information on cards and card installation, see "1.2.1 Optional Equipment" in the KX-TDA50 Installation Manual. KX-TDA100/KX-TDA200 Card Maximum Quantity Card Programming MPR: Main Processing Card 1 (fixed in Slot 00) 3.3 [1-1] Slot—Card Property - MPR...

  • Page 73

    3.1 [1-1] Slot Card Maximum Quantity Card Programming PRI23: PRI Card (23B channels) 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/ KX-TDA600 only) KX-TDA100: 4 KX-TDA200: 4 T1: T-1 CO Line Card 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/ KX-TDA600 only) IP-GW4 (KX-TDA0480/KX-TDA0484): 4-Channel VoIP Gateway Card...

  • Page 74

    3.1 [1-1] Slot Card Maximum Quantity Card Programming CSIF4: 4 Cell Station Interface Card None CSIF8: 8 Cell Station Interface Card ELCOT16: 16-Port Analog CO Line 3.10 [1-1] Slot—Card Property - Card LCO type PRI23: PRI Card (23B channels) 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/ KX-TDA600 only) T1: T-1 CO Line Card...

  • Page 75: Slot—summary

    PBX model code is displayed in parentheses after the name. Default Slot 00: MPR (Main Processing Card: fixed) Other slots: Not stored. Value Range Card Type for KX-TDA50: DLC4: 4-Port Digital Extension Card DLC8: 8-Port Digital Extension Card HLC4: 4-Port Hybrid Extension Card PLC4: 4-Port Proprietary Extension Card...

  • Page 76

    3.2 [1-1] Slot—Summary EXT-CID: Extension Caller ID Card SVM2: 2-Channel Simplified Voice Message Card ESVM2: 2-Channel Simplified Voice Message Card MPR: MPR Card Card Type for KX-TDA100/KX-TDA200: DHLC8: 8-Port Digital Hybrid Extension Card DLC16: 16-Port Digital Extension Card DLC8: 8-Port Digital Extension Card MSLC16: 16-Port Single Line Telephone Extension with Message Lamp Card SLC8: 8-Port Single Line Telephone Extension Card SLC16: 16-Port Single Line Telephone Extension Card...

  • Page 77

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.19 [1-1] Slot—Card Property - IP Gateway 3.22 [1-1] Slot—Card Property - IP Extension 3.25 [1-1] Slot—Card Property - SIP Gateway (KX-TDA50 only) 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.31 [1-1] Slot—Card Property - DPH type (KX-TDA50 only)

  • Page 78

    3.2 [1-1] Slot—Summary Value Range Version number Maintenance Console Location 3.2 [1-1] Slot—Summary Programming Manual References 3.1 [1-1] Slot Feature Manual References None PC Programming Manual Document Version 2010-11...

  • Page 79: Slot—card Property - Mpr

    MEC/EMEC card properties can be viewed and set. Memory Expansion Card: Indicates whether an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is mounted on the MPR (KX-TDA50/KX-TDA100/KX-TDA200) or EMPR (KX-TDA600) card. To change the EMEC or MEC card installation status, click on this cell, then click OK in the dialog box that appears.

  • Page 80

    3.3 [1-1] Slot—Card Property - MPR Maintenance Console Location 3.3 [1-1] Slot—Card Property - MPR Programming Manual References None Feature Manual References 18.1.1 Upgrading the Software PC Programming Manual Document Version 2010-11...

  • Page 81: Slot—card Property - Extension Type

    3.4 [1-1] Slot—Card Property - Extension Type 3.4 [1-1] Slot—Card Property - Extension Type The property for the extension cards can be specified. SLT Pulse Dial Mode Selects the type of pulse dial transmission appropriate to your area. Default Normal Value Range Normal, Sweden, New Zealand Maintenance Console Location...

  • Page 82

    3.4 [1-1] Slot—Card Property - Extension Type SLT Off Hook Guard Time Specifies the length of guard time used for off-hook signals from SLTs, to prevent the PBX mistaking them for pulse dials. Default 504 ms Value Range 8 ´ n (n=12–63) ms Maintenance Console Location 3.4 [1-1] Slot—Card Property - Extension Type Programming Manual References...

  • Page 83

    3.4 [1-1] Slot—Card Property - Extension Type Value Range 8 ´ n (n=1–5) ms Maintenance Console Location 3.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References None SLT Flash Detection Enables the PBX to detect the flash signal sent when an SLT user presses the hookswitch or the Flash/Recall button.

  • Page 84

    3.4 [1-1] Slot—Card Property - Extension Type Maintenance Console Location 3.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References None Flash Timing - Range Specifies the maximum length that a signal sent from an SLT can be for the PBX to recognize it as a hookswitch flash signal.

  • Page 85

    3.4 [1-1] Slot—Card Property - Extension Type Feature Manual References None SLT Power Supply (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the voltage that enables an SLT to activate the Message Waiting lamp. This setting is only available with MSLC/EMSLC cards. Default 85 V Value Range 85 V, 145 V Maintenance Console Location...

  • Page 86

    3.4 [1-1] Slot—Card Property - Extension Type Feature Manual References None APT/SLT Parallel Ring Enables an SLT connected in parallel to an APT to ring with the APT for calls. Default Enable Value Range Disable, Enable Maintenance Console Location 3.4 [1-1] Slot—Card Property - Extension Type Programming Manual References None Feature Manual References...

  • Page 87: Slot—port Property - Extension Port

    3.5 [1-1] Slot—Port Property - Extension Port 3.5 [1-1] Slot—Port Property - Extension Port Various settings can be programmed for each extension port. To change the status of extension ports, click Command. To view total numbers of each type of extension connected, click Port Type View.

  • Page 88

    Indicates the port type (reference only). Default Current port type Value Range DPT: DPT port (DLC) APT: APT port (PLC) (KX-TDA50 only) SLT: SLT port (SLC/ESLC/EMSLC/CSLC/ECSLC) S-Hybrid: Super Hybrid port (DHLC) Hybrid: Hybrid port (HLC) (KX-TDA50 only) S-Hybrid(SLT): XDP port of Super Hybrid port (DHLC)

  • Page 89

    3.5 [1-1] Slot—Port Property - Extension Port Telephone Type Indicates the connected telephone type (reference only). The number of all connected telephones and Cell Stations can be viewed by clicking Port Type View. Default Current connected telephone type Value Range DPT (15V)/DPT (40V): DPT is connected.

  • Page 90

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Extension numbers of PSs can be a maximum of 4 digits. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 91

    3.5 [1-1] Slot—Port Property - Extension Port Programming Manual References None Feature Manual References None XDP Mode Turns XDP mode on or off for the port. This setting is only available when Port Type on this screen is set to S-Hybrid.

  • Page 92

    KX-TDA200] or 64 [with the KX-TDA600] DSS Consoles can be connected to the PBX.) VM (DPT): For connecting a Panasonic VPS through DPT Integration PC Console: For connecting a PC Console (A maximum of 2 [with the KX-TDA50] or 8 [with the KX-TDA100/ KX-TDA200/KX-TDA600] PC Consoles can be connected to the PBX.) Maintenance Console Location 3.5 [1-1] Slot—Port Property - Extension Port...

  • Page 93

    SDN buttons will be deleted. If you do not wish to delete SDN buttons for this port, click Cancel. Default Value Range For KX-TDA50: Location number for DSS Console: 1–4 Location number for PC Console: 1, 2 For KX-TDA100/KX-TDA200: 1–8...

  • Page 94

    Specifies the VM port number for the port. This setting is only available when DPT Type—Type on this screen is set to VM (DPT). Default Value Range For KX-TDA50: 1–4 For KX-TDA100/KX-TDA200/KX-TDA600: 1–12 Maintenance Console Location 3.5 [1-1] Slot—Port Property - Extension Port...

  • Page 95

    3.5 [1-1] Slot—Port Property - Extension Port Feature Manual References 8.1.3 Headset Operation Ringing Tone Selects the dual-tone switching pattern of the ring tone for incoming calls. This setting is only available when Port Type on this screen is set to DPT, DPT(S-DPT), S-Hybrid, S-Hybrid (XDP), S-Hybrid(SLT) or S-Hybrid(S-DPT).

  • Page 96: Slot—port Property - Extension Port—connection Command

    3.6 [1-1] Slot—Port Property - Extension Port—Connection Command 3.6 [1-1] Slot—Port Property - Extension Port— Connection Command Commands for the extension ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.6 [1-1] Slot—Port Property - Extension Port—Connection Command Programming Manual References 3.5 [1-1] Slot—Port Property - Extension Port...

  • Page 97: Slot—port Property - Extension Port—port Type View

    Indicates the total number of each type of telephone and CS connected to the PBX (reference only). With the KX-TDA50, CSs are counted on the basis of the number of extension ports to which they are connected; with the KX-TDA100/KX-TDA200/KX-TDA600, CSs are counted on the basis of the number of CSIF ports in service plus the number of extension ports to which CSs are connected.

  • Page 98

    3.7 [1-1] Slot—Port Property - Extension Port—Port Type View Feature Manual References None PC Programming Manual Document Version 2010-11...

  • Page 99: Slot—port Property - Csi/f Port (kx-tda100/kx-tda200/kx-tda600 Only)

    3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) The status of the CSIF ports can be referred to, or set to INS (in-service) or OUS (out-of-service). To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 100

    3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Status...

  • Page 101

    3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Not stored. Value Range Max. 20 characters Maintenance Console Location 3.8 [1-1] Slot—Port Property - CSI/F Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Document Version 2010-11 PC Programming Manual...

  • Page 102: Slot—port Property - Csi/f Port—connection Command (kx-tda100 Kx-tda200/kx-tda600 Only)

    3.9 [1-1] Slot—Port Property - CSI/F Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.9 [1-1] Slot—Port Property - CSI/F Port— Connection Command (KX-TDA100/KX-TDA200/ KX-TDA600 only) Commands for the CSIF ports can be programmed. Puts the Cell Station (CS) in service. Default Not applicable. Value Range Not applicable.

  • Page 103: Slot—card Property - Lco Type

    3.10 [1-1] Slot—Card Property - LCO type 3.10 [1-1] Slot—Card Property - LCO type The properties of the analog CO line cards can be specified. Outgoing Guard Time Specifies the length of time after a CO line is disconnected, during which the PBX cannot seize the line. Default Value Range 3–6 s...

  • Page 104

    3.10 [1-1] Slot—Card Property - LCO type CO Feed Back Tone Specifies whether the pulse feedback tone is turned on or not. For outgoing CO line calls, audible tones can be heard as the dialed number is sent out, which informs the extension user that the number has been dialed. Default Value Range No, Yes...

  • Page 105

    3.10 [1-1] Slot—Card Property - LCO type Value Range 1.0 s–15.0 s Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None Pulse / DTMF Dial—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.

  • Page 106

    3.10 [1-1] Slot—Card Property - LCO type Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None Low Speed Pulse Dial—Pulse % Break Specifies the % break for a low speed pulse dial. This is the ratio between the break (on-hook) signal and make (off-hook) signal in a pulse dial.

  • Page 107

    3.10 [1-1] Slot—Card Property - LCO type Feature Manual References None Low Speed Pulse Dial—Make Width Specifies the minimum length of the make signal in a low speed pulse dial. Low Speed Pulse Dial—Pulse % Break on this screen determines the value that can be specified here. Default 40 ms Value Range...

  • Page 108

    3.10 [1-1] Slot—Card Property - LCO type High Speed Pulse Dial—Break Width Specifies the maximum length of the break signal in a high speed pulse dial. High Speed Pulse Dial— Pulse % Break on this screen determines the value that can be specified here. Default 32 ms Value Range...

  • Page 109

    3.10 [1-1] Slot—Card Property - LCO type Value Range Normal, Sweden, New Zealand Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References None Option Card Equipment—Option 1 and Option 2 Indicates the type of the card that is installed on the LCOT/ELCOT card (reference only). Default Current option card type Value Range...

  • Page 110

    3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References 3.1.1 Caller ID Caller ID—Max Receive Time Specifies the maximum number of Caller ID series that are sent from the network. Default Value Range 0 (no limit), 1, 2, 3 Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References...

  • Page 111

    3.10 [1-1] Slot—Card Property - LCO type Caller ID—Caller ID (FSK) END Detection Selects the method used to detect the end of Caller ID information. Default Length + Timer Value Range Length + Timer, Timer Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References...

  • Page 112

    3.10 [1-1] Slot—Card Property - LCO type Value Range None, 80 ´ n (n=1–15) ms Maintenance Console Location 3.10 [1-1] Slot—Card Property - LCO type Programming Manual References None Feature Manual References 3.1.1 Caller ID Caller ID—Caller ID (FSK) Detection Timer Specifies the total time required by the PBX to detect Caller ID information.

  • Page 113: Slot—port Property - Lco Port

    3.11 [1-1] Slot—Port Property - LCO Port 3.11 [1-1] Slot—Port Property - LCO Port Various settings can be programmed for each analog CO line port. To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...

  • Page 114: Dialing Mode

    3.11 [1-1] Slot—Port Property - LCO Port Default Current port number Value Range Port number Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 115

    3.11 [1-1] Slot—Port Property - LCO Port Value Range DTMF, Pulse Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References 4.1.2 Dial Mode Selection CPC Signal Detection Time—Outgoing, Incoming Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.

  • Page 116: Pulse Speed

    3.11 [1-1] Slot—Port Property - LCO Port Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References None Pulse Speed Selects the speed at which pulse dials are sent to the analog CO line. Default Value Range Low, High...

  • Page 117: Caller Id Detection

    3.11 [1-1] Slot—Port Property - LCO Port Feature Manual References None Caller ID Detection Enables the PBX to detect a Caller ID signal from the analog CO line. Default Enable Value Range Disable, Enable Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References 3.10 [1-1] Slot—Card Property - LCO type Feature Manual References...

  • Page 118

    3.11 [1-1] Slot—Port Property - LCO Port Default 1.5 s Value Range 1.5 s, 2.5 s, 3.5 s, 4.5 s Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References 13.1.4 Pause Insertion 8.1.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 16.1.2 Special Carrier Access Code Flash Time...

  • Page 119

    3.11 [1-1] Slot—Port Property - LCO Port Maintenance Console Location 3.11 [1-1] Slot—Port Property - LCO Port Programming Manual References None Feature Manual References 6.1.2 Flash/Recall/Terminate Document Version 2010-11 PC Programming Manual...

  • Page 120: Slot—port Property - Lco Port—connection Command

    3.12 [1-1] Slot—Port Property - LCO Port—Connection Command 3.12 [1-1] Slot—Port Property - LCO Port— Connection Command Commands for the LCO ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.12 [1-1] Slot—Port Property - LCO Port—Connection Command Programming Manual References 3.11 [1-1] Slot—Port Property - LCO Port...

  • Page 121: Slot—card Property - Pri Type (kx-tda100/kx-tda200/kx-tda600 Only)

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) The properties of the PRI card can be specified. ISDN CO / QSIG Master / QSIG Slave—T200 Specifies the maximum time that the PBX waits for a reply after sending the L2 command to ISDN. Default 10 ´...

  • Page 122

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) ISDN CO / QSIG Master / QSIG Slave—T203 Specifies the length of time to detect no communication status of L2. Default 100 ´ 100 ms Value Range 0–600 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 123

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range 0–600 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN.

  • Page 124

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T305 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN.

  • Page 125

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) ISDN CO / QSIG Master / QSIG Slave—T309 Specifies the length of time that the PBX tries to disconnect the data link, before disconnecting the call. Default 120 ´ 100 ms Value Range 0–3000 ´...

  • Page 126

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range 0–600 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T316 Specifies the maximum time that the PBX waits for a reply after sending the Restart message.

  • Page 127

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN CO / QSIG Master / QSIG Slave—T319 Specifies the maximum time that the PBX waits for a reply after sending the Suspend message. Default 0 ´...

  • Page 128

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) ISDN CO / QSIG Master / QSIG Slave—T3D3 Specifies the length of time that the PBX tries to establish L2 in "Permanent" mode. Default 100 ´ 100 ms Value Range 0–3000 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 129

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range 0–600 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T201 Specifies the maximum time that the PBX waits for a reply after resending the TEI check request to ISDN. Default 10 ´...

  • Page 130

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T301 Specifies the maximum time that the PBX waits for a reply after making a call to ISDN. Default 0 ´ 100 ms Value Range 0–18000 ´...

  • Page 131

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) ISDN Extension—T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message to ISDN. Default 40 ´ 100 ms Value Range 0–600 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 132

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range 0–3000 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T306 Specifies the maximum time that the PBX waits for a reply after sending the DISC (disconnection) message to ISDN.

  • Page 133

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T308 Specifies the maximum time that the PBX waits for a reply after receiving the Release message from ISDN. Default 40 ´ 100 ms Value Range 0–600 ´...

  • Page 134

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) ISDN Extension—T310 Specifies the maximum time that the PBX waits for a reply after receiving the Incoming Call Proceeding message. Default 400 ´ 100 ms Value Range 0–3000 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 135

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range 0–3000 ´ 100 ms Maintenance Console Location 3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T320 Specifies the maximum time that the PBX waits for packet protocol. Default 0 ´...

  • Page 136

    3.13 [1-1] Slot—Card Property - PRI type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None ISDN Extension—T3D3 Specifies the length of time that the PBX tries to establish L2 in "Permanent" mode. Default 300 ´ 100 ms Value Range 0–3000 ´...

  • Page 137: Slot—port Property - Pri Port (kx-tda100/kx-tda200/kx-tda600 Only)

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Various settings can be programmed for each PRI port. Main Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location...

  • Page 138

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type...

  • Page 139: Status Message

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range...

  • Page 140

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Status Receive Selects what happens to a call when the Status Message from the network does not match the actual status of the call. Default Ignore Value Range Ignore: Ignore the Status Message from the network. Disconnect: Disconnect the call.

  • Page 141

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range Extend Multi frame (ESF), 4-Frame Multi frame (F4), 12-Frame Multi frame (F12) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None CO Setting CO Setting parameters are not applicable to ports assigned as Extension in...

  • Page 142

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location...

  • Page 143

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 144

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) Ringback Tone to Outside Caller Enables the PBX to send a ringback tone to an outside caller when the network cannot send the tone. Default Enable Value Range...

  • Page 145

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 4.17 [2-9] System Options—Option 2— End of Dial Plan—[#] as End of Dial for en Bloc mode (KX-TDA100/ KX-TDA200/KX-TDA600 only) 5.4 [3-1-4] Dialing Plan Feature Manual References 9.1.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Networking Data Transfer Enables transmission of extension status data to connected PBXs in a network.

  • Page 146

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Extension Setting Extension Setting parameters are applicable only for the PRI extension port. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 147

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type...

  • Page 148

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command. Default Current status Value Range...

  • Page 149: Network Configuration

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Network Configuration Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 150

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range Port number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Note •...

  • Page 151: Network Type

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) • Select the desired cell in the column, and then click Command. Default Current status Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 152

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Current shelf number Value Range Shelf number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Slot Indicates the slot position (reference only). Default Current slot number Value Range...

  • Page 153

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Type Selects the port type. Note • Each ISDN connection in a QSIG network must have a master port on one PBX and a slave port on another PBX.

  • Page 154

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References...

  • Page 155

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Calling Party number—Type of Number—Public, Private Selects the type of number that applies to outgoing CO line calls routed through public or private networks. Default Unknown Value Range...

  • Page 156

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Called Party number—Type of Number—Public, Private Selects the type of number that applies to incoming CO line calls routed through public and private networks. Default Unknown Value Range Unknown, International, National, Network, Subscriber Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 157

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Current slot number Value Range Slot number Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Port Indicates the port number (reference only). Default Current port number Value Range...

  • Page 158

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range CO: For connecting to public network Extension: For connecting to extension QSIG-Slave: For connecting to private network (slave port) QSIG-Master: For connecting to private network (master port) Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 159

    3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Default CLIR, E911: Yes Other services: No Value Range No, Yes Maintenance Console Location 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) 13.1.20 Private Network Features—QSIG—CF (Call Forwarding) 13.1.21 Private Network Features—QSIG—CLIP/COLP (Calling/Connected Line Identification Presentation) and CNIP/CONP (Calling/Connected Name Identification Presentation)

  • Page 160: Slot—port Property - Pri Port—connection Command (kx-tda100 Kx-tda200/kx-tda600 Only)

    3.15 [1-1] Slot—Port Property - PRI Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.15 [1-1] Slot—Port Property - PRI Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Commands for the PRI ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.15 [1-1] Slot—Port Property - PRI Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 161: Slot—card Property - T1 Type (kx-tda100/kx-tda200/kx-tda600 Only)

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) The properties of the T1 card can be specified. Line Coding Selects the line coding type of T1 PCM (Pulse Code Modulation) used. Default B8ZS Value Range...

  • Page 162

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) ESF Frame Sequence Selects the values for C-bit and D-bit. To enable this setting, Frame Sequence on this screen should be set to ESF. Default C=A, D=B Value Range C=A, D=B; C=0, D=0; C=0, D=1; C=1, D=0; C=1, D=1 Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 163

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range Automatic, 6 dB, 12 dB, 18 dB, 24 dB Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None First Dial Timer (CO) Specifies the minimum time that the PBX waits after seizing a CO line, before sending the dialed digits to the telephone company.

  • Page 164

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Answer Detection Timer Specifies the length of time required by the PBX to recognize the answer signal. This allows the telephone company to have enough time to accept the dialed digits correctly.

  • Page 165

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None DTMF Tone—DTMF Inter-digit Pause Specifies the length of the DTMF inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly. Default 112 ms Value Range...

  • Page 166

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Default -26–0 dB Value Range n-42–0 (n=0–31) dB Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—Pulse % Break Specifies the % break for pulse digits.

  • Page 167

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pulse Dial—Pulse Inter-digit Pause Specifies the length of the pulse inter-digit pause. This allows the telephone company to have enough time to accept the dialed digits correctly.

  • Page 168

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Pulse Dial—Maximum BREAK Width Specifies the maximum length of the break signal in a pulse dial. Default 112 ms Value Range 8 ´ n (n=9–20) ms Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 169

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Enable Value Range Disable, Enable Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Flash—Minimum BREAK Width (OPX) Specifies the minimum length of the break signal in a flash signal from an SLT connected to an OPX. Default 200 ms Value Range...

  • Page 170

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Flash—Flash Signal Detection (TIE) Enables the PBX to detect a hookswitch flash signal sent from a TIE line. Default Enable Value Range...

  • Page 171

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Flash—Flash Width (TIE) Specifies the maximum length of a flash signal received from a TIE line that the PBX can recognize as a hookswitch flash signal. Default 800 ms Value Range 8 ´...

  • Page 172

    3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Value Range *, #, A–D Maintenance Console Location 3.16 [1-1] Slot—Card Property - T1 type (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.1 Caller ID Caller ID—Caller ID End Code Selects the DTMF code used to detect the end of a Caller ID series.

  • Page 173: Slot—port Property - T1 Port (kx-tda100/kx-tda200/kx-tda600 Only)

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/ KX-TDA200/KX-TDA600 only) Various settings can be programmed for each T1 channel. To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...

  • Page 174

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Indicates the channel number (reference only). Default Current channel number Value Range Channel number Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Connection Indicates the channel status (reference only).

  • Page 175

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) CO Dial Mode Selects the type of signal used to dial out to a CO line.

  • Page 176

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) TIE (E & M): TIE Line OPX: Off Premise Extension Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 17.1.1 T1 Line Service Trunk Property Selects the CO line property of the TIE channel.

  • Page 177

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.21 CPC (Calling Party Control) Signal Detection CPC Signal Detection (LCO/GCO)—Outgoing, Incoming Specifies the length of time required by the PBX to detect a CPC signal on outgoing or incoming CO line calls before disconnecting the line.

  • Page 178

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None CO Pulse Speed Selects the speed at which pulse dials are sent to the T1 channel. Default 10 pulse/s Value Range 10 pulse/s, 20 pulse/s Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 179

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Start Signal Type Selects the type of the start signal. Default Wink Value Range Immediate: Sends the dialed digits to the CO line when the First Dial Timer expires. Wink: Sends the dialed digits to the CO line when the wink signal is received. Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 180

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Value Range Yes, No Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Ringback Tone to Outside Caller Enables the PBX to send a ringback tone to an outside caller when the network cannot send the tone. This setting is only available when Channel Type on this screen is set to DID.

  • Page 181

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Pause Time Specifies the length of a pause. Default 1.5 s Value Range 1.5 s, 2.5 s, 3.5 s, 4.5 s Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None...

  • Page 182

    3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Disconnect Time Specifies the length of time after a CO line is disconnected, during which the PBX cannot seize the line. Default 1.5 s Value Range 0.5 s, 1.5 s, 2.0 s, 4.0 s, 12.0 s Maintenance Console Location 3.17 [1-1] Slot—Port Property - T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 183: Slot—port Property - T1 Port—connection Command (kx-tda100/kx-tda200 Kx-tda600 Only)

    3.18 [1-1] Slot—Port Property - T1 Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.18 [1-1] Slot—Port Property - T1 Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Commands for the T1 channels can be programmed. Puts the channel in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.18 [1-1] Slot—Port Property - T1 Port—Connection Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 184: Slot—card Property - Ip Gateway

    3.19 [1-1] Slot—Card Property - IP Gateway 3.19 [1-1] Slot—Card Property - IP Gateway The properties of the VoIP Gateway card can be specified. En-bloc Dialing Setting Selects the call dialing mode. Default Overlap Value Range En-bloc: The PBX sends all of the dialed digits at once after the extension user completes dialing. The PBX recognizes the end of dialing when (1) # is dialed, if programmed, (2) a preprogrammed telephone number is dialed, or (3) the inter-digit timer expires.

  • Page 185

    3.19 [1-1] Slot—Card Property - IP Gateway Programming Manual References None Feature Manual References 13.1.22 Private Network Features—QSIG—CT (Call Transfer) Maintenance Port Number (KX-TDA50 only) Specifies the default maintenance port number of the IP network. Default 35300 Value Range 10000–65535 Maintenance Console Location 3.19 [1-1] Slot—Card Property - IP Gateway...

  • Page 186

    3.19 [1-1] Slot—Card Property - IP Gateway Default 33333 Value Range 10000–65535 Maintenance Console Location 3.19 [1-1] Slot—Card Property - IP Gateway Programming Manual References None Feature Manual References 3.1.22 CTI (Computer Telephony Integration) PC Programming Manual Document Version 2010-11...

  • Page 187: Slot—port Property - Ip-gw Port

    3.20 [1-1] Slot—Port Property - IP-GW Port 3.20 [1-1] Slot—Port Property - IP-GW Port Status of the IP-GW ports can be referred to, or set to INS (in service) or OUS (out of service). To change the status of ports, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 188

    3.20 [1-1] Slot—Port Property - IP-GW Port Default Current port number Value Range Port number Maintenance Console Location 3.20 [1-1] Slot—Port Property - IP-GW Port Programming Manual References None Feature Manual References None Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 189: Slot—port Property - Ip-gw Port—connection Command

    3.21 [1-1] Slot—Port Property - IP-GW Port—Connection Command 3.21 [1-1] Slot—Port Property - IP-GW Port— Connection Command Commands for the IP-GW ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.21 [1-1] Slot—Port Property - IP-GW Port—Connection Command Programming Manual References 3.20 [1-1] Slot—Port Property - IP-GW Port...

  • Page 190: Slot—card Property - Ip Extension

    3.22 [1-1] Slot—Card Property - IP Extension 3.22 [1-1] Slot—Card Property - IP Extension The properties of the VoIP Extension card can be specified. To adjust settings related to IP-PT network data transmission, click Common Settings. IP Address Specifies the IP address of the card. Default 0.0.0.0 Value Range...

  • Page 191

    3.22 [1-1] Slot—Card Property - IP Extension To change the value displayed here, click Common Settings, and set the desired value for Gateway Address. Default 0.0.0.0 Value Range 0.0.0.0–223.255.255.255 Maintenance Console Location 3.22 [1-1] Slot—Card Property - IP Extension Programming Manual References 3.23 [1-1] Slot—Card Property - IP Extension—Common Settings Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone)

  • Page 192

    3.22 [1-1] Slot—Card Property - IP Extension Default 48 ms Value Range OFF, 48 ms, 128 ms Maintenance Console Location 3.22 [1-1] Slot—Card Property - IP Extension Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path.

  • Page 193

    3.22 [1-1] Slot—Card Property - IP Extension Maintenance Console Location 3.22 [1-1] Slot—Card Property - IP Extension Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) EC Gain Specifies the Echo Canceller Gain. Default 2 dB Value Range -14–6 dB Maintenance Console Location 3.22 [1-1] Slot—Card Property - IP Extension...

  • Page 194

    3.22 [1-1] Slot—Card Property - IP Extension Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) PC Programming Manual Document Version 2010-11...

  • Page 195: Slot—card Property - Ip Extension—common Settings

    3.23 [1-1] Slot—Card Property - IP Extension—Common Settings 3.23 [1-1] Slot—Card Property - IP Extension— Common Settings IP network data transmission settings can be programmed. To activate any changes made to settings on this screen, it is necessary to set all installed IP-EXT cards to OUS, then back to INS. Gateway Address Specifies the default gateway address of the IP network.

  • Page 196

    3.23 [1-1] Slot—Card Property - IP Extension—Common Settings Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) Voice (RTP) UDP Port No. (IP-PT) Specifies the UDP port used to transmit and receive RTP (Realtime Transfer Protocol) data on the IP-PT side. This must be changed if another network application is using the same port.

  • Page 197: Slot—port Property - Ip-extension Port

    3.24 [1-1] Slot—Port Property - IP-Extension Port 3.24 [1-1] Slot—Port Property - IP-Extension Port Various settings can be programmed for each IP extension port. To change the status of extension ports, click Command. IP-PT Registration and De-registration An IP-PT must be registered to the PBX by programming both the PBX and IP-PT before it can be used. Programming instructions of the PBX are given below.

  • Page 198

    3.24 [1-1] Slot—Port Property - IP-Extension Port Forced De-registration Follow the steps below to forcibly de-register the IP-PT when normal de-registration has been unsuccessful or IP address settings have been changed or deleted only on the IP-PT. Click Forced De-registration. A dialog box will appear.

  • Page 199

    3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) Port Indicates the port number (reference only). Default Current port number Value Range Port number Maintenance Console Location 3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References...

  • Page 200

    3.24 [1-1] Slot—Port Property - IP-Extension Port Maintenance Console Location 3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) Connection Indicates the port status (reference only). This column offers two ways to open the screen to select the port command: •...

  • Page 201

    3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) IP Address Indicates the IP address of the IP-PT (reference only). Default Current IP address Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None...

  • Page 202

    3.24 [1-1] Slot—Port Property - IP-Extension Port Ringing Tone Selects the dual-tone switching pattern of the ring tone for incoming calls. Default Value Range A: 64 ms (697 Hz), 64 ms (852 Hz) B: 32 ms (697 Hz), 32 ms (852 Hz) C: 128 ms (697 Hz), 128 ms (852 Hz) D: 32 ms (697 Hz), 96 ms (852 Hz) Maintenance Console Location...

  • Page 203

    3.24 [1-1] Slot—Port Property - IP-Extension Port Default 20 ms Value Range 20 ms, 30 ms, 40 ms, 60 ms Maintenance Console Location 3.24 [1-1] Slot—Port Property - IP-Extension Port Programming Manual References None Feature Manual References 9.1.15 IP-PT (IP Proprietary Telephone) Document Version 2010-11 PC Programming Manual...

  • Page 204: Slot—card Property - Sip Gateway (kx-tda50 Only)

    3.25 [1-1] Slot—Card Property - SIP Gateway (KX-TDA50 only) 3.25 [1-1] Slot—Card Property - SIP Gateway (KX-TDA50 only) The properties of the SIP-GW card can be specified. DSP Expansion Card Indicates whether the SIP-DSP card is installed (reference only). Default...

  • Page 205: Slot—sip-gw Port Property (kx-tda50 Only)

    3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) 3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) Status of the SIP-GW ports can be referred to, or set to INS (in service) or OUS (out of service). To change the status of ports, click Command.

  • Page 206

    3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) Connection Indicates the channel status (reference only). This column offers two ways to open the screen to select the channel command: • Click the desired cell in the column. • Select the desired cell in the column, and then click Command.

  • Page 207

    3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) Default Value Range Yes, No Maintenance Console Location 3.26 [1-1] Slot—SIP-GW Port Property (KX-TDA50 only) Programming Manual References None Feature Manual References None E911 Specifies whether to display the caller’s number when dialing a number registered as an Emergency Number.

  • Page 208: Slot—opb3 Card Property (kx-tda100/kx-tda200/kx-tda600 Only)

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/ KX-TDA200/KX-TDA600 only) The properties of the Optional Base card can be specified. To change the status of slots on the OPB card, click Command. Shelf (KX-TDA600 only) Indicates the shelf position (reference only).

  • Page 209

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Sub-slot Indicates the sub-slot number (reference only). Default Current sub-slot number Value Range Sub-slot number Maintenance Console Location 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References None Feature Card Type Indicates the type of option card that is installed or pre-installed in each sub-slot (reference only).

  • Page 210

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Status Indicates the status of the option card in each slot (reference only). This column offers two ways to open the screen to select the card command: • Click the desired cell in the column. •...

  • Page 211

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Port Status Indicates the port status of the mounted option card (reference only). Default Current port status Value Range INS: The card is in service. OUS: The card is out of service. Fault: The card is pulled out from the sub-slot, or is not communicating with the PBX.

  • Page 212

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Input Signal Detection Reopening Time Specifies the length of time after the sensor has been triggered during which any further input from the sensor will be ignored. Default 10 s Value Range 10 ´ n (n=1–255) s Maintenance Console Location 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 213

    3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Default Enable Value Range Disable, Enable Maintenance Console Location 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 12.1.2 OGM (Outgoing Message) 16.1.5 SVM (Simplified Voice Message) Document Version 2010-11 PC Programming Manual...

  • Page 214: Slot—opb3 Card Property—card Command (kx-tda100/kx-tda200 Kx-tda600 Only)

    3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Commands for the service cards installed on the OPB card can be programmed. Puts the card in service. Default Not applicable. Value Range Not applicable. Maintenance Console Location 3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References...

  • Page 215

    3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Pre-INS Assigns the card type to a certain sub-slot (Pre-installation). Default Not applicable. Value Range MSG4: 4-Channel Message Card DPH4: 4-Port Doorphone Card ECHO16: 16-Channel Echo Canceller Card (KX-TDA100/KX-TDA200 only) EIO4: 4-Port External Input/Output Card ESVM4: 4-Channel Simplified Voice Message Card Maintenance Console Location 3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only)

  • Page 216

    3.28 [1-1] Slot—OPB3 Card Property—Card Command (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None PC Programming Manual Document Version 2010-11...

  • Page 217: Slot—opb3 Option Card Setup (kx-tda100/kx-tda200/kx-tda600 Only)

    3.29 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.29 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Option cards can be installed to and removed from the OPB3 cards installed in the PBX. Click the right and left arrow buttons (">", "<") to add or remove option cards. Option Card Type Selects the type of option card to install to the OPB3 card.

  • Page 218

    3.29 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.29 [1-1] Slot—OPB3 Option Card Setup (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 3.1 [1-1] Slot 3.27 [1-1] Slot—OPB3 Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Card Inserted Displays the type of option card currently installed to each slot of the OPB3 card. Default Not stored.

  • Page 219: Slot—card Property - Ctilink (kx-tda100/kx-tda200/kx-tda600 Only)

    3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) 3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) The properties of the CTI-LINK card can be specified. Note that the IP address information must be specified in accordance with the settings of the network that it will be used on.

  • Page 220

    3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) Gateway Specifies the gateway address. Default 192.168.0.1 Value Range 0.0.0.0–223.255.255.255 Maintenance Console Location 3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References None Feature Manual References 3.1.22 CTI (Computer Telephony Integration) Maintenance Port Number Specifies a port number used to operate Maintenance Console via LAN.

  • Page 221

    3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) Maintenance Console Location 3.30 [1-1] Slot—Card Property - CTILINK (KX-TDA100/KX-TDA200/KX-TDA600 only) Programming Manual References 4.17 [2-9] System Options Feature Manual References 3.1.22 CTI (Computer Telephony Integration) Document Version 2010-11 PC Programming Manual...

  • Page 222: Slot—card Property - Dph Type (kx-tda50 Only)

    3.31 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) 3.31 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) The status of the DPH ports can be viewed, and set to INS (in service) or OUS (out of service). Slot Indicates the slot position (reference only).

  • Page 223

    Fault: The port is not communicating with the network. Maintenance Console Location 3.31 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) Programming Manual References 3.32 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) Feature Manual References None For Output (EIO)—Device Type Selects the type of connected output device (for output ports only).

  • Page 224

    3.31 [1-1] Slot—Card Property - DPH type (KX-TDA50 only) For Sensor (EIO)—Input Signal Decision Time Specifies the minimum duration of continuous input from the triggered sensor before the PBX recognizes the input and makes a sensor call. Default 1024 ms Value Range 32 ´...

  • Page 225

    3.32 [1-1] Slot—Card Property - DPH type—Connection Command (KX-TDA50 only) 3.32 [1-1] Slot—Card Property - DPH type— Connection Command (KX-TDA50 only) Commands for the DPH ports can be programmed. Puts the port in service. Default Not applicable. Value Range Not applicable.

  • Page 226: Slot—card Property - Esvm Type (kx-tda50 Only)

    3.33 [1-1] Slot—Card Property - ESVM Type (KX-TDA50 only) 3.33 [1-1] Slot—Card Property - ESVM Type (KX-TDA50 only) The properties of the ESVM card can be specified. Slot Indicates the slot position (reference only). Default Current slot number Value Range...

  • Page 227: Document Version 2010-11 Pc Programming Manual

    3.33 [1-1] Slot—Card Property - ESVM Type (KX-TDA50 only) MSG Feature Specifies whether or not to use the ESVM card as a MSG card. It is possible to use the ESVM card as an SVM card, MSG card (OGM feature), or both.

  • Page 228: Portable Station

    3.34 [1-2] Portable Station 3.34 [1-2] Portable Station Various portable station (PS) settings can be programmed. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), 256 (with the KX-TDA600) or 512 (with the KX-TDA600 with EMEC card installed) PSs can be registered.

  • Page 229: Personal Identification Number

    Programming Manual References None Feature Manual References 13.1.24 PS (Portable Station) Index Indicates the PS number (reference only). Default Not applicable. Value Range For KX-TDA50: 1–28 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–512 Maintenance Console Location 3.34 [1-2] Portable Station Document Version 2010-11...

  • Page 230

    3.34 [1-2] Portable Station Programming Manual References None Feature Manual References 13.1.24 PS (Portable Station) Extension No. Specifies the extension number of the PS. In Wireless XDP Parallel Mode, the PS can be used as a sub telephone with a wired main telephone (PT/SLT), and two of them will share one extension number of the main telephone.

  • Page 231

    3.34 [1-2] Portable Station Feature Manual References 13.1.24 PS (Portable Station) Status Indicates whether a certain PS is registered (reference only). Default None Value Range None, Registered Maintenance Console Location 3.34 [1-2] Portable Station Programming Manual References None Feature Manual References 13.1.24 PS (Portable Station) Document Version 2010-11 PC Programming Manual...

  • Page 232: Option

    Enables the display of a KX-WT125/KX-WT126 PS to be updated when the status of a CO line changes, even when the PS is idle. Default Enable Value Range Enable, Disable Maintenance Console Location 3.35 [1-3] Option Programming Manual References 6.17 [4-2-6] Portable Station—Single CO Appearance (KX-TDA50 only) PC Programming Manual Document Version 2010-11...

  • Page 233

    3.35 [1-3] Option Feature Manual References 13.1.25 PS—CO Status Display (KX-WT125/KX-WT126 only) (KX-TDA50 only) New Card Installation—Card Status for any Card Selects the initial status of cards after installation. Default In Service Value Range In Service, Out of Service Maintenance Console Location 3.35 [1-3] Option...

  • Page 234

    3.35 [1-3] Option New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/ KX-TDA200/KX-TDA600 only) Specifies whether a PRI23 card is automatically set to ISDN Standard mode or T1-LCOT mode when it is installed for the first time. Default ISDN Standard mode Value Range ISDN Standard mode: The CCBS, CF, CT, and Centralized VM features are supported.

  • Page 235: Clock Priority (kx-tda100/kx-tda200/kx-tda600)

    3.36 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) 3.36 [1-4] Clock Priority (KX-TDA100/KX-TDA200/ KX-TDA600) Slot Number (KX-TDA100/KX-TDA200), Shelf-Slot Number (KX-TDA600) Selects and prioritizes slot numbers for the PRI and T1 cards that are used to forward a clock pulse from an external source to the PBX. Obtain the master clock time from the outside line that the telephone company provides.

  • Page 236

    3.36 [1-4] Clock Priority (KX-TDA100/KX-TDA200/KX-TDA600) PC Programming Manual Document Version 2010-11...

  • Page 237: System

    Section 4 [2] System Document Version 2010-11 PC Programming Manual...

  • Page 238: Date & Time/daylight Saving

    1.1.7 Automatic Time Adjustment Start Date—Year, Month, Day Specifies the start date of daylight savings time. Default For KX-TDA50: Year: 2010 (For Daylight Saving Time number 1. The year advances by one for the subsequent Daylight Saving Times.) Month: 3...

  • Page 239

    1.1.7 Automatic Time Adjustment End Date—Year, Month, Day Specifies the end date of daylight savings time. Default For KX-TDA50: Year: 2010 (For Daylight Saving Time number 1. The year advances by one for the subsequent Daylight Saving Times.) Month: 11...

  • Page 240

    4.1 [2-1] Date & Time/Daylight Saving Feature Manual References 1.1.7 Automatic Time Adjustment PC Programming Manual Document Version 2010-11...

  • Page 241: Date & Time/daylight Saving—date & Time Setting

    4.2 [2-1] Date & Time/Daylight Saving—Date & Time Setting 4.2 [2-1] Date & Time/Daylight Saving—Date & Time Setting The date and time of the PBX can be programmed. The date and time will be shown on the display of extensions (e.g., PT, PS).

  • Page 242: Operator & Bgm

    Specifies the extension number or floating extension number of incoming call distribution group to be designated as the PBX operator in each time mode (day/lunch/break/night). To select an extension number, click Destination Setting (see 2.1.6 Extension Number Setting). Default For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1001 Value Range Max.

  • Page 243

    4.3 [2-2] Operator & BGM Feature Manual References 11.1.4 Music on Hold 2.1.1 BGM (Background Music) BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) Selects the audio source of BGM. Default Internal BGM 1 Value Range External BGM, Internal BGM 1, Internal BGM 2 Maintenance Console Location 4.3 [2-2] Operator &...

  • Page 244

    4.3 [2-2] Operator & BGM Feature Manual References 11.1.4 Music on Hold BGM and Music on Hold—Sound on Transfer Selects the audio source for Music for Transfer (either the same music source chosen for the Music on Hold, or ringback tone). Default Same as Music on Hold Value Range...

  • Page 245: Timers & Counters

    4.4 [2-3] Timers & Counters 4.4 [2-3] Timers & Counters Various system timers and counters can be programmed. Dial / IRNA / Recall / Tone Automatic Redial—Repeat Counter (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the number of times Automatic Redial is attempted before being canceled. Default Value Range 0–15...

  • Page 246

    4.4 [2-3] Timers & Counters Automatic Redial—Analog CO Mute / Busy Detection Timer (KX-TDA100/ KX-TDA200/KX-TDA600 only) Specifies the length of time before the PBX stops muting the caller’s voice and cancels busy tone detection when Automatic Redial to analog CO line is performed. Default Value Range 0–15 s...

  • Page 247

    4.4 [2-3] Timers & Counters Default For KX-TDA50: 250 s For KX-TDA100/KX-TDA200/KX-TDA600: 10 s Value Range For KX-TDA50: 1–250 s For KX-TDA100/KX-TDA200/KX-TDA600: 1–15 s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 1.1.5 Automatic Extension Release Dial—Extension Inter-digit...

  • Page 248

    4.4 [2-3] Timers & Counters Dial—Analog CO First Digit Specifies the length of time within which the first digit of a telephone number must be sent to an analog CO line. If no digit is sent before this time expires, the PBX recognizes end of dialing and stops muting the caller’s voice over the analog CO line.

  • Page 249

    4.4 [2-3] Timers & Counters Default Value Range 0–60 s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 16.1.1 SMDR (Station Message Detail Recording) Intercept Routing No Answer (IRNA)—Day, Lunch, Break, Night Specifies the length of time until an unanswered call is redirected to the intercept routing destination in each time mode.

  • Page 250

    4.4 [2-3] Timers & Counters Value Range 0 (disable the Hold Recall)–240 s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 3.1.2 Call Hold Recall—Transfer Recall Specifies the length of time that a transferred call waits to be answered, before being redirected to the Transfer Recall destination assigned to the original transferring extension.

  • Page 251

    4.4 [2-3] Timers & Counters Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 3.1.5 Call Park Recall—Disconnect after Recall Specifies the length of time after an extension with a CO line call on hold receives a Hold Recall tone that the held call is disconnected.

  • Page 252

    4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 4.1.9 DND (Do Not Disturb) Tone Length—Reorder Tone for PT Handset Specifies the length of time that a reorder tone is heard when using a PT handset. The PT will return to idle status when this timer expires.

  • Page 253

    4.4 [2-3] Timers & Counters 8.1.2 Hands-free Operation DISA / Door / Reminder / U. Conf DISA—Delayed Answer Timer Specifies the length of time that the caller hears a ringback tone before hearing an OGM. Default Value Range 0–30 s Maintenance Console Location 4.4 [2-3] Timers &...

  • Page 254

    4.4 [2-3] Timers & Counters Default 10 s Value Range 0–120 s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 4.3 [2-2] Operator & BGM 7.4 [5-3-2] Voice Message—DISA Message 8.6 [6-6] Tenant— Operator (Extension Number) Feature Manual References 4.1.7 DISA (Direct Inward System Access) DISA—2nd Dial Timer for AA Specifies the length of time in which the caller must dial the second digit before the DISA AA Service activates.

  • Page 255

    4.4 [2-3] Timers & Counters Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Intercept Destination— Intercept Destination—When called party does not answer—Day, Lunch, Break, Night 6.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination— Intercept Destination—When called party does not answer—Day, Lunch, Break, Night 7.4 [5-3-2] Voice Message—DISA Message Feature Manual References...

  • Page 256

    4.4 [2-3] Timers & Counters Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 7.4 [5-3-2] Voice Message—DISA Message Feature Manual References 4.1.7 DISA (Direct Inward System Access) DISA—CO-to-CO Call Prolong Time Specifies the length of time that a CO-to-CO line call on a DISA line is prolonged each time that the caller prolongs the call.

  • Page 257

    4.4 [2-3] Timers & Counters Feature Manual References 12.1.2 OGM (Outgoing Message) DISA—Reorder Tone Duration Specifies the length of time that a reorder tone is sent to the caller before the call is disconnected. Default 10 s Value Range 1–15 s Maintenance Console Location 4.4 [2-3] Timers &...

  • Page 258

    4.4 [2-3] Timers & Counters Default 60 s Value Range 10 ´ n (n=0–30) s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 7.1 [5-1] Doorphone Feature Manual References 4.1.11 Doorphone Call Doorphone—Open Duration Specifies the length of time that a door stays unlocked after being opened from an extension. Default Value Range 2–7 s...

  • Page 259

    4.4 [2-3] Timers & Counters Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 17.1.4 Timed Reminder Timed Reminder—Interval Time Specifies the length of time between the repeated alarms. Default 30 s Value Range 10 ´...

  • Page 260

    4.4 [2-3] Timers & Counters Feature Manual References 17.1.4 Timed Reminder Unattended Conference—Recall Start Timer Specifies the length of time until the conference originator receives an Unattended Conference Recall tone. Default 10 min Value Range 0–60 min Maintenance Console Location 4.4 [2-3] Timers &...

  • Page 261

    4.4 [2-3] Timers & Counters Unattended Conference—Disconnect Timer Specifies the length of time until an Unattended Conference is disconnected after the parties involved in the conference receive a warning tone but the conference originator does not return to the conference. Default 15 s Value Range...

  • Page 262

    4.4 [2-3] Timers & Counters Caller ID—Visual Caller ID Display Specifies the length of time that a Caller ID number, with the Call Waiting tone offered by an analog line from the telephone company, is shown on the display. The Caller ID number flashes on the display for five seconds, followed by a 10-second pause, then flashes again for five seconds.

  • Page 263

    4.4 [2-3] Timers & Counters External Sensor—Ring Duration Specifies the length of time that the PBX waits for the called party to answer before canceling a sensor call. Default 30 s Value Range 10 ´ n (n=1–15) s Maintenance Console Location 4.4 [2-3] Timers &...

  • Page 264

    4.4 [2-3] Timers & Counters Value Range 3–30 s Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 11.1 [9-1] TIE Table Feature Manual References 13.1.13 PRIVATE NETWORK FEATURES PT Display—PT Last Display Duration in Idle Mode Specifies the length of time that the current information remains on the display after the extension returns to idle status.

  • Page 265

    4.4 [2-3] Timers & Counters Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References None Feature Manual References 19.1.3 Voice Mail (VM) Group During Conversation—DTMF Signal Length Specifies the length of time that a DTMF signal is sent when a number is dialed from a PT or PS during a conversation.

  • Page 266

    4.4 [2-3] Timers & Counters Feature Manual References None During Conversation—Pause Signal Time Specifies the length of the pause inserted when the PAUSE button is pressed during a conversation. Default 1.5 s Value Range 1.5 s, 2.5 s, 3.5 s, 4.5 s Maintenance Console Location 4.4 [2-3] Timers &...

  • Page 267

    Feature Manual References 16.1.5 SVM (Simplified Voice Message) Conference Group Call—Ring Duration (KX-TDA50 only) Specifies the length of time that a conference group call will ring. The conference group call will be established with members who answer within this time. If no members answer the call before this timer expires, the call is canceled.

  • Page 268

    Maintenance Console Location 4.4 [2-3] Timers & Counters Programming Manual References 4.8 [2-6-1] Numbering Plan—Main—Features— Conference Group Call Operation (KX-TDA50 only) 4.11 [2-7-1] Class of Service—COS Settings—Miscellaneous (KX-TDA50 only)— Conference Group Call Operation 5.26 [3-10] Conference Group (KX-TDA50 only) Feature Manual References 3.1.17 Conference Group Call (KX-TDA50 only)

  • Page 269: Week Table

    4.5 [2-4] Week Table 4.5 [2-4] Week Table A specific time mode (day, night, lunch, or break) can be selected for operation depending on the time of day. The time mode can be switched either automatically or manually. Select the desired switching mode from the Time Service Switching Mode option.

  • Page 270: Week Table—time Setting

    4.6 [2-4] Week Table—Time Setting 4.6 [2-4] Week Table—Time Setting The start times of 4 different time blocks can be programmed for each day of the week, for the selected Time Table, as well as the start and end times of up to 3 break periods. 1.

  • Page 271

    4.6 [2-4] Week Table—Time Setting Feature Manual References 17.1.3 Tenant Service 17.1.5 Time Service 2. Break—Break 1–3 Start—Setting Enables the setting of the start time for each break period. Default Disable Value Range Disable, Enable Maintenance Console Location 4.6 [2-4] Week Table—Time Setting Programming Manual References None Feature Manual References...

  • Page 272

    4.6 [2-4] Week Table—Time Setting 2. Break—Break 1–3 End—Hour, Minute Specifies the start time for each break period. Times can only be set when 2. Break—Break 1–3 Start— Setting is set to Enable. Default 00:00 Value Range 00:00–23:59 Maintenance Console Location 4.6 [2-4] Week Table—Time Setting Programming Manual References None...

  • Page 273: Holiday Table

    4.7 [2-5] Holiday Table 4.7 [2-5] Holiday Table A specific time mode (day, night, lunch, or break) can be selected for operation during holidays. Select the desired time mode from the Holiday Mode list. The start and end dates of a maximum of 24 different holidays can be programmed. Holiday Table—Setting Enables the setting of the holiday.

  • Page 274

    4.7 [2-5] Holiday Table Holiday Table—Start Date—Day Specifies the day of the holiday start date. Default Value Range 1–31 Maintenance Console Location 4.7 [2-5] Holiday Table Programming Manual References None Feature Manual References 17.1.5 Time Service Holiday Table—End Date—Month Specifies the month of the holiday end date. Default Value Range 1–12...

  • Page 275

    4.7 [2-5] Holiday Table Maintenance Console Location 4.7 [2-5] Holiday Table Programming Manual References None Feature Manual References 17.1.5 Time Service Document Version 2010-11 PC Programming Manual...

  • Page 276: Numbering Plan—main

    Leading Number Specifies the leading number of extension numbers and floating extension numbers. Default For KX-TDA50/KX-TDA100/KX-TDA200: Extension Numbering Scheme 01: 1 Extension Numbering Scheme 02: 2 Extension Numbering Scheme 03: 3 Extension Numbering Scheme 04: 4...

  • Page 277

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 3 digits (consisting of 0–9) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings 5.19 [3-7-2] VM(DPT) Group—Unit Settings 5.22 [3-8-2] VM(DTMF) Group—Group Settings 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings 7.4 [5-3-2] Voice Message—DISA Message 13.1 [11-1] Main...

  • Page 278: Operator Call

    4.8 [2-6-1] Numbering Plan—Main Operator Call Specifies the feature number used to call the operator. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.3 [2-2] Operator & BGM 8.6 [6-6] Tenant Feature Manual References 12.1.5 Operator Features...

  • Page 279: Tie Line Access

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 12.1 [10-1] CO Line Settings Feature Manual References None TIE Line Access Specifies the feature number used to make a TIE line call. Default Value Range Max.

  • Page 280

    4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 15.1.1 Redial, Last Number System Speed Dialing / Personal Speed Dialing Specifies the feature number used to make a call using a System/Personal Speed Dialing number. Default Value Range Max.

  • Page 281

    4.8 [2-6-1] Numbering Plan—Main 16.1.4 Speed Dialing, System Doorphone Call Specifies the feature number used to make a call to a doorphone. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 7.1 [5-1] Doorphone Feature Manual References...

  • Page 282

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.3 [2-2] Operator & BGM 4.11 [2-7-1] Class of Service—COS Settings—Programming & Manager— Manager Feature Manual References 2.1.1 BGM (Background Music) OGM Record / Clear / Playback Specifies the feature number, available for manager extensions, used to record, clear, or play back a certain...

  • Page 283: Group Call Pickup

    4.8 [2-6-1] Numbering Plan—Main Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 12.1 [10-1] CO Line Settings Feature Manual References 3.1.14 CO Line Access Parallel Telephone (Ring) Mode Set / Cancel Specifies the feature number used to set or cancel an SLT connected in parallel with a DPT to ring when receiving an incoming call.

  • Page 284: Directed Call Pickup

    4.8 [2-6-1] Numbering Plan—Main Feature Manual References 3.1.6 Call Pickup Directed Call Pickup Specifies the feature number used to answer a call ringing at a certain extension. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Option 3—...

  • Page 285: Automatic Callback Busy Cancel

    4.8 [2-6-1] Numbering Plan—Main Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 5.9 [3-4] Paging Group Feature Manual References 13.1.1 Paging Automatic Callback Busy Cancel Specifies the feature number used to cancel Automatic Callback Busy. Default Value Range Max.

  • Page 286: Account Code Entry

    4.8 [2-6-1] Numbering Plan—Main Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings—Optional Device & Other Extensions— Remote Operation by Other Extension Feature Manual References 20.1.1 Walking COS 19.1.1 Verification Code Entry Wireless XDP Parallel Mode Set / Cancel Specifies the feature number used to set or cancel Wireless XDP Parallel mode.

  • Page 287

    4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 1.1.2 Account Code Entry Call Hold / Call Hold Retrieve Specifies the feature number used to hold a call or retrieve a call on hold from the holding extension. Default Value Range Max.

  • Page 288

    4.8 [2-6-1] Numbering Plan—Main Call Park / Call Park Retrieve Specifies the feature number used to hold a call in a parking zone or retrieve a call held in a parking zone. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 289: External Feature Access

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 7.1 [5-1] Doorphone Feature Manual References 4.1.10 Door Open External Relay Access Specifies the feature number used to activate a relay. Default Value Range Max.

  • Page 290

    4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 5.1.1 EFA (External Feature Access) COLR Set / Cancel Specifies the feature number used to set or cancel COLR, which suppresses the presentation of the called party’s number to the caller. Default *7*0 Value Range...

  • Page 291

    4.8 [2-6-1] Numbering Plan—Main Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) 13.1.21 Private Network Features—QSIG—CLIP/COLP (Calling/Connected Line Identification Presentation) and CNIP/CONP (Calling/Connected Name Identification Presentation) Switch CLIP of CO Line / Extension (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the feature number used to send either the CLIP number of the CO line in use (subscriber’s number) or the extension to the network.

  • Page 292

    4.8 [2-6-1] Numbering Plan—Main Feature Manual References None Message Waiting Set / Cancel / Call Back Specifies the feature number used to set or cancel Message Waiting, or call back the caller. Default Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 293

    4.8 [2-6-1] Numbering Plan—Main Default *711 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) FWD/DND Set / Cancel: Call from Extension Specifies the feature number used to set or cancel FWD/DND for incoming intercom calls.

  • Page 294

    4.8 [2-6-1] Numbering Plan—Main Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) Group FWD Set / Cancel: Call from CO & Extension Specifies the feature number used to set or cancel FWD for incoming CO line and intercom calls to an incoming call distribution group.

  • Page 295

    4.8 [2-6-1] Numbering Plan—Main Programming Manual References 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 6.1.6 FWD (Call Forwarding) Group FWD Set / Cancel: Call from Extension Specifies the feature number used to set or cancel FWD for incoming intercom calls to an incoming call distribution group.

  • Page 296

    4.8 [2-6-1] Numbering Plan—Main Paging Deny Set / Cancel Specifies the feature number used to set or cancel Paging Deny (i.e., preventing other extensions from paging your extension). Default *721 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 297

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 4.1.1 Data Line Security Manual Call Waiting for Extension Call Specifies the feature number used to set or change the method of receiving a Call Waiting notification from an extension.

  • Page 298

    4.8 [2-6-1] Numbering Plan—Main Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 3.1.9 CALL WAITING FEATURES Executive Override Deny Set / Cancel Specifies the feature number used to set or cancel Executive Busy Override (i.e., preventing other extensions from joining your conversation).

  • Page 299

    4.8 [2-6-1] Numbering Plan—Main Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out Log-in / Log-out Specifies the feature number used to join or leave an incoming call distribution group. Default *736 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 300

    4.8 [2-6-1] Numbering Plan—Main Hot Line (Pickup Dial) Program Set / Cancel Specifies the feature number used to set/cancel the Hot Line feature, or program the number to be automatically dialed. Default *740 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 301

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.3 [2-2] Operator & BGM Feature Manual References 2.1.1 BGM (Background Music) Remote Timed Reminder (Remote Wakeup Call) Specifies the feature number used to set or cancel a Timed Reminder remotely (Wake-up Call).

  • Page 302

    4.8 [2-6-1] Numbering Plan—Main Programming Manual References None Feature Manual References 17.1.4 Timed Reminder Printing Message Specifies the feature number used to select a Printing Message to be output on SMDR. Default *761 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 303

    4.8 [2-6-1] Numbering Plan—Main Time Service (Day / Lunch / Break / Night) Switch Specifies the feature number, available for manager extensions, used to change the time mode manually. Default *780 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References...

  • Page 304

    4.8 [2-6-1] Numbering Plan—Main Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings—Programming & Manager— Manager Feature Manual References 5.1.4 Extension Dial Lock Extension Feature Clear Specifies the feature number used to reset certain features of an extension to the default values.

  • Page 305

    Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main Programming Manual References 4.4 [2-3] Timers & Counters—Miscellaneous— Conference Group Call—Ring Duration (KX-TDA50 only) 4.11 [2-7-1] Class of Service—COS Settings—Miscellaneous (KX-TDA50 only)— Conference Group Call Operation 5.26 [3-10] Conference Group (KX-TDA50 only) Document Version 2010-11...

  • Page 306

    4.8 [2-6-1] Numbering Plan—Main Feature Manual References 3.1.17 Conference Group Call (KX-TDA50 only) Centralized BLF Monitor Cancel Specifies the feature number used to cancel monitoring of an extension using an NDSS button. Default *784 Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 4.8 [2-6-1] Numbering Plan—Main...

  • Page 307

    4.8 [2-6-1] Numbering Plan—Main Other PBX Extension Other PBX extension numbers can be used to easily call extensions connected to PBXs at different locations in a TIE line network. The leading numbers of all PBXs in the network that will be called should be entered in this table.

  • Page 308: Numbering Plan—quick Dial

    A maximum of 80 Quick Dialing numbers can be programmed. When an EMEC/MEC card is installed in the PBX, a maximum of 4000 (with the KX-TDA100/KX-TDA200/KX-TDA600) or 1000 (with the KX-TDA50) Quick Dialing numbers can be programmed. To display other sets of numbers, click the applicable tab.

  • Page 309: Phone Number

    4.9 [2-6-2] Numbering Plan—Quick Dial Programming Manual References None Feature Manual References 13.1.23 Private Network Features—VoIP (Voice over Internet Protocol) 6.1.4 Flexible Numbering/Fixed Numbering 14.1.1 Quick Dialing Phone Number Specifies the number to be dialed when the corresponding Quick Dialing number is used. Default Not stored.

  • Page 310: Numbering Plan—b/na Dnd Call Feature

    4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature 4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Feature numbers used to access various PBX features can be programmed. The following features are available while hearing a busy, DND, or ringback tone. Each feature must have a unique feature number. For more information on flexible numbering, see "6.1.4 Flexible Numbering/Fixed Numbering"...

  • Page 311

    4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature 6.1 [4-1-1] Wired Extension—Extension Settings—Option 3— Executive Override Deny 6.10 [4-2-1] Portable Station—Extension Settings—Option 3— Executive Override Deny Feature Manual References 5.1.3 Executive Busy Override Alternate Calling - Ring / Voice Specifies the feature number used to allow a caller to change the called extension’s preset call receiving method to ring tone or voice.

  • Page 312

    4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Call Monitor Specifies the feature number used to listen to a busy extension’s conversation. Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings—Extension Feature—...

  • Page 313

    4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Default Value Range 1 digit (0–9, *, or #) Maintenance Console Location 4.10 [2-6-3] Numbering Plan—B/NA DND Call Feature Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Option 2— Manual C. Waiting for Extension Call 6.10 [4-2-1] Portable Station—Extension Settings—Option 2—...

  • Page 314: Class Of Service—cos Settings

    4.11 [2-7-1] Class of Service—COS Settings 4.11 [2-7-1] Class of Service—COS Settings Each extension, doorphone port, incoming call distribution group, and trunk group is assigned a Class of Service (COS). Certain features can be programmed to behave differently depending on the COS. A maximum of 64 COS levels can be programmed.

  • Page 315: Trs Level For System Speed Dialing

    4.11 [2-7-1] Class of Service—COS Settings Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 4.5 [2-4] Week Table 5.1 [3-1-1] Trunk Group—TRG Settings—Main— 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings—Main— 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.10 [4-2-1] Portable Station—Extension Settings—Main— 7.1 [5-1] Doorphone—...

  • Page 316

    4.11 [2-7-1] Class of Service—COS Settings Default Value Range 1: Allows all CO line calls 2–6: Restricts CO line calls according to the combination of the Denied and Exception Code Tables 7: Restricts all CO line calls Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main—...

  • Page 317

    4.11 [2-7-1] Class of Service—COS Settings Default Disable Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 4.17 [2-9] System Options—Option 2— Extension - CO Call Limitation—For Incoming Call 5.1 [3-1-1] Trunk Group—TRG Settings—Main— 6.1 [4-1-1] Wired Extension—Extension Settings—Main—...

  • Page 318: Account Code Mode

    4.11 [2-7-1] Class of Service—COS Settings Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.3 [4-1-2] Wired Extension—FWD/DND 6.10 [4-2-1] Portable Station—Extension Settings—Main— 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) Account Code Mode...

  • Page 319

    4.11 [2-7-1] Class of Service—COS Settings Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.10 [4-2-1] Portable Station—Extension Settings—Main— 13.1 [11-1] Main Feature Manual References 16.1.1 SMDR (Station Message Detail Recording) Extension Feature The use of features related to extension operations can be programmed for each COS.

  • Page 320: Dnd Override

    4.11 [2-7-1] Class of Service—COS Settings Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.10 [4-2-1] Portable Station—Extension Settings—Main— Feature Manual References 5.1.3 Executive Busy Override DND Override Enables making a call to an extension in DND mode by entering the feature number. Default Disable Value Range...

  • Page 321

    4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.10 [4-2-1] Portable Station—Extension Settings—Main— Feature Manual References 12.1.3 OHCA (Off-hook Call Announcement) 20.1.3 Whisper OHCA Call Monitor Enables listening to a busy extension’s conversation. Default Disable Value Range Disable, Enable...

  • Page 322: Executive Busy Override Deny

    4.11 [2-7-1] Class of Service—COS Settings 6.18 [4-3] DSS Console Feature Manual References 3.1.6 Call Pickup Programming & Manager COS Name Specifies the name of the COS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References...

  • Page 323

    4.11 [2-7-1] Class of Service—COS Settings Group Forward Set Enables setting call forwarding for calls to an incoming call distribution group. Default Enable-Group Value Range Disable: An extension cannot set call forwarding for any group. Enable-All: An extension can set call forwarding for all groups. Enable-Group: An extension can only set call forwarding for the group to which the extension belongs.

  • Page 324

    4.11 [2-7-1] Class of Service—COS Settings Manager Specifies the authorization to use manager features. Default Disable Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— 6.10 [4-2-1] Portable Station—Extension Settings—Main— Feature Manual References 11.1.1 Manager Features Time Service Switch...

  • Page 325

    4.11 [2-7-1] Class of Service—COS Settings COS Name Specifies the name of the COS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 3.1.20 COS (Class of Service) SDN Key Mode Selects what happens when an extension user presses an SDN button while on hook.

  • Page 326

    4.11 [2-7-1] Class of Service—COS Settings Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings—PDN/SDN (KX-TDA100/KX-TDA200/KX-TDA600 only)— COS Name Feature Manual References 13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension SDN Key Assignment by PT Program Selects whether PT users can create SDN buttons on their own extensions using PT programming.

  • Page 327: Door Unlock

    4.11 [2-7-1] Class of Service—COS Settings Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References None Feature Manual References 3.1.20 COS (Class of Service) Door Unlock Enables using the door opener feature. Default Enable Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References...

  • Page 328

    4.11 [2-7-1] Class of Service—COS Settings Feature Manual References 5.1.8 External Relay Accept the Call from DISA Enables reception of calls from DISA. Default Enable Value Range Disable, Enable Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main—...

  • Page 329

    Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Main— Feature Manual References 20.1.4 Wireless XDP Parallel Mode Miscellaneous (KX-TDA50 only) COS Name Specifies the name of the COS. Default Not stored. Value Range Max.

  • Page 330

    Maintenance Console Location 4.11 [2-7-1] Class of Service—COS Settings Programming Manual References 4.4 [2-3] Timers & Counters—Miscellaneous— Conference Group Call—Ring Duration (KX-TDA50 only) 4.8 [2-6-1] Numbering Plan—Main—Features— Conference Group Call Operation (KX-TDA50 only) 5.26 [3-10] Conference Group (KX-TDA50 only) Feature Manual References 3.1.17 Conference Group Call (KX-TDA50 only)

  • Page 331: Class Of Service—external Call Block

    Each COS can have different trunk groups available for making CO line calls, depending on the time mode (day/lunch/break/night). Select the desired time mode from the list. Outgoing Trunk Group 1–64 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies the available trunk groups.

  • Page 332: Class Of Service—internal Call Block

    4.13 [2-7-3] Class of Service—Internal Call Block 4.13 [2-7-3] Class of Service—Internal Call Block Internal Call Block determines the restrictions placed on making intercom calls. The extensions, incoming call distribution groups, and doorphones belonging to a certain COS can be programmed to not receive intercom calls from those belonging to a certain COS.

  • Page 333: Ring Tone Patterns—call From Co

    4.14 [2-8-1] Ring Tone Patterns—Call from CO 4.14 [2-8-1] Ring Tone Patterns—Call from CO Different ring tone patterns can be selected for incoming CO line calls depending on the trunk group that the calls are received on. A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.

  • Page 334: Ring Tone Patterns—call From Doorphone

    4.15 [2-8-2] Ring Tone Patterns—Call from Doorphone 4.15 [2-8-2] Ring Tone Patterns—Call from Doorphone Different ring tone patterns can be selected for incoming doorphone calls depending on the doorphone port that the calls originate from. A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.

  • Page 335: Ring Tone Patterns—call From Others

    4.16 [2-8-3] Ring Tone Patterns—Call from Others 4.16 [2-8-3] Ring Tone Patterns—Call from Others Different ring tone patterns can be selected for incoming intercom calls and ringing triggered by certain PBX features (Timed Reminder, Call Back, and Live Call Screening). A maximum of 8 Ring Tone Pattern Tables can be programmed, and any pattern table can be selected for use by an extension.

  • Page 336

    4.16 [2-8-3] Ring Tone Patterns—Call from Others Call Back—Ring Tone Pattern Plan 1–8 Specifies the ring tone pattern for callback ringing by Automatic Callback Busy. Default S-Double Value Range Single, Double, Triple, S-Double Maintenance Console Location 4.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Option 1—...

  • Page 337

    4.16 [2-8-3] Ring Tone Patterns—Call from Others Value Range Single, Double, Triple Maintenance Console Location 4.16 [2-8-3] Ring Tone Patterns—Call from Others Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings—Option 1— Ring Pattern Table 6.10 [4-2-1] Portable Station—Extension Settings—Option 1— Ring Pattern Table Feature Manual References None...

  • Page 338: System Options

    4.17 [2-9] System Options 4.17 [2-9] System Options Various system settings can be programmed. Option 1 PT LCD—Date Display Selects the order that the month and date are shown on the displays of extensions. Default Month-Date Value Range Date-Month, Month-Date Maintenance Console Location 4.17 [2-9] System Options Programming Manual References...

  • Page 339

    4.17 [2-9] System Options PT LCD—Password / PIN Display Selects whether passwords and PINs (Personal Identification Number) are hidden or shown on the displays of extensions while being entered. Default Hide Value Range Hide, Display Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References...

  • Page 340

    4.17 [2-9] System Options Default On (Solid) Value Range On (Solid): Red on Flash: Slow red flashing Maintenance Console Location 4.17 [2-9] System Options Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.7 FWD/DND Button, Group FWD Button 10.1.1 LED Indication PT Fwd / DND—Fwd/DND key mode when Idle Selects the function of the FWD/DND button (fixed button) when it is pressed in idle status.

  • Page 341

    4.17 [2-9] System Options Default Do Not Page Value Range Do Not Page, Page Maintenance Console Location 4.17 [2-9] System Options Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND 5.9 [3-4] Paging Group Feature Manual References 13.1.1 Paging PT Operation—Off Hook Monitor for KX-T74xx/T76xx Enables the use of Off-Hook Monitor with KX-T7400, KX-T7600, or KX-DT300 series telephones and IP-PTs.

  • Page 342

    4.17 [2-9] System Options Programming Manual References None Feature Manual References 13.1.12 Privacy Release PT Operation—One-touch Busy Override by SCO key (KX-TDA50 only) Specifies whether calls in progress can be joined (Executive Busy Override) simply by pressing the S-CO button. Default Enable...

  • Page 343

    4.17 [2-9] System Options Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References None PT Operation—PT Ring Off Setting Specifies whether incoming call ringing can be turned off at individual extensions. If disabled, users cannot prevent incoming calls from ringing.

  • Page 344

    4.17 [2-9] System Options Feature Manual References 8.1.1 Hands-free Answerback PT Operation—Automatic Hold by ICM / CO / ICD Group key Selects whether calls are disconnected or held when an INTERCOM, PDN, CO, or ICD Group button is pressed while having a conversation. Default Disconnect Value Range...

  • Page 345

    4.17 [2-9] System Options Option 2 Extension Clear—Call Waiting Specifies whether the Call Waiting setting is cleared when Extension Feature Clear is performed. Default Clear Value Range Clear, Do not clear Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 5.1.5 Extension Feature Clear...

  • Page 346

    4.17 [2-9] System Options Value Range Clear, Do not clear Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 5.1.5 Extension Feature Clear CODEC—System CODEC Selects the codec type for DPTs and PSs. Default µ-Law Value Range A-Law, µ-Law Maintenance Console Location...

  • Page 347

    4.17 [2-9] System Options Programming Manual References None Feature Manual References None End of Dial Plan—[#] as End of Dial for en Bloc mode (KX-TDA100/KX-TDA200/ KX-TDA600 only) Specifies whether to automatically send "#" as an end code when dialing to an ISDN line; if used as the end code, "#"...

  • Page 348

    4.17 [2-9] System Options Programming Manual References 4.4 [2-3] Timers & Counters— Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/ KX-TDA600 only) Feature Manual References 15.1.1 Redial, Last Number Redial—Save Dial After Connection to Redial Memory Specifies whether any digits dialed after the called party answers (for example, to access a specific extension within another company) are also saved as part of the redial number.

  • Page 349

    Enables the PBX to adjust its clock every day according to the time information that the network provides with the first call after 3:05 AM. With the KX-TDA50, this parameter is shown as Automatic Time Adjustment—by Caller ID (FSK). Default...

  • Page 350

    4.17 [2-9] System Options Option 3 Confirmation Tone—Tone 1 : Called by Voice Enables the PBX to send Confirmation Tone 1. Confirmation Tone 1 is heard from a PT when it receives a call in voice-calling mode. Default Enable Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options...

  • Page 351

    4.17 [2-9] System Options Confirmation Tone—Tone 3-1 : Start Talking after Making Call / Call from Doorphone Enables the PBX to send Confirmation Tone 3-1. Confirmation Tone 3-1 is heard from an extension when, for example, it pages another extension, or from a doorphone when the doorphone button is pressed. Default Enable Value Range...

  • Page 352

    4.17 [2-9] System Options Default Enable Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 3.1.16 Conference 3.1.18 Confirmation Tone Confirmation Tone—Tone 4-2 : Finish Conference Enables the PBX to send Confirmation Tone 4-2. Confirmation Tone 4-2 is heard from an extension when a party leaves a conference call.

  • Page 353

    4.17 [2-9] System Options Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 3.1.18 Confirmation Tone Dial Tone—Distinctive Dial Tone Enables the PBX to send dial tones at different frequencies depending on the setting of the extension. Default Enable Value Range...

  • Page 354

    4.17 [2-9] System Options Programming Manual References None Feature Manual References 4.1.3 Dial Tone Dial Tone—Dial Tone for ARS Selects the dial tone the PBX (instead of the network) sends to the caller when a call is made using the ARS feature, or ISDN En Bloc dialing.

  • Page 355

    4.17 [2-9] System Options Feature Manual References 3.1.16 Conference Echo Cancel—CO-to-CO Enables the use of the ECHO/EECHO card for CO-to-CO line calls. Default Enable Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References None Echo Cancel—Extension to Analog Line Enables the use of the ECHO/EECHO card for extension-to-analog CO line calls.

  • Page 356

    4.17 [2-9] System Options If set to "Disable", the echo canceler card is not used for extension-to-ISDN/T1 line calls. Default Disable Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References None Option 4 DSS Key—DSS key mode for Incoming Call Enables the use of a DSS button to pick up an incoming call to another extension or an ICD group.

  • Page 357

    4.17 [2-9] System Options Value Range Disable: The DSS button will light up when a call arrives, but pressing it will not pick up the call. Enable: The DSS button will flash when a call arrives, and pressing it will pick up the call. Maintenance Console Location 4.17 [2-9] System Options Programming Manual References...

  • Page 358

    4.17 [2-9] System Options Value Range Disable: The PBX disconnects the current call, and calls the extension assigned to the DSS or SDN button. Enable: The PBX places the current call on consultation hold. Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References...

  • Page 359

    4.17 [2-9] System Options Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 8.1.1 Hands-free Answerback Send CLIP of CO Caller to ISDN—when Transfer (CLIP of Held Party) Enables the transfer of related CLIP information when a party on hold is transferred. When set to "Enable", the transfer destination will receive the original caller’s CLIP information, not the information of the extension that performed the transfer.

  • Page 360

    4.17 [2-9] System Options Enable: The CLIP number of the calling party is sent. Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 13.1.16 Private Network Features—Network ICD Group 9.1.4 ICD Group Features—Outside Destinations Private Network—Public Call through Private Network—Minimum Public Caller ID Digits Specifies the minimum length of Caller ID required for a call from a private network to be considered as a call from a public network.

  • Page 361

    4.17 [2-9] System Options Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References 11.1 [9-1] TIE Table— Leading Number Feature Manual References 13.1.13 PRIVATE NETWORK FEATURES System Wireless—Out of Range Registration Selects whether the PBX can set the status of a PS to Out of Range if no signal is received from the PS for a preset length of time.

  • Page 362

    4.17 [2-9] System Options Maintenance Console Location 4.17 [2-9] System Options Programming Manual References 6.13 [4-2-3] Portable Station—Flexible Button— Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/ KX-TDA600 only) Feature Manual References 13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Option 5 SLT—SLT Hold Mode Selects how to hold a line and transfer a call with an SLT.

  • Page 363

    4.17 [2-9] System Options Programming Manual References None Feature Manual References 11.1.3 Message Waiting Whisper OHCA—for SLT / APT / KX-T72xx Enables the use of Whisper OHCA to SLTs and IP-PTs, and DPTs other than KX-T7400 series, KX-T7600 series, or KX-DT300 series. Default Disable Value Range...

  • Page 364

    4.17 [2-9] System Options PT Feature Access—No. 1–8 Specifies the System Feature Access Menu (1–8) shown on the display of an extension. Default System Feature Access Menu 1: Call Back Cancel System Feature Access Menu 2: Call Pickup Direct System Feature Access Menu 3: Call Pickup Group System Feature Access Menu 4: Doorphone Call System Feature Access Menu 5: Door Open System Feature Access Menu 6: External BGM...

  • Page 365

    4.17 [2-9] System Options Option 6 (CTI) 1st Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for First Party Call Control CTI. Default 60 s Value Range 0–60 s Maintenance Console Location 4.17 [2-9] System Options...

  • Page 366

    4.17 [2-9] System Options Default 20 s Value Range 0–60 s Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 3.1.22 CTI (Computer Telephony Integration) 3rd Party CTI—System status retry interval timer Specifies the length of time until the alive check is retried when no response is received, for Third Party Call Control CTI.

  • Page 367

    4.17 [2-9] System Options Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References 3.1.22 CTI (Computer Telephony Integration) 3rd Party CTI—CDR retry interval timer Specifies the length of time until the alive check of CDR is retried when no response is received, for Third Party Call Control CTI.

  • Page 368

    4.17 [2-9] System Options Feature Manual References 3.1.22 CTI (Computer Telephony Integration) CTI Multi PBX Control—PBX Name Specifies the name of the PBX, for network programming reference. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References...

  • Page 369

    4.17 [2-9] System Options Default Disable Value Range Disable, Enable Maintenance Console Location 4.17 [2-9] System Options Programming Manual References None Feature Manual References None Document Version 2010-11 PC Programming Manual...

  • Page 370: Extension Cid Settings

    4.18 [2-10] Extension CID Settings Various settings for extension Caller ID can be programmed. Extension Caller ID Resource-1, 2 (KX-TDA50 only) Specifies a group of 4 SLT ports that can transfer Caller ID information to connected SLTs. When the port to which an extension is connected has this feature activated, there will be a short delay before the extension rings for incoming calls.

  • Page 371

    4.18 [2-10] Extension CID Settings Feature Manual References 3.1.1 Caller ID Channel Seizure Signal Bits Specifies the number of seizure bits to send when sending Caller ID information to an SLT. Default 300 bits Value Range 10 ´ n (n=3–40) bits Maintenance Console Location 4.18 [2-10] Extension CID Settings Programming Manual References...

  • Page 372

    4.18 [2-10] Extension CID Settings Default 512 ms Value Range 64 ´ n (n=5–35) ms Maintenance Console Location 4.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 3.1.1 Caller ID Caller ID Signal Type (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the type of signal modulation to be used when sending Caller ID information to an SLT (reference only).

  • Page 373

    4.18 [2-10] Extension CID Settings Maintenance Console Location 4.18 [2-10] Extension CID Settings Programming Manual References None Feature Manual References 3.1.1 Caller ID Send Caller ID Date & Time to Extension Enables the PBX to send the date and time of an incoming call when sending Caller ID information to an SLT. Default Enable Value Range...

  • Page 374

    4.18 [2-10] Extension CID Settings Feature Manual References 3.1.1 Caller ID Send Caller ID Long Distance to Extension Enables the PBX to send a call qualifier (Long Distance) (if received from the CO line) when sending Caller ID information to an SLT. Default Enable Value Range...

  • Page 375: Audio Gain—paging/moh

    -15–15 dB Maintenance Console Location 4.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 5.9 [3-4] Paging Group Feature Manual References 13.1.1 Paging Paging—EPG (External Pager) (KX-TDA50 only) Specifies the paging volume for the External Pager. Document Version 2010-11 PC Programming Manual...

  • Page 376

    4.19 [2-11-1] Audio Gain—Paging/MOH Default -2 dB Value Range -15–15 dB Maintenance Console Location 4.19 [2-11-1] Audio Gain—Paging/MOH Programming Manual References 5.9 [3-4] Paging Group Feature Manual References 13.1.1 Paging Paging—Paging Level from PT Speaker Specifies the volume when paging is broadcast through the speaker of a PT. Default 0 dB Value Range...

  • Page 377

    Programming Manual References 4.3 [2-2] Operator & BGM Feature Manual References 11.1.4 Music on Hold 2.1.1 BGM (Background Music) MOH—MOH (Music On Hold) (KX-TDA50 only) Specifies the music volume for the External BGM. Default 9 dB Value Range -11–11 dB Maintenance Console Location 4.19 [2-11-1] Audio Gain—Paging/MOH...

  • Page 378

    4.19 [2-11-1] Audio Gain—Paging/MOH Feature Manual References 11.1.4 Music on Hold 2.1.1 BGM (Background Music) PC Programming Manual Document Version 2010-11...

  • Page 379: Audio Gain—card

    4.20 [2-11-2] Audio Gain—Card 4.20 [2-11-2] Audio Gain—Card Gain levels can be programmed for each type of card. Up Gain (To PBX) Specifies the volume for audio signals from the selected type of card to the PBX. Default Depends on card type. Value Range -15–15 dB Maintenance Console Location...

  • Page 380

    4.20 [2-11-2] Audio Gain—Card PC Programming Manual Document Version 2010-11...

  • Page 381: Group

    Section 5 [3] Group Document Version 2010-11 PC Programming Manual...

  • Page 382: Trunk Group—trg Settings

    CO lines can be organized into trunk groups. The settings of each trunk group determine the settings of the CO lines within that group. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) trunk groups can be programmed.

  • Page 383

    5.1 [3-1-1] Trunk Group—TRG Settings Feature Manual References 13.1.13 PRIVATE NETWORK FEATURES Line Hunting Order Specifies the CO line hunting sequence for the trunk group. The hunting sequence can be programmed to start from the lowest or highest numbered CO lines, or to rotate uniformly among all CO lines. Default High ->...

  • Page 384

    5.1 [3-1-1] Trunk Group—TRG Settings Default 10 min Value Range None, 1–60 min Maintenance Console Location 5.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings 4.17 [2-9] System Options 12.1 [10-1] CO Line Settings Feature Manual References 3.1.15 CO Line Call Limitation Caller ID Modification Table Specifies the table to be used for modifying caller information (telephone number).

  • Page 385: Tone Detection

    5.1 [3-1-1] Trunk Group—TRG Settings Maintenance Console Location 5.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References 5.4 [3-1-4] Dialing Plan Feature Manual References None Tone Detection Group Name Specifies the name of the trunk group for programming reference. Default Not stored. Value Range Max.

  • Page 386

    5.1 [3-1-1] Trunk Group—TRG Settings 12.1 [10-1] CO Line Settings Feature Manual References 4.1.7 DISA (Direct Inward System Access) DISA Tone Detection—Continuous Enables the disconnection of a DISA-originated CO-to-CO line call by continuous signal detection. Default Enable Value Range Disable, Enable Maintenance Console Location 5.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References...

  • Page 387

    5.1 [3-1-1] Trunk Group—TRG Settings Simplified Voice Message Tone Detection—Silence Enables the disconnection of an SVM-originated CO-to-CO line call by silence detection. Default Enable Value Range Disable, Enable Maintenance Console Location 5.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 16.1.5 SVM (Simplified Voice Message) Simplified Voice Message Tone Detection—Continuous...

  • Page 388: Host Pbx Access Code

    5.1 [3-1-1] Trunk Group—TRG Settings Maintenance Console Location 5.1 [3-1-1] Trunk Group—TRG Settings Programming Manual References None Feature Manual References 16.1.5 SVM (Simplified Voice Message) Host PBX Access Code Group Name Specifies the name of the trunk group for programming reference. Default Not stored.

  • Page 389

    5.1 [3-1-1] Trunk Group—TRG Settings Feature Manual References 8.1.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) Document Version 2010-11 PC Programming Manual...

  • Page 390: Trunk Group—local Access Priority

    Specifies the trunk group assigned to the corresponding priority level. Select the blank option to not assign a trunk group to the priority. Default Priority 1–64 = Trunk Group No. 1–64 Value Range For KX-TDA50/KX-TDA100/KX-TDA200: Trunk Group No. 1–64 For KX-TDA600: Trunk Group No. 1–96 Maintenance Console Location 5.2 [3-1-2] Trunk Group—Local Access Priority...

  • Page 391: Caller Id Modification

    Area Code (for Local / International Call Data 1–10) Specifies the leading number (area code) to look for in the incoming caller’s number. Default For KX-TDA50: Local / International Call Data 1–9: Not stored. Local / International Call Data 10: 011 For KX-TDA100/KX-TDA200/KX-TDA600: Not stored.

  • Page 392

    5.3 [3-1-3] Caller ID Modification Local / International Call Data 10: 0 Long Distance Code: 0 For KX-TDA100/KX-TDA200/KX-TDA600: Local / International Call Data 1–10: 3 Long Distance Code: 0 Value Range 0–9 Maintenance Console Location 5.3 [3-1-3] Caller ID Modification Programming Manual References 5.1 [3-1-1] Trunk Group—TRG Settings—...

  • Page 393

    5.3 [3-1-3] Caller ID Modification to incoming CO line calls routed through public networks when the type of network numbering plan is Unknown or not specified. A maximum of 4 Length of Digits Modification Tables can be programmed. Select the desired table from the Modification Table list.

  • Page 394

    5.3 [3-1-3] Caller ID Modification 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Called Party number —Type of Number—Public, Private Feature Manual References 3.1.1 Caller ID Added Number (for International) Specifies the number to be added to the incoming telephone number when the total number of digits exceeds Minimum Caller ID Digits (for International).

  • Page 395

    5.3 [3-1-3] Caller ID Modification Programming Manual References 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Calling Party number—Type of Number—Public, Private 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)— Called Party number —Type of Number—Public, Private Feature Manual References 3.1.1 Caller ID CLIP When incoming caller information is sent through an ISDN line and the type of the network numbering plan is...

  • Page 396

    5.3 [3-1-3] Caller ID Modification Default For KX-TDA50: International: 011 National: Not stored. Subscriber: Not stored. For KX-TDA100/KX-TDA200/KX-TDA600: International: 011 National: 1 Subscriber: Not stored. Value Range Max. 4 digits (consisting of 0–9, *, and #) Maintenance Console Location 5.3 [3-1-3] Caller ID Modification Programming Manual References 3.14 [1-1] Slot—Port Property - PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—...

  • Page 397: Dialing Plan

    5.4 [3-1-4] Dialing Plan 5.4 [3-1-4] Dialing Plan The PBX sends all of the dialed digits at once after an extension user completes dialing. The PBX can recognize the end of dialing when the dialed telephone number starts with the programmed leading number and contains the programmed total number of digits.

  • Page 398

    5.4 [3-1-4] Dialing Plan Maintenance Console Location 5.4 [3-1-4] Dialing Plan Programming Manual References None Feature Manual References 9.1.16 ISDN (INTEGRATED SERVICES DIGITAL NETWORK) FEATURES Added Number Specifies the number to be added to the dialed number in place of the removed digits. Default Not stored.

  • Page 399: Dialing Plan—auto Assign

    5.5 [3-1-4] Dialing Plan—Auto Assign 5.5 [3-1-4] Dialing Plan—Auto Assign It is possible to assign a set of leading numbers automatically. Select Auto Assigning Table Selects the set of preset leading number values to assign to the active dialing plan table. When Type D is selected, you will be prompted to enter a 3-digit area code, and 7 "X"s, in cells 1 through 47 of the dialing plan table.

  • Page 400: Extension Group

    Extensions can be assigned to a tenant according to their extension user groups. An extension user group can belong to only one tenant. However, one extension user group can belong to several call pickup groups and several paging groups. A maximum of 8 (with KX-TDA50/KX-TDA100/KX-TDA200) or 32 (with KX-TDA600) tenants can be programmed.

  • Page 401

    5.6 [3-2] Extension Group Maintenance Console Location 5.6 [3-2] Extension Group Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 7.1.1 GROUP FEATURES 17.1.3 Tenant Service Document Version 2010-11 PC Programming Manual...

  • Page 402: Call Pickup Group

    Extensions can be assigned to a call pickup group according to their extension user groups. One extension user group can belong to up to 8 call pickup groups. A maximum of 64 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 96 (with the KX-TDA600) call pickup groups can be programmed.

  • Page 403

    5.7 [3-3] Call Pickup Group Maintenance Console Location 5.7 [3-3] Call Pickup Group Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 3.1.6 Call Pickup 7.1.1 GROUP FEATURES Document Version 2010-11 PC Programming Manual...

  • Page 404: Call Pickup Group—all Setting

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 3.1.6 Call Pickup 7.1.1 GROUP FEATURES Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies whether the extension user group belongs to the corresponding pickup group. Default ON for the same-numbered call pickup group...

  • Page 405

    5.8 [3-3] Call Pickup Group—All Setting 7.1.1 GROUP FEATURES Document Version 2010-11 PC Programming Manual...

  • Page 406: Paging Group

    Extensions can be assigned to a paging group according to their extension user groups. External pagers can also be assigned to a paging group. One extension user group or external pager can belong to multiple paging groups. A maximum of 32 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 96 (with the KX-TDA600) paging groups can be programmed.

  • Page 407

    5.9 [3-4] Paging Group Maintenance Console Location 5.9 [3-4] Paging Group Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 13.1.1 Paging 7.1.1 GROUP FEATURES Document Version 2010-11 PC Programming Manual...

  • Page 408: Paging Group—all Setting

    6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 13.1.1 Paging 7.1.1 GROUP FEATURES Extension Group 1–32 (KX-TDA50/KX-TDA100/KX-TDA200) or 1–96 (KX-TDA600) Specifies whether the extension user group belongs to the corresponding paging group. Default ON for same numbered paging group...

  • Page 409

    5.10 [3-4] Paging Group—All Setting 7.1.1 GROUP FEATURES Document Version 2010-11 PC Programming Manual...

  • Page 410: Paging Group—external Pager

    5.11 [3-4] Paging Group—External Pager 5.11 [3-4] Paging Group—External Pager External pagers can be assigned to a paging group. One external pager can belong to multiple paging groups. Paging Group Name Indicates the name of the paging group (reference only). Default Not stored.

  • Page 411

    5.11 [3-4] Paging Group—External Pager External Pager 2 (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies whether the external pager belongs to the corresponding paging group. Default Value Range ON (blue), OFF Maintenance Console Location 5.11 [3-4] Paging Group—External Pager Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 13.1.1 Paging...

  • Page 412: Incoming Call Distribution Group—group Settings

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings 5.12 [3-5-1] Incoming Call Distribution Group— Group Settings Extensions can be assigned as members of an incoming call distribution group. Calls to an incoming call distribution group are distributed to its member extensions as programmed. A maximum of 128 incoming call distribution groups can be programmed.

  • Page 413

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Distribution Method Selects the method for distributing calls to idle extensions of the incoming call distribution group. Default Ring Value Range Ring, UCD, Priority Hunting Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References...

  • Page 414

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings FWD Mode Specifies whether extensions in FWD mode ring when a call is received at the incoming call distribution group. Default Ring Value Range No Ring, Ring Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND...

  • Page 415

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Value Range For KX-TDA50/KX-TDA100/KX-TDA200: For KX-TDA600: 1-32 Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 4.3 [2-2] Operator & BGM 4.5 [2-4] Week Table 8.6 [6-6] Tenant— Music On Hold Feature Manual References 11.1.4 Music on Hold...

  • Page 416

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) Overflow Queuing Busy Floating Extension Number Specifies the floating extension number of the incoming call distribution group.

  • Page 417

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Queuing Busy—Destination-Day, Lunch, Break, Night Specifies the overflow destination of calls that cannot be queued in each time mode. Default Not stored.

  • Page 418

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 9.1.6 ICD Group Features—Queuing Overflow No Answer Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Default Groups 001–064: 601–664 Groups 065–128: Not stored Value Range Max.

  • Page 419

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Time out & Manual Queue Redirection—Destination-Day, Lunch, Break, Night Specifies the overflow destination of queued calls when they are not answered or are redirected by Manual Queue Redirection in each time mode. Default Not stored.

  • Page 420: Queuing Time Table

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Default None Value Range None, 1–30 Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 6.5 [4-1-4] Wired Extension—Flexible Button 6.13 [4-2-3] Portable Station—Flexible Button Feature Manual References 9.1.6 ICD Group Features—Queuing Queuing Time Table Floating Extension Number Specifies the floating extension number of the incoming call distribution group.

  • Page 421

    Queuing Time Table—Day, Lunch, Break, Night Specifies the Queuing Time Table to be used in each time mode. Default None Value Range For KX-TDA50/KX-TDA100/KX-TDA200: None, Table 1–Table 64 For KX-TDA600: None, Table 1–Table 128 Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References 4.5 [2-4] Week Table...

  • Page 422

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Miscellaneous Floating Extension Number Specifies the floating extension number of the incoming call distribution group. Default Groups 001–064: 601–664 Groups 065–128: Not stored...

  • Page 423

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Extension No Answer Redirection Time Specifies the length of time that a call queues at an extension before it is redirected to the next member extension of the incoming call distribution group, in UCD or Priority Hunting distribution method.

  • Page 424

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out Maximum No. of Busy Extension Specifies the number of extensions that can accept calls simultaneously in the incoming call distribution group. Default Max. Value Range Max.: Call arrives at an idle extension. 1–32: Call will not arrive at an idle extension when the number of busy extensions exceeds the assigned number.

  • Page 425

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings VIP Call Mode Enables VIP Call mode, to prioritize calls received from multiple incoming call distribution groups. Default Disable Value Range Disable, Enable Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References...

  • Page 426

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 19.1.5 Voice Mail DTMF Integration Group Log / Group FWD To set extension numbers easily, click Destination Setting (see 2.1.6 Extension Number Setting).

  • Page 427

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References None Incoming Call Log Memory Specifies the number of unanswered calls to the incoming call distribution group that can be logged in the call log memory.

  • Page 428

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Feature Manual References 6.1.6 FWD (Call Forwarding) Group FWD Call from CO—Destination Specifies the forward destination of incoming CO line calls directed to the incoming call distribution group. Default Not stored. Value Range Max.

  • Page 429

    5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret] and P [Pause]) Maintenance Console Location 5.12 [3-5-1] Incoming Call Distribution Group—Group Settings Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Document Version 2010-11...

  • Page 430: Incoming Call Distribution Group—group Settings—member List

    5.13 [3-5-1] Incoming Call Distribution Group— Group Settings—Member List Each incoming call distribution group can have a maximum of 32 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 128 (with the KX-TDA600) members (extensions) assigned to it, and each member can have its own delayed ringing and Wrap-up time settings. An extension can be a member of multiple incoming call distribution groups.

  • Page 431: Delayed Ring

    5.13 [3-5-1] Incoming Call Distribution Group—Group Settings—Member List Programming Manual References 5.24 [3-9] PS Ring Group Feature Manual References 9.1.1 ICD GROUP FEATURES Delayed Ring Specifies the delayed ringing setting of each member. (Applicable when the call distribution method of the incoming call distribution group is set to Ring.) Default Immediate...

  • Page 432

    5.13 [3-5-1] Incoming Call Distribution Group—Group Settings—Member List Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out PC Programming Manual Document Version 2010-11...

  • Page 433: Incoming Call Distribution Group—queuing Time Table

    Queuing Time Table A Queuing Time Table can contain up to 16 sequences which control how calls waiting in a queue are handled. A maximum of 64 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 128 (with the KX-TDA600) Queuing Time Tables can be programmed.

  • Page 434: Incoming Call Distribution Group—miscellaneous

    5.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous 5.15 [3-5-3] Incoming Call Distribution Group— Miscellaneous Optional settings related to Incoming Call Distribution Groups can be programmed. Options—Call Log to ICD Group for Answered Call Selects whether answered calls to an ICD Group are also logged in the Incoming Call Log for the group, in addition to the log of the extension that answered the call.

  • Page 435

    5.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous Feature Manual References 9.1.1 ICD GROUP FEATURES Options—Longest Idle Distribution (Activation Key Required) Selects whether incoming calls are distributed to idle extensions evenly in order (UCD), or to the extension that has been idle the longest (ACD). Default Enable (ACD) Value Range...

  • Page 436

    5.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out PC Programming Manual Document Version 2010-11...

  • Page 437: Extension Hunting Group

    (day/lunch/break/night). A maximum of 64 (with the KX-TDA50/ KX-TDA100/KX-TDA200) or 128 (with the KX-TDA600) hunting groups can be programmed, each containing up to 16 extensions.

  • Page 438

    5.16 [3-6] Extension Hunting Group Feature Manual References 9.1.9 Idle Extension Hunting 7.1.1 GROUP FEATURES Overflow—Day, Lunch, Break, Night Specifies the overflow destination of an unanswered call in each time mode. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 5.16 [3-6] Extension Hunting Group Programming Manual References...

  • Page 439: Extension Hunting Group—member List

    5.17 [3-6] Extension Hunting Group—Member List 5.17 [3-6] Extension Hunting Group—Member List Each hunting group can contain up to 16 extensions. Select the hunting group to program from the Hunting Group No. list. To assign members to the group, enter the extension numbers in Extension Number or click Extension No.

  • Page 440: Vm(dpt) Group—system Settings

    5.18 [3-7-1] VM(DPT) Group—System Settings 5.18 [3-7-1] VM(DPT) Group—System Settings A Panasonic Voice Processing System (VPS) with DPT Integration can be connected to DPT ports of the PBX. The DPT ports that are connected to the VPS are called a VM (DPT) Group.

  • Page 441

    5.18 [3-7-1] VM(DPT) Group—System Settings 6.1 [4-1-1] Wired Extension—Extension Settings—Intercept Destination— Intercept Destination—When called party does not answer—Day, Lunch, Break, Night 6.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination— Intercept Destination—When called party does not answer—Day, Lunch, Break, Night Feature Manual References 19.1.3 Voice Mail (VM) Group 19.1.4 Voice Mail DPT (Digital) Integration Transfer Recall to Mailbox...

  • Page 442: Vm(dpt) Group—unit Settings

    5.19 [3-7-2] VM(DPT) Group—Unit Settings 5.19 [3-7-2] VM(DPT) Group—Unit Settings A VM (DPT) group has a floating extension number, which can be assigned as the destination for redirected calls and incoming calls. To assign extension numbers to the group, click Member List. To view a list of all programmed extension numbers and types, click Extension List View.

  • Page 443

    5.19 [3-7-2] VM(DPT) Group—Unit Settings 19.1.4 Voice Mail DPT (Digital) Integration Document Version 2010-11 PC Programming Manual...

  • Page 444: Vm(dpt) Group—unit Settings—member List

    5.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List 5.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List Displays information on the settings of all relevant ports. Only ports set to VM(DPT) in DPT Type—Type of 3.5 [1-1] Slot—Port Property - Extension Port will be displayed. In addition, the other information displayed here can also be set in 3.5 [1-1] Slot—Port Property - Extension Port.

  • Page 445

    5.1.7 Extension Port Configuration VM Unit No. Indicates the unit number of the connected VPS (reference only). Default Current unit number Value Range For KX-TDA50: For KX-TDA100/KX-TDA200: 1, 2 For KX-TDA600: 1–8 Maintenance Console Location 5.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References DPT Type—Type...

  • Page 446

    5.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List Programming Manual References DPT Type—Type 5.19 [3-7-2] VM(DPT) Group—Unit Settings Feature Manual References 19.1.3 Voice Mail (VM) Group Extension No. Indicates the extension number assigned to the VM port (reference only). Default Not stored. Value Range Max.

  • Page 447

    5.20 [3-7-2] VM(DPT) Group—Unit Settings—Member List Feature Manual References 19.1.3 Voice Mail (VM) Group 19.1.4 Voice Mail DPT (Digital) Integration Document Version 2010-11 PC Programming Manual...

  • Page 448: Vm(dtmf) Group—system Settings

    5.21 [3-8-1] VM(DTMF) Group—System Settings A Panasonic Voice Processing System (VPS) with DTMF Integration can be connected to SLT ports of the PBX. The SLT ports that are connected to the VPS are called a VM (DTMF) Group. A maximum of 2 (with the KX-TDA50/KX-TDA100/KX-TDA200) or 8 (with the KX-TDA600) VM (DTMF) Groups can be programmed.

  • Page 449

    5.21 [3-8-1] VM(DTMF) Group—System Settings VM DTMF Status Signal—Reorder Tone Specifies the DTMF status signal the PBX sends to the VPS when the dialed number is invalid. Default Value Range Max. 4 digits (consisting of 0–9, *, #, and P [pause]) Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References...

  • Page 450

    5.21 [3-8-1] VM(DTMF) Group—System Settings Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None VM DTMF Status Signal—Confirm Specifies the DTMF status signal the PBX sends to the VPS when a certain feature (e.g., Message Waiting) has been successfully set or canceled on an extension.

  • Page 451

    5.21 [3-8-1] VM(DTMF) Group—System Settings Feature Manual References None VM DTMF Status Signal—FWD to VM Ringback Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to the VPS and the PBX is calling another port of the VPS. Default Value Range Max.

  • Page 452

    5.21 [3-8-1] VM(DTMF) Group—System Settings VM DTMF Status Signal—FWD to Extension Ringback Tone Specifies the DTMF status signal the PBX sends to the VPS when the call has been forwarded to another extension and the PBX is calling the destination extension. Default Value Range Max.

  • Page 453

    5.21 [3-8-1] VM(DTMF) Group—System Settings Default Value Range Max. 16 digits (consisting of 0–9, *, #, H [mailbox number], and P [pause]) Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References 11.1.3 Message Waiting VM DTMF Command—Switching to AA Specifies the DTMF command the PBX sends to the VPS to switch from VM Service Mode to AA Service Mode.

  • Page 454

    5.21 [3-8-1] VM(DTMF) Group—System Settings Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None Timing—DTMF Length for VM Specifies the length of DTMF signals the PBX sends to the VPS. Default 80 ms Value Range 80 ms, 160 ms Maintenance Console Location...

  • Page 455

    5.21 [3-8-1] VM(DTMF) Group—System Settings Feature Manual References None Timing—Waiting Time before Sending Follow on ID Specifies the length of time that the PBX waits before sending the Follow on ID to the VPS after the VPS has answered a call. Default 1.5 s Value Range...

  • Page 456

    5.21 [3-8-1] VM(DTMF) Group—System Settings Others—Call Waiting on VM Group Enables the queuing of calls when all extension ports of the VM (DTMF) group are busy. (Call Waiting tone is not sent to any VM port.) Default Enable Value Range Disable, Enable Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings...

  • Page 457

    5.21 [3-8-1] VM(DTMF) Group—System Settings Default None Value Range None, Answer by Mailbox, AA Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None Others—Mailbox for Extension Specifies whether the mailboxes use the same numbers as the extensions and incoming call distribution groups, or use different numbers as programmed for each extension or incoming call distribution group.

  • Page 458

    5.21 [3-8-1] VM(DTMF) Group—System Settings Value Range By PBX, By VM Maintenance Console Location 5.21 [3-8-1] VM(DTMF) Group—System Settings Programming Manual References None Feature Manual References None PC Programming Manual Document Version 2010-11...

  • Page 459: Vm(dtmf) Group—group Settings

    5.22 [3-8-2] VM(DTMF) Group—Group Settings 5.22 [3-8-2] VM(DTMF) Group—Group Settings A VM (DTMF) group has a floating extension number, and can be assigned as the destination for redirected calls and incoming calls. To assign members to the group, click Member List. To view a list of all programmed extension numbers and types, click Extension List View.

  • Page 460

    5.22 [3-8-2] VM(DTMF) Group—Group Settings Type Specifies the initial service mode in which the VPS answers calls. Default Value Range AA, VM Maintenance Console Location 5.22 [3-8-2] VM(DTMF) Group—Group Settings Programming Manual References None Feature Manual References 19.1.5 Voice Mail DTMF Integration PC Programming Manual Document Version 2010-11...

  • Page 461: Vm(dtmf) Group—group Settings—member List

    5.23 [3-8-2] VM(DTMF) Group—Group Settings—Member List 5.23 [3-8-2] VM(DTMF) Group—Group Settings— Member List Select the group to program from the VM(DTMF) Group Number list. To assign members to the group, enter directly or click Extension No. Setting (see 2.1.6 Extension Number Setting).

  • Page 462: Ps Ring Group

    One PS can belong to multiple PS ring groups. A maximum of 32 PS ring groups can be programmed, each containing up to 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions.

  • Page 463

    5.24 [3-9] PS Ring Group Incoming Trunk Call Information Display Specifies the information of the incoming CO line call to be shown on the displays of the PSs that belong to the PS ring group. If the caller’s name or called party’s name is not recognized, the telephone number will be shown.

  • Page 464: Ps Ring Group—member List

    5.25 [3-9] PS Ring Group—Member List Each PS Ring Group can have up to 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200) or 512 (with the KX-TDA600) PS extensions assigned. Select the group to program from the PS Ring Group Number list.

  • Page 465

    5.25 [3-9] PS Ring Group—Member List Feature Manual References 13.1.28 PS—Ring Group Document Version 2010-11 PC Programming Manual...

  • Page 466: Conference Group (kx-tda50 Only)

    5.26 [3-10] Conference Group (KX-TDA50 only) 5.26 [3-10] Conference Group (KX-TDA50 only) A conference group is a group of extensions that receive conference group calls. One destination number can be assigned to multiple conference groups. Up to 31 members can be assigned to each of 8 conference groups.

  • Page 467: Conference Group—member List (kx-tda50 Only)

    5.27 [3-10] Conference Group—Member List (KX-TDA50 only) 5.27 [3-10] Conference Group—Member List (KX-TDA50 only) Up to 31 members can be assigned to each conference group. Select the group to program from the Conference Group No. list. To copy the numbers to another group, click Member list copy, select the group to copy to, and click OK.

  • Page 468

    5.27 [3-10] Conference Group—Member List (KX-TDA50 only) Feature Manual References 3.1.17 Conference Group Call (KX-TDA50 only) PC Programming Manual Document Version 2010-11...

  • Page 469: Extension

    Section 6 [4] Extension Document Version 2010-11 PC Programming Manual...

  • Page 470: Wired Extension—extension Settings

    6.1 [4-1-1] Wired Extension—Extension Settings 6.1 [4-1-1] Wired Extension—Extension Settings For each slot in which an extension card is installed, a certain number of extension ports are displayed. For each extension port, various extension settings can be assigned. To assign a set of CLIP numbers automatically, click CLIP Generate. To assign names and tenants to extension user groups, click Extension User Group Table.

  • Page 471

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 472

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Port Type Indicates the extension port type (reference only).

  • Page 473

    Extension Group Specifies the extension user group to which the extension belongs. Extension user groups are used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Document Version 2010-11 PC Programming Manual...

  • Page 474

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 7.1.1 GROUP FEATURES 17.1.3 Tenant Service Specifies the COS of the extension. Default Value Range 1–64 Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings Feature Manual References...

  • Page 475

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 5.1.6 Extension PIN (Personal Identification Number) Intercept Destination Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location...

  • Page 476

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 477

    6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 3.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References...

  • Page 478

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 9.1.11 Intercept Routing Intercept Destination—When Called Party is Busy Specifies the Intercept Routing destination of calls when the extension is busy. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 479

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 Document Version 2010-11...

  • Page 480

    6.1 [4-1-1] Wired Extension—Extension Settings For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 481

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range 0–240 s Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 4.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone— Intercept Routing No Answer (IRNA)—Day, Lunch, Break, Night Feature Manual References 9.1.11 Intercept Routing ISDN CLIP Shelf (KX-TDA600 only)

  • Page 482

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 483

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 3.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored.

  • Page 484

    6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) CLIP on Extension/CO (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the CLIP number to show on the called party’s telephone. Default Extension Value Range Extension: Show the CLIP number specified in CLIP ID on the ISDN CLIP tab.

  • Page 485

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) COLR Specifies whether to restrict the display of the CLIP number of the extension on the caller’s telephone display when answering a call. Default Disable Value Range Disable, Enable Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 486

    6.1 [4-1-1] Wired Extension—Extension Settings Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 3.1 [1-1] Slot Feature Manual References None Port Indicates the port number (reference only).

  • Page 487

    6.1 [4-1-1] Wired Extension—Extension Settings Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max.

  • Page 488

    6.1 [4-1-1] Wired Extension—Extension Settings When changing the port type of an extension port in DPT Type—Type on the 3.5 [1-1] Slot—Port Property - Extension Port screen, the Wireless XDP setting must be deleted first. Default Not stored. Value Range Max.

  • Page 489

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 19.1.5 Voice Mail DTMF Integration Transfer Recall Destination Specifies the transfer recall destination when an extension user transfers a call with the Call Transfer without Announcement feature and the transferred call is not answered within a certain time period.

  • Page 490

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 10.6 [8-5] Carrier Feature Manual References 19.1.1 Verification Code Entry 1.1.3 ARS (Automatic Route Selection) Option 2 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range...

  • Page 491

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 492

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 3.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max.

  • Page 493

    6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 3.1.9 CALL WAITING FEATURES Automatic C. Waiting Specifies whether to receive call waiting notifications for calls from a CO line, doorphone calls, and calls via an incoming call distribution group. Default Value Range Off, On...

  • Page 494

    6.1 [4-1-1] Wired Extension—Extension Settings Pickup Dial Number Specifies the number to be dialed automatically after going off-hook when the Hot Line feature is active. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 495

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range Shelf number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location...

  • Page 496

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 497

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Call Pickup Deny Specifies whether calls can be picked up by other extensions. Default Disable Value Range Disable: Allows other extension users to pick up calls to your extension Enable: Prevents other extension users from picking up calls to your extension Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 498

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 5.1.3 Executive Busy Override Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be customized for each extension. Default Not stored. Value Range Max. 16 characters Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None...

  • Page 499

    6.1 [4-1-1] Wired Extension—Extension Settings Option 4 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only).

  • Page 500

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 501

    None Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups.

  • Page 502

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 10.1.3 Line Preference—Outgoing Incoming Preferred Line Selects the line on which an incoming call is answered after going off-hook. Note that even if a specific PDN button is selected here, a call ringing at any PDN button on the extension will be answered when going off-hook.

  • Page 503

    6.1 [4-1-1] Wired Extension—Extension Settings LCS Recording Mode Specifies whether to continue or stop recording the message in the extension’s mailbox when the extension user answers a call that was being monitored. Default Stop Record Value Range Stop Record, Keep Record Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 504

    6.1 [4-1-1] Wired Extension—Extension Settings Default Current shelf number Value Range Shelf number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range...

  • Page 505

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 506

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range Max. 20 characters Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Display Language Selects the display language of the extension telephone. Default Language1 Value Range Language1–Language5 Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 507: Key Pad Tone

    6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 4.1.8 Display Information Automatic LCD Switch when Start Talking Enables the first line of the display to show the call duration automatically after answering a CO line call. Default Enable Value Range...

  • Page 508

    6.1 [4-1-1] Wired Extension—Extension Settings Automatic Answer for CO Call Enables the extension to answer an incoming CO line call automatically after a certain number of rings without going off-hook, when Hands-free Answerback has been set on the extension. This setting is only effective when Forced Automatic Answer on this screen has been set to Off.

  • Page 509

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 Document Version 2010-11...

  • Page 510

    6.1 [4-1-1] Wired Extension—Extension Settings For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 511

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range Off, On Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Flexible Button Programming Mode Specifies whether the extension user can modify all flexible buttons without limitation, or only the One-touch Dialing buttons.

  • Page 512: Paging Deny

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Display Lock / SVM Lock Locks or unlocks the Incoming Call Log and Simplified Voice Message Log display (i.e., specifies whether other extension users can see the Incoming Call Log and SVM Log information at the extension).

  • Page 513

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 13.1.1 Paging Option 7 Shelf (KX-TDA600 only) Indicates the shelf position (reference only). Default Current shelf number Value Range Shelf number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None...

  • Page 514

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 515

    6.1 [4-1-1] Wired Extension—Extension Settings Extension Name Specifies the name of the extension. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Character Input Mode Selects the character table to be used for entering characters.

  • Page 516

    6.1 [4-1-1] Wired Extension—Extension Settings Value Range EFA, Terminate, Flash Recall Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 5.1.1 EFA (External Feature Access) 6.1.2 Flash/Recall/Terminate Incoming Call Log Memory Specifies the number of incoming CO line calls that are retained in the extension’s Incoming Call Log memory. Default Value Range 0–100...

  • Page 517

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 15.1.1 Redial, Last Number ISDN Bearer (KX-TDA100/KX-TDA200/KX-TDA600 only) Selects the ISDN bearer mode. When Automatic is selected, the bearer mode is set automatically depending on the extension’s telephone type as follows: PT: Speech SLT: Audio...

  • Page 518

    6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References None Slot Indicates the slot position of each extension card (reference only). Default Current slot number Value Range Slot number Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References...

  • Page 519

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 520: Extension Caller Id

    Extension Caller ID Enables the extension to send Caller ID information to an SLT. Note that for KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 4.18 [2-10] Extension CID Settings.

  • Page 521

    Caller ID information. Note that for the KX-TDA50, the setting of this parameter is only effective when a resource for sending extension Caller ID is assigned in Extension Caller ID Resource-1, 2 (KX-TDA50 only) for the port in 4.18 [2-10] Extension CID Settings.

  • Page 522

    6.1 [4-1-1] Wired Extension—Extension Settings Wrap-up Timer Specifies the length of time that must pass after completing a call before an extension will accept another call when logged in as a member of an Incoming Call Distribution Group. This timer is used when " Options—Wrap-up Timer based on"...

  • Page 523

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 Document Version 2010-11...

  • Page 524

    6.1 [4-1-1] Wired Extension—Extension Settings For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed. Extension numbers are preset for subsequent extensions by adding one to the previous extension number.) Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References...

  • Page 525

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References None Feature Manual References 13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension FWD / DND Reference Call Forwarding (FWD) and Do Not Disturb (DND) settings for each extension can be referred. FWD and DND settings can be programmed separately for each extension in 6.3 [4-1-2] Wired Extension—FWD/DND.

  • Page 526

    When changing the extension number, make sure that the extension port is not in use. If the extension number is changed while the port is in use, the new extension number will not come into effect. Default For KX-TDA50/KX-TDA100/KX-TDA200: Starting at 101 For KX-TDA600: Starting at 1001 (For port 01 of the first extension card that is installed.

  • Page 527

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 3.6 [1-1] Slot—Port Property - Extension Port—Connection Command Feature Manual References None Extension Name Specifies the name of the extension. Default Not stored. Value Range Max.

  • Page 528

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 6.1.6 FWD (Call Forwarding) DND Set for Call from CO Indicates the current DND status for incoming CO line calls (reference only). Default Value Range Off, On Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References...

  • Page 529

    6.1 [4-1-1] Wired Extension—Extension Settings Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) FWD Set for Call from Extension Indicates the current FWD status for incoming intercom calls (reference only).

  • Page 530

    6.1 [4-1-1] Wired Extension—Extension Settings Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings Programming Manual References 6.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 4.1.9 DND (Do Not Disturb) FWD Mode for Call from Extension Indicates the forwarding type of incoming intercom calls (reference only). Default None Value Range...

  • Page 531

    6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 6.1.6 FWD (Call Forwarding) FWD No Answer Time Indicates the length of time that an incoming call rings at the extension before the call is forwarded (reference only). Default 15 s Value Range 0–120 s Maintenance Console Location 6.1 [4-1-1] Wired Extension—Extension Settings...

  • Page 532: Wired Extension—extension Settings—clip Generate

    6.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate 6.2 [4-1-1] Wired Extension—Extension Settings— CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.

  • Page 533

    6.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–5...

  • Page 534

    6.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 6.2 [4-1-1] Wired Extension—Extension Settings—CLIP Generate Programming Manual References 6.1 [4-1-1] Wired Extension—Extension Settings Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) PC Programming Manual Document Version 2010-11...

  • Page 535: Wired Extension—fwd/dnd

    6.3 [4-1-2] Wired Extension—FWD/DND 6.3 [4-1-2] Wired Extension—FWD/DND For each extension, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls. Select the desired extension from the Extension Number / Name list.

  • Page 536

    6.3 [4-1-2] Wired Extension—FWD/DND Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button. ON: Prevents extensions from switching to DND mode by pressing the FWD/DND button. Maintenance Console Location 6.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...

  • Page 537

    6.3 [4-1-2] Wired Extension—FWD/DND Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—Present Button Status Specifies the status of the FWD/DND—Internal button.

  • Page 538

    6.3 [4-1-2] Wired Extension—FWD/DND Maintenance Console Location 6.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—DND Status Availability Enables or disables the DND feature for incoming intercom calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.

  • Page 539

    6.3 [4-1-2] Wired Extension—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.3 [4-1-2] Wired Extension—FWD/DND Programming Manual References...

  • Page 540: Wired Extension—speed Dial

    Personal Speed Dialing allows extension users to dial frequently dialed numbers using two-digit speed dialing numbers (00–99). A maximum of 10 Personal Speed Dialing numbers can be programmed for each extension, or 100 when an MEC (KX-TDA50/KX-TDA100/KX-TDA200) or EMEC (KX-TDA600) card is installed. Select the desired extension from the Extension Number / Name list.

  • Page 541

    6.4 [4-1-3] Wired Extension—Speed Dial Feature Manual References 16.1.3 Speed Dialing, Personal Document Version 2010-11 PC Programming Manual...

  • Page 542: Wired Extension—flexible Button

    (Internal), Account, Conference, Terminate, EFA, Call Park, Call Log, Log-in/Log-out, Hurry-up, Wrap-up, System Alarm, Time Service, Answer, Release, TRS Level Change, CLIR, COLR, Headset, Time Service - Automatic/Manual, Check In, Check Out, Cleaned Up (KX-TDA50/KX-TDA100/KX-TDA200 only), Two-way Record, Two-way Transfer, LCS, Voice Mail Transfer, NDSS, CTI, PDN (KX-TDA100/KX-TDA200/...

  • Page 543

    6.5 [4-1-4] Wired Extension—Flexible Button Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 3.1.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed.

  • Page 544

    6.5 [4-1-4] Wired Extension—Flexible Button Parameter Selection (for Call Park) Specifies whether a call is parked in an idle parking zone automatically or in a specific parking zone. Default Automatic Value Range Automatic, Specific Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References...

  • Page 545

    6.5 [4-1-4] Wired Extension—Flexible Button Value Range All (Day/Night/Lunch/Break), Day/Night/Break, Day/Night/Lunch, Day/Night Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 17.1.5 Time Service Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain extension. Default Value Range 1–7...

  • Page 546

    6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 17.1.5 Time Service Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls arriving at an SDN button. Default Immediate Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References...

  • Page 547

    6.5 [4-1-4] Wired Extension—Flexible Button Ext. No. / Floating Ext. No. (for ICD Group) Specifies the floating extension number of an incoming call distribution group to be accessed. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None...

  • Page 548

    6.5 [4-1-4] Wired Extension—Flexible Button Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Group FWD (External)) Specifies the floating extension number of an incoming call distribution group for which CO line calls are forwarded.

  • Page 549

    6.5 [4-1-4] Wired Extension—Flexible Button Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Call Log) Specifies the extension’s own number or the floating extension number of an incoming call distribution group for which call log information is displayed.

  • Page 550

    6.5 [4-1-4] Wired Extension—Flexible Button Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection). Default Not stored.

  • Page 551

    6.5 [4-1-4] Wired Extension—Flexible Button Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 19.1.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Voice Mail Transfer) Specifies the floating extension number of the VM (DTMF/DPT) group containing the desired mailbox.

  • Page 552

    13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.

  • Page 553

    6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References 13.1.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (Ringing Tone Type Number) (for Time Service) Specifies the Time Table to be used for changing time modes in the Automatic Switching mode. Default Value Range 1–8...

  • Page 554

    6.5 [4-1-4] Wired Extension—Flexible Button Feature Manual References None Optional Parameter (Ringing Tone Type Number) (for Call Park) Specifies the number of the parking zone a call is to be parked in when a Call Park button with Parameter Selection (for Call Park) on this screen set to Specific is pressed. Default Value Range 0–99...

  • Page 555

    6.5 [4-1-4] Wired Extension—Flexible Button Display Option—Key Setting & Key Label Name The Key Label Name function allows you to print out a key label template for flexible buttons, according to the telephone you are using. Click a flexible button to display a Change—Flexible Button 01–36 screen and edit the button’s settings.

  • Page 556

    6.5 [4-1-4] Wired Extension—Flexible Button 6.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting— Ext. No. / Floating Ext. No. (for Two-way Transfer) 6.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting— Ext. No. / Floating Ext. No. (for Voice Mail Transfer) 6.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting— Ext.

  • Page 557

    6.5 [4-1-4] Wired Extension—Flexible Button 6.5 [4-1-4] Wired Extension—Flexible Button—Display Option—Key Setting— Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References None Parameter 2 This parameter is equivalent to Optional Parameter (Ringing Tone Type Number) on the Key Setting screen. Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References...

  • Page 558

    6.5 [4-1-4] Wired Extension—Flexible Button Value Range Max. 20 characters Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References None Color of Font Specifies the color used for the label text for the corresponding button. Click Choose to select a color. Default Black Value Range...

  • Page 559

    6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References None Font Size Specifies the size of the font on the label for the corresponding button. Default Value Range 4–15 Maintenance Console Location 6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References...

  • Page 560

    6.5 [4-1-4] Wired Extension—Flexible Button Programming Manual References None Feature Manual References None PC Programming Manual Document Version 2010-11...

  • Page 561: Wired Extension—flexible Button—flexible Button Data Copy

    6.6 [4-1-4] Wired Extension—Flexible Button—Flexible button data copy 6.6 [4-1-4] Wired Extension—Flexible Button— Flexible button data copy The flexible button settings (including key label settings) of an extension can be copied to different extensions. Destination Extension Line Select the number and name of the extension that will receive the copied settings. Multiple extensions can be selected.

  • Page 562: Wired Extension—pf Button

    6.7 [4-1-5] Wired Extension—PF Button 6.7 [4-1-5] Wired Extension—PF Button Each Programmable Feature (PF) button can be customized to access a certain feature with one touch. A maximum of 12 PF buttons can be customized for each extension. Select the desired extension from the Extension Number / Name list.

  • Page 563: Wired Extension—ndss Link Data - Send

    6.8 [4-1-6] Wired Extension—NDSS Link Data - Send 6.8 [4-1-6] Wired Extension—NDSS Link Data - Send It is possible to cancel the transmission of an extension’s status data over the network. Select the desired extension from the Extension Number / Name list. Network BLF Data to NDSS Key of Other PBX - Other PBX (Network PBX ID=1) Selects whether extension status data is transmitted over the network for the selected extension.

  • Page 564: Wired Extension—simplified Voice Message

    6.9 [4-1-7] Wired Extension—Simplified Voice Message 6.9 [4-1-7] Wired Extension—Simplified Voice Message When an SVM/ESVM card is installed in the PBX, Simplified Voice Message features can be provided for each extension. This screen allows you to specify which card each extension belongs to, and the maximum number of messages that can be stored for each extension.

  • Page 565

    6.9 [4-1-7] Wired Extension—Simplified Voice Message Feature Manual References None Extension Number Indicates the extension number (reference only). Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.9 [4-1-7] Wired Extension—Simplified Voice Message Programming Manual References 3.34 [1-2] Portable Station Feature Manual References None...

  • Page 566

    If two SVM/ESVM cards are installed in the PBX, you should assign a number of extensions to each card, to ensure that the necessary resources, such as message recording space, are available for each extension. Default For KX-TDA50/KX-TDA100/KX-TDA200: Card1 For KX-TDA600: Card1(A)

  • Page 567: Portable Station—extension Settings

    For each Portable Station (PS), various extension settings can be assigned. A maximum of 28 (with the KX-TDA50), 128 (with the KX-TDA100/KX-TDA200), or 512 (with the KX-TDA600) PSs can be programmed. To assign names and tenants to extension user groups, click Extension User Group Table. See 5.6 [3-2] Extension Group for more details.

  • Page 568

    Extension Group Specifies the extension user group to which the PS belongs. The extension user group is used to compose tenants, call pickup groups and paging groups. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–32 For KX-TDA600: 1–96 Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings...

  • Page 569

    6.10 [4-2-1] Portable Station—Extension Settings Default Value Range 1–64 Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 4.11 [2-7-1] Class of Service—COS Settings Feature Manual References 3.1.20 COS (Class of Service) Extension PIN Specifies the PIN of the PS. CAUTION There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX.

  • Page 570

    6.10 [4-2-1] Portable Station—Extension Settings Intercept Destination Extension Number Indicates the extension number of the PS (reference only). Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station—...

  • Page 571

    6.10 [4-2-1] Portable Station—Extension Settings Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 6.10 [4-2-1] Portable Station—Extension Settings—Intercept Destination— Intercept Destination—When Called Party is Busy Feature Manual References...

  • Page 572

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 573

    6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 4.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone— Intercept Routing No Answer (IRNA)—Day, Lunch, Break, Night Feature Manual References 9.1.11 Intercept Routing ISDN CLIP Extension Number Indicates the extension number of the PS (reference only). Default Not stored.

  • Page 574

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References None CLIP ID Specifies the CLIP number sent to the public network to show on the called party’s telephone display when making a CO line call. Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 575

    6.10 [4-2-1] Portable Station—Extension Settings CLIR Specifies whether to restrict the display of the CLIP number on the called party’s telephone when making a public network CO line call. Default Disable Value Range Disable, Enable Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References...

  • Page 576

    6.10 [4-2-1] Portable Station—Extension Settings Default Not stored. Value Range Max. 4 digits (consisting of 0–9) Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored.

  • Page 577

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 4.14 [2-8-1] Ring Tone Patterns—Call from CO 4.15 [2-8-2] Ring Tone Patterns—Call from Doorphone 4.16 [2-8-3] Ring Tone Patterns—Call from Others Feature Manual References 15.1.2 Ring Tone Pattern Selection Programmed Mailbox No.

  • Page 578

    6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 3.1.8 Call Transfer ARS Itemized Code Specifies the itemized billing code used by the ARS feature for identifying the calls made from the PS for accounting and billing purposes. Default Not stored.

  • Page 579

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None...

  • Page 580

    6.10 [4-2-1] Portable Station—Extension Settings Automatic C. Waiting Specifies whether to receive call waiting notification for a call from CO line, a doorphone call or a call via an incoming call distribution group. Default Value Range Off, On Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None...

  • Page 581

    6.10 [4-2-1] Portable Station—Extension Settings Value Range Max. 32 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 8.1.6 Hot Line Option 3 Extension Number...

  • Page 582

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None Call Pickup Deny Specifies whether calls can be picked up by other extensions. Default Disable Value Range Disable: Allows other extension users to pick up calls to your PS...

  • Page 583

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 5.1.3 Executive Busy Override Absent Message Specifies the Personal Absent Message which, unlike the System Absent Message, can be customized for each PS. Default Not stored. Value Range Max. 16 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None...

  • Page 584

    Extension Name Feature Manual References None Outgoing Preferred Line Selects the line to be seized after going off-hook to make a call. Default For KX-TDA50: For KX-TDA100/KX-TDA200/KX-TDA600: ICM/PDN Value Range For KX-TDA50: No Line: No line is seized. Idle: An idle CO line is seized automatically from the programmed trunk groups.

  • Page 585

    6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 6.13 [4-2-3] Portable Station—Flexible Button Feature Manual References 10.1.3 Line Preference—Outgoing Incoming Preferred Line Selects the line on which an incoming call is answered after going off-hook. Note that even if a specific PDN button is selected here, a call ringing at any PDN button on the extension will be answered when going off-hook.

  • Page 586

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 3.1.10 Call Waiting Tone LCS Recording Mode Specifies whether to continue or stop recording the message in the PS’s mailbox when the PS user answers a call that was being monitored. Default Stop Record Value Range Stop Record, Keep Record...

  • Page 587

    6.10 [4-2-1] Portable Station—Extension Settings Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None Display Language Selects the display language of the PS.

  • Page 588

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 4.1.8 Display Information Automatic LCD Switch when Start Talking Enables the first line of the display to show the call duration automatically after answering a CO line call. Default Enable Value Range...

  • Page 589

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None...

  • Page 590

    6.10 [4-2-1] Portable Station—Extension Settings Flexible Button Programming Mode Specifies whether the PS user can modify all flexible buttons without limitation, or only the One-touch Dialing buttons. When the mode is set to One-touch Dial, there is no need to enter "2" before the number when customizing a One-touch Dialing button.

  • Page 591

    6.10 [4-2-1] Portable Station—Extension Settings Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None Character Input Mode Selects the character table to be used for entering characters. Default Table 1 Value Range...

  • Page 592

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References None Feature Manual References 6.1.2 Flash/Recall/Terminate 5.1.1 EFA (External Feature Access) Incoming Call Log Memory Specifies the number of incoming CO line calls that are retained in the PS’s Incoming Call Log memory. Default Value Range 0–100...

  • Page 593

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 15.1.1 Redial, Last Number ISDN Bearer Selects the ISDN bearer mode. When Automatic is selected, the bearer mode is set automatically depending on the type of the PS. Default Automatic Value Range Automatic, Speech, Audio Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings...

  • Page 594

    6.10 [4-2-1] Portable Station—Extension Settings Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None Group CW w/o Tone (Ring after Call) Enables an incoming call to an incoming call distribution group to arrive at a previously busy extension at the...

  • Page 595

    6.10 [4-2-1] Portable Station—Extension Settings Default Value Range 0–3000 s Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 5.13 [3-5-1] Incoming Call Distribution Group—Group Settings—Member List— Wrap-up Timer 5.15 [3-5-3] Incoming Call Distribution Group—Miscellaneous— Options—Wrap-up Timer based on Feature Manual References 9.1.3 ICD Group Features—Log-in/Log-out Option 9...

  • Page 596

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension Name Feature Manual References None PDN Delayed Ringing (KX-TDA100/KX-TDA200/KX-TDA600 only) Specifies the delayed ringing setting for calls to a PDN extension (an extension with one or more PDN buttons). Default Immediate Value Range...

  • Page 597

    6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station— Extension No. Feature Manual References None Extension Name Specifies the name of the PS. Default Not stored. Value Range Max. 20 characters Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 3.34 [1-2] Portable Station—...

  • Page 598

    6.10 [4-2-1] Portable Station—Extension Settings DND Set for Call from CO Indicates the current DND status for incoming CO line calls (reference only). Default Value Range Off, On Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 4.1.9 DND (Do Not Disturb) FWD Mode for Call from CO...

  • Page 599

    6.10 [4-2-1] Portable Station—Extension Settings Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) FWD Set for Call from Extension Indicates the current FWD status for incoming intercom calls (reference only). Default Value Range Off, On...

  • Page 600

    6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 4.1.9 DND (Do Not Disturb) FWD Mode for Call from Extension Indicates the forwarding type of incoming intercom calls (reference only). Default None Value Range None, FWD All, FWD Busy, FWD N/A, FWD Busy N/A Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References...

  • Page 601

    6.10 [4-2-1] Portable Station—Extension Settings Default 15 s Value Range 0–120 s Maintenance Console Location 6.10 [4-2-1] Portable Station—Extension Settings Programming Manual References 6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) Document Version 2010-11 PC Programming Manual...

  • Page 602: Portable Station—extension Settings—clip Generate

    6.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate 6.11 [4-2-1] Portable Station—Extension Settings— CLIP Generate CLIP Generate allows the CLIP numbers for a set of locations in series to be programmed together. Pre-assigned CLIP numbers for those locations will be overwritten. If a number generated here is longer than 16 digits, the additional digits will be discarded. Location Entry—Beginning Entry Location (Ext.

  • Page 603

    6.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) Parameter—Deleting Digits Specifies the number of digits to be deleted from the start of an extension number when using it as part of the CLIP number. Default Value Range 0–4...

  • Page 604

    6.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, and #) Maintenance Console Location 6.11 [4-2-1] Portable Station—Extension Settings—CLIP Generate Programming Manual References 6.10 [4-2-1] Portable Station—Extension Settings Feature Manual References 3.1.13 CLIP (Calling Line Identification Presentation) PC Programming Manual Document Version 2010-11...

  • Page 605: Portable Station—fwd/dnd

    6.12 [4-2-2] Portable Station—FWD/DND 6.12 [4-2-2] Portable Station—FWD/DND For each PS, separate Call Forwarding (FWD) and Do Not Disturb (DND) settings can be programmed for incoming intercom and CO line calls. Select the desired PS from the Extension Number / Name list. Call from CO—Present Button Status Specifies the status of the FWD/DND—External button.

  • Page 606

    6.12 [4-2-2] Portable Station—FWD/DND Call from CO—DND Status Availability Enables or disables the DND feature for incoming CO line calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button. ON: Prevents extensions from switching to DND mode by pressing the FWD/DND button. Maintenance Console Location 6.12 [4-2-2] Portable Station—FWD/DND Programming Manual References...

  • Page 607

    6.12 [4-2-2] Portable Station—FWD/DND Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.12 [4-2-2] Portable Station—FWD/DND Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—Present Button Status Specifies the status of the FWD/DND—Internal button.

  • Page 608

    6.12 [4-2-2] Portable Station—FWD/DND Maintenance Console Location 6.12 [4-2-2] Portable Station—FWD/DND Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—DND Status Availability Enables or disables the DND feature for incoming intercom calls. Default Value Range OFF: Enables extensions to switch to DND mode by pressing the FWD/DND button.

  • Page 609

    6.12 [4-2-2] Portable Station—FWD/DND Feature Manual References 6.1.6 FWD (Call Forwarding) Call from Extension—FWD Destination Specifies the forwarding destination of incoming intercom calls. Default Not stored. Value Range Max. 32 digits (consisting of 0–9, *, #, [ ] [Secret], and P [Pause]) Maintenance Console Location 6.12 [4-2-2] Portable Station—FWD/DND Programming Manual References...

  • Page 610: Portable Station—flexible Button

    6.14 [4-2-3] Portable Station—Flexible Button—Flexible button data copy Feature Manual References None Parameter Selection (for Single CO) Specifies the CO line to be accessed. Default Value Range For KX-TDA50: 1–16 For KX-TDA100/KX-TDA200: 1–128 For KX-TDA600: 1–640 PC Programming Manual Document Version 2010-11...

  • Page 611

    None Feature Manual References 3.1.14 CO Line Access Parameter Selection (for Group CO) Specifies the trunk group to be accessed. Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References...

  • Page 612

    6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 3.1.5 Call Park Parameter Selection (for Log-in/Log-out) Specifies which incoming call distribution groups that the PS belongs to are logged in to or logged out from. Default None Value Range None: The incoming call distribution group is selected manually.

  • Page 613

    6.13 [4-2-3] Portable Station—Flexible Button Parameter Selection (for TRS Level Change) Specifies the TRS level to be used temporarily on a certain PS. Default Value Range 1–7 Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 17.1.6 TRS (Toll Restriction) 4.1.4 Dial Tone Transfer Parameter Selection (for Time Service - Automatic/Manual)

  • Page 614

    6.13 [4-2-3] Portable Station—Flexible Button Value Range Immediate, 1 Ring, 2 Rings, 3 Rings, 4 Rings, 5 Rings, 6 Rings, No Ring Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 4.17 [2-9] System Options—Option 4— System Wireless—SDN Delayed Ringing with LCD (KX-TDA100/ KX-TDA200/KX-TDA600 only) Feature Manual References 13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension...

  • Page 615

    6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for Message Waiting) Specifies the number of an extension or floating extension number of an incoming call distribution group for which messages are checked. If this cell is left empty, the PS will check its own messages only. Default Not stored.

  • Page 616

    6.13 [4-2-3] Portable Station—Flexible Button Ext. No. / Floating Ext. No. (for Group Fwd (External)) Specifies the floating extension number of an incoming call distribution group for which CO line calls are forwarded. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References...

  • Page 617

    6.13 [4-2-3] Portable Station—Flexible Button Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for Hurry-up) Specifies the floating extension number of the incoming call distribution group whose longest waiting call will be redirected (Manual Queue Redirection).

  • Page 618

    6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 19.1.4 Voice Mail DPT (Digital) Integration Ext. No. / Floating Ext. No. (for Two-way Transfer) Specifies the floating extension number of the VM (DPT) group containing the desired mailbox. Default Not stored.

  • Page 619

    13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 500 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 1000 (with the KX-TDA600) One-touch Dialing buttons for PSs.

  • Page 620

    6.13 [4-2-3] Portable Station—Flexible Button Default Not stored. Value Range Max. 16 digits (consisting of 0–9, *, #, T [Transfer], [ ] [Secret], P [Pause], and F [Flash]) Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 13.1.15 Private Network Features—NDSS (Network Direct Station Selection) Optional Parameter (or Ringing Tone Type Number) (for Time Service)

  • Page 621

    6.13 [4-2-3] Portable Station—Flexible Button Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References None Feature Manual References 3.1.5 Call Park Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One-touch Two-way Transfer.

  • Page 622

    6.13 [4-2-3] Portable Station—Flexible Button Extension Number This parameter is equivalent to Ext. No. / Floating Ext. No. on the Key Setting screen. Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 6.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting— Type—...

  • Page 623

    6.13 [4-2-3] Portable Station—Flexible Button Feature Manual References None Parameter 1 This parameter is equivalent to Parameter Selection on the Key Setting screen. Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 6.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting— Parameter Selection (for Single CO) 6.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting—...

  • Page 624

    6.13 [4-2-3] Portable Station—Flexible Button Feature Manual References None Mailbox Number This parameter is equivalent to Ext No. of Mailbox on the Key Setting screen. Maintenance Console Location 6.13 [4-2-3] Portable Station—Flexible Button Programming Manual References 6.13 [4-2-3] Portable Station—Flexible Button—Display Option—Key Setting— Ext No.

  • Page 625: Portable Station—flexible Button—flexible Button Data Copy

    6.14 [4-2-3] Portable Station—Flexible Button—Flexible button data copy 6.14 [4-2-3] Portable Station—Flexible Button— Flexible button data copy The flexible button settings of a PS can be copied to different PSs. Destination Extension Line Select the number and name of the PS that will receive the copied settings. Multiple PSs can be selected. To select all PSs at once, click Select All.

  • Page 626: Portable Station—ndss Link Data - Send

    6.15 [4-2-4] Portable Station—NDSS Link Data - Send 6.15 [4-2-4] Portable Station—NDSS Link Data - Send It is possible to cancel the transmission of an extension’s status data over the network. Select the desired extension from the Extension Number / Name list. Network BLF Data to NDSS Key of Other PBX - Other PBX (Network PBX ID=1) Selects whether extension status data is transmitted over the network for the selected extension.

  • Page 627: Portable Station—simplified Voice Message

    6.16 [4-2-5] Portable Station—Simplified Voice Message 6.16 [4-2-5] Portable Station—Simplified Voice Message When an SVM/ESVM card is installed in the PBX, Simplified Voice Message features can be provided for each This screen allows you to specify which card each extension belongs to, and the maximum number of messages that can be stored for each extension.

  • Page 628

    If two SVM/ESVM cards are installed in the PBX, you should assign a number of extensions to each card, to ensure that the necessary resources, such as message recording space, are available for each extension. Default For KX-TDA50/KX-TDA100/KX-TDA200: Card1 For KX-TDA600: Card1(A)

  • Page 629

    6.16 [4-2-5] Portable Station—Simplified Voice Message Programming Manual References None Feature Manual References 16.1.5 SVM (Simplified Voice Message) Document Version 2010-11 PC Programming Manual...

  • Page 630: Portable Station—single Co Appearance (kx-tda50 Only)

    6.17 [4-2-6] Portable Station—Single CO Appearance (KX-TDA50 only) 6.17 [4-2-6] Portable Station—Single CO Appearance (KX-TDA50 only) It is possible to display CO line information in real time on the display of a KX-WT125 or KX-WT126 when PS soft buttons are assigned as Single CO buttons.

  • Page 631: Dss Console

    6.18 [4-3] DSS Console 6.18 [4-3] DSS Console A DSS Console can be used in conjunction with a PT. A maximum of 4 (with the KX-TDA50), 8 (with the KX-TDA100/KX-TDA200), or 64 (with the KX-TDA600) DSS Consoles can be programmed. The DPT Type —Type of the extension port that the DSS Console is connected to must be set to DSS in 3.5 [1-1] Slot—...

  • Page 632

    (Internal), Account, Conference, Terminate, EFA, Call Park, Call Log, Log-in/Log-out, Hurry-up, Wrap-up, System Alarm, Time Service, Answer, Release, TRS Level Change, CLIR, COLR, Headset, Time Service - Automatic/Manual, Check In, Check Out, Cleaned Up (KX-TDA50/KX-TDA100/KX-TDA200 only), Two-way Record, Two-way Transfer, LCS, Voice Mail Transfer, NDSS, CTI, SDN (KX-TDA100/KX-TDA200/...

  • Page 633

    6.18 [4-3] DSS Console Default Value Range For KX-TDA50/KX-TDA100/KX-TDA200: 1–64 For KX-TDA600: 1–96 Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None Feature Manual References 3.1.14 CO Line Access Parameter Selection (for Call Park) Specifies whether a call is parked in an idle parking zone automatically or in a specific parking zone.

  • Page 634

    6.18 [4-3] DSS Console Value Range None: The incoming call distribution group is selected manually. All: All incoming call distribution groups that the paired extension belongs to. Incoming Group: A pre-specified incoming call distribution group Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None Feature Manual References...

  • Page 635

    6.18 [4-3] DSS Console Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None Feature Manual References 17.1.6 TRS (Toll Restriction) 4.1.4 Dial Tone Transfer Parameter Selection (for Time Service - Automatic/Manual) Specifies the Time Table to be used when the Time Service Switching Mode is set to Automatic. Default Value Range 1–8...

  • Page 636

    6.18 [4-3] DSS Console Feature Manual References 13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Ext. No. / Floating Ext. No. (for DSS) Specifies the number of an extension to be accessed. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References...

  • Page 637

    6.18 [4-3] DSS Console Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for Group Fwd (Both)) Specifies the floating extension number of an incoming call distribution group for which both intercom and CO line calls are forwarded.

  • Page 638

    6.18 [4-3] DSS Console Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None Feature Manual References 6.1.6 FWD (Call Forwarding) Ext. No. / Floating Ext. No. (for Group Fwd (Internal)) Specifies the floating extension number of an incoming call distribution group for which intercom calls are forwarded.

  • Page 639

    6.18 [4-3] DSS Console Programming Manual References None Feature Manual References None Ext. No. / Floating Ext. No. (for Log-in/Log-out) Specifies the floating extension number of an incoming call distribution group to log-in to or log-out from. Default Not stored. Value Range Max.

  • Page 640

    6.18 [4-3] DSS Console Ext. No. / Floating Ext. No. (for Two-way Record) Specifies the floating extension number of the VM (DPT) group containing the paired extension’s mailbox. Default Not stored. Value Range Max. 5 digits (consisting of 0–9) Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References None...

  • Page 641

    13.1.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Dial (for One-touch) Specifies the number to be dialed. The PBX can have a maximum of 2000 (with the KX-TDA50/KX-TDA100/ KX-TDA200) or 5000 (with the KX-TDA600) One-touch Dialing buttons for extensions and DSS Consoles.

  • Page 642

    6.18 [4-3] DSS Console Programming Manual References None Feature Manual References 12.1.4 One-touch Dialing Dial (for NDSS) Specifies the network extension number of the extension to be accessed using Network Direct Station Selection. Note that only extension numbers that have been previously registered in 11.4 [9-4] NDSS Key Table can be specified here.

  • Page 643

    6.18 [4-3] DSS Console Feature Manual References 17.1.5 Time Service Optional Parameter (Ringing Tone Type Number) (for Loop CO, Single CO, Group CO, ICD Group, SDN) Specifies the ring tone type. Default Value Range KX-DT300 series (except KX-DT321)/KX-T7600 series/IP-PT (except KX-NT265/KX-NT321): 1–30 KX-DT321/KX-NT265/KX-NT321: 1–8 (Even if ring tone 9–30 is selected, ring tone 1 is heard.) Other telephones: 1–8 (Even if ring tone 9–30 is selected, ring tone 2 is heard.) Maintenance Console Location...

  • Page 644

    6.18 [4-3] DSS Console Ext No. of Mailbox (for Two-way Transfer) Specifies the number of the extension whose mailbox will be used to record conversations using One-touch Two-way Transfer. (For example, a secretary can record a conversation into the mailbox of a boss.) If the cell is left empty, the extension user must specify the number of an extension each time.

  • Page 645

    6.18 [4-3] DSS Console Maintenance Console Location 6.18 [4-3] DSS Console Programming Manual References 6.18 [4-3] DSS Console—Display Option—Key Setting— Ext. No. / Floating Ext. No. (for DSS) 6.18 [4-3] DSS Console—Display Option—Key Setting— Ext. No. / Floating Ext. No. (for ICD Group) 6.18 [4-3] DSS Console—Display Option—Key Setting—...

  • Page 646

    6.18 [4-3] DSS Console Programming Manual References 6.18 [4-3] DSS Console—Display Option—Key Setting— Parameter Selection (for Single CO) 6.18 [4-3] DSS Console—Display Option—Key Setting— Parameter Selection (for Group CO) 6.18 [4-3] DSS Console—Display Option—Key Setting— Parameter Selection (for Call Park) 6.18 [4-3] DSS Console—Display Option—Key Setting—...

  • Page 647

    6.18 [4-3] DSS Console Feature Manual References None Label Specifies the label that will be printed next to the corresponding button. Default Not stored. Value Range Max. 20 characters Maintenan
