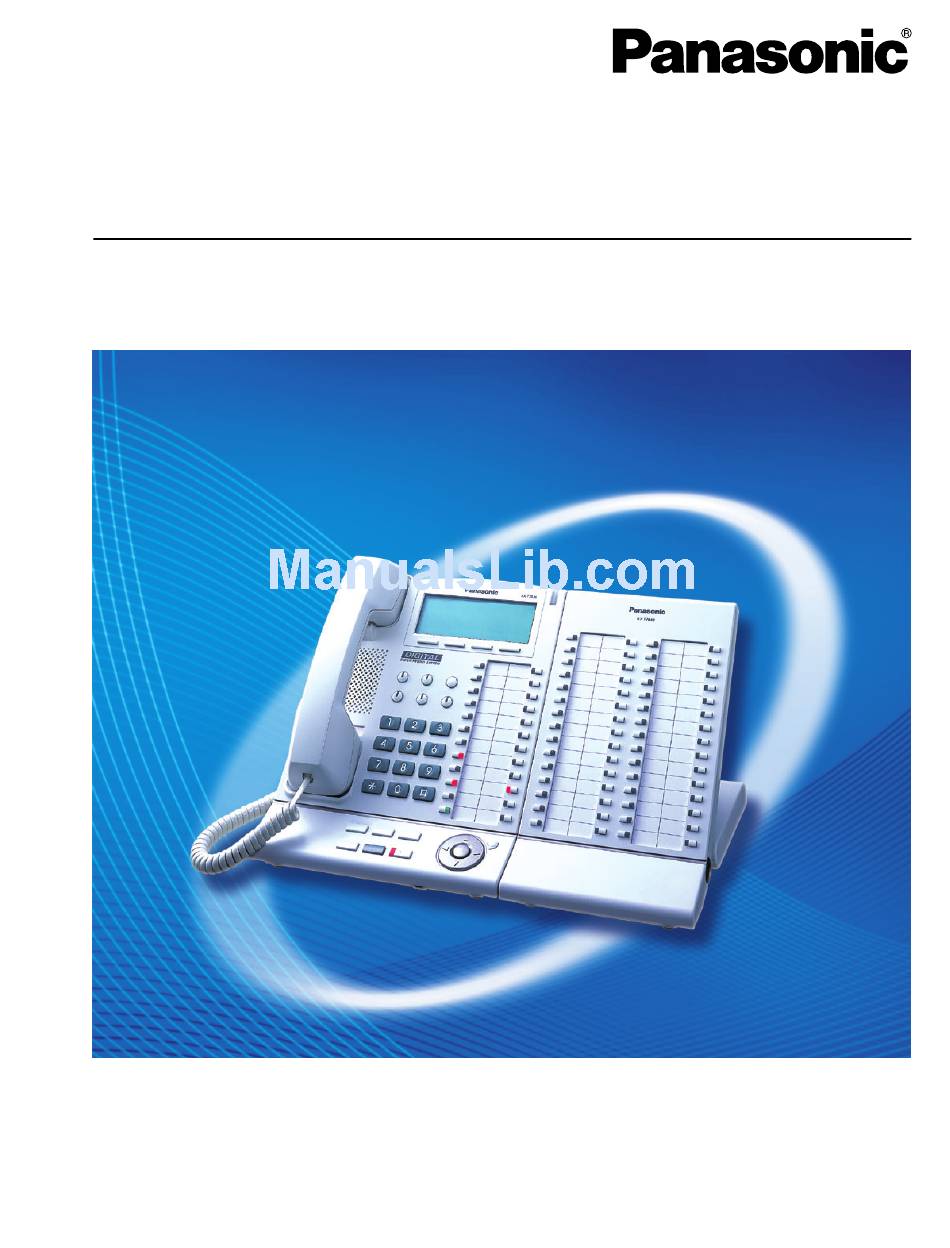

Hybrid IP-PBX

Feature Manual

KX-TDA50/KX-TDA100
KX-TDA200/KX-TDA600
Model
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 3.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 3.0000 or later
KX-TDA600: PLMPR Software File Version 3.1000 or later
Document Version: 2006-07

Advertisement

Table of Contents

   Summary of Contents for Panasonic KX-TDA100

  • Page 1: Feature Manual

    Please read this manual carefully before using this product and save this manual for future use. KX-TDA50: PSMPR Software File Version 3.0000 or later KX-TDA100/KX-TDA200: PMPR Software File Version 3.0000 or later KX-TDA600: PLMPR Software File Version 3.1000 or later...
  • Page 2 About the Feature Manual The Feature Manual is designed to serve as an overall reference describing the features of the Panasonic Hybrid IP-PBX. It explains what the Hybrid IP-PBX can do, as well as how to obtain the most of its many features and facilities.
  • Page 3 Some optional service cards, PTs, and features are not available in some areas. In the same respect, some optional service cards and features are available exclusively for the KX-TDA50, KX- TDA100, KX-TDA200, or KX-TDA600. Please consult your certified Panasonic dealer for more information.
  • Page 4: Feature Highlights

    Feature Highlights Networking Features The Hybrid IP-PBX supports the following private networking features: TIE Line Service PBXs can be connected via a privately leased telephone lines, forming a private network. These "TIE lines" provide a cost-effective way to route calls and communications, and are often used to connect corporate offices located in different cities.
  • Page 5 Portable Station (PS) Features A Panasonic PS (e.g., KX-TD7680, KX-TD7690) can be used in place of a PT to provide wireless access to PBX features and call handling. When in Wireless XDP Parallel Mode, a PS can share an extension number with a wired telephone, allowing extension users to use their PSs when they are away from their desks to answer or make calls as if they were using their wired telephones.
  • Page 6 Cellular Phone Features (KX-TDA6920/KX-TDA0920/KX-TDA5920 required) This PBX supports the use of cellular phones and other outside destinations with the PBX. Cellular phones can be treated as extensions within the PBX, and paired with wired telephones in Cellular Phone XDP Parallel Mode. (→ 1.3.11 CELLULAR PHONE FEATURES) Feature Manual...
  • Page 7 List of Abbreviations AA → Automated Attendant ACD → Automatic Call Distribution ANI → Automatic Number Identification APT → Analog Proprietary Telephone ARS → Automatic Route Selection BGM → Background Music CCBS → Completion of Calls to Busy Subscriber CF → Call Forwarding—QSIG CLI →...
  • Page 8 G-CO → Group-CO ICD → Incoming Call Distribution IP-PT → IP Proprietary Telephone IRNA → Intercept Routing—No Answer ISDN → Integrated Services Digital Network L-CO → Loop-CO LCS → Live Call Screening LED → Light Emitting Diode NDSS → Network Direct Station Selection OGM →...
  • Page 9 VM → Voice Mail VoIP → Voice over Internet Protocol VPS → Voice Processing System XDP → EXtra Device Port Feature Manual...
  • Page 10: Table Of Contents

    Table of Contents Features and Configurations............... 15 A............................16 1.1.1 Absent Message ......................16 1.1.2 Account Code Entry ......................17 1.1.3 ARS (Automatic Route Selection) ..................18 1.1.4 Automatic Callback Busy (Camp-on) ................24 1.1.5 Automatic Extension Release ..................25 1.1.6 Automatic Fax Transfer.....................26 1.1.7 Automatic Time Adjustment .....................27 B............................29 1.2.1 BGM (Background Music) ....................29...
  • Page 11 1.5.2 Emergency Call........................ 93 1.5.3 Executive Busy Override....................93 1.5.4 Extension Dial Lock ......................95 1.5.5 Extension Feature Clear ....................96 1.5.6 Extension PIN (Personal Identification Number).............. 97 1.5.7 Extension Port Configuration ................... 98 1.5.8 External Relay........................99 1.5.9 External Sensor ......................100 F.............................
  • Page 12 1.11.3 Message Waiting......................183 1.11.4 Music on Hold ........................ 186 1.11.5 Mute ..........................187 1.12 O ............................ 188 1.12.1 Off-hook Monitor ......................188 1.12.2 OGM (Outgoing Message) ..................... 188 1.12.3 OHCA (Off-hook Call Announcement) ................190 1.12.4 One-touch Dialing ......................191 1.12.5 Operator Features ......................
  • Page 13 Capacity of System Resources .................. 342 Exclusive Features Table .................... 346 Tones/Ring Tones ......................347 Revision History......................349 2.4.1 KX-TDA100/KX-TDA200 PMPR Software File Version 1.1xxx ........349 2.4.2 KX-TDA100/KX-TDA200 PMPR Software File Version 2.0xxx ........350 2.4.3 KX-TDA100/KX-TDA200 PMPR Software File Version 3.0xxx ........351 2.4.4...
  • Page 14 Feature Manual...
  • Page 15: Features And Configurations

    Section 1 Features and Configurations Feature Manual...
  • Page 16: Absent Message

    1.1 A 1.1.1 Absent Message Description Extension users can prepare a brief text message (Absent Message) that will be displayed to other extension users when they are called. These messages can explain the reason for their absence, and may be edited through system programming and personal programming. The following Absent Messages may be programmed: Message Type...
  • Page 17: Account Code Entry

    1.1 A 2.12.5 [6-5] Absent Message PT Programming Manual [008] Absent Message Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.1 Absent Message 3.1.2 Personal Programming 1.1.2 Account Code Entry Description An account code is used to identify outgoing CO line calls for accounting and billing purposes. The account code is appended to the Station Message Detail Recording (SMDR) call record.
  • Page 18: Ars (automatic Route Selection)

    1.1 A Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Account Code Entry 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Account Code Mode PT Programming Manual [508] Account Code Mode Feature Manual References 1.3.19 COS (Class of Service) 1.6.3 Flexible Buttons 1.16.1 SMDR (Station Message Detail Recording) Operating Manual References 1.2.1 Making Calls...
  • Page 19 1.1 A [Carrier Selection Procedure Flowchart] The numbers in parentheses indicate the corresponding items found under [Programming Procedures] on the following pages. An extension user accesses a CO line and dials a telephone number. No (Normal CO Line Access) Is the ARS mode (1) enabled? Sends the telephone number as dialed.
  • Page 20 1.1 A Also note that the CO Line Access number is always ignored by ARS and does not need to be programmed here. Calls that are exempt from ARS are connected to the user-selected line, via the default carrier for that line.
  • Page 21 → 2.14.4 [8-3] Routing Plan Time—Time Setting → [330] ARS Routing Plan Time Table → 2.14.5 [8-4] Routing Plan Priority → [331–346] ARS Routing Plan Table (1–16) (KX-TDA50/KX-TDA100/KX-TDA200 only) → [347] ARS Routing Plan Table (1–48) (KX-TDA600 only) Carrier Table Each carrier must be programmed in the Carrier Table.
  • Page 22 CO Line Access no. is ignored → 2.14.6 [8-5] Carrier—Carrier—Carrier Name → [350] ARS Carrier Name → 2.14.6 [8-5] Carrier—TRG 01–TRG 64 (KX-TDA50/KX-TDA100/KX-TDA200), or TRG 01– TRG 96 (KX-TDA600) → [351] ARS Trunk Group for Carrier Access → 2.14.6 [8-5] Carrier—Carrier—Carrier Access Code →...
  • Page 23 1.1 A ARS Options Authorization Code for Tenant A Carrier Authorization Code can be assigned to each tenant. → 2.14.6 [8-5] Carrier—Authorization Code for Tenant Authorization Code for Trunk Group A Carrier Authorization Code can be assigned to each trunk group. →...
  • Page 24: Automatic Callback Busy (camp-on)

    [322] ARS Routing Plan Table Number [325] ARS Exception Number [330] ARS Routing Plan Time Table [331–346] ARS Routing Plan Table (1–16) (KX-TDA50/KX-TDA100/KX-TDA200 only) [347] ARS Routing Plan Table (1–48) (KX-TDA600 only) [350] ARS Carrier Name [351] ARS Trunk Group for Carrier Access...
  • Page 25: Automatic Extension Release

    1.1 A Callback ringing will be sent to extensions in the order that the feature was set. In other words, the extension that set the feature first will receive a callback ringing first. • This feature cannot be used for calls to a Voice Processing System (VPS). Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Automatic Callback Busy Cancel...
  • Page 26: Automatic Fax Transfer

    1.1 A 1.1.6 Automatic Fax Transfer Description The PBX can distinguish between fax calls and other types of calls arriving on DISA lines, and automatically transfer fax calls to preprogrammed destinations. When a call arrives on a DISA line, an OGM is played (→ 1.12.2 OGM (Outgoing Message)).
  • Page 27: Automatic Time Adjustment

    1.1 A Installation Manual References 2.5.3 MSG2 Card (KX-TDA5191) Programming References PC Programming Manual 2.11.4 [5-3-2] Voice Message—DISA Message—Fax Extension (KX-TDA50 only) PT Programming Manual None Feature Manual References 1.4.7 DISA (Direct Inward System Access) 2.2 Exclusive Features Table 1.1.7 Automatic Time Adjustment Description The PBX clock can be adjusted automatically in the following two ways:...
  • Page 28 1.1 A Conditions • Station Message Detail Recording (SMDR) will log call information using the PBX clock so that the logging time will be overlapped at the end of Daylight Saving Time. (→ 1.16.1 SMDR (Station Message Detail Recording)) Programming References PC Programming Manual 2.8.1 [2-1] Date &...
  • Page 29: Bgm (background Music)

    Programming References PC Programming Manual 2.8.3 [2-2] Operator & BGM → BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX-TDA600 only) → BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features → External BGM On / Off...
  • Page 30 1.2 B → BGM Set / Cancel 2.8.19 [2-11-1] Audio Gain—Paging/MOH → MOH—MOH 1 (Music On Hold 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH 2 (Music On Hold 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH (Music On Hold) (KX-TDA50 only) 2.11.2 [5-2] External Pager...
  • Page 31: Caller Id

    1.3 C 1.3.1 Caller ID Description The PBX can receive Caller ID information (a caller's name and telephone number) from calls received on CO lines. This information can be shown on a proprietary telephone (PT) display when receiving a call and can be used to direct calls from specific callers to specific destinations automatically.
  • Page 32 1.3 C Features Description Details in Calling Line Identification Caller ID information received by the PBX is used to • 1.3.12 CLI (CLI) Distribution direct calls from specific callers to specific (Calling Line destinations. The caller's telephone number and a Identification) destination must be assigned in the System Speed Distribution...
  • Page 33 1.3 C Data entered under "Removed No. of Digits" and "Added No." for International, National, and Subscriber call data will be applied respectively to international, long distance, and local calls. <Modification Flowchart> A CO line call containing Caller ID information is received. Checks the Caller ID Modification Table assigned to the Trunk Group.
  • Page 34 • Hardware Requirement: KX-TDA50: The EXT-CID card KX-TDA100/KX-TDA200/KX-TDA600: The EXT-CID card on the SLC-8 card • When the caller's number is sent to an SLT, a CO Line Access number can be automatically added to the telephone number through system programming for calling back.
  • Page 35: Call Hold

    1.3 C • When Caller ID information such as "Private", "Out of Area", or "Long Distance" is received, this information will be shown instead of the caller's number and name. • Even if the caller's name is sent, the name may not be shown depending on the type of SLT. •...
  • Page 36 1.3 C Conditions • Call Hold Limitation A proprietary telephone (PT) user can hold one intercom call and/or multiple CO line calls at a time. A single line telephone (SLT) user can hold either one intercom call or one CO line call at a time. By using the Call Park feature, PT and SLT users can hold multiple CO line calls and intercom calls simultaneously.
  • Page 37 1.3 C • SLT Hold Mode It is possible to choose how to hold and transfer a call with an SLT through system programming. The following methods are available: Hold Hold Transfer to (to be Retrieved from Transfer to Trunk Extension Another Extension) Flashing the...
  • Page 38: Call Log, Incoming

    1.3 C Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Recall—Hold Recall → Recall—Disconnect after Recall 2.8.8 [2-6-1] Numbering Plan—Main—Features → Call Hold / Call Hold Retrieve → Call Hold Retrieve : Specified with a Holding Extension Number →...
  • Page 39 1.3 C --- Caller's name (20 digits max.) John White --- Date and time of a call received DEC.12 10:00AM MON --- Answering Status* NEW: Not Answered 123456789 --- Caller's number (16 digits max.) Call Log buttons This extension Incoming call distribution group "NEW"...
  • Page 40 Answered Call (MPR Software File Version 3.1000 or later) 2.10.1 [4-1-1] Wired Extension—Extension Settings → Option 5—Incoming Call Display → Option 6—Incoming Call Log Lock (KX-TDA100/KX-TDA200/KX-TDA600 only) → Option 7—Incoming Call Log Memory 2.10.5 [4-1-4] Wired Extension—Flexible Button → Type →...
  • Page 41: Call Monitor

    1.3 C Feature Manual References 1.3.1 Caller ID 1.6.3 Flexible Buttons 1.16.3 Speed Dialing, Personal 2.1 Capacity of System Resources Operating Manual References 1.4.1 Call Log, Incoming 3.1.2 Personal Programming 1.3.4 Call Monitor Description Allows an extension user to listen to a busy extension user's existing conversation. The user can hear the conversation but will not be heard.
  • Page 42: Call Park

    1.3 C – Voice Mail (VM) Transfer button Programming References PC Programming Manual 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature—Call Monitor 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Call Monitor 2.10.1 [4-1-1] Wired Extension—Extension Settings → Option 2—Data Mode → Option 3—Executive Override Deny 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Executive Override Deny PT Programming Manual None...
  • Page 43 1.3 C Light pattern Status Slow red flashing A call is parked in the preset parking zone There are no parked calls • Call Park (Automatic Park Zone) Button Pressing the Call Park (Automatic Park Zone) button parks a call in an idle parking zone automatically. Any flexible button can be customized as the Call Park (Automatic Park Zone) button.
  • Page 44: Call Pickup

    (1) the user's extension is allowed to use this feature through COS programming (for KX-TDA100, KX-TDA200, and KX-TDA600 only), (2) DSS buttons for extensions or incoming call distribution (ICD) groups have this feature enabled through system programming, and (3) the light pattern of DSS buttons for incoming calls to extensions or ICD groups is set to "On or Flash"...
  • Page 45: Call Splitting

    1.3 C Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features → Group Call Pickup → Directed Call Pickup → Call Pickup Deny Set / Cancel 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Call Pickup by DSS 2.8.17 [2-9] System Options—Option 4 →...
  • Page 46: Call Transfer

    1.3 C 1.3.8 Call Transfer Description An extension user can transfer a call to another extension or an outside party. The following features are available: Feature Transferring method Transfer is completed after announcing the transfer to the destination With Announcement party.
  • Page 47 1.3 C Destination Availability Trunk Group Access no. + Trunk Group no. + Phone no. Extension of Another PBX (via TIE Line, Access with PBX Code) Extension of Another PBX (via TIE Line, Access without PBX Code) • One-touch Transfer One-touch Transfer can be performed by pressing a One-touch Dialing button that has been assigned the TRANSFER command and the telephone number of the transfer destination.
  • Page 48: Call Waiting Features

    1.3 C 1.3.9 CALL WAITING FEATURES Description Used to inform a busy extension that another incoming call is waiting. The busy extension user can answer the second call by disconnecting the current call or placing it on hold. The following notification method can be assigned for each extension depending on the call waiting and the telephone type: Call Waiting Tone: Tone from the handset or built-in speaker OHCA: Voice from the built-in speaker...
  • Page 49 1.3 C Note that the received caller information will not be displayed on telephones or wireless phones connected to SLT ports. • OHCA and Whisper OHCA are enabled or disabled by the Class of Service (COS) of the calling extension. •...
  • Page 50: Call Waiting Tone

    1.3 C Feature Manual References 1.3.3 Call Log, Incoming 1.3.10 Call Waiting Tone 1.12.3 OHCA (Off-hook Call Announcement) 1.16.1 SMDR (Station Message Detail Recording) 1.20.3 Whisper OHCA Operating Manual References 1.3.12 CALL WAITING FEATURES 1.3.13 Call Waiting Tone 3.1.2 Personal Programming 1.3.10 Call Waiting Tone Description When an extension user attempts to call a busy extension (i.e., an extension that is ringing or having a...
  • Page 51: Cellular Phone Features

    1.3 C PT Programming Manual None Operating Manual References 1.3.13 Call Waiting Tone 3.1.2 Personal Programming 1.3.11 CELLULAR PHONE FEATURES Description This PBX provides features to support the use of cellular phones and other outside destinations with the PBX. Calls can be forwarded from virtual PSs to outside destinations such as cellular phones, and then answered as if the user was at an extension within the PBX.
  • Page 52: Cli (calling Line Identification) Distribution

    1.3 C 1.3.12 CLI (Calling Line Identification) Distribution Description Directs an incoming CO line call to a specific destination when the caller's telephone number matches a number in the System Speed Dialing Table. Each telephone number in this table can be assigned its own Calling Line Identification (CLI) destination.
  • Page 53: Clip (calling Line Identification Presentation)

    → CO Line Access Number + Telephone Number → CLI Destination 2.16.2 [10-2] DIL Table & Port Settings—DIL—CLI Ring for DIL—Day, Lunch, Break, Night 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID—Day, Lunch, Break, Night PT Programming Manual [001] System Speed Dialing Number...
  • Page 54 CLIR button, COLR button or entering the feature number. Conditions • CLIP, COLP, CLIR, and COLR are only available for the KX-TDA100, KX-TDA200, and KX-TDA600. • The availability of this feature is dependent on the contract with the telephone company.
  • Page 55: Co Line Access

    2.8.8 [2-6-1] Numbering Plan—Main—Features → COLR Set / Cancel → CLIR Set / Cancel → Switch CLIP of CO Line / Extension (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when Transfer (CLIP of Held Party) 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—CLIP on G-DN Button (KX-...
  • Page 56 1.3 C Method Description Operation Idle Line Access Selects an idle CO line automatically Dial the Idle Line Access number or (Local Access) from the assigned trunk groups. press a L-CO button. Trunk Group Access Selects an idle CO line from the Dial the Trunk Group Access number corresponding trunk group.
  • Page 57 1.3 C Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port—Connection 2.7.11 [1-1] Slot—LCO Port—Connection 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Connection 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Connection 2.7.20 [1-1] Slot—IP-GW Port—Connection 2.7.24 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Connection 2.8.8 [2-6-1] Numbering Plan—Main—Features →...
  • Page 58: Co Line Call Limitation

    1.3 C 1.3.15 CO Line Call Limitation Description CO line calls are limited by the following features: Feature Description Extension-to-CO Line Call If a call between an extension user and an outside party is established, Duration the call duration can be restricted by the system timer selected for each trunk group.
  • Page 59: Conference

    For a Conference With Six or More Parties The EECHO or ECHO card is required. Also the echo canceling function should be enabled through system programming. Installation Manual References KX-TDA50 2.5.2 ECHO8 Card (KX-TDA5166) KX-TDA100/KX-TDA200 2.6.4 ECHO16 Card (KX-TDA0166) Feature Manual...
  • Page 60: Confirmation Tone

    1.3 C KX-TDA600 2.8.5 EECHO16 Card (KX-TDA6166) Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Unattended Conference—Recall Start Timer → Unattended Conference—Warning Tone Start Timer → Unattended Conference—Disconnect Timer 2.8.11 [2-7-1] Class of Service—COS Settings—TRS—Transfer to CO 2.8.17 [2-9] System Options—Option 3 →...
  • Page 61 1.3 C Type Description Tone 3-1 Sent before a conversation is established using the Paging feature. Sent to the caller when a conversation is established with an extension in one of the following modes: • Hands-free Answerback mode • Voice-calling mode (Alternate Receiving—Ring/Voice) Sent when making a call to or from a doorphone.
  • Page 62: Consultation Hold

    1.3 C 1.3.18 Consultation Hold Description Consultation Hold is a condition that a party is in, when an extension is calling other parties in order to perform Call Transfer, Conference, or Call Splitting. When the operation is completed or canceled, the consultation hold is released.
  • Page 63: Cpc (calling Party Control) Signal Detection

    1.3 C → 1.20.4 Wireless XDP Parallel Mode → 1.16.1 SMDR (Station Message Detail Recording)—SMDR for Outgoing CO Line Calls → 1.17.5 Time Service—Time Service Switching → 1.11.1 Manager Features → 1.13.28 PT Programming → 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension—SDN Key mode, SDN Walking COS, and assigning SDN buttons through PT programming Conditions •...
  • Page 64: Cti (computer Telephony Integration)

    Computers can be connected to the PBX to provide extension users with access to advanced features such as pop-up display of caller information, computer-based speed dialing, etc. These features are made available by running customized Computer Telephony Integration (CTI) software, available from Panasonic (PC Console, PC Phone, etc.) as well as third-party software vendors.
  • Page 65 A PC connected directly to an IP-PT cannot be used for First Party Call Control. • IP-PTs do not support the use of PC Phone or PC Console software on a connected PC. Installation Manual References KX-TDA50 2.6.4 First Party Call Control CTI Connection 2.9.1 Connection of Peripherals KX-TDA100/KX-TDA200 Feature Manual...
  • Page 66 2.8.6 CTI-LINK Card (KX-TDA0410) 2.9.4 First Party Call Control CTI Connection 2.12.1 Connection of Peripherals Programming References PC Programming Manual 2.7.28 [1-1] Slot—CTI-LINK Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features—Dial Information (CTI) 2.8.17 [2-9] System Options—Option 6 (CTI) PT Programming Manual None...
  • Page 67: Data Line Security

    1.4 D 1.4.1 Data Line Security Description Once Data Line Security is set on an extension, communication between the extension and the other party is protected from signals such as Call Waiting, Hold Recall and Executive Busy Override. Extensions which have devices connected to them such as modems or fax machines may set this feature to maintain secure data transmission, by blocking tones or other interruptions during communication.
  • Page 68: Dial Tone

    PC Programming Manual 2.7.11 [1-1] Slot—LCO Port → Dialing Mode → DTMF Width → Pulse Speed 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) → CO Dial Mode → DTMF Width → CO Pulse Speed PT Programming Manual [410] LCOT Dialing Mode...
  • Page 69: Dial Tone Transfer

    1.4 D Type Description Tone 3A/3B This tone is heard when: • A called PS is being searched for. • The recording time used by the Simplified Voice Message (SVM) feature reaches the limit.* • Any of the features below are performed. •...
  • Page 70 1.4 D [Example] A hotel guest calls the front desk and asks for the telephone's toll restriction to be lifted in order to make an international call. (3) Make a CO line call (2) Change TRS level Toll Restriction button (1) Call Guest Room Front Desk...
  • Page 71: Did (direct Inward Dialing)

    This feature is only available for the KX-TDA100, KX-TDA200, and KX-TDA600. [Method Flowchart] A CO line call is received on a DID line.
  • Page 72 → [451] DID Number (KX-TDA100/KX-TDA200/KX-TDA600 only) → 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—DID Name → [452] DID Name (KX-TDA100/KX-TDA200/KX-TDA600 only) → 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID—Day, Lunch, Break, Night → 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—DID Destination—Day, Lunch, Break, Night →...
  • Page 73: Dil (direct In Line)

    1.4 D → DID/TIE—Additional Dial 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) PT Programming Manual [451] DID Number (KX-TDA100/KX-TDA200/KX-TDA600 only) [452] DID Name (KX-TDA100/KX-TDA200/KX-TDA600 only) [453] DID Destination (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.3.12 CLI (Calling Line Identification) Distribution 1.9.10 INCOMING CALL FEATURES 1.17.3 Tenant Service...
  • Page 74 1.4 D [Method Flowchart] A CO line call is received. Does the call have Caller ID information and is CLI distribution enabled for the CO line in the current time mode? Has the caller been stored in the System Speed Dialing Table and has a CLI destination been assigned? Is a DIL destination assigned...
  • Page 75: Disa (direct Inward System Access)

    1.4 D The tenant number programmed here is used only to determine the Time Table used by each CO line; selecting tenant 3 means the CO line will use Time Table 3, for example. The VPS trunk group number set here is used to determine the Incoming Call Service and greeting message used by the Voice Processing System (VPS) during the current time mode.
  • Page 76 1.4 D [Flowchart] A DISA call from an outside party is received. Is there an idle port on an MSG card? The call is routed to an operator, etc. (DISA Intercept when All (DISA Delayed DISA Ports are busy) Answer time expires) The PBX answers the call.
  • Page 77 1.4 D Continued from previous page No Security None None None None CO Line Security All Security Is the dialed number an extension number or floating extension number? Is the Walking COS/Verification Code Entry feature number dialed? What is the dialed number? Is the correct PIN entered? Other...
  • Page 78 1.4 D Continued from previous page Continued from previous page What method is assigned for DISA Intercept Is an Intercept Routing DND? Routing Busy destination assigned? The call is routed to Intercept Routing Busy tone the intercept destination. (Intercept Routing Busy) Does the caller Is a DISA Busy press...
  • Page 79 1.4 D Outgoing Message (OGM) When a call arrives on a DISA line, a prerecorded DISA message will greet and guide the caller. Any extension assigned as the manager can record outgoing messages (OGMs). (→ 1.12.2 OGM (Outgoing Message)) [Programming Example] Outgoing Automated Attendant No.
  • Page 80 1.4 D DISA Intercept Routing—Busy If the first destination called by the outside party is busy, the call is redirected as follows: The call is redirected to the Intercept Routing—Busy destination assigned to the first destination. If an Intercept Routing—Busy destination is not assigned to the first destination and a prerecorded DISA Busy Message is assigned, the caller will hear the DISA Busy Message.
  • Page 81 1.4 D • Time Service Switching Mode (→ 1.17.5 Time Service) DISA Automatic Walking COS Registered outside destinations such as cellular phones can be automatically recognized as PBX extensions when calling through DISA. When the Caller ID of a received CO line call matches an entry in the System Speed Dialing Table, the calling telephone is given Walking COS authorization as assigned to the corresponding CLI destination extension.
  • Page 82 Changing PINs regularly. • Hardware Requirement: KX-TDA50: An MSG card KX-TDA100/KX-TDA200/KX-TDA600: An OPB card and MSG card • DISA Delayed Answer Time It is possible to set the Delayed Answer time so that the caller will hear a ringback tone within a preprogrammed time period first before hearing an outgoing message (OGM).
  • Page 83 1.4 D 2.8.4 [2-3] Timers & Counters—DISA / Door / Reminder / U. Conf → DISA—CO-to-CO Call Prolong Counter → DISA—CO-to-CO Call Prolong Time → [210] DISA CO-to-CO Line Call Prolong Time • Automatic DISA Activation DISA can be set through system programming to automatically activate for the following types of CO- to-CO line calls, to enable detection of the end of the call.
  • Page 84 When all DISA ports are busy, the call is redirected to the Intercept Routing destination assigned to the trunk group. Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190) 2.8.4 MSG4 Card (KX-TDA0191)
  • Page 85 1.4 D → DISA—2nd Dial Timer for AA → DISA—Intercept Timer—Day, Lunch, Break, Night → DISA—Disconnect Timer after Intercept → DISA—CO-to-CO Call Prolong Counter → DISA—CO-to-CO Call Prolong Time → DISA—Progress Tone Continuation Time before Recording Message → DISA—Reorder Tone Duration 2.8.4 [2-3] Timers &...
  • Page 86: Display Information

    Panasonic DID name or number Duration of the current CO line call – Line 001 11:02'28 Only available for KX-TDA100, KX-TDA200, and KX-TDA600. Conditions • Multilingual Display Each extension can select its display language through personal programming (Display Language Selection).
  • Page 87: Dnd (do Not Disturb)

    1.4 D 2.8.17 [2-9] System Options—Option 5—PT Feature Access—No. 1–8 2.10.1 [4-1-1] Wired Extension—Extension Settings → Option 4—Display Language → Option 5—Incoming Call Display → Option 5—Automatic LCD Switch when Start Talking 2.10.10 [4-2-1] Portable Station—Extension Settings → Option 4—Display Language →...
  • Page 88: Door Open

    1.4 D • If (1) a CO line call via the ELCOT, LCOT, or T1 (LCOT/GCOT) card arrives at an extension in DND mode and (2) the Intercept Routing—Busy/DND destination is not available and (3) there is no available extension in the idle extension hunting group, then the original extension in DND mode will ring. •...
  • Page 89: Doorphone Call

    • Hardware Requirement: KX-TDA50: An optional doorphone and a DPH card KX-TDA100/KX-TDA200/KX-TDA600: An optional doorphone, the OPB card and DPH card • Call Destination The destination of doorphone calls can be assigned to each doorphone port for each time mode. The Time Table is determined by the tenant number assigned to each doorphone port.
  • Page 90 Installation Manual References KX-TDA50 2.5.1 DPH4 Card (KX-TDA5161) 2.8.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.2 DPH4 Card (KX-TDA0161) 2.9.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190)
  • Page 91 1.4 D Operating Manual References 1.3.21 Doorphone Call Feature Manual...
  • Page 92: Efa (external Feature Access)

    (→ 1.3.18 Consultation Hold) Programming References PC Programming Manual 2.7.11 [1-1] Slot—LCO Port—Flash Time 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Flash Time 2.8.8 [2-6-1] Numbering Plan—Main—Features—External Feature Access 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—Flash Mode during CO Conversation 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—Flash Mode during CO Conversation...
  • Page 93: Emergency Call

    Extension Dial Lock (→ 1.5.4 Extension Dial Lock) • CLIP Number Notification (KX-TDA100/KX-TDA200/KX-TDA600 only) When dialing an emergency number, the preassigned CLIP number for the extension will be sent as a location identification number. (→ 1.3.13 CLIP (Calling Line Identification Presentation)) The CLIP number assigned to the extension will be sent regardless of the settings such as CLIR or CLIP number assigned to an ISDN port to be used.
  • Page 94 1.5 E Is receiving an Off-hook Call Announcement (OHCA) (→ 1.12.3 OHCA (Off-hook Call Announcement)) or Whisper OHCA (→ 1.20.3 Whisper OHCA). Is on a conference call (→ 1.3.16 Conference, → 1.13.12 Privacy Release). Is on a doorphone call (→ 1.4.11 Doorphone Call). Is using Live Call Screening (LCS) or Two-way Record (→...
  • Page 95: Extension Dial Lock

    1.5 E 1.5.4 Extension Dial Lock Description An extension user can change the Toll Restriction (TRS) level of the telephone (→ 1.17.6 TRS (Toll Restriction)) so that other users cannot make inappropriate CO line calls. An extension personal identification number (PIN) is used to unlock the telephone (→ 1.5.6 Extension PIN (Personal Identification Number)).
  • Page 96: Extension Feature Clear

    1.5 E 1.5.5 Extension Feature Clear Description Extension users can clear the following features set on their own telephone all at once: Features After Setting Absent Message FWD*/DND* Call Pickup Deny Allow Call Waiting* Enable (Call Waiting tone) Data Line Security Executive Busy Override Deny Allow Log-in/Log-out...
  • Page 97: Extension Pin (personal Identification Number)

    1.5 E Operating Manual References 1.3.25 Extension Feature Clear 1.5.6 Extension PIN (Personal Identification Number) Description Each extension user can be assigned a personal identification number (PIN) through system programming or personal programming (Extension PIN [Personal Identification Number]). This PIN is used to set features or access the extension remotely.
  • Page 98: Extension Port Configuration

    Voice Processing Systems (VPS) to the PBX. The devices which can be connected to each type of port are listed below. DPT Port: DPT, DSS Console, Panasonic VPS which supports DPT (Digital) Integration, and PT- interface CS (e.g., KX-TDA0141) APT Port (For KX-TDA50 only): APT, DSS Console, and Panasonic VPS which supports DPT...
  • Page 99: External Relay

    1.5 E • A DSS Console or a Panasonic VPS which supports DPT (Digital) Integration can also be connected with an SLT in XDP mode. • APT and SLT in Parallel Mode An APT and an SLT can also be connected to a Super Hybrid port and used in parallel mode.
  • Page 100: External Sensor

    Installation Manual References KX-TDA50 2.5.1 DPH4 Card (KX-TDA5161) 2.8.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.3 EIO4 Card (KX-TDA0164) 2.9.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190)
  • Page 101 • Hardware Requirement: KX-TDA50: An external sensor and DPH card KX-TDA100/KX-TDA200/KX-TDA600: An external sensor, OPB card and EIO card • Some devices may be unable to communicate correctly with the PBX. Confirm compatibility with the manufacturer of a device before installing it.
  • Page 102 2.8.3 EIO4 Card (KX-TDA0164) 2.11.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays Programming References PC Programming Manual 2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) → Input Signal Decision Time → Input Signal Detection Reopening Time 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) →...
  • Page 103: Fixed Buttons

    1.6 F 1.6.1 Fixed Buttons Description Proprietary telephones (PTs), DSS Consoles, and Add-on Key Modules feature a wide variety of feature buttons and Line Access buttons, explained below. Note that certain models do not feature certain buttons. For a description of the buttons found on portable stations (PSs), please refer to the Operating Instructions for each PS.
  • Page 104 1.6 F Button Usage TRANSFER Used to transfer a call to another party. Used to access a CO line or trunk group when making or receiving a call Flexible CO according to the button's preprogrammed CO Line Access method (Default: S-CO). Can also be customized as a different feature button. INTERCOM Used to make or receive intercom calls.
  • Page 105: Flash/recall/terminate

    Programming References PC Programming Manual 2.7.11 [1-1] Slot—LCO Port—Disconnect Time 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Disconnect Time 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—Flash Mode during CO Conversation 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—Flash Mode during CO Conversation 2.10.13 [4-2-3] Portable Station—Flexible Button—Type...
  • Page 106: Flexible Buttons

    1.6 F Feature Manual References 1.6.3 Flexible Buttons 1.6.3 Flexible Buttons Description Flexible buttons are customized through either system or personal programming. The following types of flexible buttons are found on proprietary telephones (PTs), DSS Consoles, Add-on Key Modules, and/or portable stations (PSs): Flexible CO buttons Flexible Direct Station Selection (DSS) buttons...
  • Page 107 1.6 F Button Usage Terminate Used to disconnect the current call and make another call without hanging up. (→ 1.6.2 Flash/Recall/Terminate) External Feature Access (EFA) Used to send a flash/recall signal to the telephone company or host PBX to access external features. (→...
  • Page 108 1.6 F Button Usage One-touch Two-way Transfer Used to record a conversation into the mailbox of a specified extension with a one-touch operation. (→ 1.19.4 Voice Mail DPT (Digital) Integration) Live Call Screening (LCS) Used to monitor your own voice mailbox while a caller is leaving a message and, if desired, intercept the call.
  • Page 109: Flexible Numbering/fixed Numbering

    Extension numbers (consisting of “0” through “9”) can be assigned as follows: • Numbering schemes: 1-64 • Leading number: up to two digits (for KX-TDA50/KX-TDA100/KX-TDA200) or three digits (for KX-TDA600) • Additional number: up to two digits (default: two digits) [Example] If the number "3"...
  • Page 110 1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Extension Numbering Scheme 1—Leading 1 / 2 10 / 20 Number Extension Numbering Scheme 2—Leading 2 / 3 11 / 21 Number Extension Numbering Scheme 3—Leading...
  • Page 111 1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Extension Numbering Scheme 19— None 28 / 38 Leading Number Extension Numbering Scheme 20— None 29 / 39 None Leading Number Extension Numbering Scheme 21— 5 / 5...
  • Page 112 1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 User Remote Operation/Walking COS/ Verification Code Entry Wireless XDP Parallel Mode set/cancel Account Code Entry Call Hold/Call Hold Retrieve Call Hold Retrieve—Specified with a Holding Extension Number Call Park/Call Park Retrieve Call Hold Retrieve—Specified with a Held...
  • Page 113 1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Data Line Security set/cancel Manual Call Waiting for Extension Call off/ BSS/OHCA/Whisper OHCA Automatic Call Waiting set/cancel Executive Busy Override Deny set/cancel Not Ready Mode on/off Log-in/Log-out...
  • Page 114 1.6 F for easy use. The numbers should be one digit (0-9, " ", or "#") and must not conflict. For a list of the default settings, refer to the following table: [Flexible Numbering Table (available while a busy, DND, or ringback tone is heard)] Feature Default Call Waiting/DND Override...
  • Page 115: Floating Extension

    1.6 F • Note that extensions that will have a mailbox using a VM in DPT integration must have extension numbers of 2 to 4 digits. • A PS can only be assigned an extension number of 4 digits or less. Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main...
  • Page 116 1.6 F Resource Description Default Device External Pager Used as the destination for the Trunk Answer From Any Station (TAFAS) feature. (→ 1.17.2 TAFAS (Trunk Answer From Any Station)) Outgoing Message Used to play messages for callers via the Direct 5 + two-digit (OGM) Inward System Access (DISA) feature.
  • Page 117: Fwd (call Forwarding)

    1.6 F [731] Outgoing Message (OGM) Name [811] Modem Floating Extension Number [812] ISDN Remote Floating Extension Number (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.13.6 PC Programming 1.19.3 Voice Mail (VM) Group 1.6.6 FWD (Call Forwarding) Description Extensions and incoming call distribution groups can forward their calls to preset destinations. There are...
  • Page 118 1.6 F Extension Forwards to Incoming Another Extension Intercom Calls Incoming CO Forwards to Line Calls Outside Party Available Forwarding Type: All Calls Busy No Answer Busy/No Answer ICD Group Incoming Forwards to Intercom Calls Another Extension Incoming CO Forwards to Line Calls Outside Party Available Forwarding Type: All Calls...
  • Page 119 1.6 F [Available Destinations] Condition for Original Extension/ Destination Availability Incoming Call Distribution Group Wired Extension (PT/SLT/T1-OPX) Only available when FWD to extension is allowed through COS programming.* ICD Group PS Ring Group – Floating Extension no. for SVM – VM Group (DTMF/DPT) –...
  • Page 120 1.6 F • Multiple FWD Calls can be forwarded up to four times. The following forwarding features are counted as Multiple FWD: – FWD—Busy or Busy/No Answer (when the destination extension is busy), or All Calls – Idle Extension Hunting—Overflow –...
  • Page 121 1.6 F [All Calls and Busy] • If the forward destination is not available to answer a call, this feature is canceled and the original destination will ring for the following type of call: – Doorphone call – CO line calls via the ELCOT, LCOT, or T1 (LCOT/GCOT) cards [No Answer and Busy/No Answer] •...
  • Page 122: Fwd/dnd Button, Group Fwd Button

    1.6 F 1.6.7 FWD/DND Button, Group FWD Button Description The FWD/DND fixed button, or a customized flexible button, can display the FWD/DND setting status of the extension. Using this button, the FWD status and DND status of the extension can be temporarily set or canceled without clearing FWD destination settings.
  • Page 123 1.6 F FWD/DND Setting by Fixed FWD/DND button Pressing the fixed FWD/DND button in idle status allows the extension user to set the following items for FWD/DND: • FWD/DND for CO line calls The FWD/DND status for CO line calls to that extension can be switched temporarily without clearing the FWD destination.
  • Page 124 1.6 F → Group FWD Set / Cancel: Call from Extension 2.8.17 [2-9] System Options—Option 1 → PT Fwd / DND—Fwd LED → PT Fwd / DND—DND LED → PT Fwd / DND—Fwd/DND key mode when Idle 2.10.1 [4-1-1] Wired Extension—Extension Settings—FWD / DND Reference 2.10.5 [4-1-4] Wired Extension—Flexible Button →...
  • Page 125: Group Features

    1.7 G 1.7.1 GROUP FEATURES Description This PBX supports various types of groups. Trunk Group CO lines can be grouped into trunk groups based on carrier, CO line type, etc. Several settings can be assigned on a trunk group basis. All CO lines belonging to a trunk group follow the programming for that trunk group.
  • Page 126 1.7 G [Example] Call Pickup Group 1 Call Pickup Group 2 Call Pickup Group 3 Extension User Extension User Extension User Extension User Group 1 Group 2 Group 3 Group 4 Extn. 100 Extn. 101 Extn. 102 Extn. 103 Extn. 104 Extn. 105 Extn.
  • Page 127 1.7 G [Example] ICD Group 1 ICD Group 2 (Folating Extn. No. 601, (Floating Extn. No. 602, Name: Sales 1) Name: Sales 2) Extn. 103 Extn. 104 Extn. 105 Extn. 106 Extn. 107 Extn. 100 Extn. 101 Extn. 102 VM Group There are two types of VM groups, explained below.
  • Page 128 1.7 G PS Ring Group 1 PS Ring Group 2 Floating Extension No. 301 Floating Extension No. 302 Name: Sales 1 Name: Sales 2 PS 1 PS 2 PS 3 PS 4 PS 5 (Extn. 601) (Extn. 602) (Extn. 603) (Extn.
  • Page 129: Hands-free Answerback

    1.8 H 1.8.1 Hands-free Answerback Description A proprietary telephone (PT) user with a speakerphone or optional headset can talk to a caller without lifting the handset. If the user receives a call in Hands-free Answerback mode, a hands-free conversation is established in the following method: Type Answering Method...
  • Page 130: Hands-free Operation

    1.8 H 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 5 → Automatic Answer for CO Call → Forced Automatic Answer PT Programming Manual None Feature Manual References 1.9.13 Intercom Call Operating Manual References 1.3.30 Hands-free Answerback 1.8.2 Hands-free Operation Description A proprietary telephone (PT) user can talk to another party without lifting the handset. Pressing specific buttons, such as REDIAL, automatically activate hands-free mode.
  • Page 131: Hospitality Features

    Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port—Headset OFF/ON (for DPT, DPT(S-DPT), S-Hybrid, or S-Hybrid(S-DPT) port) 2.7.24 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—IP-PT Registration and De-registration—Headset OFF/ON 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type 2.10.17 [4-3] DSS Console—Flexible Button—Type PT Programming Manual...
  • Page 132: Host Pbx Access Code (access Code To The Telephone Company From A Host Pbx)

    1.8 H Feature Description Details in Room Status Control An extension designated as the hotel operator can set the • 1.15.3 Room check-in status of rooms remotely. Status Control Remote Wake-up Call An extension designated as the hotel operator can set a •...
  • Page 133 1.8 H [Example] Telephone Company Host PBX Access Code: 0 Host PBX Outside Party (01-23-4567) Idle Line Access No.: 9 Extn. 101 Extn. 102 Dials "0-01-23-4567". TRG1 Host PBX Access Code Telephone Dials "9-0-01-23-4567". Dials "9-101". Idle Line Idle Line Telephone No.
  • Page 134: Hot Line

    1.8 H • A Host PBX Access Code can be used to record only long distance calls on SMDR when a CO line port is connected directly to the telephone company (not a host PBX). This is allowed when the long distance code (e.g., “0”) is assigned as the Host PBX Access code.
  • Page 135 1.8 H [204] Hot Line Waiting Time Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.34 Hot Line Feature Manual...
  • Page 136: Icd Group Features

    1.9 I 1.9.1 ICD GROUP FEATURES Description An incoming call distribution group is a group of extensions programmed through system programming. → 2.9.12 [3-5-4] Incoming Call Distribution Group—Member → [620] Incoming Call Distribution Group Member An incoming call distribution group receives calls directed to the group. Each incoming call distribution group has a floating extension number (default: 6 + two-digit group number).
  • Page 137 1.9 I Calls arrive at ICD group 1. Overflow Feature a) Sends a busy tone (Busy on Busy), or b) Redirects to the overflow destination. Queuing Feature Five calls are waiting in the queue. (Calls 4 through 8) Manual Queue Redirection The longest waiting call in a queue can be redirected to the overflow Call Distribution...
  • Page 138 1.9 I VIP Call [→ 1.9.8 ICD Group Features—VIP Call] It is possible to assign a priority to incoming call distribution groups so that incoming calls can be received in priority order. Overflow Feature [→ 1.9.5 ICD Group Features—Overflow] A call is redirected to a preprogrammed destination when it cannot be answered or queued (Intercept Routing—Overflow in an Incoming Call Distribution Group).
  • Page 139 1.9 I automatically registered in the lowest-numbered available member slot for the group. Calls to the group can be received at the extension with no further programming. If no member slots are available for that group, the button cannot be created and an alarm tone will be heard. When creating an ICD Group button in this mode, the user can also specify the delayed ringing settings.
  • Page 140: Icd Group Features-group Call Distribution

    1.9 I 2.1 Capacity of System Resources 1.9.2 ICD Group Features—Group Call Distribution Description Incoming calls directed to an incoming call distribution group are distributed to the member extensions using the selected distribution method until a preprogrammed number of extensions (agents) are busy with calls. When incoming calls exceed the number of available extensions, calls enter a queue (→...
  • Page 141 1.9 I Distribution Method Description Ring All extensions in the group ring simultaneously. Delayed Ringing: Delayed ringing or no ringing can be programmed for each extension in the group. The call can be answered by pressing the flashing button even if no ring or a delayed time is set. Extn.
  • Page 142 1.9 I or Priority Hunting.) Calls will arrive at idle buttons until all ICD Group buttons are occupied— additional calls will wait in a queue. Note In method b), if an extension has one or more ICD Group buttons for an incoming call distribution group and all the ICD Group buttons on the extension are occupied, the Group Call Waiting feature for the group will not work at the extension.
  • Page 143: Icd Group Features-log-in/log-out

    1.9 I → Miscellaneous—Maximum No. of Busy Extensions 2.9.11 [3-5-3] Incoming Call Distribution Group—Miscellaneous → Options—Wrap-up Timer based on → Options—Longest Idle Distribution (Optional SD Card Required) 2.9.12 [3-5-4] Incoming Call Distribution Group—Member—Delayed Ring 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 7—Wrap-up Timer 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—Wrap-up Timer PT Programming Manual [621] Incoming Call Distribution Group Delayed Ringing...
  • Page 144 1.9 I • Log-in/Log-out Button A flexible button can be customized as the Log-in/Log-out button with the following parameters: Light Pattern Parameter Usage Red on No parameter Used with an ICD Group button, or with — — the floating extension number of an incoming call distribution group, or with (All).
  • Page 145 1.9 I • Log-in/Log-out Information on SMDR Log-in/Log-out information can be printed out on SMDR. (→ 1.16.1 SMDR (Station Message Detail Recording)) Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features → Log-in / Log-out → Not Ready (Manual Wrap-up) Mode On / Off 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous →...
  • Page 146: Icd Group Features-outside Destinations

    1.9 I 1.9.4 ICD Group Features—Outside Destinations Description Up to 4 outside parties or destinations at another PBX can be assigned as members of an Incoming Call Distribution (ICD) Group, using the following method: A virtual PS is registered as a member of the ICD Group.
  • Page 147 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Call Forward to CO 2.8.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when ICD Group with Cellular Phone (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main → Floating Extension Number →...
  • Page 148: Icd Group Features-overflow

    1.9 I [620] Incoming Call Distribution Group Member [621] Incoming Call Distribution Group Delayed Ringing [622] Incoming Call Distribution Group Floating Extension Number [624] Incoming Call Distribution Group Distribution Method [690] PS Registration Feature Manual References 1.13.16 Private Network Features—Network ICD Group 1.19.2 Virtual PS 1.9.5 ICD Group Features—Overflow...
  • Page 149 1.9 I Destination Availability ICD Group PS Ring Group Floating Extension no. for SVM VM Group (DTMF/DPT) External Pager (TAFAS) DISA Analog/ISDN Remote Maintenance Idle Line Access no. + Phone no. Trunk Group Access no. + Trunk Group no. + Phone no. Extension of Another PBX (via TIE Line, Access with PBX Code) Extension of Another PBX (via TIE Line, Access without PBX Code) Busy on Busy...
  • Page 150: Icd Group Features-queuing

    1.9 I Programming References PC Programming Manual 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings → Overflow Queuing Busy → Overflow No Answer 2.9.10 [3-5-2] Incoming Call Distribution Group—Queuing Time Table PT Programming Manual [625] Destination for Overflow Time Expiration [626] Overflow Time [627] Destination When All Busy [628] Queuing Call Capacity [632] Maximum Number of Agents...
  • Page 151 We are sorry to Thank you for overflow 30 seconds. the overflow keep you holding. calling Panasonic. destination. destination. All of our agents All of our agents are are still handling currently handling other calls. We other calls.
  • Page 152 1.9 I Light Pattern Calls in the Waiting Queue Rapid red flashing Over the assigned number for Hurry-up Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Incoming Call Queue Monitor 2.8.17 [2-9] System Options—Option 4—Transfer—Transfer to Busy Extension without BSS Operation 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings →...
  • Page 153: Icd Group Features-supervisory

    1.9 I 1.9.7 ICD Group Features—Supervisory Description An extension preprogrammed as a supervisor (supervisor extension) can monitor and control each member's status within the incoming call distribution group using a 6-line display PT. Feature Description Incoming Call Queue Monitor The supervisor extension can monitor the status of an incoming call distribution group with the display.
  • Page 154: Icd Group Features-vip Call

    1.9 I Conditions • Available Extension as a Supervisor Extension One supervisor extension can be assigned for each incoming call distribution group, but it need not belong to the group. One extension can be the supervisor extension of more than one incoming call distribution group. •...
  • Page 155: Idle Extension Hunting

    1.9 I Calls have been distributed by DIL/DID/CLI distribution. (The circled numbers indicate the arrival order of the calls. ) ICD Group 1 ICD Group 2 (for VIPs) (for general customers) Priority Priority Extn. Extn. Extn. Distribution order: From: Group 1 Group 3 Groups 2 and 4 Priority Priority...
  • Page 156 1.9 I Type Description Circular Hunting An idle extension is searched for in the order specified in the idle extension hunting group in a circular way. Incoming call Busy Extn. Extn. Extn. Extn. Assignment order Terminated Hunting An idle extension is searched for in the order specified in the idle extension hunting group until reaching the last assigned extension.
  • Page 157 1.9 I • If all the searched extensions are busy: The PBX redirects the call to an overflow destination which can be assigned for each idle extension hunting group and each time mode (day/lunch/break/night) (→ 1.17.5 Time Service). [Available Destination] Destination Availability Wired Extension (PT/SLT/T1-OPX)
  • Page 158: Incoming Call Features

    Each CO line port (channel) of a CO line card is assigned a port (channel) type which determines the CO line's networking type—public or private. → 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Trunk Property (for TIE channel) → 2.16.2 [10-2] DIL Table & Port Settings—DIL—Trunk Property...
  • Page 159 1.9 I Feature Description Details in Calling Line Identification Directs a call to its preprogrammed destination if the • 1.3.12 CLI (CLI) Distribution caller's telephone number and its CLI destination (Calling Line has been stored in the System Speed Dialing Table. Identification) Distribution Available Distribution Method for Public CO Lines...
  • Page 160: Intercept Routing

    • 1.9.12 Intercept to an operator. Routing—No Destination Programming References PC Programming Manual 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Trunk Property (for TIE channel) 2.16.2 [10-2] DIL Table & Port Settings—DIL—Trunk Property PT Programming Manual None 1.9.11 Intercept Routing Description Redirects an incoming CO line call or intercom call to a preprogrammed destination when the original destination does not, or can not, answer the call.
  • Page 161 1.9 I Type Description Busy If a called party is already handling a call, new calls are handled as follows: – The call is redirected to the preprogrammed Intercept Routing— Busy destination. – If an Intercept Routing—Busy destination is not enabled, the caller will hear a busy tone.
  • Page 162 1.9 I When the original destination is: The Available Intercept Destination is: If all DISA ports are busy when a call is made using • DISA DISA, one of the following can be selected through system programming: • Disable: Busy tone is sent to the caller. •...
  • Page 163 1.9 I [Available Intercept Destination] The following can be used as intercept destinations: Intercept Destination Availability Wired Extension (PT/SLT/T1-OPX) ICD Group PS Ring Group Floating Extension no. for SVM VM Group (DTMF/DPT) External Pager (TAFAS) DISA Analog/ISDN Remote Maintenance Idle Line Access no. + Phone no. Trunk Group Access no.
  • Page 164 1.9 I • Idle Extension Hunting If an extension is a member of an idle extension hunting group, calls to that extension will not be redirected by Intercept Routing—Busy/DND. If the extension is busy or in DND mode, calls to that extension will be redirected to the next extension in the idle extension hunting group.
  • Page 165: Intercept Routing-no Destination

    1.9 I Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters → Dial / IRNA / Recall / Tone—Intercept Routing No Answer (IRNA)—Day, Lunch, Break, Night → DISA / Door / Reminder / U. Conf—DISA—Intercept Timer—Day, Lunch, Break, Night 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings →...
  • Page 166: Intercom Call

    1.9 I • If an operator is not assigned: The default intercept destination will be the extension connected to the lowest numbered port, on the card installed in the lowest numbered slot. • Intercept Routing—No Destination also applies to calls from doorphones. Programming References PC Programming Manual 2.8.3 [2-2] Operator &...
  • Page 167: Internal Call Block

    1.9 I Type Description Ringback Tone Indicates the called party is being called. Confirmation Tone Indicates the called party has set voice-calling. Busy Tone Indicates the called party is busy. DND Tone Indicates the called party has set DND. Programming References PC Programming Manual 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature—Alternate Calling - Ring / Voice 2.10.1 [4-1-1] Wired Extension—Extension Settings...
  • Page 168 1.9 I [Programming Example: Internal Call Block] Called Party Caller COS 1 COS 2 COS 3 COS... COS 1 Block Block Block COS 2 Block Block Block COS 3 In this example: COS 1 can make calls to all extensions. COS 2 can make calls to COS 1 only.
  • Page 169: Ip-pt (ip Proprietary Telephone)

    IP-PTs have two Ethernet ports for connection, primary and secondary. They are connected to the PBX through a network hub or other splitting device, and can have a PC connected to the secondary Ethernet port. This feature is only available for the KX-TDA100, KX-TDA200, and KX-TDA600. [Connection Example] IP-PT...
  • Page 170: Isdn (integrated Services Digital Network) Features

    Programming References PC Programming Manual 2.7.22 [1-1] Slot—IP-Extension Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.24 [1-1] Slot—IP-Extension Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.21 [2-12] IP Extension Settings (KX-TDA100/KX-TDA200/KX-TDA600 only) (not available for MPR Software File Version 3.1000 or later) PT Programming Manual None Feature Manual References 2.2 Exclusive Features Table...
  • Page 171 – the # key is pressed (programmable). → 2.8.17 [2-9] System Options—Option 2—End of Dial Plan—[#] as End of Dial for en Bloc mode (KX-TDA100/KX-TDA200/KX-TDA600 only) – the dialed number is a preprogrammed telephone number. → 2.12.7 [6-7] Dialing Plan –...
  • Page 172 1.9 I → 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—ISDN Bearer (KX-TDA100/KX- TDA200/KX-TDA600 only) → 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—ISDN Bearer Programming References PC Programming Manual 2.7.13 [1-1] Slot—PRI Card Property (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.15 [1-1] Slot—PRI Port—Port Command (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.4 [2-3] Timers &...
  • Page 173: Led Indication

    1.10 L 1.10 L 1.10.1 LED Indication Description The LED of the Message/Ringer Lamp and the following buttons (Line Status Buttons and Corresponding Extension Status Button) can indicate line status with a variety of light patterns. Line Status Buttons: S-CO, G-CO, L-CO, INTERCOM, ICD Group, PDN Corresponding Extension Status Button: DSS, SDN Light Pattern of the Message/Ringer Lamp [Digital proprietary telephone (DPT)]...
  • Page 174 1.10 L Light Pattern of the Line Status Buttons Line Status Incoming Call Intercom Button: Distribution CO Line Status Line Status (ICD) Group Light Line Status Pattern S-CO G-CO L-CO INTERCOM ICD Group Idle Green on This extension is using the line. Slow green This extension is holding the line.
  • Page 175: Line Preference-incoming

    1.10 L Flashing Light Patterns Slow Flashing Moderate Flashing Rapid Flashing Conditions • The incoming CO line call shows on the buttons in the following priority: ICD Group→S-CO→G-CO→L-CO→PDN→INTERCOM • The light pattern of a DSS button for incoming calls can be set to "Off" through system programming. In this case, the DSS button light will not indicate the status of the corresponding extension.
  • Page 176: Line Preference-outgoing

    1.10 L Type Description No Line Selects a line by pressing the desired Line Access button to answer an incoming call after you go off-hook. Answers a call arriving at a Primary Directory Number (PDN) button simply by going off-hook. This works even when multiple calls are received simultaneously.
  • Page 177: Local Alarm Information

    1.10 L Method Description ICM/PDN When an extension user goes off-hook, an extension line is selected automatically. If the extension is a PDN extension, the first available Primary Directory number (PDN) button is selected automatically. (→ 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension) Idle Line When an extension user goes off-hook, an idle CO line is selected...
  • Page 178 • The PBX can be automatically diagnosed at a preprogrammed time everyday. Installation Manual References KX-TDA50 4.1.5 Troubleshooting by Error Log KX-TDA100/KX-TDA200 4.1.5 Troubleshooting by Error Log KX-TDA600 4.1.5 Troubleshooting by Error Log Programming References PC Programming Manual 2.5.7 Utility—Message File Transfer PBX to PC...
  • Page 179 1.10 L 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type 2.10.13 [4-2-3] Portable Station—Flexible Button—Type 2.10.17 [4-3] DSS Console—Flexible Button—Type 2.17.1 [11-1] Main → SMDR—Print Information—Error Log → Maintenance—Local Alarm Display—Extension 1, Extension 2 → Maintenance—Daily Test Start Time—Set → Maintenance—Daily Test Start Time—Hour →...
  • Page 180: Manager Features

    1.11 M 1.11 M 1.11.1 Manager Features Description An extension assigned as a manager (manager extension) is allowed to use certain features which most extensions cannot. Class of Service (COS) programming determines which extensions are manager extensions and can therefore use the following features: Manager Feature Description...
  • Page 181: Memory Dialing Features

    1.11 M Conditions WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.
  • Page 182 1.11 M Feature Storing Method Details in Speed Personal • Personal Programming • 1.16.3 Speed Dialing Dialing, Personal • Personal Operation with the Feature Number • System Programming (PC Programming only) System System Programming • 1.16.4 Speed Dialing, System Quick Dialing System Programming •...
  • Page 183: Message Waiting

    (→ 1.4.3 Dial Tone) • SLT with a Message Waiting Lamp (KX-TDA100/KX-TDA200/KX-TDA600 only) The lamp activates in the same way as the MESSAGE button on a PT provided an EMSLC or MSLC card is connected to the PBX. The preferred Message Waiting Lamp light pattern can be selected from the twelve patterns shown below.
  • Page 184 1.11 M [SLT Message Waiting Lamp Light Patterns] 5.12 s 1.28 s Pattern 1 5.12 s 1.28 s Pattern 2 512 ms 5.12 s 1.28 s Pattern 3 256 ms 2.56 s 768 ms Pattern 4 256 ms 5.12 s 768 ms Pattern 5 256 ms...
  • Page 185 2.7.7 ESLC16 Card (KX-TDA6174) and EMSLC16 Card (KX-TDA6175) Programming References PC Programming Manual 2.7.4 [1-1] Slot—Extension Card Property—SLT Power Supply (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features—Message Waiting Set / Cancel / Call Back 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature—Message Waiting Set 2.8.17 [2-9] System Options...
  • Page 186: Music On Hold

    Tone Music Source Assignment [KX-TDA100/KX-TDA200/KX-TDA600] BGM1, BGM2, and tone can be selected as Music on Hold through system programming. External music port 1 is assigned to BGM 1. It is possible to select whether external music port 2, internal audio source 1, or internal audio source 2 is assigned to BGM2.
  • Page 187: Mute

    → MOH—MOH 1 (Music On Hold 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH 2 (Music On Hold 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH (Music On Hold) (KX-TDA50 only) PT Programming Manual [710] Music Source Selection for BGM (with the KX-TDA50)/BGM2 (with the KX-TDA100/KX-TDA200/KX- TDA600) [711] Music on Hold 1.11.5 Mute...
  • Page 188: Off-hook Monitor

    1.12 O 1.12 O 1.12.1 Off-hook Monitor Description A proprietary telephone (PT) user can let others listen to the user's conversation through the built-in speaker, during a conversation using the handset. Conditions • Compatible Telephone KX-T7400 series (display PT only), all KX-T7600 series telephones, and IP-PTs. To enable this feature, system programming is required.
  • Page 189 KX-TDA100/KX-TDA200/KX-TDA600: The OPB card and MSG card • Number of Messages and Recording Time The PBX can record a maximum of 64 (with the KX-TDA100/KX-TDA200/KX-TDA600) or 32 (with the KX-TDA50) messages. The total recording time of the PBX is 8 minutes. •...
  • Page 190: Ohca (off-hook Call Announcement)

    1.12 O a preprogrammed time period, then the PBX will automatically switch to the recording mode. Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190) 2.8.4 MSG4 Card (KX-TDA0191)
  • Page 191: One-touch Dialing

    1.12 O Conditions • Class of Service (COS) programming determines which extensions can use this feature. • This feature is available when the called extension uses one of the following telephones: – KX-T7625, KX-T7630, KX-T7633, KX-T7636 – KX-T7436 – KX-T7235 •...
  • Page 192: Operator Features

    1.12 O Conditions • One-touch Dialing Button Any flexible button can be customized as a One-touch Dialing button. • Full One-touch Dialing There is no need to go off-hook before pressing a One-touch Dialing button. Programming References PC Programming Manual 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 5—Flexible Button Programming Mode 2.10.5 [4-1-4] Wired Extension—Flexible Button →...
  • Page 193 1.12 O Operator Call: An extension user can call an operator by dialing the preprogrammed Operator Call feature number. The destination of the Operator Call depends on the following: – If the Tenant Service is not in use: The call is directed to the PBX operator according to the corresponding time mode. –...
  • Page 194: Paging

    The announcement is heard through the built-in speakers of proprietary telephones (PTs) and/or external pagers (loudspeakers) which belong to a paging group. (With the KX-TDA100/KX-TDA200/KX-TDA600, up to two external pagers can be connected; with the KX-TDA50, one external pager can be connected.) The paged person can answer the page from a nearby telephone.
  • Page 195 → Option 1—PT Fwd / DND—Paging to DND Extension → Option 3—Confirmation Tone—Tone 2 : Paged / Automatic Answer 2.8.19 [2-11-1] Audio Gain—Paging/MOH → Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG 2 (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG (External Pager) (KX-TDA50 only) →...
  • Page 196: Paralleled Telephone

    1.13 P [640] Extension User Groups of a Paging Group [641] External Pagers of a Paging Group Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.47 Paging 1.13.2 Paralleled Telephone Description By connecting telephones in parallel, you can increase the number of telephones connected to the PBX without adding additional extension cards.
  • Page 197 1.13 P Features Descriptions Connections Digital XDP Allows a DPT to be connected to another DPT which DPT + DPT is connected to a DPT port or a Super Hybrid port of the PBX. The DPT that is connected directly to the Slave Master PBX is called the “master DPT”, and the DPT...
  • Page 198 PBX supports, the following conditions must be met: – KX-TDA50: An MEC card is installed and an additional AC adaptor is connected. – KX-TDA100/KX-TDA200: An MEC card and the PSU-M or PSU-L is installed. – KX-TDA600: The PSU-L is installed. •...
  • Page 199: Password Security

    1.13 P 1.4.3 System Capacity 2.3.2 MEC Card (KX-TDA0105) 2.7.2 Parallel Connection of the Extensions 2.7.3 Digital EXtra Device Port (Digital XDP) Connection KX-TDA600 1.4.3 System Capacity 2.9.2 Parallel Connection of the Extensions 2.9.3 Digital EXtra Device Port (Digital XDP) Connection Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port...
  • Page 200 1.13 P Password Description Format System Password (PC) for Used with the user-level programmer code to access user- 4 – 10 User level PC programming. The installer can specify which characters system programming settings are available. System Password (PC) for Used with the administrator-level programmer code to Administrator access administrator-level PC programming.
  • Page 201: Pause Insertion

    ARS mode is enabled. (1.1.3 ARS (Automatic Route Selection)) Programming References PC Programming Manual 2.7.11 [1-1] Slot—LCO Port—Pause Time 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Pause Time 2.8.4 [2-3] Timers & Counters—Miscellaneous—During Conversation—Pause Signal Time 2.12.4 [6-4] Second Dial Tone PT Programming Manual...
  • Page 202: Pc Console/pc Phone

    1.13 P 1.13.5 PC Console/PC Phone Description CTI First Party Call Control can be conducted by connecting a PC with a KX-T7633 or KX-T7636 DPT (equipped with USB module KX-T7601) through USB ports. By using the KX-TDA0350 PC Phone or KX- TDA0300 PC Console CTI application, users can enjoy many of the KX-TDA series PBX features while utilizing the benefits of a CTI solution.
  • Page 203: Pc Programming

    MPR card, or to the USB port of a USB Module (preinstalled) or attached to a digital proprietary telephone (DPT). USB Module LAN (KX-TDA100/ The PC is connected to the PBX via Ethernet cable to the CTI-LINK card KX-TDA200/KX- CTI-LINK card.
  • Page 204 1.13 P Required Method Description Hardware Modem The PC is connected to a modem, which is then connected RMT card and (connected to SLT to an SLT port of the PBX. Use the modem to dial the user-supplied port)* floating extension number (default: 599) assigned to the modem analog remote maintenance feature to access the PBX.
  • Page 205 Installation Manual References KX-TDA50 2.5.7 RMT Card (KX-TDA5196) 3.1 Overview 3.2 Connection 3.3 Installation of the Hybrid IP-PBX PC Programming Software KX-TDA100/KX-TDA200 2.3.1 MPR Card 2.3.3 RMT Card (KX-TDA0196) 2.6.6 CTI-LINK Card (KX-TDA0410) 3.1 Overview 3.2 Connection 3.3 Installation of the KX-TDA Maintenance Console KX-TDA600 2.3.1 EMPR Card...
  • Page 206: Pdn (primary Directory Number)/sdn (secondary Directory Number) Extension

    1.13 P [801] External Modem Control [810] Remote Programming [811] Modem Floating Extension Number [812] ISDN Remote Floating Extension Number (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) 1.4.6 DIL (Direct In Line) 1.13.3 Password Security 1.13.7 PDN (Primary Directory Number)/SDN (Secondary...
  • Page 207 1.13 P – Enhanced DSS Key mode: pressing the SDN button once. – Standard SDN Key mode: pressing the SDN button twice (a dial tone is heard the first time the SDN button is pressed). Calls answered using the SDN button can be transferred to the PDN extension by simply pressing the SDN button once, regardless of the mode.
  • Page 208 1.13 P However, if an SDN extension is handling a call using the SDN button (e.g., on a call, has a call on hold, etc.), the status of that call will be displayed on the SDN button, regardless of the call status of the PDN extension.
  • Page 209 1.13 P 5) A Call From 222-2222 Arrives at Ext. 101 Ext. 101 (Boss) Ext. 102 (Boss) Ext. 103 (Secretary) PDN buttons SDN buttons PDN buttons SDN buttons PDN buttons SDN buttons (Off) (Off) (Off) (Off) (Off) (Off) (Ext. 103) (Ext.
  • Page 210 1.13 P Incoming CO line calls: S-CO button → G-CO button → L-CO button → PDN button – Incoming CO line calls to an ICD group: ICD Group button → S-CO button → G-CO button → L- – CO button → PDN button •...
  • Page 211 1.13 P 2.8.11 [2-7-1] Class of Service—COS Settings—PDN/SDN (MPR Software File Version 3.1000 or later) 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others—Extension—Ring Tone Pattern Plan 1–8 2.8.17 [2-9] System Options—Option 4—System Wireless—SDN Delayed Ringing with LCD (MPR Software File Version 3.1000 or later) 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 9—PDN Delayed Ringing (MPR Software File Version 3.1000 or later) 2.10.5 [4-1-4] Wired Extension—Flexible Button...
  • Page 212: Power Failure Restart

    Power Failure Connection. However, if no special programming is performed, the connection will be dropped when power returns. [KX-TDA100/KX-TDA200] • The analog CO line cards, extension cards, and the number of PFT ports (ports which can be used for...
  • Page 213: Predialing

    KX-TDA600 2.7.7 ESLC16 Card (KX-TDA6174) and EMSLC16 Card (KX-TDA6175) 2.13.1 Power Failure Connections Programming References PC Programming Manual 2.17.3 [11-3] Power Failure Transfer (KX-TDA100/KX-TDA200/KX-TDA600 only) PT Programming Manual None 1.13.10 Predialing Description A display proprietary telephone (PT) user can check and correct the number to be dialed on-hook. The call will be initiated after going off-hook.
  • Page 214: Printing Message

    1.13 P button. (→ 1.16.3 Speed Dialing, Personal) In this case, the extension will enter personal programming mode automatically so that a name can be assigned to the stored number. Operating Manual References 3.1.2 Personal Programming 1.13.11 Printing Message Description An extension user can select a message to be output on SMDR.
  • Page 215: Privacy Release

    1.13 P 1.13.12 Privacy Release Description By default, all conversations which take place on CO lines, extension lines and doorphone lines are protected from others interrupting the conversation (Automatic Privacy). Privacy Release allows a proprietary telephone (PT) or portable station (PS) user to suspend Automatic Privacy for an existing CO line call on the S-CO button in order to establish a three-party call.
  • Page 216 1.13 P Interface The following interfaces can be used to establish a private network: Interface Network Type T1 (TIE [E & M]) Digital (64 kbps × 24 channels) PRI (QSIG) Digital (ISDN 23B+D) VoIP Internet Protocol (IP) The available interfaces depend on the cards installed in the PBX. Feature Manual...
  • Page 217 1.13 P Explanation TIE Line Routing Flowchart [Making a TIE Line Call from an Extension] A TIE line call is made using one of the following methods: PBX Code Method: TIE Line Access Number + PBX Code + (Extension Number or Other Digits) Extension Number Method: Extension Number Is the dialed number either...
  • Page 218 1.13 P [Receiving a Call through a TIE Line] A call is received via a TIE line. The Incoming Number Modification Table checks the CO line port carrying the call, and modifies the number according to the method assigned for that port. PBX Code Method Extension Number Method (Access with PBX Code)
  • Page 219 1.13 P Dial the [Extension Number] only. [Example] PBX-1 PBX-2 PBX-3 TIE Line TIE Line Interface Interface Interface Interface Extn.1011 Extn.1012 Extn. 2011 Extn. 3011 Dials "3011". Dials "2011". Explanation: To use this method, it is necessary to change the first one or two digits of extension numbers of either PBX (e.g., 10XX for PBX-1, 20XX for PBX-2) to allow calls to be routed properly.
  • Page 220 An outside caller dials "123-4567". The call is sent to extension "2011" of PBX-2 through the TIE line according to the assignment of the DID or DIL call destination of PBX-1. (→ 1.4.5 DID (Direct Inward Dialing)) → 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—DID Destination— Day, Lunch, Break, Night → [453] DID Destination (KX-TDA100/KX-TDA200/KX-TDA600 only)
  • Page 221 1.13 P FWD/Call Transfer/Intercept Routing to the TIE Line [Example] Telephone Company CO Line TIE Line Network CO Line PBX Code 952 PBX Code 952 PBX-1 PBX-2 TIE Line Interface Interface Forwarded/Transferred /Intercepted to 7-952-2011 Outside Caller Extn. 1011 Extn. 2011 Dials "123-4567".
  • Page 222 1.13 P TIE-to-CO Line Access The PBX sends TIE line calls to the CO lines of another PBX through the TIE lines. CO Line Call through Other PBXs—by Making a TIE Line Call Method [Example] <Extension Number Method (Access without PBX Code)> Telephone Company CO Line CO Line...
  • Page 223 1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-1 PBX-2 PBX Code 952 PBX Code 951 952-9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn. 1011 Extn. 1011 (211-4567) Dials "7-952-9-211-4567"...
  • Page 224 1.13 P CO Line Call through Other PBXs—by the ARS feature [Example] <Extension Number Method (Access without PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-2 PBX-1 9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn.
  • Page 225 1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-1 PBX-2 PBX Code 952 PBX Code 951 952-9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn. 1011 Extn. 1011 (211-4567) Dials "9-211-4567".
  • Page 226 1.13 P Blocking CO line calls made through another PBX and how to override it: Whether an incoming TIE line call can make a CO line call through this PBX (i.e., PBX-2), depends on the COS that is assigned to the trunk group of this PBX, that the incoming TIE line is connected to.
  • Page 227 1.13 P [Example] <Extension Number Method (Access Without PBX Code)> Telephone Company CO Line CO Line 211-4567 TRG 3 TIE Line Network of PBX-2 PBX-1 PBX-2 9-211-4567 TRG 1 (COS 3) of PBX-2 TIE Line Interface Interface TRG 2 of PBX-1 verification code entry feature no.
  • Page 228 1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TRG 3 TIE Line Network of PBX-2 PBX-1 PBX-2 PBX Code 951 PBX Code 952 952-9-211-4567 TRG 1 (COS 3) of PBX-2 TIE Line Interface Interface TRG 2...
  • Page 229 1.13 P FWD/Call Transfer/Intercept Routing to the CO Line [Example] Telephone Company Forwarded/Transferred/ Intercepted to 211-4567 CO Line CO Line TIE Line Network PBX-2 PBX-1 PBX Code 952 PBX Code 951 952-1011 TIE Line Interface Interface Outside Party Extn. 1011 Extn.
  • Page 230 1.13 P CO Line-to-TIE-to-CO Line Access An outside caller can be connected to an outside party through the TIE line by using the DISA feature. [Example] Telephone Company Telephone Company (area code: 222) (area code: 333) CO Line CO Line CO Line 123-4567 CO Line...
  • Page 231 1.13 P TIE Line Routing and Modification Table To Make a TIE Line Call The TIE Line Routing and Modification Table is referenced by the PBX to identify the CO line route when an extension user makes a TIE line call. It is necessary to make unified tables with all PBXs in the TIE line network.
  • Page 232 1.13 P [TIE Line Routing and Modification Table of PBX-1] Priority 1 Priority 2 Dial Modification Dial Modification Location Leading Removed Removed No. of Added No. No. of Added No. Digits Digits Explanation: Location 01: The hunt sequence by dialing [2XXX]: The 1st route—trunk group (TRG) 1 Sending no.
  • Page 233 1.13 P PBX Code Method (Access with PBX Code) → 2.8.8 [2-6-1] Numbering Plan—Main—Features—TIE Line Access → 2.15.1 [9-1] TIE Table—Own PBX Code TIE Line Network PBX-4 PBX-3 PBX Code 953 PBX Code 954 Extn. xxxx Extn. xxxx b-2nd) 953#-xxxx 954#-xxxx If you dial: TRG 2...
  • Page 234 1.13 P The hunt sequence by dialing [7+PBX Code 954+XXXX]: The 1st route — trunk group (TRG) 2 Sending no. to PBX-4: 954#–XXXX To Receive a TIE Line Call Extension Number Method (Access without PBX Code) [Example] A TIE line call is sent to PBX-2 from PBX-1. If the number sent from PBX-1 is an TIE Line Network extension number of PBX-2 (e.g., 2011), the...
  • Page 235 1.13 P PBX Code Method (Access with PBX Code) [Example] A TIE line call is sent to PBX-2 from PBX-1. If the number sent from PBX- TIE Line Network 1 has the PBX code of PBX-2 "952", PBX-4 PBX-3 PBX Code 953 PBX Code 954 the call will be received at the corresponding extension of PBX-2...
  • Page 236 (QSIG) connection in a TIE line network must have the port on one Panasonic Hybrid IP-PBX assigned as a master port, and the port on the other Panasonic Hybrid IP-PBX assigned as a slave port. [TIE Line Network Connection Example] Extn.1000...
  • Page 237 PC Programming Manual 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Network Numbering Plan—Trunk Property (for CO port) 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Trunk Property (for TIE channel) 2.8.4 [2-3] Timers & Counters—Miscellaneous—Receiving Dial Inter-digit Timer—TIE 2.8.8 [2-6-1] Numbering Plan—Main—Features → Idle Line Access (Local Access) →...
  • Page 238: Private Network Features-centralized Voice Mail

    1.13 P Operating Manual References 1.2.1 Making Calls 1.13.14 Private Network Features—Centralized Voice Mail Description Up to 8 PBXs connected in a VoIP or ISDN private network can share the services of a VPS connected to another PBX in DPT integration. This VPS can provide voice mail for extensions attached to any of the PBXs in the network, as if the VPS were connected to the local PBX.
  • Page 239 1.13 P [CO Line Call Answered by the VPS, Transferred to Extension at Other PBX] Outside Caller Telephone Company TIE Line Network PBX-1 PBX-2 PBX-3 Private network PBX-4 PBX-5 PBX-6 Hello. PBX-7 Please enter PBX-8 extension number. Mailbox 101 Extn. Mailbox 201 Extn.
  • Page 240 Then, the extension user can transfer calls to a mailbox by pressing this key, entering the mailbox number, and going on hook. Programming References PC Programming Manual 2.7.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) 2.15.1 [9-1] TIE Table—Centralized VM 2.15.2 [9-2] Network Data Transmission →...
  • Page 241: Private Network Features-ndss (network Direct Station Selection)

    1.13 P PT Programming Manual None Feature Manual References 1.19.4 Voice Mail DPT (Digital) Integration 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Description When PBXs are networked using ISDN or IP-GW cards, it is possible to assign flexible buttons as Network Direct Station Selection (NDSS) buttons.
  • Page 242 Each QSIG port of a PRI card that will be used to transmit extension status information must be set to do so through system programming. Even if a port is set to not transmit information, it will still receive information from other PBXs. → 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO Setting—Networking Data Transfer Transmit...
  • Page 243 1.13 P VoIP, it is necessary to identify the monitor PBXs, to which to transmit extension status information, for each card that will be used. This is done by specifying the extension number of any extension (for example, the PBX operator) at the monitor PBX as a Network Operator extension for that IP-GW card. [Example VoIP Network] PBX-1 PBX-2...
  • Page 244 1.13 P The NDSS Monitor Release feature is used to stop monitoring a certain extension. When this feature is performed at a monitor PBX: • If no other PBXs are monitoring the selected extension, the monitored PBX stops transmitting status information for that extension. •...
  • Page 245 NDSS can not be used when two PBXs are networked using the [TIE Call by Own PBX Extension Number] feature (→ 1.13.13 PRIVATE NETWORK FEATURES). Programming References PC Programming Manual 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO Setting—Networking Data Transfer 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Manager 2.10.5 [4-1-4] Wired Extension—Flexible Button →...
  • Page 246: Private Network Features-network Icd Group

    Version must be installed in the PBX that will support virtual PSs. • The conditions for 1.9.4 ICD Group Features—Outside Destinations also apply to this feature. Programming References PC Programming Manual 2.8.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when ICD Group with Cellular Phone (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual...
  • Page 247: Private Network Features-ps Roaming By Network Icd Group

    1.13 P PT Programming Manual None Feature Manual References 1.9.4 ICD Group Features—Outside Destinations 1.19.2 Virtual PS 1.13.17 Private Network Features—PS Roaming by Network ICD Group Description One PS can be registered to up to 4 PBXs in a private network, and a Network ICD group created for the PS at each PBX, with virtual PSs set to forward to the other PBXs in the network.
  • Page 248: Private Network Features-qsig

    1.13 P channel will be released immediately. Since the PS can only be set to In Range at a single PBX at one time, any other PBXs to which the call is transferred will refuse the call, releasing the VoIP or ISDN channels. Conditions •...
  • Page 249 1.13 P Service Description & Reference Calling Line Identification Sends the caller's number to the QSIG network when making a call. Presentation (CLIP) → 1.13.21 Private Network Features—QSIG—CLIP/COLP (Calling/ Connected Line Identification Presentation) and CNIP/CONP (Calling/ Connected Name Identification Presentation) Connected Line Identification Sends the number of the answered party to the QSIG network when Presentation (COLP)
  • Page 250: Private Network Features-qsig-ccbs (completion Of Calls To Busy Subscriber)

    1.13 P Service Description & Reference Call Forwarding (CF)—by QSIG Forwards a call to the QSIG network. → 1.13.20 Private Network Features—QSIG—CF (Call Forwarding) Call Transfer (CT)—by QSIG Transfers a call to the QSIG network. → 1.13.22 Private Network Features—QSIG—CT (Call Transfer) Completion of Calls to Busy Receives callback ringing when a busy called party on the QSIG Subscriber (CCBS)—by QSIG...
  • Page 251: Private Network Features-qsig-cf (call Forwarding)

    Programming References PC Programming Manual 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.7.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) PT Programming Manual None 1.13.20 Private Network Features—QSIG—CF (Call Forwarding)
  • Page 252 Programming References PC Programming Manual 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.7.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) PT Programming Manual None Operating Manual References 1.3.29 FWD (Call Forwarding)
  • Page 253: Private Network Features-qsig-clip/colp

    1.13 P 1.13.21 Private Network Features—QSIG—CLIP/COLP (Calling/ Connected Line Identification Presentation) and CNIP/ CONP (Calling/Connected Name Identification Presentation) Description Calling Line Identification Presentation (CLIP) and Calling Name Identification Presentation (CNIP): The PBX can send a preprogrammed extension number and/or name to the QSIG network when an extension user makes a call.
  • Page 254 COLR button. A flexible button can be customized as the CLIR or COLR button. Programming References PC Programming Manual 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.8.8 [2-6-1] Numbering Plan—Main—Features →...
  • Page 255: Private Network Features-qsig-ct (call Transfer)

    1.13 P 1.13.22 Private Network Features—QSIG—CT (Call Transfer) Description The PBX transfers the call to a destination extension in another PBX in the QSIG network. If the same trunk group is used for the incoming call and the transferred call, the following situation will be possible.
  • Page 256: Private Network Features-voip (voice Over Internet Protocol)

    2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.7.19 [1-1] Slot—IP-GW Card Property—QSIG-CT 2.7.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) PT Programming Manual None Operating Manual References 1.3.11 Call Transfer...
  • Page 257 1.13 P For receiving a call: TIE line service programming [TIE Line Routing and Modification Table] Priority 1 Priority 2 Dial Modification Dial Modification Location Leading Removed Removed No. of Added No. No. of Added No. Digits Digits 2 (VoIP port) [Explanation] Calls to destinations with leading number "2"...
  • Page 258 • Toll Restriction (TRS) settings apply to calls rerouted to public CO lines. Programming References PC Programming Manual 2.8.21 [2-12] IP Extension Settings (KX-TDA100/KX-TDA200/KX-TDA600 only) (not available for MPR Software File Version 3.1000 or later)—Gateway Address PT Programming Manual None Feature Manual References 1.13.13 PRIVATE NETWORK FEATURES...
  • Page 259: Ps Connection

    1.13 P 1.13.24 PS Connection Description A Panasonic KX-TD7680 or KX-TD7690 portable station (PS) can be used in place of a proprietary telephone (PT), providing wireless access to PBX features and call handling. Registration Before a PS can be used, it must be registered with the PBX through system programming and assigned an extension number.
  • Page 260 A PS can only be assigned an extension number of 4 digits or less. [KX-TDA600] • When an EMEC card is installed, the total number of PSs that the PBX supports will increase. Installation Manual References KX-TDA50 2.7 Connection of 2.4 GHz Portable Stations KX-TDA100/KX-TDA200 Feature Manual...
  • Page 261: Ps Directory

    1.13 P 2.8 Connection of 2.4 GHz Portable Stations KX-TDA600 2.10 Connection of 2.4 GHz Portable Stations 2.3.2 EMEC Card (KX-TDA6105) Programming References PC Programming Manual 2.7.31 [1-2] Portable Station PT Programming Manual [690] PS Registration [691] PS Termination [692] Personal Identification Number (PIN) for PS Registration Feature Manual References 1.6.4 Flexible Numbering/Fixed Numbering 1.13.25 PS Directory...
  • Page 262: Ps Feature Buttons

    1.13 P 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name PT Programming Manual [001] System Speed Dialing Number [002] System Speed Dialing Name [004] Extension Name 1.13.26 PS Feature Buttons Description Although a portable station (PS) does not feature as many buttons as a proprietary telephone (PT), a PS can be customized to give a PS user access to PBX features, just as the flexible buttons on a PT can be customized.
  • Page 263 1.13 P [Programming Example: PS Ring Group] PS Ring Group 1 PS Ring Group 2 PS Ring Group 3 Floating Extension No. Group Name Sales 1 Sales 2 Customer Service Incoming CO Line Caller ID Called Number Caller ID Information Display PS 1 PS 2 PS 3...
  • Page 264 The ICD group has one proprietary telephone (PT) member, as well as four (for KX-TDA50) or six (for KX- TDA100/KX-TDA200/KX-TDA600) PS members which are in range of two different CSs. When a call arrives, each CS uses both (for KX-TDA50) or all three (for KX-TDA100/KX-TDA200/KX-TDA600) of its channels to ring each of the member PSs within its range.
  • Page 265 If a PS in a PS ring group has set the DND feature for CO line calls, the PS will not ring for CO line calls as well as intercom calls directed to the group. • Compatible PS A Panasonic KX-TD7680 and KX-TD7690 can be assigned to PS ring groups. Programming References PC Programming Manual 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—Distribution Method 2.9.21 [3-9] PS Ring Group...
  • Page 266: Pt Programming

    1.13 P 1.13.28 PT Programming Description A proprietary telephone (PT) can be used to customize the settings of the PBX or of an extension, using the following programming features: Programming Authorized Description Example Type Programmer Personal Used by an extension user to PT Display Language, Extension user Programming...
  • Page 267 1.13 P Programming References PC Programming Manual 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Programming Mode Level 2.17.1 [11-1] Main—Password → System Password - PT Programming—Prog ** : User Level → System Password - PT Programming—Prog *# : Administrator Level → Manager Password - PT Programming—Prog *1 PT Programming Manual 2.1 PT Programming [516] Programming Mode Limitation...
  • Page 268: Quick Dialing

    • Quick Dialing numbers follow the flexible numbering plan. (→ 1.6.4 Flexible Numbering/Fixed Numbering) Installation Manual References KX-TDA50 2.5.6 MEC Card (KX-TDA5105) KX-TDA100/KX-TDA200 2.3.2 MEC Card (KX-TDA0105) KX-TDA600 2.3.2 EMEC Card (KX-TDA6105) Programming References PC Programming Manual 2.8.9 [2-6-2] Numbering Plan—Quick Dial...
  • Page 269: Quick Setup

    1.14 Q Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.57 Quick Dialing 1.14.2 Quick Setup Description Basic PBX parameters can be programmed the first time the PBX is accessed with a PC using the KX-TDA Maintenance Console software. When the PBX is accessed with the Installer Level Programmer Code and default password (→...
  • Page 270 1.14 Q Item Parameter Description Operator The feature number for Operator Call can be selected. Local Access 0/1/9 The feature number for Idle Line Access can be selected. Remote Remote Enter the complete telephone number of the PBX (including the Maintenance Maintenance Dial country code).
  • Page 271: Redial, Last Number

    [KX-TDA100/KX-TDA200/KX-TDA600] Automatic Redial If Last Number Redial is performed in hands-free mode and the called party is busy, the number will be automatically redialed a preprogrammed number of times.
  • Page 272: Ring Tone Pattern Selection

    2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Automatic Redial—Repeat Counter (KX-TDA100/KX-TDA200/KX-TDA600 only) → Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/KX-TDA600 only) → Automatic Redial—Analog CO Mute / Busy Detection Timer (KX-TDA100/KX-TDA200/KX- TDA600 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features—Redial 2.8.17 [2-9] System Options—Option 2...
  • Page 273 1.15 R [Ring Tone Pattern Table] The ring tone pattern table is categorized into three parts, each containing a specified number of pattern plans. The ring tone pattern table is categorized as follows: • Incoming CO Line Calls: each pattern plan can assign a ring tone pattern for each trunk group. →...
  • Page 274: Room Status Control

    1.15 R 1.15.3 Room Status Control Description A proprietary telephone (PT) with a 6-line display designated as the hotel operator extension can be used to view and change the check-in and check-out status of guest rooms associated with extensions. Any wired extension can be used as a room extension without special programming. Flexible buttons on the hotel operator's extension can be set as Room Status Control buttons.
  • Page 275 1.15 R Conditions • A maximum of four hotel operators can be assigned. • Only one of each type of Room Status Control button can be assigned. • Extensions associated with rooms must be one of the following types: PT (including IP-PT), SLT, T1-OPX PSs cannot be checked in and out as room extensions.
  • Page 276: Smdr (station Message Detail Recording)

    1.16 S 1.16 S 1.16.1 SMDR (Station Message Detail Recording) Description Automatically logs detailed information for each extension. SMDR Output Port The Serial Interface (RS-232C) port can be used to output Station Message Detail Recording (SMDR) data to a PC, printer, etc. SMDR Output Data The following data can be recorded and sent to the SMDR output port: CO line call information (incoming/outgoing)
  • Page 277 1.16 S Pattern A: 80-column text without call charge information Date Time Dial Number Ring Duration ACC Code (8 digits) (25) (10) 01/02/02 10:03AM 1200 <I>12345678901234567890 5'15 00:00'00 01/02/02 10:07AM 1200 <I> 0'05 00:01'05 9876543210 01/02/02 10:15AM 1200 1234567890123456 00:01'05 9876543210 01/02/02 10:30AM...
  • Page 278 1.16 S [Explanation] The following table explains the types of data logged by SMDR. Each description below refers to data indicated above by the numbers in the parentheses. Number in Data Description the Pattern Date Shows the date of the call. Time Shows the end time of a call as hour/minute/AM or PM.
  • Page 279 1.16 S Number in Data Description the Pattern Dial Number [CO Line Call] Outgoing CO Line Call Shows the dialed telephone number. Digits shown are as follows: 0 through 9, , # P: Pause F: External Feature Access (EFA) signal =: Host PBX Access code (→...
  • Page 280 1.16 S Number in Data Description the Pattern CD (Condition Shows other call information using the following codes: Code) TR: Transfer FW: Call Forwarding (FWD) to CO line D0: Call using Direct Inward System Access (DISA) or TIE line service RM: Remote maintenance (modem) (→...
  • Page 281 Controls whether the DID numbers, names, numbers and names, or nothing is shown. If "none" is selected, <D> will not be shown. → 2.17.1 [11-1] Main—SMDR Options—SMDR Options—DID Number & Name (KX-TDA100/KX-TDA200/KX-TDA600) Secret dialing Controls the display of secret dialing, when ARS dial above, is set to show ARS-modified numbers.
  • Page 282 1.16 S Skip Perforation: determines the number of lines to be skipped at the end of every page. → 2.17.1 [11-1] Main—SMDR—SMDR Format—Blank Footer Length (Number of Lines) → [803] SMDR Skip Perforation The page length should be at least four lines longer than the skip perforation length. Explanation: Page Length...
  • Page 283 SMDR, because in this case this PBX recognizes the telephone company as the host PBX. Therefore, only long distance calls are recorded on SMDR. Installation Manual References KX-TDA50 2.9.1 Connection of Peripherals KX-TDA100/KX-TDA200 2.10.1 Connection of Peripherals KX-TDA600 2.3.2 EMEC Card (KX-TDA6105) 2.12.1 Connection of Peripherals...
  • Page 284: Special Carrier Access Code

    1.16 S [803] SMDR Skip Perforation [804] SMDR Outgoing Call Printing [805] SMDR Incoming Call Printing Feature Manual References 1.3.8 Call Transfer 1.3.19 COS (Class of Service) 1.4.5 DID (Direct Inward Dialing) 1.4.7 DISA (Direct Inward System Access) 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.9.3 ICD Group Features—Log-in/Log-out 1.13.13 PRIVATE NETWORK FEATURES 2.1 Capacity of System Resources...
  • Page 285: Speed Dialing, Personal

    When an EMEC or MEC card is installed in the PBX, the number of entries programmable for each extension is increased. Installation Manual References KX-TDA50 2.5.6 MEC Card (KX-TDA5105) KX-TDA100/KX-TDA200 2.3.2 MEC Card (KX-TDA0105) KX-TDA600 2.3.2 EMEC Card (KX-TDA6105) Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features...
  • Page 286: Speed Dialing, System

    KX-TDA50: Each tenant can select to use either the original set of common System Speed Dialing numbers or the additional common set. – KX-TDA100/KX-TDA200/KX-TDA600: Each tenant can select to use either the original set of common System Speed Dialing numbers or the set of System Speed Dialing numbers designated specifically for that tenant.
  • Page 287: Svm (simplified Voice Message)

    1.16 S 2.8.8 [2-6-1] Numbering Plan—Main—Features—System Speed Dialing / Personal Speed Dialing 2.8.11 [2-7-1] Class of Service—COS Settings—TRS—TRS Level for System Speed Dialing 2.10.4 [4-1-3] Wired Extension—Speed Dial 2.12.1 [6-1] System Speed Dial 2.12.6 [6-6] Tenant—System Speed Dial PT Programming Manual [001] System Speed Dialing Number [002] System Speed Dialing Name [509] TRS Level for System Speed Dialing...
  • Page 288 1.16 S [Example] SVM Card 1: Floating Extension No. 591 (default) 2 CH Message Box for Message Box for Message Box for Message Box for Extn. 101 Extn. 102 Extn. 103 Extn. 210 SVM Card 2: Floating Extension No. 592 (default) 2 CH Message Box for Extn.
  • Page 289 1.16 S In day mode: the call will be redirected to extension 102. In lunch/break/night mode: the call will be redirected to the SVM card, and a voice message will be recorded to the message box. If a call is received at extension 301 (operator), the call will only be redirected to the SVM card in night mode. If both FWD and Intercept Routing features are set for an extension, the FWD setting has priority.
  • Page 290 1.16 S received and the type of telephone used. Only users of a 6-line display PT can view all of the above information. Checking Voice Messages Left by Callers When an extension user accesses his message box, the most recent unplayed voice message is played first.
  • Page 291 1.16 S • If an extension user tries to clear a voice message shown on the display while the message box is already in use, the extension user will hear a notification tone. • Voice message recording will stop when: a caller hangs up.
  • Page 292 1.16 S Installation Manual References 2.5.4 SVM2 Card (KX-TDA5192) Programming References PC Programming Manual 2.4.4 Tool—Simplified Voice Message—Delete All Recordings (KX-TDA50 only) 2.4.5 Tool—Simplified Voice Message—Check Current Usage (KX-TDA50 only) 2.8.4 [2-3] Timers & Counters—Miscellaneous → SVM—Recording Time (KX-TDA50 only) →...
  • Page 293: T1 Line Service

    A T1 line carries twenty-four 64 kbps-voice channels at 1.5 Mbps, and can be used as a public or private line. Voice is digitized by Pulse Code Modulation (PCM). This feature is only available for the KX-TDA100, KX-TDA200, and KX-TDA600.
  • Page 294: Tafas (trunk Answer From Any Station)

    If a T1 line is used as a public line, the channel type depends on the contract with the telephone company. Programming References PC Programming Manual 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.7.18 [1-1] Slot—T1 Port—Channel Command (KX-TDA100/KX-TDA200/KX-TDA600 only) PT Programming Manual None Feature Manual References 2.2 Exclusive Features Table 1.17.2 TAFAS (Trunk Answer From Any Station)
  • Page 295: Tenant Service

    Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—TAFAS Answer 2.8.19 [2-11-1] Audio Gain—Paging/MOH → Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG 2 (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG (External Pager) (KX-TDA50 only) 2.11.2 [5-2] External Pager...
  • Page 296 1.17 T 1.2. Time Service Time modes are used by many PBX features to determine how they will function during different times of day (→ 1.17.5 Time Service). The start and end times of each time mode (day/lunch/ break/night) for each day of the week are programmed in a Time Table. Each Time Table has a number which corresponds to the tenant number of the tenant it serves.
  • Page 297 1.17 T Call Blocking Through Class of Service (COS) programming, it is possible to: Prevent extensions of one tenant from calling extensions of another tenant. (Tenant-to-Tenant Call Block) Limit the trunk groups which can be used by the extensions of each tenant. (External Call Block) 3.1.
  • Page 298 1.17 T Tenant 1 Tenant 3 Extension User Extension User Group 1 Group 5 Extn. 100 Extn. 101 Extn. 108 Extn. 109 Tenant 2 Extension User Extension User Group 2 Group 6 Extension User Group 3 Extn. 102 Extn. 103 Extn.
  • Page 299 1.17 T 3.2. External Call Block If multiple tenants are using the PBX, the External Call Block feature should be programmed to control which COS numbers are allowed to access which trunk groups. By preventing certain COS numbers from accessing certain trunk groups, each tenant can be given its own trunk groups which no other tenant can access.
  • Page 300: Timed Reminder

    2.12.6 [6-6] Tenant 2.14 [8] ARS 2.14.6 [8-5] Carrier—Authorization Code for Tenant 2.16.2 [10-2] DIL Table & Port Settings—DIL—Tenant Number 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—Tenant Number PT Programming Manual [001] System Speed Dialing Number [006] Operator Assignment [320] ARS Mode...
  • Page 301 (→ 1.12.2 OGM (Outgoing Message)) A different message can be assigned for each time mode (→ 1.17.5 Time Service). Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.4 MSG4 Card (KX-TDA0191) Programming References PC Programming Manual 2.8.4 [2-3] Timers &...
  • Page 302: Time Service

    1.17 T 1.17.5 Time Service Description Time modes are used by many PBX features to determine how they will function during different times of day. For example, incoming calls can be directed to sales staff during the day and to a Voice Processing System (VPS) at night, extension users can be prohibited from making long distance calls during lunch time, etc.
  • Page 303 1.17 T [Programming Example: Time Table] Time Table No. (Tenant No.) Time Schedule Day 1 09:00 15:00 11:00 12:00 Lunch 12:00 18:30 15:00 Day 2 13:00 19:00 18:00 Break 1 start 15:00 20:30 06:00 Break 1 end 15:15 20:45 Break 2 start 22:30 21:00 Break 2 end...
  • Page 304 1.17 T Destination of incoming doorphone calls (→ 1.4.11 Doorphone Call) Destination of Operator Calls (→ 1.12.5 Operator Features) Toll Restriction (TRS) level of each COS COS numbers which are permitted/restricted to access certain trunk groups (External Call Block) (→ 1.3.14 CO Line Access) Outgoing Message (OGM) for Timed Reminder (→...
  • Page 305 1.17 T The call is directed to extension 150, which is a floating extension number used by the VPS (programming not shown here). Holiday Mode The PBX can also accommodate 24 different holidays. The start and end date of each holiday can be programmed, and all holidays are assigned a single time mode.
  • Page 306 1.17 T programmed, the break will continue until the start of the next time mode, as shown in Time Table 4 in "Visualization of Time Schedule for Other Tenants". • Time Service Switching Mode (Automatic/Manual) Button Any flexible button can be customized as the Time Service Switching Mode (Automatic/Manual) button. Programming References PC Programming Manual 2.8.5 [2-4] Week Table...
  • Page 307: Trs (toll Restriction)

    1.17 T 1.17.6 TRS (Toll Restriction) Description Toll Restriction (TRS) can prohibit extension users from making certain CO line calls, based on the Class of Service (COS) assigned to them. → 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS → 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS →...
  • Page 308 1.17 T [Flowchart] An extension user tries to make a CO line call. Was the number dialed using System Speed Dialing? Is TRS Override by System Speed Dialing enabled? Checks the TRS level of Checks the TRS level of the extension's COS in the extension's COS for the current time mode.
  • Page 309 1.17 T Exception Code Tables Exception Code Tables are preprogrammed lists of leading digits or complete telephone numbers which are checked against every dialed number prohibited by a Denied Code Table. When a user dials a number prohibited by a Denied Code Table, it is compared to at least one Exception Code Table. If the dialed number matches an entry found in the applicable Exception Code Table, the call is permitted.
  • Page 310 1.17 T Level 1 All CO line calls permitted. Level 2 Level 2 restrictions Level 2 - 6 exceptions Level 3 Level 2 - 3 restrictions Level 3 - 6 exceptions Level 4 Level 2 - 4 restrictions Level 4 - 6 exceptions Level 5 Level 2 - 5 restrictions Level 5 - 6 exceptions...
  • Page 311 1.17 T • Host PBX Access Code/Special Carrier Access Code TRS checks can be carried out on telephone numbers dialed using a Host PBX Access code (→ 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX)) or Special Carrier Access code (→...
  • Page 312 1.17 T → TRS Level for System Speed Dialing 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.5 [4-1-4] Wired Extension—Flexible Button → Type → Parameter Selection (for TRS Level Change) 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.13 [4-2-3] Portable Station—Flexible Button → Type →...
  • Page 313: Upgrading The Software

    Main Processing (EMPR/MPR) software Operating system data area on either the EMPR card of the data KX-TDA600, the MPR card of the KX-TDA100/KX-TDA200, or the Main Board of the KX-TDA50. Default system programming data for each Country/area data area on the EMPR card, MPR card, or...
  • Page 314: Verification Code Entry

    1.19 V 1.19 V 1.19.1 Verification Code Entry Description An extension user can enter a verification code when calling from his own or any other extension, to change the Toll Restriction (TRS) level (→ 1.17.6 TRS (Toll Restriction)) or to identify the call for accounting and billing purposes.
  • Page 315: Virtual Ps

    1.19 V : → 2.12.3 [6-3] Verification Code—User Name → [121] Verification Code Name : → 2.12.3 [6-3] Verification Code—Verification Code PIN → [122] Verification Code Personal Identification Number (PIN) : → 2.12.3 [6-3] Verification Code—COS Number → [123] Verification Code COS Number →...
  • Page 316 1.19 V Telephone Company Outside Caller TIE Line Network PBX-1 PBX-2 TIE Line Dials "201" Virtual PS 1 Virtual PS 2 Extn. 201 Extn. 202 Fwd to outside Fwd to destination destination at other PBX The following features can be accessed using this method: Feature Description &...
  • Page 317: Voice Mail (vm) Group

    VM Group Type Type Description A group of SLT ports which use the Voice Mail DTMF Integration features. VM (DTMF) Group A maximum of 2 (for KX-TDA50/KX-TDA100/KX-TDA200) or 8 (for KX-TDA600) groups can be assigned. Feature Manual...
  • Page 318 VM (DPT) Group With the KX-TDA100/KX-TDA200/KX-TDA600: • A maximum of 2 (for KX-TDA100/200) or 8 (for KX-TDA600) KX-TVS/KX-TVP systems can be connected to the PBX. • A maximum of one VM (DPT) group per KX-TVS/KX-TVP can be assigned.
  • Page 319 1.19 V [Programming Example of Extension Port] DPT Property Slot Port Port Type Extn. No. Unit No. Port No. Type* VPS* VPS* VM (DPT) VM (DPT) Group 1 VM (DPT) S-Hybrid VM (DPT) VM (DPT) Group 2 S-Hybrid VM (DPT) Not assignable Not assignable Not assignable...
  • Page 320 All ports in a VM (DPT) group must be connected to either the same DLC card, or to the pre-installed Super Hybrid ports. [KX-TDA100/KX-TDA200/KX-TDA600] • All ports in a VM (DPT) group must be connected to a single DHLC or DLC card.
  • Page 321: Voice Mail Dpt (digital) Integration

    1.19.4 Voice Mail DPT (Digital) Integration Description A Panasonic VPS that supports DPT (Digital) Integration (e.g., the KX-TVP200) can be connected to this PBX in a tightly integrated fashion. DPT (Digital) Integration features can be used when the VPS is connected through DPT ports of the PBX.
  • Page 322 2.16.2 [10-2] DIL Table & Port Settings—DIL → Tenant Number → VM Trunk Group DID: the setting of each location number for DID (→ 1.4.5 DID (Direct Inward Dialing)) 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) → Tenant Number → VM Trunk Group No. [Example] For DIL Calls: Each location number can have its VPS trunk group number (message number) and tenant number.
  • Page 323 1.19 V Example of Trunk Group Assignment], a caller will hear a corresponding company greeting of the VPS. Time mode (day/lunch/break/night) of the preprogrammed tenant is applied to the DIL destination and company greeting number. [Example] For DID Calls: Each location number can have its VPS trunk group number (message number) and tenant number. [DID Programming Example] DID Destination VPS Trunk...
  • Page 324 1.19 V CO Line Call CO Line Call 123-4567 123-2468 Sends the following information: · VPS Trunk Group: 1 · Time mode: Day Intercept Sends the following information: · VPS Trunk Group: 2 · Time mode: Lunch Tenant 1 Tenant 2 (Company A) (Company B) (Floating Extn.
  • Page 325 1.19 V The Two-way Record button is used to record into one's own mailbox. The Two-way Transfer button is used to record into someone else's mailbox. Note Before recording a Two-way telephone conversation, you should inform the other party that the conversation will be recorded.
  • Page 326 → Ext No. of Mailbox (for Two-way Transfer) 2.11.1 [5-1] Doorphone—VM Trunk Group Number 2.16.2 [10-2] DIL Table & Port Settings—DIL → Tenant Number → VM Trunk Group 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) → Tenant Number → VM Trunk Group No. PT Programming Manual Feature Manual...
  • Page 327: Voice Mail Dtmf Integration

    When a caller reaches the VPS, the VPS greets and guides the caller to leave a voice message for a specified mailbox. [Example] The VPS sends the message to the caller, "Thank you for calling Panasonic. Please enter the mailbox number of the person you wish to leave your message for." ↓...
  • Page 328 1.19 V Intercept Routing to a Mailbox Call Transfer to a Mailbox Listening to a Message in a Mailbox Automated Attendant (AA) Service Mode The VPS greets and guides the caller to the desired extension directly without operator assistance. VM → AA Service, AA → VM Service It is possible to switch the service mode assigned on the VPS port, from the VM service to AA service or vice versa.
  • Page 329 1.19 V Transmitted Command Parameter In AA Service Mode In VM Service Mode Answer by Mailbox Switching to VM command + Recording message command (H (Default) Recording message command (#6 [H = Mailbox No.]) + H [H = Mailbox No.]) Switching to AA command (#8) Switching to AA command (#8) None...
  • Page 330 1.19 V Transferring to a Mailbox of the VPS An extension user can transfer a call to a mailbox of the VPS so that the caller can leave a message in the mailbox of the desired extension. (→ 1.3.8 Call Transfer) The extension user should use the Voice Mail (VM) Transfer button, when transferring a call to the mailbox of the VPS.
  • Page 331 1.19 V → 2.9.18 [3-8-1] VM(DTMF) Group—System Settings—Others—Message Waiting Lamp Control When the PBX is selected, the Message Waiting feature is canceled after the extension user has accessed the VPS. When the VPS is selected, the Message Waiting feature is canceled after the extension user has listened to messages stored in his mailbox.
  • Page 332 → VM DTMF Status Signal—FWD to VM Busy Tone → VM DTMF Status Signal—FWD to Extension Ringback Tone [Example] An incoming call reaches the VPS. The VPS greets the caller: "Thank you for calling Panasonic. If you know the extension number of the person you wish… ". Transfer The caller dials the extension number (extn.
  • Page 333 1.19 V • It is possible to select whether the mailbox number is the same as the extension number, or the mailbox number is programmable for each extension number and incoming call distribution group (Mailbox Access ID). → 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous—Programmed Mailbox No.
  • Page 334: Walking Cos

    1.20 W 1.20 W 1.20.1 Walking COS Description A user can enter his extension number and extension personal identification number (PIN) (→ 1.5.6 Extension PIN (Personal Identification Number)) at another extension, to make the following types of call using his Class of Service, including TRS level, overriding the other extension's Class of Service. •...
  • Page 335: Walking Extension

    1.20 W 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 2—Extension PIN 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 2—Extension PIN PT Programming Manual [005] Extension Personal Identification Number (PIN) Feature Manual References 1.3.19 COS (Class of Service) 1.4.7 DISA (Direct Inward System Access) Operating Manual References 1.3.72 Walking COS 1.20.2 Walking Extension Description...
  • Page 336: Whisper Ohca

    1.20 W 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 2—Extension PIN 2.10.17 [4-3] DSS Console—Flexible Button—Pair Extension PT Programming Manual [007] DSS Console Paired Telephone Operating Manual References 1.3.73 Walking Extension 1.20.3 Whisper OHCA Description An extension user can speak to a busy extension through the handset. Conditions •...
  • Page 337: Wireless Xdp Parallel Mode

    1.20 W Operating Manual References 1.3.13 Call Waiting Tone 1.20.4 Wireless XDP Parallel Mode Description A portable station (PS) can be used in parallel with a wired telephone, i.e., a digital proprietary telephone (DPT), analog proprietary telephone (APT), or single line telephone (SLT), allowing an extension user to make or receive calls with either the wired telephone or the PS.
  • Page 338 1.20 W Receiving an Off-hook Call Announcement (OHCA). (→ 1.12.3 OHCA (Off-hook Call Announcement)) Being monitored by another extension. (→ 1.3.4 Call Monitor) When the extension has a call on consultation hold. (→ 1.3.18 Consultation Hold) • When a PS in Wireless XDP Parallel mode is on a call, other extension users cannot perform the following features when they call this extension: –...
  • Page 339 1.20 W • If the Extension Feature Clear is performed, the corresponding extension data for both the wired telephone and the PS will be cleared. (→ 1.5.5 Extension Feature Clear) • When a call arrives, both the wired telephone and the PS will ring. However, when one of the following settings is made, only the telephone which was used to make the setting will ring.
  • Page 340 1.20 W Feature Manual...
  • Page 341: Appendix

    Section 2 Appendix Feature Manual...
  • Page 342: Capacity Of System Resources

    2.1 Capacity of System Resources Capacity of System Resources System Item KX-TDA50 KX-TDA100/ KX-TDA600 KX-TDA200 Absent Message—Extension 1 x 16 characters Absent Message—System 8 x 16 characters Call Park Zone Conference Each shelf: 3-8 parties 3-8 parties per conference (32 parties total)
  • Page 343 2.1 Capacity of System Resources Dialing Item KX-TDA50 KX-TDA100/ KX-TDA600 KX-TDA200 Emergency Call 32 digits, 10 entries Hot Line 32 digits Personal Speed Dialing Without EMEC or MEC: 32 digits, 10 entries/extn. With EMEC or MEC: 32 digits, 100 entries/extn.
  • Page 344 2.1 Capacity of System Resources Item KX-TDA50/KX-TDA100/KX-TDA200 KX-TDA600 Routing Plan Table 16 entries 48 entries Leading Number Table 16 digits, 1000 entries Leading Number Exception Table 16 digits, 200 entries ARS Carrier Itemized Billing Code 10 digits Authorization Code 10 digits...
  • Page 345 2.1 Capacity of System Resources Networking Item KX-TDA50/KX-TDA100/KX-TDA200/KX-TDA600 TIE Line Routing and Modification Table 32 entries Leading Number 3 digits PBX Code 7 digits NDSS: Monitored PBXs NDSS: Registered Extensions for Monitor PBX Item KX-TDA50 KX-TDA100 KX-TDA200 KX-TDA600 PC Console...
  • Page 346: Exclusive Features Table

    2.2 Exclusive Features Table Exclusive Features Table The KX-TDA50, KX-TDA100/KX-TDA200, and KX-TDA600 support certain features only available for that PBX model. The table below lists the features that are available depending on the PBX model. KX-TDA100/ KX-TDA50 KX-TDA600 KX-TDA200 1.1.6 Automatic Fax Transfer 1.3.13 CLIP (Calling Line...
  • Page 347: Tones/ring Tones

    2.3 Tones/Ring Tones Tones/Ring Tones Tone Patterns (Default) Confirmation Tone 1 Confirmation Tone 2 Confirmation Tone 3 Confirmation Tone 4 Confirmation Tone 5 Dial Tone 1 Dial Tone 2 Dial Tone 3 Dial Tone 4 Busy Tone Reorder Tone Ringback Tone 1 Ringback Tone 2 DND Tone CO Line Call Limit...
  • Page 348 2.3 Tones/Ring Tones Tone Patterns (Default) 15 s Hold Alarm Tone Call Waiting Tone 1 Call Waiting Tone 2 Ring Tone Patterns (Default)* Single Double Triple S-Double Feature Manual...
  • Page 349: Revision History

    2.4 Revision History Revision History 2.4.1 KX-TDA100/KX-TDA200 PMPR Software File Version 1.1xxx New Contents • 1.5.2 Emergency Call CLIP Number Notification • 1.13.2 Paralleled Telephone Digital XDP • 1.15.1 Redial, Last Number Outgoing Call Log Display by REDIAL Button •...
  • Page 350: Kx-tda100/kx-tda200 Pmpr Software File Version 2.0xxx

    2.4 Revision History 2.4.2 KX-TDA100/KX-TDA200 PMPR Software File Version 2.0xxx New Contents • 1.5.9 External Sensor • 1.5.8 External Relay • 1.8.4 HOSPITALITY FEATURES • 1.9.15 IP-PT (IP Proprietary Telephone) • 1.11.1 Manager Features • 1.13.3 Password Security • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Changed Contents •...
  • Page 351: Kx-tda100/kx-tda200 Pmpr Software File Version 3.0xxx

    2.4 Revision History 2.4.3 KX-TDA100/KX-TDA200 PMPR Software File Version 3.0xxx New Contents • 1.3.11 CELLULAR PHONE FEATURES • 1.4.7 DISA (Direct Inward System Access) DISA Automatic Walking COS DISA Call Transfer from Outside Destination • 1.9.2 ICD Group Features—Group Call Distribution Automatic Call Distribution (ACD) •...
  • Page 352 2.4 Revision History • 1.9.3 ICD Group Features—Log-in/Log-out Wrap-up Timer • 1.10.3 Line Preference—Outgoing • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) • 1.13.18 PRIVATE NETWORK FEATURES—QSIG • 1.13.28 PT Programming • 1.14.1 Quick Dialing • 2.1 Capacity of System Resources KX-TDA0920 SD Memory Card for Software Upgrade to Enhanced Version-only Features •...
  • Page 353: Kx-tda50 Psmpr Software File Version 1.1xxx

    2.4 Revision History 2.4.4 KX-TDA50 PSMPR Software File Version 1.1xxx Changed Contents • 1.3.6 Call Pickup [Directed Call Pickup] • 1.3.9 CALL WAITING FEATURES Call Waiting Caller ID (Visual Caller ID) • 1.13.1 Paging Paging Group • 1.13.2 Paralleled Telephone Digital XDP •...
  • Page 354: Kx-tda50 Psmpr Software File Version 3.0xxx

    2.4 Revision History • 1.16.1 SMDR (Station Message Detail Recording) • 1.17.4 Timed Reminder • 1.17.6 TRS (Toll Restriction) • 2.1 Capacity of System Resources KX-TDA5920 SD Memory Card for Software Upgrade to Enhanced Version-only Features • 1.3.21 CTI (Computer Telephony Integration) •...
  • Page 355 2.4 Revision History Changed Contents • 1.3.8 Call Transfer One-touch Transfer • 1.3.16 Conference • 1.4.7 DISA (Direct Inward System Access) End of Call Detection • 1.6.4 Flexible Numbering/Fixed Numbering • 1.6.7 FWD/DND Button, Group FWD Button • 1.8.1 Hands-free Answerback •...
  • Page 356 2.4 Revision History • 1.9.4 ICD Group Features—Outside Destinations • 1.13.13 PRIVATE NETWORK FEATURES [TIE Call by Own PBX Extension Number] • 1.13.14 Private Network Features—Centralized Voice Mail • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) • 1.13.17 Private Network Features—PS Roaming by Network ICD Group Feature Manual...
  • Page 357: Index

    Index Feature Manual...
  • Page 358 Index Call Transfer with Announcement Call Transfer without Announcement AA —> Automated Attendant 78, 328 Call Transfer—QSIG (CT—QSIG) Absent Message Call Transfer—Screened —> Call Transfer with Announcement Account Code Entry Call Transfer—Unscreened —> Call Transfer without Announcement Alarm Information, Local Call Waiting Caller ID (Visual Caller ID) Alternate Calling—Ring/Voice CALL WAITING FEATURES...
  • Page 359 Index CTI —> Computer Telephony Integration External Relay CT—QSIG —> Call Transfer—QSIG External Sensor EXtra Device Port (XDP) Data Line Security Delayed Ringing Fax Transfer, Automatic Denied Code Tables Feature Clear, Extension Dial Mode Selection Feature Highlights Dial Tone First Party Call Control Dial Tone Transfer Fixed Buttons Dialing Digit Restriction during Conversation...
  • Page 360 Index ICD Group —> Incoming Call Distribution Group 126, 136 NDSS —> Network Direct Station Selection Idle Extension Hunting Network Direct Station Selection (NDSS) Idle Extension Hunting Group 126, 155 Network ICD Group Idle Line Access (Local Access) No Line Preference 176, 177 Idle Line Preference Numbering, Flexible/Fixed...
  • Page 361 Index PS Directory SVM Log PS Feature Buttons System Speed Dialing PS Ring Group 127, 262 PS Roaming by Network ICD Group PT Programming T1 Line Service Pulse to Tone Conversion TAFAS —> Trunk Answer From Any Station Tenant Service Tenant-to-Tenant Call Block QSIG Terminate...
  • Page 362 Index XDP —> EXtra Device Port XDP, Digital XDP, Wireless Feature Manual...
  • Page 363 Index Feature Maual...
  • Page 364 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.

This manual is also suitable for:

Kx-tda50Kx-tda600Kx-tda200

Comments to this Manuals

Symbols: 0
Latest comments:
