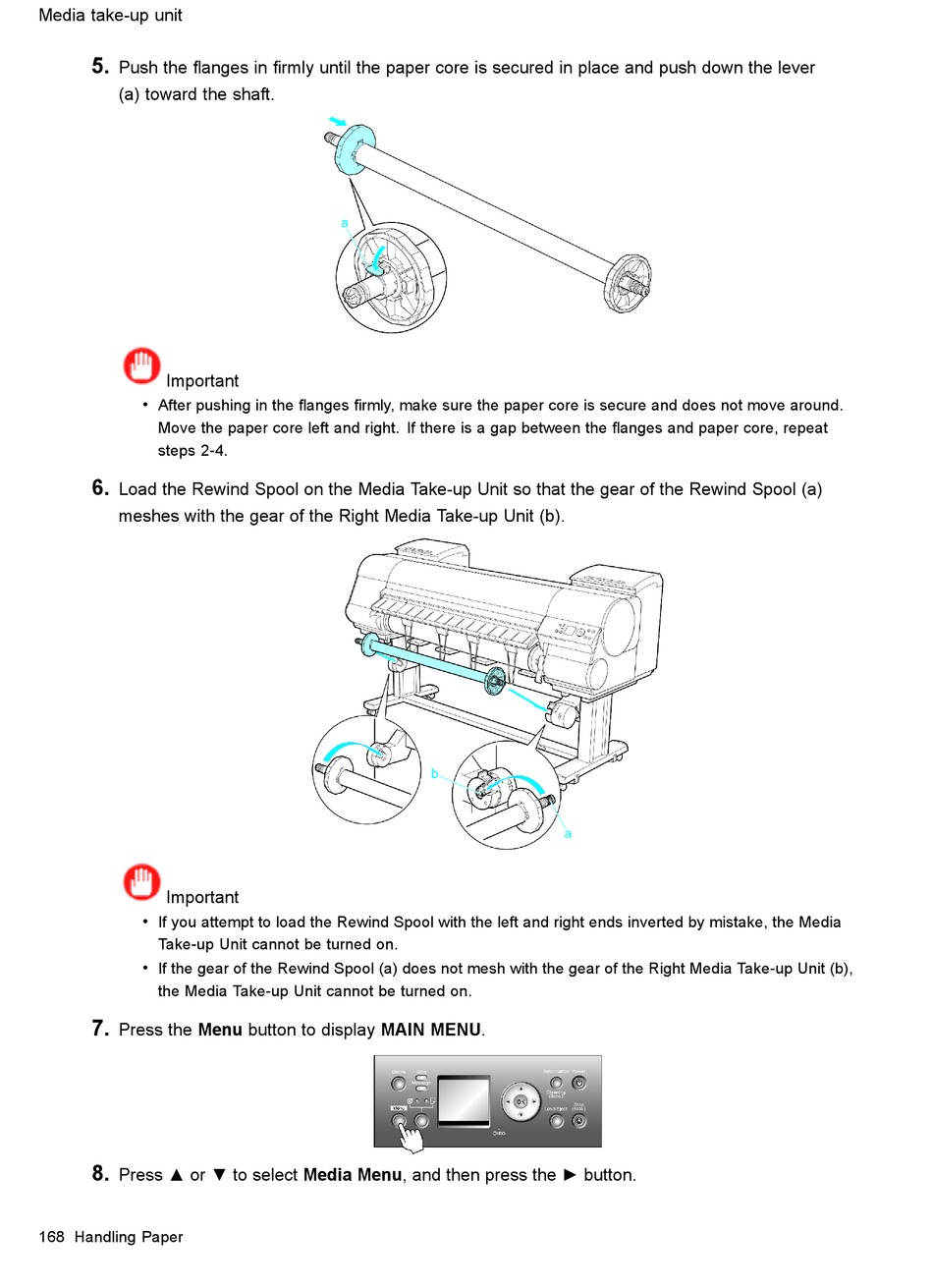

Media take-up unit
5.
Push the anges in rmly until the paper core is secured in place and push down the lever
(a) toward the shaft.
Important
•
After pushing in the anges rmly, make sure the paper core is secure and does not move around.
Move the paper core left and right. If there is a gap between the anges and paper core, repeat
steps 2-4.
6.
Load the Rewind Spool on the Media Take-up Unit so that the gear of the Rewind Spool (a)
meshes with the gear of the Right Media Take-up Unit (b).
Important
•
If you attempt to load the Rewind Spool with the left and right ends inverted by mistake, the Media
Take-up Unit cannot be turned on.
•
If the gear of the Rewind Spool (a) does not mesh with the gear of the Right Media Take-up Unit (b),
the Media Take-up Unit cannot be turned on.
7.
Press the Menu button to display MAIN MENU.
8.
Press ▲ or ▼ to select Media Menu, and then press the ► button.
