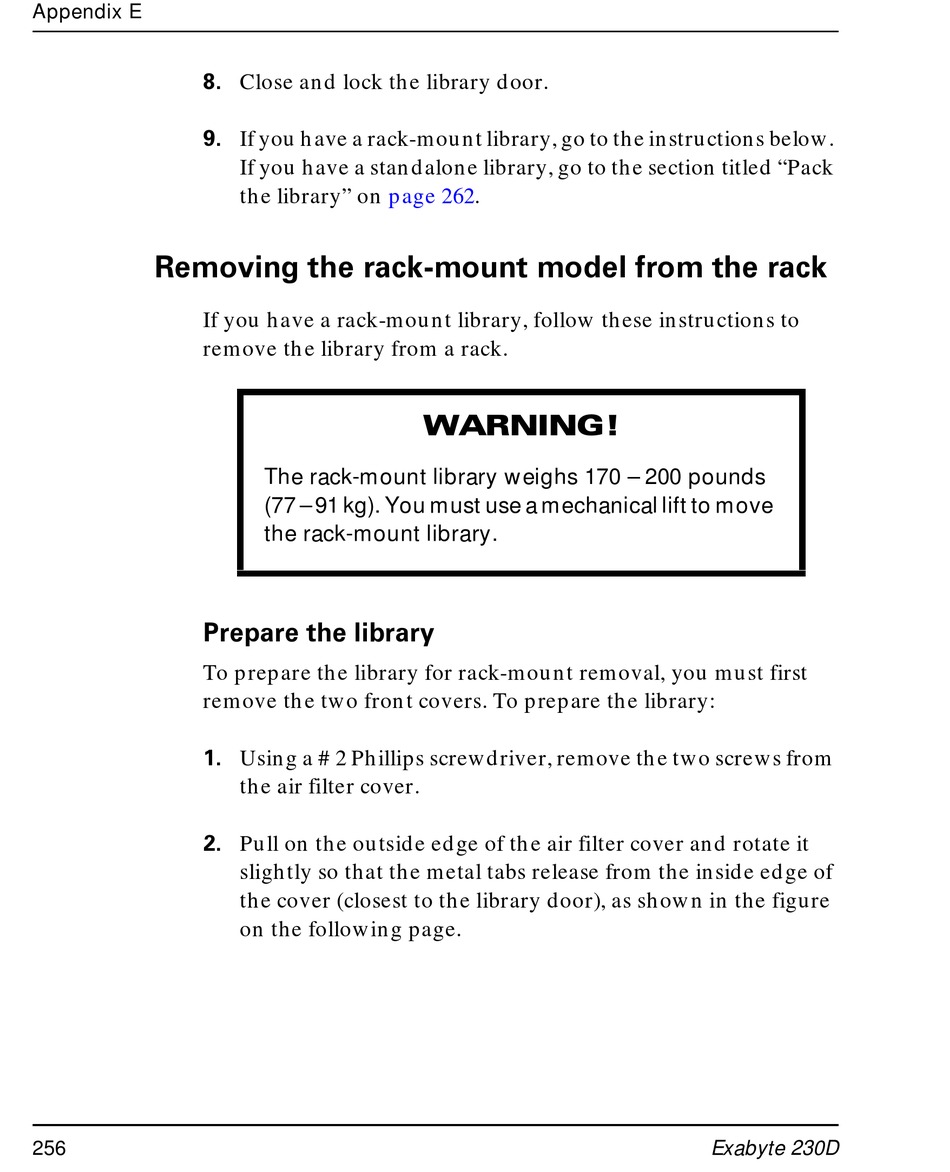

Exabyte 230D Library Installation And Operation Manual page 270

Appendix E
If you have a rack-mount library, follow these instructions to
remove the library from a rack.
To prepare the library for rack-mount removal, you must first
remove the two front covers. To prepare the library:
256
Close and lock the library door.
If you have a rack-mount library, go to the instructions below.
If you have a standalone library, go to the section titled "Pack
the library" on page
The rack-mount library weighs 170 – 200 pounds
(77 – 91 kg). You must use a mechanical lift to move
the rack-mount library.
Using a # 2 Phillips screwdriver, remove the two screws from
the air filter cover.
Pull on the outside edge of the air filter cover and rotate it
slightly so that the metal tabs release from the inside edge of
the cover (closest to the library door), as shown in the figure
on the following page.
262.
Exabyte 230D
