Installation and Operation

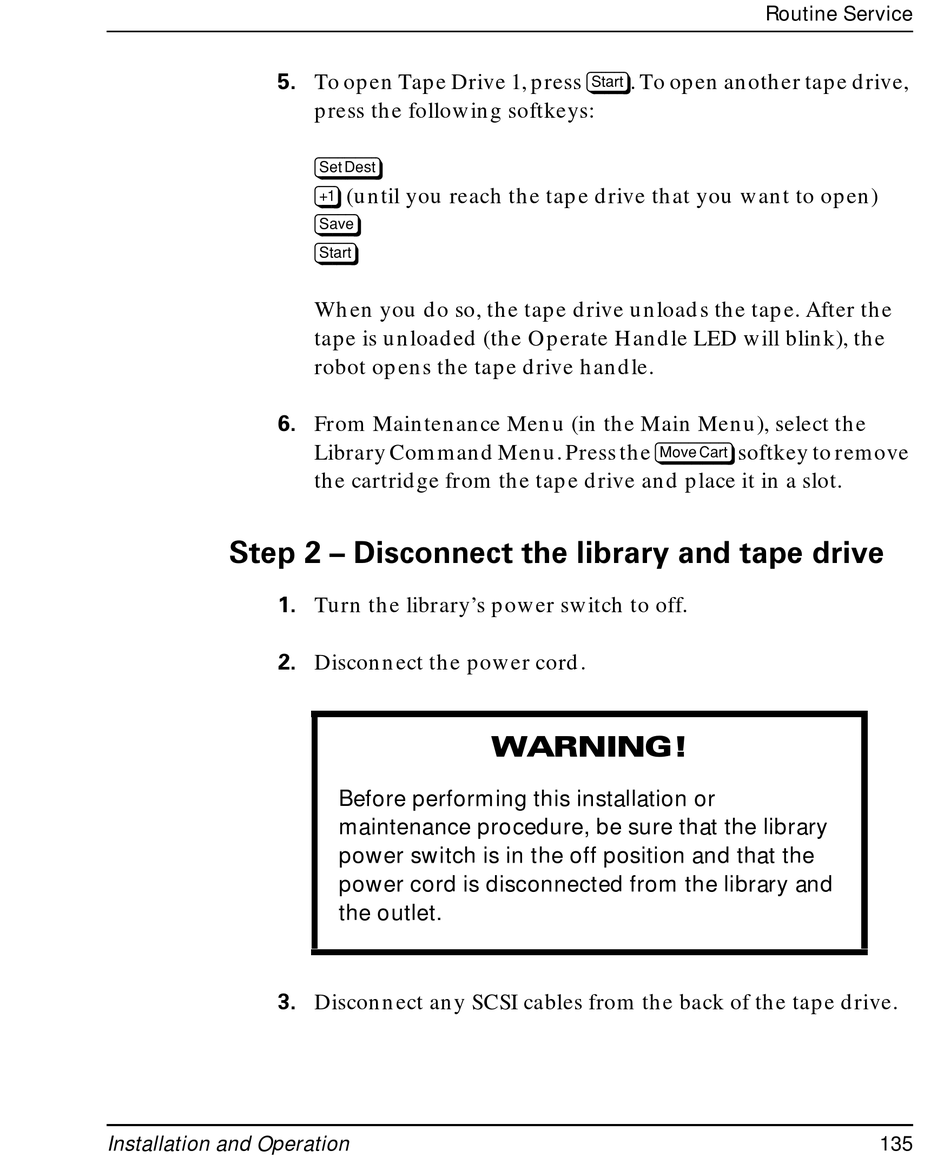

To open Tape Drive 1, press
press the following softkeys:
(until you reach the tape drive that you want to open)
When you do so, the tape drive unloads the tape. After the
tape is unloaded (the Operate Handle LED will blink), the
robot opens the tape drive handle.
From Maintenance Menu (in the Main Menu), select the
Library Command Menu. Press the
the cartridge from the tape drive and place it in a slot.
Turn the library's power switch to off.
Disconnect the power cord.
Before performing this installation or
maintenance procedure, be sure that the library
power switch is in the off position and that the
power cord is disconnected from the library and
the outlet.
Disconnect any SCSI cables from the back of the tape drive.
Routine Service
. To open another tape drive,
softkey to remove
135
