Note
congatec offers cables and adapter for the LVDS interface (see section 1.2.2 "Optional Accessories"). For more information, contact congatec
technical solution department.
5.9.3

Embedded Display Port (eDP)

The conga-IA5 provides an eDP interface at the bottom side on connector X29 — a standard 40-pin DisplayPort connector. The eDP signals
are sourced from incoming eDP stream via a multiplexer. The multiplexer routes the eDP signals to LVDS connector X33 (via an eDP to LVDS
bridge) by default. To route the eDP signals to eDP connector X29, change the "Active LFP Configuration" in the BIOS setup menu to "eDP".
Table 30 eDP (Connector X29) Pinout Description
Pin Signal
1 N.C
2 GND
3 eDP_TX3-
4 eDP_TX3+
5 GND
6 eDP_TX2-
7 eDP_TX2+
8 GND
9 eDP_TX1-
10 eDP_TX1+
11 GND
12 eDP_TX0-
13 eDP_TX0+
14 GND
15 eDP_AUX+
16 eDP_AUX-
17 GND
18 VCC_LCD
19 VCC_LCD
20 VCC_LCD
Copyright © 2017 congatec AG
Pin Signal
21 VCC_LCD
22 N.C
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD
28 GND
29 GND
30 GND
31 GND
32 eDP_LVDS_BKLT_EN
33 eDP_LVDS_BKLT_CTRL
34 N.C
35 N.C
36 N.C
37 BKLT_PWR
38 BKLT_PWR
39 BKLT_PWR
40 N.C

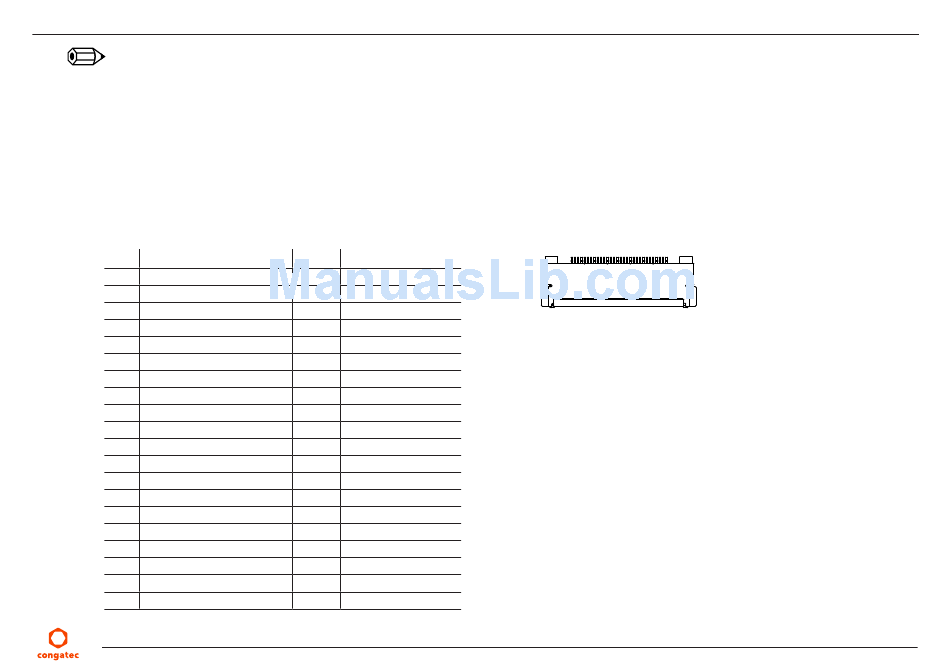

eDP - Connector X29
IA50m01 41/59
