Table 9: Wire Recommendations (Continued)
Device
SuperBus 2000 8Z Input
Module
SuperBus 2000 4-Relay
Output Module
SuperBus 2000 Dual Phone
Line Module
SuperBus 2000 Printer
Module
SuperBus 2000 RS 232
Automation Module*
SuperBus 2000 LED Driver
Board*
4 Input/2 Output SnapCard
8Z Hardwire Zone Expander
SnapCard
4 Output SnapCard
* Not investigated by UL.

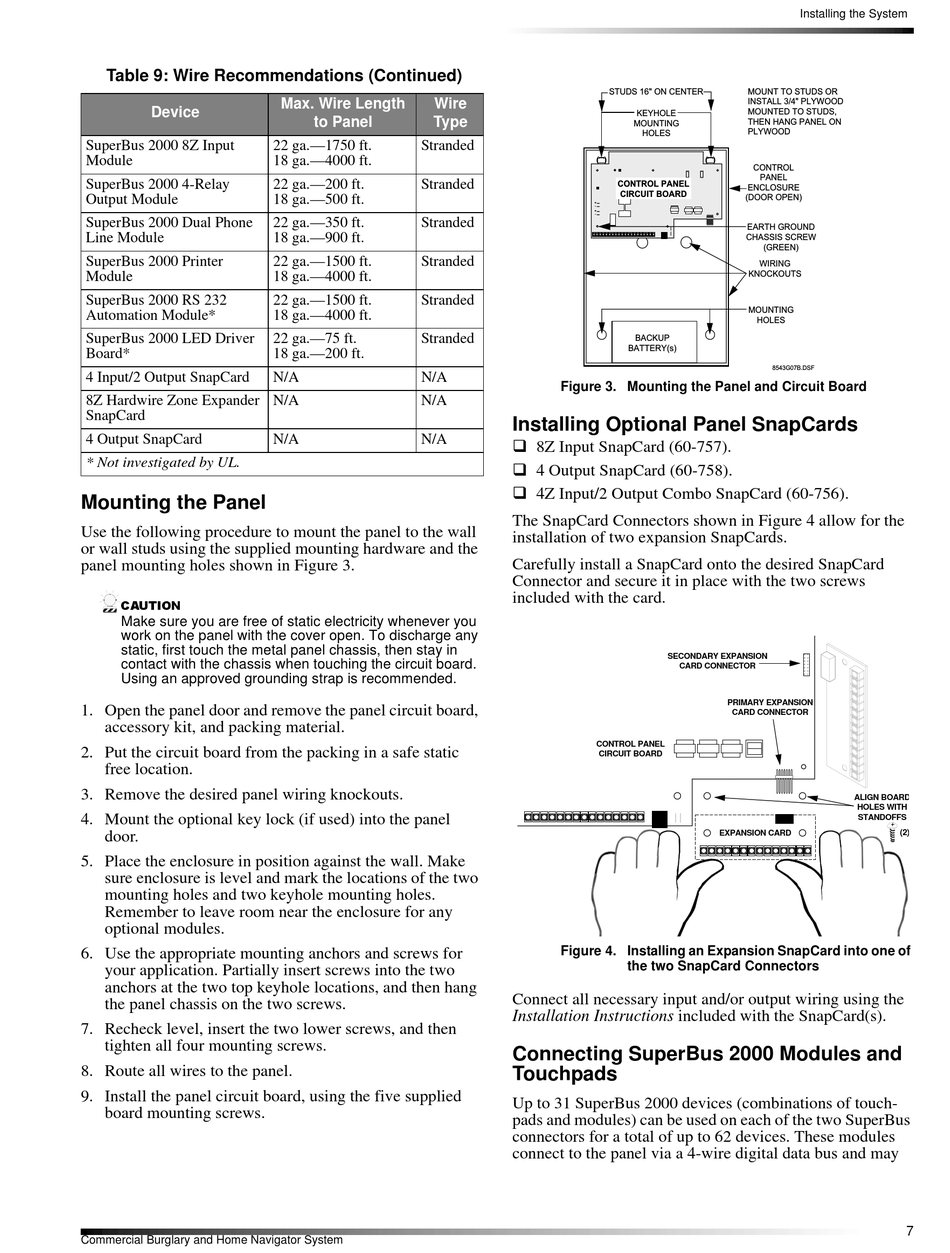

Mounting the Panel
Use the following procedure to mount the panel to the wall
or wall studs using the supplied mounting hardware and the
panel mounting holes shown in Figure 3.
&$87,21
Make sure you are free of static electricity whenever you
work on the panel with the cover open. To discharge any
static, first touch the metal panel chassis, then stay in
contact with the chassis when touching the circuit board.
Using an approved grounding strap is recommended.
1. Open the panel door and remove the panel circuit board,
accessory kit, and packing material.
2. Put the circuit board from the packing in a safe static
free location.
3. Remove the desired panel wiring knockouts.
4. Mount the optional key lock (if used) into the panel
door.
5. Place the enclosure in position against the wall. Make
sure enclosure is level and mark the locations of the two
mounting holes and two keyhole mounting holes.
Remember to leave room near the enclosure for any
optional modules.
6. Use the appropriate mounting anchors and screws for
your application. Partially insert screws into the two
anchors at the two top keyhole locations, and then hang
the panel chassis on the two screws.
7. Recheck level, insert the two lower screws, and then
tighten all four mounting screws.
8. Route all wires to the panel.
9. Install the panel circuit board, using the five supplied
board mounting screws.
Commercial Burglary and Home Navigator System
Max. Wire Length
Wire
to Panel
Type
22 ga.—1750 ft.
Stranded
18 ga.—4000 ft.
22 ga.—200 ft.
Stranded
18 ga.—500 ft.
22 ga.—350 ft.
Stranded
18 ga.—900 ft.
22 ga.—1500 ft.
Stranded
18 ga.—4000 ft.
22 ga.—1500 ft.
Stranded
18 ga.—4000 ft.
22 ga.—75 ft.
Stranded
18 ga.—200 ft.
N/A
N/A
N/A
N/A
N/A
N/A
S T U D S 1 6 " O N C E N T E R
K E Y H O L E
M O U N T I N G
H O L E S
C O N T R O L P A N E L
C I R C U I T B O A R D
+
-
+
-
B A C K U P
B A T T E R Y ( s )
Figure 3. Mounting the Panel and Circuit Board
Installing Optional Panel SnapCards
q 8Z Input SnapCard (60-757).
q 4 Output SnapCard (60-758).
q 4Z Input/2 Output Combo SnapCard (60-756).
The SnapCard Connectors shown in Figure 4 allow for the
installation of two expansion SnapCards.
Carefully install a SnapCard onto the desired SnapCard
Connector and secure it in place with the two screws
included with the card.
SECONDARY EXPANSION
CARD CONNECTOR
CONTROL PANEL
CIRCUIT BOARD
Figure 4. Installing an Expansion SnapCard into one of
the two SnapCard Connectors
Connect all necessary input and/or output wiring using the
Installation Instructions included with the SnapCard(s).
Connecting SuperBus 2000 Modules and
Touchpads
Up to 31 SuperBus 2000 devices (combinations of touch-
pads and modules) can be used on each of the two SuperBus
connectors for a total of up to 62 devices. These modules
connect to the panel via a 4-wire digital data bus and may
Installing the System
M O U N T T O S T U D S O R
I N S T A L L 3 / 4 " P L Y W O O D
M O U N T E D T O S T U D S ,
T H E N H A N G P A N E L O N
P L Y W O O D
C O N T R O L
P A N E L
E N C L O S U R E
( D O O R O P E N )
E A R T H G R O U N D
C H A S S I S S C R E W
( G R E E N )
W I R I N G
K N O C K O U T S
M O U N T I N G
H O L E S
8 5 4 3 G 0 7 B . D S .
PRIMARY EXPANSION
CARD CONNECTOR
ALIGN BOARD
HOLES WITH
STANDOFFS
EXPANSION CARD
(2)
7
