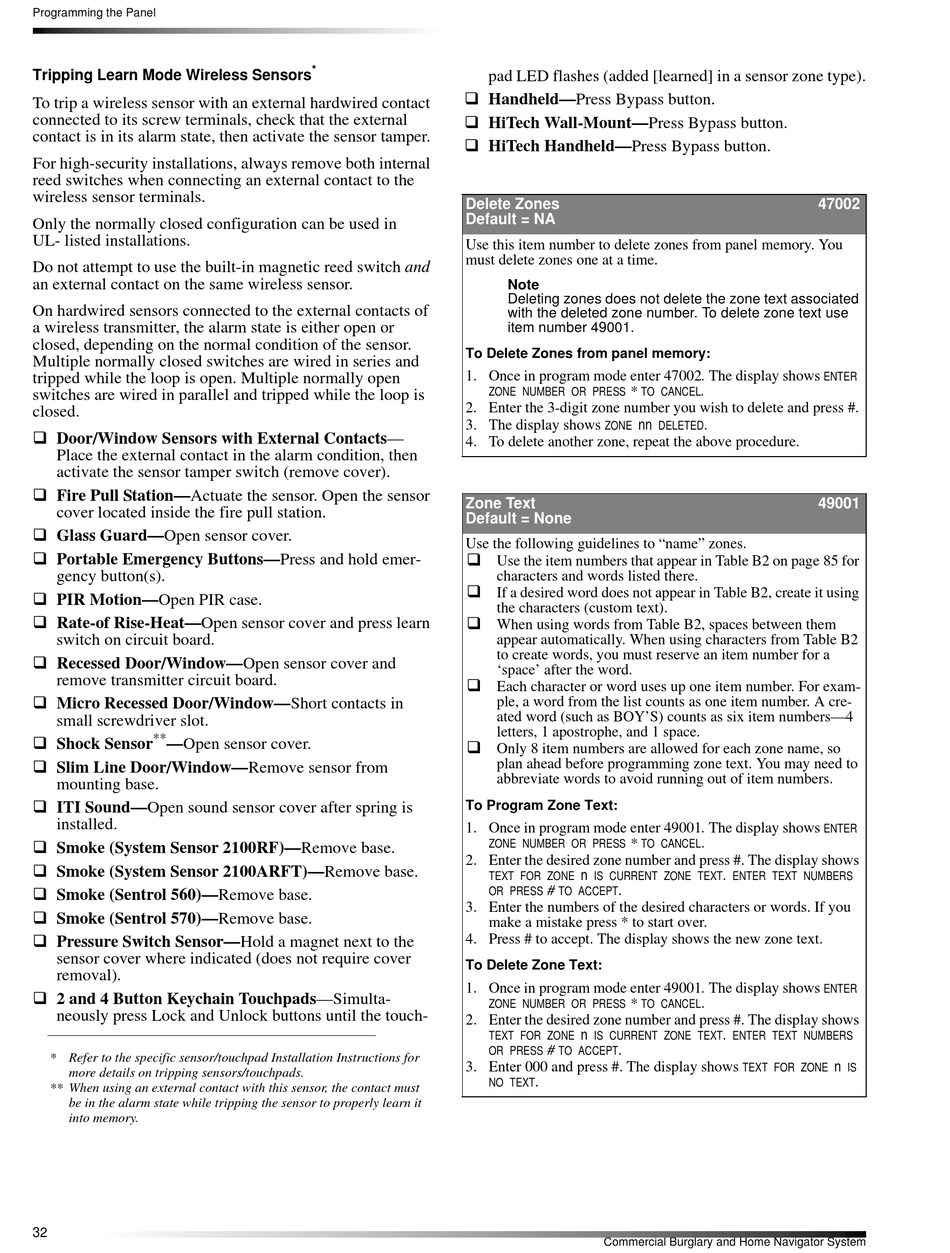

Programming the Panel
Tripping Learn Mode Wireless Sensors
To trip a wireless sensor with an external hardwired contact
connected to its screw terminals, check that the external
contact is in its alarm state, then activate the sensor tamper.
For high-security installations, always remove both internal
reed switches when connecting an external contact to the
wireless sensor terminals.
Only the normally closed configuration can be used in
UL- listed installations.
Do not attempt to use the built-in magnetic reed switch and
an external contact on the same wireless sensor.
On hardwired sensors connected to the external contacts of
a wireless transmitter, the alarm state is either open or
closed, depending on the normal condition of the sensor.
Multiple normally closed switches are wired in series and
tripped while the loop is open. Multiple normally open
switches are wired in parallel and tripped while the loop is
closed.
q Door/Window Sensors with External Contacts—
Place the external contact in the alarm condition, then
activate the sensor tamper switch (remove cover).
q Fire Pull Station—Actuate the sensor. Open the sensor
cover located inside the fire pull station.
q Glass Guard—Open sensor cover.
q Portable Emergency Buttons—Press and hold emer-
gency button(s).
q PIR Motion—Open PIR case.
q Rate-of Rise-Heat—Open sensor cover and press learn
switch on circuit board.
q Recessed Door/Window—Open sensor cover and
remove transmitter circuit board.
q Micro Recessed Door/Window—Short contacts in
small screwdriver slot.
q Shock Sensor **
—Open sensor cover.
q Slim Line Door/Window—Remove sensor from
mounting base.
q ITI Sound—Open sound sensor cover after spring is
installed.
q Smoke (System Sensor 2100RF)—Remove base.
q Smoke (System Sensor 2100ARFT)—Remove base.
q Smoke (Sentrol 560)—Remove base.
q Smoke (Sentrol 570)—Remove base.
q Pressure Switch Sensor—Hold a magnet next to the
sensor cover where indicated (does not require cover
removal).
q 2 and 4 Button Keychain Touchpads—Simulta-
neously press Lock and Unlock buttons until the touch-
* Refer to the specific sensor/touchpad Installation Instructions for
more details on tripping sensors/touchpads.
** When using an external contact with this sensor, the contact must
be in the alarm state while tripping the sensor to properly learn it
into memory.
32
*
pad LED flashes (added [learned] in a sensor zone type).
q Handheld—Press Bypass button.
q HiTech Wall-Mount—Press Bypass button.
q HiTech Handheld—Press Bypass button.
Delete Zones
Default = NA
Use this item number to delete zones from panel memory. You
must delete zones one at a time.
To Delete Zones from panel memory:
1. Once in program mode enter 47002. The display shows
ZONE NUMBER OR PRESS
2. Enter the 3-digit zone number you wish to delete and press #.
3. The display shows
4. To delete another zone, repeat the above procedure.
Zone Text
Default = None
Use the following guidelines to "name" zones.
q
q
q
q
q
To Program Zone Text:
1. Once in program mode enter 49001. The display shows
ZONE NUMBER OR PRESS
2. Enter the desired zone number and press #. The display shows
TEXT FOR ZONE
OR PRESS
3. Enter the numbers of the desired characters or words. If you
make a mistake press * to start over.
4. Press # to accept. The display shows the new zone text.
To Delete Zone Text:
1. Once in program mode enter 49001. The display shows
ZONE NUMBER OR PRESS
2. Enter the desired zone number and press #. The display shows
TEXT FOR ZONE
OR PRESS
3. Enter 000 and press #. The display shows
NO TEXT
Note
Deleting zones does not delete the zone text associated
with the deleted zone number. To delete zone text use
item number 49001.
*
TO CANCEL
nn
ZONE DELETED
Use the item numbers that appear in Table B2 on page 85 for
characters and words listed there.
If a desired word does not appear in Table B2, create it using
the characters (custom text).
When using words from Table B2, spaces between them
appear automatically. When using characters from Table B2
to create words, you must reserve an item number for a
'space' after the word.
Each character or word uses up one item number. For exam-
ple, a word from the list counts as one item number. A cre-
ated word (such as BOY'S) counts as six item numbers—4
letters, 1 apostrophe, and 1 space.
Only 8 item numbers are allowed for each zone name, so
plan ahead before programming zone text. You may need to
abbreviate words to avoid running out of item numbers.
*
TO CANCEL
n
IS CURRENT ZONE TEXT
# .
TO ACCEPT
*
TO CANCEL
n
IS CURRENT ZONE TEXT
# .
TO ACCEPT
.
Commercial Burglary and Home Navigator System
47002
ENTER
.
.
49001
ENTER
.
.
ENTER TEXT NUMBERS
ENTER
.
.
ENTER TEXT NUMBERS
n
TEXT FOR ZONE IS
