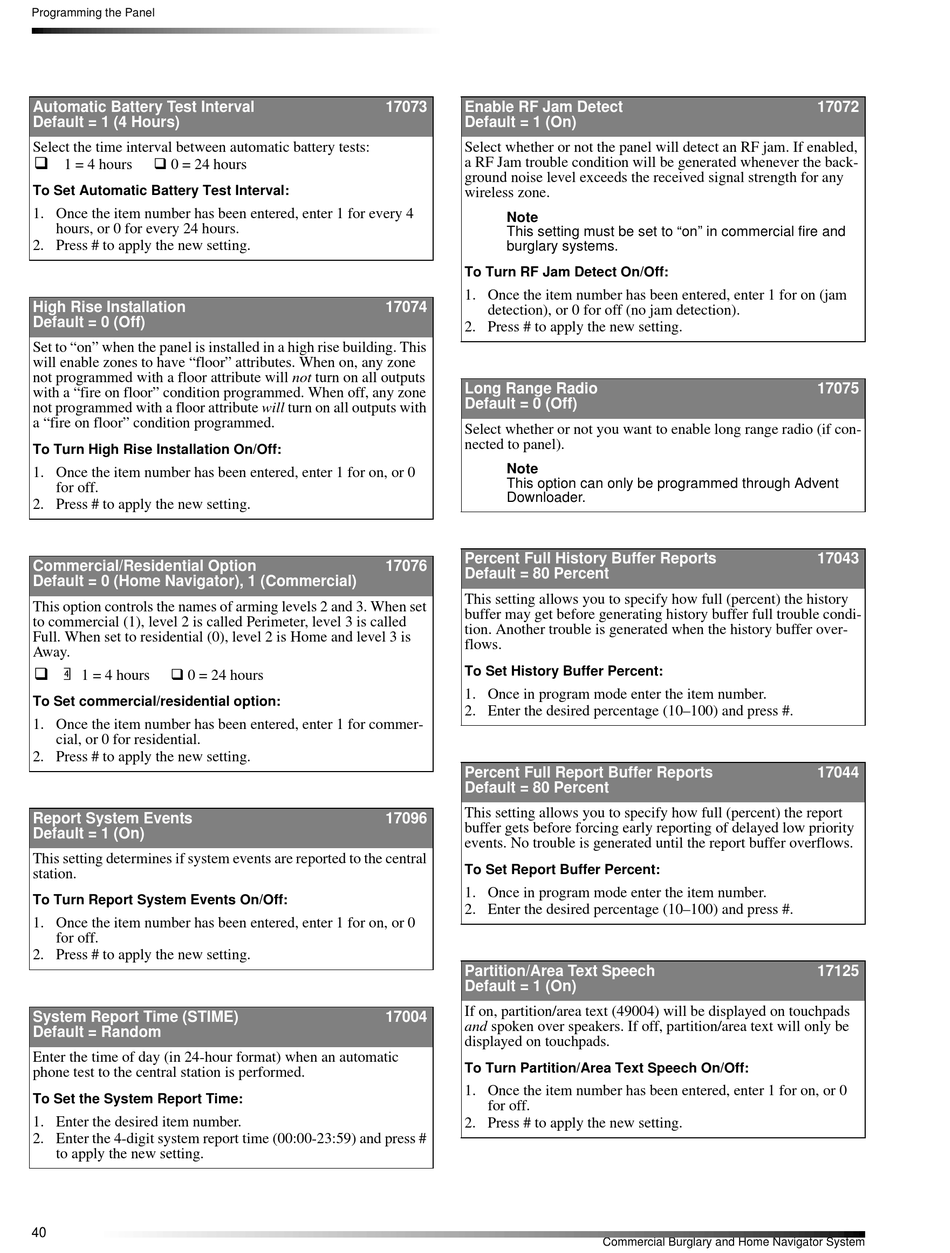

Programming the Panel
Automatic Battery Test Interval
Default = 1 (4 Hours)
Select the time interval between automatic battery tests:
q
q 0 = 24 hours
1 = 4 hours
To Set Automatic Battery Test Interval:
1. Once the item number has been entered, enter 1 for every 4
hours, or 0 for every 24 hours.
2. Press # to apply the new setting.
High Rise Installation
Default = 0 (Off)
Set to "on" when the panel is installed in a high rise building. This
will enable zones to have "floor" attributes. When on, any zone
not programmed with a floor attribute will not turn on all outputs
with a "fire on floor" condition programmed. When off, any zone
not programmed with a floor attribute will turn on all outputs with
a "fire on floor" condition programmed.
To Turn High Rise Installation On/Off:
1. Once the item number has been entered, enter 1 for on, or 0
for off.
2. Press # to apply the new setting.
Commercial/Residential Option
Default = 0 (Home Navigator), 1 (Commercial)
This option controls the names of arming levels 2 and 3. When set
to commercial (1), level 2 is called Perimeter, level 3 is called
Full. When set to residential (0), level 2 is Home and level 3 is
Away.
q o
q 0 = 24 hours
1 = 4 hours
To Set commercial/residential option:
1. Once the item number has been entered, enter 1 for commer-
cial, or 0 for residential.
2. Press # to apply the new setting.
Report System Events
Default = 1 (On)
This setting determines if system events are reported to the central
station.
To Turn Report System Events On/Off:
1. Once the item number has been entered, enter 1 for on, or 0
for off.
2. Press # to apply the new setting.
System Report Time (STIME)
Default = Random
Enter the time of day (in 24-hour format) when an automatic
phone test to the central station is performed.
To Set the System Report Time:
1. Enter the desired item number.
2. Enter the 4-digit system report time (00:00-23:59) and press #
to apply the new setting.
40
17073
Enable RF Jam Detect
Default = 1 (On)
Select whether or not the panel will detect an RF jam. If enabled,
a RF Jam trouble condition will be generated whenever the back-
ground noise level exceeds the received signal strength for any
wireless zone.
Note
This setting must be set to "on" in commercial fire and
burglary systems.
To Turn RF Jam Detect On/Off:
1. Once the item number has been entered, enter 1 for on (jam
17074
detection), or 0 for off (no jam detection).
2. Press # to apply the new setting.
Long Range Radio
Default = 0 (Off)
Select whether or not you want to enable long range radio (if con-
nected to panel).
Note
This option can only be programmed through Advent
Downloader.
Percent Full History Buffer Reports
17076
Default = 80 Percent
This setting allows you to specify how full (percent) the history
buffer may get before generating history buffer full trouble condi-
tion. Another trouble is generated when the history buffer over-
flows.
To Set History Buffer Percent:
1. Once in program mode enter the item number.
2. Enter the desired percentage (10–100) and press #.
Percent Full Report Buffer Reports
Default = 80 Percent
This setting allows you to specify how full (percent) the report
17096
buffer gets before forcing early reporting of delayed low priority
events. No trouble is generated until the report buffer overflows.
To Set Report Buffer Percent:
1. Once in program mode enter the item number.
2. Enter the desired percentage (10–100) and press #.
Partition/Area Text Speech
Default = 1 (On)
If on, partition/area text (49004) will be displayed on touchpads
17004
and spoken over speakers. If off, partition/area text will only be
displayed on touchpads.
To Turn Partition/Area Text Speech On/Off:
1. Once the item number has been entered, enter 1 for on, or 0
for off.
2. Press # to apply the new setting.
Commercial Burglary and Home Navigator System
17072
17075
17043
17044
17125
