Planning the Installation
California State Fire Marshall Listed
Installations
The California State Fire Marshall listing has been
approved.
Planning the Installation
This section describes system capabilities to help you get
familiar with the system. "Appendix A" provides planning
sheets with tables that let you record the hardware and pro-
gramming configuration of the system. Fill in all necessary
information ahead of time to help prepare for the installa-
tion, and retain for your records.
Note
It is recommended that no more than 132 wireless sen-
sors be used in any individual Advent system.
If 2 or more Advent systems are in close proximity to
each other, the total number of wireless sensors for all
systems must not exceed 132.
Panel Types
To plan the installation, find your specific panel type below.
The panel type will help determine the system capabilities
(dependent upon devices used).
Table 6: Advent Panel Types
Part Number
Description
250Z, 60-562-01
Commercial Burglary Panel.
UL Listings include 365,
132Z, 60-562-04
609, 985, 1023, 1610 and
1635. Gray enclosure.
250Z, 60-562-05
Home Nav Panel. UL List-
ings include 985, 1023 and
132Z, 60-562-02
1635. White enclosure.
Panel Components
Before installing devices and making wiring connections,
familiarize yourself with the main panel components. Fig-
ure 1 shows the main component locations for the circuit
board.
MEMORY
POWER
LED
CLEAR
BUTTON
+ –
TERMINAL STRIP
BACKUP
PHONE JACK
BATTERY
(DB-8 CORD)
LUGS

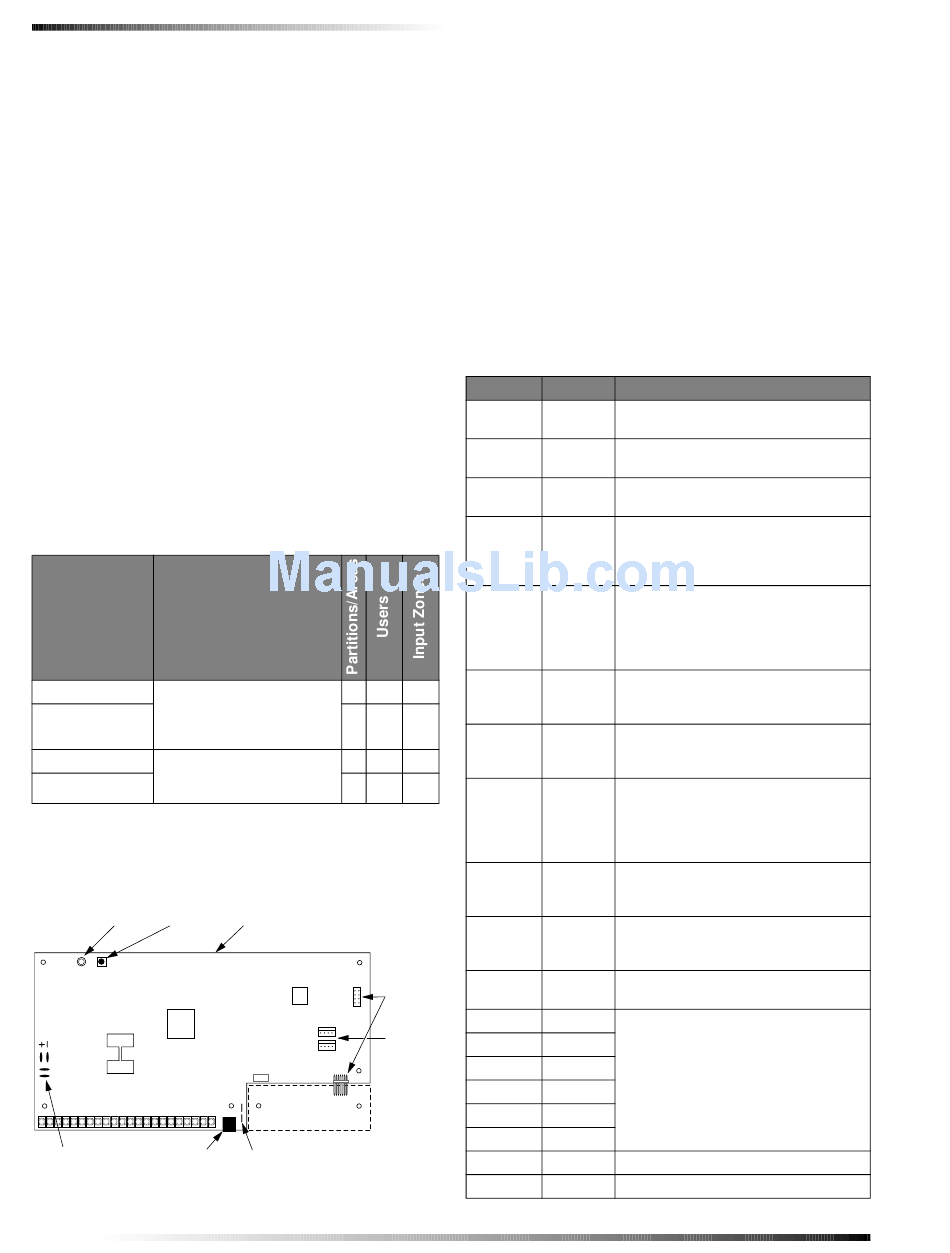

Figure 1. Circuit Board Main Components
4
8
250 250
4
100 132
8
250 250
4
100 132
CONTROL PANEL
CIRCUIT BOARD
OPTIONAL
EXPANSION
SNAPCARD
CONNECT-
ORS
SUPERBUS
CONNECT-
ORS (2)
OPTIONAL
EXPANSION SNAPCARD
INCOMING PHONE LINE TEST
LUGS (TIP/RING)
8543G05B.DSF
Panel Terminals
Table 7 describes each of the control panel terminals. Typi-
cal system wiring diagrams are provided on the last page of
this manual.
Note
A) Class 2, Class 3, and power-limited fire alarm circuits
must be installed using FPL, FPLR, FPLP, or substitute
cable permitted by the National Electrical Code ANSI/
NFPA 70. Wire that extends beyond the cable jacket
must be separated from all other conductors by a mini-
mum of 1/4-inch or by a nonconductive barrier.
OR
(B) Class 2, Class 3, and power-limited fire alarm circuit
conductors must be installed as Class 1 or higher cir-
cuits.
Table 7: Panel Terminal Strip Connections
Terminal
Name
24 VAC, 100 VA power transformer
1
24 VAC
connection.
24 VAC, 100 VA power transformer
2
24 VAC
connection.
Common ground connection for sirens,
3
GND
general purpose outputs 1-6, etc.
Interior bell (+), and misc. DC power
supply, 12 VDC @ 5.0A maximum load
4
+12 VDC
(includes Bus 1 and Bus 2 headers) Cur-
rent limited.
Negative (-) side of bell connection. 12
VDC @ 150mA (sink) maximum. Posi-
INT
5
tive (+) side to +12 VDC terminal 4.
BELL
Connect multiple interior bells in
parallel
EXT
Negative (-) external siren drive return
6
SIREN
connection
RTN
EXT
Positive (+) external siren power output
7
SIREN
connection. 30 VDC @ 2.5A maximum
OUT
load
Positive (+) external siren drive input
connection. 30 VDC @ 2.5A or 70 VAC
EXT
8
@ 500 mA maximum. Normally con-
SIREN IN
nected to +12 VDC terminal 4 or other
siren voltage source
One side of voice siren (speaker) con-
VOICE
9
nection. Other side to VOICE SIREN
SIREN
terminal 10
One side of voice siren (speaker) con-
VOICE
10
nection. Other side to VOICE SIREN
SIREN
terminal 9
ZONE
Common return connection for general
11
COM
purpose inputs 1–7, sensors, etc.
12
GPI/O 1
13
GPI/O 2
General purpose hardwire input. GPI/Os
1–6 can be programmed for use as a
14
GPI/O 3
hardwire contact input (2.0K ohm EOL
15
GPI/O 4
resistor) or a control relay driver output
(200 mA sink at 12 VDC maximum).
16
GPI/O 5
17
GPI/O 6
18
INPUT 7
Hardwire input 7.
19
Unused
Commercial Burglary and Home Navigator System
Used for
1
.
1
.
1
. Or 70 VAC @ 500 mA maximum.
1
.
2
.
2
.
