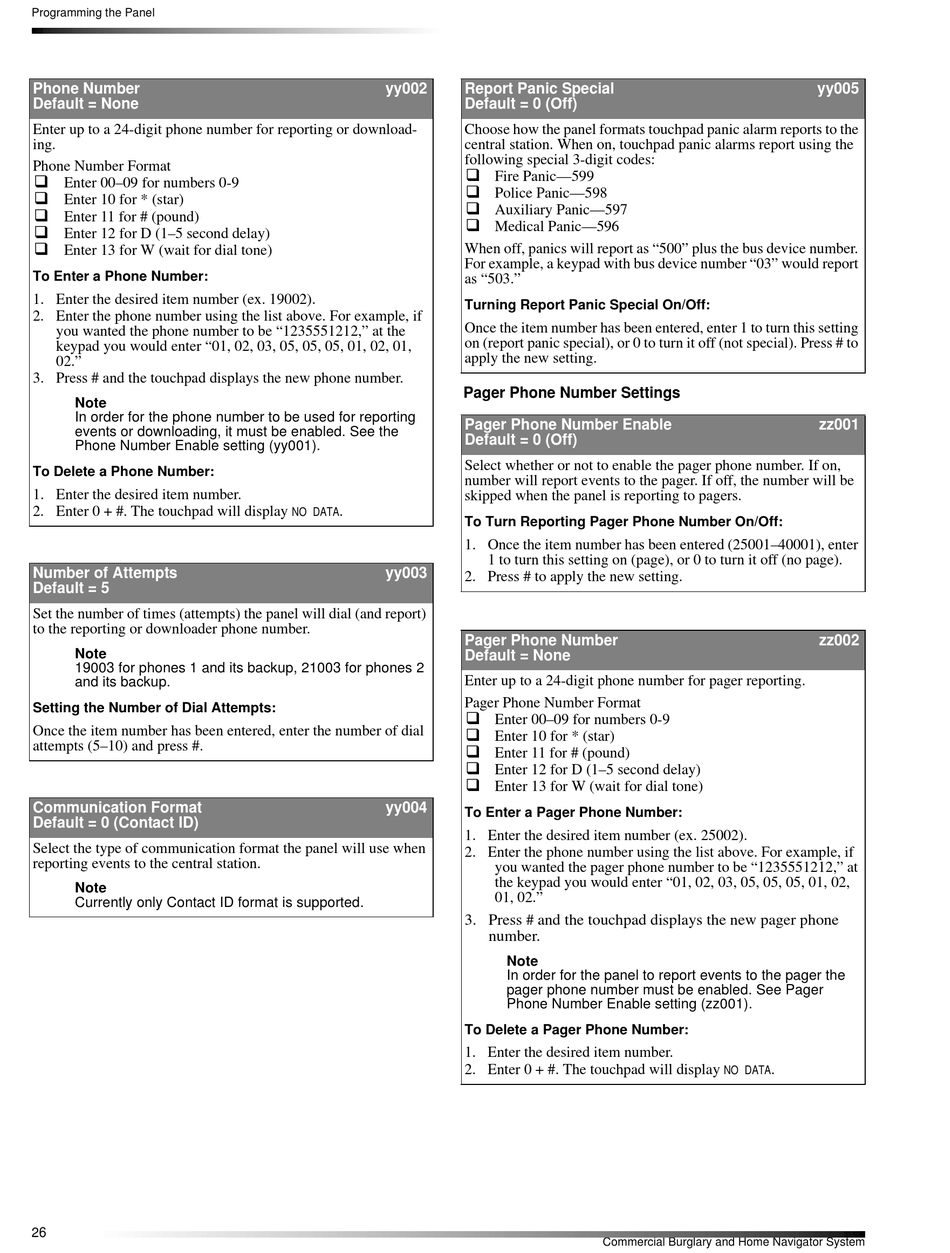

Programming the Panel
Phone Number
Default = None
Enter up to a 24-digit phone number for reporting or download-
ing.
Phone Number Format
q
Enter 00–09 for numbers 0-9
q
Enter 10 for * (star)
q
Enter 11 for # (pound)
q
Enter 12 for D (1–5 second delay)
q
Enter 13 for W (wait for dial tone)
To Enter a Phone Number:
1. Enter the desired item number (ex. 19002).
2. Enter the phone number using the list above. For example, if
you wanted the phone number to be "1235551212," at the
keypad you would enter "01, 02, 03, 05, 05, 05, 01, 02, 01,
02."
3. Press # and the touchpad displays the new phone number.
Note
In order for the phone number to be used for reporting
events or downloading, it must be enabled. See the
Phone Number Enable setting (yy001).
To Delete a Phone Number:
1. Enter the desired item number.
2. Enter 0 + #. The touchpad will display
Number of Attempts
Default = 5
Set the number of times (attempts) the panel will dial (and report)
to the reporting or downloader phone number.
Note
19003 for phones 1 and its backup, 21003 for phones 2
and its backup.
Setting the Number of Dial Attempts:
Once the item number has been entered, enter the number of dial
attempts (5–10) and press #.
Communication Format
Default = 0 (Contact ID)
Select the type of communication format the panel will use when
reporting events to the central station.
Note
Currently only Contact ID format is supported.
26
yy002
Report Panic Special
Default = 0 (Off)
Choose how the panel formats touchpad panic alarm reports to the
central station. When on, touchpad panic alarms report using the
following special 3-digit codes:
q
q
q
q
When off, panics will report as "500" plus the bus device number.
For example, a keypad with bus device number "03" would report
as "503."
Turning Report Panic Special On/Off:
Once the item number has been entered, enter 1 to turn this setting
on (report panic special), or 0 to turn it off (not special). Press # to
apply the new setting.
Pager Phone Number Settings
Pager Phone Number Enable
Default = 0 (Off)
Select whether or not to enable the pager phone number. If on,
number will report events to the pager. If off, the number will be
skipped when the panel is reporting to pagers.
.
NO DATA
To Turn Reporting Pager Phone Number On/Off:
1. Once the item number has been entered (25001–40001), enter
yy003
2. Press # to apply the new setting.
Pager Phone Number
Default = None
Enter up to a 24-digit phone number for pager reporting.
Pager Phone Number Format
q
q
q
q
q
yy004
To Enter a Pager Phone Number:
1. Enter the desired item number (ex. 25002).
2. Enter the phone number using the list above. For example, if
3. Press
To Delete a Pager Phone Number:
1. Enter the desired item number.
2. Enter 0 + #. The touchpad will display
Fire Panic—599
Police Panic—598
Auxiliary Panic—597
Medical Panic—596
1 to turn this setting on (page), or 0 to turn it off (no page).
Enter 00–09 for numbers 0-9
Enter 10 for * (star)
Enter 11 for # (pound)
Enter 12 for D (1–5 second delay)
Enter 13 for W (wait for dial tone)
you wanted the pager phone number to be "1235551212," at
the keypad you would enter "01, 02, 03, 05, 05, 05, 01, 02,
01, 02."
and the touchpad displays the new pager phone
#
number.
Note
In order for the panel to report events to the pager the
pager phone number must be enabled. See Pager
Phone Number Enable setting (zz001).
Commercial Burglary and Home Navigator System
yy005
zz001
zz002
.
