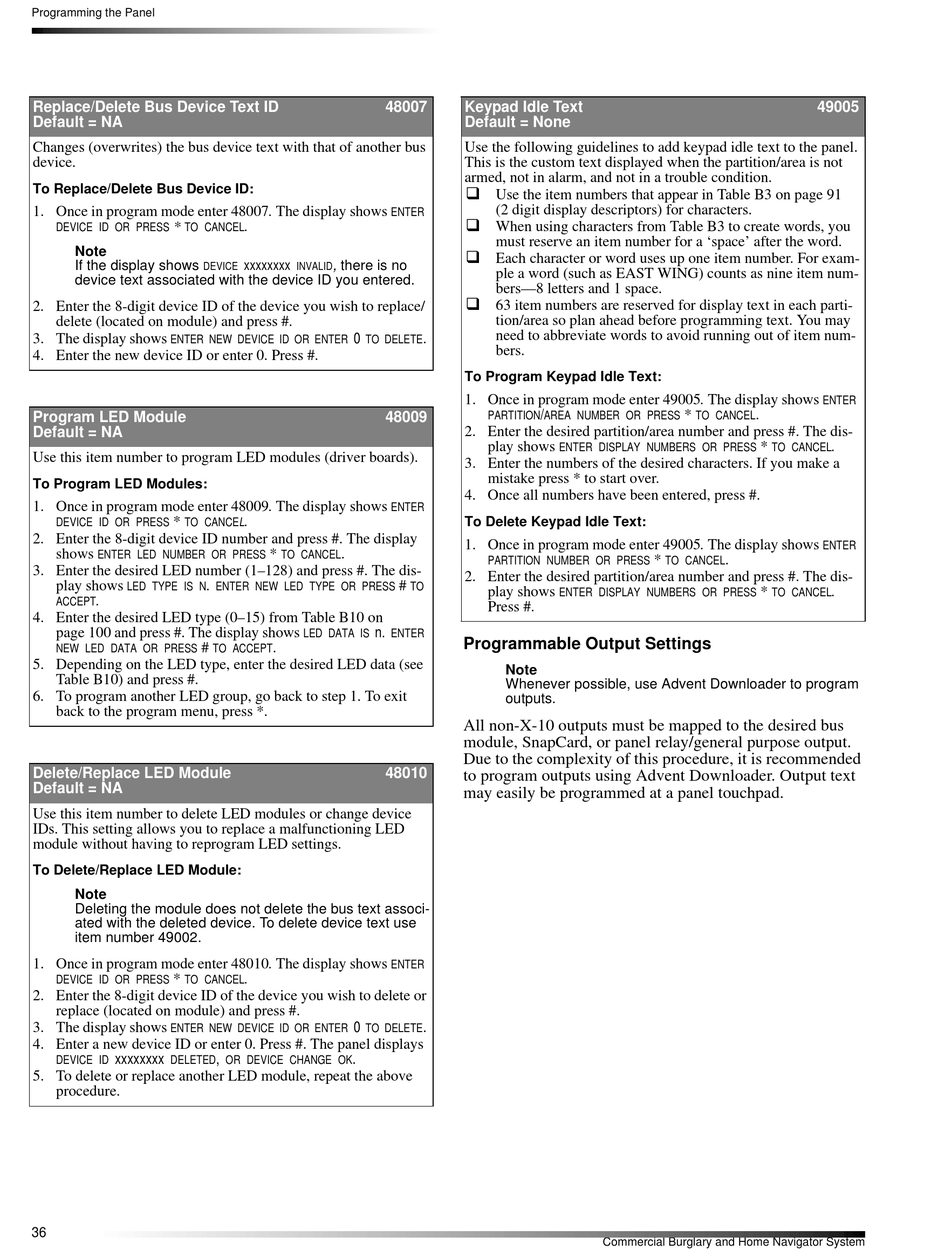

Programming the Panel
Replace/Delete Bus Device Text ID
Default = NA
Changes (overwrites) the bus device text with that of another bus
device.
To Replace/Delete Bus Device ID:
1. Once in program mode enter 48007. The display shows
*
DEVICE ID OR PRESS TO CANCEL
Note
If the display shows
DEVICE
device text associated with the device ID you entered.
2. Enter the 8-digit device ID of the device you wish to replace/
delete (located on module) and press #.
3. The display shows
ENTER NEW DEVICE ID OR ENTER
4. Enter the new device ID or enter 0. Press #.
Program LED Module
Default = NA
Use this item number to program LED modules (driver boards).
To Program LED Modules:
1. Once in program mode enter 48009. The display shows
*
DEVICE ID OR PRESS TO CANCEL
2. Enter the 8-digit device ID number and press #. The display
shows
ENTER LED NUMBER OR PRESS
3. Enter the desired LED number (1–128) and press #. The dis-
play shows .
LED TYPE IS N
.
ACCEPT
4. Enter the desired LED type (0–15) from Table B10 on
page 100 and press #. The display shows
#
NEW LED DATA OR PRESS
5. Depending on the LED type, enter the desired LED data (see
Table B10) and press #.
6. To program another LED group, go back to step 1. To exit
back to the program menu, press *.
Delete/Replace LED Module
Default = NA
Use this item number to delete LED modules or change device
IDs. This setting allows you to replace a malfunctioning LED
module without having to reprogram LED settings.
To Delete/Replace LED Module:
Note
Deleting the module does not delete the bus text associ-
ated with the deleted device. To delete device text use
item number 49002.
1. Once in program mode enter 48010. The display shows
*
DEVICE ID OR PRESS TO CANCEL
2. Enter the 8-digit device ID of the device you wish to delete or
replace (located on module) and press #.
3. The display shows
ENTER NEW DEVICE ID OR ENTER
4. Enter a new device ID or enter 0. Press #. The panel displays
xxxxxxxx
DEVICE ID DELETED
5. To delete or replace another LED module, repeat the above
procedure.
36
48007
ENTER
.
xxxxxxxx , there is no
INVALID
0
TO DELETE
48009
ENTER
.
* .
TO CANCEL
ENTER NEW LED TYPE OR PRESS
n.
LED DATA IS ENTER
.
TO ACCEPT
48010
ENTER
.
0
TO DELETE
,
.
OR DEVICE CHANGE OK
Keypad Idle Text
Default = None
Use the following guidelines to add keypad idle text to the panel.
This is the custom text displayed when the partition/area is not
armed, not in alarm, and not in a trouble condition.
q
Use the item numbers that appear in Table B3 on page 91
(2 digit display descriptors) for characters.
q
When using characters from Table B3 to create words, you
must reserve an item number for a 'space' after the word.
q
Each character or word uses up one item number. For exam-
ple a word (such as EAST WING) counts as nine item num-
bers—8 letters and 1 space.
q
63 item numbers are reserved for display text in each parti-
tion/area so plan ahead before programming text. You may
need to abbreviate words to avoid running out of item num-
.
bers.
To Program Keypad Idle Text:
1. Once in program mode enter 49005. The display shows
/
PARTITION AREA NUMBER OR PRESS
2. Enter the desired partition/area number and press #. The dis-
play shows
ENTER DISPLAY NUMBERS OR PRESS
3. Enter the numbers of the desired characters. If you make a
mistake press * to start over.
4. Once all numbers have been entered, press #.
To Delete Keypad Idle Text:
1. Once in program mode enter 49005. The display shows
PARTITION NUMBER OR PRESS
2. Enter the desired partition/area number and press #. The dis-
#
TO
play shows
ENTER DISPLAY NUMBERS OR PRESS
Press #.

Programmable Output Settings

Note
Whenever possible, use Advent Downloader to program
outputs.
All non-X-10 outputs must be mapped to the desired bus
module, SnapCard, or panel relay/general purpose output.
Due to the complexity of this procedure, it is recommended
to program outputs using Advent Downloader. Output text
may easily be programmed at a panel touchpad.
.
* .
TO CANCEL
*
TO CANCEL
* .
TO CANCEL
*
TO CANCEL
Commercial Burglary and Home Navigator System
49005
ENTER
.
