Installing the System
be located inside, next to, or away from the panel cabinet
(see Figure 5). The panel cabinet may accommodate up to:
q 3 SuperBus 2000 input/output modules,
q 1 Voice Siren 25/70 Volt Converter Card,
q and 2 AC Power Transformers.
To wire SuperBus 2000 devices to the SuperBus connectors
you must use the Panel SuperBus Wiring Harnesses (49-
462) included with the accessory kit. You must splice all
SuperBus 2000 module and touchpad wiring to the wires on
these harnesses. Both SuperBus connectors are the same,
and any combination of SuperBus devices (up to 31) may
be wired to either connector. When all of the SuperBus
2000 devices are wired, plug each wiring harness into a
SuperBus connector.
Note
The +12 VDC (RED) lead on the SuperBus wiring har-
ness is current limited to 650 mA. If the total current draw
for all devices on either SuperBus connector exceeds
650 mA, another power source must be used—such as
Terminal 4 (+12V) or an external +_12V power supply.
SPACE FOR
2ND TRANSFORMER
HIM/HOM/DUAL PHONE LINE MODULE
8543264A.DSF

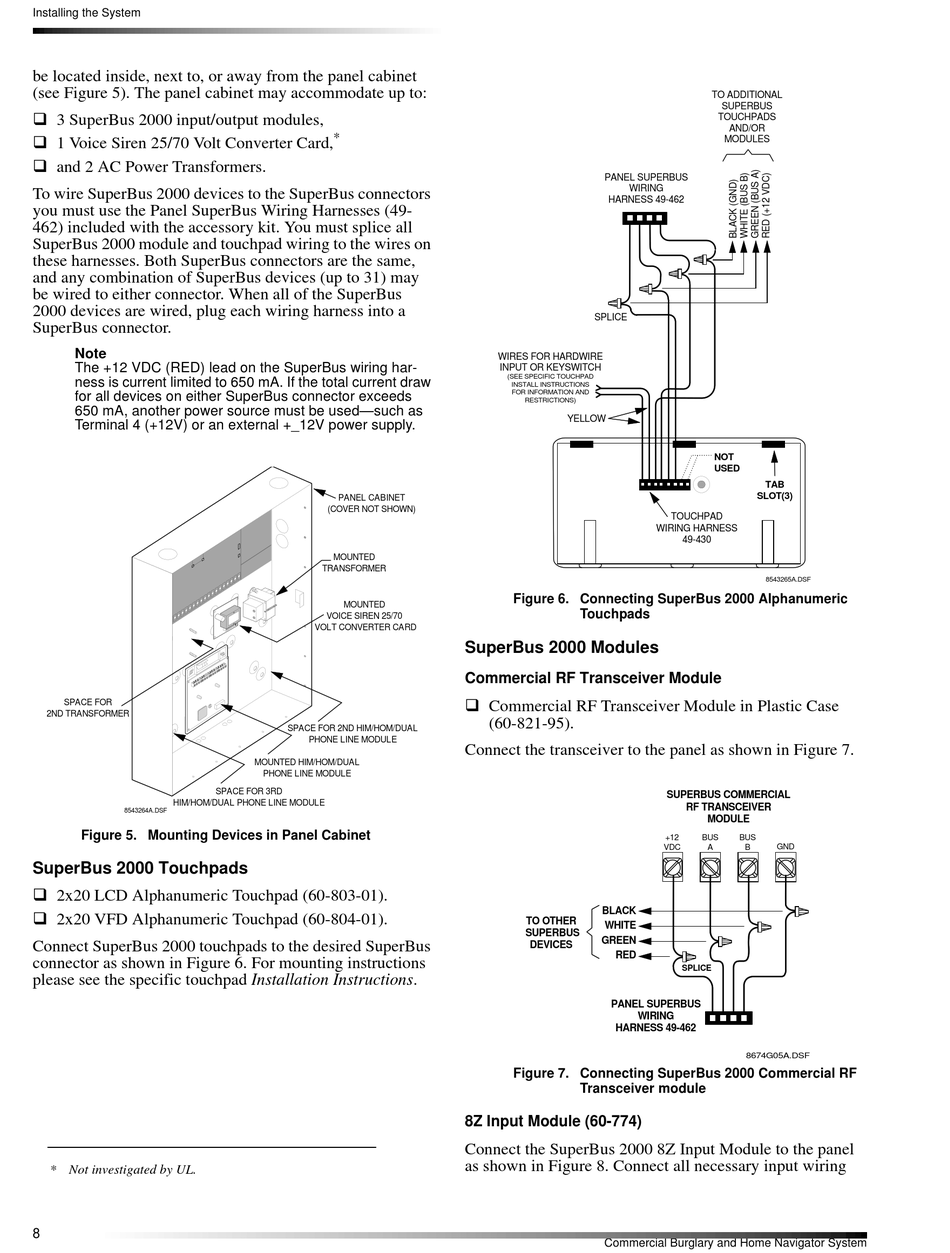

Figure 5. Mounting Devices in Panel Cabinet
SuperBus 2000 Touchpads
q 2x20 LCD Alphanumeric Touchpad (60-803-01).
q 2x20 VFD Alphanumeric Touchpad (60-804-01).
Connect SuperBus 2000 touchpads to the desired SuperBus
connector as shown in Figure 6. For mounting instructions
please see the specific touchpad Installation Instructions.
* Not investigated by UL.
8
*
PANEL CABINET
(COVER NOT SHOWN)
MOUNTED
TRANSFORMER
MOUNTED
VOICE SIREN 25/70
VOLT CONVERTER CARD
SPACE FOR 2ND HIM/HOM/DUAL
PHONE LINE MODULE
MOUNTED HIM/HOM/DUAL
PHONE LINE MODULE
SPACE FOR 3RD
PANEL SUPERBUS
WIRING
HARNESS 49-462
SPLICE
WIRES FOR HARDWIRE
INPUT OR KEYSWITCH
(SEE SPECIFIC TOUCHPAD
INSTALL INSTRUCTIONS
FOR INFORMATION AND
RESTRICTIONS)
YELLOW
Figure 6. Connecting SuperBus 2000 Alphanumeric
Touchpads
SuperBus 2000 Modules
Commercial RF Transceiver Module
q Commercial RF Transceiver Module in Plastic Case
(60-821-95).
Connect the transceiver to the panel as shown in Figure 7.
BLACK
TO OTHER
WHITE
SUPERBUS
GREEN
DEVICES
RED
PANEL SUPERBUS
WIRING
HARNESS 49-462
Figure 7. Connecting SuperBus 2000 Commercial RF
Transceiver module
8Z Input Module (60-774)
Connect the SuperBus 2000 8Z Input Module to the panel
as shown in Figure 8. Connect all necessary input wiring
Commercial Burglary and Home Navigator System
TO ADDITIONAL
SUPERBUS
TOUCHPADS
AND/OR
MODULES
NOT
USED
TAB
SLOT (3)
TOUCHPAD
WIRING HARNESS
49-430
8543265A.DSF
SUPERBUS COMMERCIAL
RF TRANSCEIVER
MODULE
BUS
+12
BUS
VDC
A
B
GND
SPLICE
8674G05A.DSF
