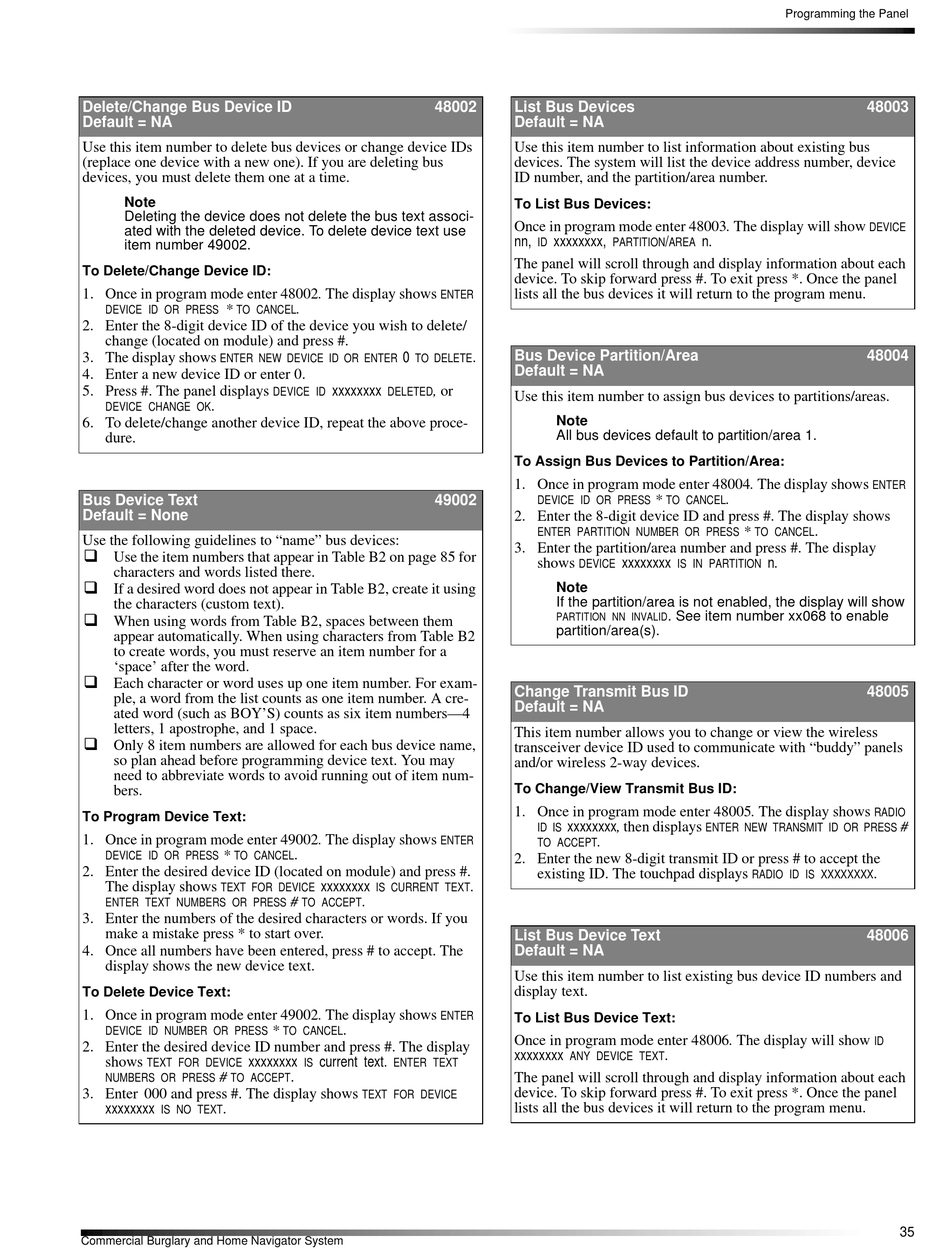

Delete/Change Bus Device ID
Default = NA
Use this item number to delete bus devices or change device IDs
(replace one device with a new one). If you are deleting bus
devices, you must delete them one at a time.
Note
Deleting the device does not delete the bus text associ-
ated with the deleted device. To delete device text use
item number 49002.
To Delete/Change Device ID:
1. Once in program mode enter 48002. The display shows
*
DEVICE ID OR PRESS
TO CANCEL
2. Enter the 8-digit device ID of the device you wish to delete/
change (located on module) and press #.
3. The display shows
ENTER NEW DEVICE ID OR ENTER
4. Enter a new device ID or enter 0.
5. Press #. The panel displays
.
DEVICE CHANGE OK
6. To delete/change another device ID, repeat the above proce-
dure.
Bus Device Text
Default = None
Use the following guidelines to "name" bus devices:
q
Use the item numbers that appear in Table B2 on page 85 for
characters and words listed there.
q
If a desired word does not appear in Table B2, create it using
the characters (custom text).
q
When using words from Table B2, spaces between them
appear automatically. When using characters from Table B2
to create words, you must reserve an item number for a
'space' after the word.
q
Each character or word uses up one item number. For exam-
ple, a word from the list counts as one item number. A cre-
ated word (such as BOY'S) counts as six item numbers—4
letters, 1 apostrophe, and 1 space.
q
Only 8 item numbers are allowed for each bus device name,
so plan ahead before programming device text. You may
need to abbreviate words to avoid running out of item num-
bers.
To Program Device Text:
1. Once in program mode enter 49002. The display shows
*
DEVICE ID OR PRESS
TO CANCEL
2. Enter the desired device ID (located on module) and press #.
The display shows
TEXT FOR DEVICE
ENTER TEXT NUMBERS OR PRESS
3. Enter the numbers of the desired characters or words. If you
make a mistake press * to start over.
4. Once all numbers have been entered, press # to accept. The
display shows the new device text.
To Delete Device Text:
1. Once in program mode enter 49002. The display shows
DEVICE ID NUMBER OR PRESS
2. Enter the desired device ID number and press #. The display
shows
xxxxxxxx
TEXT FOR DEVICE
#
NUMBERS OR PRESS
TO ACCEPT
3. Enter 000 and press #. The display shows
xxxxxxxx
.
IS NO TEXT
Commercial Burglary and Home Navigator System
48002
ENTER
.
0
TO DELETE
xxxxxxxx
, or
DEVICE ID
DELETED
49002
ENTER
.
xxxxxxxx
IS CURRENT TEXT
#
.
TO ACCEPT
ENTER
*
.
TO CANCEL
current text.
IS
ENTER TEXT
.
TEXT FOR DEVICE
List Bus Devices
Default = NA
Use this item number to list information about existing bus
devices. The system will list the device address number, device
ID number, and the partition/area number.
To List Bus Devices:
Once in program mode enter 48003. The display will show
nn,
xxxxxxxx,
ID
PARTITION
The panel will scroll through and display information about each
device. To skip forward press #. To exit press *. Once the panel
lists all the bus devices it will return to the program menu.
Bus Device Partition/Area
.
Default = NA
Use this item number to assign bus devices to partitions/areas.
Note
All bus devices default to partition/area 1.
To Assign Bus Devices to Partition/Area:
1. Once in program mode enter 48004. The display shows
DEVICE ID OR PRESS
2. Enter the 8-digit device ID and press #. The display shows
ENTER PARTITION NUMBER OR PRESS
3. Enter the partition/area number and press #. The display
xxxxxxxx
shows
DEVICE
Note
If the partition/area is not enabled, the display will show
PARTITION NN INVALID
partition/area(s).
Change Transmit Bus ID
Default = NA
This item number allows you to change or view the wireless
transceiver device ID used to communicate with "buddy" panels
and/or wireless 2-way devices.
To Change/View Transmit Bus ID:
1. Once in program mode enter 48005. The display shows
xxxxxxxx, then displays
ID IS
.
TO ACCEPT
2. Enter the new 8-digit transmit ID or press # to accept the
existing ID. The touchpad displays
.
List Bus Device Text
Default = NA
Use this item number to list existing bus device ID numbers and
display text.
To List Bus Device Text:
Once in program mode enter 48006. The display will show
xxxxxxxx
ANY DEVICE TEXT
The panel will scroll through and display information about each
device. To skip forward press #. To exit press *. Once the panel
lists all the bus devices it will return to the program menu.
Programming the Panel
/
n.
AREA
*
.
TO CANCEL
*
.
TO CANCEL
n.
IS IN PARTITION
. See item number xx068 to enable
ENTER NEW TRANSMIT ID OR PRESS
RADIO ID IS XXXXXXXX
.
48003
DEVICE
48004
ENTER
48005
RADIO
#
.
48006
ID
35
