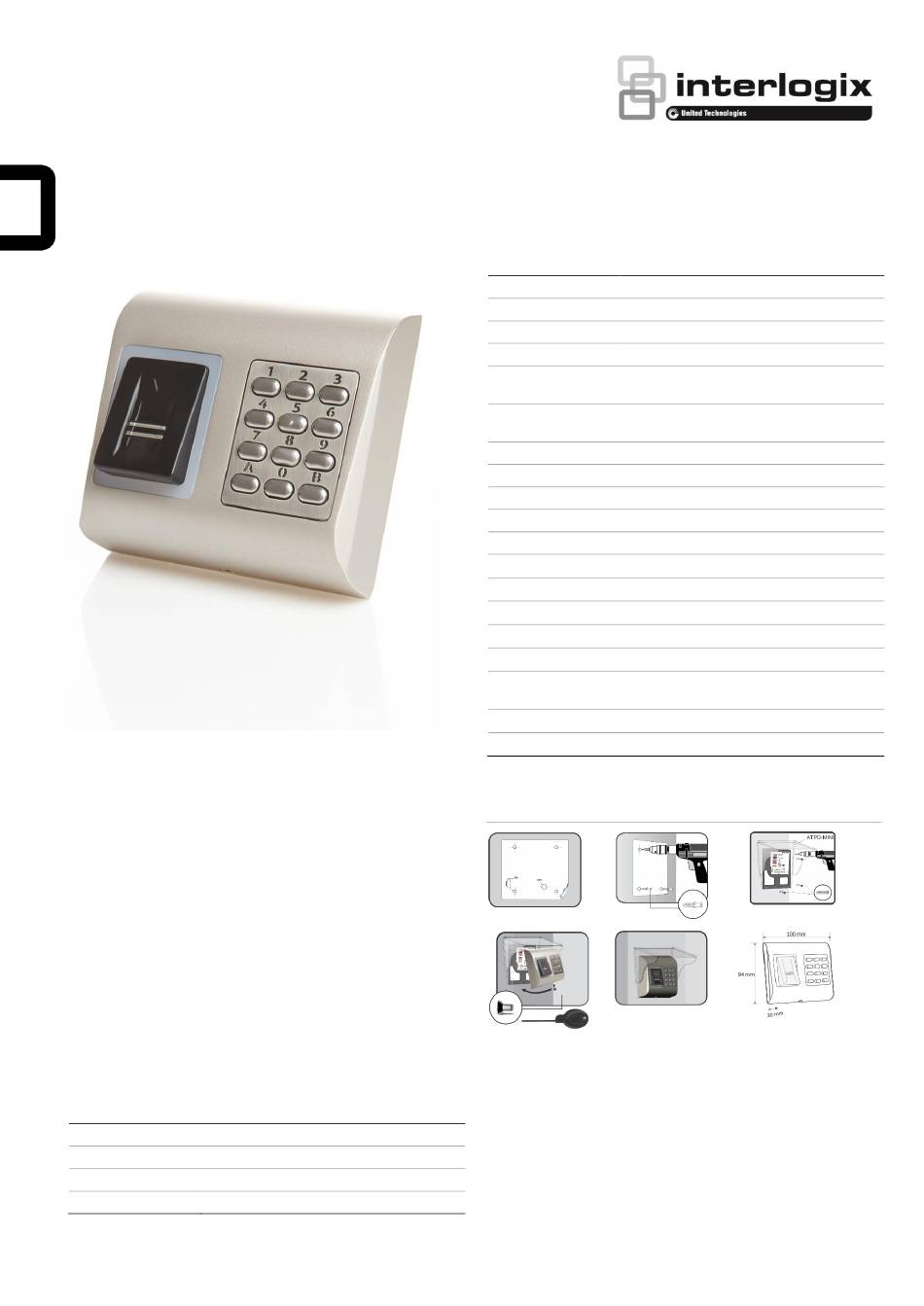

Interlogix ACL805SUW-BS Installation Manual

ACL805SUW-BS - Biometric Swipe capacitive
Keypad Wiegand Reader - Installation Manual
Description / Operation
ACL805SUW-BS is a Wiegand biometric reader for outdoors
access control applications. It offers storage up to 100
fingerprints, programmable Wiegand output (24 to 80 bits) and
selectable PIN code length.
Configuration of the readers and fingerprint enrollment is done
through PC software.
When used with third party controllers, the connection between
the Biometric readers and the PC is done through ACL800FL-
CONV-W converter (RS485 to TCP/IP). Only one converter is
needed per system (one converter for 1, 2, 3...30, 31 biometric
readers).
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall.
The sensor incorporates dedicated sensing hardware to
facilitate the detection of "spoofing" attacks based on fake
fingers. This data is embedded into the image data stream,
and is processed on the processor. The system is capable of
detecting and defeating well-known fake finger mechanisms,
such as molded "gummy" fingers.
The coating on the surface of the swipe chip sensor provides
protection from scratching and abrasion due to normal contact
with fingertips and any incidental contact with fingernails.
Specifications
Fingerprint capacity Up to 100 fingerprints
Technology Biometry and keypad
Use Outdoors
Authentication Finger, PIN code, finger or/and PIN code
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Fingerprints per user 1-10 fingerprints
Interface
Wiegand 24 to 80 bits; default: Wiegand 26bit
Protocol programming
Via ACL800 BioManager software
Cable distance 50 m
Fingerprint Sensor
Swipe capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrolment On the reader or from the USB desktop reader
Panel Connection Cable, 1 m
Green and Red LED Externally controlled
Orange LED Idle mode
Buzzer ON/OFF Yes
Yes, by software setting
Backlight ON/OFF
Yes
Tamper
150 mA
Consumption
65
IP Rating
9 to 14 VDC
Power supply
Operating
-20 to +50°C noncondensing
Temperature
100 x 94 x 30 mm
Dimensions
Moulded aluminium
Housing
Mounting
Figure 1: Mounting instructions
If the biometric reader is installed and used outdoor, the reader
MUST be fitted with a cover in order to protect the sensor from
direct rainfall. The operating temperature of the product is
between -15 to + 50ºC. If the reader is installed in an
environment where the temperature can drop below -10ºC
or/and if the sensor could only be exposed to direct sunlight, it
is strongly recommended to install the reader inside a third
party sealed wall mount box (fitted with additional heater if very
low temperature) to keep a constant sensor level performance.
P/N 1073513A• REV 00.00 • ISS 4JUL18
