using the Installation Instructions included with the mod-
ule.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
BLACK
TO OTHER
WHITE
SUPERBUS
GREEN
DEVICES
RED
PANEL SUPERBUS
HARNESS 49-462

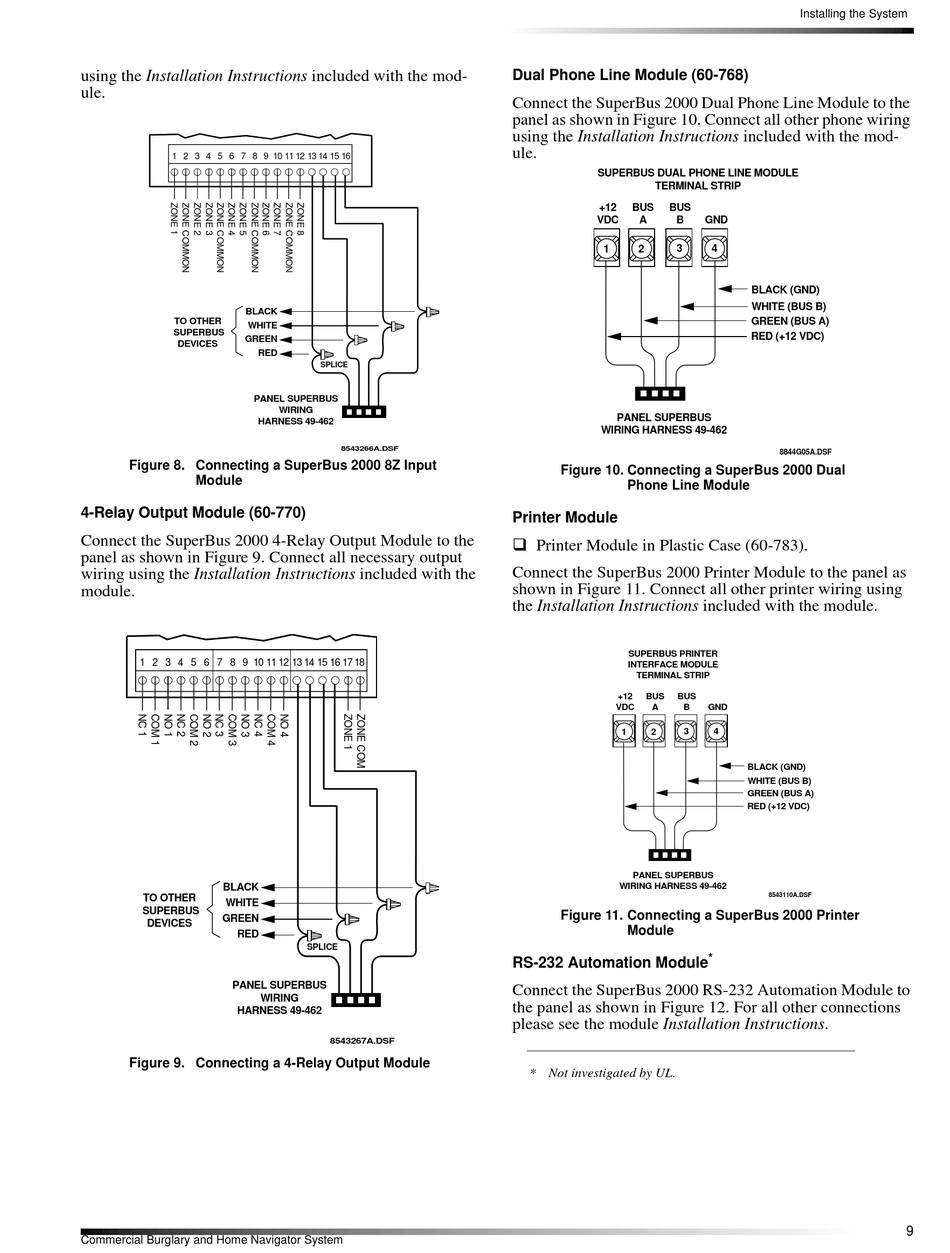

Figure 8. Connecting a SuperBus 2000 8Z Input
Module
4-Relay Output Module (60-770)
Connect the SuperBus 2000 4-Relay Output Module to the
panel as shown in Figure 9. Connect all necessary output
wiring using the Installation Instructions included with the
module.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
BLACK
TO OTHER
WHITE
SUPERBUS
GREEN
DEVICES
RED
PANEL SUPERBUS
HARNESS 49-462
Figure 9. Connecting a 4-Relay Output Module
Commercial Burglary and Home Navigator System
SPLICE
WIRING
8543266A.DSF
SPLICE
WIRING
8543267A.DSF
Dual Phone Line Module (60-768)
Connect the SuperBus 2000 Dual Phone Line Module to the
panel as shown in Figure 10. Connect all other phone wiring
using the Installation Instructions included with the mod-
ule.
SUPERBUS DUAL PHONE LINE MODULE
TERMINAL STRIP
+12 BUS BUS
VDC A B
3
1 2
PANEL SUPERBUS
WIRING HARNESS 49-462
Figure 10. Connecting a SuperBus 2000 Dual
Phone Line Module
Printer Module
q Printer Module in Plastic Case (60-783).
Connect the SuperBus 2000 Printer Module to the panel as
shown in Figure 11. Connect all other printer wiring using
the Installation Instructions included with the module.
SUPERBUS PRINTER
INTERFACE MODULE
TERMINAL STRIP
+12 BUS BUS
VDC A B
1 2 3
PANEL SUPERBUS
WIRING HARNESS 49-462
Figure 11. Connecting a SuperBus 2000 Printer
Module
RS-232 Automation Module
Connect the SuperBus 2000 RS-232 Automation Module to
the panel as shown in Figure 12. For all other connections
please see the module Installation Instructions.
* Not investigated by UL.
Installing the System
GND
4
BLACK (GND)
WHITE (BUS B)
GREEN (BUS A)
RED (+12 VDC)
8844G05A.DSF
GND
4
BLACK (GND)
WHITE (BUS B)
GREEN (BUS A)
RED (+12 VDC)
8543110A.DSF
*
