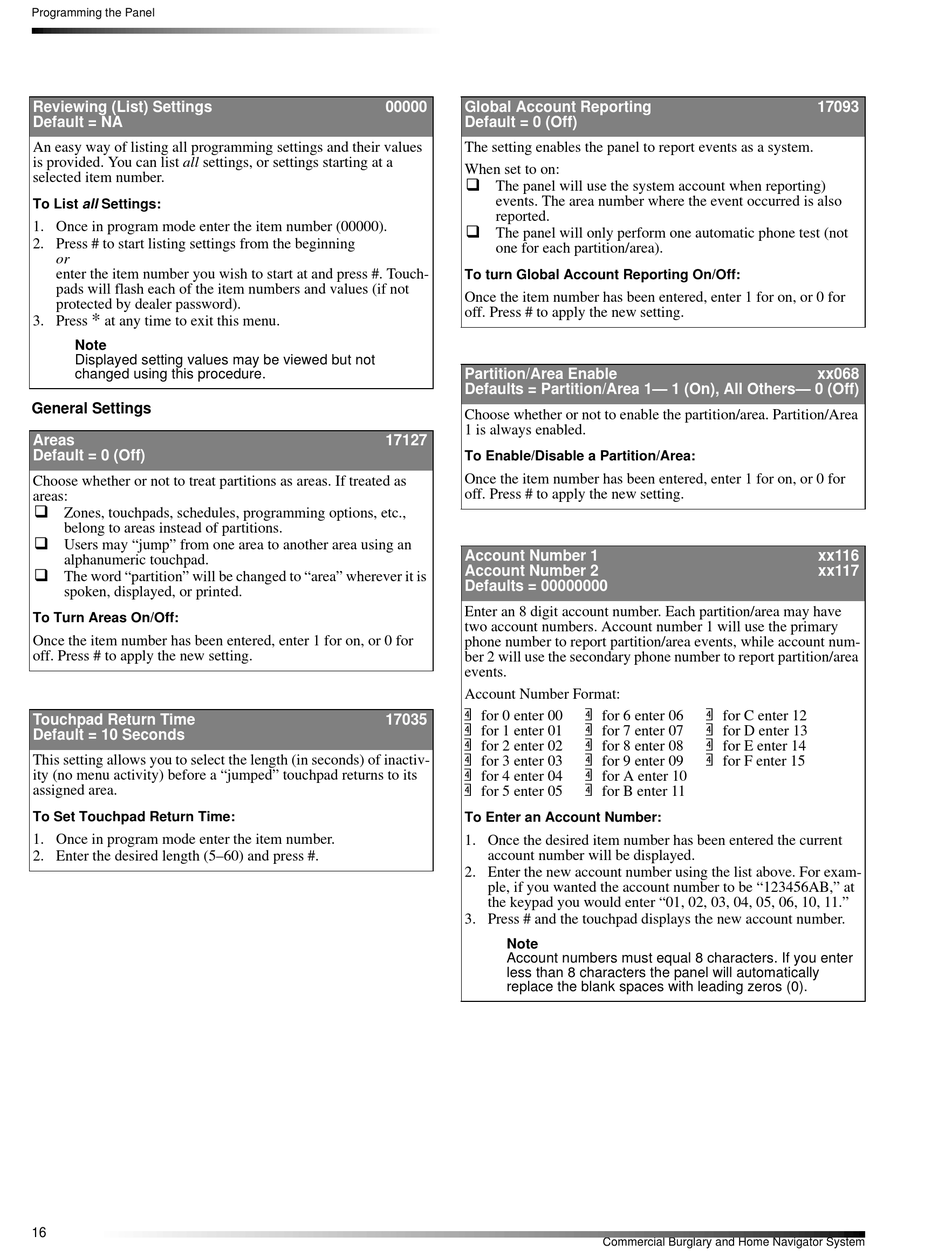

Programming the Panel
Reviewing (List) Settings
Default = NA
An easy way of listing all programming settings and their values
is provided. You can list all settings, or settings starting at a
selected item number.
To List all Settings:
1. Once in program mode enter the item number (00000).
2. Press # to start listing settings from the beginning
or
enter the item number you wish to start at and press #. Touch-
pads will flash each of the item numbers and values (if not
protected by dealer password).
*
3. Press
at any time to exit this menu.
Note
Displayed setting values may be viewed but not
changed using this procedure.
General Settings
Areas
Default = 0 (Off)
Choose whether or not to treat partitions as areas. If treated as
areas:
q
Zones, touchpads, schedules, programming options, etc.,
belong to areas instead of partitions.
q
Users may "jump" from one area to another area using an
alphanumeric touchpad.
q
The word "partition" will be changed to "area" wherever it is
spoken, displayed, or printed.
To Turn Areas On/Off:
Once the item number has been entered, enter 1 for on, or 0 for
off. Press # to apply the new setting.
Touchpad Return Time
Default = 10 Seconds
This setting allows you to select the length (in seconds) of inactiv-
ity (no menu activity) before a "jumped" touchpad returns to its
assigned area.
To Set Touchpad Return Time:
1. Once in program mode enter the item number.
2. Enter the desired length (5–60) and press #.
16
00000
Global Account Reporting
Default = 0 (Off)
The setting enables the panel to report events as a system.
When set to on:
q
The panel will use the system account when reporting)
events. The area number where the event occurred is also
reported.
q
The panel will only perform one automatic phone test (not
one for each partition/area).
To turn Global Account Reporting On/Off:
Once the item number has been entered, enter 1 for on, or 0 for
off. Press # to apply the new setting.
Partition/Area Enable
Defaults = Partition/Area 1— 1 (On), All Others— 0 (Off)
Choose whether or not to enable the partition/area. Partition/Area
1 is always enabled.
17127
To Enable/Disable a Partition/Area:
Once the item number has been entered, enter 1 for on, or 0 for
off. Press # to apply the new setting.
Account Number 1
Account Number 2
Defaults = 00000000
Enter an 8 digit account number. Each partition/area may have
two account numbers. Account number 1 will use the primary
phone number to report partition/area events, while account num-
ber 2 will use the secondary phone number to report partition/area
events.
Account Number Format:
o
for 0 enter 00
17035
o
for 1 enter 01
o
for 2 enter 02
o
for 3 enter 03
o
for 4 enter 04
o
for 5 enter 05
To Enter an Account Number:
1. Once the desired item number has been entered the current
account number will be displayed.
2. Enter the new account number using the list above. For exam-
ple, if you wanted the account number to be "123456AB," at
the keypad you would enter "01, 02, 03, 04, 05, 06, 10, 11."
3. Press # and the touchpad displays the new account number.
Note
Account numbers must equal 8 characters. If you enter
less than 8 characters the panel will automatically
replace the blank spaces with leading zeros (0).
o
o
for 6 enter 06
for C enter 12
o
o
for 7 enter 07
for D enter 13
o
o
for 8 enter 08
for E enter 14
o
o
for 9 enter 09
for F enter 15
o
for A enter 10
o
for B enter 11
Commercial Burglary and Home Navigator System
17093
xx068
xx116
xx117
