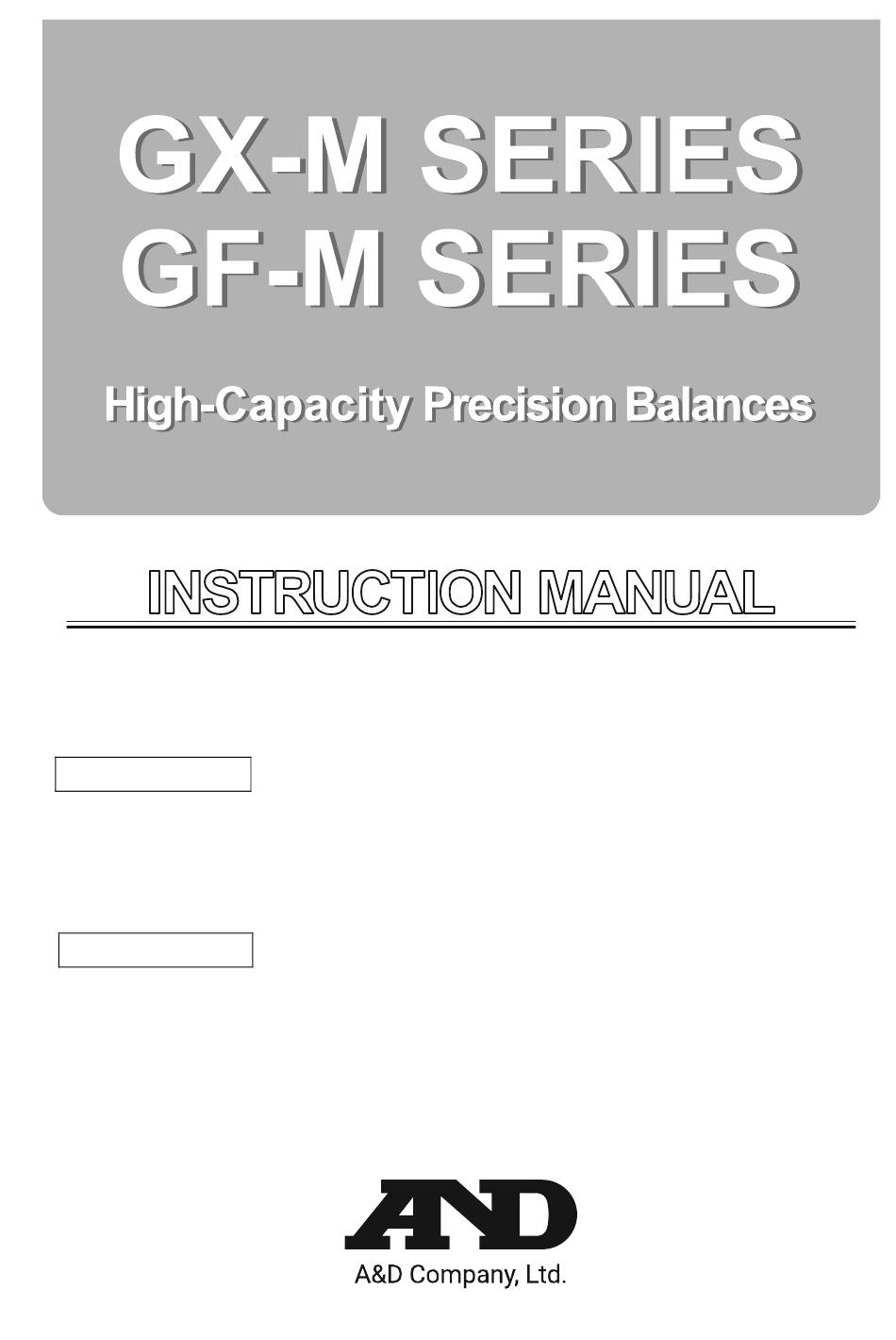

A&D GX-M Series Instruction Manual

High-capacity precision balances
Hide thumbs Also See for GX-M Series:
Table of Contents

Advertisement

Quick Links

Download this manual
GX-M series
GX-8202M / GX-8202MD / GX-10202M / GX-12001M
GX-22001M /GX-32001M / GX-32001MD
GF-M series
GF-8202M / GF-8202MD / GF-10202M / GF-12001M
GF-22001M / GF-32001M / GF-32001MD
1WMPD4003846A

Advertisement

Table of Contents
loading

Related Manuals for A&D GX-M Series

Summary of Contents for A&D GX-M Series

  • Page 1 GX-M series GX-8202M / GX-8202MD / GX-10202M / GX-12001M GX-22001M /GX-32001M / GX-32001MD GF-M series GF-8202M / GF-8202MD / GF-10202M / GF-12001M GF-22001M / GF-32001M / GF-32001MD 1WMPD4003846A...
  • Page 2 © 2020 A&D Company Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company Ltd. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.

  • Page 3: Table Of Contents

    9-5 How to set the External Weight Value ....................41 9-6 Correcting The Internal Mass Value Of The GX-M series ..............42 9-7 Correcting The Internal Mass Value Of The GX-M series (Auto) .............. 43 10. Function Switch And Initialization ................44...
  • Page 4 10-2 Initializing The Balance ........................46 11. Function Table ......................47 11-1 Setting The Function Table ......................... 47 11-2 Details Of The Function Table ......................49 11-3 Description Of The Class "Environment, Display" ................56 11-4 Description Of The Data Output ......................57 11-5 Description Of The Data Format ......................
  • Page 5 21-5 Changing Password ......................... 129 21-6 How To Delete The Password（U5ER 01~10） ................. 130 21-7 Missing Password ..........................130 22. Repeatability Check Function (GX-M series only） ..........131 23. Interface Specification（Standard） ................ 132 24. Maintenance ......................132 24-1 Treatment Of The Balance....................... 132 25.

  • Page 6: Introduction

    (mass per sample in counting mode) (Up to 200 items are stored for weighing value). The GX-M series has automatic self calibration using the internal mass, adapting to temperature □ changes, setting time and interval time.

  • Page 7: About The Models

    GX-32001M / GX-32001MD GF-32001M / GF-32001MD □ For the GX-M series, a weight for sensitivity adjustment is built in. It is possible to use functions such as calibration and auto calibration using the internal mass. □ For the GF-M series, sensitivity adjustment weights are not built-in. When calibrating, it is necessary to prepare an external weight.

  • Page 8: About Communication Manual

    1-4 About Communication Manual About the contents of the communication, download "Communication manual" from our website (https://www.aandd.jp/) and refer to it.

  • Page 9: Unpacking The Balance

    2. Unpacking The Balance The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used for transporting the balance in the future. Weighing pan The packing contents depend on the balance model. See the illustrations to Pan support confirm that everything is contained.

  • Page 10: Installing The Balance

    2-1 Installing The Balance Install the balance as follows: 1 Refer to "3. Precautions" for installing the balance. Bubble sprit level 2 Install the pan support, weighing pan and draft gate. Good No good Refer to the previous page. 3 Adjust the leveling feet to level the balance. Leveling foot Confirm it using the bubble spirit level.

  • Page 11: Precautions

    3.Precautions To get the optimum performance from the balance and acquire accurate weighing data, note the following: 3-1 Before Use The maximum resolution of the precision balance is one million counts. Therefore, there are tendencies to be influenced by temperature change, air pressure change, vibration and drafts where the balance is placed.

  • Page 12: During Use

    3-2 During Use Discharge static electricity from the weighing material. When Material case weighing sample (plastics, insulator, etc.) could have a static Charged sample charge, the weighing value is influenced. Ground the balance, and Eliminate the static electricity by AD-1683 as an accessory. Or try to keep the ambient humidity above 45%RH at the room.

  • Page 13: Power Supply

    Do not allow the balance to be immersed in water. Even though the balance complies with IP code, the balance will not withstand being completely immersed in water. The weighing pan, pan support and draft gate can be removed to clean the balance. Clean by splashing with water.

  • Page 14: Display Symbols And Key Operation

    4.Display Symbols And Key Operation Display symbols Number of statistical data (Statistical calculation mode) Displays the weight data relative to the weighing capacity, in percentage, in the weighing mode (Capacity indicator) Preset tare mark Response indicators Gross mark Comparator indicators Net mark Animal weighing mark NET G PT...
  • Page 15 Refer to "5. Weighing ". Function. Performs calibration of the balance using Displays other items of the calibration the internal mass. (GX-M series only) menu. Stores the weighing data in memory or Enters mode to change the unit mass outputs to a printer or personal computer registration number in counting mode.

  • Page 16: Smart Range Function

    4-1 Smart Range Function The GX-8202MD, GF-8202MD, GX-32001MD and GF-32001MD are equipped with two ranges of "precision range" of a higher resolution and "standard range" of normal resolution. The range is switched automatically depending on the value displayed. Placing a heavy container on the weighing pan and pressing the RE-ZERO key allows the balance to weigh in the precision range.

  • Page 17: Weighing Units

    5.Weighing Units 5-1 Units With the GX-M /GF-M series balance, the following weighing units and weighing modes are available : mom dwt Counting mode Percent mode Density mode (To use this mode, it must be stored in the function table as described on page 15.
  • Page 18 Note: The blinking processing indicator with “g” indicates that the density mode is selected. The tables below indicate the weighing capacity and the minimum display for each unit, depending on the balance model. GX-8202M GX-10202M GX/GF-M GF-8202M GF-10202M minimum Unit Capacity Capacity display...
  • Page 19 GX-12001M GX-22001M GX-32001M GX/GF-M GF-12001M GF-22001M GF-32001M Minimum Unit Capacity Capacity Capacity display Gram 12200 22200 32200 Kilogram 12.2 22.20 32.20 0.0001 Ounce (Avoir) 1136 0.005 Pound 26.9 48.9 71.0 0.0005 Pound/Ounce L oz 26L 14.3oz 48L 15oz 70L 15.8oz 0.01 Troy Ounce 1035...
  • Page 20 GX-8202MD GX/GF-M GF-8202MD Standard range Precision range Minimum Minimum Unit Capacity Capacity display display Gram 8200 2200 0.01 Kilogram 8.20 0.0001 2.20 0.0001 Ounce (Avoir) 0.005 77.6 0.0005 Pound 18.0 0.0005 4.85 0.00005 Pound/Ounce L oz 18L 1.2oz 0.01 4L 13.6oz 0.001 Troy Ounce 0.005...
  • Page 21 GX-32001MD GX/GF-M GF-32001MD Standard range Precision range Unit Minimum Minimum Capacity Capacity display display Gram 32200 6200 Kilogram 32.2 0.001 6.20 0.0001 Ounce (Avoir) 1136 0.05 0.005 Pound 71.0 0.005 13.6 0.0005 Pound/Ounce L oz 70L 15oz 13L 10.6oz 0.01 Troy Ounce 1035 0.05...

  • Page 22: Storing Units

    5-2 Storing Units The units or modes can be selected and stored in the function table. The sequence of displaying the units or modes can be arranged to fit the frequency of use. The units stored are maintained in non-volatile memory, even if the AC adapter is removed. Select a unit or mode and arrange the sequence of display as follows: 1.
  • Page 23 Unit setting example The example below sets the units in the order with g (gram) as the first unit followed by pcs (counting mode). 1. Press and hold the SAMPLE key (for 2 seconds) until ba5fnc the function table is displayed, then Press and hold release the key.

  • Page 24: Weighing

    6.Weighing 6-1 Basic Operation 1. Press MODE key, and then select the appropriates units In this case, select " ". Weighing 2. Place a container on the weighing pan, if necessary. Press the RE-ZERO key to cancel the weight (tare). Container 0.
  • Page 25 About the operation at when power is turned on The balance will decide the reference zero point when the power is turned on (AC adapter is connected). Depending on the load condition at that time, it will automatically judge whether to perform zero or tare operation.

  • Page 26: Counting Mode（Pcs

    6-2 Counting Mode（PCS） This is the mode to determine the number of objects in a sample based on the standard sample unit mass. Unit mass means the mass of one sample. The smaller the variables in each sample unit mass is, the more accurate the counting will be.
  • Page 27 Counting Mode Using The ACAI Function The ACAI is a function that improves the accuracy of the unit mass automatically by increasing the number of samples as the counting process. ACAI: Automatic Counting Accuracy Improvement After registering unit mass of "5", proceed to the following "7". Processing mark 7.

  • Page 28: Percent Mode (％)

    6-3 Percent Mode (％) The percent mode displays the weighting value in percentage compared to a 100% reference mass and is used for target weighing or checking the sample variance. Selecting The Percent Mode 1. Press the MODE key to select the unit % (Percent mode). Storing The 100% Reference Mass 2.

  • Page 29: Animal Weighing Mode（Hold Function

    6-4 Animal Weighing Mode（Hold Function） This is the mode to weigh a moving object such as an animal, even when the display of the weighing data fluctuates. The hold function allows the average weight of the animal to be displayed. To use the hold function, set the function in the function table.

  • Page 30: Impact Detection Function

    7. Impact Detection Function The GX-M / GF-M series has a function to detect impact to the mass sensor section and to display the impact level. By lowering the impact level at the time of loading, it is possible not only to alleviate variation in the weighing value but also to reduce the risk of failure of the mass sensor section.

  • Page 31: Recording Impact History

    7-1 Recording Impact History Impacts of impact level 3 or higher are stored on the balance with data and time included (maximum 50 data instances). When the password lock function is on ( LOcK 1 or Lock2 ), the login user information is added when outputting the impact history.
  • Page 32 Impact history output example Date, time, impact level, login and login user information are output together on one line. The login user information varies by the setting of the login user and the setting of Function table LOcK when receiving impact. Output Login user Function table LOcK...

  • Page 33: Response Adjustment / Self Check Function

    8. Response Adjustment / Self Check Function This function stabilizes the weight value, reducing the influence on weighing that is caused by drafts and/or vibration at the place where the balance is installed. This function adjusts by automatically analyzing the environment or by hand-operation.

  • Page 34: Self-Check-Function / Automatic Setting Of Minimum Weight Value

    8-2 Self-Check-Function / Automatic Setting Of Minimum Weight Value The self-check function can easily check about whether proper performances are satisfied for the balance by checking and displaying repeatability in addition to malfunction check. In addition, it can also display and store minimum weighing value (reference value) using data of the repeatability.
  • Page 35 8. To return to check result display Press the SAMPLE key to return to check result display in Step 4. * Refer to “17. Minimum Weighing Warning Function” for warning function of minimum weighing value. Setting flow chart Press and hold (for 2 seconds) ①...

  • Page 36: Calibration

    Auto calibration ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Automatically adjust the balance using the internal mass depending on the temperature change of the operating environment or the set time and interval time.（GX-M series） Calibration using the internal mass ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Using the internal mass, adjust the balance with a single touch.

  • Page 37: Automatic Self Calibration For The Gx-M Series

    Do not allow vibration or drafts to affect the balance while the indicator is displayed. 9-1 Automatic Self Calibration For The GX-M Series This function automatically calibrates the balance using the internal weight due to a temperature change in the ambient environment, time set or interval time. It can function even when the balance’s display is in off.

  • Page 38: One-Touch Calibration For The Gx-M Series

    Correct the internal mass value as necessary. Refer to "9-6. Correcting The Internal Mass Value Of The GX-M series", "9-7. Correcting The Internal Mass Value Of The GX-M series (Auto)". Since the internal mass is about 850g, the possibility of error may increase as the weighing value incereases.

  • Page 39: Calibration Using An External Weight

    (for 2 seconds) 2. Press and hold the CAL key (for 2 seconds) until Displayed only on GX-M series) Calout is displayed, then release the key. 3. Make sure that nothing is on the weighing pan and press the PRINT key to weigh the zero point.

  • Page 40: Calibration Test Using An External Weight

    Press and Hold (for 2 seconds) (Displayed only when dout, data2) (Displayed only on GX-M series) 1. Connect the AC adapter and warm up the balance for at least 30 minutes with nothing on the weighing pan.

  • Page 41: How To Set The External Weight Value

    9-5 How to set the External Weight Value When calibrating the balance or performing a calibration test, the external weight you have on hand can be set. (Refer to "Usable calibration weight" on Page 37.) After Cal 0 is displayed, the external weight value can be set as shown in "9-3.Calibration Using An External weight".

  • Page 42: Correcting The Internal Mass Value Of The Gx-M Series

    9-6 Correcting The Internal Mass Value Of The GX-M series Internal mass value can be corrected with function setting There is one correction method, as follows. Auto ꞏꞏꞏꞏꞏꞏꞏꞏ This is a method of correcting the internal mass weight value based on an external weight.

  • Page 43: Correcting The Internal Mass Value Of The Gx-M Series (Auto)

    9-7 Correcting The Internal Mass Value Of The GX-M series (Auto) Calibrate referring to "9-3. Calibration Using An External weight". This is method of correcting the internal mass weight value based on an external weight. After calibration with the external mass, the balance automatically loads and unloads the internal mass and corrects the internal mass value.

  • Page 44: Function Switch And Initialization

    Clr ) . Press the CAL key and return ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ to the weighing mode Example of GX-M series The display shown left indicates the factory settings. Function table To inhibit changes to the function table. To permit changes to the function table.
  • Page 45 Example of GX-M series The display shown left indicates the factory settings. Function table To inhibit changes to the function table. To permit changes to the function table. No function Calibration using an external weight To inhibit calibration using an external weight.

  • Page 46: Initializing The Balance

    10-2 Initializing The Balance This function returns the following parameters to factory settings. □ Calibration data □ Function table The sample unit mass value (counting mode), 100% reference mass value (percent mode) □ The data that is stored in the balance using the data memory function W it h p res s i ng H ol d □...

  • Page 47: Function Table

    11.Function Table The function table reads or rewrites the parameters that are stored in the balance. These parameters are maintained in non-volatile memory, even if the AC adapter is removed. The function table menu consists of two layers. The first layer is the "Class" and the second layer is the "Item".
  • Page 48 Setting Example This example sets "Stores weighing data (dAtA 2)" for "Data memory (dAtA)" and "1 minute (int 5)" for "Interval time (int )". Step 1. Press and hold (for 2 seconds) Class / Item Step 2. Press several times Step 3.

  • Page 49: Details Of The Function Table

    11-2 Details Of The Function Table Class Item Description Parameter Cond Fast response, sensitive value Can be changed by response Condition adjustment. With "Hold 1", sets the averaging time. Slow response, stable value The stabilization indicator 5t-b Stable when within ± 1 digit illuminates with the display Stability band width fluctuation within the range.
  • Page 50 Class Item Description Parameter No comparison Cp fnc 【02】 Comparison when stable value or overloaded Comparator mode Comparator Continuous comparison Cp-t 3 stage comparator HI, OK, LO Number of comarator 5 stage comparator HH, HI, OK, LO, LL stages Also comare near zero ±...
  • Page 51 Note: "Digit" is a unit of minimum weighing value. Parameter Class Item Description bep HH Displayed only when 5 step HH buzzer comparator is set. bep Hi Cp beep 【04】 HI buzzer Comparator buzzer OK buzzer bep lo LO buzzer bep ll Displayed only when 5 step comparator is set.
  • Page 52 Class Item Description Parameter dout 【05】 data Refer to "13．Data Memory" Stores unit mass in counting mode Data memory Data output mode Stores the weighing data and calibration history Stores comparator setting values Stores tare values Interval time in the interval Every measurement memory mode when using Interval time...
  • Page 53 Class Item Description Parameter All communication setting are possible. 【06】 can be selected. Printer Only Access point Serial interface External indicator 600bps 1200bps Baud rate 2400bps 4800bps 9600bps 19200bps 38400bps 7 bit EVEN btpr 7 bit ODD Data bit, parity bit 8 bit NONE Crlf CR: ASCII 0Dh code...
  • Page 54 Class Class Item Item Description Description Parameter Parameter Normal weighing mode Normal weighing mode Refer to Capacity indicator Capacity indicator "11-11.Description Of ap fnc ap fnc Application" 【10】 Application Application Statistical calculation mode Statistical calculation mode mode mode Application Application Flow measurement mode Flow measurement mode function...
  • Page 55 Setting temparature Setting time Calibration mode 【17】 Interval time Auto calibration Refer to " 9-1 Automatic Self calibration Setting time1 For The GX-M Series " Setting time2 Setting time3 Interval time C5in Refer to "9-7 Correcting The 【18】 Automatic input...

  • Page 56: Description Of The Class "Environment, Display

    11-3 Description Of The Class "Environment, Display" Condition ( Cond ) This parameter is for sensitive response to the fluctuation of a mass value. Used for powder target mass, weighing a very light sample or when quick response weighing is required. After setting, the balance displays FAST .

  • Page 57: Description Of The Data Output

    Display refresh rate ( 5pd ) The periodic time to refresh the display. This parameter influences "Baud rate", "Data output pause" and the data output rate of "Stream mode". Decimal point ( pnt ) The decimal point format can be selected. Auto display-ON ( p-on ) When the AC adapter is plugged in, the display is automatically turned on without the ON:OFF key operation, to display the weighing mode.

  • Page 58: Clock And Calendar Function

    11-7 Clock And Calendar Function The balance is equipped with a clock and calendar function. When the Clock and Calender function （dout、 5-td） is set, the time and date are added to the output data. Set or confirm the time and date as follows: Press and hold (for 2 seconds) Operation...
  • Page 59 Setting the date Set the date using the following keys. (The year is set with the last 2digits of the Christian era) RE-ZERO (＋)key ..To increase the value by one. key ..To decrease the value by one. MODE ( －...

  • Page 60: Comparator Function

    11-8 Comparator Function The comparison of comparators can select 3-steps or 5-steps (Cp fnc, Cp-t), and it is set to 3-steps at the factory setting. When 3-step comparator is set, the results of the comparison are indicated by the display. When 5-step comparator is set, HH is indicated by HI blinking and LL by blinking.
  • Page 61 Selecting the comparator stage (3 stages/5 stages) 1. Press and hold the SAMPLE key (for 2 seconds) to display Press and hold bA5Fnc of function settings. (for 2 secons) bA5Fnc 2. Press the SAMPLE key several times to display CP fnc Press several times CP Fnc 3.
  • Page 62 Example1 （Always compare except "near zero" ± 20 digits and digitally input reference value and scope.） Selecting a comparator mode (Input scope, comparison criteria and value.) Keep pressing and holding (for 2 seconds) 1. Press and hold the SAMPLE key (for 2 seconds) until 1ba5fnc of the function table is displayed, then release the key.
  • Page 63 Entering the values 10. With displayed, press the PRINT key. 11. Display 12. Press the PRINT key. 13. The current setting value is displayed with all of the digits blinking. 14. When the current setting is not to be changed, press The current setting is the PRINT or CAL key to go to "15".
  • Page 64 Example 2 （Continuous comparison, including "near zero", reference value and tolerance value.） Selecting a comparator mode 1. Press and hold the SAMPLE (for 2 seconds) key until 1ba5fnc of the function table is displayed, then release Keep pressing and holding the key.
  • Page 65 Entering the reference and tolerance values When is displayed, press the PRINT key. will be displayed. When is displayed, press the PRINT key to check the currently set value (all blinking). Press the RE-ZERO key to enter the load input mode. 0.

  • Page 66: Adding The Comparison Results

    Sound the built-in buzzer corresponding to the comparison result. 1 Press and hold the SAMPLE key (for 2 seconds) until ba5fnc of the function table is displayed. Press and Hold (for 2 seconds) 2 Press the SAMPLE key several times to display Cp beep . Press several times 3 Press the PRINT key.

  • Page 67: Main Display Comparison Function

    11-10 Main Display Comparison Function The main display comparison function displays the comparison results in a magnified way, on the main portion of the display in place of the weight value. Selecting a unit Step 1 Press the MODE key to select a unit to be used for comparison. Note While the main display comparison function is in use, unit selection using the MODE key is not available.

  • Page 68: Description Of Application

    Weighing data and Main display comparison Comparison results (Standard display) (The processing indicator illuminates) Each press alternates the display 0 . 0 0 . 0 Example: a sample of 1 kg is placed. 1 0 0 0 . 0 Example: a sample of 2 kg is placed. 2 0 0 0 .

  • Page 69: Outputting The Function Setting Information

    Description of the flow measurement mode apf 3 It is a function to calculate the flow measurement . Refer to "15.Flow Measurement " . Description of the gross net tare mode apf 4 This is a function to operate the zero setting and taring separately and to output the data of Gross (total amount), Net (net amount) and Tare (tare quantity).
  • Page 70 【Output example】 Model name GX-10202M 123456789 Serial number LAB-0123 2019/01/22 Date Output a data and time for the balance Time ⓐ ⓑ ⓒ … ⓐ Class (2 characters) ⓑ Item (8 characters) ⓒ Parameter (1 character) or (12 characters) * Each one is divided using comma. * Refer to “11-2 Details Of The Function Table”...
  • Page 71 Use example 1 Outputting the function setting information to a printer Use AD-8126 Mini printer or AD-8127 Multi printer. 1. Connect the printer to the balance. When using AD-8127, set the print mode to “DUMP”. Refer to instruction manual of the printer for details of the settings or print mode. Refer to “Communication manual”...

  • Page 72: Id Number And Glp Report

    12.ID Number And GLP Report 12-1 Main Objective The ID number is used to identify the balance when Good Laboratory Practice (GLP) or Good □ Manufacturing Practice (GMP) is used. The data output compatible with "GLP/GMP" can be output to a personal computer or printer using the □...
  • Page 73 Display correspondence table 11 Segment A B C D E F G H 0 1 2 3 4 5 6 7 8 9 J K L M N O P Q R S T U V W X Y Z Space 7 Segment A B C D E F G H...

  • Page 74: Glp Report

    12-3 GLP Report Set the function setting to " info 1 " (use data of clock built in to the balance) or " info 2 " (use clock data of external equipment) to output the GLP / GMP data with a AD-8126 (mini printer), AD-8127 (multi printer) or personal computer.
  • Page 75 Output the clock data of external device info 2 ). By setting the function table "info 2" for outputting data such as GLP/GMP, the clock data of the external device such as PC or printer can be used without using the clock data of the balance. Note □...
  • Page 76 Calibration report using an external weight This is the GLP report when the balance is calibrated using the external weight. Setting of info 1 Setting of info 1 Printer format (AD-8127) PC format (RsCom) Manufacturer <TERM> A & D A &　D <TERM>...
  • Page 77 Heading and ending output Application / Operation As a method of managing weighing values, add "Heading" and "End" parts before and after the weighing value. By pressing and holding the PRINT key (for 2 seconds), "Heading" and "End" are output in turn. Note data 0 If the data memory function is used (except when...

  • Page 78: Data Memory

    13.Data Memory Data memory is a function to store weighing data and calibration data in memory. The data stored in memory are available for outputting at one time to a printer or personal computer. The following five types of data can be stored. Unit mass (Counting mode) Up to 50 sets Weighing value...
  • Page 79 Enabling data memory function 1. Press and hold the SAMPLE key (for 2 seconds) until Press and hold 1ba5fnc of the function table is displayed. (for 2 seconds) bA5Fnc Press several times 2. Press the SAMPLE key several times to display dout . dout 3.
  • Page 80 Setting the function table Parameter settings for each output mode are as follows: Auto print Data Item Data output polarity, memory Interval time Mode mode difference function Key mode prt 0 Not used data 2 prt 1 data 2 Auto print mode A ap-a 0 ～...
  • Page 81 Transmitting all memory data at one time Confirm that the "Serial interface (5if)" parameters are set properly. Press and hold (for 2 seconds) Refer to "10. Function Table" and "Communication Manual " on the A&D website. 1. Press and hold the PRINT key (for 2 seconds) until RECALL displayed, then release the key.

  • Page 82: Data Memory For Calibration And Calibration Test

    13-2 Data Memory For Calibration And Calibration Test Characteristic □ Calibration data (when and how it is performed) and calibration test data can be stored in memory. □ All the data in memory is available to be output at one time to a printer or Upper left of the display personal computer.
  • Page 83 Transmitting the memory data Press and hold the key (for 2 seconds) during weighing display. When a displayed, release Press and hold (for 2 seconds) your finger from the key to display If there is no calibration history, is displayed, Release and then the display returns to the weighing display.
  • Page 84 Deleting data stored in memory 1. Press and hold the CAL key (for 2 seconds) until is displayed, then release the key. is displayed. Press and hold 2. Press the SAMPLE key to display (for 2 seconds) 3. Press the PRINT key to display 4.

  • Page 85: Data Memory For Unit Mass In The Counting Mode

    13-3 Data Memory for Unit Mass in the Counting Mode The balance can store 50 data of unit mass for the counting mode. "p01" is the standard memory of unit mass. Another 49 data of unit mass can be stored. Even if the AC adapter is removed, the data is maintained in non-volatile memory.
  • Page 86 Notes ACAI can not be performed directly on the recalled unit mass. Using the "UN:mm" command, the unit mass can be recalled. The unit mass recalled can be output using the "?UW" command. The unit mass can be changed using the "UW:" command. "mm"...
  • Page 87 Recalling the unit mass 1. Follow steps1 through 3 in "Storing the unit mass" on the previous page, to enter the sample unit mass confirmation mode. 2. Select the unit mass number using the following keys. RE-ZERO key To increase the unit mass number by No4.

  • Page 88: Data Memory For Comparator Settings

    13-4 Data Memory for Comparator Settings The data memory function can store 20 sets of upper and lower limit values for the comparator mode. The reference value or tolerance value for the comparator mode can not be stored in memory. The upper and lower limit values in memory can be recalled easily using the MODE key and used for weighing.
  • Page 89 Notes Using the "CN:mm" command, the comparator limit values can be recalled. The upper limit value recalled can be output using the "?HI" command. The lower limit value recalled can be output using the "?LO" command. The upper limit value can be changed using the "HI:" command. The lower limit value can be changed using the "LO:"...
  • Page 90 Recalling the upper and lower limit values (Quick selection mode) The procedure below describes an easy way to recall the upper and lower limit values to be used for weighing. When the recalled upper and lower limit values are to be changed, refer to "Storing the upper and lower limit values".

  • Page 91: Data Memory For Tare Value

    13-5 Data Memory for Tare Value The data memory function can store 20 sets of tare values for weighing. The tare value in memory can be recalled easily using the MODE key and used for weighing. The tare value in memory can be recalled and changed. Notes The recalled tare value can be changed, using the digital input mode or the weighing input mode.
  • Page 92 Notes Using the "PN:mm" command, the tare value can be recalled. The tare value recalled can be output using the "?PT" command. The tare value can be changed using the "PT:" command. "mm" indicates a two-digit numeral value 01 to 20, which corresponds to t01 - t20. Weighing input mode In the weighing input mode, a sample tare container is placed on the pan to store the tare value.
  • Page 93 Recalling the tare value (Quick selection mode) The procedure below describes an easy way to recall the tare value to be used for weighing. When the recalled tare value is to be changed, refer to "Storing the tare value". 1. Set the "Data memory (data)" parameter to "4". Tare number 2.

  • Page 94: Data Memory: Quick Selection Mode

    13-6 Data Memory: Quick Selection Mode The data memory has a quick selection mode to recall data in memory quickly. Using the quick selection mode, the comparator settings or the tare value, whichever is selected in the function table, can be recalled, by a simple operation, using the MODE key. Note While the data memory function is in use, unit selection using the MODE key is not available.

  • Page 95: Data Memory: Confirmation And Storage Mode

    13-7 Data Memory: Confirmation and Storage Mode The confirmation and storage mode can change and store the recalled data. Of the three types of memory data listed below, one may be selected in the function table, and is available for changes using this mode. Unit mass in the counting mode Comparator settings Tare value...
  • Page 96 3, Select a method. To perform a weighing using the selected memory data Press the PRINT key to confirm the selection. The balance will return to the weighing mode with the selection ready for use. To change and store the selected memory data Press the SAMPLE key to enter the storage mode.

  • Page 97: Statistical Calculation Mode

    14.Statistical Calculation Mode The statistical calculation mode statistically calculates the weight data, and displays or outputs the results. To use the statistical calculation mode, set the "Application function (apf)" parameter of “Application (ap fnc)" in the function table to "2", as described below. To return to the normal weighing mode (factory setting), set "Application mode (apf)"...
  • Page 98 Selecting the statistical items to output Continue from Step4 5. Press the SAMPLE key to display 6. Press the RE-ZERO key to select the output items. In the example, output the number of data, sum, maximum, minimum, range (maximum-minimum) and average are selected.
  • Page 99 Entering data for statistical calculation Use the following keys to operate the statistical calculation mode. MODE key .... When the data is entered, moves between the displaying items (weighing mode, statistical results and data operation) each time the key is pressed. When no data has been entered, selects the unit.
  • Page 100 Outputting the statistical results Each time the MODE key is pressed, the display changes: the results as selected in “Statistical function mode output items (5taf)”, and Display the statistical result When pressing the SAMPLE key, the Output the statistical result previous item is displayed.
  • Page 101 Clearing the statistical data All the statistical data will be deleted and the number of data will be 0 (zero). 1. In the weighing mode, press the MODE key several times, to display 2. Press the PRINT key to display 3.

  • Page 102: Statistical Calculation Mode (Example Of Use)

    14-2 Statistical Calculation Mode (Example Of Use) Here, as an example of use of the statistical calculation mode, mixing of the Press and hold multiple formulae such as medicine is described. The mixing process is (for 2 seconds) recorded using the balance and the printer. In the example, the GX-10202M and the AD-8126 or AD-8127 are connected using the RS-232C serial interface.
  • Page 103 Using The Statistical Calculation Mode 1. Press the RE-ZERO key to set the display to zero. 2. Place a container on the weighing pan. Press the PRINT key to cancel the weight (tare). The 0.00 g balance displays . (Storing the tare value) Container The tare value data is output when the peripheral output equipment is connected.

  • Page 104: Flow Measurement

    15.Flow Measurement The balance has a "flow mode" that calculates the amount of change in the weighing value per hour. For details, please refer to "Supplementary information" which can be downloaded from the A&D website http://www.aandd.jp) . □ If the flow unit is set to mL/*, density can be registered. The maximum number of registrations is 10, and if density is set in advance, it can be selected according to the measurement sample.
  • Page 105 Setting of flow rate unit 5. Press the SAMPLE key to display 6. Press the RE-ZERO key to set the setting value. Parameter Contents Frd Un IT g / s (gram/second) ■ g / m (gram/minute) g / h (gram/hour) Frd Un IT mL / s (milliliter/second) mL / m (milliliter/minute)
  • Page 106 How to set flow calculation time by manual setting The flow calculation time Ct can be set by the following procedure. 1. In weighing display, press and hold the MODE key (for 2 seconds) to display 2. Calculation time can be changed by following key operation. The setting range is 1 second to 1 hour.
  • Page 107 3. Press the PRINT key to store. If the flow rate unit is g / *, the display returns to weighing display or flow display. If the flow rate unit is mL / *, the display transitions to density setting. Please refer to "How to set the density".

  • Page 108: Gross Net Tare Function

    16.Gross Net Tare Function Zero setting and taring can be operated separately, and data output for Gross (total amount), Net (net amount), Tare (tare quantity) becomes possible. When the gross net tare function is selected, the key operation is changed as follows. Operation ON:OFF key Zero setting （Operate as the...
  • Page 109 Key operation In case of setting, operate with the following keys. Function Operation Weighing value （ gross ） Update a zero point and clear a tare Within the zero range Zero setting value. （ZERO） Out of the zero range Do nothing Plus value Do tare and update a tare value Gross zero...

  • Page 110: Example Of Using The Gross Net Tare Function

    Output 1. Every time pressing the PRINT key, it will output in the order of "NET"(object), "GROSS"(total amount), "TARE"(tare). 2. Only A&D standard format, DP format and CSV format are available as output format. Output example (A&D standard format) ST,N ,+00045.67 g NET(object) ST,G ,+00055.90 g GROSS(total amaount)

  • Page 111: Minimum Weighing Warning Function

    17.Minimum Weighing Warning Function The minimum weighing value is the minimum necessary amount of sample to be used for correctly performing quantitatively performing quantitative analysis, taking into consideration measurement error of the balance. If the amount of sample is too small, the proportion of the measurement error in the measured value increases accordingly, and the reliability of the analysis result may drop.

  • Page 112: Entering And Outputting The Minimum Weighing Value

    17-2 Entering and outputting the minimum weighing value 17-2-1 Setting from function setting 【Inputting the setting value directly】 Continue from “Step 6” in “17-1 Comparing the minimum weighing value” 7. Press the PRINT key while is displayed. 8. At KEY in display KEY in ...
  • Page 113 【Entering from repeatability of external weight】 Continue from “Step 6” in “17-1 Comparing the minimum weighing value” 7. Press the PRINT key while is displayed to display 1KEY in . KEY in 8. Press the SAMPLE key to display EXT MA55 . EXT MA55 9.
  • Page 114 Description of error display Over loaded Under loaded * When any error described above is resolved, the balance returns to repeatability measurement. When the balance is in unstable (approx. 20 seconds) during repeatability Error 1 measurement Time out (when no operation is made for approx. 2 minutes) * After displaying Error, the repeatability measurement is forcibly finished and the balance returns to function settings.
  • Page 115 19. After output, is displayed. 23.20 20. Press and hold the SAMPLE key (for 2 seconds) to store minimum weighing value. Display returns to 23.20 * In this time, when MW-CP is set to 0, the balance automatically set it to 1 (except near zero) and enables comparing function of the minimum weighing value.
  • Page 116 3. After finishing output at once, display shows End and returns to KEY in or Ext MA55 . 【Batch output example of minimum weighing value set currently】 A type of output vary depending on how to set minimum weighing value. Setting example with KEY in Setting example with Setting example with ECL...

  • Page 117: Underhook

    18.Underhook The underhook can be used for weighing large samples, magnetic materials or for measuring density. The built-in underhook is revealed by removing the cover plates on the bottom of the balance. Use the underhook as shown below. Caution Weighing pan Do not apply excessive force to the underhook.

  • Page 118: Programmable-Unit

    19.Programmable-Unit This is a programmable unit conversion function. It multiplies the weighing data in grams by an arbitrary coefficient set in the function table and displays the result. The coefficient must be within the range between the minimum and maximum shown below. If the coefficient set is beyond the range, an error is displayed and the balance returns to the coefficient setting mode, prompting to enter an appropriate value.

  • Page 119: Density Measurement

    20.Density Measurement The balance is equipped with a density mode. It calculates the density of a solid using the mass value of a sample in air and the mass value in liquid. Note □ The density mode was not selected for use when the balance was shipped from the factory. To use the mode, change the function table and activate the density mode "...
  • Page 120 （２） （ ） Method of measuring density (specific gravity) of solid function setting Note Re-set the density of the liquid with "(3) Entering the density of a liquid" as necessary, such as □ when the temperature of the liquid changes during measurement or when changing the type of liquid.
  • Page 121 （３） Entering the density of a liquid Two ways to set the density of a liquid are available in the function table, "Liquid density input (ldin)" by entering the water temperature or by entering the density directly. （ ） Entering the water temperature The water temperature currently set (unit:°C, factory setting : 25°C) is displayed.
  • Page 122 （４） （ ） Measuring the density of a liquid Function table Density display is 3 decimal places. Minimum display can not change with the SAMPLE key. From liquid density input Density is displayed after "Mass measurement in air" and "Mass measurement in liquid"...
  • Page 123 （５）Entering the volume of the float The volume of the float that is currently set is displayed. （ Factory setting is 10.00 ｃｍ ） Change the setting value as follows. , every 0.01 ｃｍ The setting range is 0.01 ｃｍ to 99.99 ｃｍ...

  • Page 124: Password Lock Function

    21.Password Lock Function By using the password lock function, it is possible to limit the usage and functions of the balance. The function is effective for preventing alteration of date/time setting and preventing internal setting changes by the user. The password is set with four keys MODE , SAMPLE , PRINT and RE-ZERO keys in four digits (4 x 4 x 4 x 4 = 256 outcomes) .

  • Page 125: Enable Password Lock Function

    Items that are limited by login level Weighing Login level Password input at weighing start Change the function setting*5 Calibration Administrator Possible Possible ADM IN Necessary User U5ER 01 Impossible *6 Impossible Guest Unnecessary GUE5t 5 Response adjustment, settings of the minimum weighing value, confirmation of the repeatability using the internal weight, function switch and initialization and function table (date and time setting) 6 The administrator (ADMIN) can set this to prohibited as shown in "10-1 Permit Or Inhibit ".

  • Page 126: How To Input The Password At The Start Of Weighing

    21-2 How To Input The Password At The Start Of Weighing In case of Lock 1 1. Press the ON:OFF key while the display off. 2. After display , it becomes password input pA55word ---- display U5ER 3. Input 4 digits password using the following keys. PA55word The balance will turn automatically after no operation for ten minutes.

  • Page 127: How To Logout

    When logging in as administrator ( ADMIN. ) (Lock 1 or Lock 2) 1. Press the ON:OFF key with holding CAL key while the display off. Press and hold 2. Input the 4 digits password using the following keys. The balance will turn automatically after no operation for ten minutes.

  • Page 128: Registering Password (Changing)

    21-4 Registering Password (Changing) The password can be changed at "Password ( )" of the Function Table. 1. Press and hold the SAMPLE key (for 2 seconds) in the 0.00 weighing mode. ba5fnc is displayed. Press and hold (for 2 seconds) 2.

  • Page 129: Changing Password

    21-5 Changing Password Refer to 1. Refer to "21-4. Registering Password (Changing)" and "21-4.Registering Password (Changing)" display the login level you want to change the password on. 2. Press the PRINT key to display the current password. At factory settings, the password is (the RE-ZERO key, 4 times)

  • Page 130: How To Delete The Password（U5Er 01~10

    21-6 How To Delete The Password（U5ER 01~10） Refer to "21-5. Changing Password" and select the user Refer to "21-5.Changeing Password" (U5ER 01~10) and display the Password input screen. Hold down the CAL key (for 2 seconds) when setting the password and display (blink).

  • Page 131: Repeatability Check Function

    Repeatability is an indicator of variations in measured values when the same weight is repeatedly loaded and unloaded, and it is usually expressed in terms of standard deviation (σ The GX-M series has a built-in weight. With the repeatability check function, the balance obtains 10 measurement data using the built-in weight and displays its standard deviation.

  • Page 132: Interface Specification（Standard

    23.Interface Specification（Standard） Download "Communication manual" from our website (https://www.aandd.jp/) and refer to it. 24.Maintenance 24-1 Treatment Of The Balance. In normal use, the balance can be cleaned with water. But, keep the following precautions so that dust and water do not invade the balance. Do not direct water pressure at the bottom of the balance.

  • Page 133: Troubleshooting

    25.Troubleshooting 25-1 Checking The Balance Performance And Environment The balance is a precision instrument. When the operating environment or the operating method is inadequate, correct weighing can not be performed. Place a sample on the pan and remove it, and repeat this several times.

  • Page 134: Error Codes

    25-2 Error Codes Display Error code Description Data abnormality of the internal sensor of the balance If this error occurs during weighing and you return to the □ normal weighing state after a certain period of time, there is a possibility that the data temporarily became abnormal due to static electric noise if you are measuring an easily chargeable item.
  • Page 135 Display Error code Description ＥＣ，Ｅ２１ Calibration weight error (Negative value) The calibration weight is too light. Confirm the calibration mass value. Press the CAL key to return to the weighing mode. Overload error A sample beyond the balance weighing capacity has been placed on the pan.
  • Page 136 Display Error code Description Full memory The stored calibration history has reached 50 instances. If Alternate （ ） Blink more is stored, the old history will be deleted. Refer to "13.Data Memory" ＥＣ，Ｅ００ Communications error A protocol error occurred in communications. Confirm the format, baud rate and parity.

  • Page 137: Other Display

    25-3 Other Display When this indicator ( ) blinks, automatic self calibration is required. The indicator blinks when the balance detects changes in ambient temperature. If the balance is not used for several minutes with this indicator blinking, the balance performs automatic self calibration. The blinking period depends on the operating environment.

  • Page 138: Connection With Periphecal Device

    26.Connection With Periphecal Device Download "Communication manual" from our website (https://www.aandd.jp/) and refer to it. 26-1 Command Download "Communication manual" from our website (https://www.aandd.jp/) and refer to it. 26-2 Key Lock Function This function restricts the key operation of the balance by sending a specified command to the balance.

  • Page 139: Specifications

    *1: The balance allows weighing using a precision range, even with a heavy tare placed on the pan. (Smart range function) *2: With GX-M series, accuracy right after calibration using the internal mass in good ambient conditions (within the temperature range of 10C to 30C (50F to 86F) with no abrupt changes in temperature or humidity, no drafts, no effect by magnetic fields or static electricity).
  • Page 140 GF-8202M GF-8202MD GF-10202M GF-12001M GF-22001M GF-32001M GF-32001MD Weighing capacity 8.2 kg 10.2 kg 12.2 kg 22.2 kg 32.2kg 8.2008kg 32.008kg Maximum display 8.20084kg 10.20084kg 12.2084kg 22.2084kg 32.2084kg 2.20009kg＊1 6.2009kg＊1 Minimum weighing value (1 digit) 0.01 g 0.1 g / 0.01 g 0.01 g 0.1 g 1 g / 0.1 g...

  • Page 141: External Dimention

    29. External Dimention Unit: mm...

  • Page 142: Options And Peripheral Instruments

    29-1 Options And Peripheral Instruments Options Name Description GXM-04 This option is equipped with relay and buzzer output, Comparator Output RS-232C interface and external key input terminal that can (Relay/ with a Buzzer) / operate “PRINT” and “RE-ZERO” externally. RS-232C / External key This option generates a relay output corresponding to input in the display..
  • Page 143 Printer Name Description AD-8127 Multi functions Multi Printer Statistical function, clock and calendar function, interval print function, graphic print function, dump print mode 5 x 7 dots, 24 characters per line Print paper (AX-PP137, 57.5 (W) x 30 (L) mm) Clean paper (AX-PP173, 57.5 (W) x 30 (L) mm) AC adapter Extension of communication...
  • Page 144 Countermeasures against static electricity Name Description AD-1683 Used to minimize weighing errors due to static electricity on DC Static Eliminator the material. The AD-1683 is direct-current static eliminator. The ions generated produce no breeze and are effective over a long distance. Therefore, the balance can accurately weight powders, etc.
  • Page 145 MEMO...
  • Page 146 MEMO...
  • Page 148 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
