Chapter 12 Paper Cutter

12.4 Installation

96
Standard Cutter

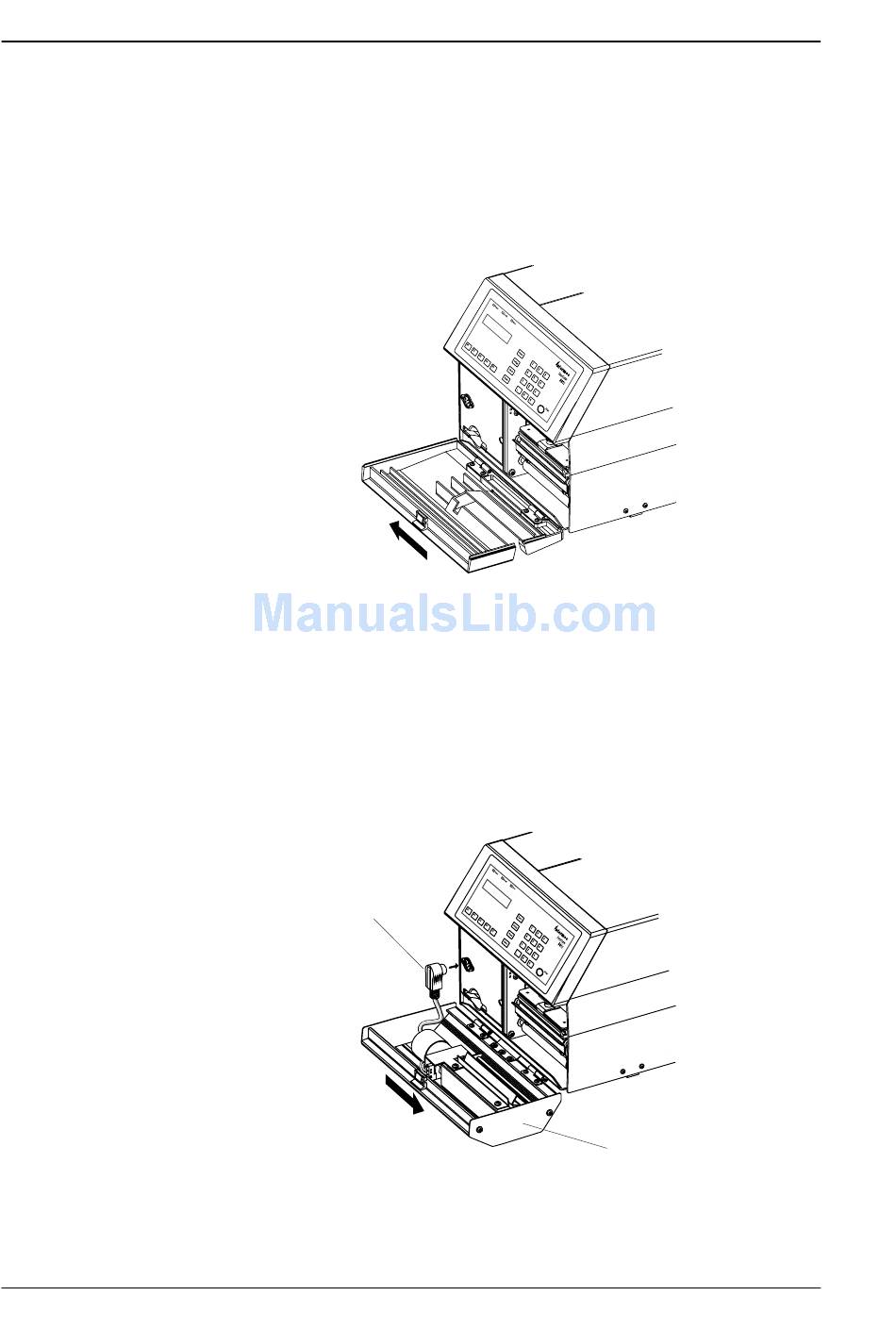

Switch off the power and remove the power cord.
•
• Open the printer's front hatch.
• Hold the printer fi rmly and press the front hatch sideways to the
left as to disengage the hinges.
• Remove the hatch completely.
Press sideways
• If the printer is fi tted with a label taken sensor (LTS), it has to
be removed before the cutter can be fi tted, see Chapter 11.
• Fit the cutter unit to the vacant hinges. Make sure that the lock-
ing plate snaps into the groove of the right-hand hinge and that
the angled plate at the bottom of the cutter is inserted under the
printer's bottom plate.
• Fit the cable from the cutter unit into the DIN connector above
the memory card slot on the printer's front.
DIN Connector
Press sideways
Cutter Unit
