Chapter 13 Memory Card Adapter
13.4 Inserting a
Memory Card
IMPORTANT!
The printer must be off when
a memory card is inserted
or removed.
Memory Card Adapter
Memory Card
13.5 Removing a
Memory Card
112
• Switch off the power to the printer and open the front hatch.
• In case of non DOS-formatted memory card, check that the
protection switch is set to Write Protect. (The location of the
switch varies between different brands). This does not apply to
DOS-formatted memory cards!

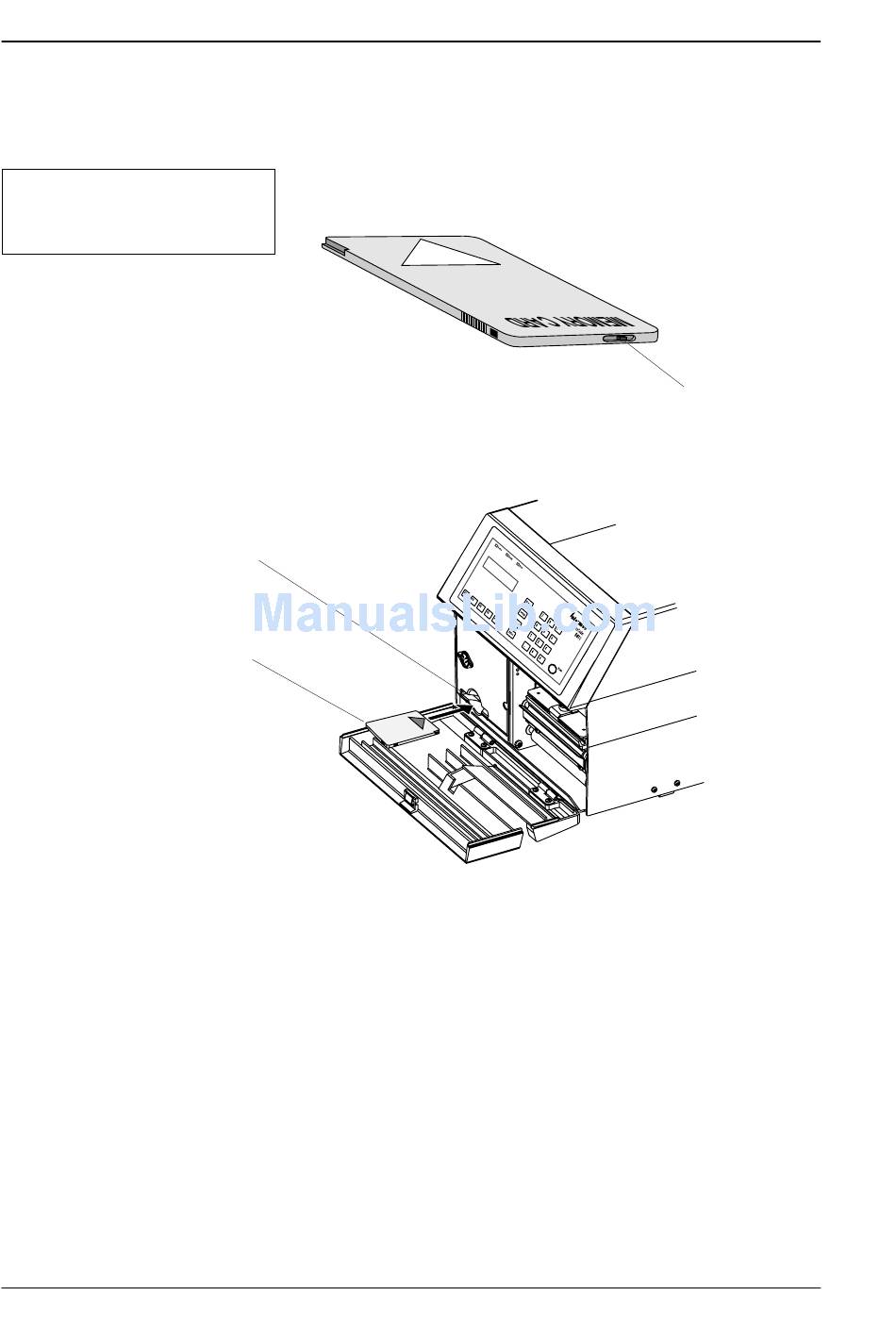

• Insert the memory card into its adapter as illustrated below.
Make sure that the manufacturer's logotype on the memory
card is facing upwards.
• Press fi rmly inwards so the pins in the adapter engage the cor-
responding slots in the memory card.
• Switch on the power again and close the front hatch.
• Before removing the memory card, switch off the power.
• Open the front hatch and pull the card straight out.
• Close the front hatch and switch on the power again.
Protection Switch
Intermec EasyCoder 501 – Service Manual Ed. 7
