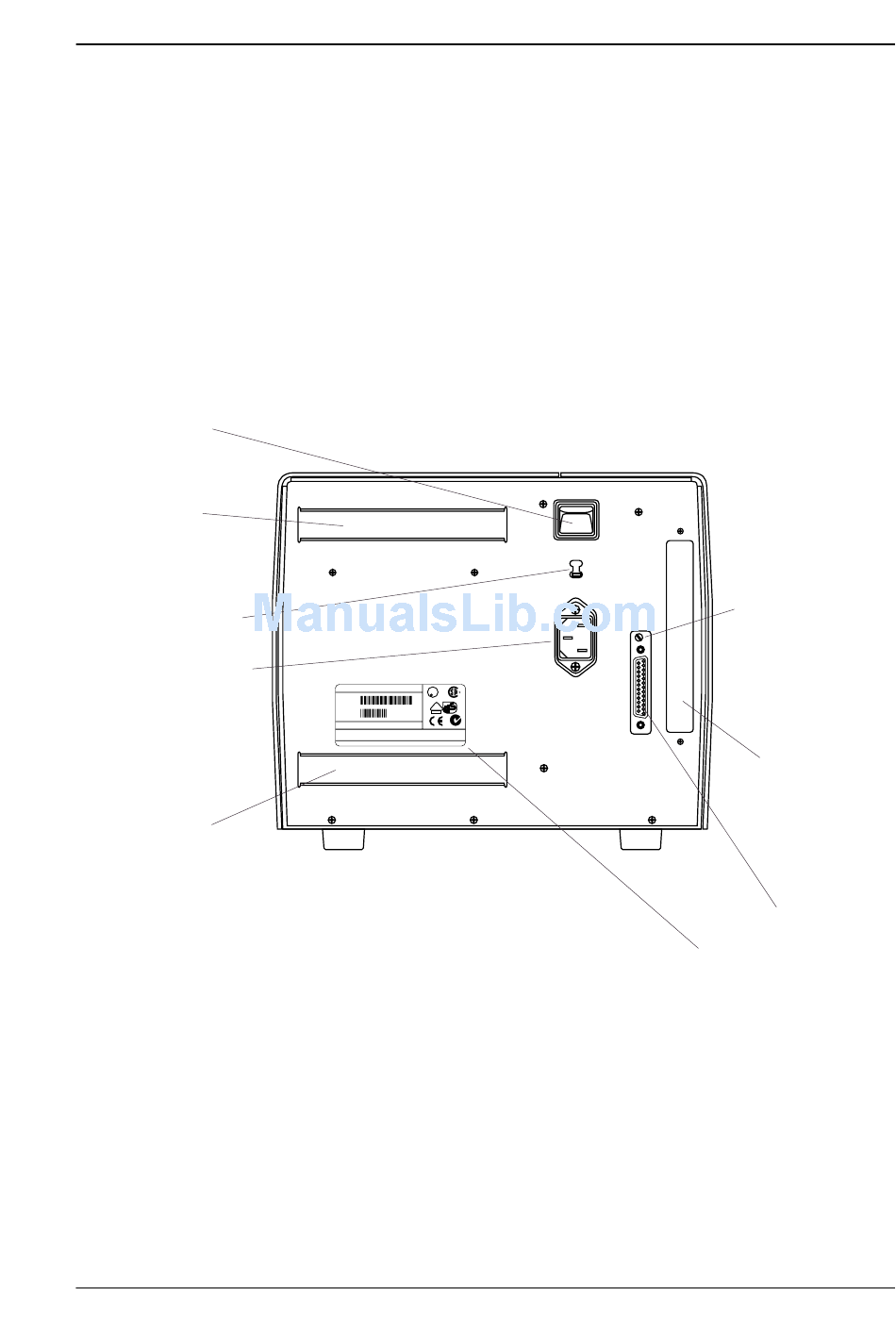

4.2 Devices on Rear
Plate
On/Off Switch
Media Intake
Voltage Selector
Power Cord Receptacle
Media Intake
Intermec EasyCoder 501 – Service Manual Ed. 7
The rear plate itself may be of little interest, but it is provided with a
number of punched holes that give access to the mains receptacle,
the on/off switch and the voltage selector (115/230 VAC), which
are fi tted on the transformer unit. The connector of the standard I/O
port "uart1:" protrudes through another hole. The same hole also
gives access to the display contrast potentiometer.
A cover plate next to "uart1:" can be removed to allow a number
of different interface boards to be fi tted.
On the left side (as seen from behind), there are two rectangular
slots for media from external supplies. These slots can be provided
with optional edge guides as described in Chapter 5.
The mchine label with the signs of approval is fi tted on the rear
plate.
MADE IN SWEDEN
Thermal Printer 501
U L
R
Model #
LISTED 65B5 LR67809
1-501011-14
V
D E
Serial #
geprüfte
Sicherheit
25016
115-230V 2.6-1.3A 50-60Hz
N309
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
INTERMEC PRINTER AB MADE IN SWEDEN
Chapter 4 Rear Plate
0
230V
Optional Interface Board
Machine Label
Display Contrast
Adjustment
Provision for
"uart1:"
