8.7 Printhead, cont.
3 mm (0.12 in)
Origin
Dot-line
on printhead
X-start
Dot 0
Intermec EasyCoder 501 – Service Manual Ed. 7
EasyCoder 501 S, 501 E, and 501 SA:
8 dots/mm (203.2 dpi) printhead in right-hand position

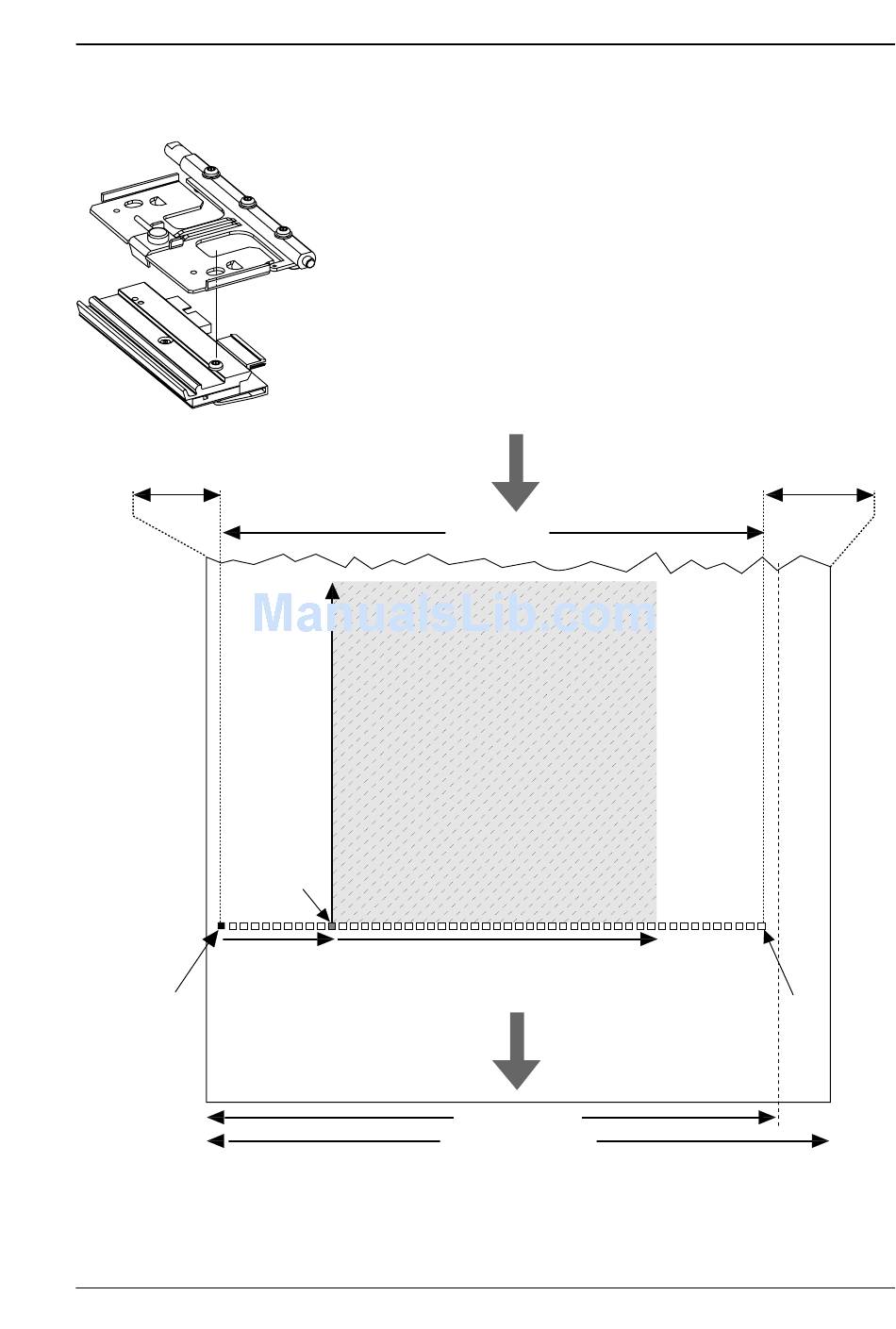

The 8 dots/mm printhead can be fi tted in two positions. When the
printhead is fi tted in the outer, right-hand position (see illustration),
dot No. 0 is situated 3 mm (0.12 inches) inside the inner edge of
the media. Since the maximum print width is 104 mm (4.1 inches)
and the maximum web width is 120 mm (4.7 inches), this leaves a
margin of at least 13 mm (0.51 inches) along the outer edge of the
web. If an 110 mm (4.33 inches) wide web is used, the printhead
will be centered with a 3 mm (0.12 inches) margin on each side.
Length
Width
From
media supply
104 mm (4.1 in)
PRINT PRINT
WINDOW WINDOW
FEED
DIRECTION
110 mm (4.33 in)
max. 120 mm (4.7 in)
Chapter 8 Print Unit
13 mm (0.51 in)
Dot 831
