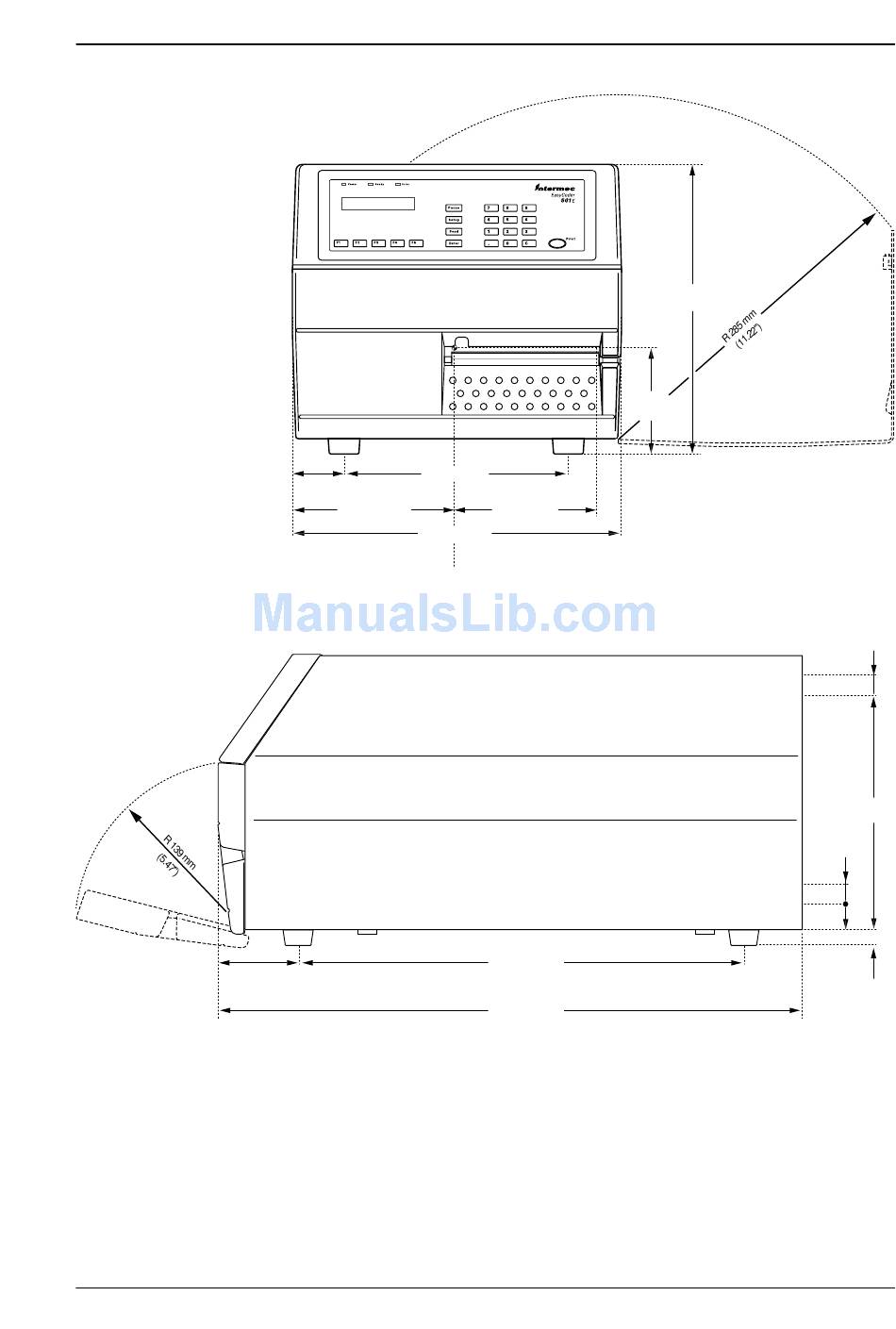

1.3 Measures

68.8 mm
An optional paper cutter increases the printer's total length by 28 mm (1.1 inches).
Intermec EasyCoder 501 – Service Manual Ed. 7
38 mm
(1.50")
135.4 mm (5.33")
(8 dots/mm printhead
in right-hand position)
(2.71")
200 mm (7.87")
120 mm (4.72")
275 mm (10.83")
Dot No. 0
363 mm (14.29")
481.5 mm (18.96")
Chapter 1 Models and Options
239 mm
(9.41")
79 mm
(3.11")
Paper slot
Paper slot
20 mm
(0.79")
186 mm
(7.32")
20 mm
(0.79")
30 mm
(1.18")
13 mm
(0.51")
