Chapter 1 Models and Options
1.1 Identifi cation, cont.
Thermal Transfer Mechanism
Ribbon Save Device
(not illustrated)
10

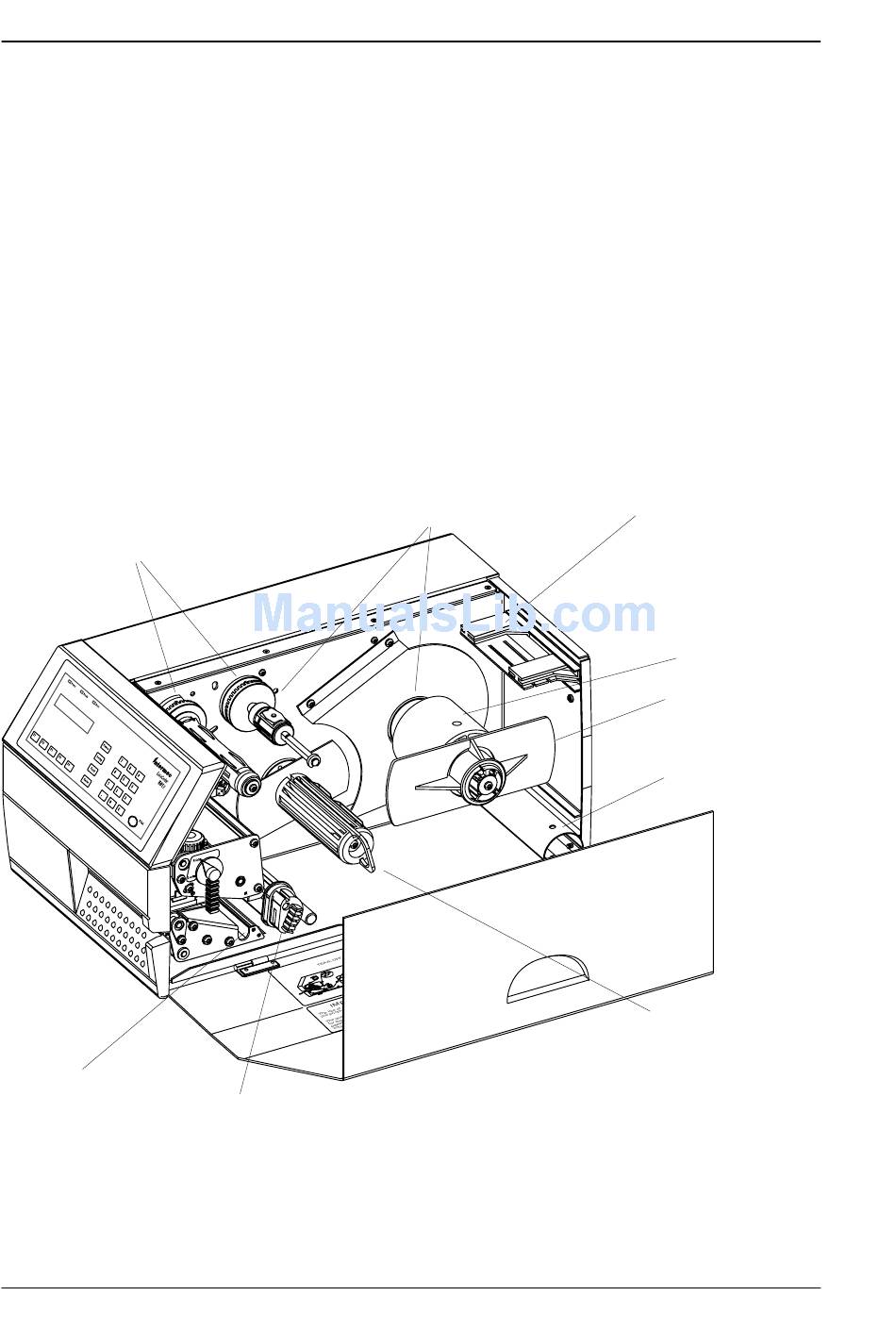

Open the right-hand door. Here you can easily see if the printer is
fi tted with any of the following options or accessories:
• Transfer Ribbon Mechanism
• Liner/Batch Takeup Unit
• Label Slack Absorber or Guide Shaft
• Guide Plate
• Media Roll Retainer
• 3-inch Bobbin Adapter
• Ribbon Low/Media Low Sensors
• Ribbon Save Device
• Guides for external media supply
The door can be removed for easier access. Push it forward
until the hinges disengage from the snap-lock.
Label Slack Absorber
(or Guide Shaft)
Media/Ribbon Low Sensors
(not visible)
Intermec EasyCoder 501 – Service Manual Ed. 7
(see Chapter 7)
(see Chapter 9)
(see Chapter 6)
(see Chapter 8.5)
(see Chapter 5)
(see Chapter 5)
(see Chapter 14)
(see Chapter 10)
(see Chapter 5)
External Guides
3-inch Adapter
Media Roll Retainer
Guide Plate
Liner/Batch Takeup Unit
