Chapter 5 Media Supply
5.2 External Supply,
cont.
34
Media Load

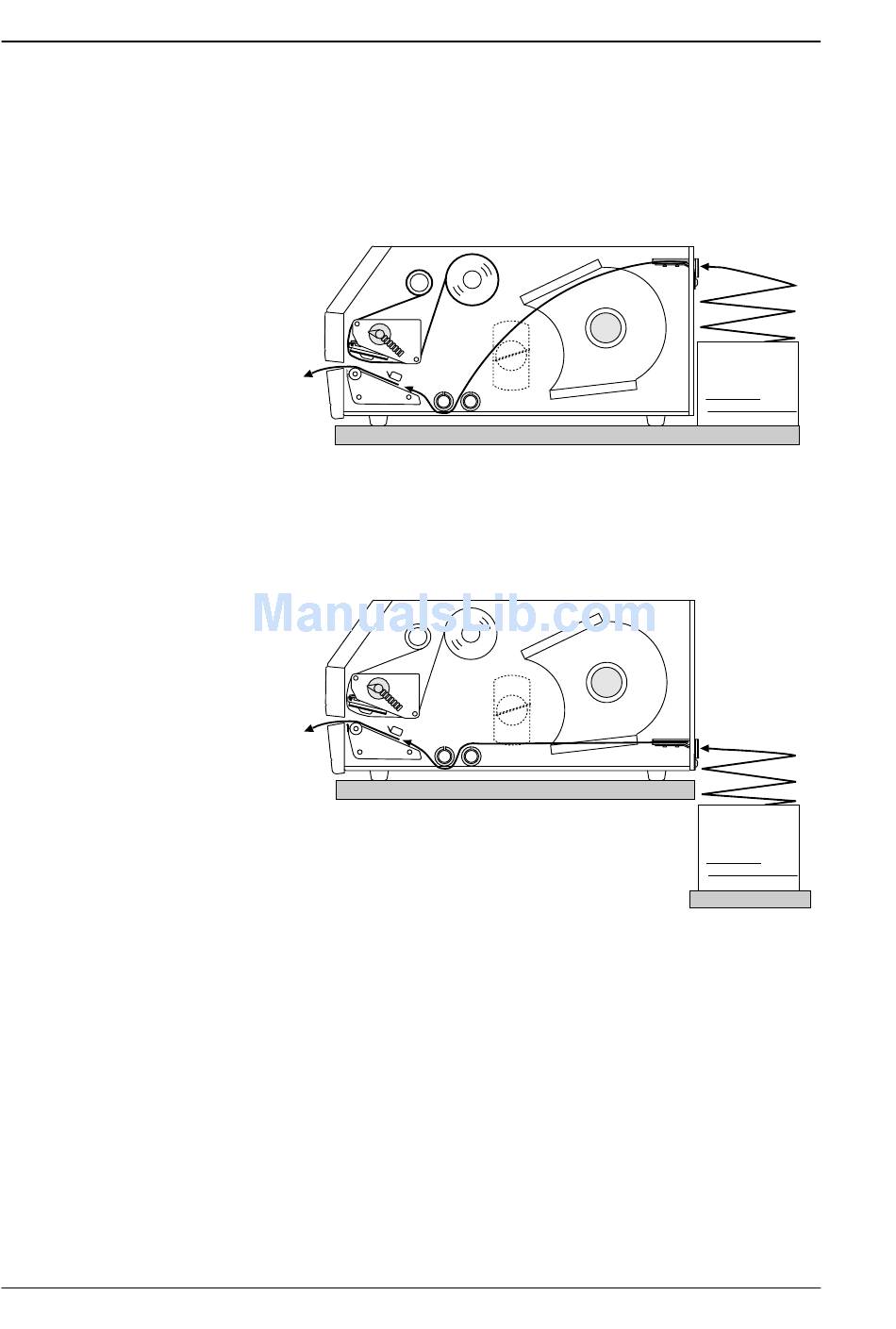

Load the media according to the illustrations below. Note
that the external supply should be protected from dust, sand,
grit, and other particles that may damage the printhead or
impair the printout quality.
Note that if the printer is to be permanently used with an
external media supply only, the internal media supply spool,
together with the large crescent-shaped guide plate could
easily be removed (see Chapter 5.1).
