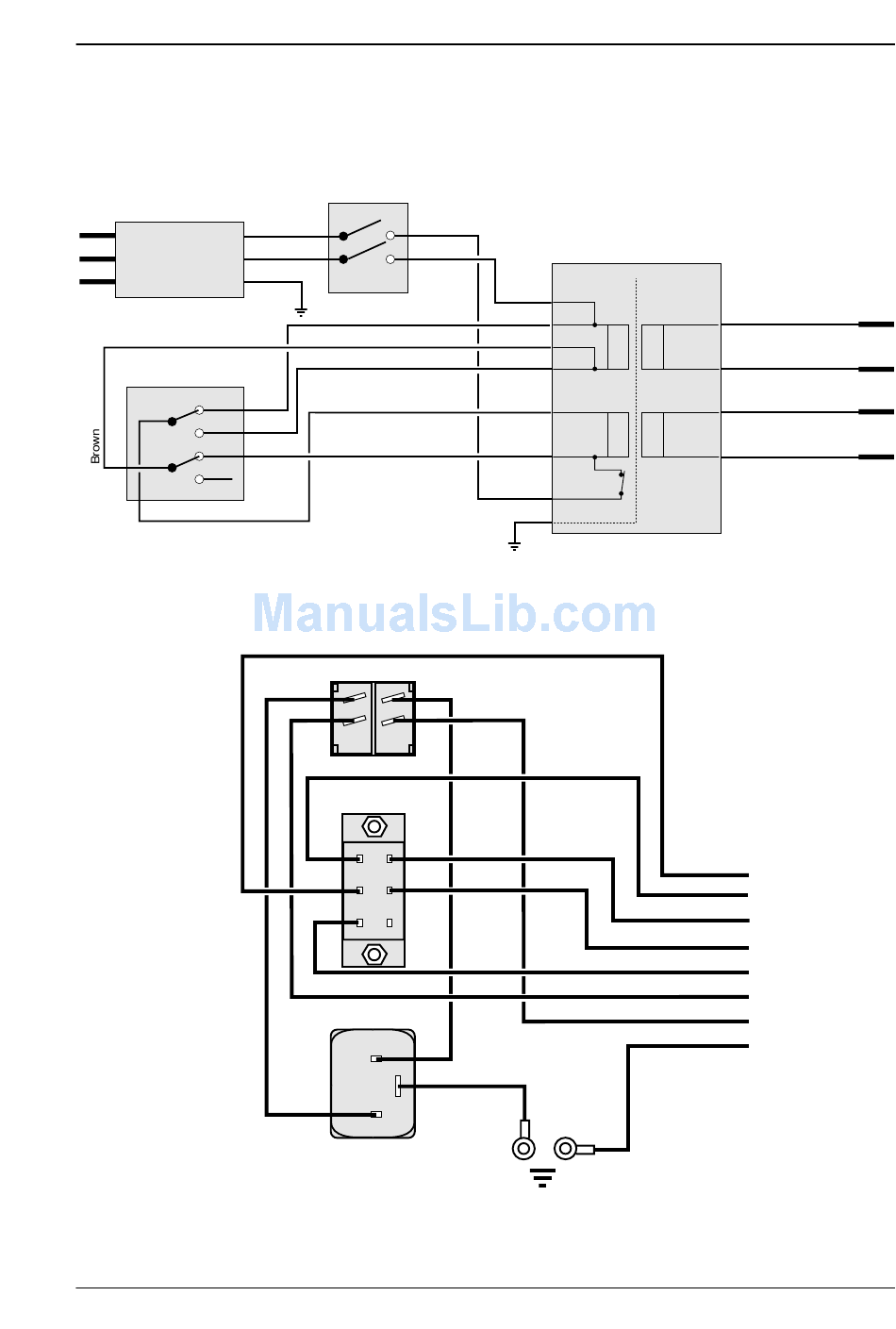

16.3 Connection Diagram

AC AC Power Cord
Voltage Receptacle
w. Filter
Voltage Select Switch
(shows 115V selected)
Black
Red
Brown
Orange

16.4 Wiring Diagram

Intermec EasyCoder 501 – Service Manual Ed. 7
On/Off
Switch
Black
Black
Ye/Gr
On/Off Switch
Black
Black
Black Yellow
Voltage Selector
Switch
Black
Orange
Brown
Red
Brown
AC Power Cord
Receptacle
Black
Black
Yellow
Black
Black 0 V
Black 0 V
115 V
Brown
Brown 115 V
Red 0 V
Orange
115 V
Yellow
115 V
Ye/Gr
Built-in overheating protection
Green/Yellow
Chapter 16 Transformer Unit
Transformer
Screen
4 Red
P1 S1
3 Red
2 Blue
P2 S2
1 Blue
o
115 C one-time
thermal switch
From
Transformer
Red
Black
Orange
Brown
Brown
Black
Yellow
Green/Yellow
To P-300 on
CPU Board
U=33 V at 4.2A
U=36.3 V at 0 A
U=16 V at 1A
U=17.2 V at 0 A
