5.1
Internal Supply, cont.
Felt Pad
Shaft
1
/. Refer to Appendix 2 for a descrip-
tion of how to check the brake torque.
Intermec EasyCoder 501 – Service Manual Ed. 7
EasyCoder 501 S, E, and SA

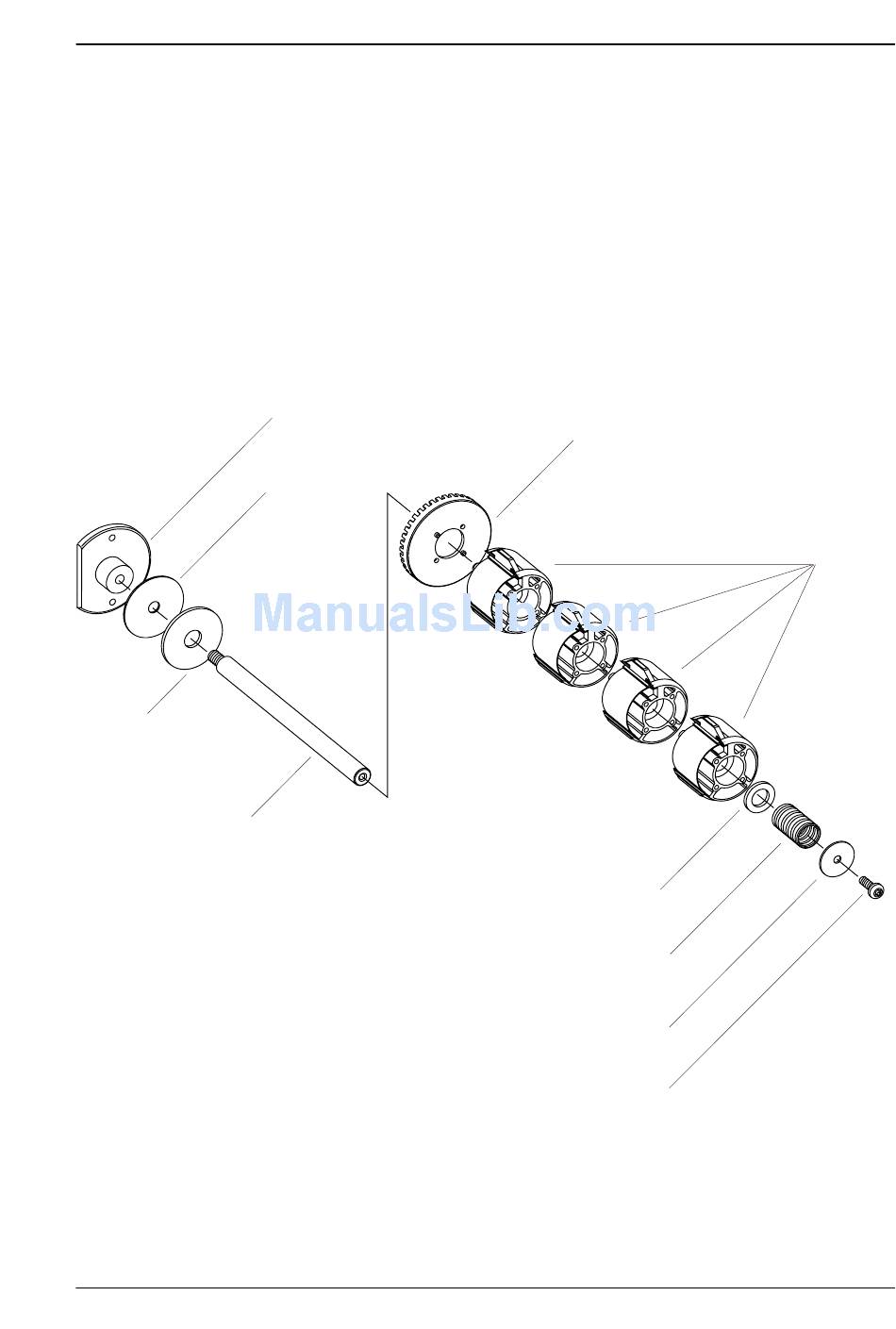

The bobbin package can be dismantled by removing the #T20
Torx screw at the end of the shaft. Inside the outermost bobbin,
there is a spring that presses the bobbin package towards a felt
pad in order to break the rotation. Else, the momentum of a large
and heavy media roll might cause excessive media to be unwound
when the printing is stopped. The brake torque should be 50 ±20
Nmm 1 .
The printer is prepared for the fi tting of a media-low sensor in
having a code disc fi tted as standard at the innermost part of the
bobbin package. Be careful to fi t the studs of the innermost bobbin
into the holes in the code disk when the package is assembled.
Flange
Disc
Chapter 5 Media Supply
Code Disc
Nylon Disc
Spring
Washer
#T20 Torx Screw
Bobbins
27
