Chapter 10 Ribbon Save Device
10.7 Headlift Mecha-
nism, cont.
84
Adjustment
The whole unit is fi tted to oblong holes in the chassis, which allow
the mechanism to be slightly adjusted in relation to the headlift
lever. The distance can be measured with a feeler gauge when the
printhead is lowered and should be 0.3 mm (0.01 inch).

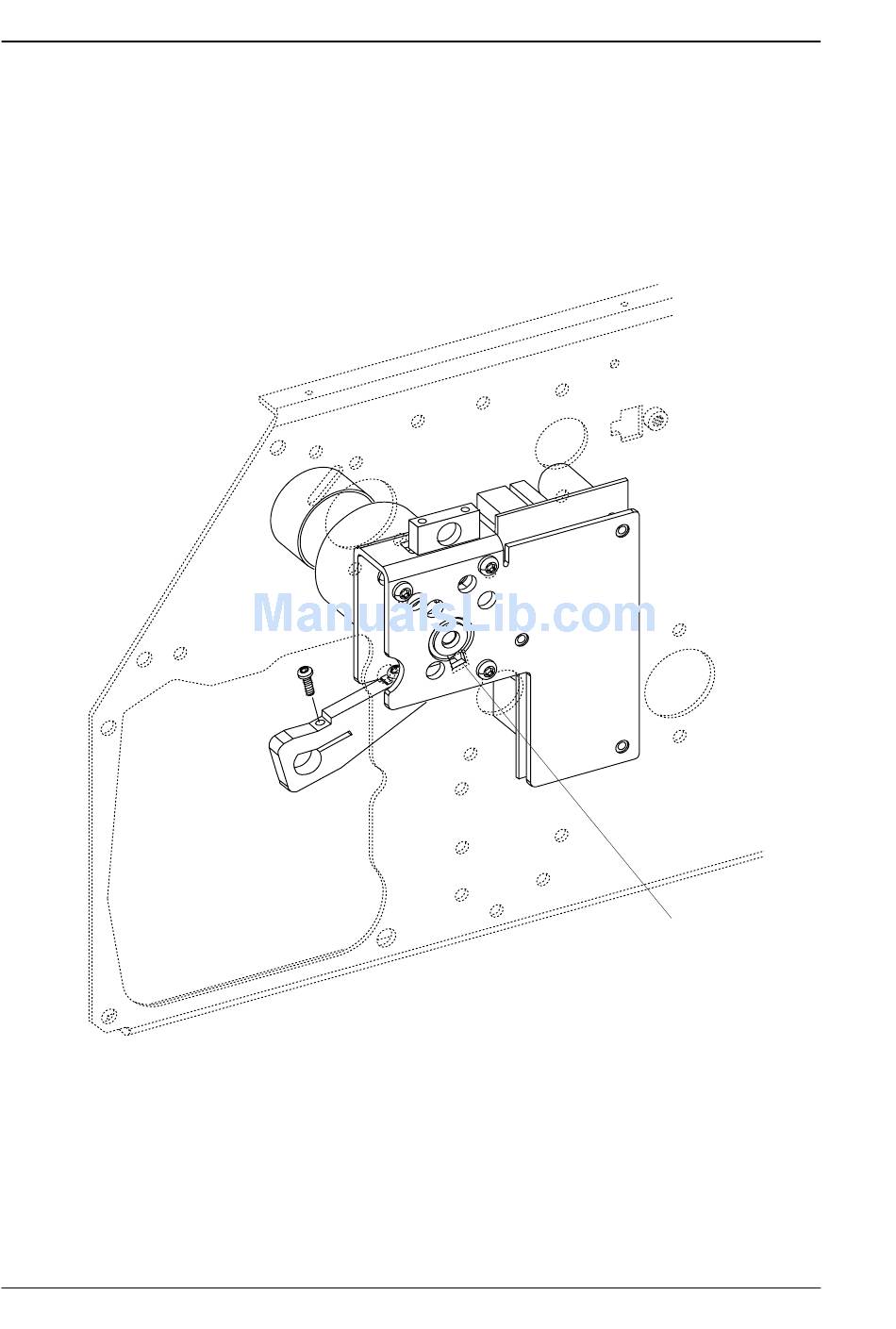

Insert feeler gauge here!
