Chapter 8 Print Unit
8.7 Printhead, cont.
0.8 mm (0.03 in)
Origin
Dot-line
on printhead
X-start
Dot 0
60
EasyCoder 501 S, 501 E, and 501 SA:
11.81 dots/mm (300 dpi) printhead

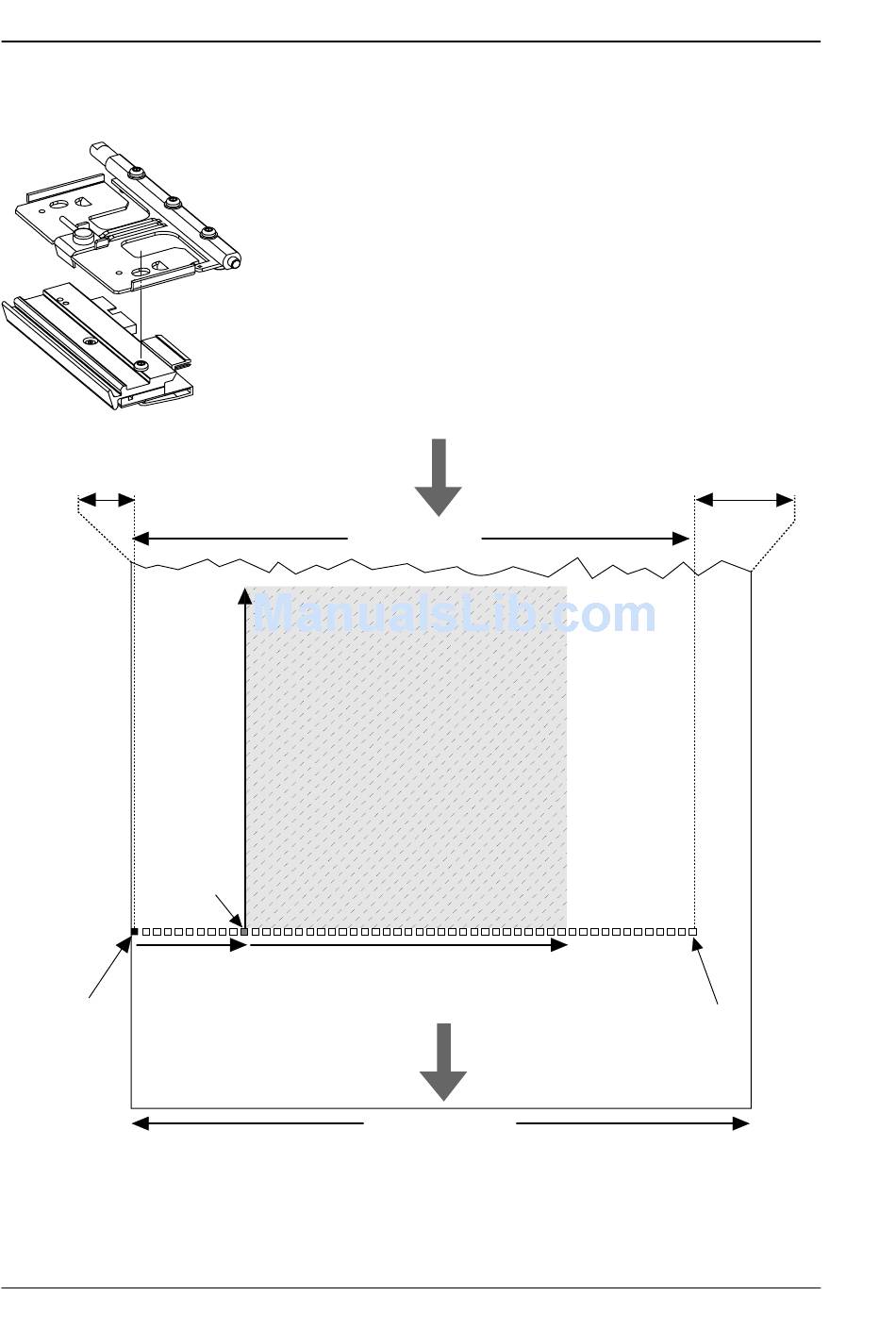

The 11.81 dots/mm printhead should only be fi tted in the right-
hand position (see illustration). Dot No. 0 is situated 0.8 mm (0.03
inches) inwards of the inner edge of the media. Since the maxi-
mum print width is 108.3 mm (4.26 inches) and the maximum
media width is 120 mm (4.7 inches), this leaves a margin of at least
10.9 mm (0.43 inches) along the outer edge of the media, where no
printing can be performed.
Length
Width
From
media supply
108.3 mm (4.26 in)
PRINT PRINT
WINDOW WINDOW
FEED
DIRECTION
max. 120 mm (4.7 in)
Intermec EasyCoder 501 – Service Manual Ed. 7
10.9 mm (0.43 in)
Dot 1279
