Easycoder 501 E, Sa, & Ll: Setup Mode Overview, Part 2 - Intermec EasyCoder 501 Service Manual

EasyCoder 501 E, SA, & LL
Setup Mode Overview, Part 2

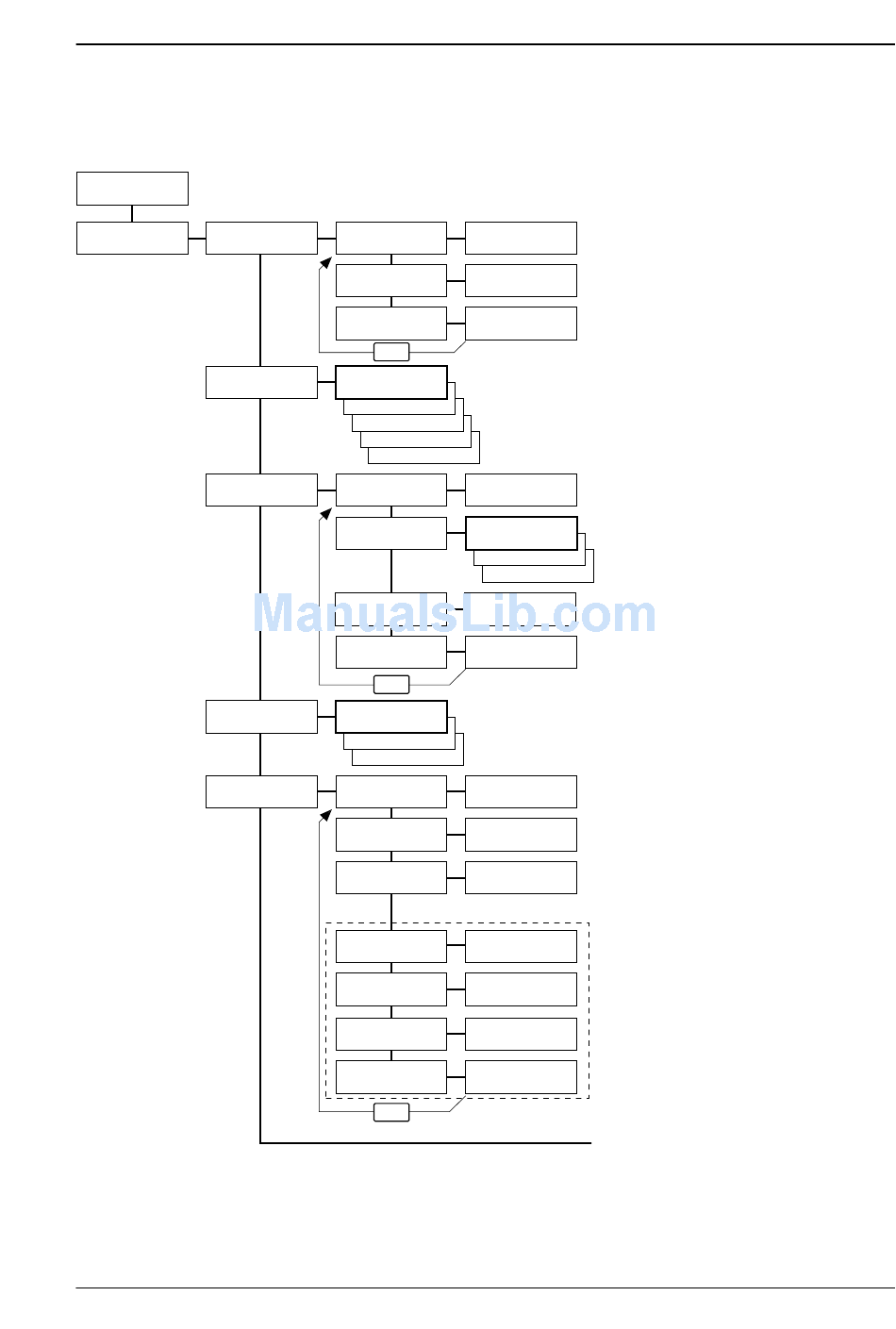

SETUP:
SERVICE
SETUP: SERVICE:
PASSWD: MEDIA SIZE
Password: 1138
SERVICE:
MEDIA TYPE
SERVICE:
PRINT DEFS
SERVICE:
PERFORMANCE
SERVICE:
MEMORY ALLOC
Intermec EasyCoder 501 – Service Manual Ed. 7
MEDIA SIZE: XSTART:
XSTART [0]:
MEDIA SIZE: WIDTH:
WIDTH [832]:
MEDIA SIZE: LENGTH:
LENGTH [1200]:
E nt er
MEDIA TYPE:
LABEL (w GAPS)
TICKET (w MARK)
TICKET (w GAPS)
FIX LENGTH STRIP
VAR LENGTH STRIP
PRINT DEFS: HEAD RESIST:
HEAD RESIST [nnn]: Measured
PRINT DEFS: PAPER TYPE:
PAPER TYPE (designation)
(designation)
(designation)
PRINT DEFS: NEW SUPPLIES:
NEW SUPPLIES #
PRINT DEFS: <PRINT> = PRINT
TESTPRINT <C>
E nt er
PERFORMANCE:
NORMAL
HIGH
ULTRA HIGH
MEMORY ALLOC: IMAGE BUFF SIZE:
IMAGE BUFF SIZE [48Kb]:
MEMORY ALLOC: REC BUF UART1:
REC BUF UART1 [300]:
MEMORY ALLOC: TRANS BUF UART1:
TRANS BUF UART1 [300]:
MEMORY ALLOC: REC BUF UART2:
REC BUF UART2 [300]:
MEMORY ALLOC: TRANS BUF UART2:
TRANS BUF UART2 [300]:
MEMORY ALLOC: REC BUF UART3:
REC BUF UART3 [300]:
MEMORY ALLOC: TRANS BUF UART3:
TRANS BUF UART3 [300]:
E nt er
Appendix 1 Diagrams
Value is read only
Printhead resistance is set up
automatically at start-up.
Refer to the chapter "Selecting Paper/Ribbon"
fo a list of available setup options for direct
thermal paper and transfer ribbons.
New setup options can be added by means of
the "New Supplies" menu, see below.
Enter the 13-digit code number of the new
supply (thermal paper or transfer ribbon).
A series of test labels is printed in a loop.
If printer is unable to print a test label, press F5/–>
= EXIT
key for a status report.
These menus are only displayed if an optional
interface board with at least one serial
communication channel is fitted
• Press F4/<– to return to the "Detection" menu in part 1.
• Press F5/–> key to return to "Media Size" menu.
• Press Setup/Save key to exit the Setup Mode.
225
