10.7 Headlift Mecha-
nism, cont.
Bracket
Intermec EasyCoder 501 – Service Manual Ed. 7
Description, cont.

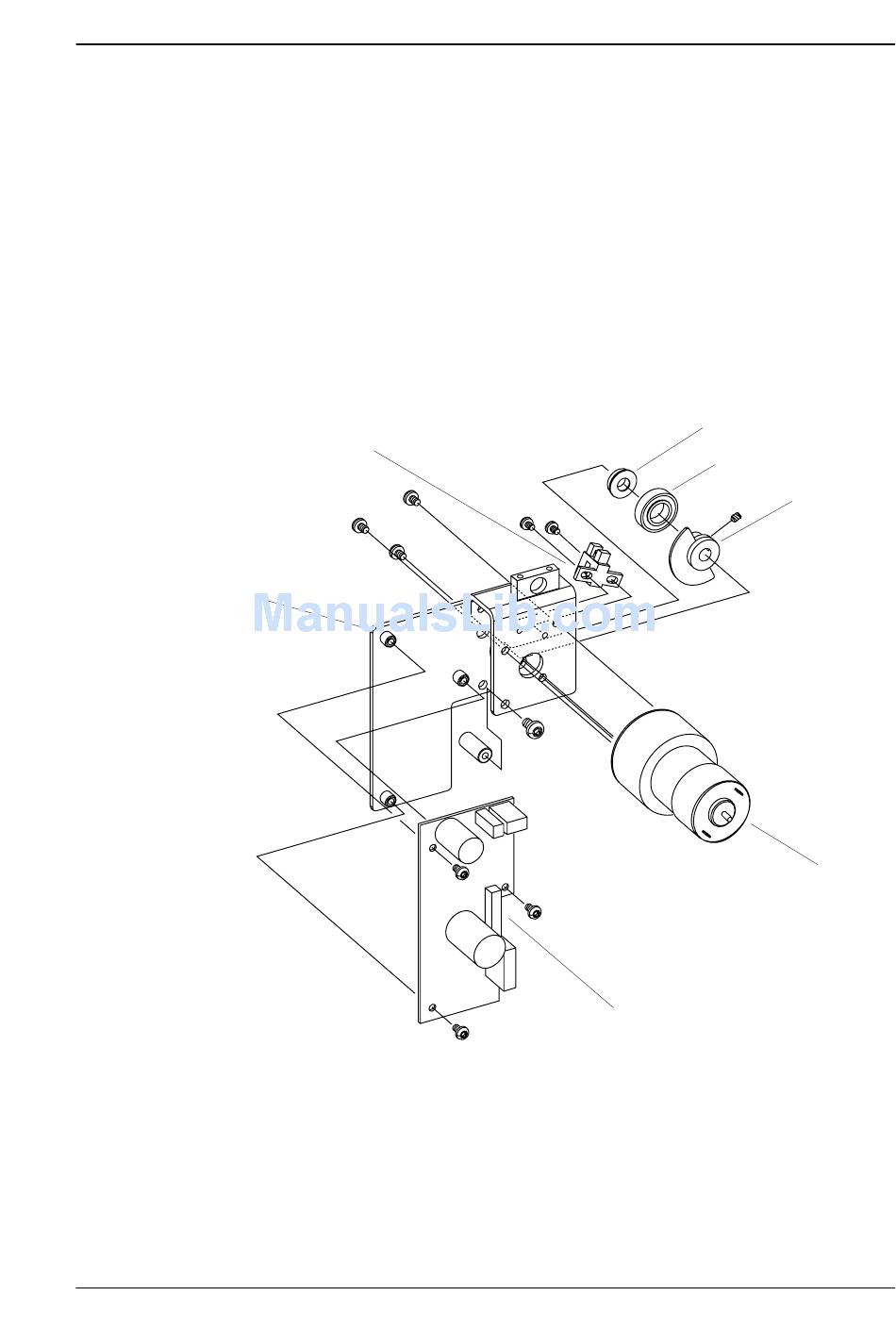

The headlift mechanism consists of a double-folded bracket on
which a DC motor and a connection board is fi tted. The motor is
connected to P-3 on the connection board.
On the shaft of the motor, a cam is fi tted. A photoelectric sensor
connected to P-4 on the connection board detects the position of
the cam (printhead lifted or lowered). The outer end of the motor's
shaft is supported by a ball bearing inserted in the bracket.
The cam is provided with an eccentrically fi tted ball bearing that
engages the printhead lift lever (see the previous page).
Sensor
Chapter 10 Ribbon Save Device
Ball Bearing
Eccentric Ball Bearing
Connection Board
Cam
Motor
