Intermec EasyCoder 501 Service Manual page 10

1.1 Identifi cation, cont.
0
230V
2 x DB25:
Serial Interface Board or
RS 485 Interface Board
Intermec EasyCoder 501 – Service Manual Ed. 7

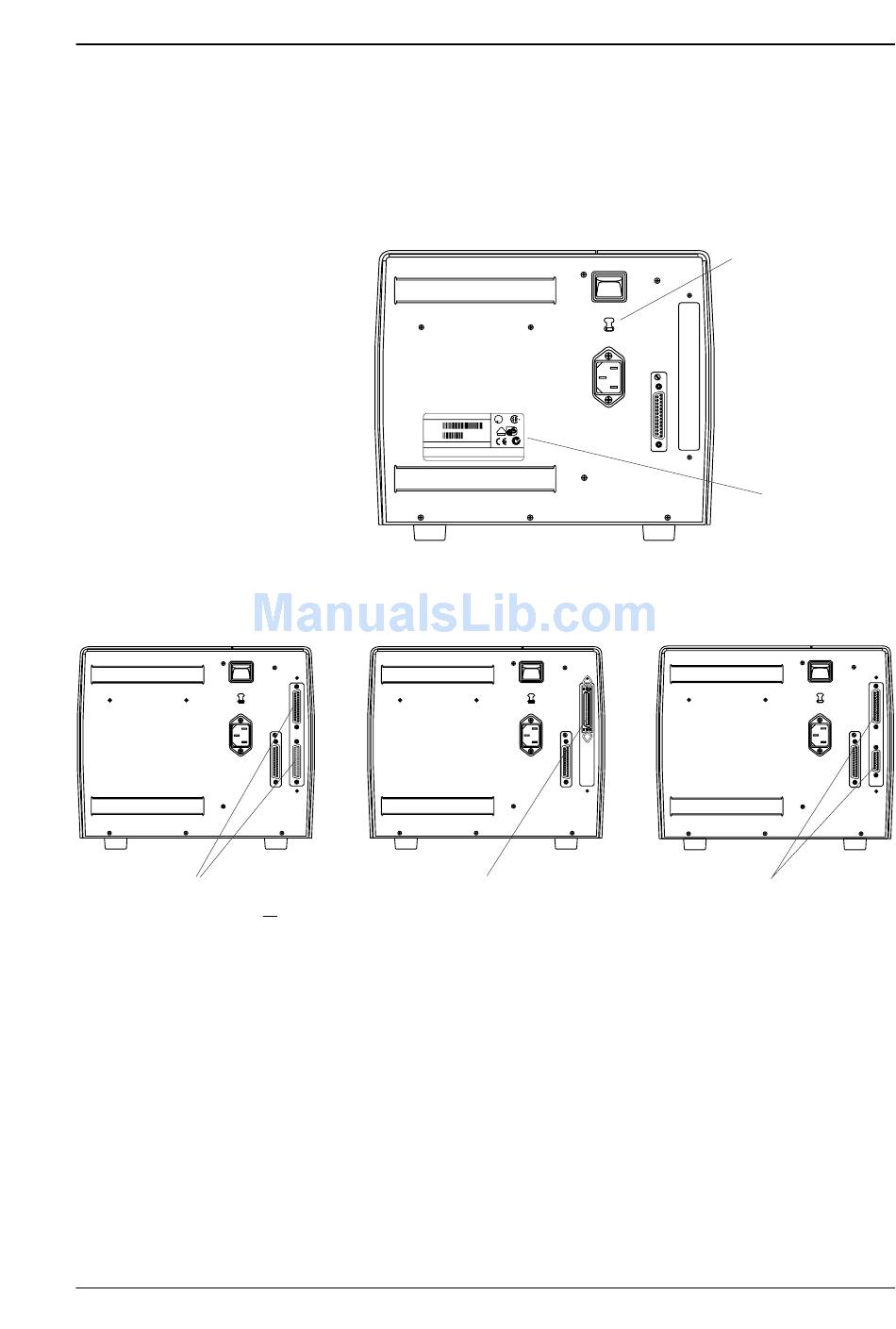

The machine sign on the printer's rear plate provides information
on type, part number, and serial number.
The voltage switch indicates the mains voltage for which the
printer is set up (115 or 230 VAC). Always check this switch before
connecting the printer!
MADE IN SWEDEN
Thermal Printer 501
U L
R
Model #
LISTED 65B5 LR67809
1-501011-14
V
D E
Serial #
geprüfte
Sicherheit
25016
115-230V 2.6-1.3A 50-60Hz
N309
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
MADE IN SWEDEN
INTERMEC PRINTER AB
You can also detect if the printer is fi tted with any optional inter-
face board by means of the additional connectors on the rear
plate:
0
230V
1 x 36-p Centronics:
Parallel Interface Board
For further inspection of interfaces, the Electronics compartment
must be opened, as explained later in this chapter.
Chapter 1 Models and Options
Voltage Switch
0
230V
Machine Sign
1 x DB25 + 1 x DB15:
Industrial Interface Board
0
230V
