25.3 EasyCoder 501 S,

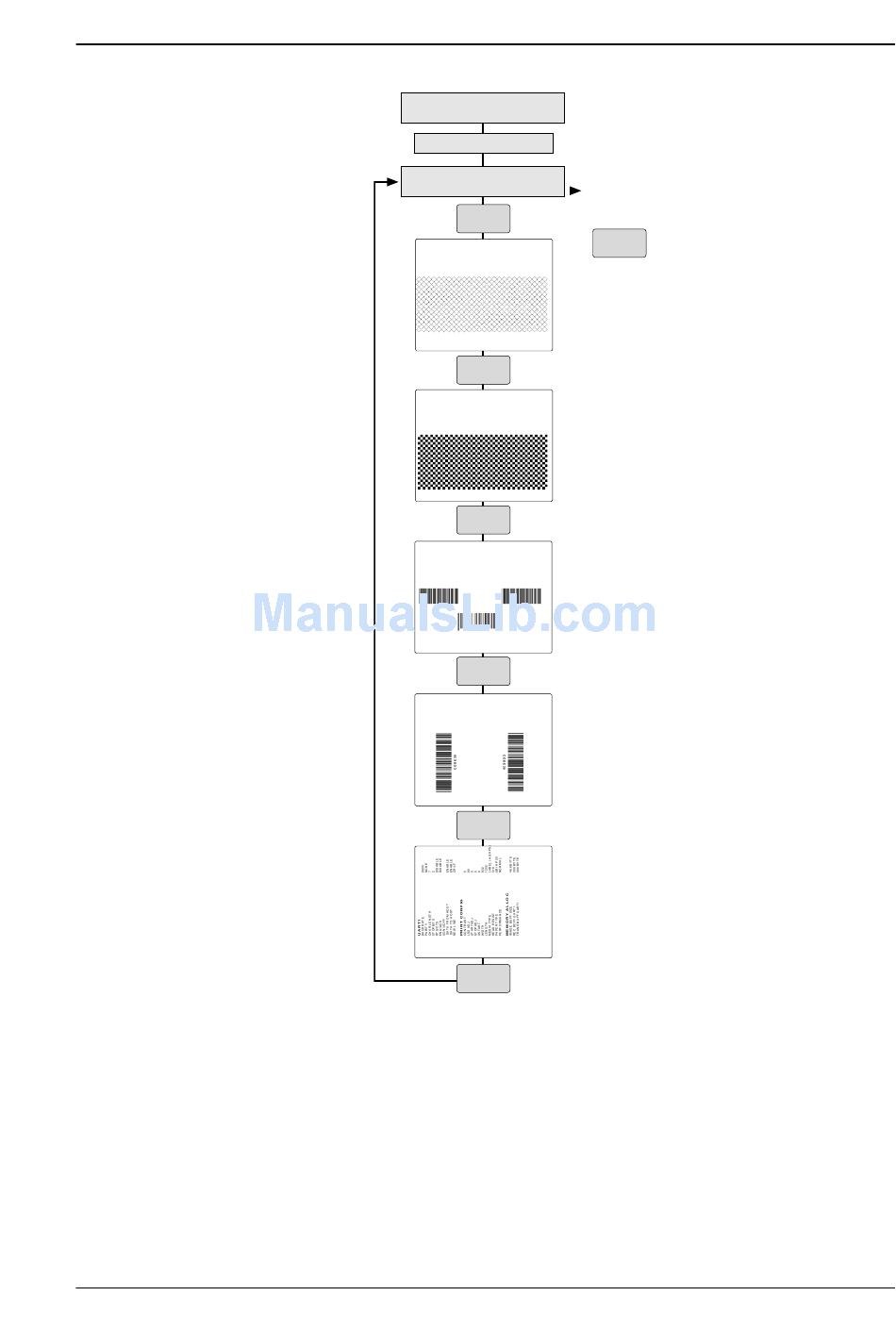

Test Mode Diagram
Intermec EasyCoder 501 – Service Manual Ed. 7
PRINT TEST LABEL
Lower head!
Printhead lowered
<PRINT> = PRINT
Lift head = EXIT
Print
618 ohms / 8 dots
Print
Print
CODE39
CODE39
1 23 45 67 890 12 8
Print
Print
Print
Chapter 25 Test Mode
To exit,
lift head
and press
Print
193
