2.6. Electrical connections

2.6.1. Fiber optical connectors

MODEX can be ordered with several standard fiber connector types.
Neutrik OpticalCON connector (NO2-4FDW type LC duplex) and LC ODVA connector have
two fiber channels, channel A and channel B. Only one channel is used (from channel A
on transmitter to channel B on receiver). The copper pins of the Neutrik connector are not
in use.

2.6.2. HDMI inputs and outputs

19-pole HDMI connectors are provided for inputs and outputs.
Pin
1
2
3
4
5
6
7
8
9
10
Page 14 / 90
ST receptacle
B A
NT receptacle
(Neutrik® OpticalCON DUO)

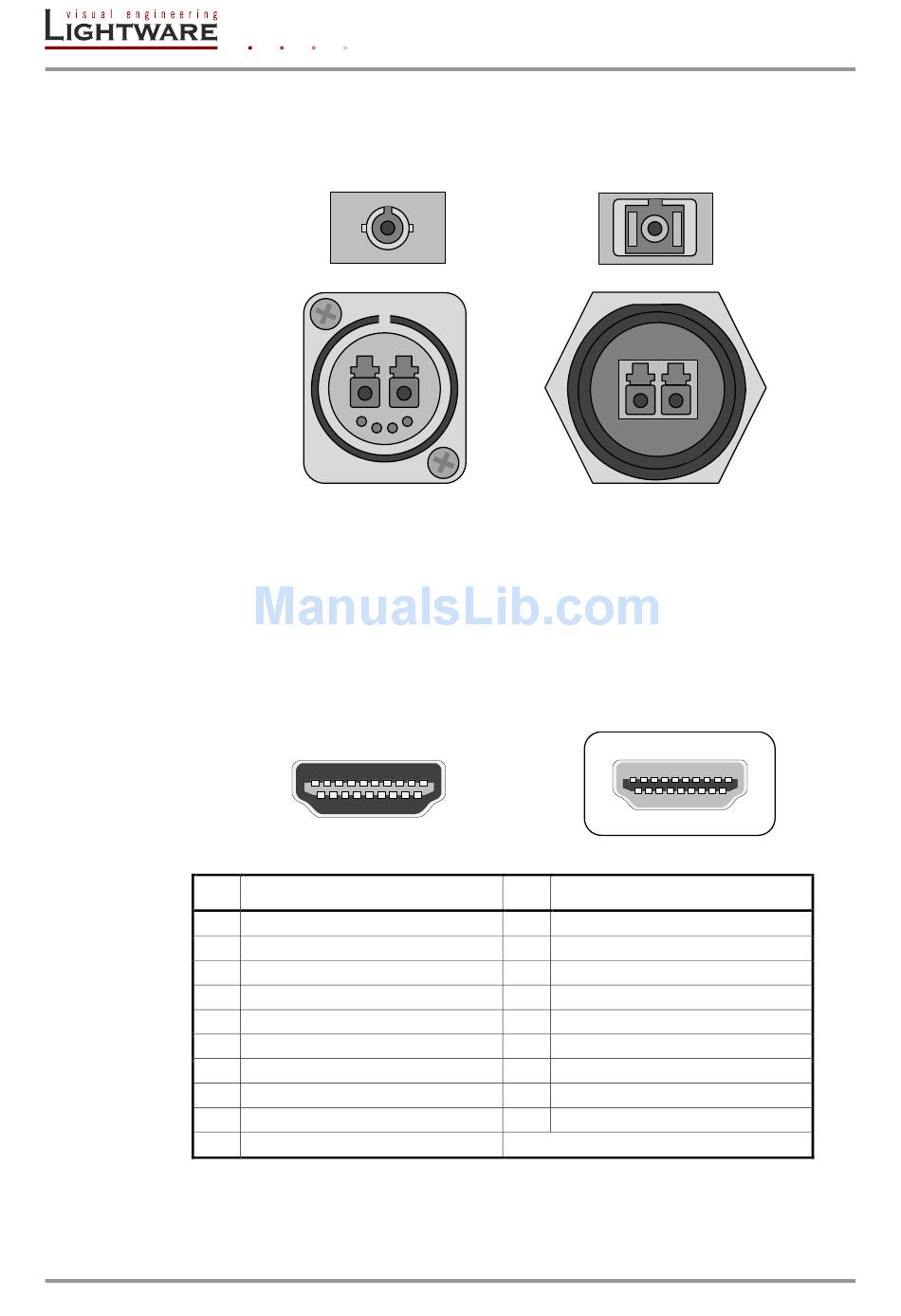

Figure 2-1. Available Fiber optical connectors for MODEX
19 17 15 13 11 9 7 5 3 1
18 16 14 12 10 8 6 4 2
HDMI Type A receptacle
Signal
TMDS Data2+
TMDS Data2 Shield
TMDS Data2–
TMDS Data1+
TMDS Data1 Shield
TMDS Data1–
TMDS Data0+
TMDS Data0 Shield
TMDS Data0–
TMDS Clock+
Table 2-1. HDMI connector and pin assignments
SC receptacle
B A
LC receptacle
(Tyco LC ODVA)
1 3 5 7 9 11
2 4 6 8 10
HDMI Type A Plug
Pin Signal
11 TMDS Clock Shield
12
TMDS Clock–
13 CEC
14 Reserved
15 SCL
16 SDA
17
DDC/CEC/HEC Ground
18 +5 V Power (max 50 mA)
19 Hot Plug Detect
Section 2. Controls and connections
13 15 17 19
12 14 16 18
