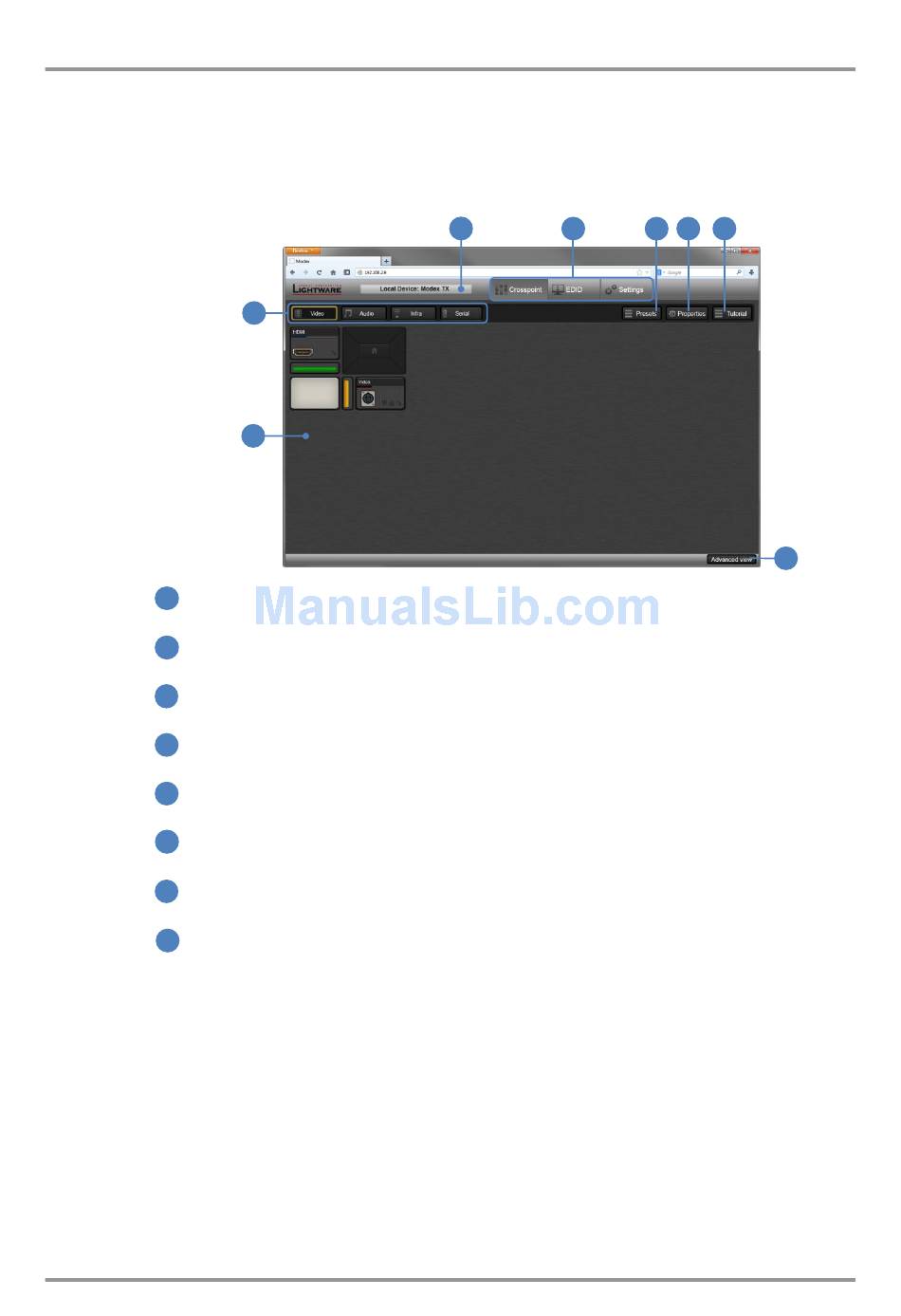

7.3. Layout of built-in web

After the connection is established Crosspoint menu appears by default. Device selector
indicates which device has been connected to. This is the local device. In this window
remote device can be selected. Both devices must be configured for appropriate transfer.
There are three tabs in main menu: Crosspoint, EDID and Settings.
1 Device selector
Main menu
2
3 Preset button
Properties button
4
5 Tutorial button
6 Advanced view button
7 Active area
Layers
8
Local and remote control
When the transmitter and the receiver are linked by a fiber cable and one of them is
connected to a LAN, the other extender can be also controlled. In this case the extender
that is connected by the LAN cable is the Local Device, the other extender is the Remote
Device.
Section 7. Web control – Using the built-in website
8
7
Selecting Local or Remote Device by clicking the grey tab; it will
be loaded in the browser window.
Displaying Crosspoint, EDID or Settings from the main menu.
Displaying the Preset window to save or load the extender's full
configuration.
Toggling right panel display, showing the properties of selected
port. The panel is also displayed when left-clicking on a port.
Displaying MODEX tutorial in the appearing window containing
the most important descriptions shortly.
Displaying Advanced view page, showing the terminal window
and the protocol tree.
Displaying the content of the selected menu and module.
Showing the available layers as submenus; they depend on the
installed interface modules.
MODEX-OPTS, MODEX-OPTM
1 2
User's Manual
3 4 5
6
Page 37 / 90
