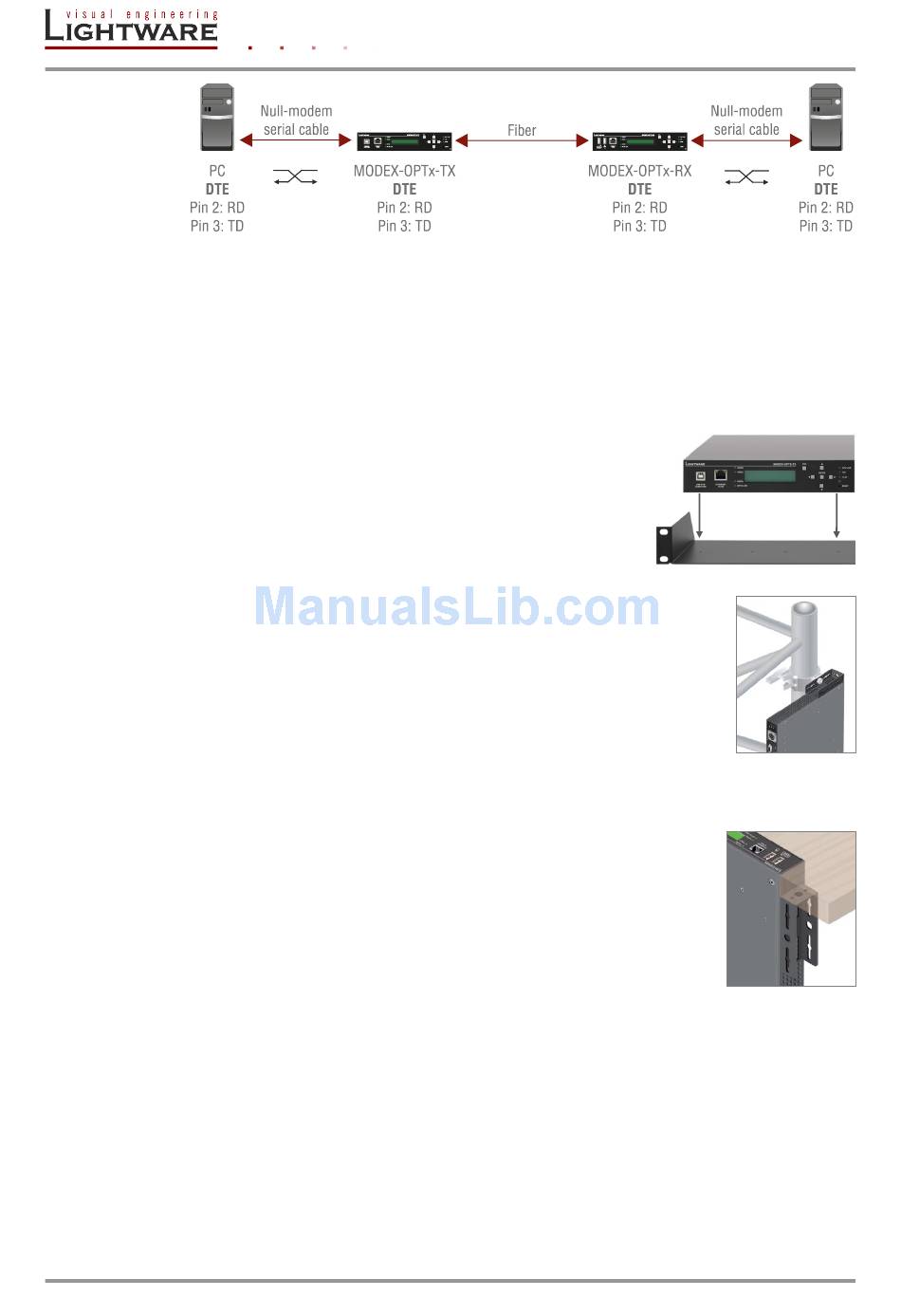

5.3. Mounting options

Devices can be mounted in several ways, depending on the application. Besides using with
rack shelf, a mounting bracket is available which offers easy mounting on truss systems
with standard clamps or using the unit built into furniture.

5.3.1. Rack shelf mounting (with 1U high rack shelf)

Step 1. Turn the unit upside down.
Step 2. Put the rack shelf upside down on the unit, and
Step 3. Fasten the unit on the rack shelf with the provided
Step 4. Mount the rack shelf in the rack.

5.3.2. Truss mounting (with Mounting bracket V2)

Step 1. Fasten the mounting bracket on the side of the unit with the
Step 2. Use a bolt to attach a standard clamp.
Step 3. Mount the unit on the truss with the clamp.

5.3.3. Through furniture mounting (with Mounting bracket V2)

To get a good result, the thickness of the board should not exceed 25 millimeters.
Step 1. Cut a suitable hole in the board.
Step 2. Attach the mounting bracket on the side of the unit with the
Step 3. Mount the unit on the board.
Step 4. Loosen the screws a little on the bracket and adjust the unit to
