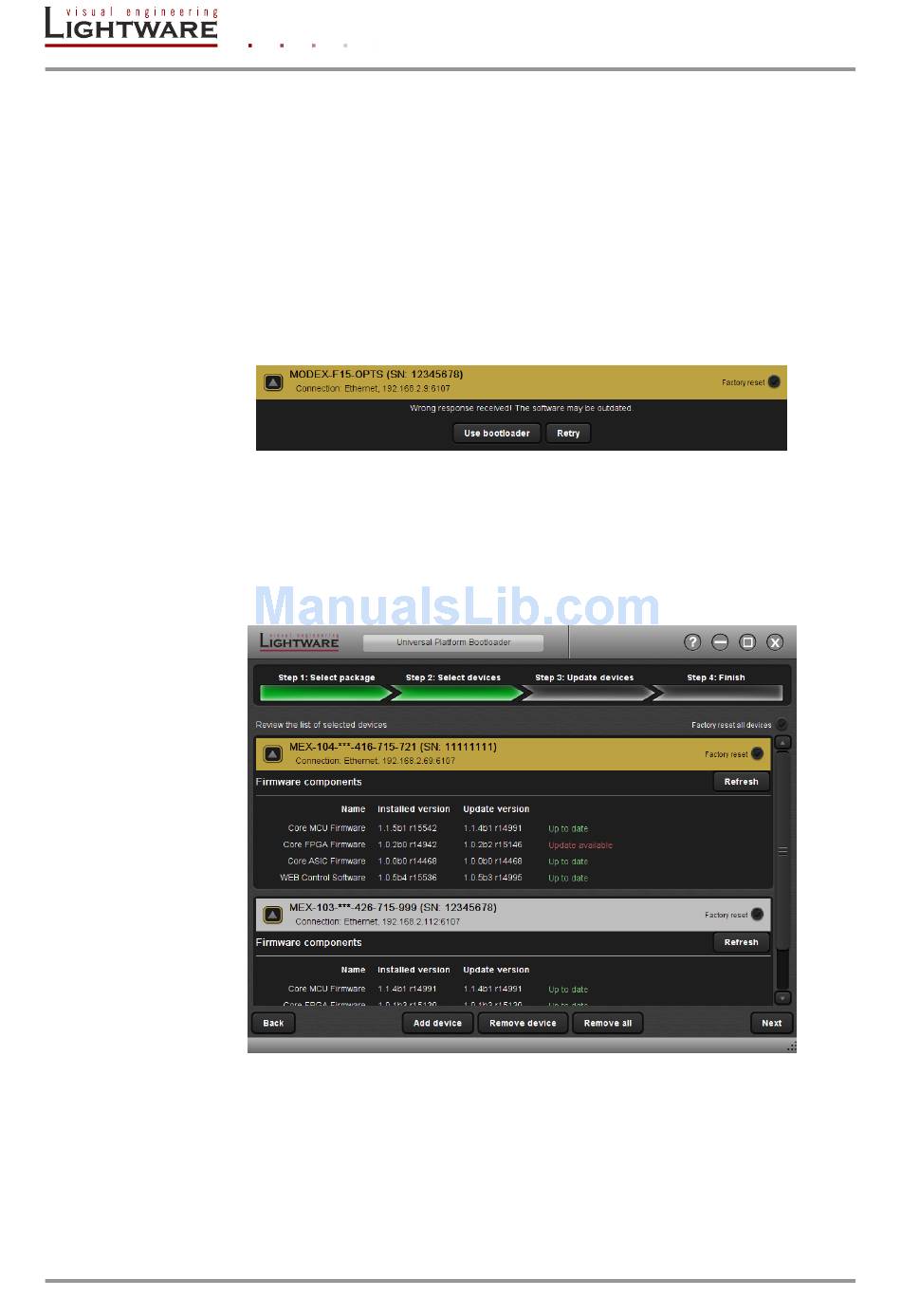

The following step is to select the device(s) which will be updated. The available and
supported devices are searched and listed automatically; currently, UPBSW is able to
update the firmware of devices connected via Ethernet or USB port. MODEX can be
updated via Ethernet. If the desired device is not listed, update the list by clicking the
Refresh button and/or type its IP address in the line.
Select the desired devices: highlight them with yellow cursor, then click OK.
The firmware components of the devices are listed on the following screen; their version
and the one that is available in the browsed package. Update versions will be uploaded
into the device(s).
Info: The media connector code of the MODEX is replaced by ***, since it has no importance
from firmware upgrade point of view.
Info: If MODEX cannot send the details about its firmware, click on the Use Bootloader button:
Add a device by clicking on the Add device button. The previous screen will be shown;
devices, what have already been added are marked in the first column. Select the desired
device(s) and click on OK.
Remove a device by selecting it (highlight with yellow) and click on Remove device button;
or click on Remove all button to empty the list.
Factory reset can be also executed by ticking the option on the right. The settings has the
same effect as resetting the device from front panel.
Click on Next button to step forward.
