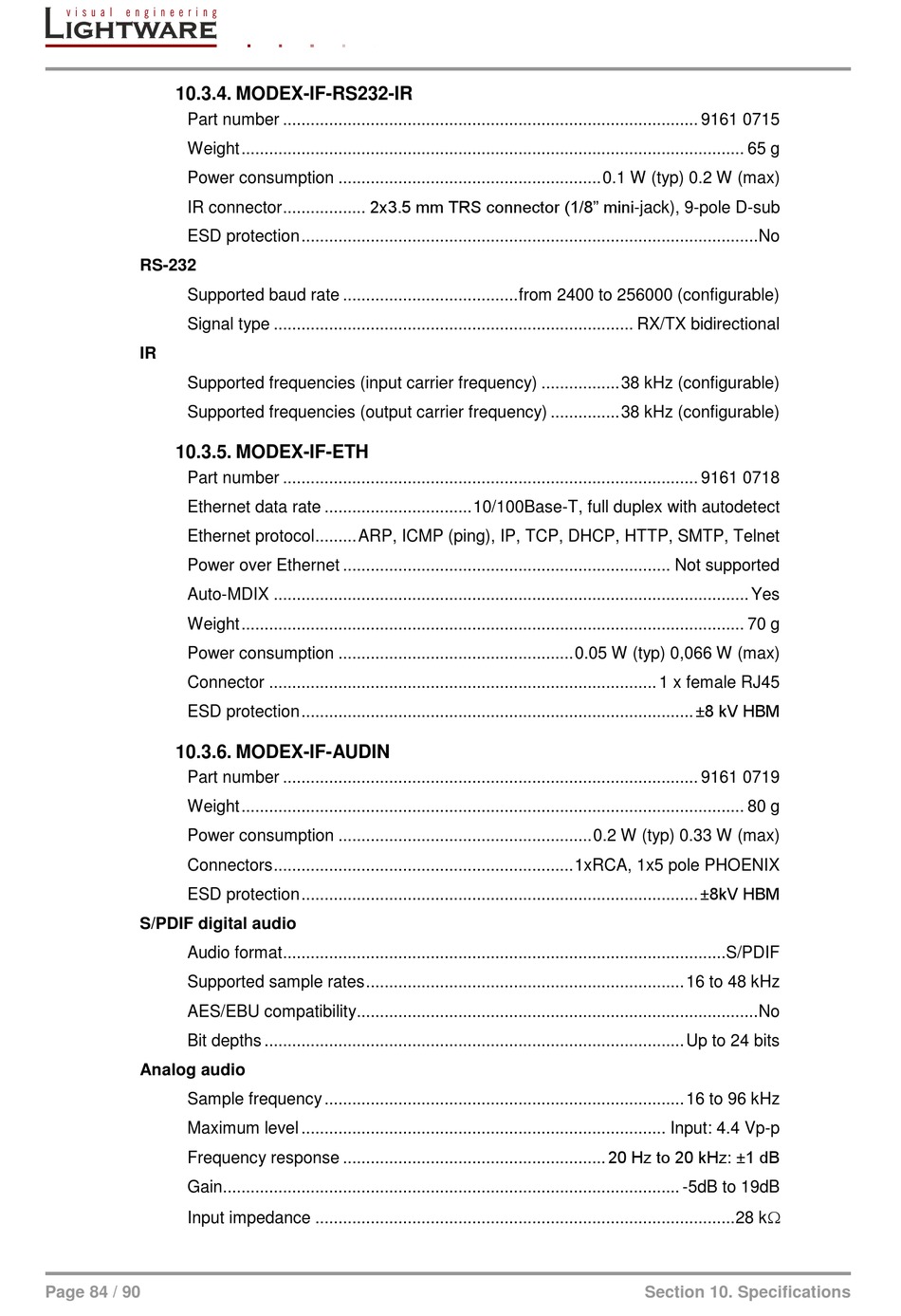

10.3.4. MODEX-IF-RS232-IR

Part number .......................................................................................... 9161 0715
Weight ............................................................................................................. 65 g
Power consumption ......................................................... 0.1 W (typ) 0.2 W (max)
IR connector .................. 2x3.5 mm TRS connector (1/8" mini-jack), 9-pole D-sub
ESD protection ................................................................................................... No
RS-232
Supported baud rate ...................................... from 2400 to 256000 (configurable)
Signal type .............................................................................. RX/TX bidirectional
IR
Supported frequencies (input carrier frequency) ................. 38 kHz (configurable)
Supported frequencies (output carrier frequency) ............... 38 kHz (configurable)

10.3.5. MODEX-IF-ETH

Part number .......................................................................................... 9161 0718
Ethernet data rate ................................ 10/100Base-T, full duplex with autodetect
Ethernet protocol ......... ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet
Power over Ethernet ....................................................................... Not supported
Auto-MDIX ....................................................................................................... Yes
Weight ............................................................................................................. 70 g
Power consumption ................................................... 0.05 W (typ) 0,066 W (max)
Connector .................................................................................... 1 x female RJ45
ESD protection ..................................................................................... ±8 kV HBM

10.3.6. MODEX-IF-AUDIN

Part number .......................................................................................... 9161 0719
Weight ............................................................................................................. 80 g
Power consumption ....................................................... 0.2 W (typ) 0.33 W (max)
Connectors ................................................................. 1xRCA, 1x5 pole PHOENIX
ESD protection ...................................................................................... ±8kV HBM
S/PDIF digital audio
Audio format ................................................................................................ S/PDIF
Supported sample rates ..................................................................... 16 to 48 kHz
AES/EBU compatibility....................................................................................... No
Bit depths ........................................................................................... Up to 24 bits
Analog audio
Sample frequency .............................................................................. 16 to 96 kHz
Maximum level ............................................................................... Input: 4.4 Vp-p
Frequency response ......................................................... 20 Hz to 20 kHz: ±1 dB
Gain................................................................................................... -5dB to 19dB
Input impedance ........................................................................................... 28 k
