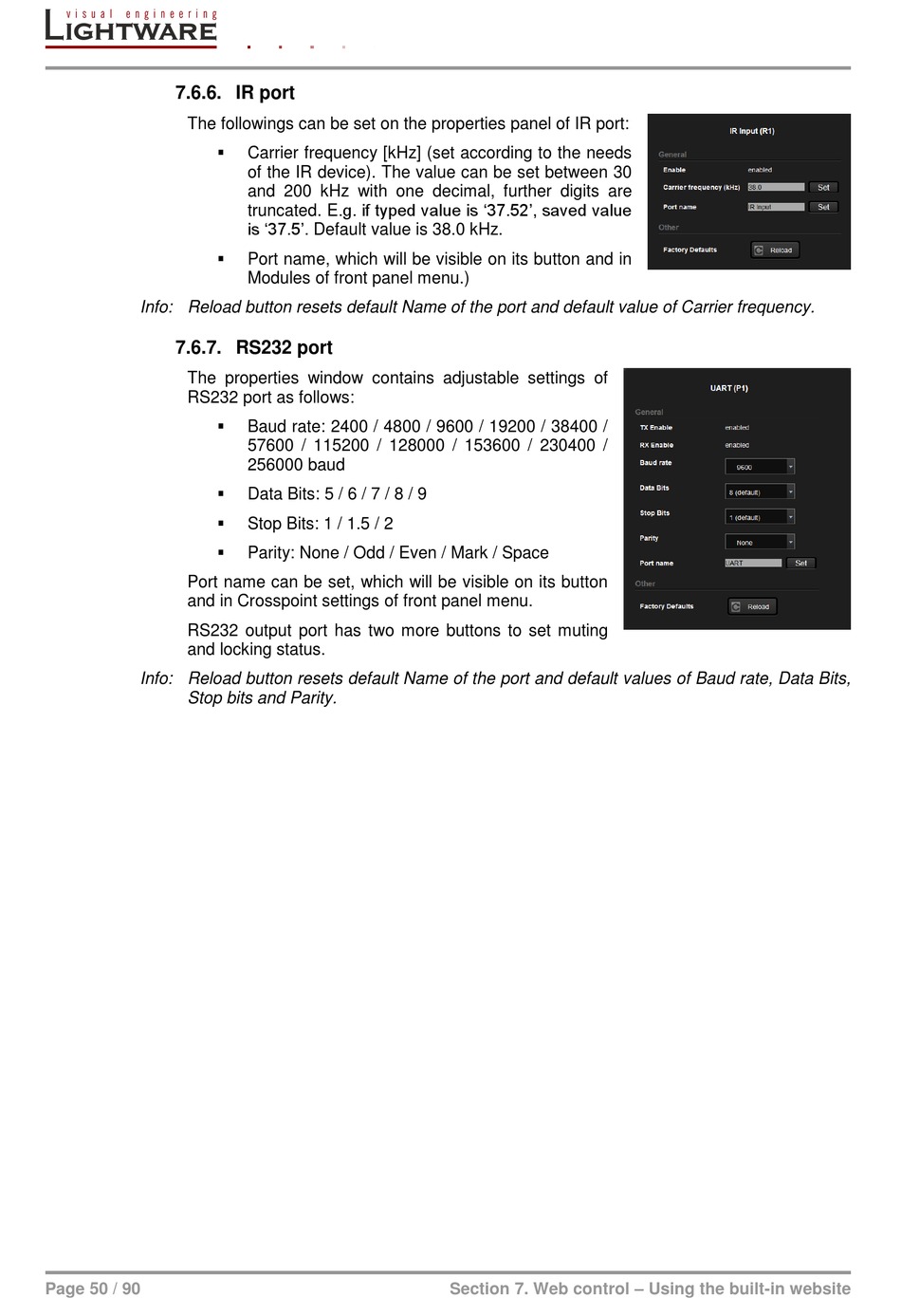

7.6.6. IR port

The followings can be set on the properties panel of IR port:
Info: Reload button resets default Name of the port and default value of Carrier frequency.

7.6.7. RS232 port

The properties window contains adjustable settings of
RS232 port as follows:
Port name can be set, which will be visible on its button
and in Crosspoint settings of front panel menu.
RS232 output port has two more buttons to set muting
and locking status.
Info: Reload button resets default Name of the port and default values of Baud rate, Data Bits,
Stop bits and Parity.
Page 50 / 90

Carrier frequency [kHz] (set according to the needs
of the IR device). The value can be set between 30
and 200 kHz with one decimal, further digits are
truncated. E.g. if typed value is '37.52', saved value
is '37.5'. Default value is 38.0 kHz.

Port name, which will be visible on its button and in
Modules of front panel menu.)

Baud rate: 2400 / 4800 / 9600 / 19200 / 38400 /
57600 / 115200 / 128000 / 153600 / 230400 /
256000 baud

Data Bits: 5 / 6 / 7 / 8 / 9

Stop Bits: 1 / 1.5 / 2

Parity: None / Odd / Even / Mark / Space
