9.2.3. Connect the computer to the MODEX device(s)

Make sure that the computer and the MODEX are connected and the connection is
established either by a patch cable via LAN, or directly by a cross-link cable.
Important! Do not connect more than one port of a MODEX to the same LAN to avoid loops. In the
same way, if you want to upgrade the firmware of a transmitter and a receiver, connect
both to the LAN, but make sure they are not connected via fiber optical cable.

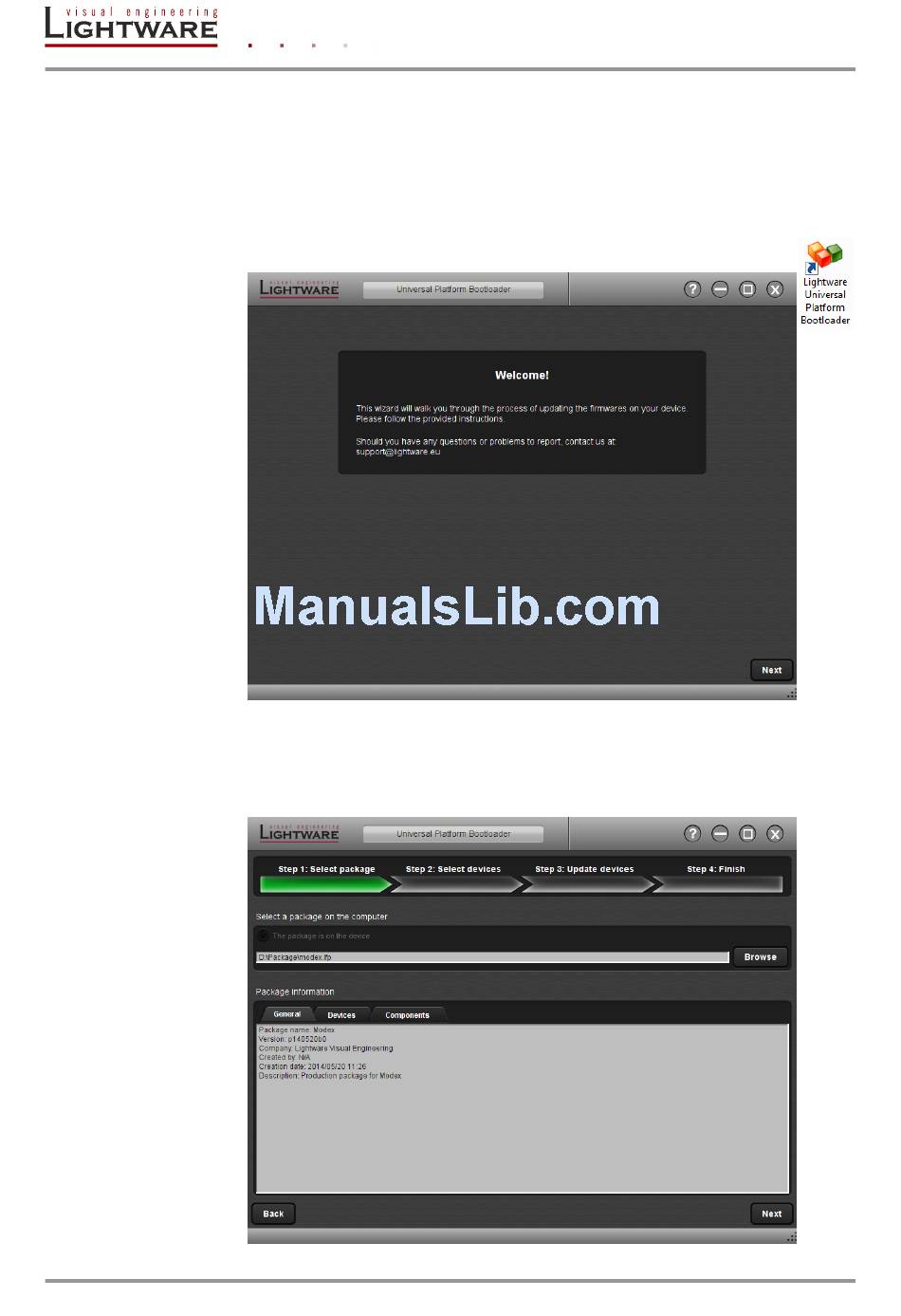

9.2.4. Start the UPBSW and follow the instructions shown on the screen

The welcome screen will appear, click on Next button.
Step 1. Select package
Select the package (*.lfp file) on the computer that will be used for the upgrading. Click on
Browse button and select the file.
Page 72 / 90 Section 9. Firmware upgrade
