3. Installation

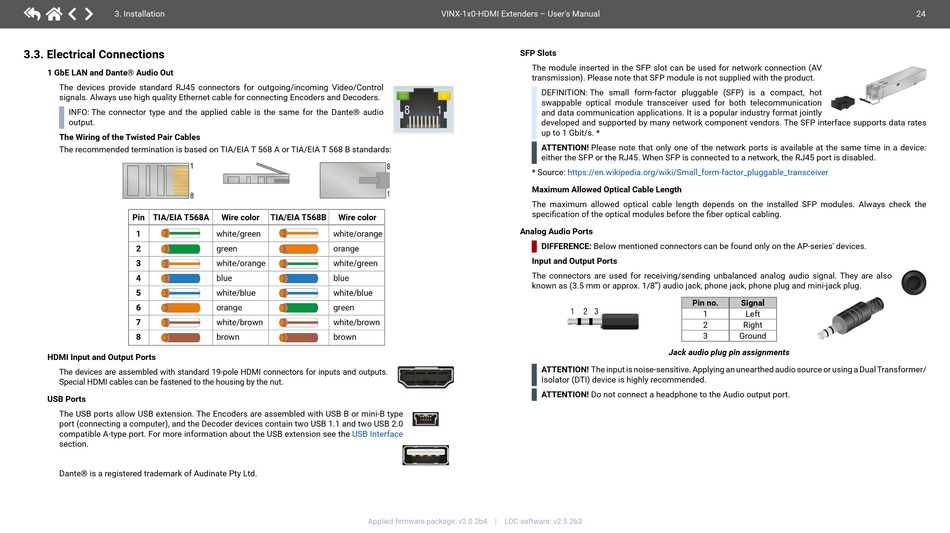

3.3. Electrical Connections

1 GbE LAN and Dante® Audio Out
The devices provide standard RJ45 connectors for outgoing/incoming Video/Control
signals. Always use high quality Ethernet cable for connecting Encoders and Decoders.
INFO:
The connector type and the applied cable is the same for the Dante® audio
output.
The Wiring of the Twisted Pair Cables
TherecommendedterminationisbasedonTIA/EIAT568AorTIA/EIAT568Bstandards:
HDMI Input and Output Ports
Thedevicesareassembledwithstandard19-poleHDMIconnectorsforinputsandoutputs.
Special HDMI cables can be fastened to the housing by the nut.
USB Ports
The USB ports allow USB extension. The Encoders are assembled with USB B or mini-B type
port (connecting a computer), and the Decoder devices contain two USB 1.1 and two USB 2.0
compatible A-type port. For more information about the USB extension see the
section.
Dante®isaregisteredtrademarkofAudinatePtyLtd.
VINX-1x0-HDMIExtenders–User'sManual
SFP Slots
The module inserted in the SFP slot can be used for network connection (AV
transmission). Please note that SFP module is not supplied with the product.
* Source:
Maximum Allowed Optical Cable Length
The maximum allowed optical cable length depends on the installed SFP modules. Always check the
specificationoftheopticalmodulesbeforethefiberopticalcabling.
Analog Audio Ports
Input and Output Ports
The connectors are used for receiving/sending unbalanced analog audio signal. They are also
knownas(3.5mmorapprox.1/8")audiojack,phonejack,phoneplugandmini-jackplug.
USB Interface
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3

DEFINITION: The small form-factor pluggable (SFP) is a compact, hot
swappable optical module transceiver used for both telecommunication
and data communication applications. It is a popular industry format jointly
developed and supported by many network component vendors. The SFP interface supports data rates
upto1Gbit/s.*

ATTENTION! Please note that only one of the network ports is available at the same time in a device:
eithertheSFPortheRJ45.WhenSFPisconnectedtoanetwork,theRJ45portisdisabled.
https://en.wikipedia.org/wiki/Small_form-factor_pluggable_transceiver
DIFFERENCE:
Below mentioned connectors can be found only on the AP-series' devices.
Pin no.
1
2
3
Jack audio plug pin assignments
ATTENTION!
Theinputisnoise-sensitive.ApplyinganunearthedaudiosourceorusingaDualTransformer/
Isolator (DTI) device is highly recommended.
ATTENTION!
Do not connect a headphone to the Audio output port.
24
Signal
Left
Right
Ground
