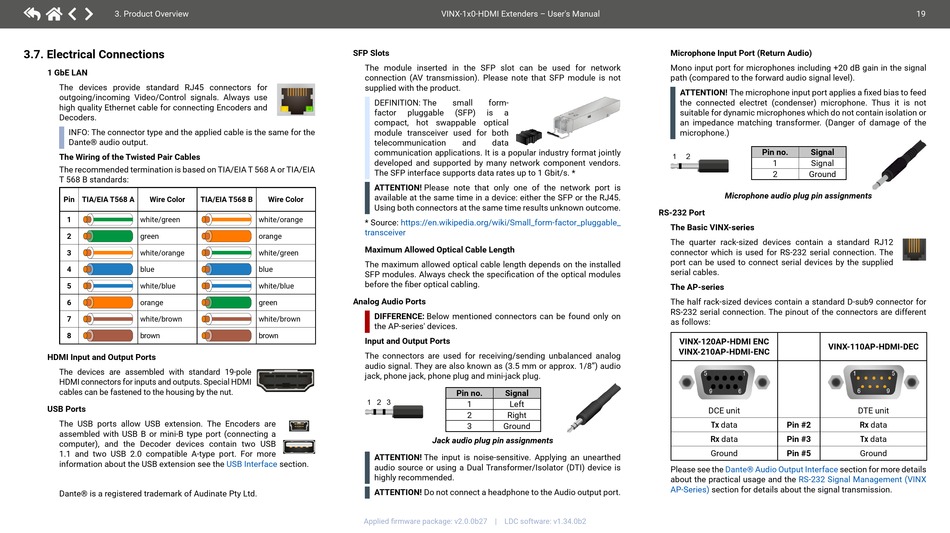

3. Product Overview

3.7. Electrical Connections

1 GbE LAN
The devices provide standard RJ45 connectors for
outgoing/incoming Video/Control signals. Always use
high quality Ethernet cable for connecting Encoders and
Decoders.
INFO:
The connector type and the applied cable is the same for the
Dante® audio output.
The Wiring of the Twisted Pair Cables
TherecommendedterminationisbasedonTIA/EIAT568AorTIA/EIA
T568Bstandards:
Pin TIA/EIA T568 A Wire Color TIA/EIA T568 B
1 white/green
2 green
3 white/orange
4 blue
5 white/blue
6 orange
7 white/brown
8 brown
HDMI Input and Output Ports
The devices are assembled with standard 19-pole
HDMI connectors for inputs and outputs. Special HDMI
cables can be fastened to the housing by the nut.
USB Ports
The USB ports allow USB extension. The Encoders are
assembled with USB B or mini-B type port (connecting a
computer), and the Decoder devices contain two USB
1.1 and two USB 2.0 compatible A-type port. For more
information about the USB extension see the
Dante®isaregisteredtrademarkofAudinatePtyLtd.
SFP Slots
The module inserted in the SFP slot can be used for network
connection (AV transmission). Please note that SFP module is not
supplied with the product.

DEFINITION:
factor
compact, hot swappable optical
module transceiver used for both
telecommunication
communication applications. It is a popular industry format jointly
developed and supported by many network component vendors.
TheSFPinterfacesupportsdataratesupto1Gbit/s.*
ATTENTION!

availableatthesametimeinadevice:eithertheSFPortheRJ45.
Wire Color
Using both connectors at the same time results unknown outcome.
white/orange
* Source: https://en.wikipedia.org/wiki/Small_form-factor_pluggable_
transceiver
orange
Maximum Allowed Optical Cable Length
white/green
The maximum allowed optical cable length depends on the installed
blue
SFPmodules.Alwayscheckthespecificationoftheopticalmodules
beforethefiberopticalcabling.
white/blue
Analog Audio Ports
green
DIFFERENCE:

white/brown
the AP-series' devices.
brown
Input and Output Ports
The connectors are used for receiving/sending unbalanced analog
audiosignal.Theyarealsoknownas(3.5mmorapprox.1/8")audio
jack, phone jack, phone plug and mini-jack plug.

ATTENTION!
USB Interface section.
audiosourceorusingaDualTransformer/Isolator(DTI)deviceis
highly recommended.

ATTENTION!
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
VINX-1x0-HDMI Extenders – User's Manual
The small form-
pluggable (SFP) is a
and data
Please note that only one of the network port is
Below mentioned connectors can be found only on
Pin no. Signal
1 Left
2 Right
3 Ground
Jack audio plug pin assignments
The input is noise-sensitive. Applying an unearthed
Do not connect a headphone to the Audio output port.
Microphone Input Port (Return Audio)
Mono input port for microphones including +20 dB gain in the signal
path (compared to the forward audio signal level).
ATTENTION!
Themicrophoneinputportappliesafixedbiastofeed
the connected electret (condenser) microphone. Thus it is not
suitable for dynamic microphones which do not contain isolation or
an impedance matching transformer. (Danger of damage of the
microphone.)
Pin no. Signal
1 Signal
2 Ground
Microphone audio plug pin assignments
RS-232 Port
The Basic VINX-series
The quarter rack-sized devices contain a standard RJ12
connector which is used for RS-232 serial connection. The
port can be used to connect serial devices by the supplied
serial cables.
The AP-series
Thehalfrack-sizeddevicescontainastandardD-sub9connectorfor
RS-232 serial connection. The pinout of the connectors are different
as follows:
VINX-120AP-HDMI ENC
VINX-110AP-HDMI-DEC
VINX-210AP-HDMI-ENC
DCE unit
Tx data Pin #2
Rx data Pin #3
Ground Pin #5
Please see the Dante® Audio Output Interface
about the practical usage and the RS-232 Signal Management (VINX
AP-Series) section for details about the signal transmission.
19
DTE unit
Rx data
Tx data
Ground
section for more details
