2.6.10. Neutrik power connector

MODEX-CON-OPTS-NT-PCN and MODEX-CON-OPTM-NT-PCN media connectors are
assembled with special Neutrik power connector, NAC3MPA-1 (Power In). It ensures a
very rugged solution in combination with a locking device in order to guarantee a safe
power connection.
Important! PowerCON is a connector without breaking capacity; it should not be connected or
disconnected under load or live!
After plugging it in, turn the plug clockwise; to disconnect, first pull the latch backward, turn
the plug counterclockwise and unplug the connector.
Supplied power cable
The cable is assembled with NAC3FCA Neutrik power connector (Power In) with white
chuck that fits for thin cables (diameter between 6.0 and 11.0 mm). A black-colored chuck
is also supplied that fits for thick cables (diameter between 9.5 and 15.0 mm).
Assembling
Important! Cable assembling can be only done by qualified person!
If the cable needs to be replaced, the following steps help when assembling:
Step 1. Put bushing and chuck onto the cable.
Step 2. Prepare cable.
Step 3. Insert the wire into the terminals and fasten the clamping device by a flat screw
Step 4. Push insert and chuck into housing (pay attention to the guiding keyway!)
Step 5. Fasten bushing by means of a fork wrench 3/4", min. Torque 2.5 Nm.
Page 18 / 90
2.

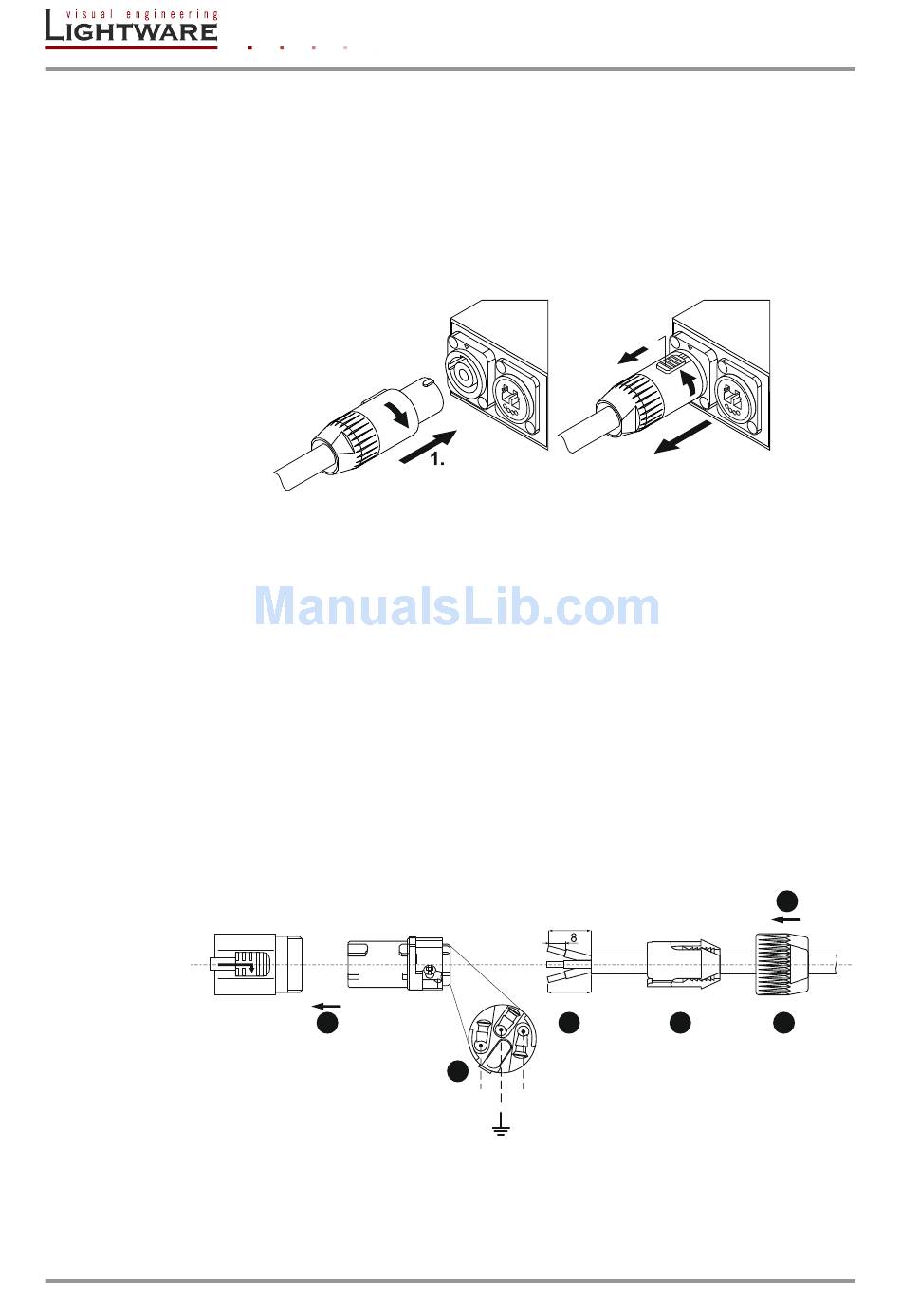

Figure 2-4. Locking and unlocking Neutrik power connector
driver.
4
Figure 2-5. Neutrik power connector assembling
20
23
2
3
L N
Section 2. Controls and connections
1.
2.
3.
5
1 1
