7.9. Advanced view

Advanced view is the surface for LW3 protocol settings with terminal window. Commands
and specific parameters (that are not available on the user interface) can be run and set.
Detailed information about the protocol, nodes, methods and parameters can be found in
chapter
1 Terminal window
2 Command line
3 Protocol tree
4 Node list
Info: If a module is locked, its settings cannot be changed; parameters, values will not be saved,
and factory default settings cannot be reloaded.
Section 7. Web control – Using the built-in website
8 on page 58. Click on Close button to hide Advanced view.
1
2
Commands and responses are listed in this window. The
timecode in every row shows the exact time when the command
was sent or the response received. Sent command is displayed
in red and starts with '>' character, received response is
displayed in blue and starts with '<' character. The content of the
window can be emptied by the Clear button.
Command text can be typed directly by this field and executed
by the Send button.
The protocol tree is available via this panel. Select an item to see
its content.
Correspondent parameters and nodes are shown which are
connected to the selected item in the protocol tree.
Manual button:
Set button:
Call button:
3

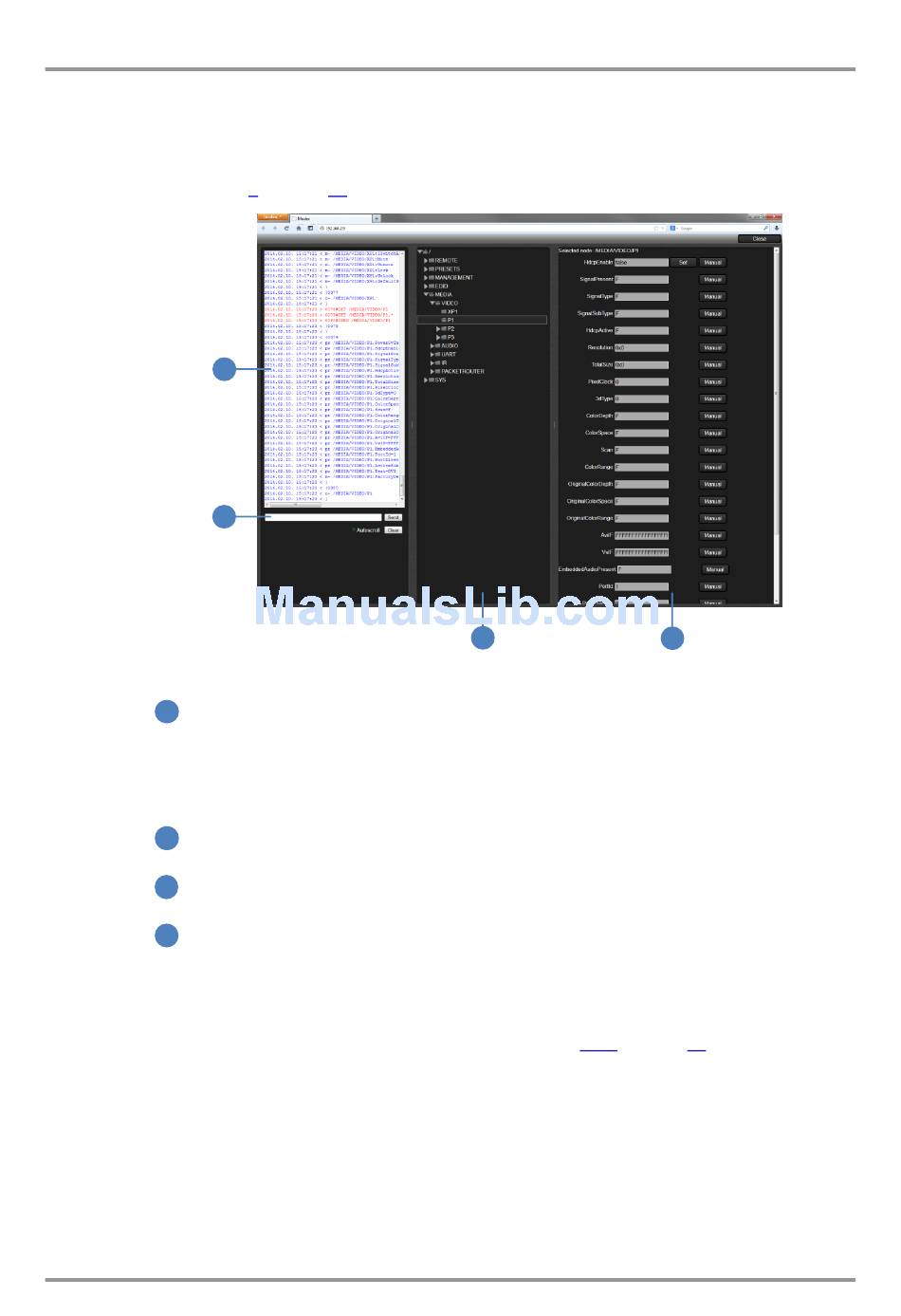

Figure 7-20. Debug window
Manual (short description) of the node can be
called and displayed in the terminal window.
See more information about manuals in
section 8.2.9
Saves the value/parameter typed in the
textbox.
Calls the method, e.g. reloads factory default
settings.
MODEX-OPTS, MODEX-OPTM
User's Manual
4
on page 66.
