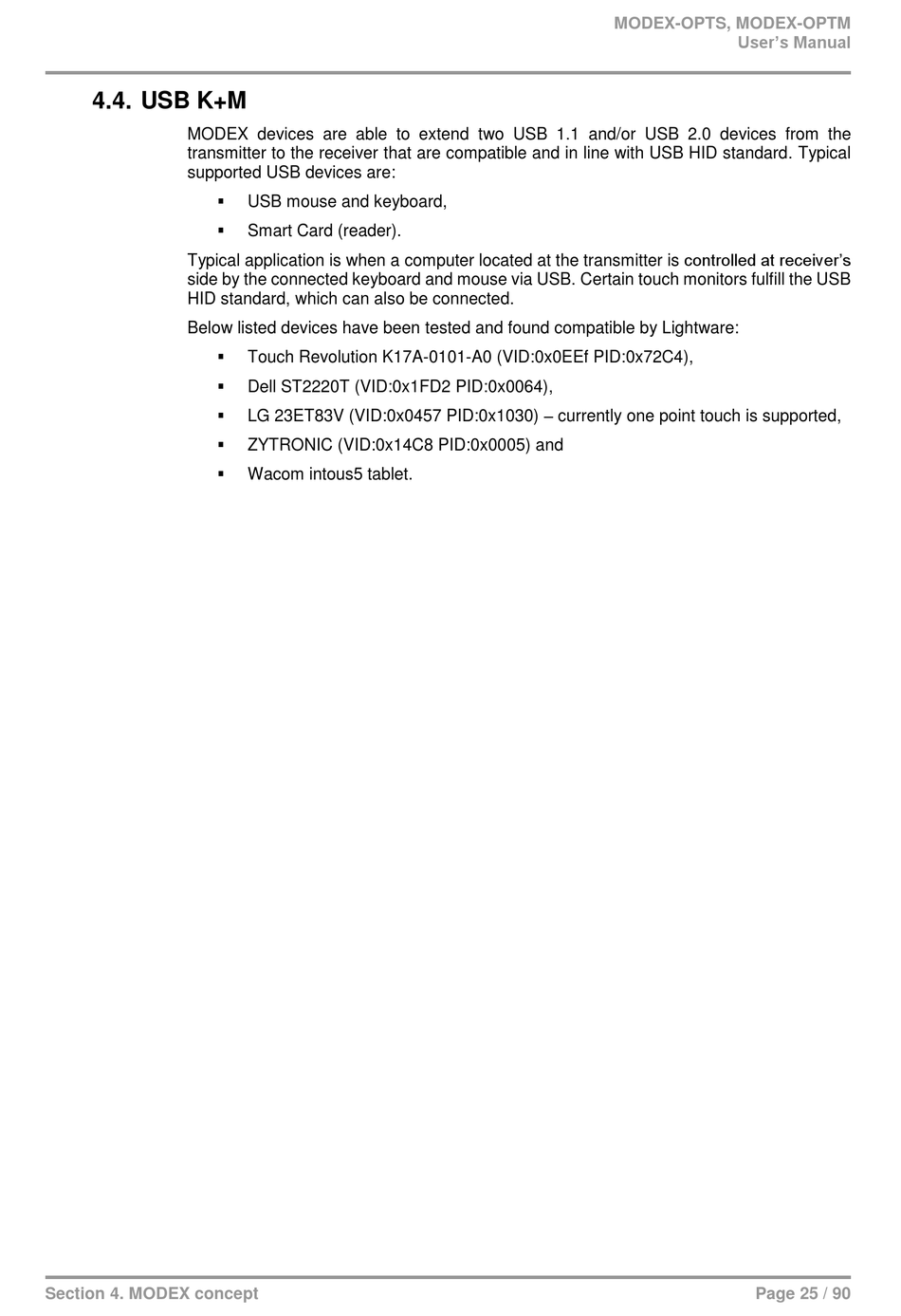

4.4. USB K+M

MODEX devices are able to extend two USB 1.1 and/or USB 2.0 devices from the
transmitter to the receiver that are compatible and in line with USB HID standard. Typical
supported USB devices are:
Typical application is when a computer located at the transmitter is controlled at receiver's
side by the connected keyboard and mouse via USB. Certain touch monitors fulfill the USB
HID standard, which can also be connected.
Below listed devices have been tested and found compatible by Lightware:
Section 4. MODEX concept

USB mouse and keyboard,

Smart Card (reader).

Touch Revolution K17A-0101-A0 (VID:0x0EEf PID:0x72C4),

Dell ST2220T (VID:0x1FD2 PID:0x0064),
 LG 23ET83V (VID:0x0457 PID:0x1030) – currently one point touch is supported,

ZYTRONIC (VID:0x14C8 PID:0x0005) and

Wacom intous5 tablet.
